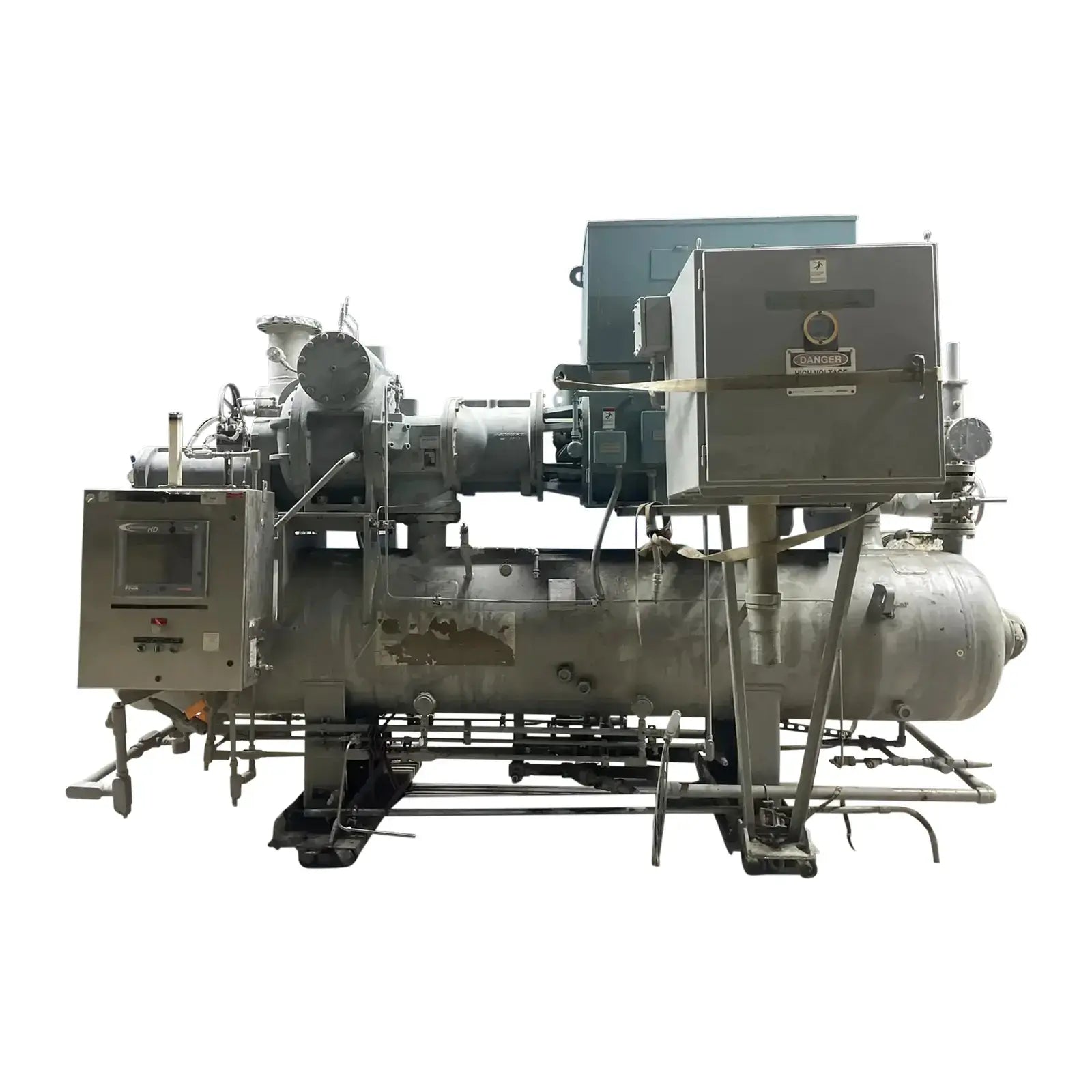

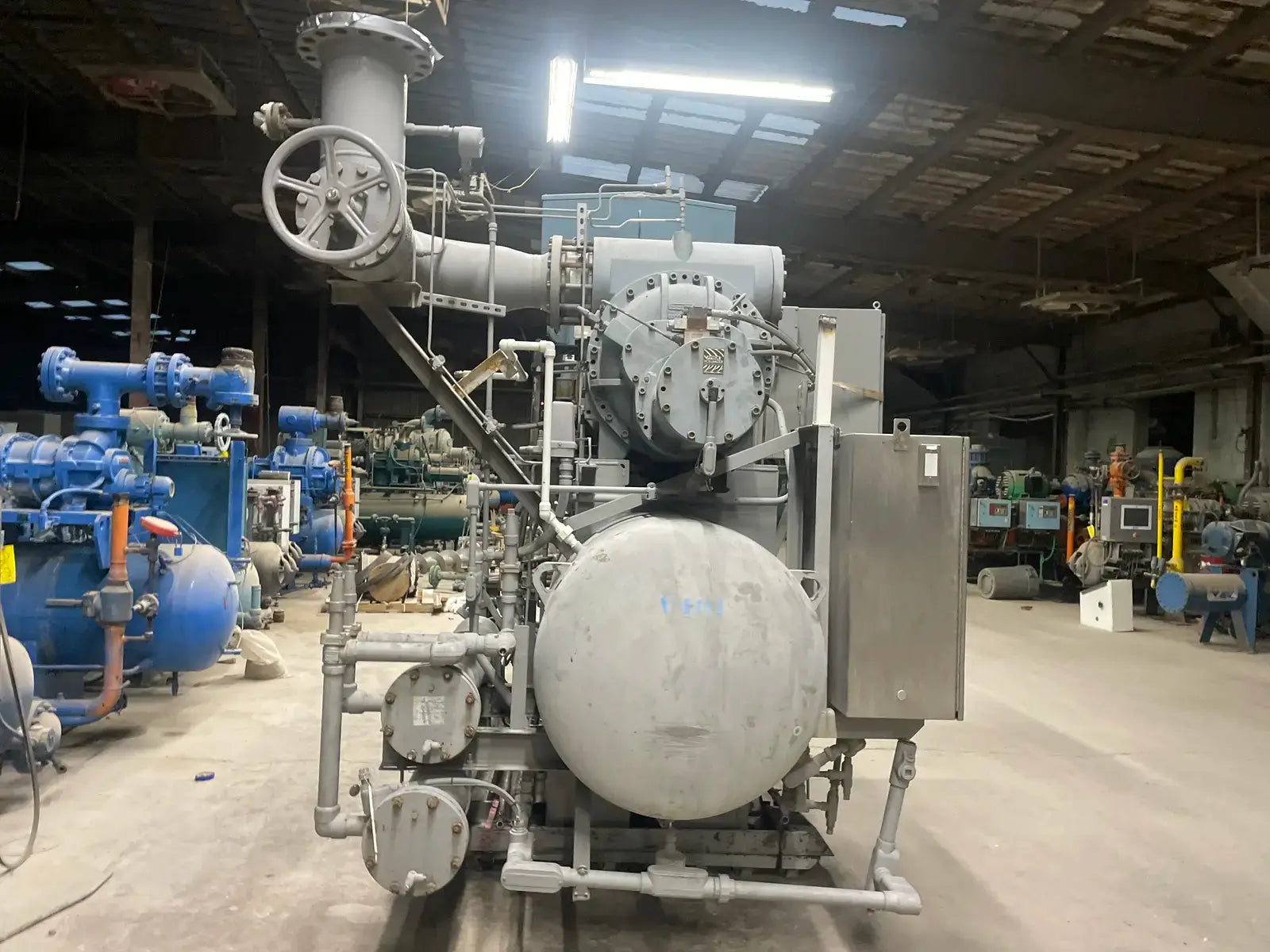

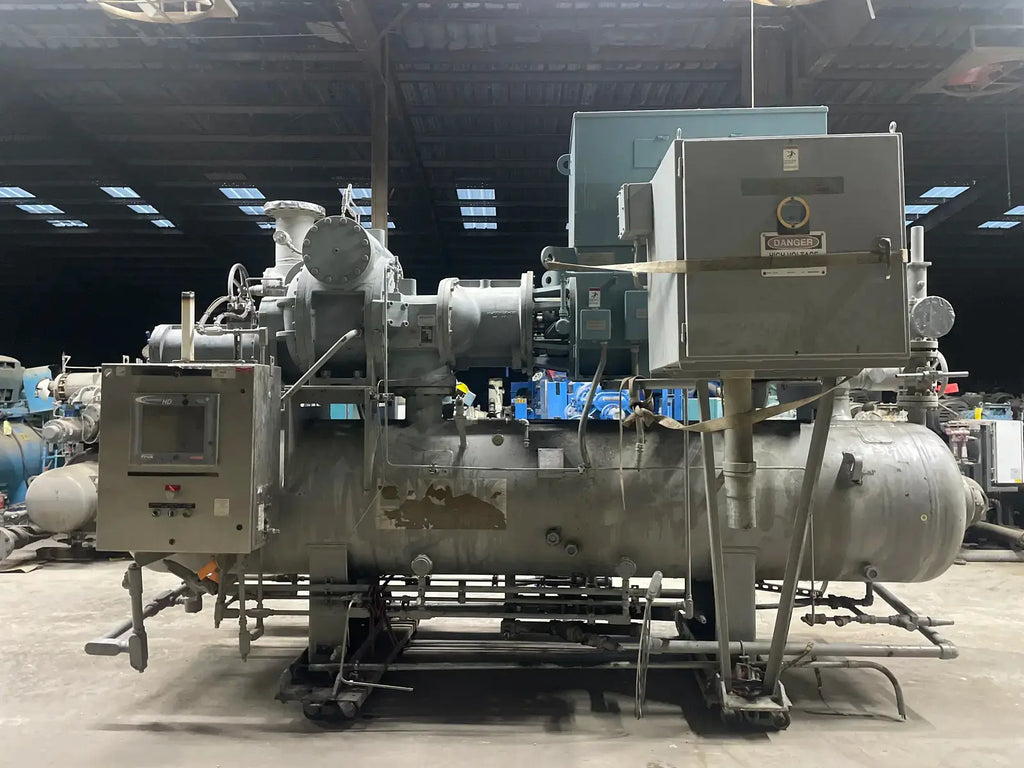

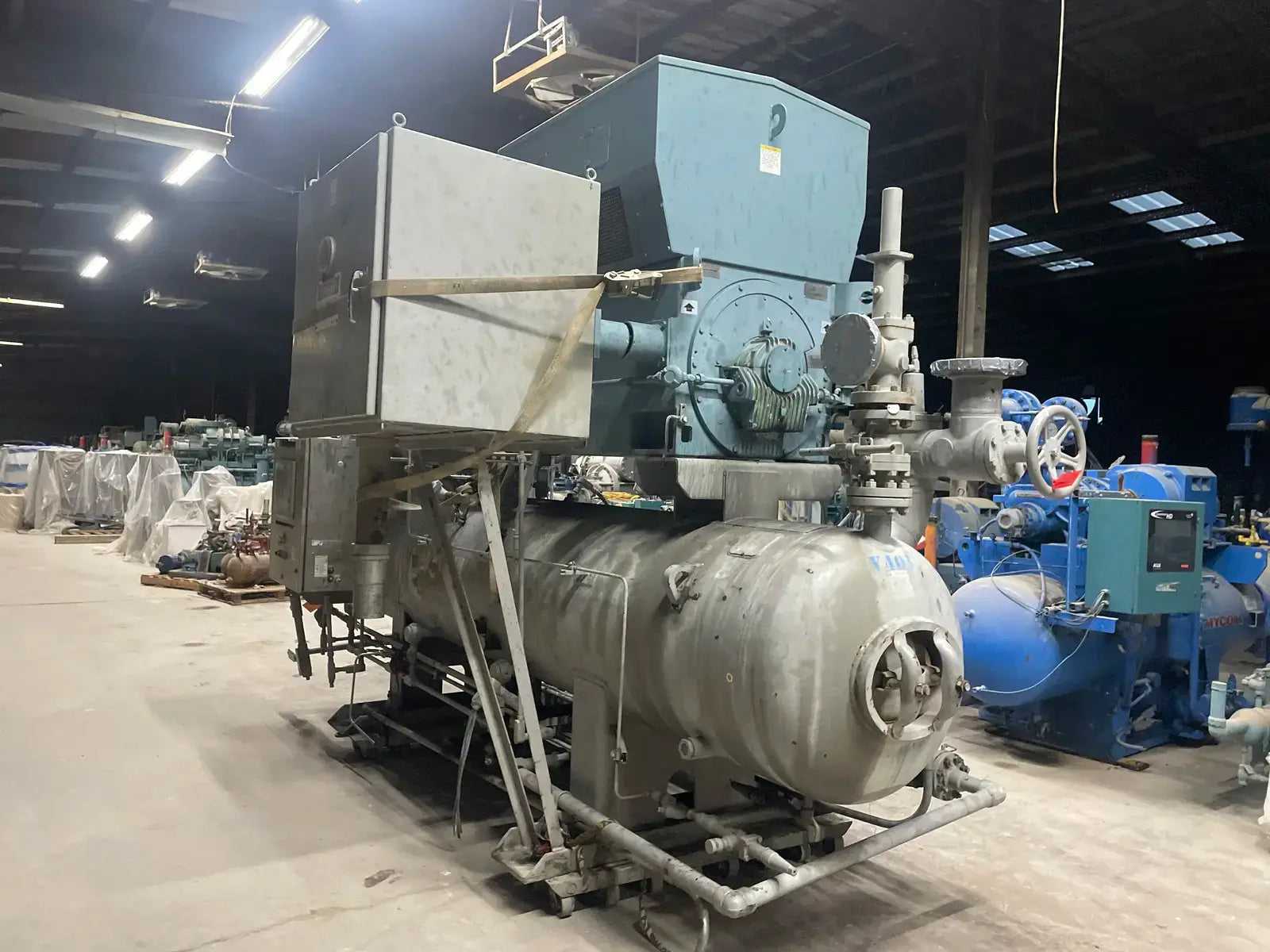

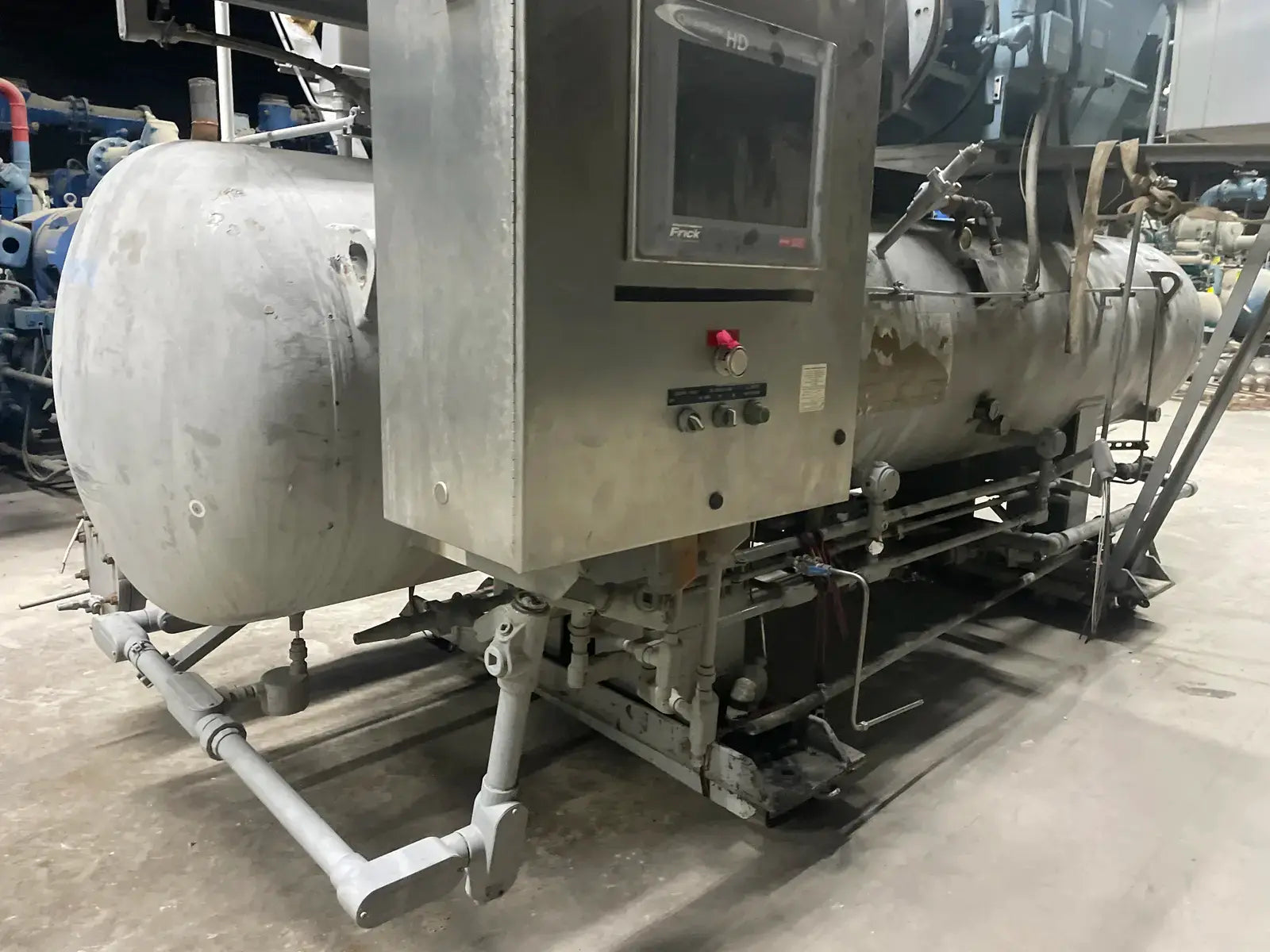

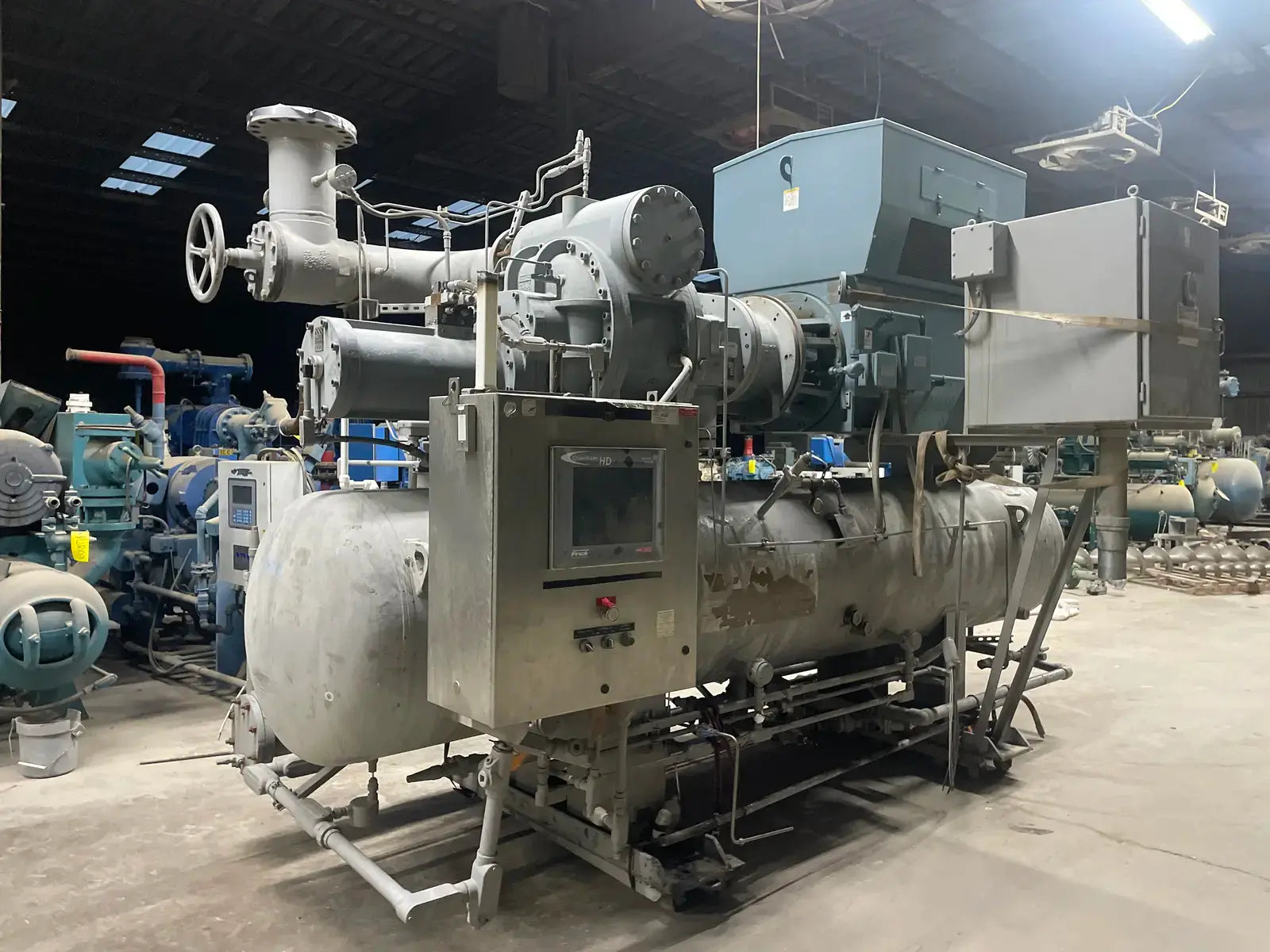

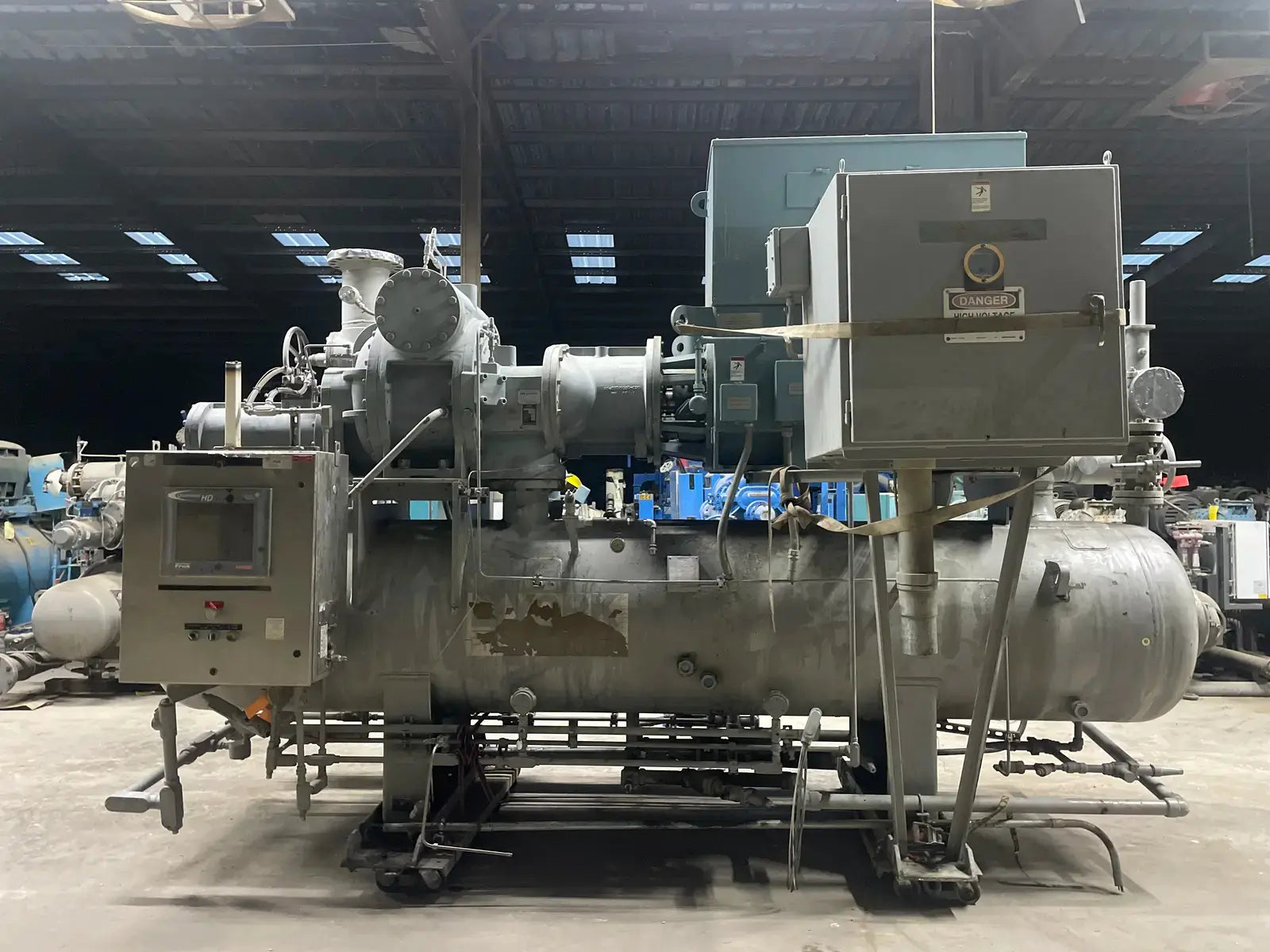

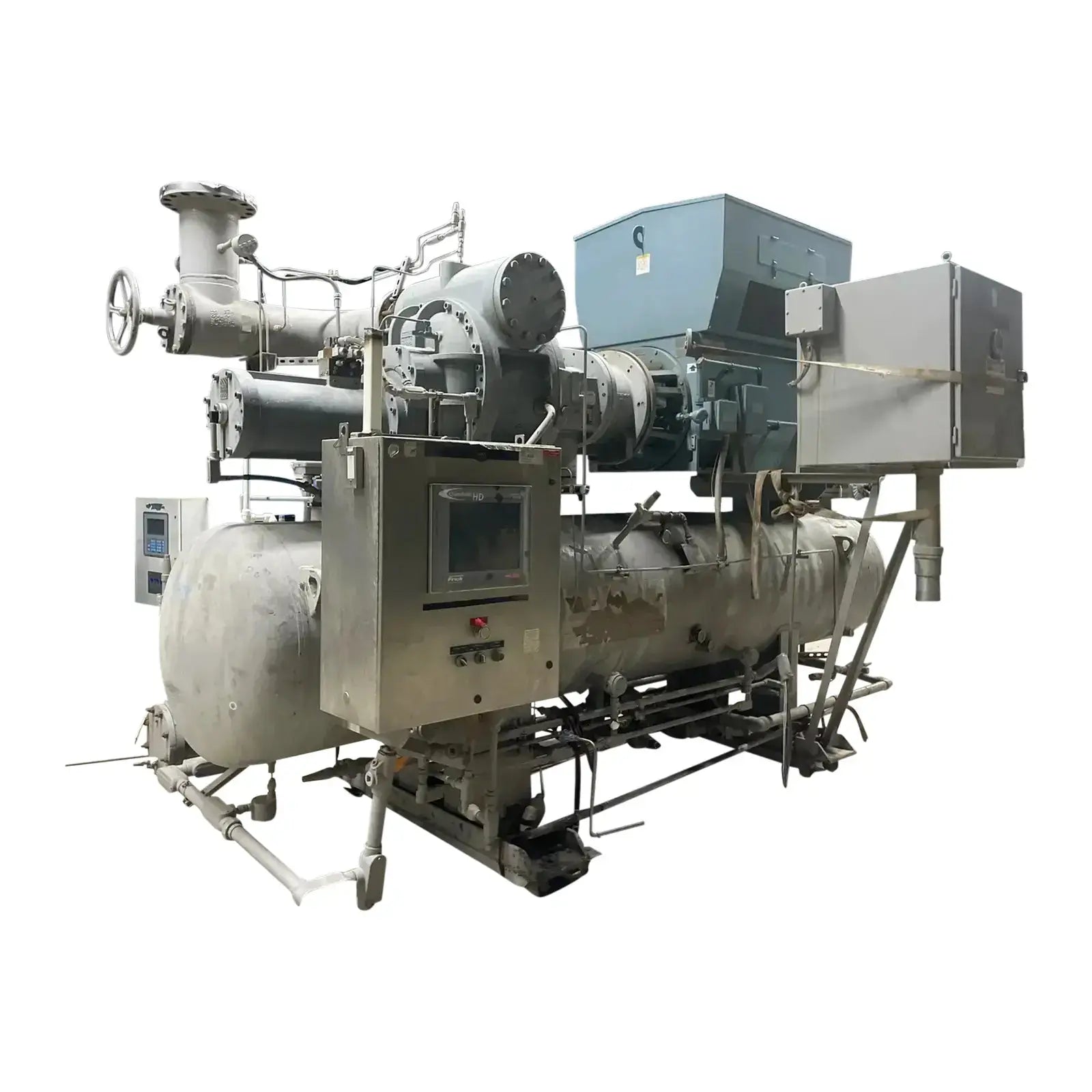

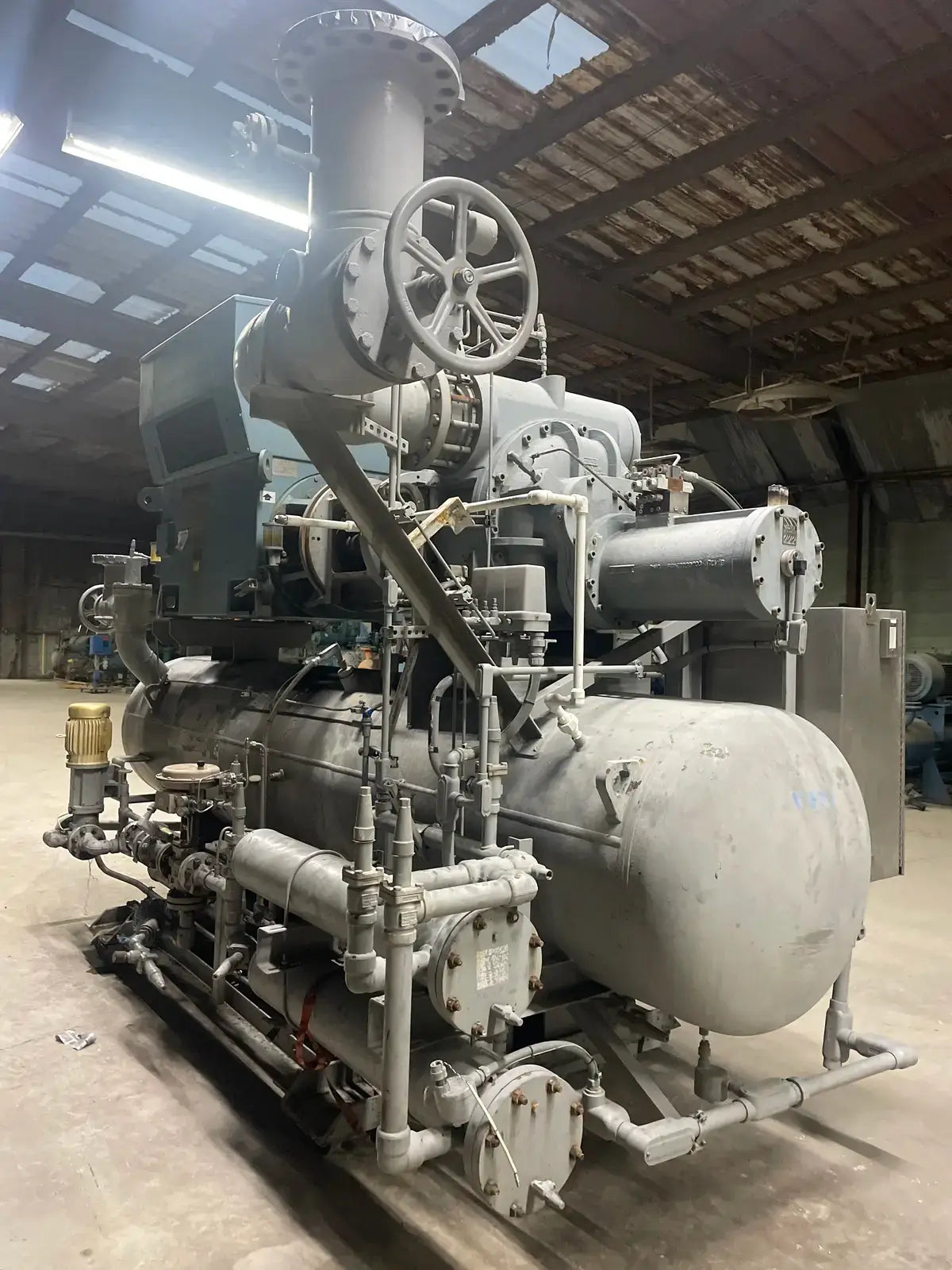

Frick RWF-316 Rotary Screw Compressor Package (Frick SGC2813, 800 HP, 4160 V, Frick HD Quantum Control Panel)

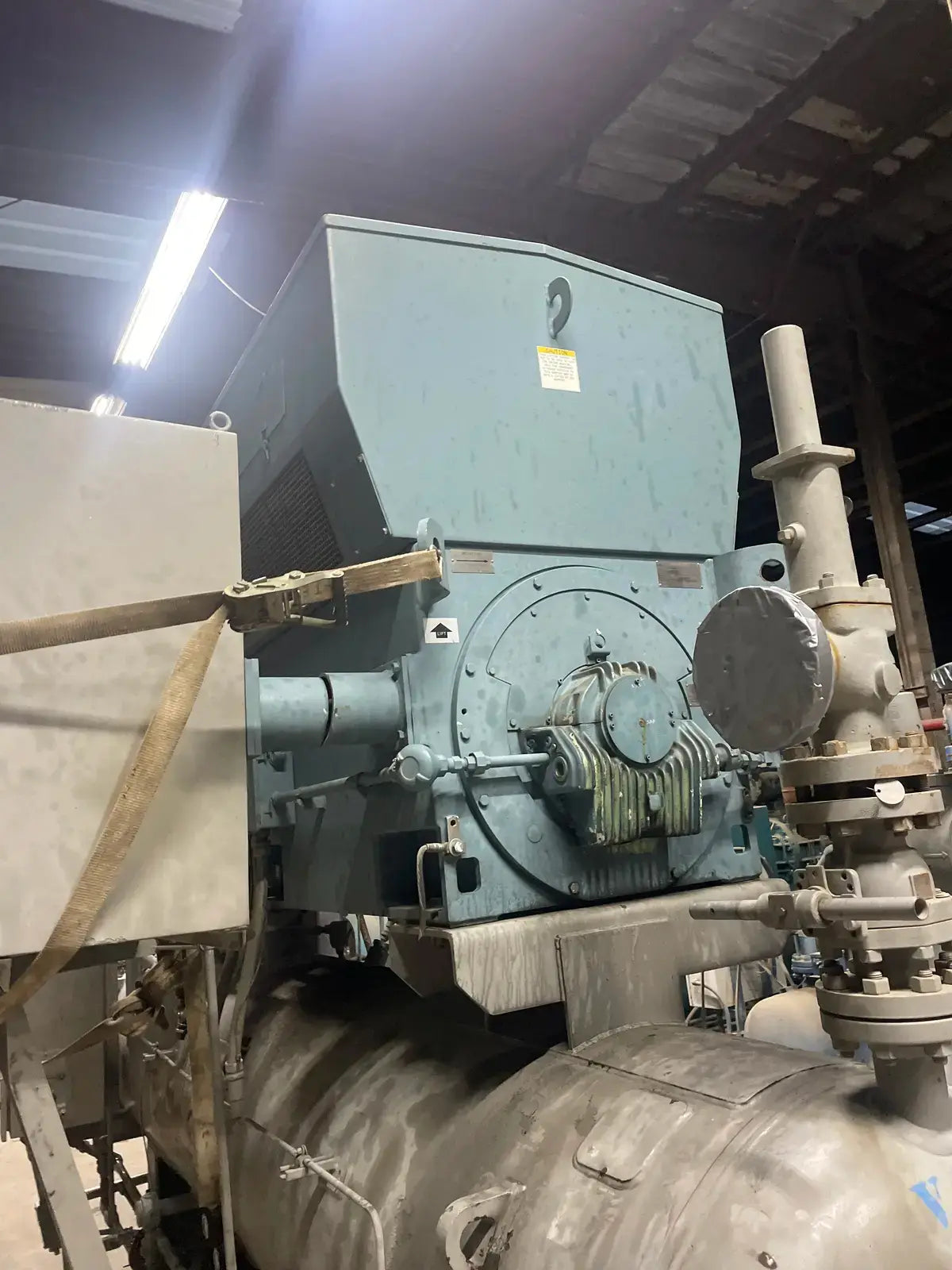

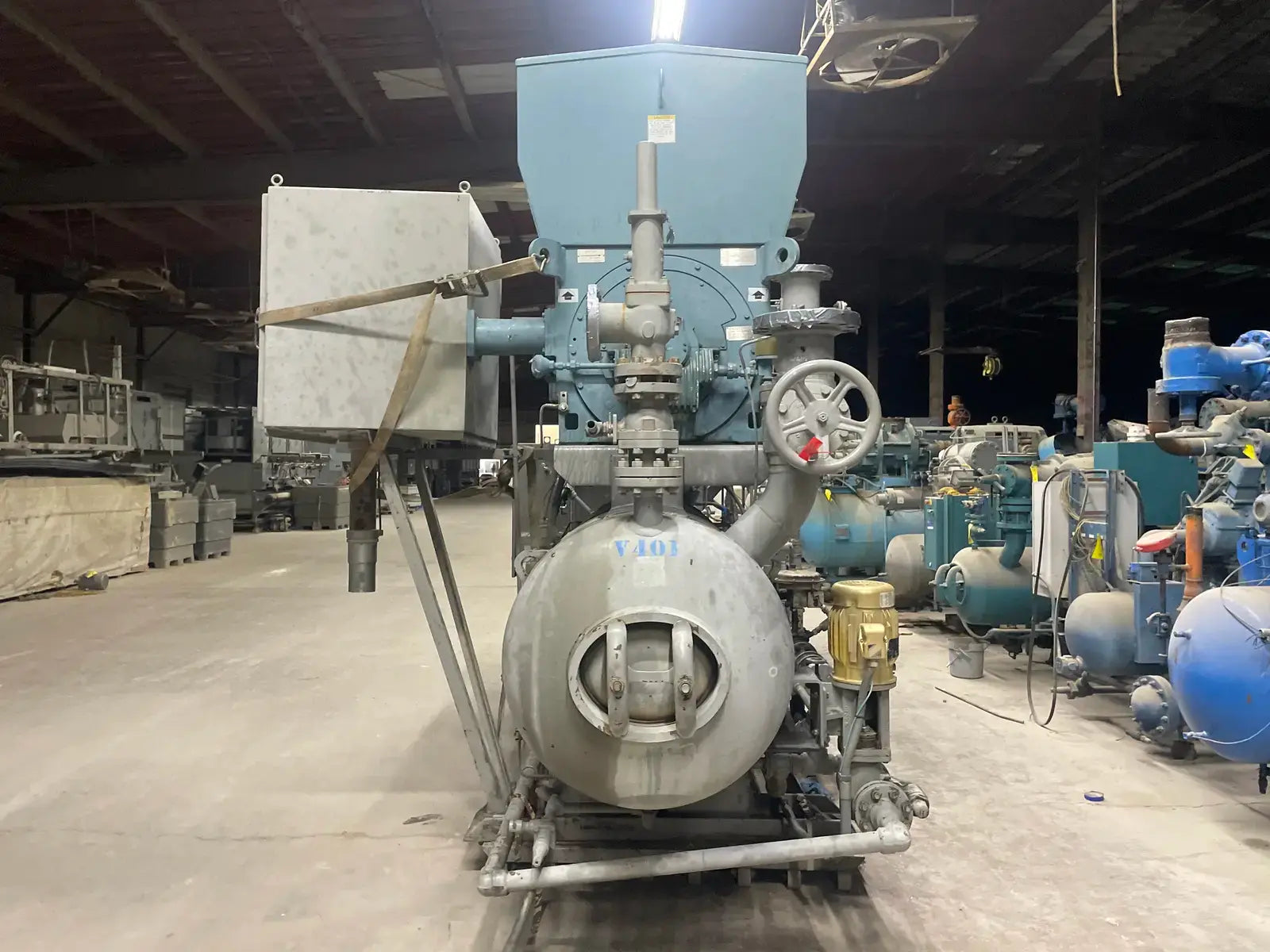

Frick Rotary Screw Compressor Package. Rotary Screw Compressor Unit Package Details: Sales Order No; RWF-316. Serial No: 0153. Refrigerant: Multi-Refrigerant. Max Design Pressure: PSIG: 300. kPa: 2068. Year: 2008. Frick Bare Screw Compressor Details: Model/Serial No: SGC28130337Z. Refrigerant: MixedGas. Volume Ratio: 2.2-5.0. Max Driver Speed RPM: 3600. Swept Volume FT/Min Max Speed: 1890. Max Allowable Pressure PSIG: 400. Year of MFR: 2008. Previously Rebuilt by Apex Refrigeration Services. Rebuilt Date: 7/17/2015. Package has a Frick Quantum HD Control Panel, Powered by an 800HP, 4160Volts, 3560RPM, TECO Westinghouse World Series Induction Motor.
Product Details
- Stock No: YTAD01
- Manufacturer: Frick
- Model: RWF-316
- Serial Number: 0153
- Compressor Type: Screw
- Package Included? Yes
- Stage Type: High Stage
Package Details
- Package Manufacturer: Frick
- Package Model: RWF-316
- Package SN: 0153
- Package Order: 293562-1000
- Package Max Design Pressure (PSIG): 300

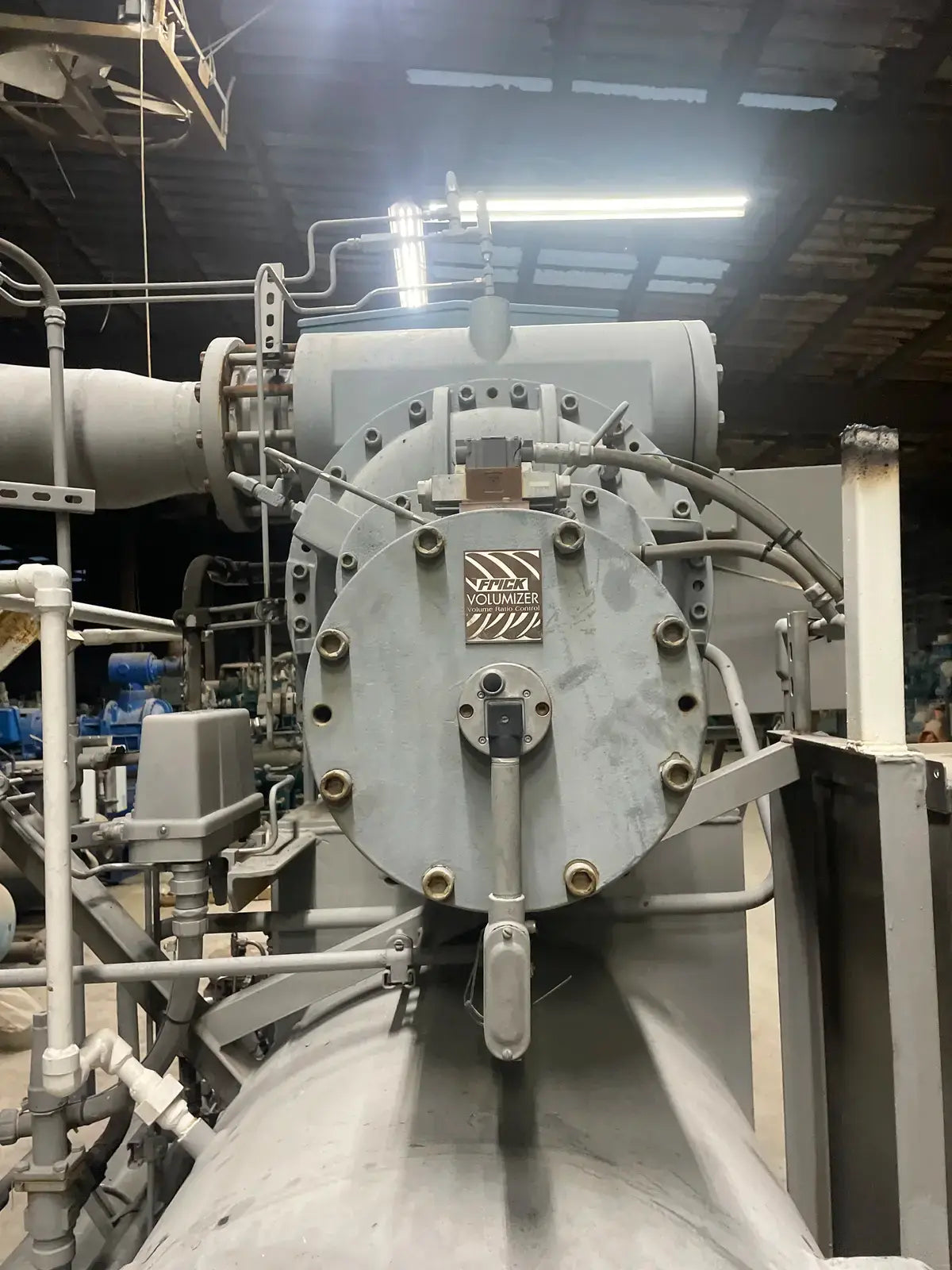

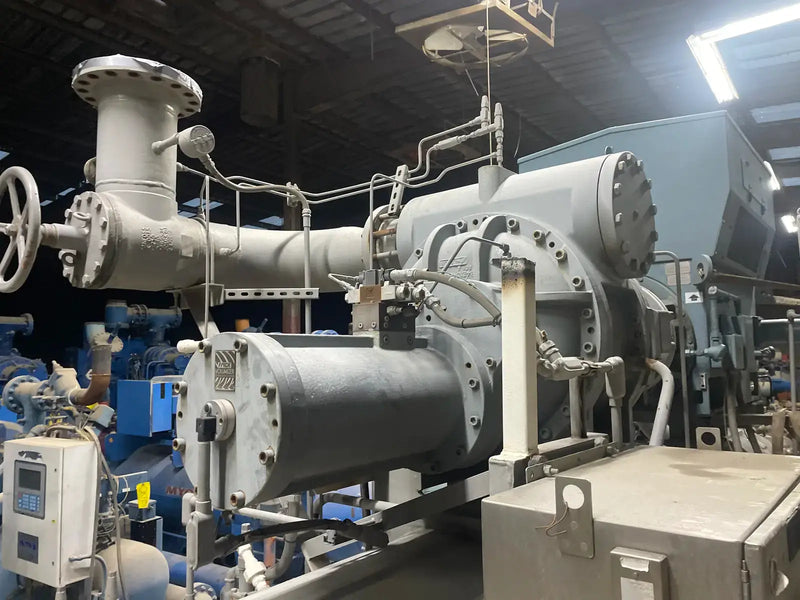

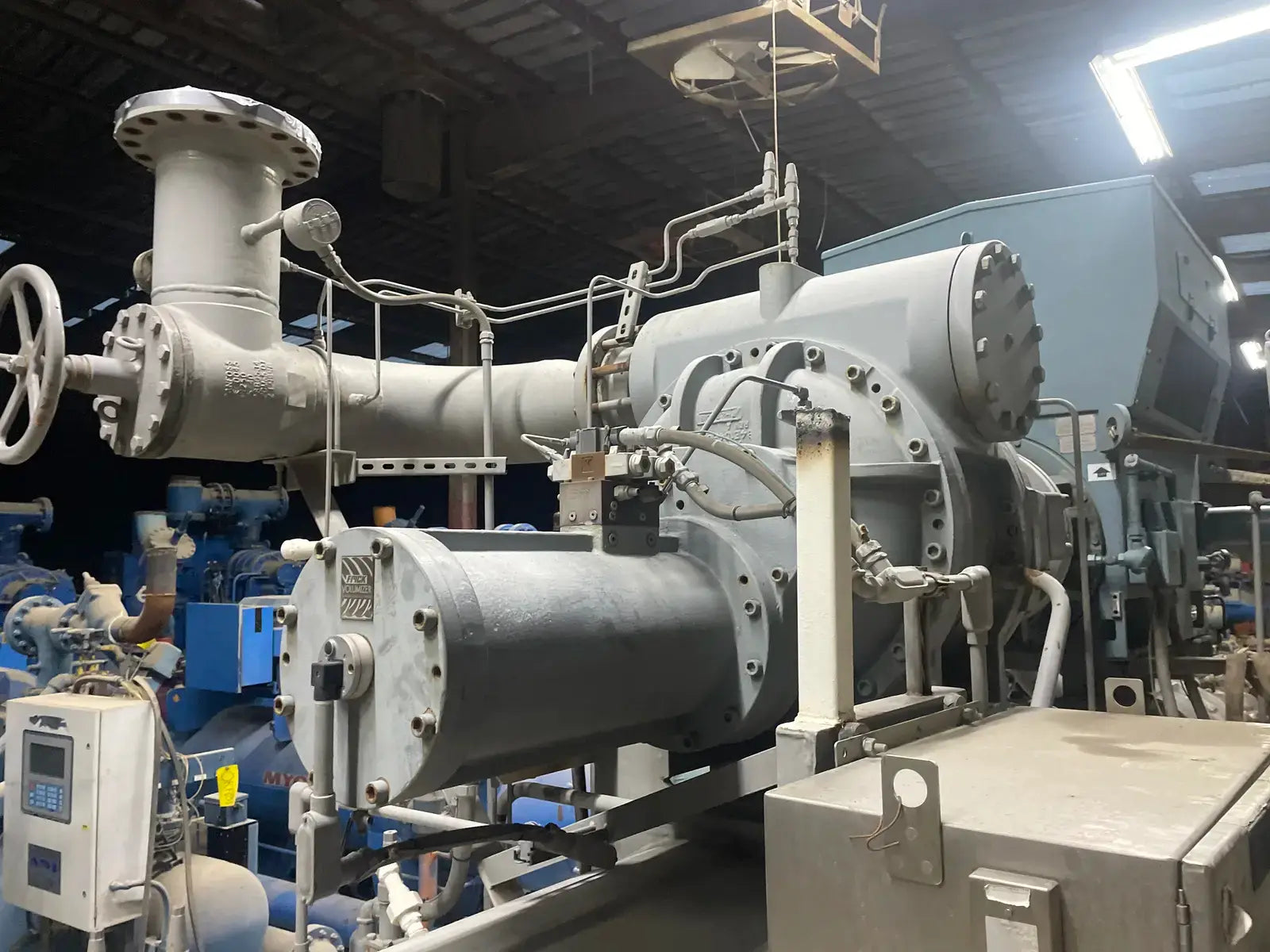

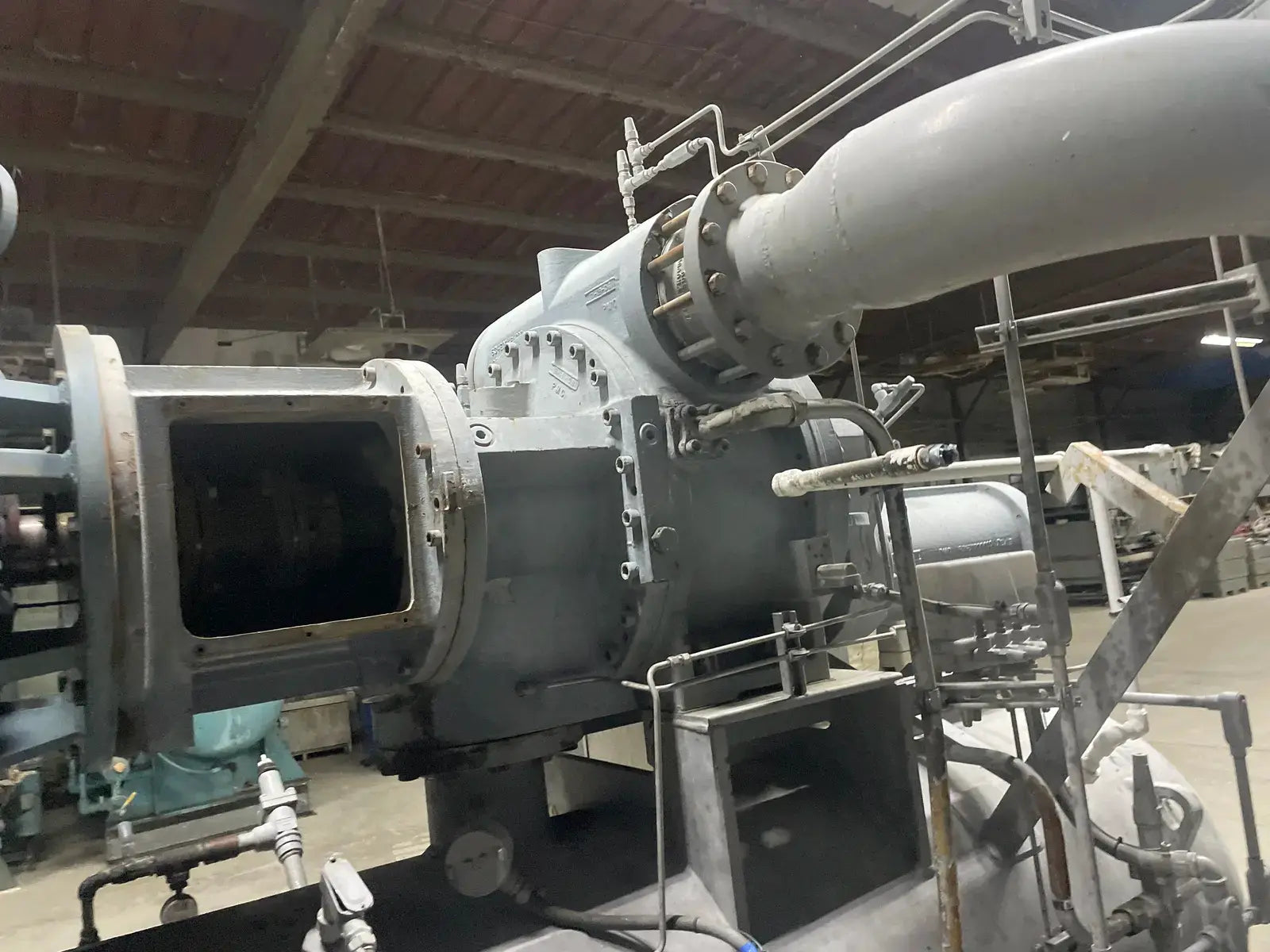

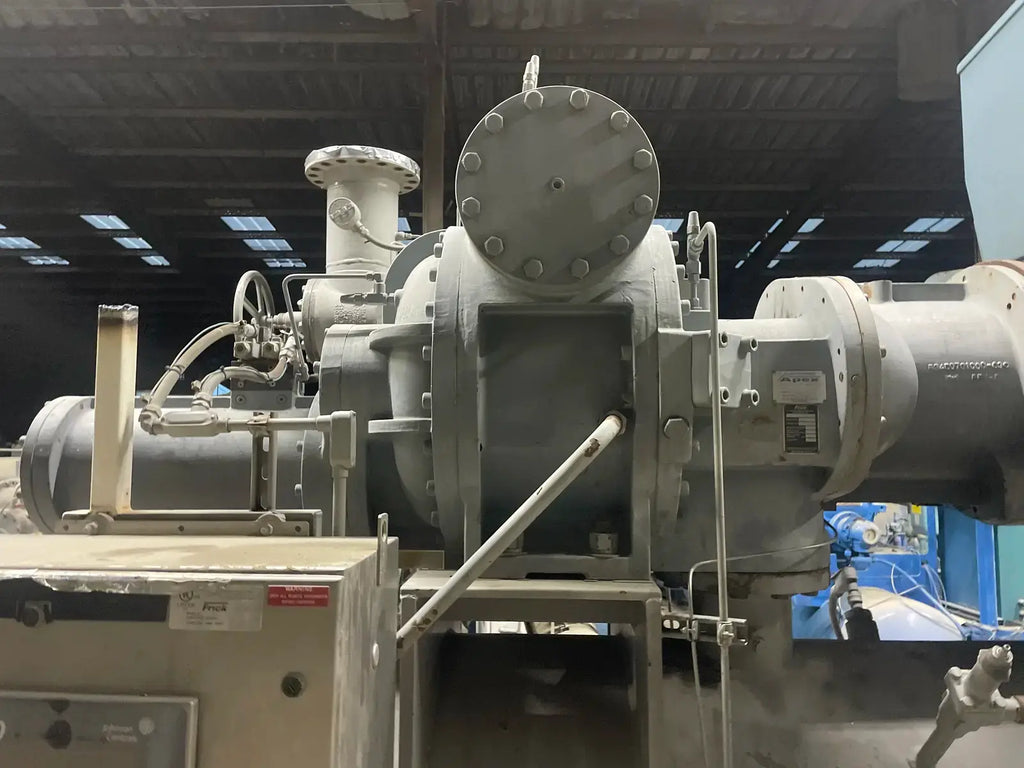

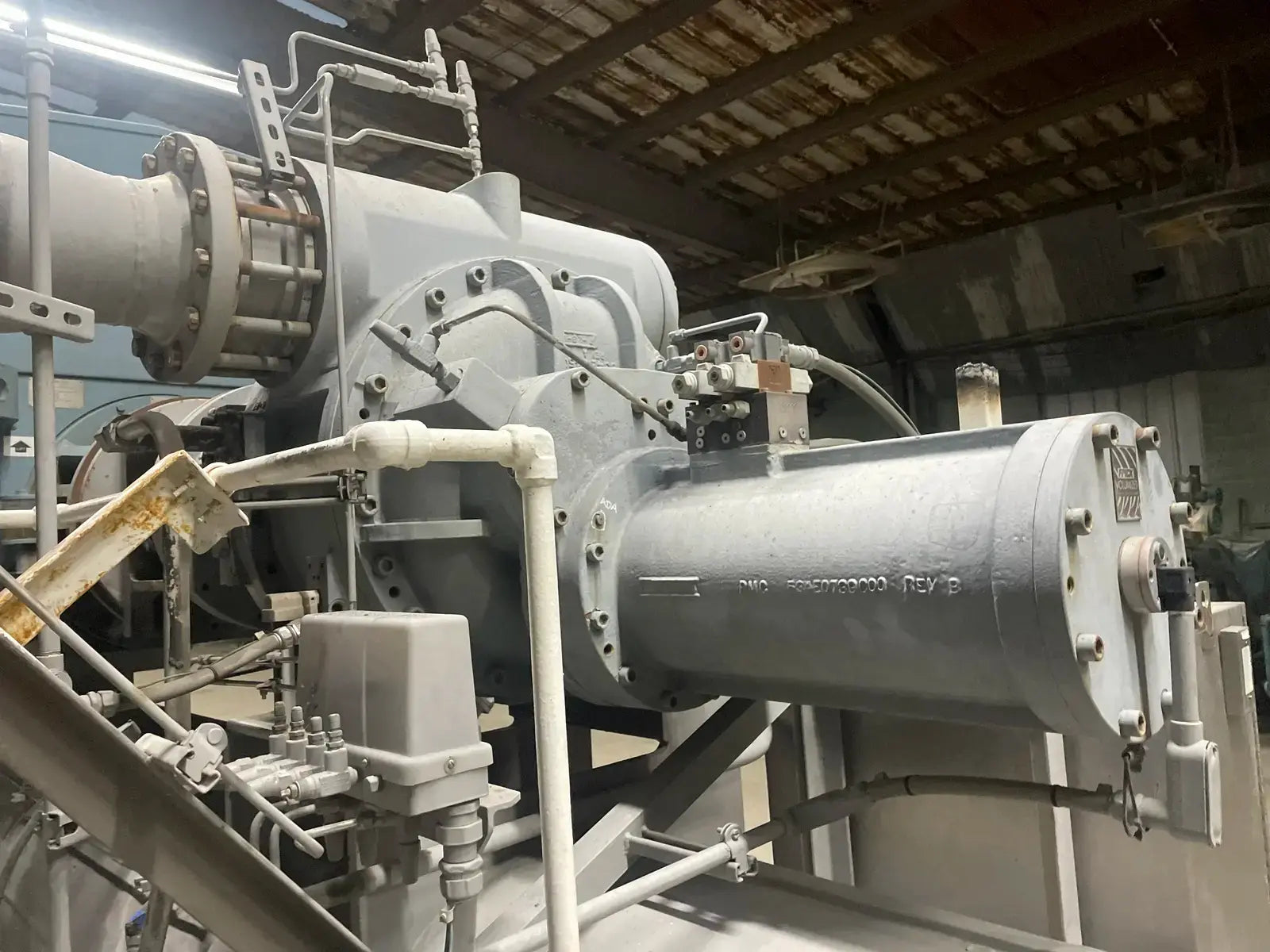

Screw Compressor Details
- Compressor Included? Yes
- Compressor Manufacturer: Frick
- # Compressors in Package: 1
- Compressor Model: SGC2813
- Compressor SN: 0337Z
- Compressor Max Speed (RPM): 3,600
- Compressor Design Pressure (PSIG): 400
- Compressor Year Manufactured: 2008
- Compressor Rebuild Year: 2015
- Compressor Volume Ratio: 2.2-5.0

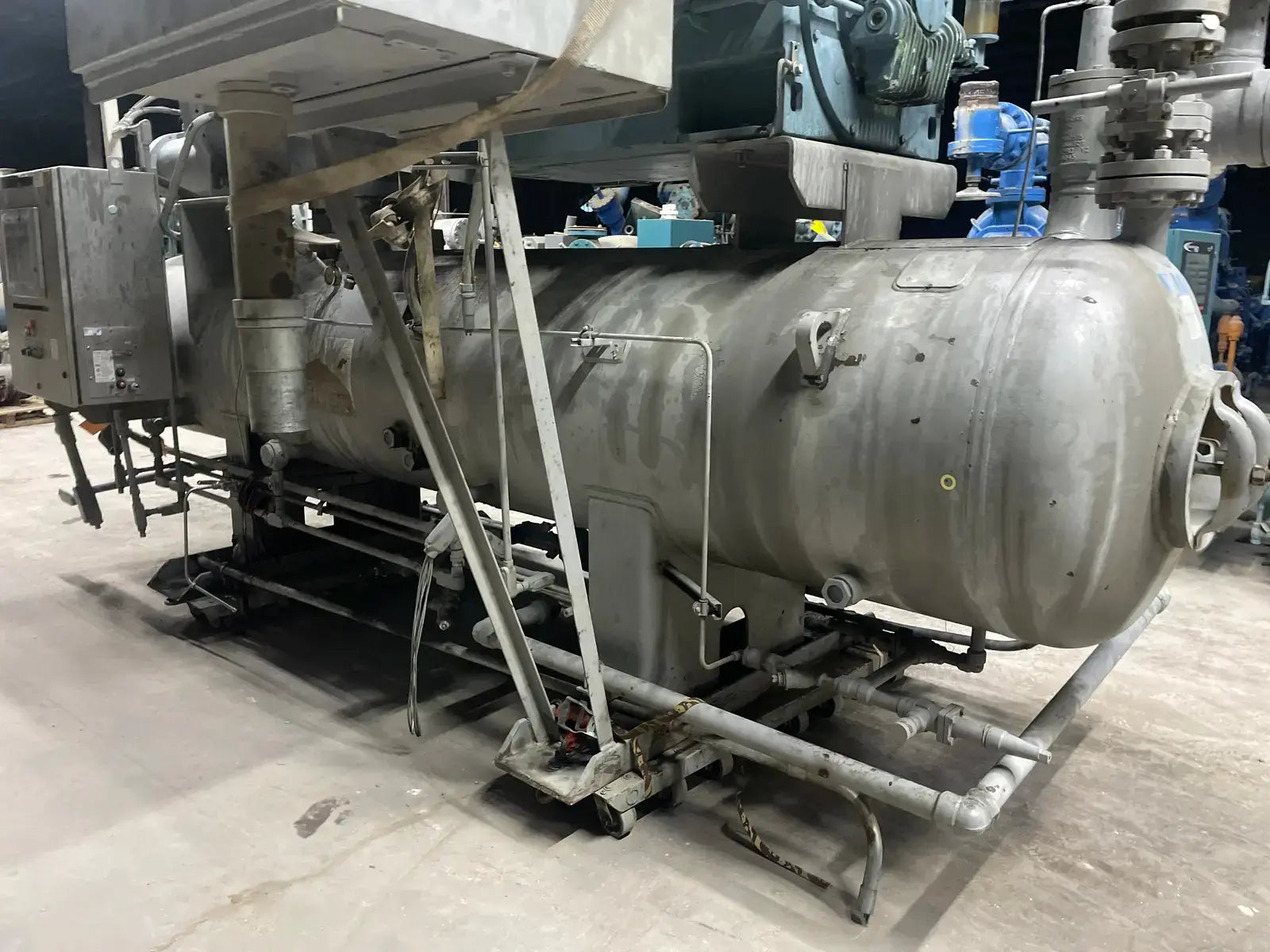

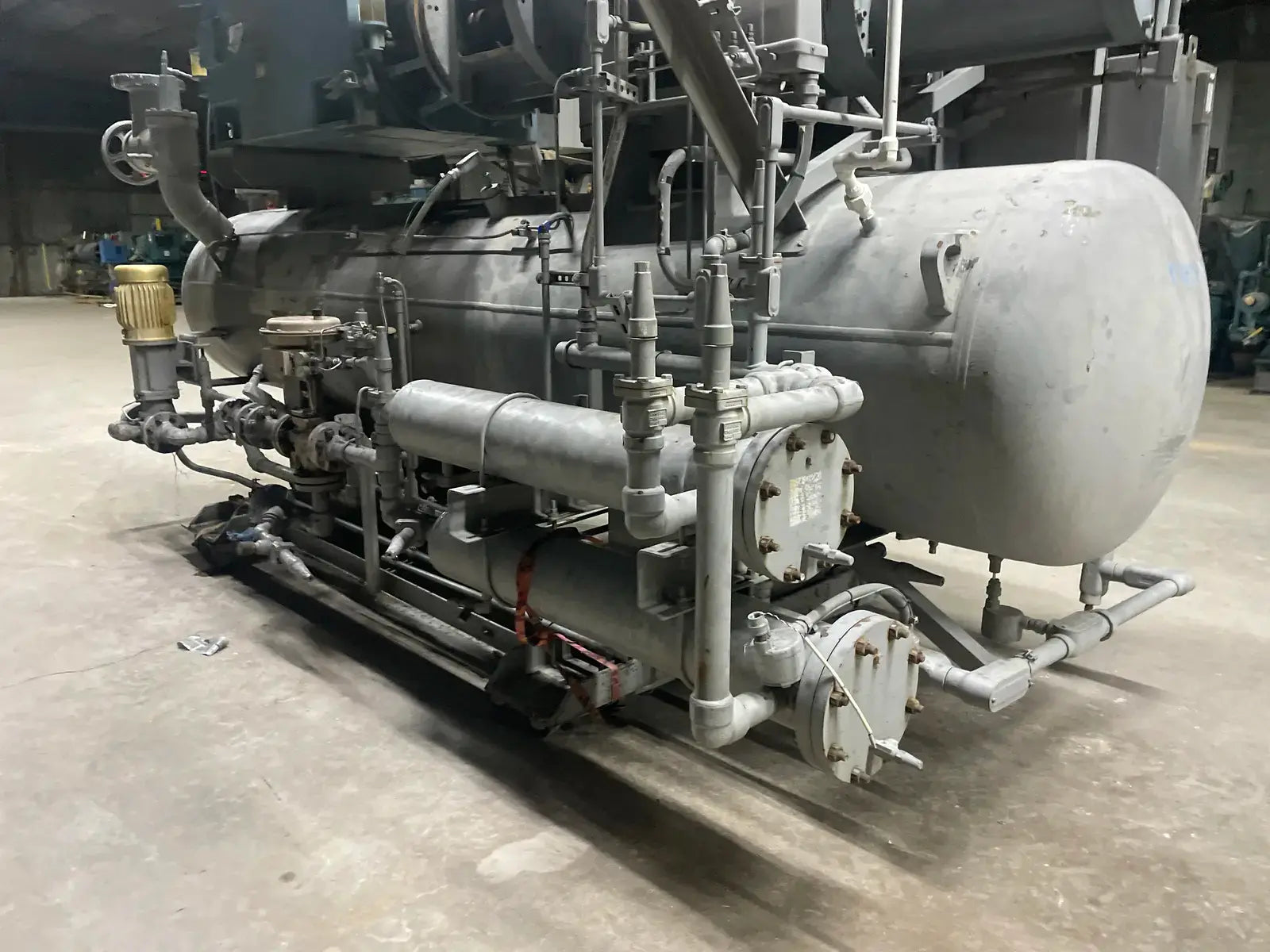

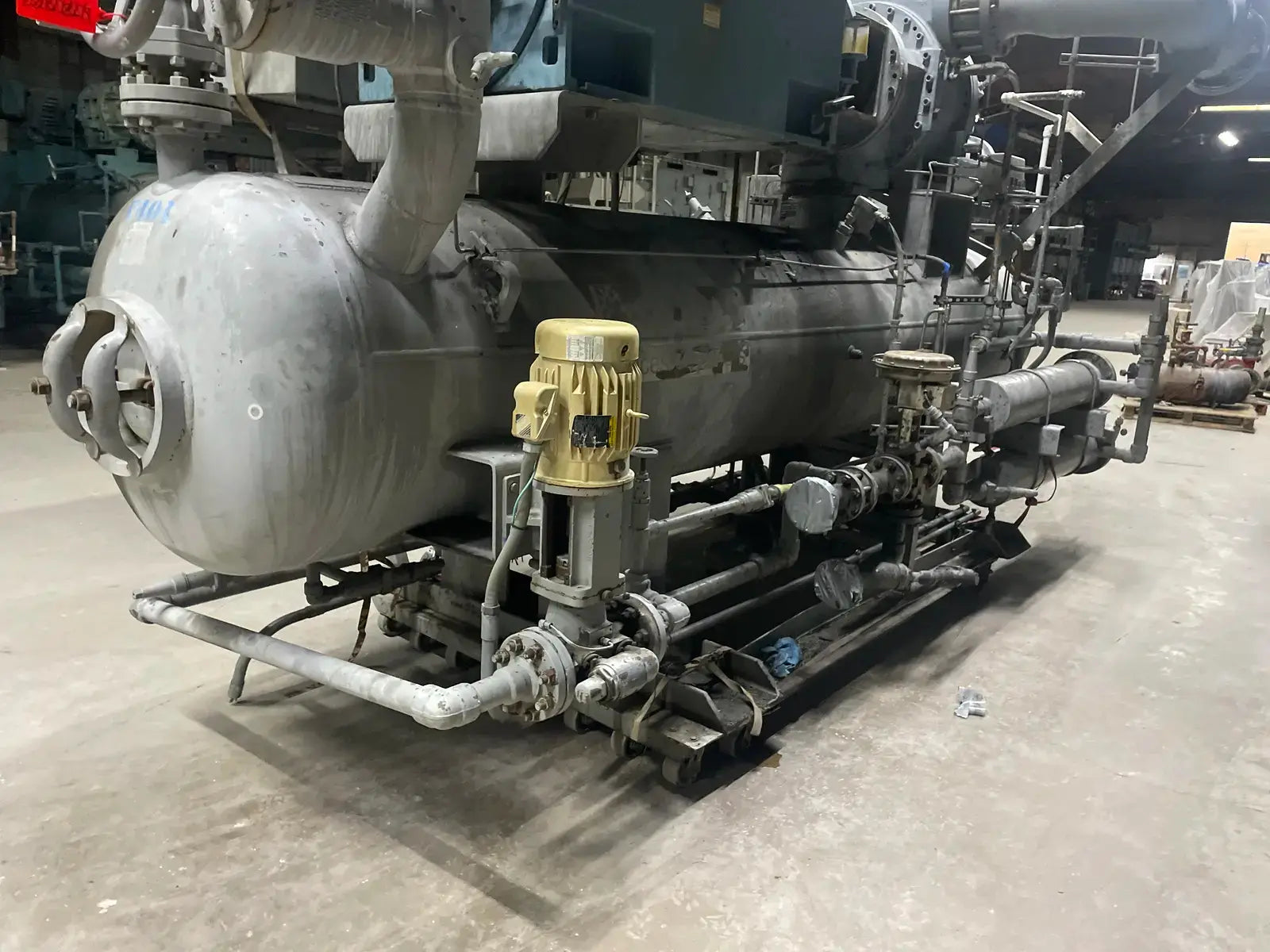

- Oil Separator Included? Yes
- Oil Separator National Board #: 158031

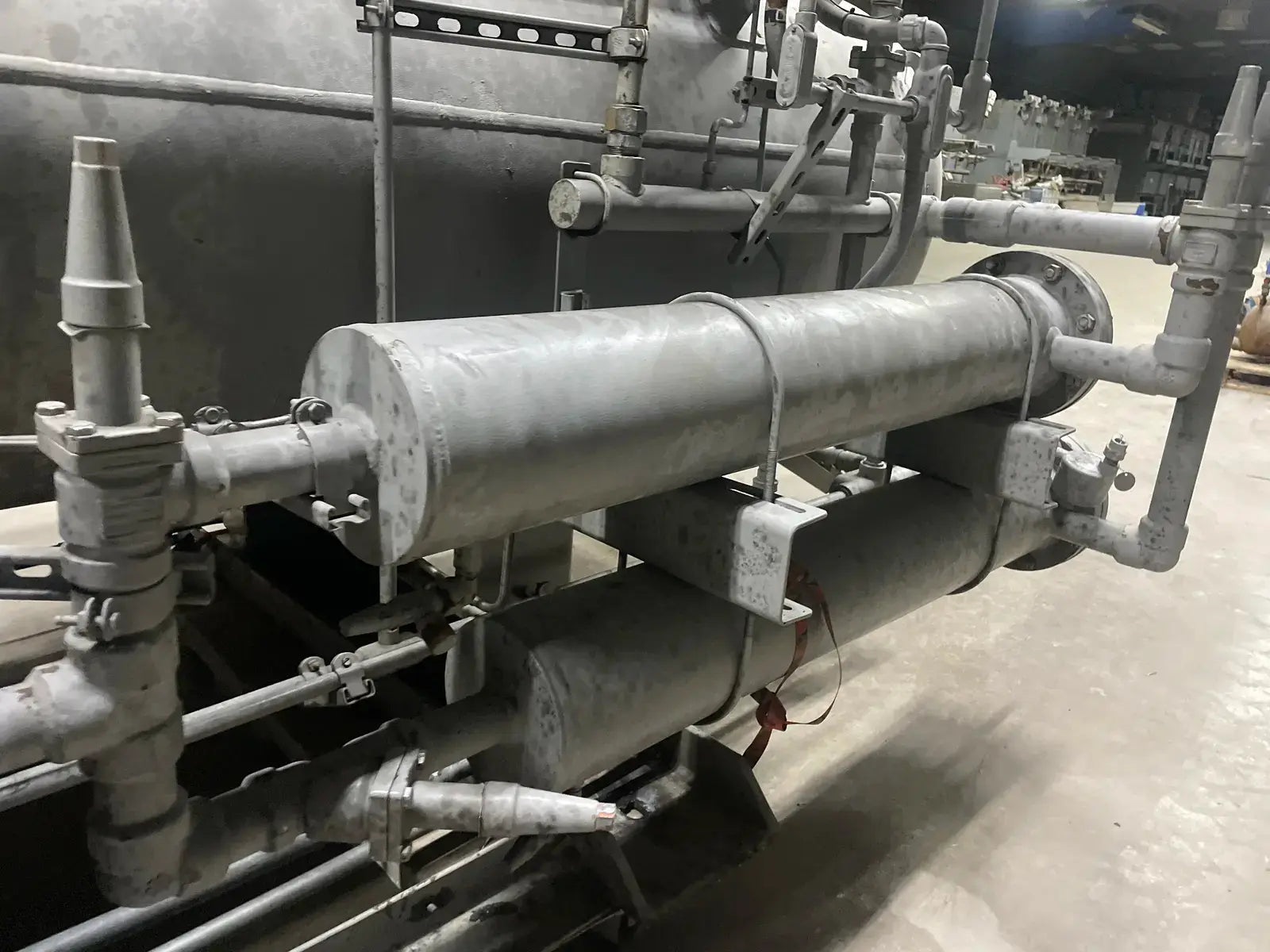

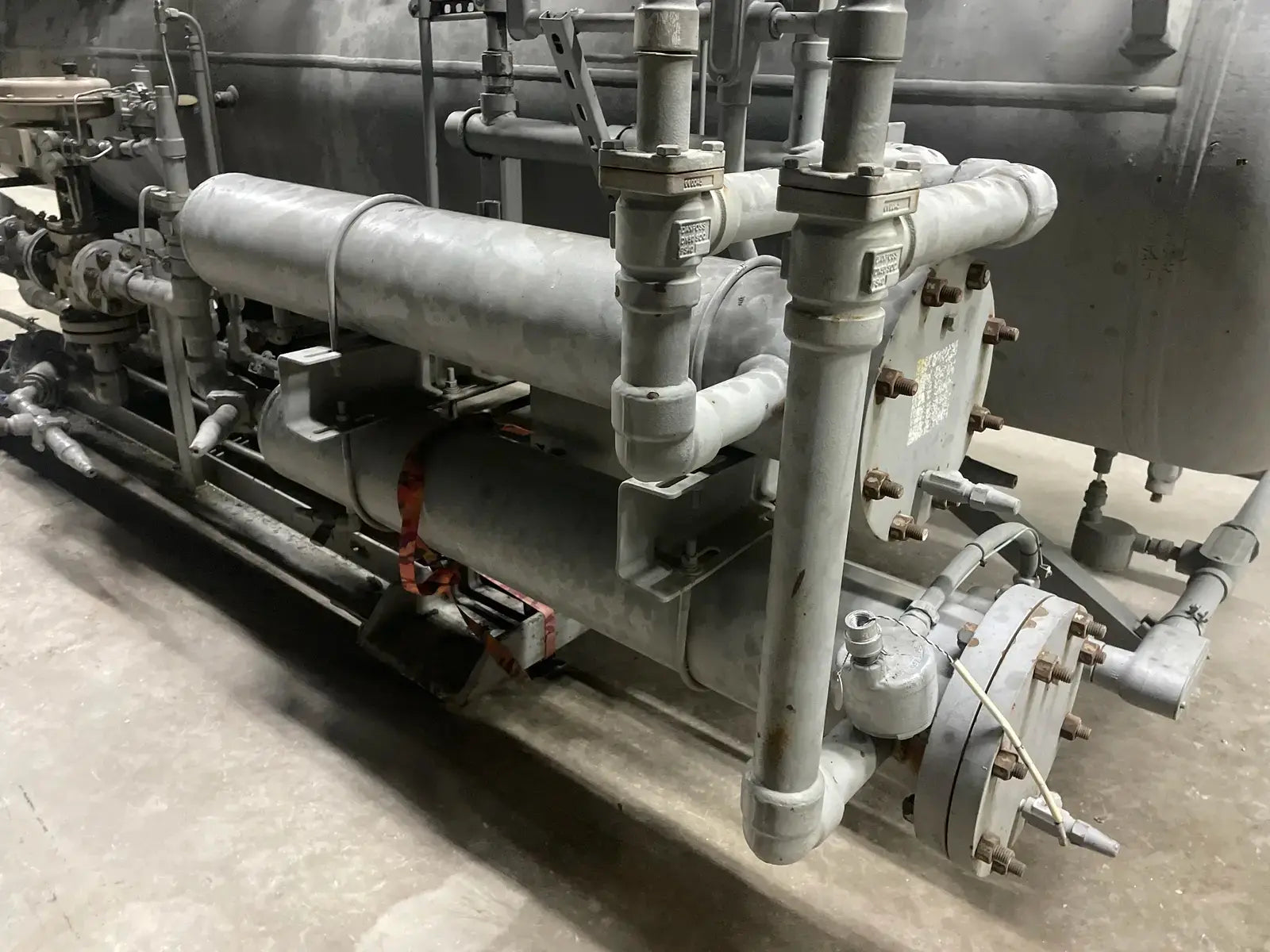

- Oil Cooling Type: Thermosiphon

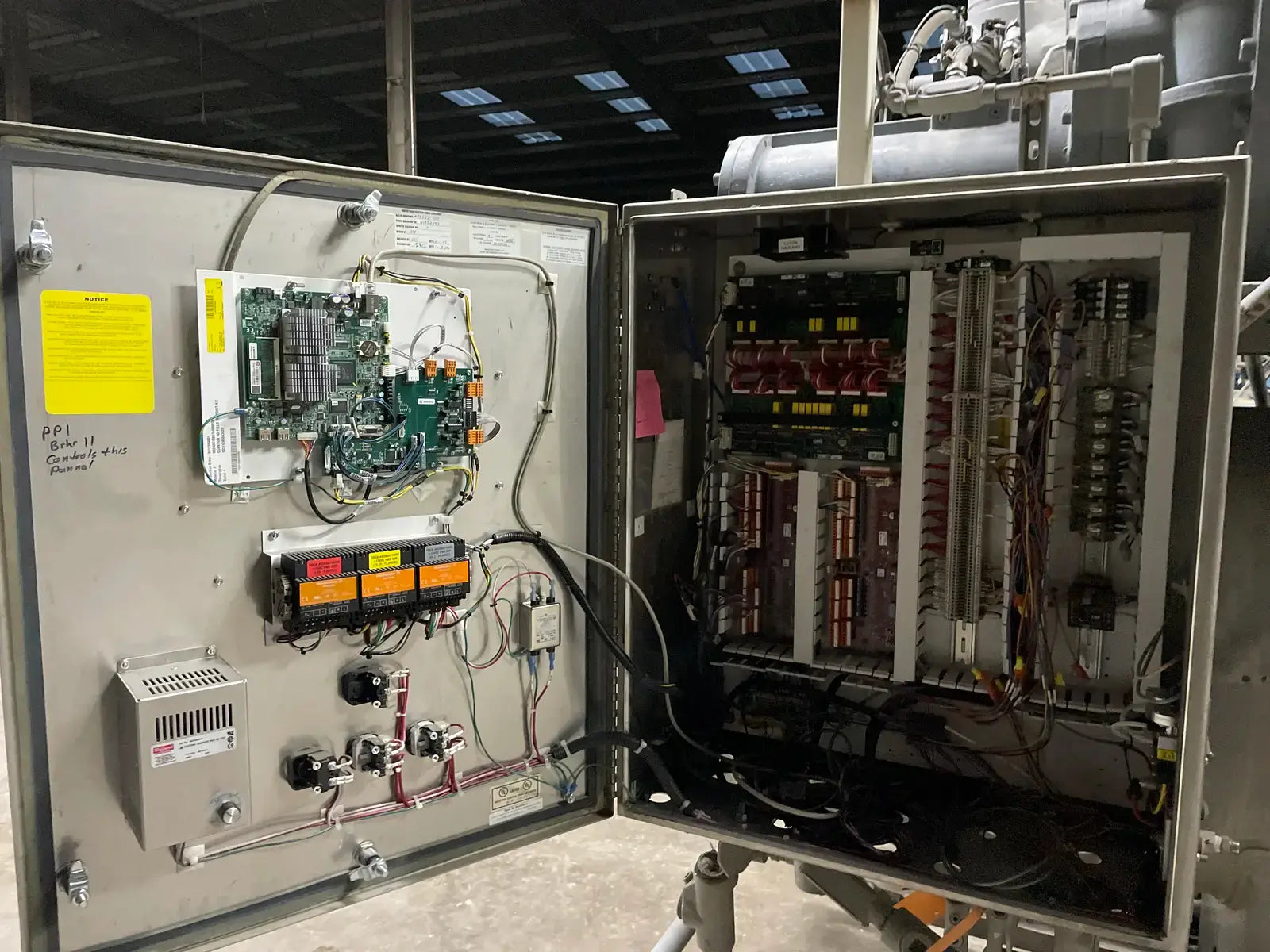

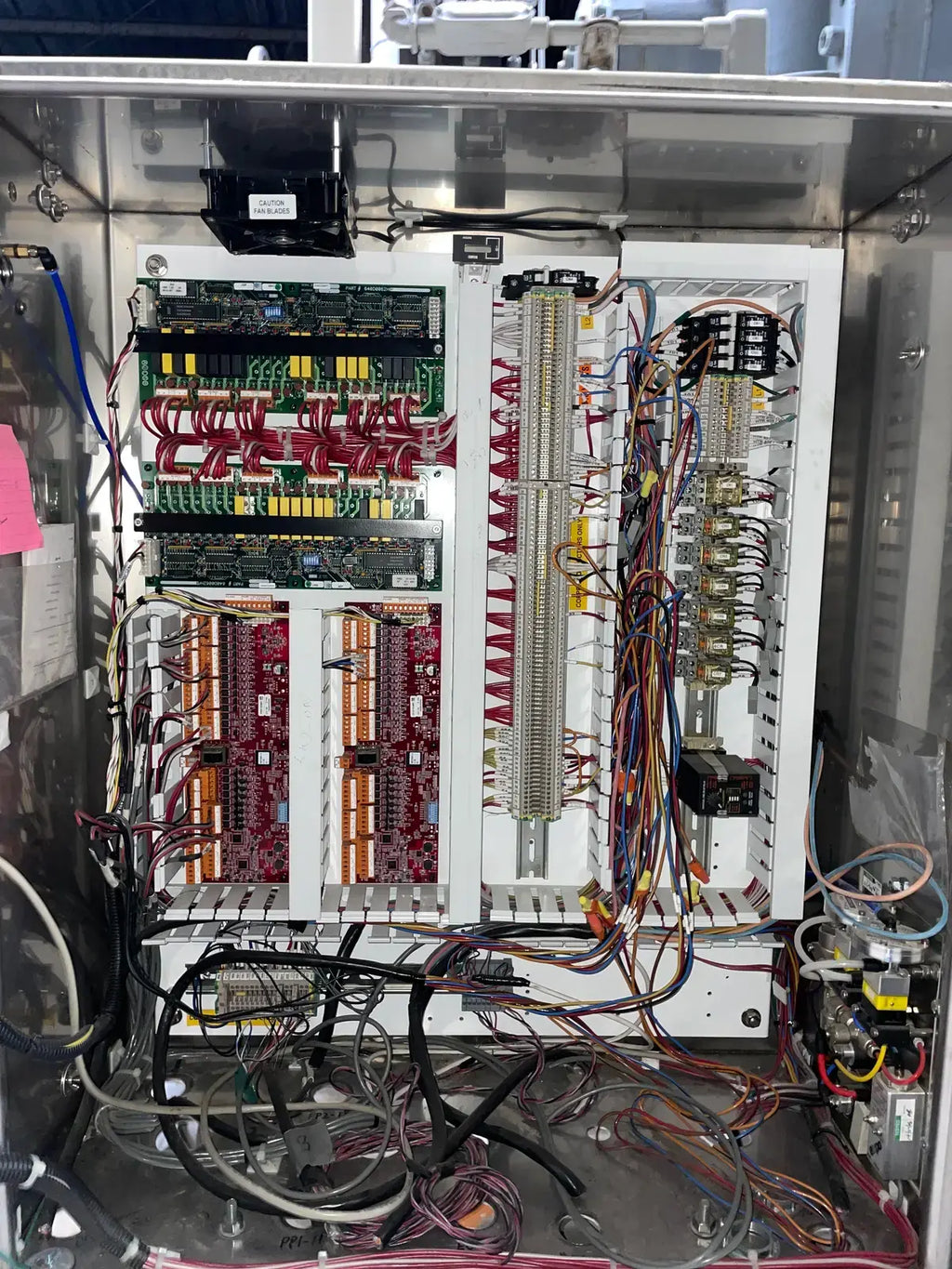

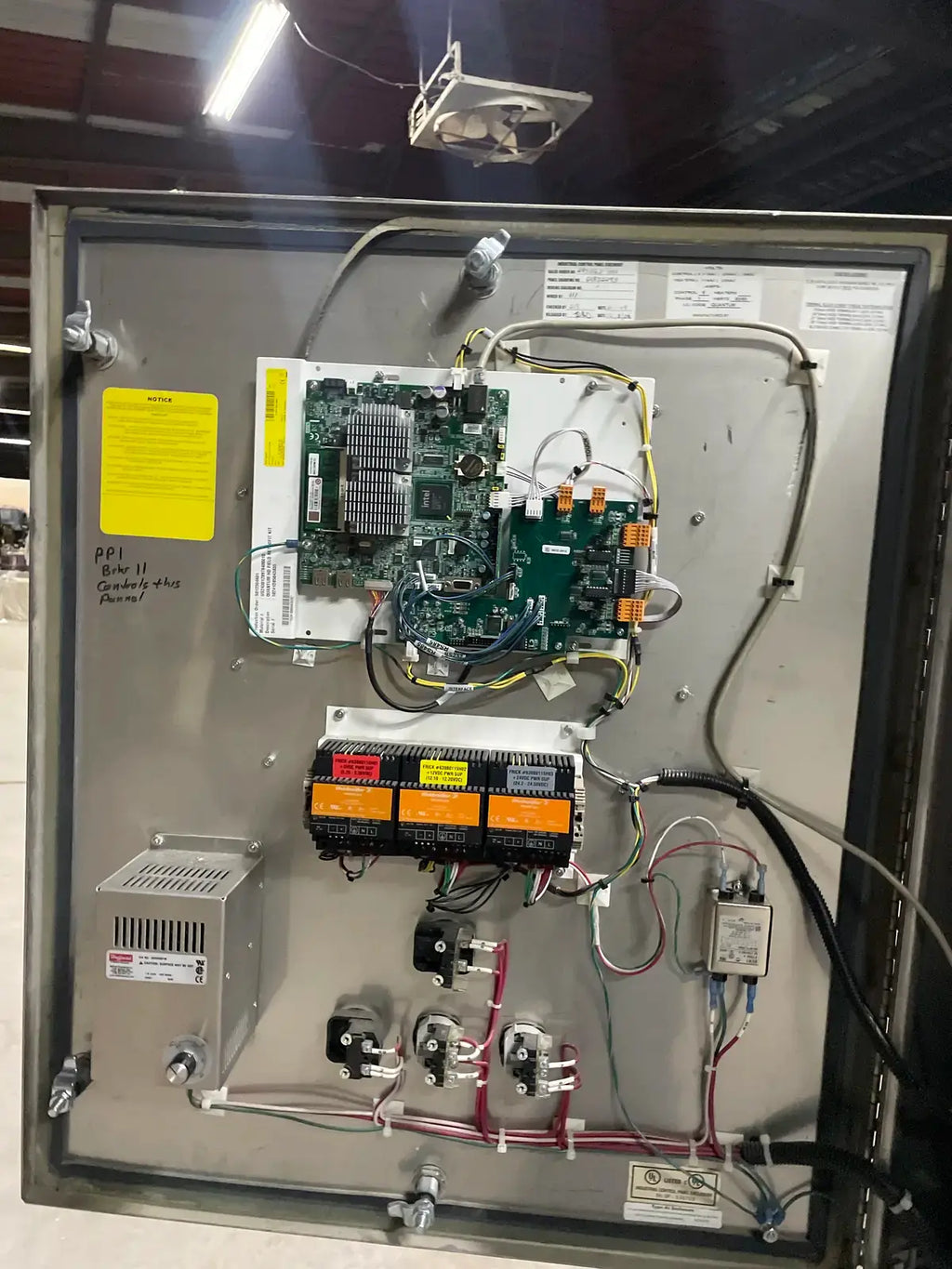

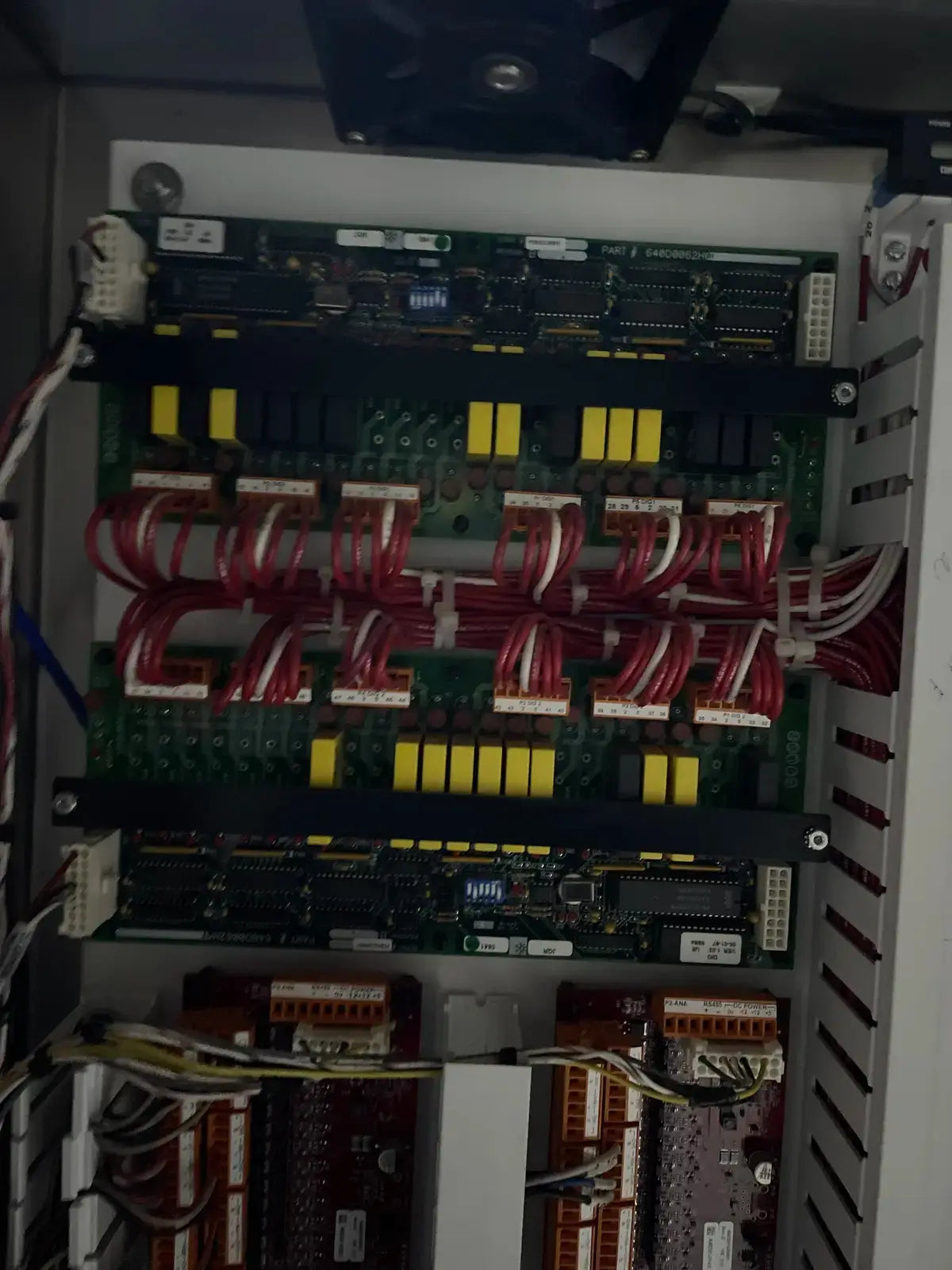

Micro Panel Details
- Micro Control Panel Included? Yes
- Micro Control Panel Manufacturer: Frick

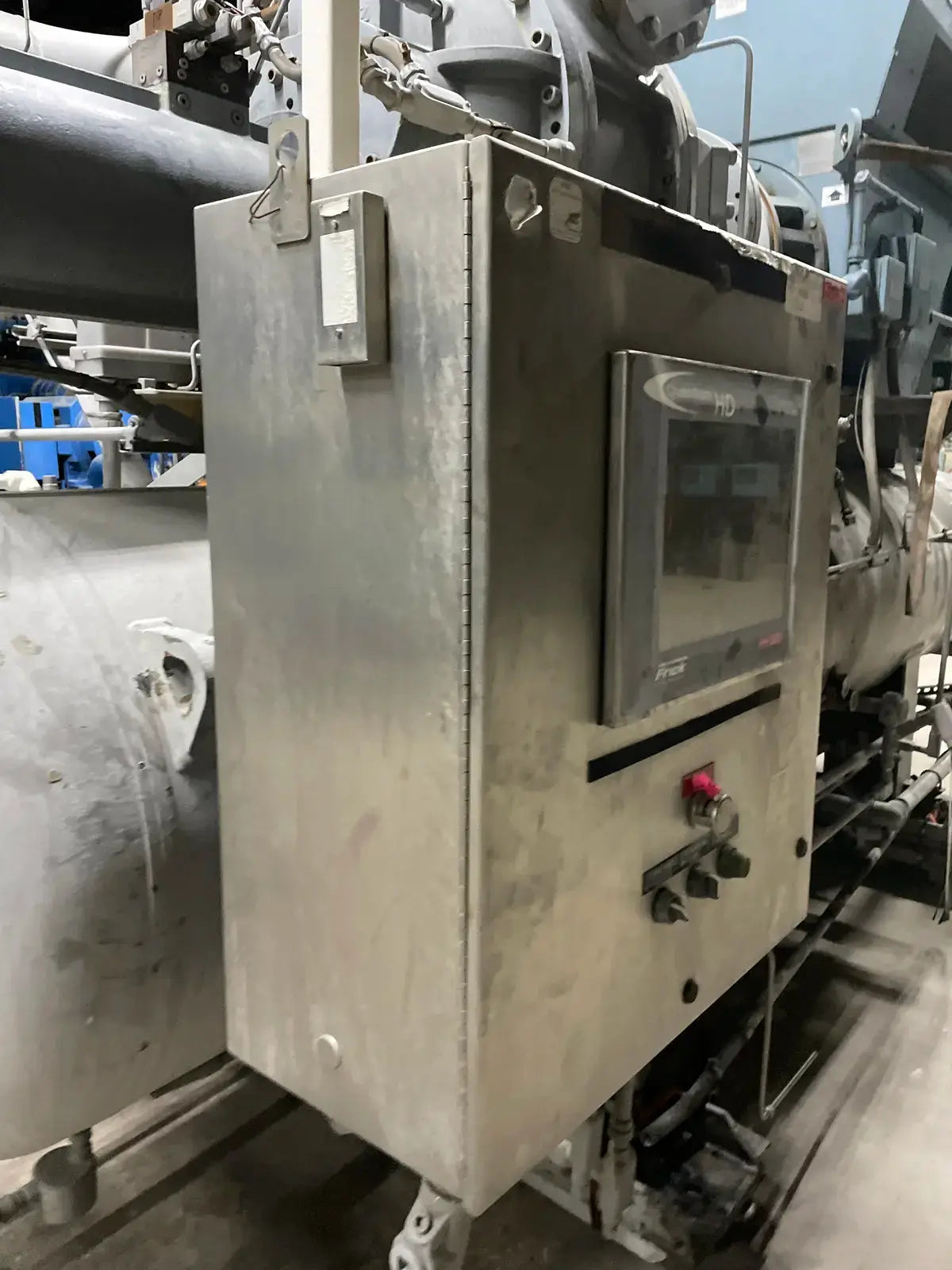

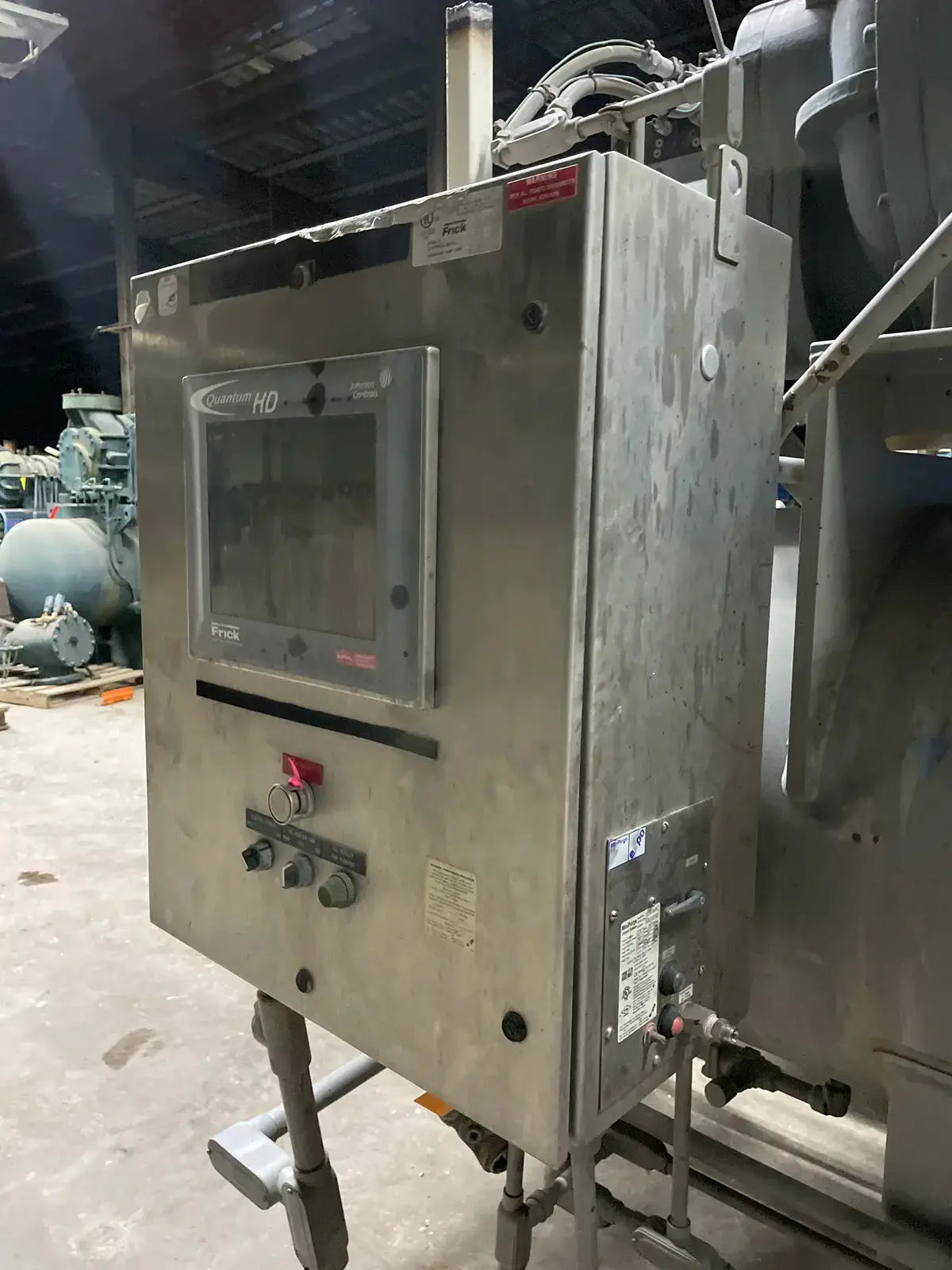

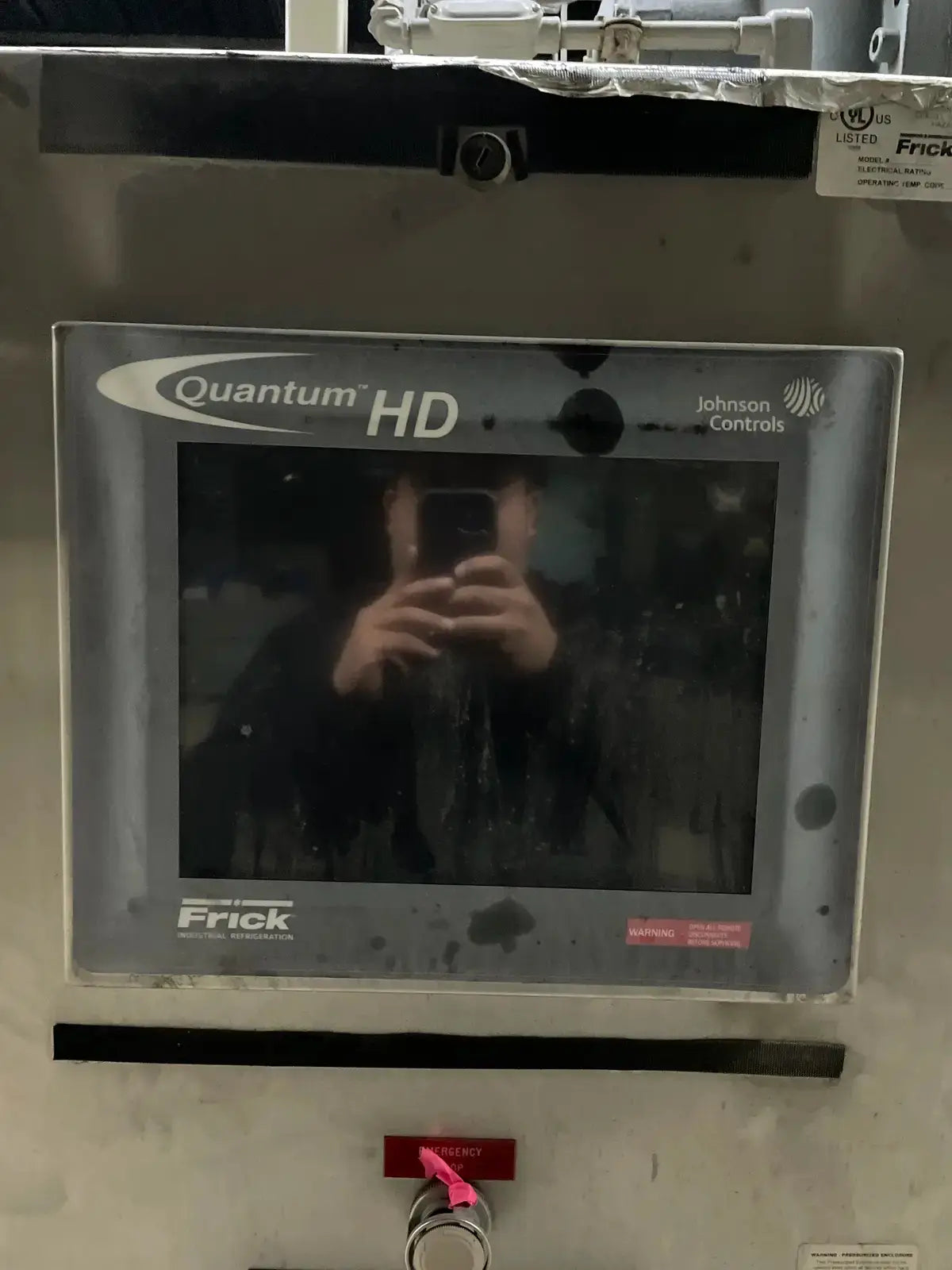

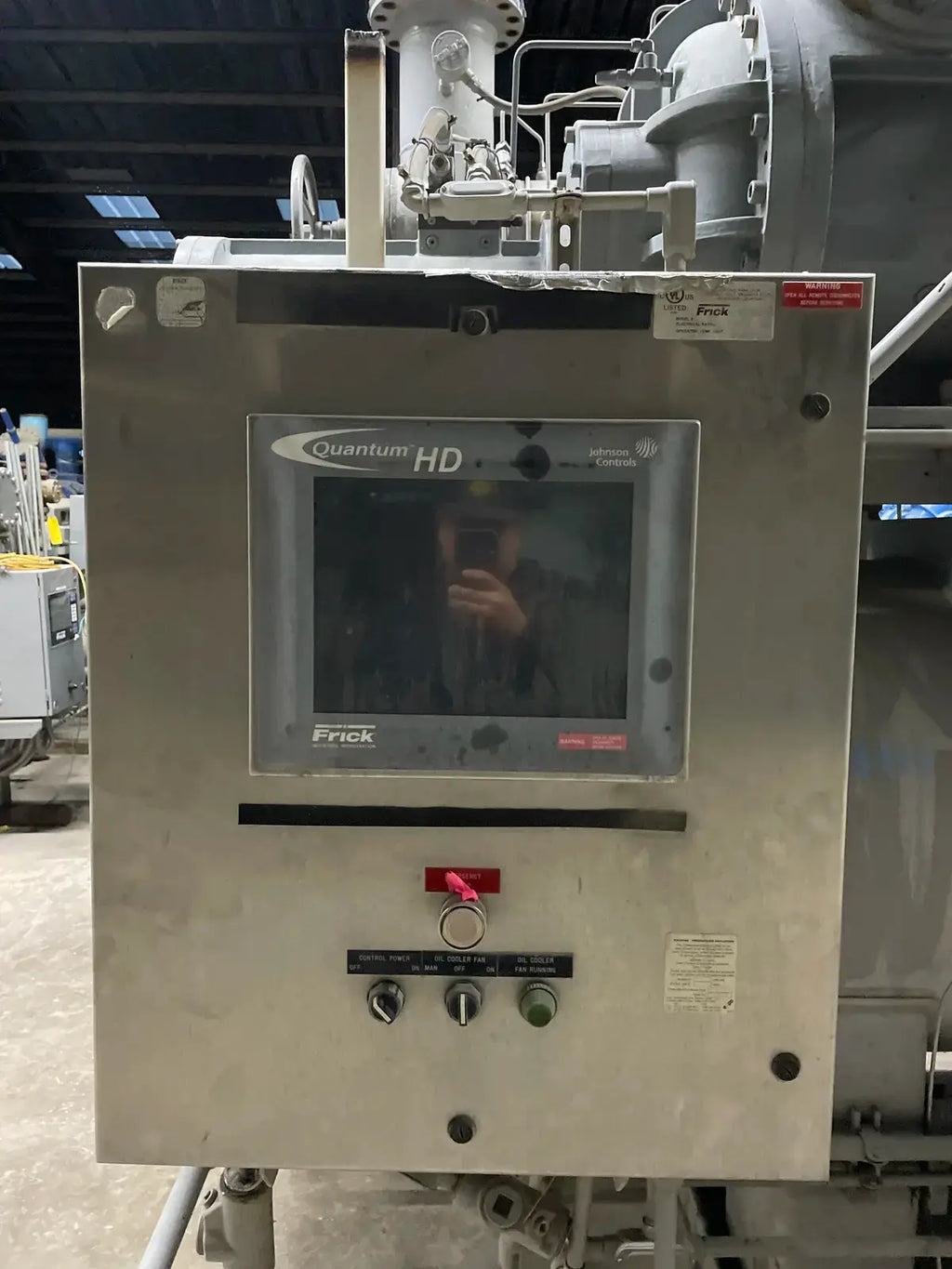

- Micro Control Panel Description: Frick Quantum HD Control Panel
Motor Starter Details
- Motor Starter Included? No
Previous Refrigerant
- Previous Refrigerant: Gas
- Ammonia (R-717) Compatiable: Yes

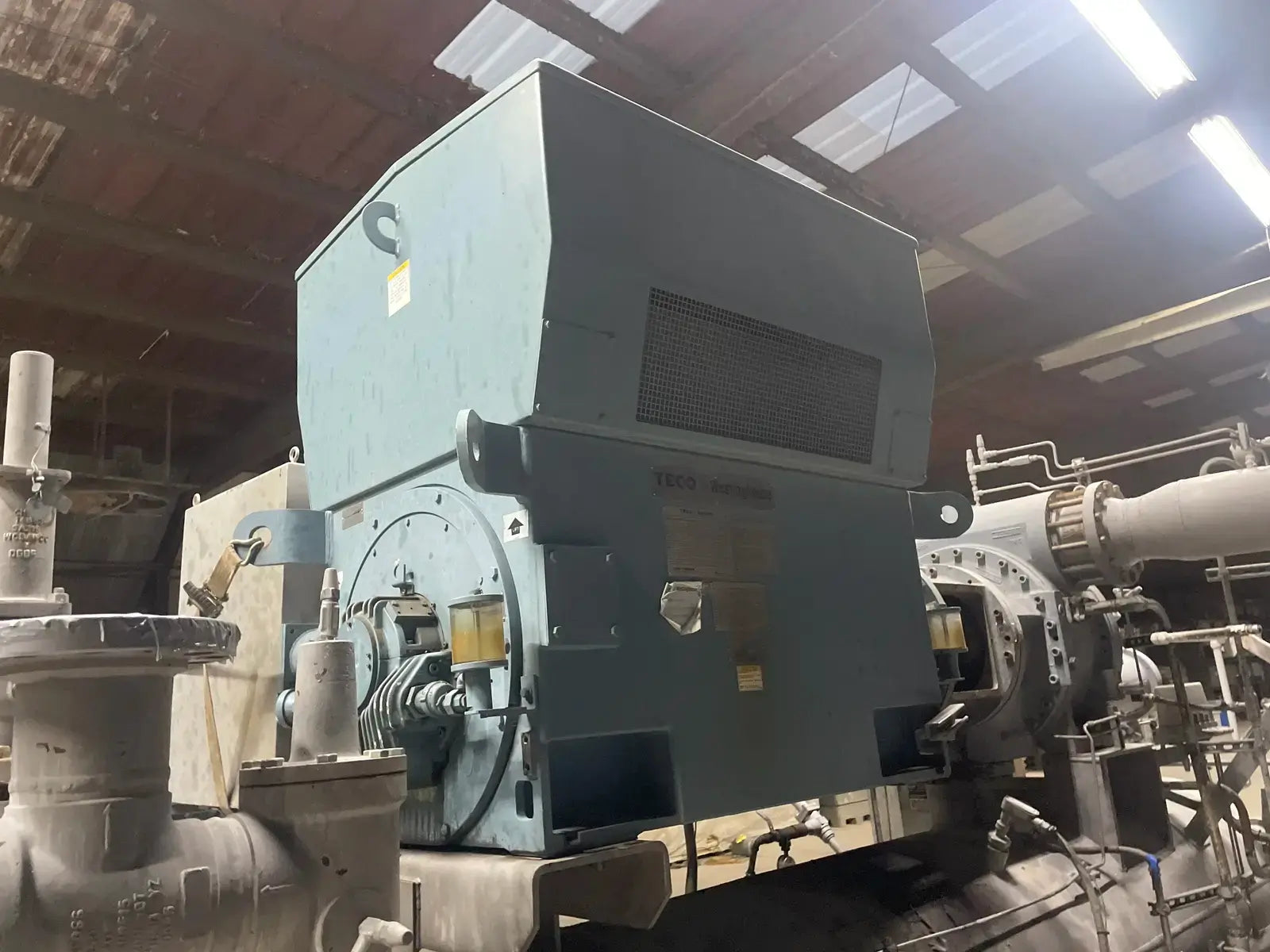

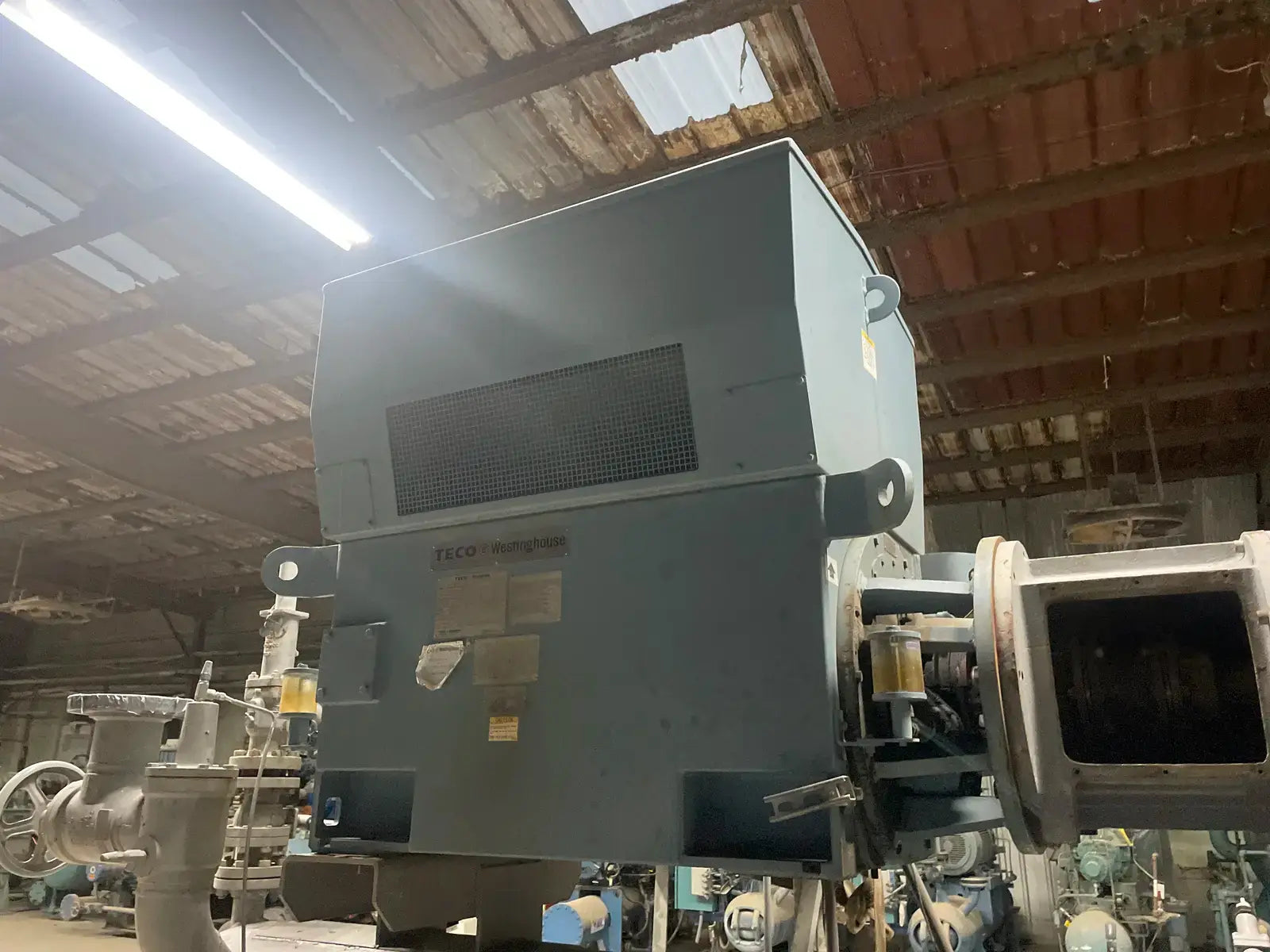

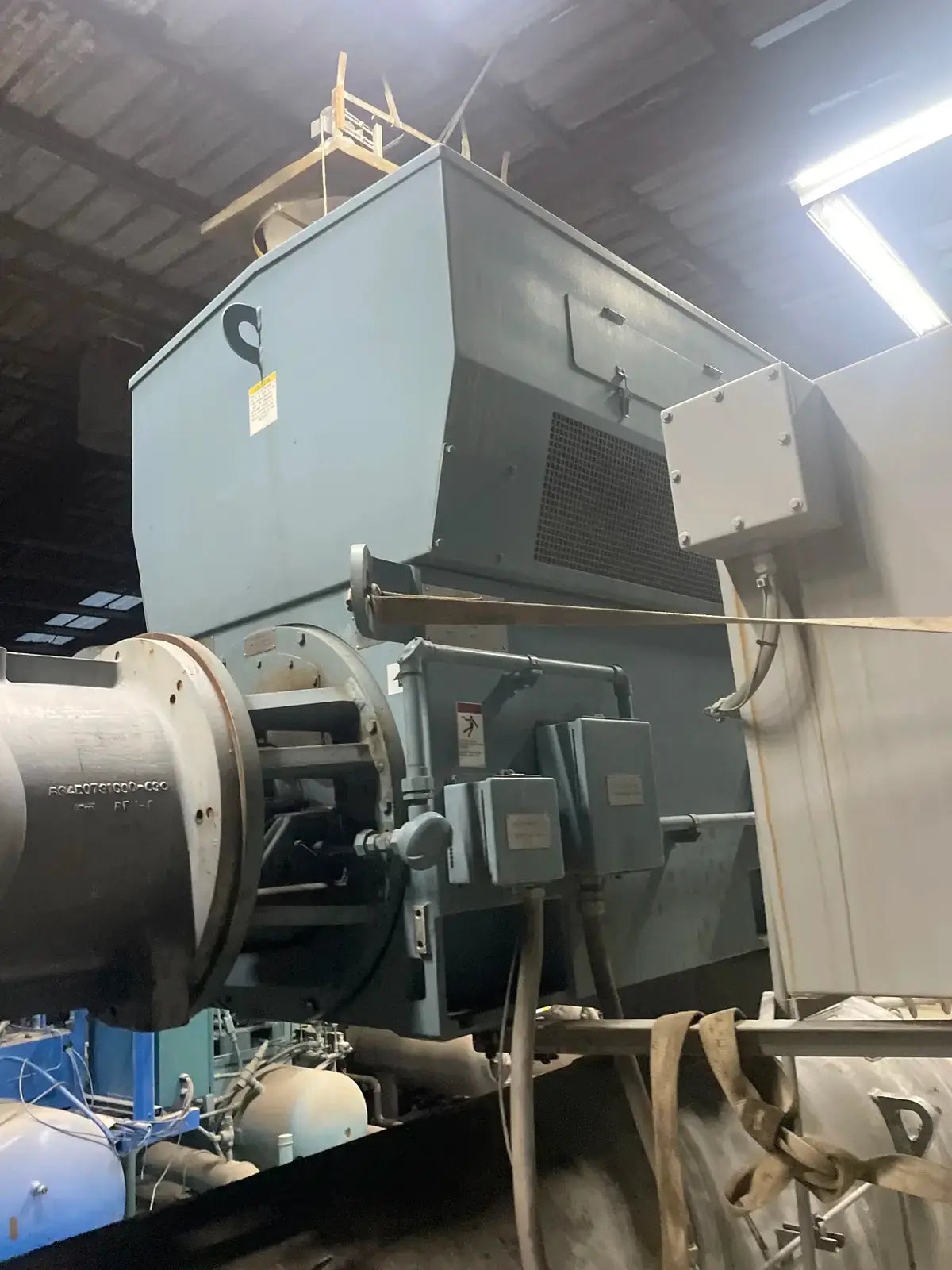

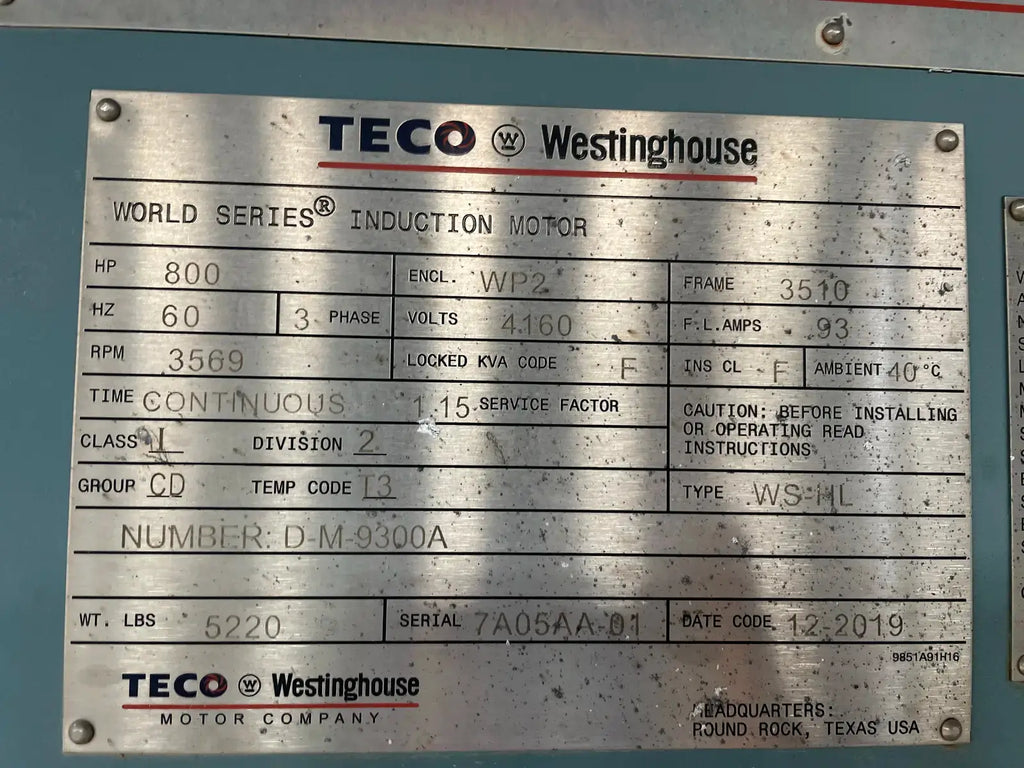

Motor Details
- Motor Included? Yes
- # Motors: 1
- Motor Manufacturer: Teco
- Motor Horsepower(HP): 800
- Motor RPM: 3,569
- Motor Voltage: 4160
- Motor Amps: 93
- Motor Hertz (Hz): 60
- Motor Phases: 3
- Motor Frame Size: 3510
Dimensions:
- Length (Inches): 195
- Width (Inches): 120
- Height (Inches): 125
- Weight (LBS): 15,500
- # of Pieces for Shipping: 1
Additional Product Details
- Year of Manufacture: 2008
- Year Removed from Production: 2023

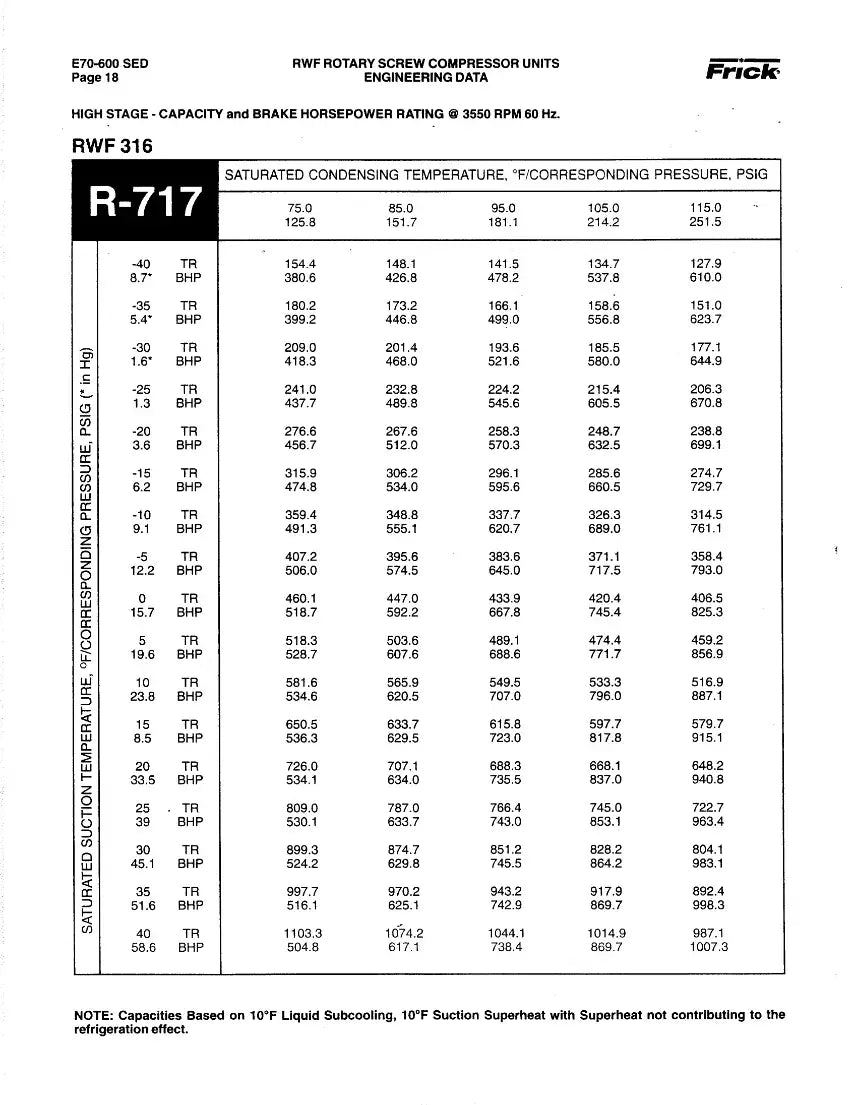

- Spec Sheet Available: Yes
