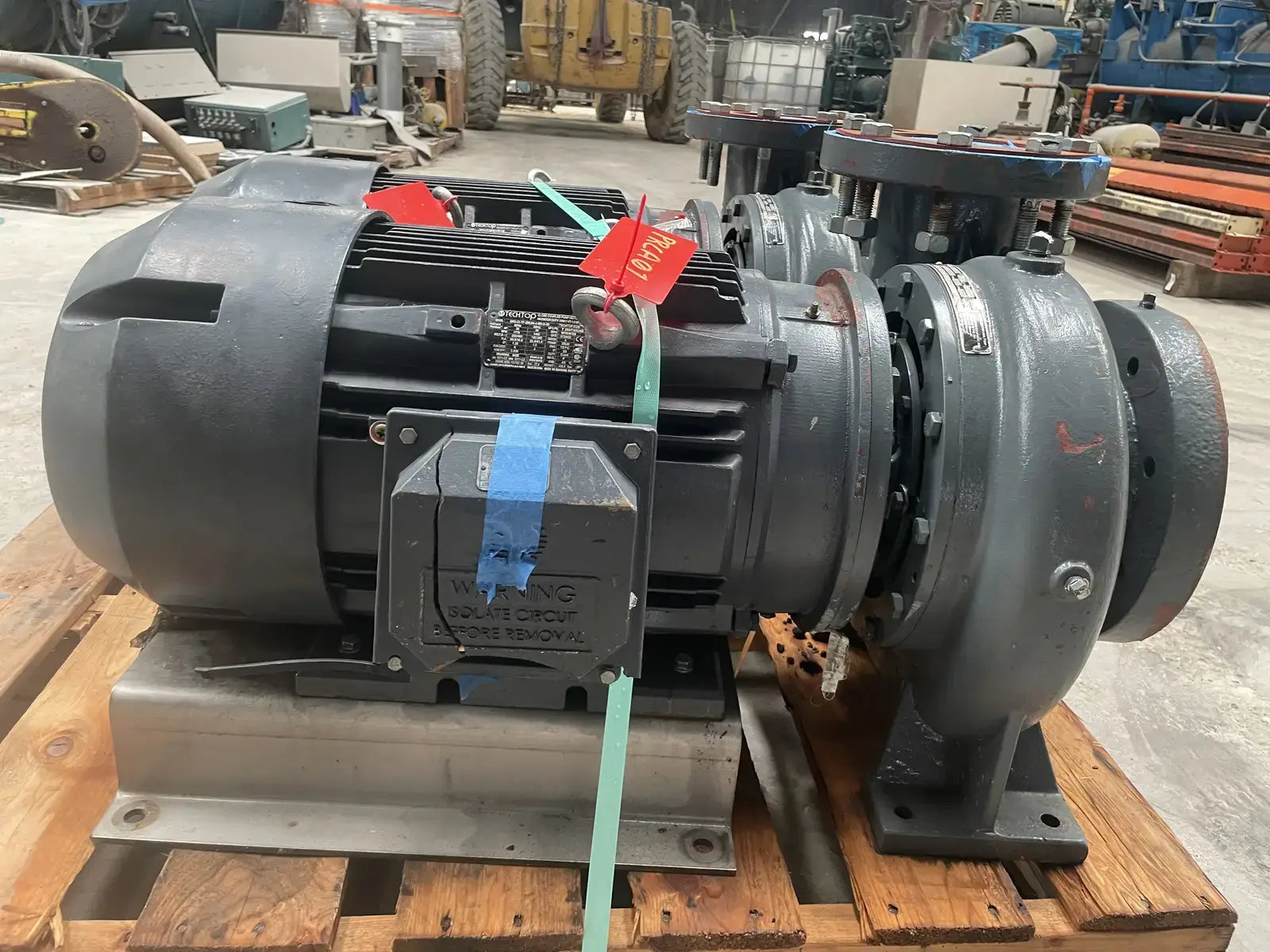

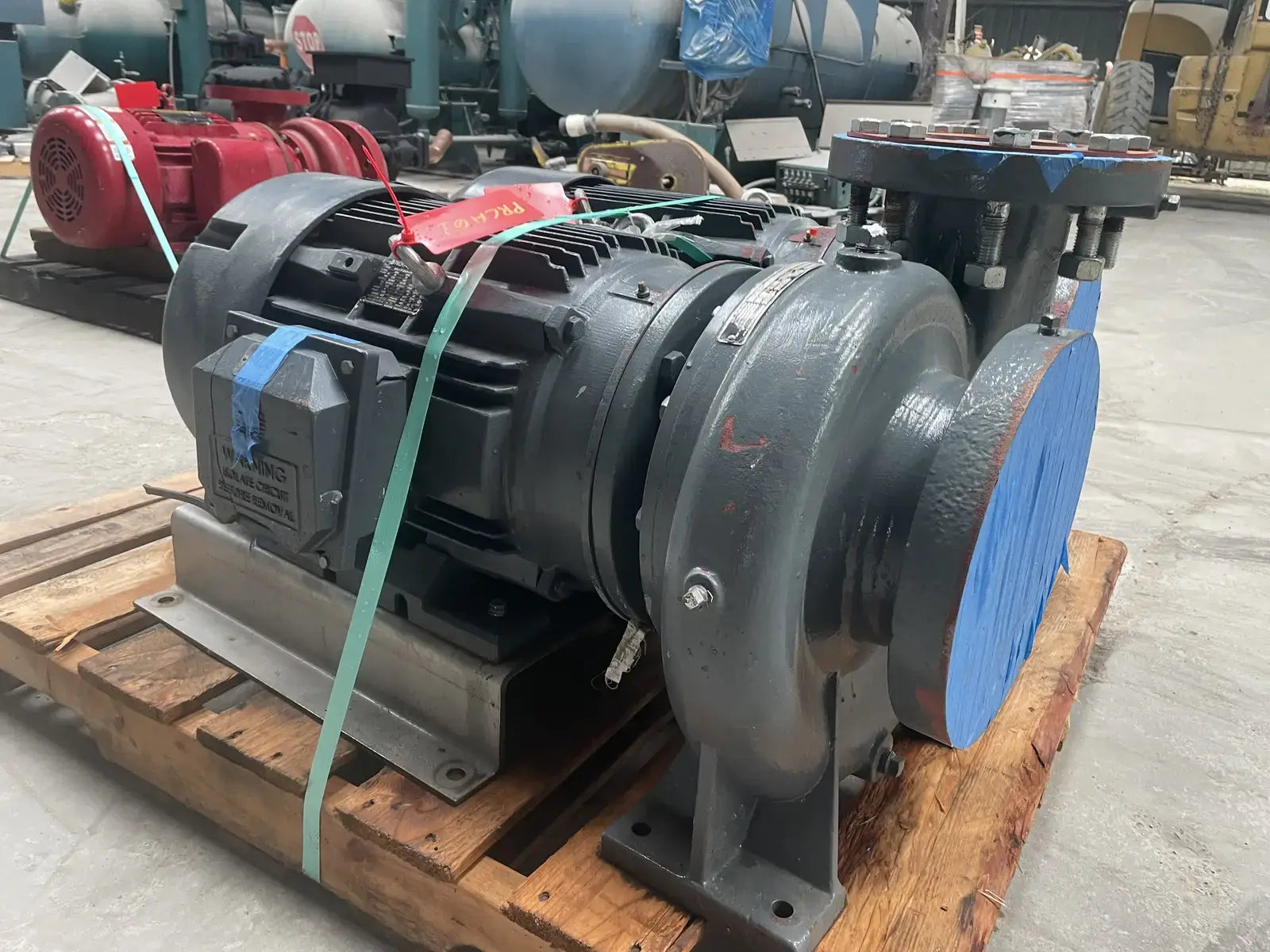

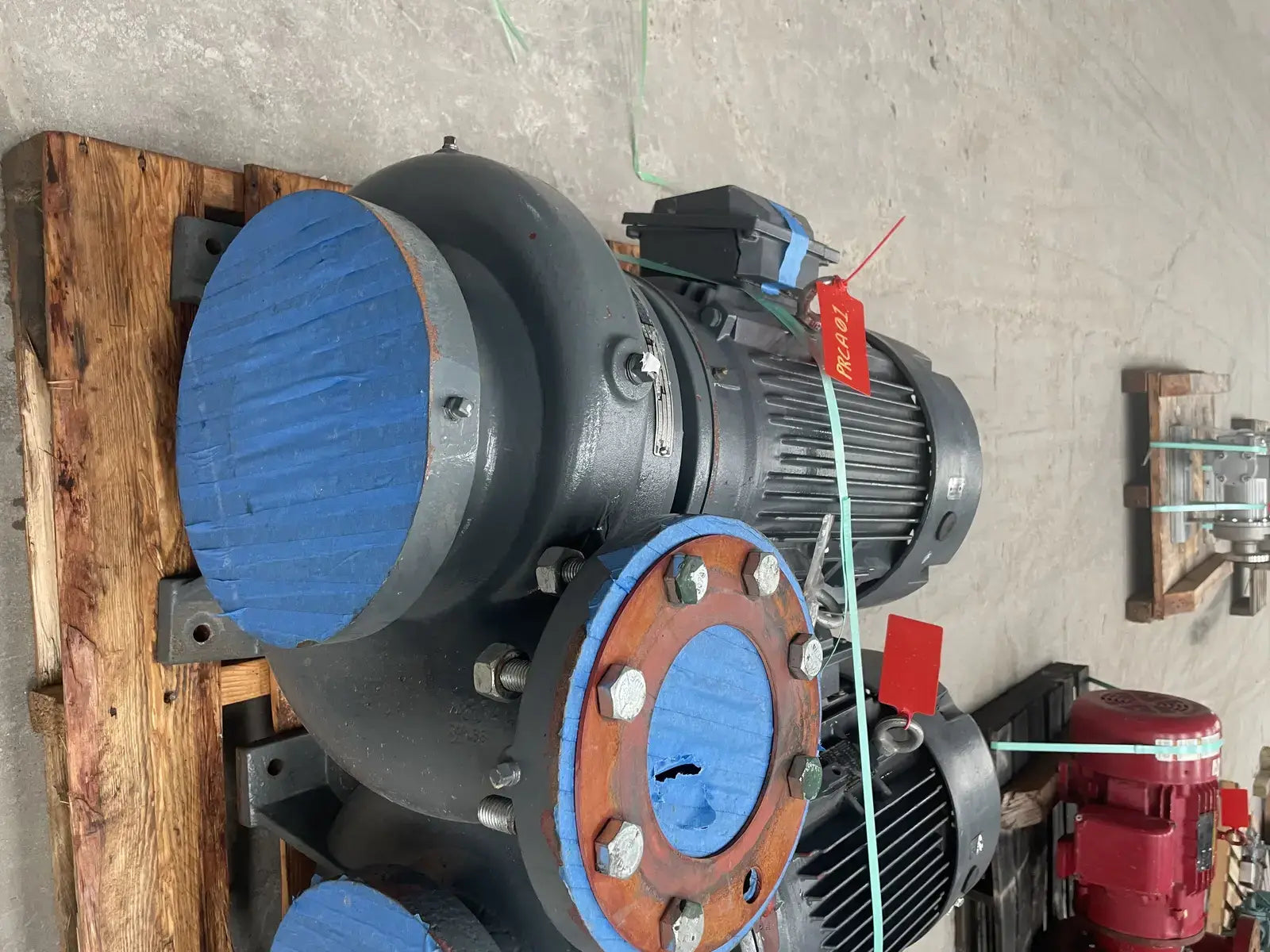

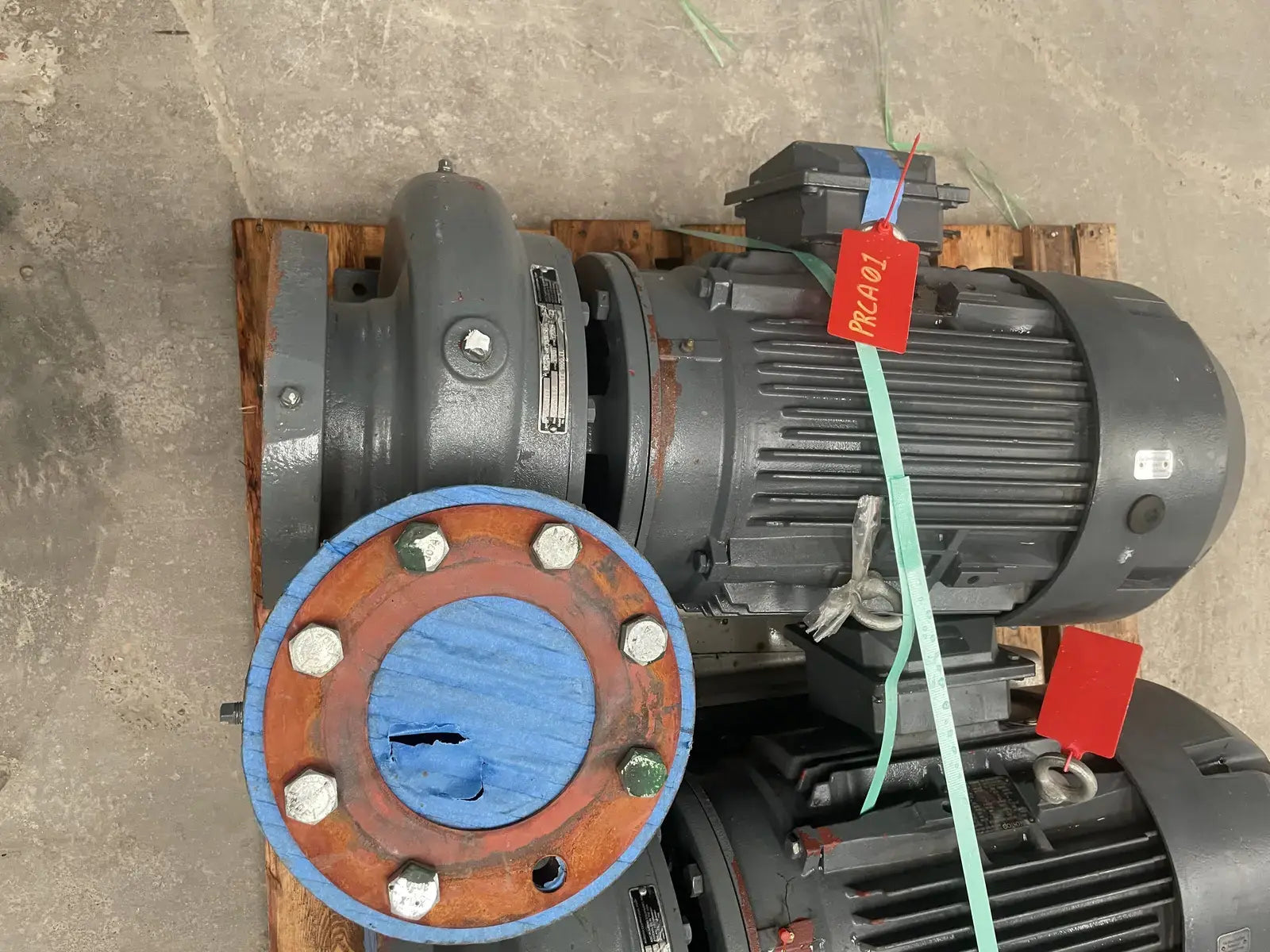

Aurora 5X6X11 3801 CC 1800 CL Centrifugal Pump (30 HP, 1,200 GPM Max)

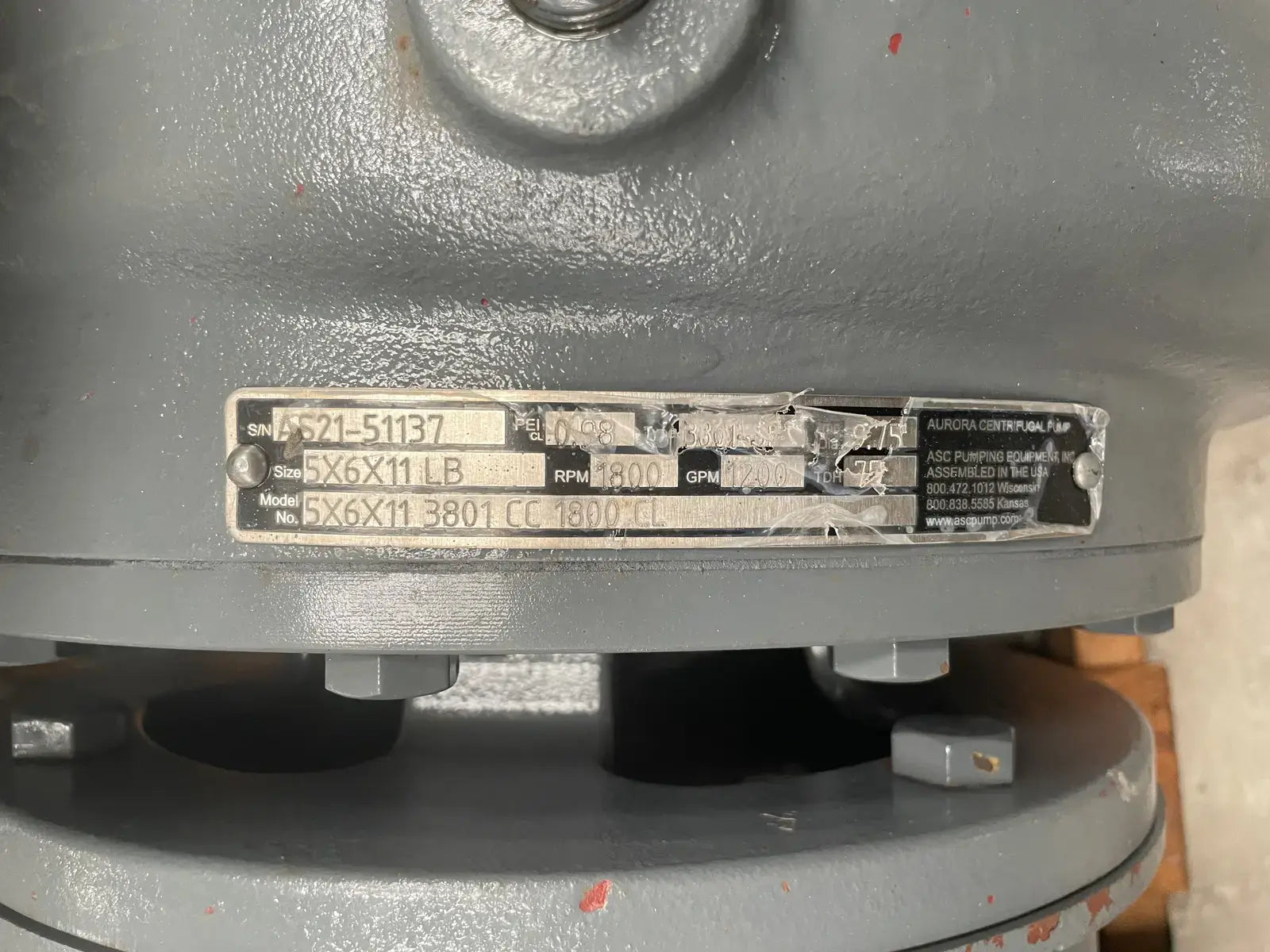

Aurora 3800 Series Single Stage End Suction Pump. Model: 5X6X11 3801 CC 1800 CL. Serial No: AS21-51137. Size: 5X6X11 LB. Type:3801-SF. Impeller Dia: 9.75. Capacity: 1200 GPM
Product Details
- Stock No: PRCA01
- Manufacturer: Aurora
- Model: 5X6X11 3801 CC 1800 CL
- Serial Number: AS21-51137
Pump Details
- Pump Type: Centrifugal
- Max Gallons Per Minute GPM: 1,200
- Max Speed RPM: 1,800
- Maximum Temperature (F): 300
- Maximum Pressure MAWP (PSI): 175
- Impeller Diameter (inches): 9.75
- # Inlets: 1
- # Outlets: 1
- # Inlets/Outlets: 2
- Inlet/Outlet 1: Inlet
- Inlet/Outlet Type 1: Flange
- Inlet/Outlet Flange Size (inches) 1: 6
- Inlet/Outlet 2: Outlet
- Inlet/Outlet Type 2: Flange
- Inlet/Outlet Flange Size (inches) 2: 5
Previous Refrigerant

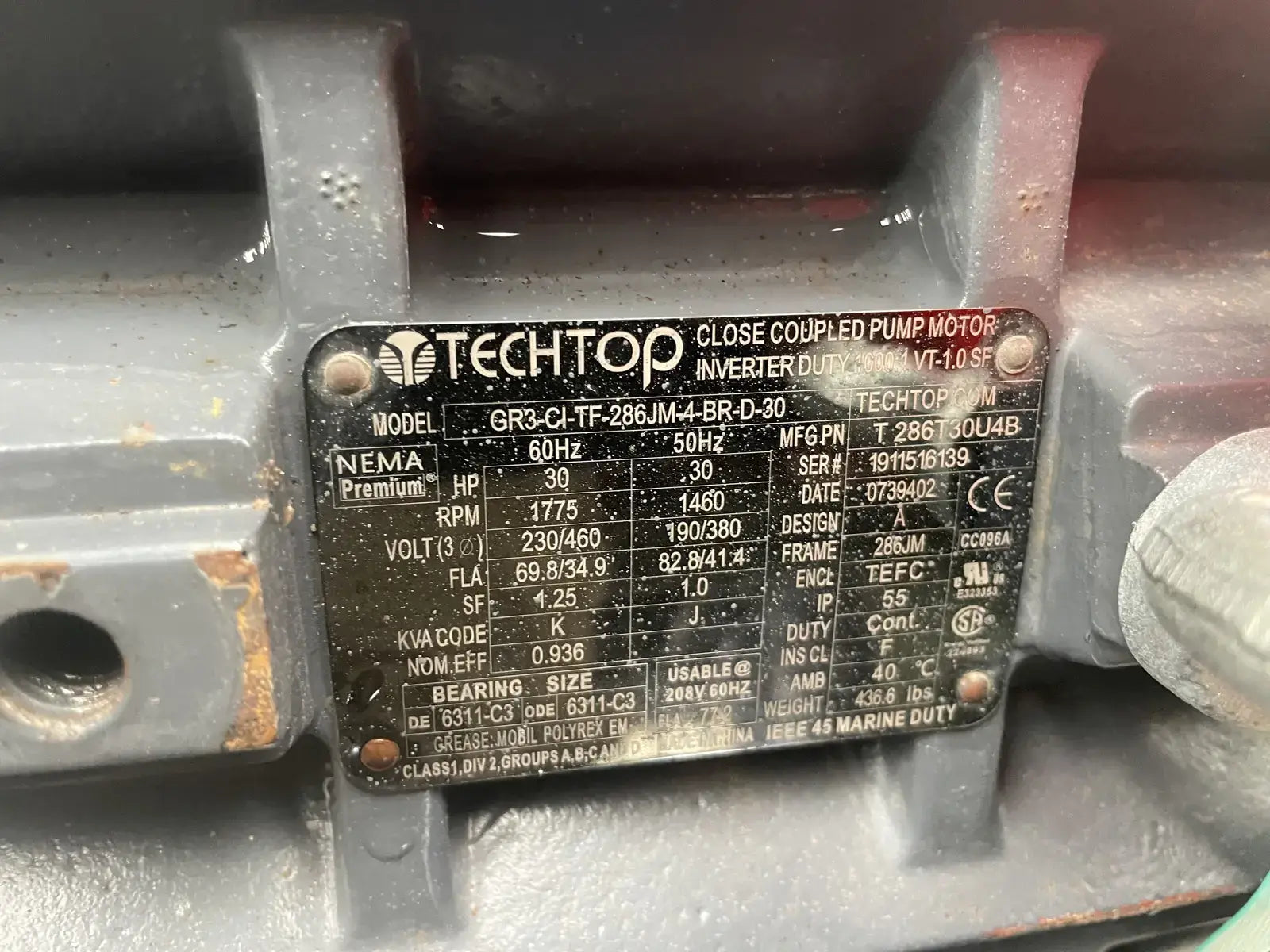

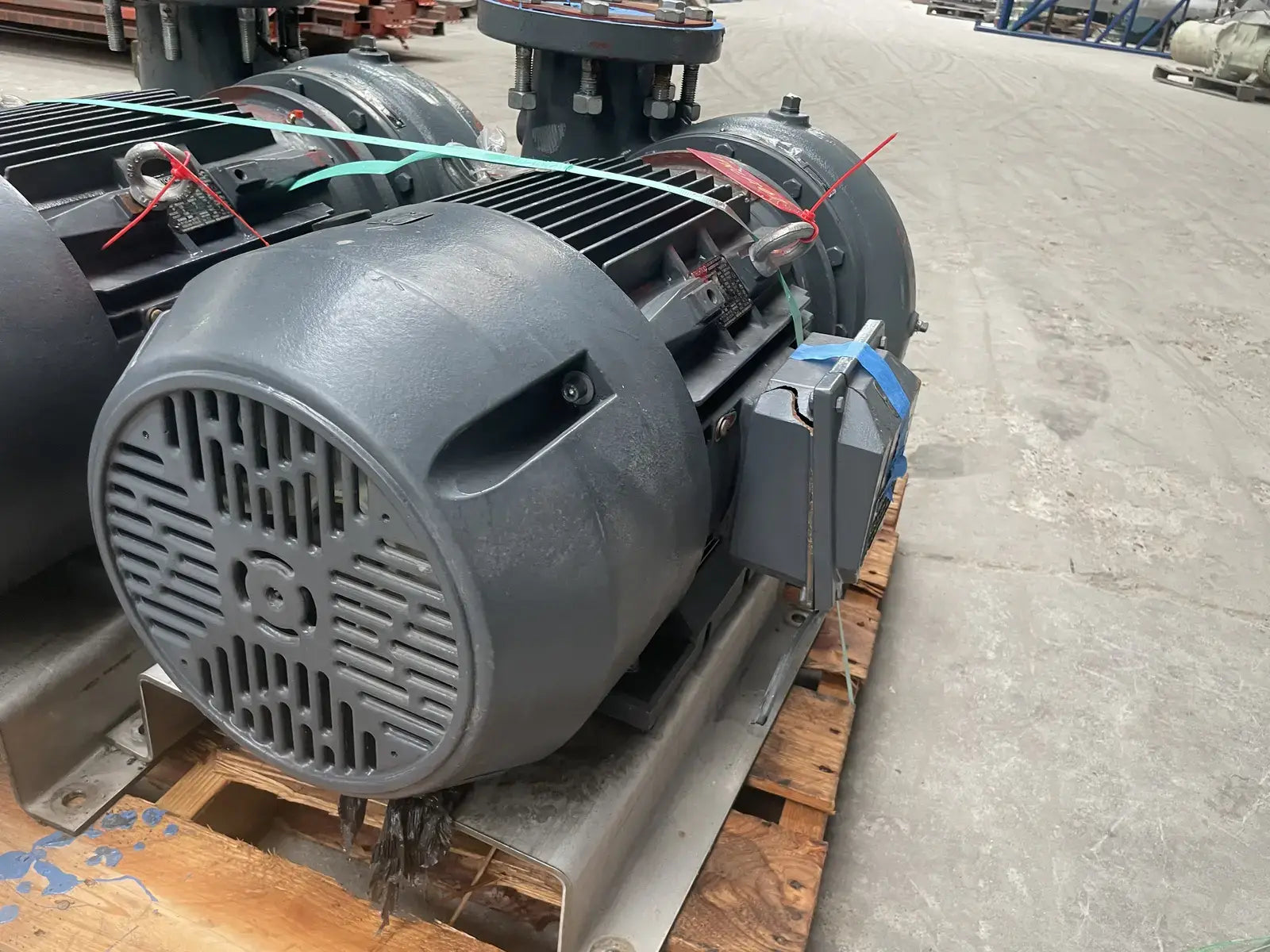

Motor Details
- Motor Included? No
- # Motors: 1
- Motor Manufacturer: Techtop
- Motor Horsepower(HP): 30
- Motor RPM: 1,775
- Motor Voltage: 230/460
- Motor Amps: 69.8/34.9
- Motor Hertz (Hz): 60
- Motor Phases: 3
- Motor Frame Size: 286JM
Dimensions:
- Length (Inches): 35
- Width (Inches): 20
- Height (Inches): 32
- Weight (LBS): 550
- # of Pieces for Shipping: 1
Additional Product Details
- Year Removed from Production: 2025
- Spec Sheet Available: Yes
- Product Purchased From: 2025
