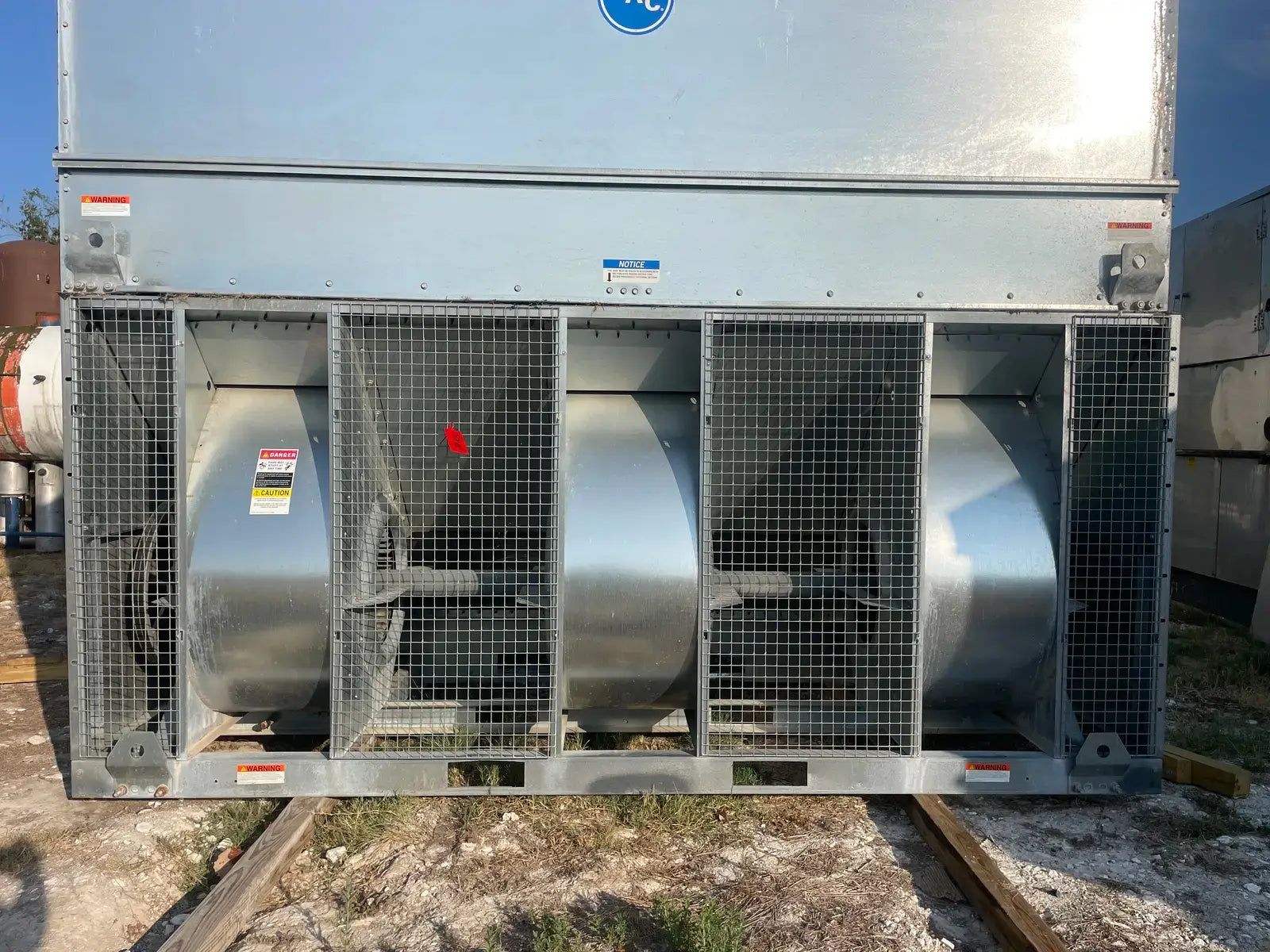

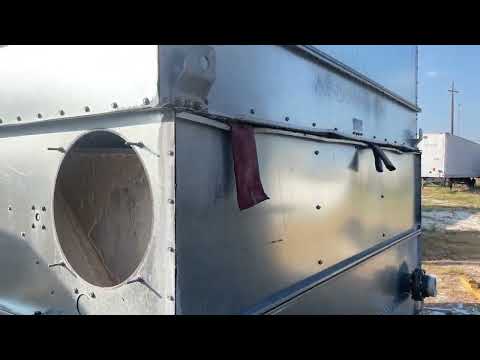

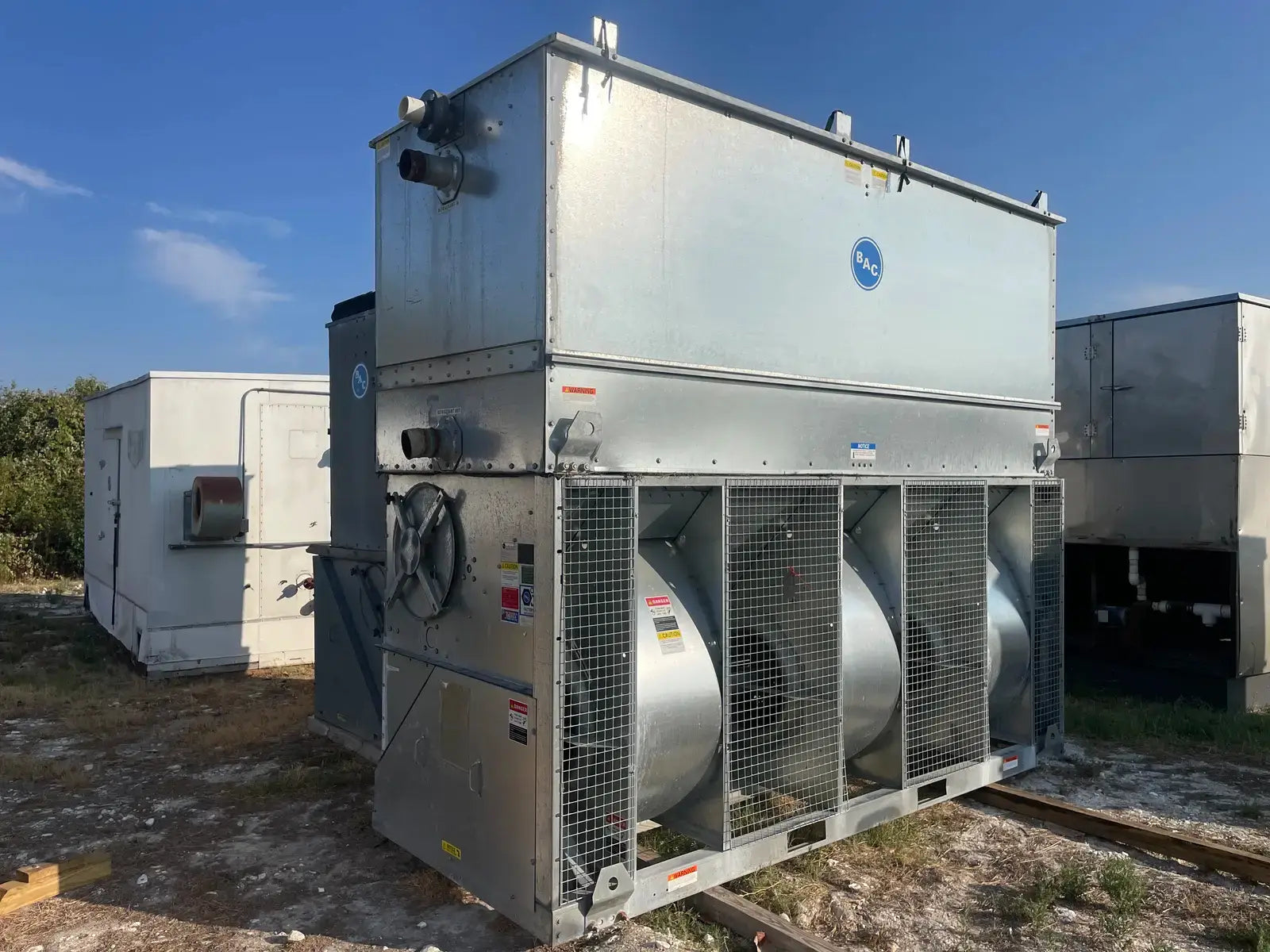

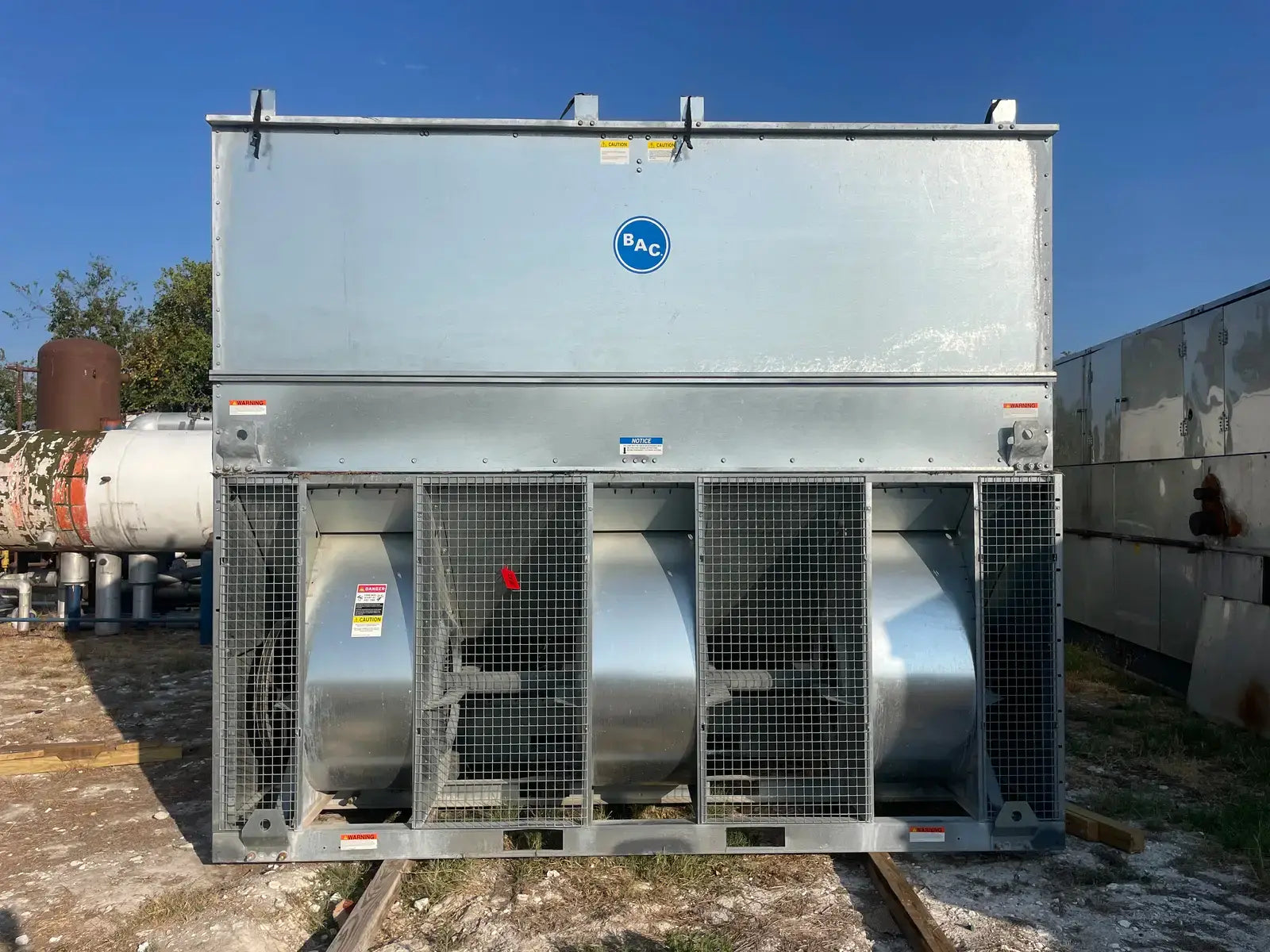

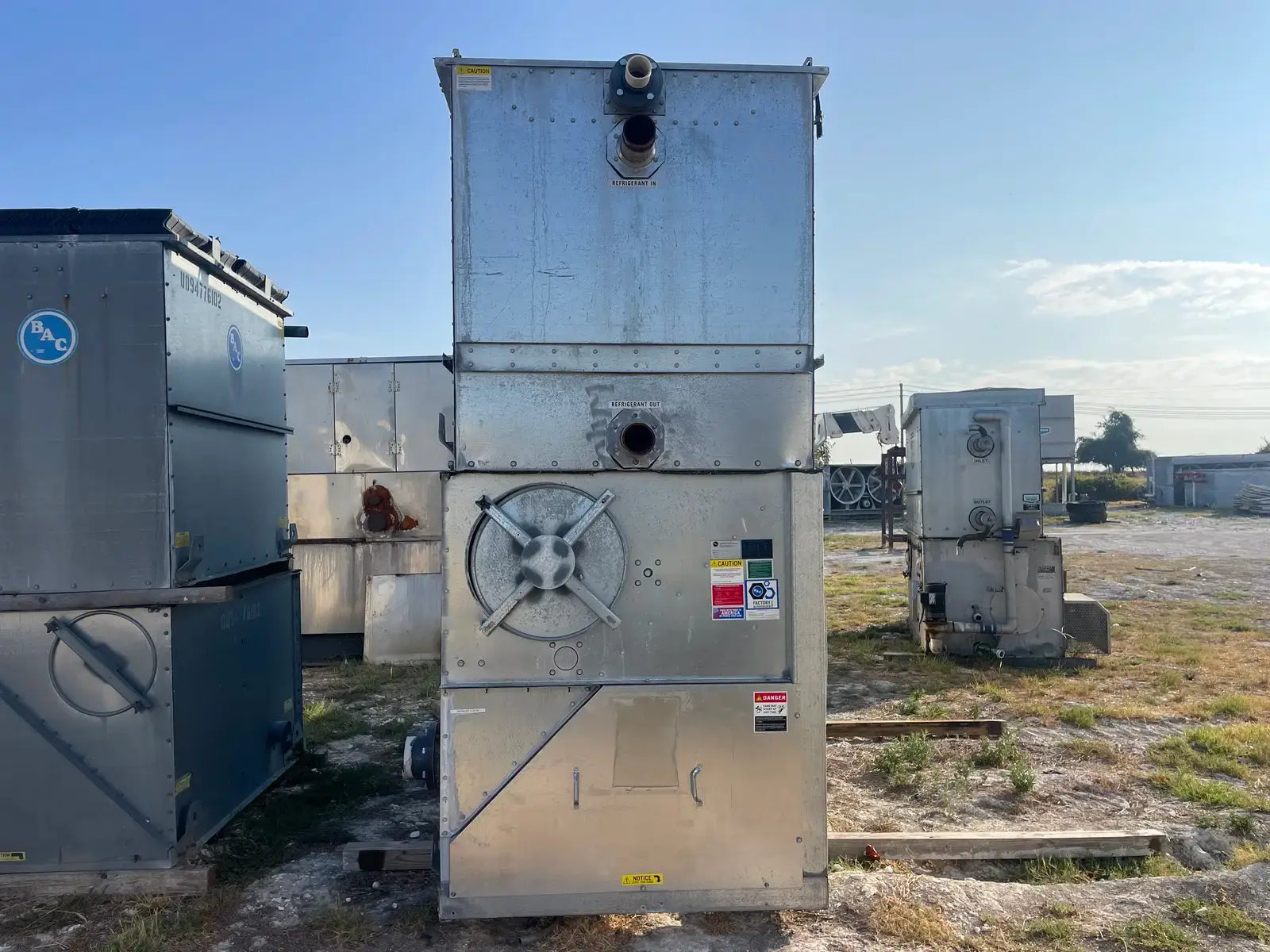

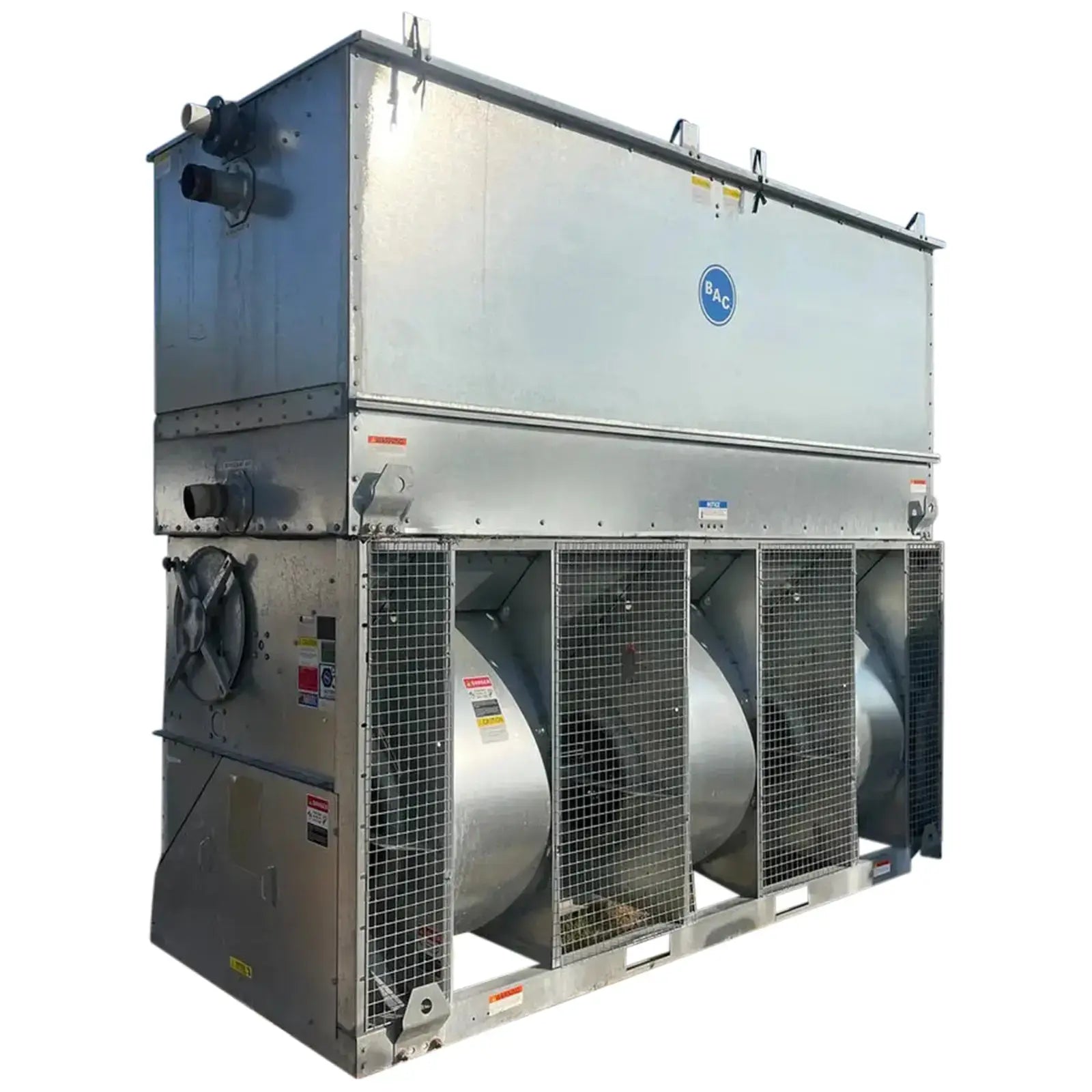

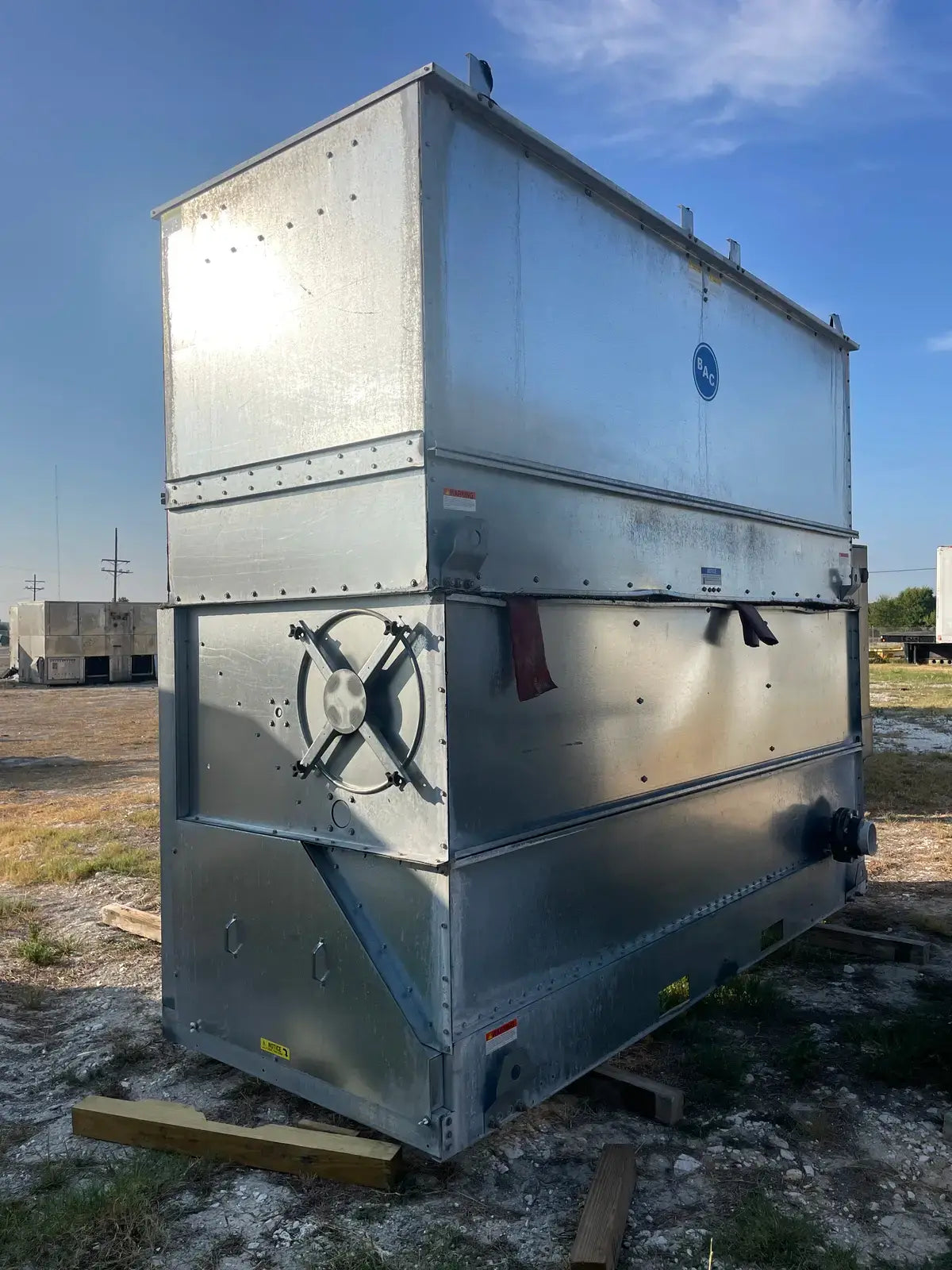

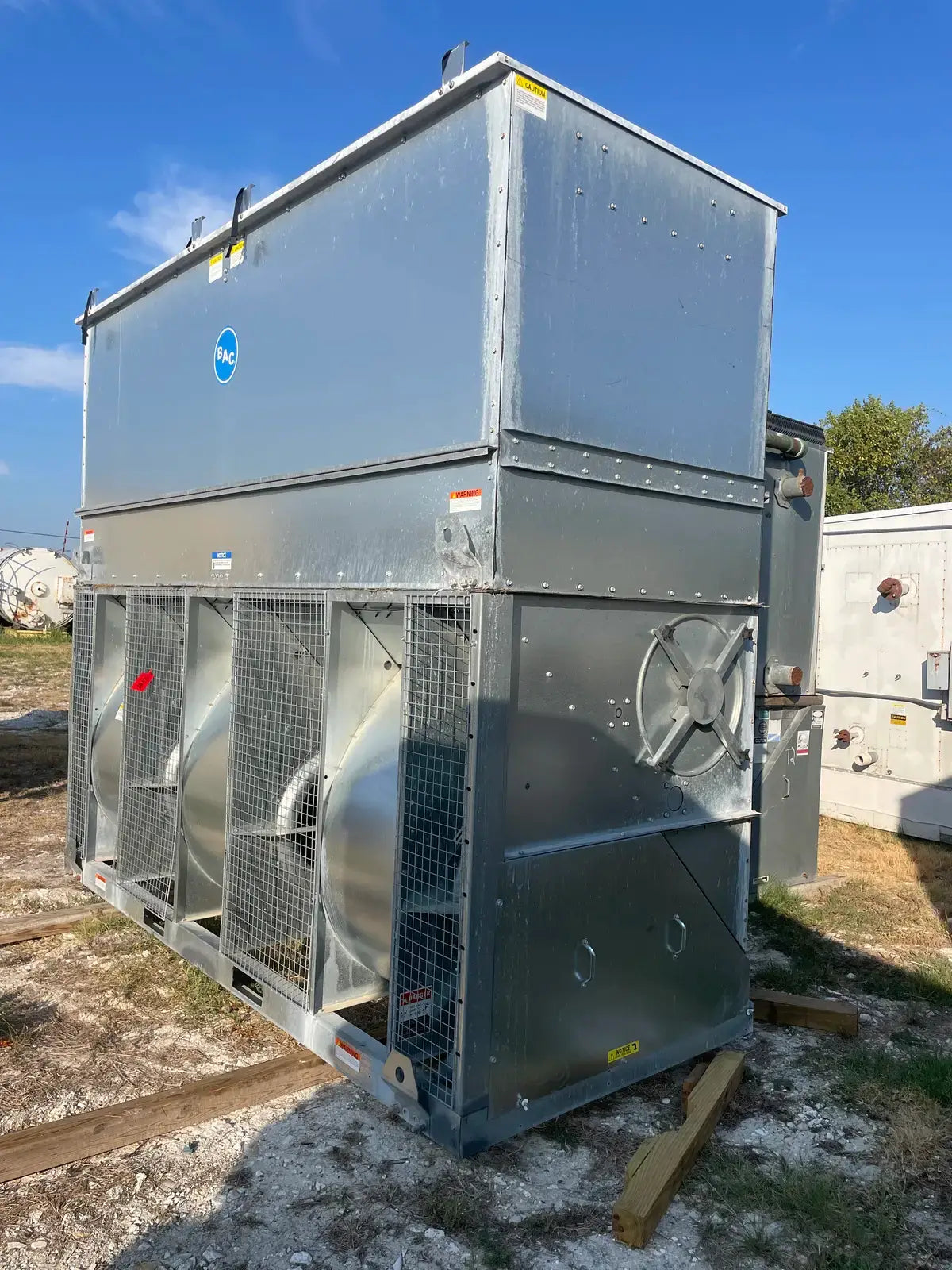

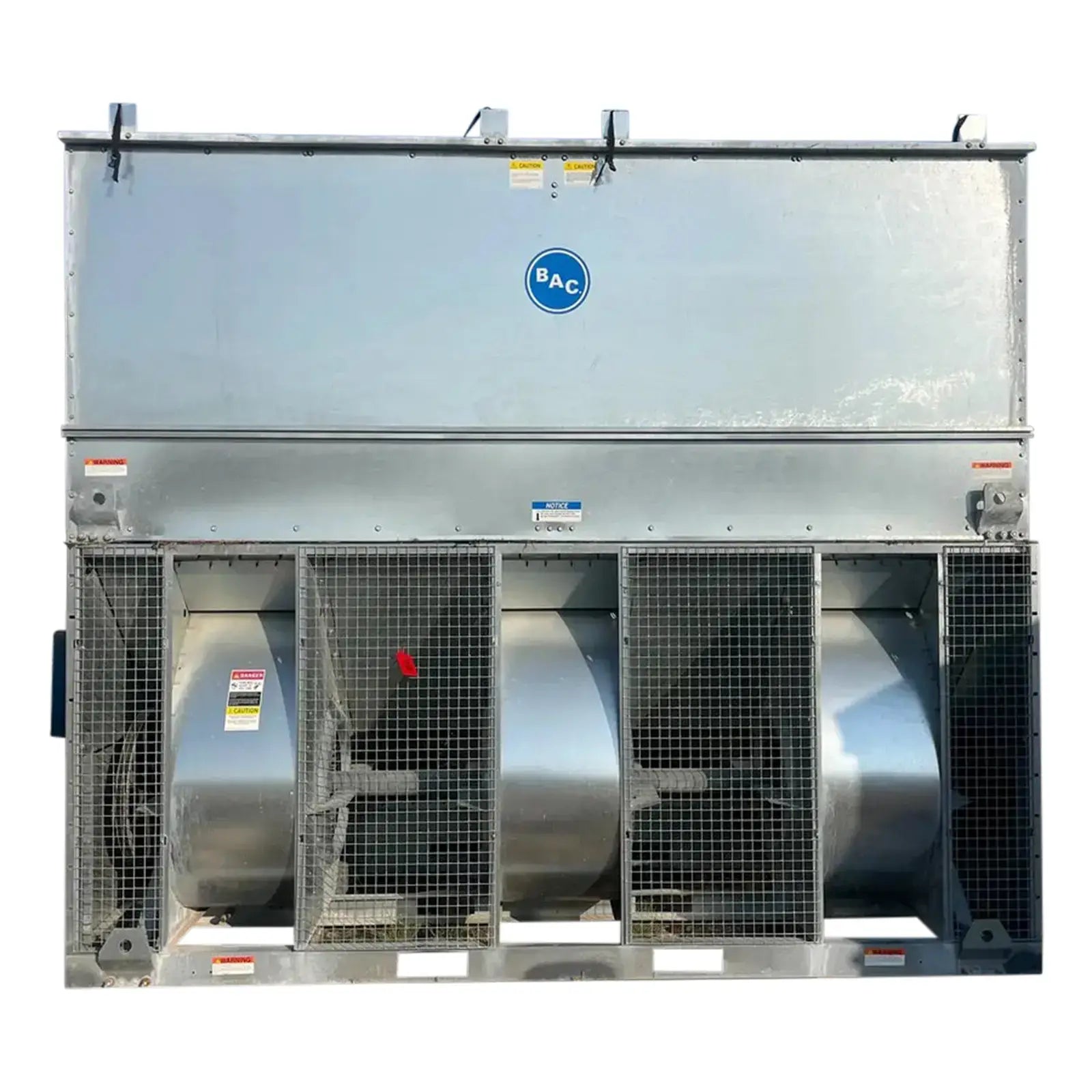

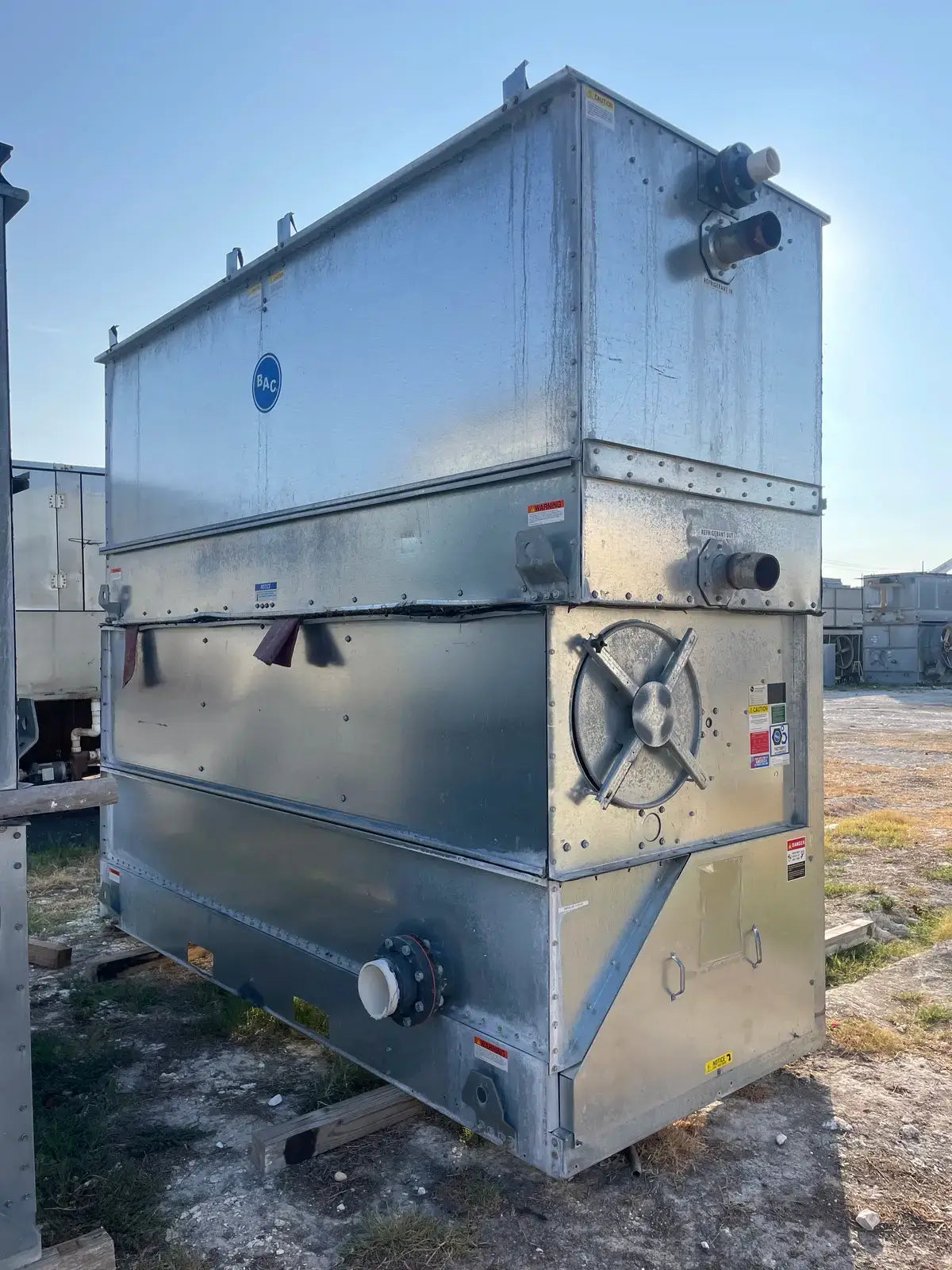

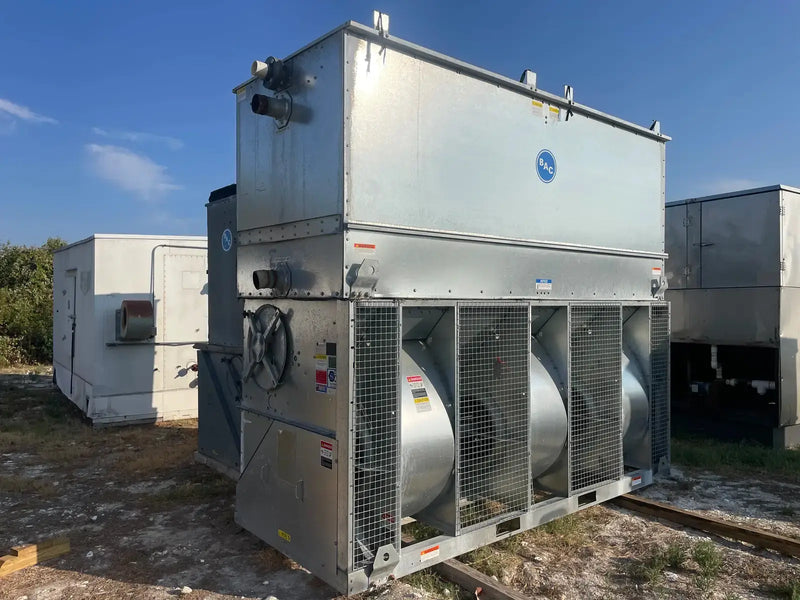

BAC VC1-165 Evaporative Condenser (165 Nominal Tons, 1-10 HP Motors, 1 Tower Unit)

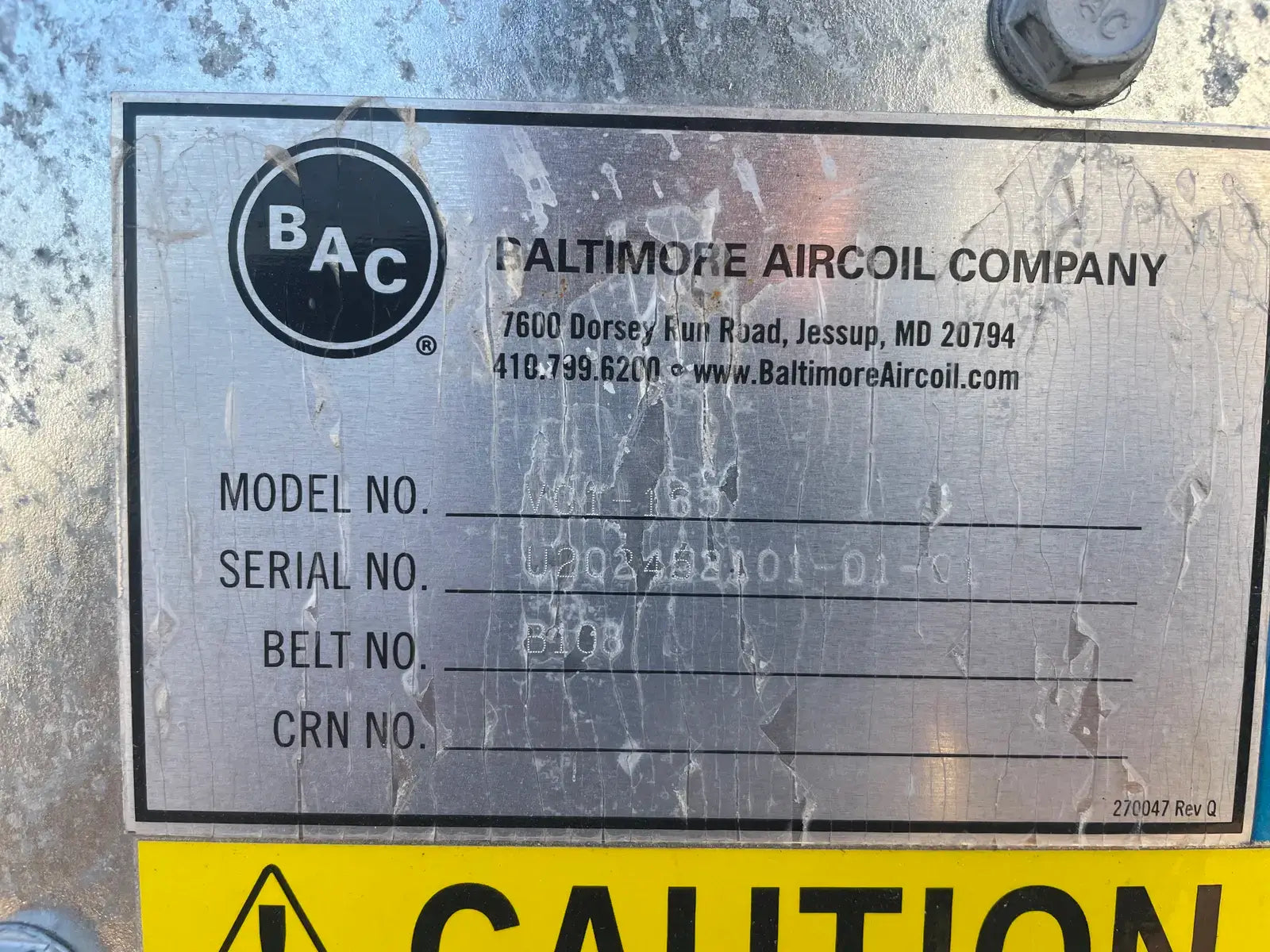

BAC Evaporative Condenser. Model: VC1-165. Serial No: U202452101-01-01. Belt No: B108. Base Heat RejectioN (MBH): 2,426. Nominal Tons: 165. Ammonia Tons: 117. CFM:27,200. GPM Required: 220. R-717 Oper Charge(LBS): 210. Internal Coil Volume (FT3): 23. Approx Weights - Shipping: 8060 LBS, Heaviest Section: 5830 LBS, Operating: 9,680 LBS.
Product Details
- Stock No: JCH01
- Manufacturer: BAC
- Model: VC1-165
- Serial Number: U202452101-01-01
Condenser Details
- Multiple Units Included in Package? No
- Unit Nominal Tons (TR): 165
- Unit Coil Volume (ft3): 23
- Unit CFM (CFM): 27,200

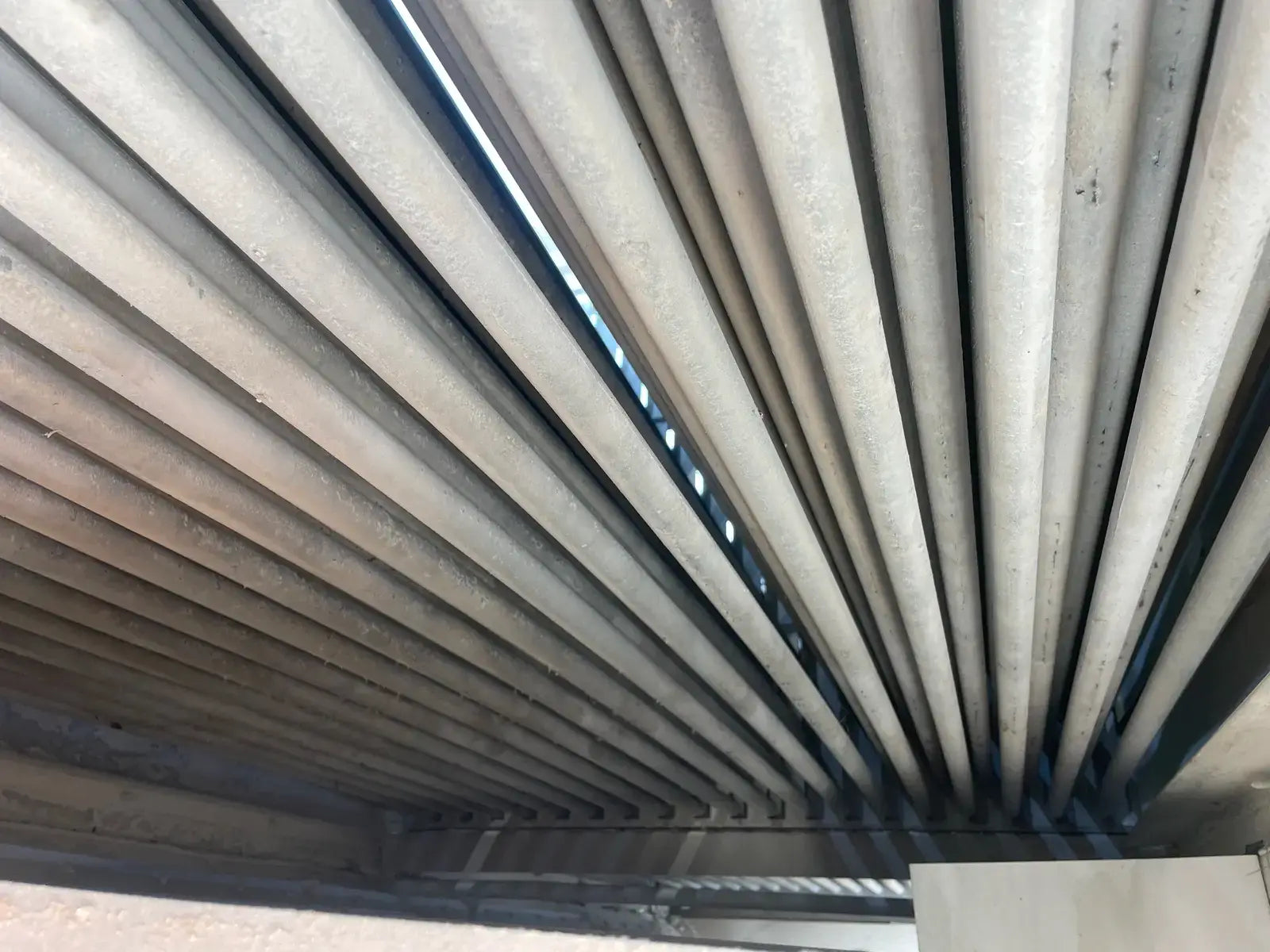

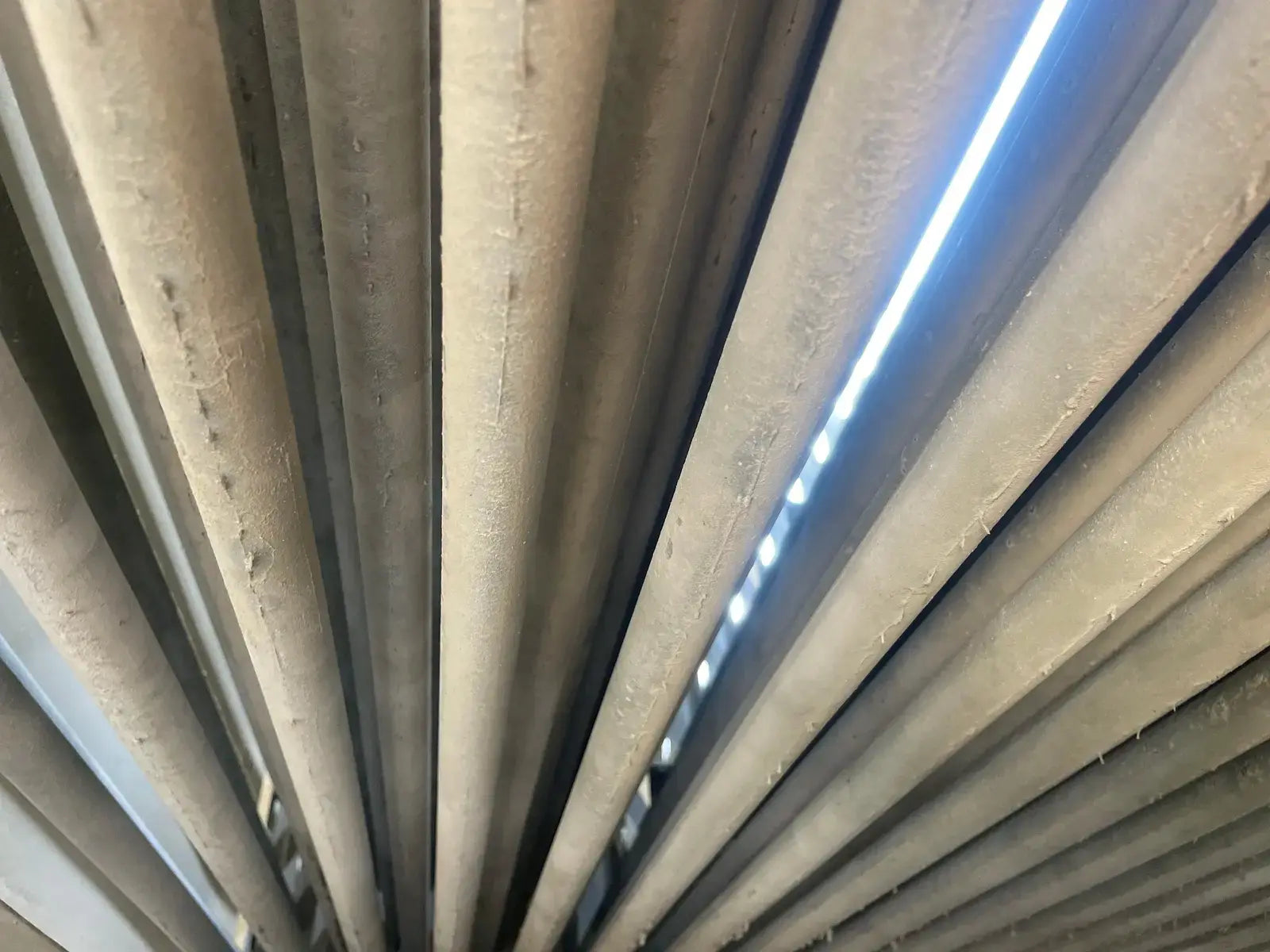

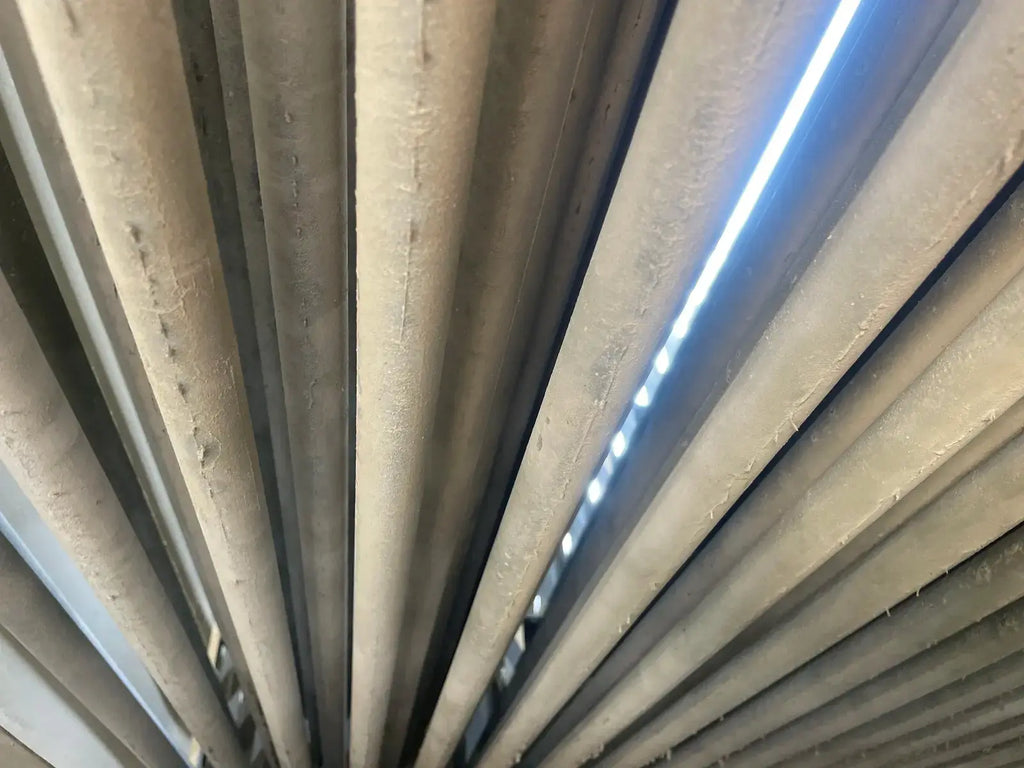

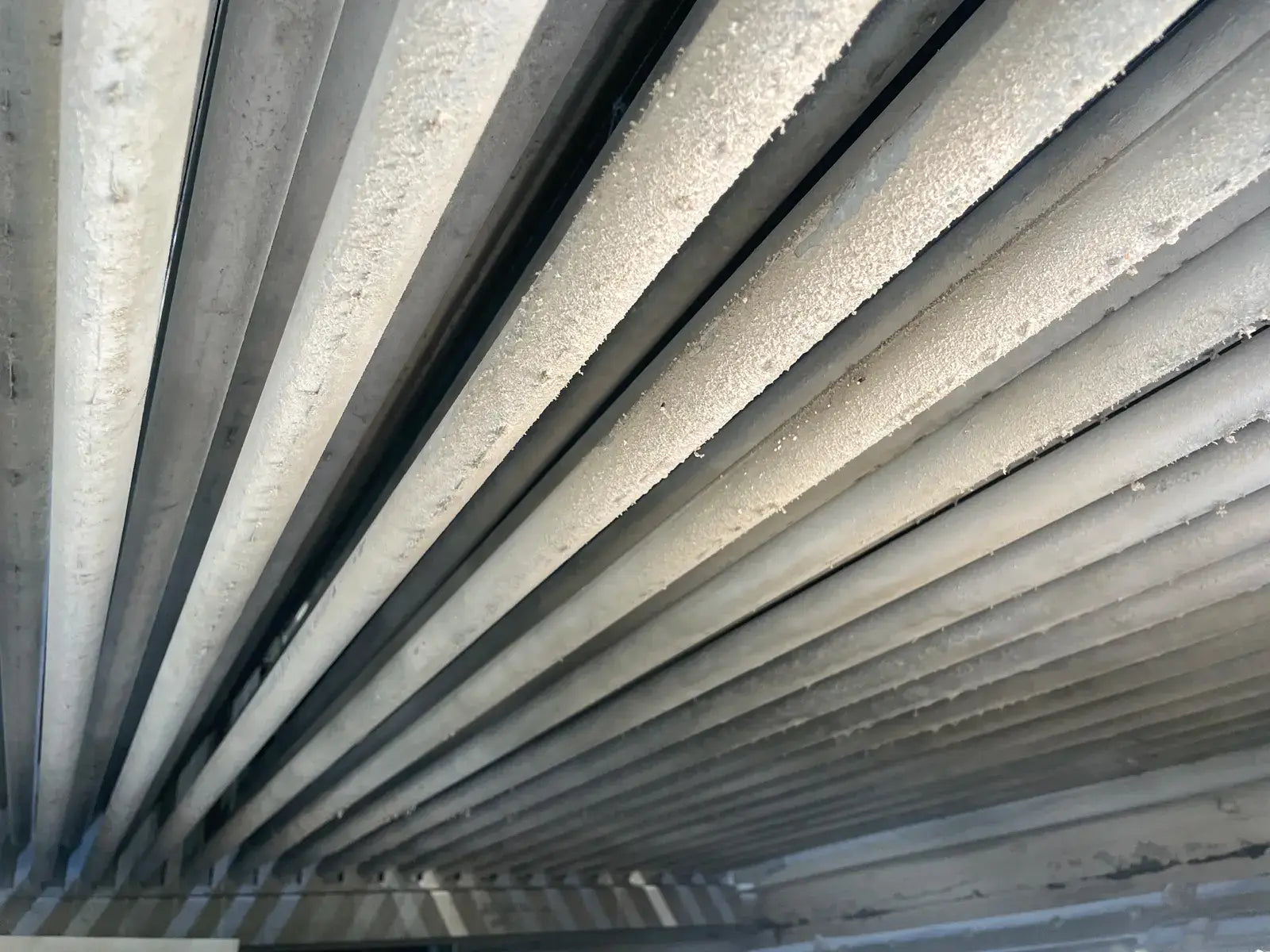

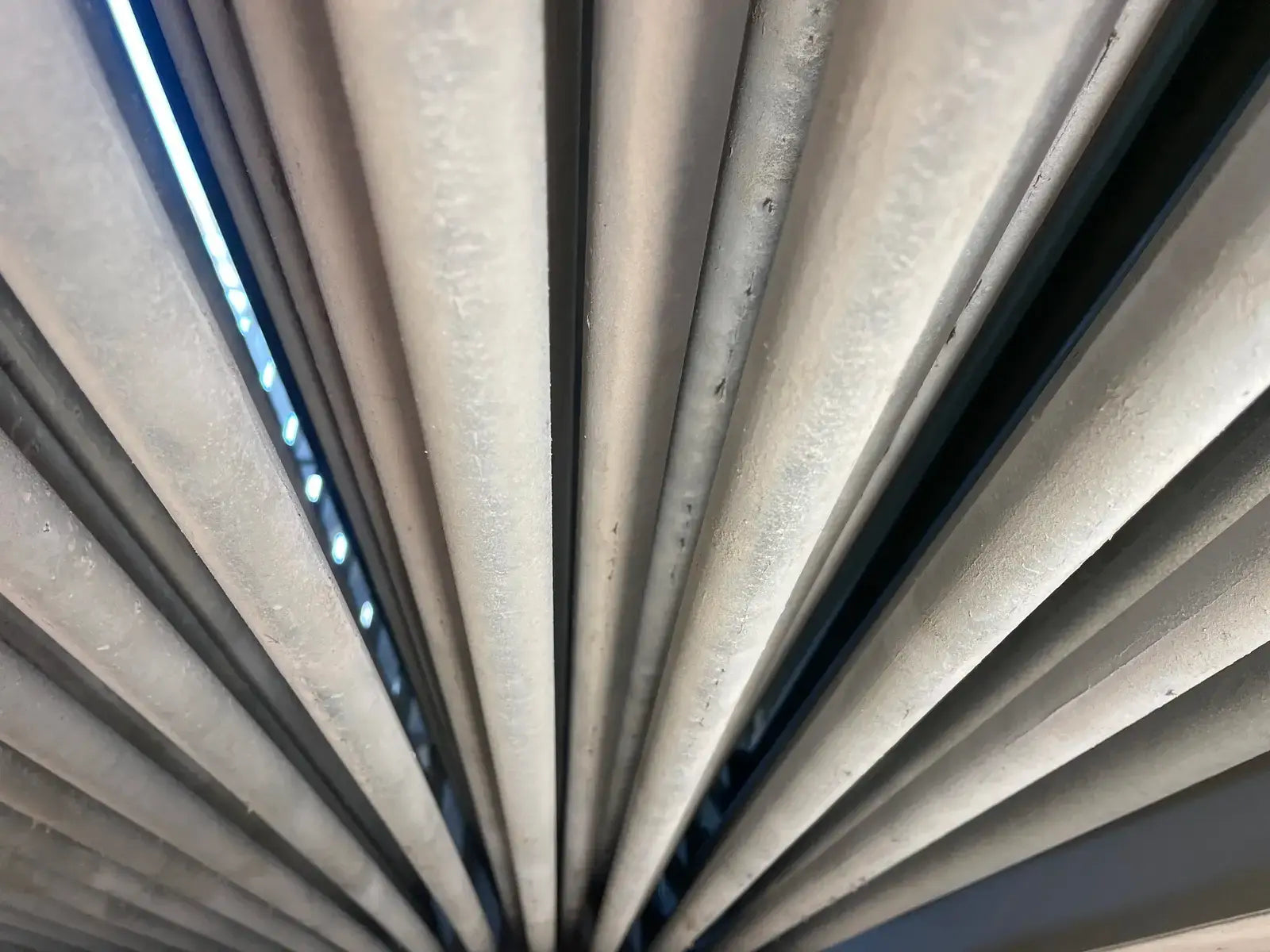

- Top Coil Condition Rating: Platinum - Almost Zero Scale- Zero Rust
- Bottom Coil Condition Rating: Platinum - Almost Zero Scale- Zero Rust
- Circuit 1 Pressure Rating: Pending Test
- Circuit 2 Pressure Rating: Pending Test
Condenser Dimensions
- Top Length (Inches): 132
- Top Width (Inches): 57
- Top Height (Inches): 54
- Top Weight (LBS): 5,830
- Bottom Length (Inches): 143
- Bottom Width (Inches): 56
- Bottom Height (Inches): 64
- Bottom Weight (LBS): 2,230
Pump Details
- Pump Included? No
Previous Refrigerant
- Previous Refrigerant: Ammonia (R-717)
- Ammonia (R-717) Compatiable: Yes
Motor Details
- Motor Included? Yes
- # Motors: 1

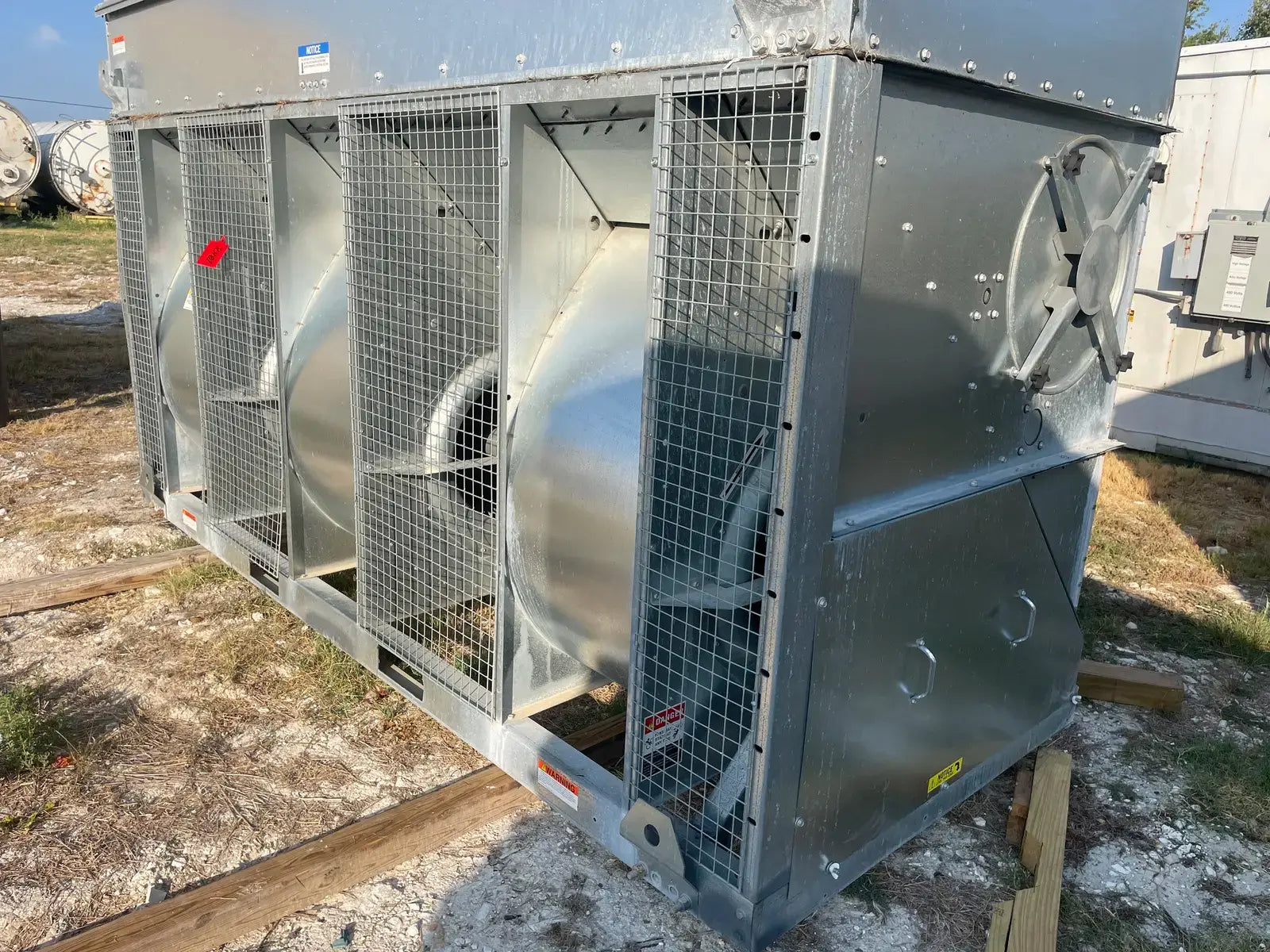

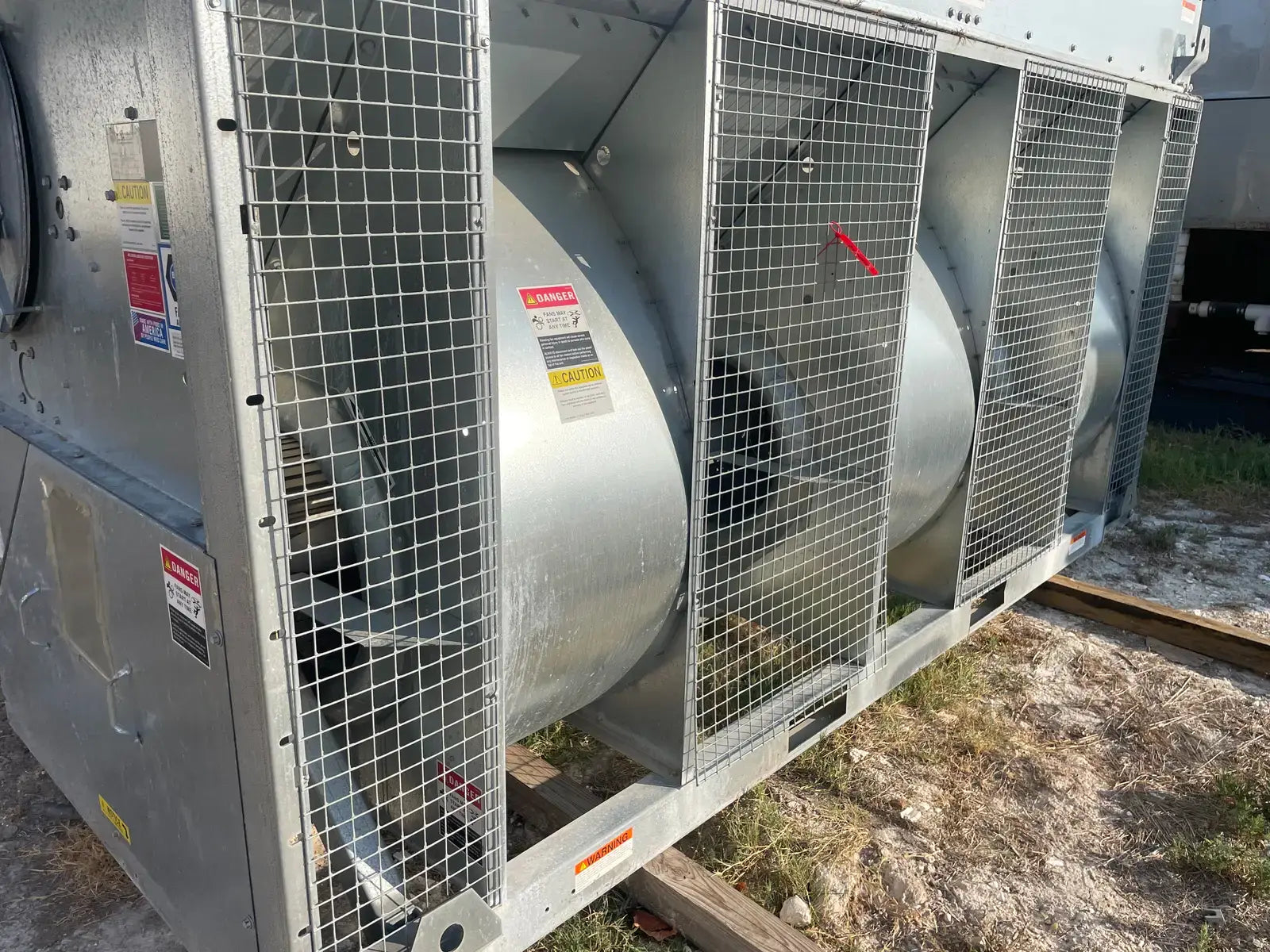

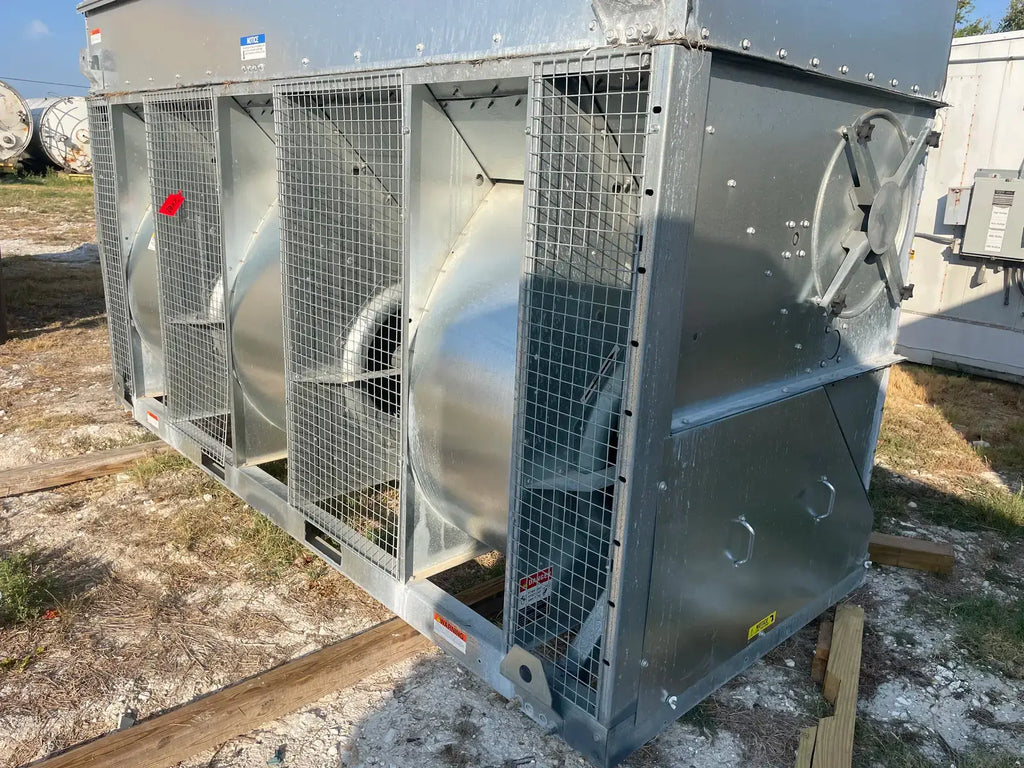

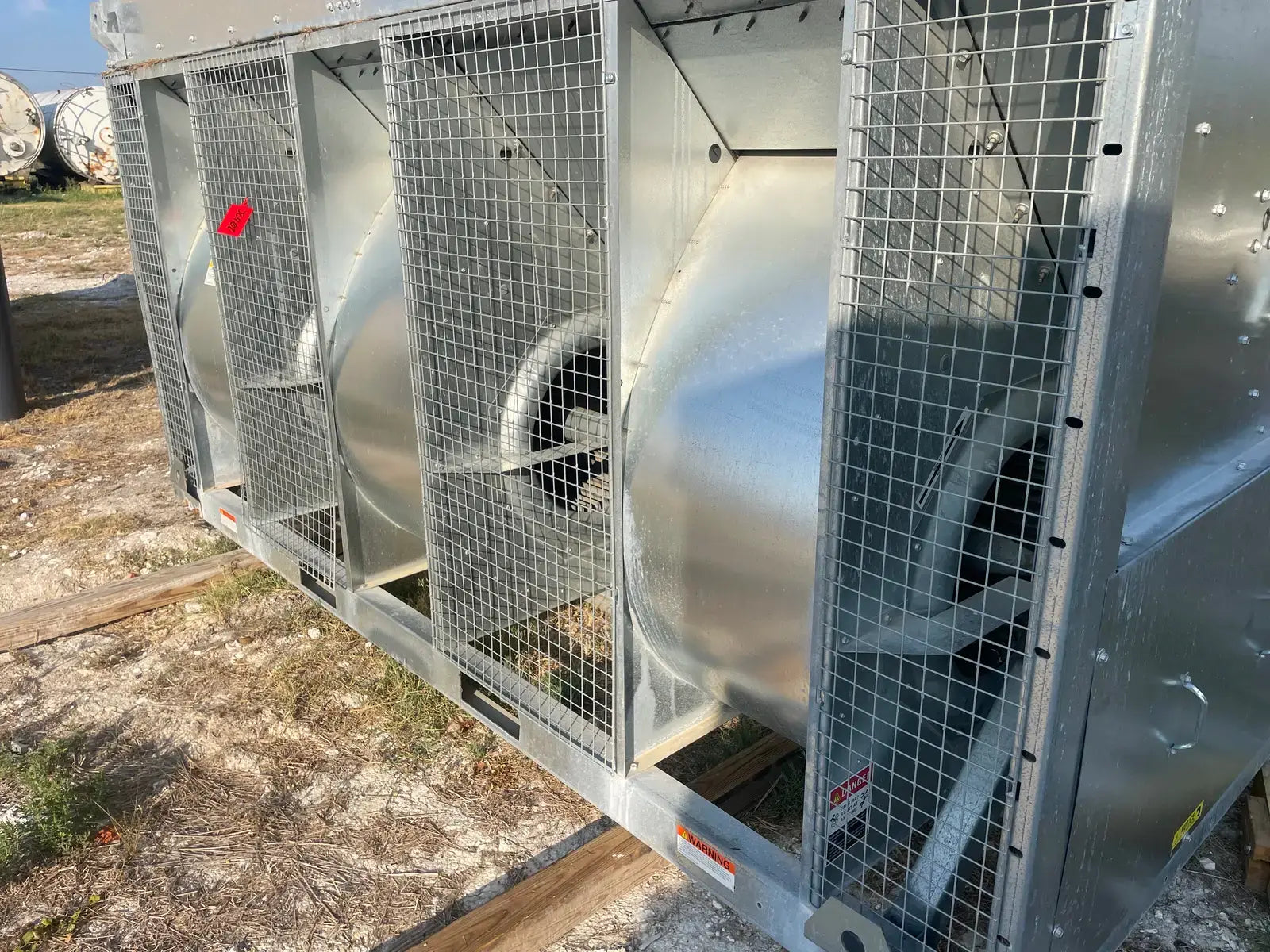

- If Multiple Motors, Motor Descriptions vs specs: Fan Motor - 10 HP.
- Motor Horsepower(HP): 10
- Motor Hertz (Hz): 60
- Motor Phases: 3
Dimensions:
- Length (Inches): 138
- Width (Inches): 60
- Height (Inches): 129
- Weight (LBS): 8,060
- # of Pieces for Shipping: 1
Additional Product Details
- Year Removed from Production: 2023

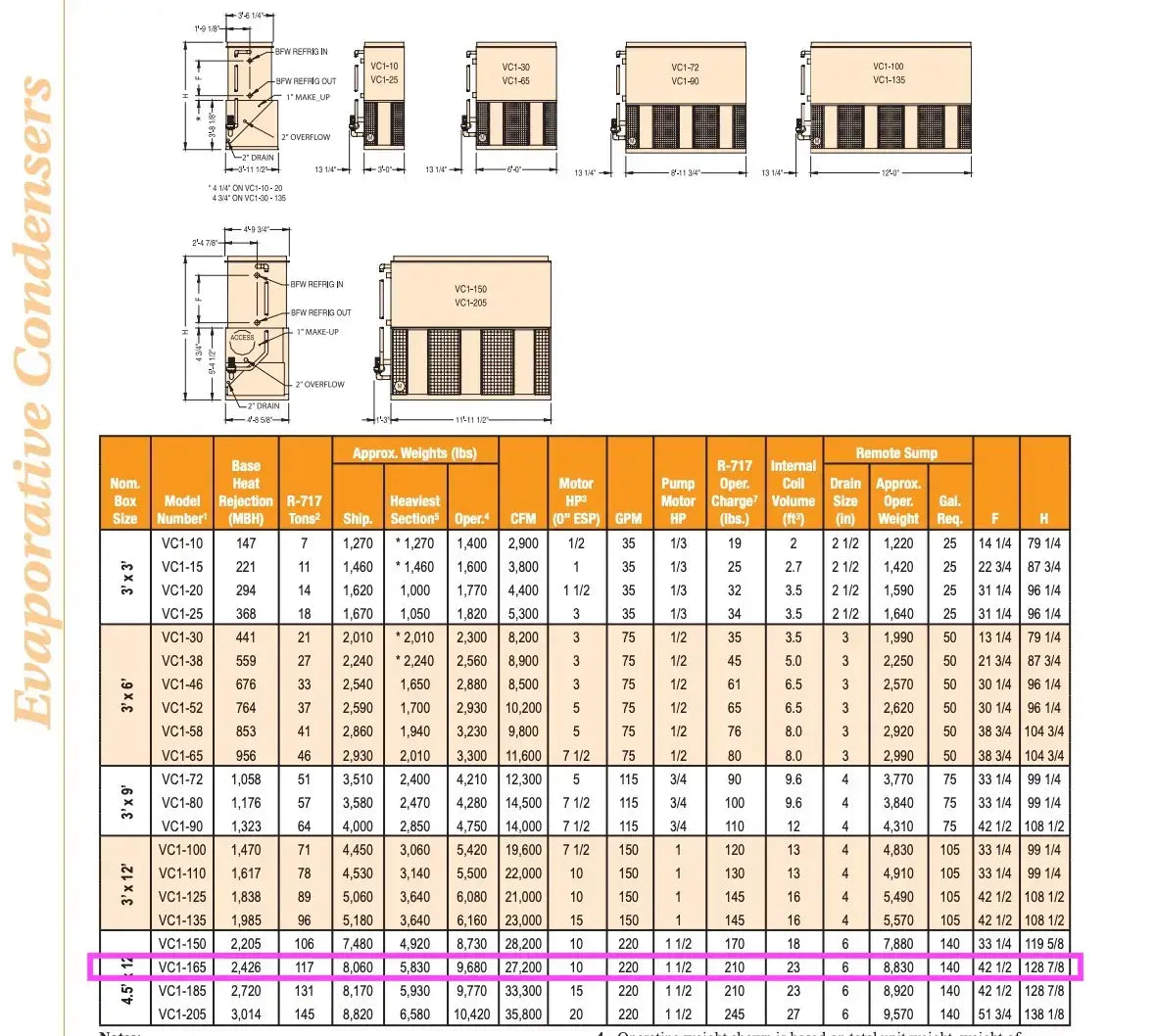

- Spec Sheet Available: Yes
