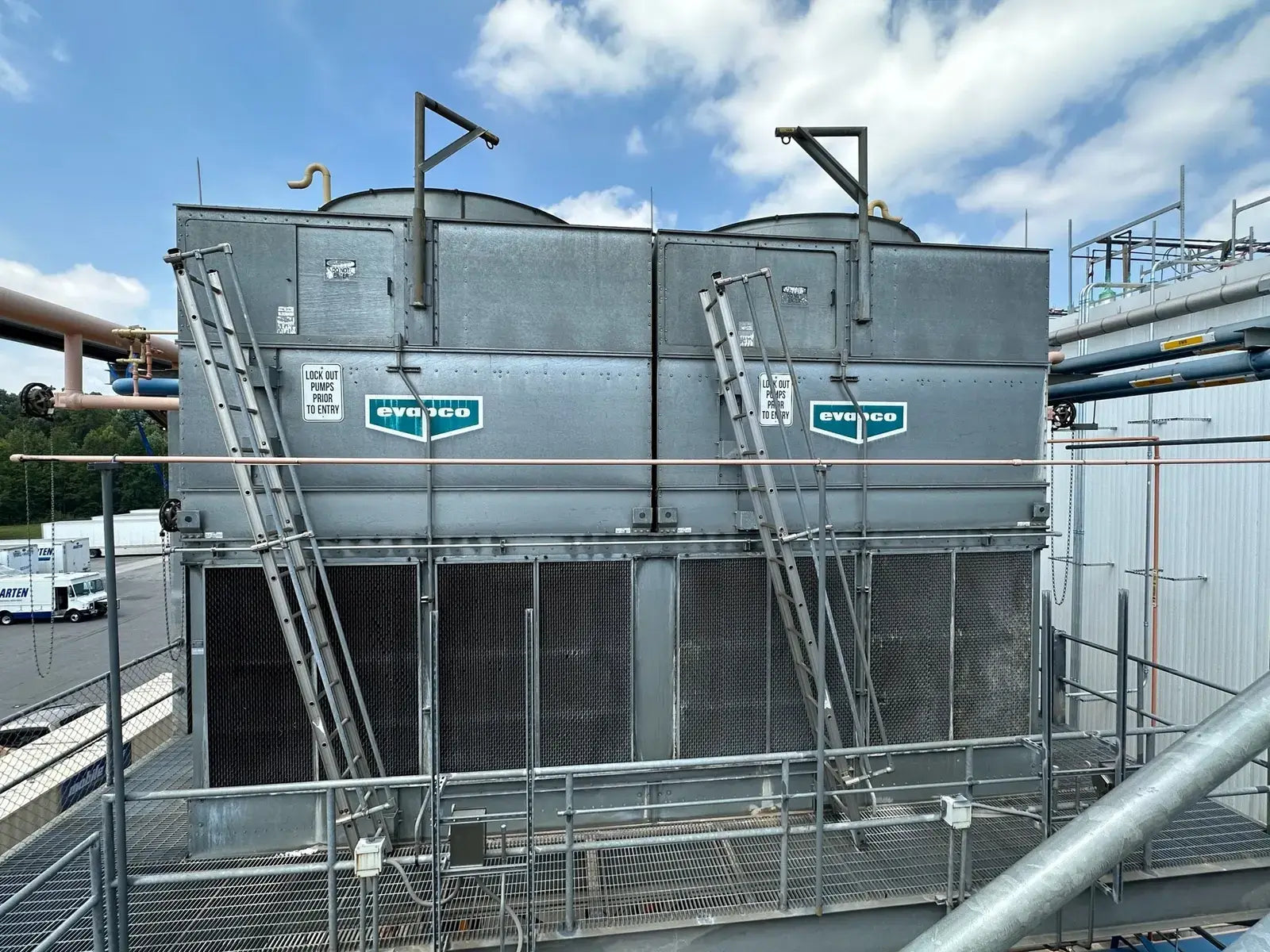

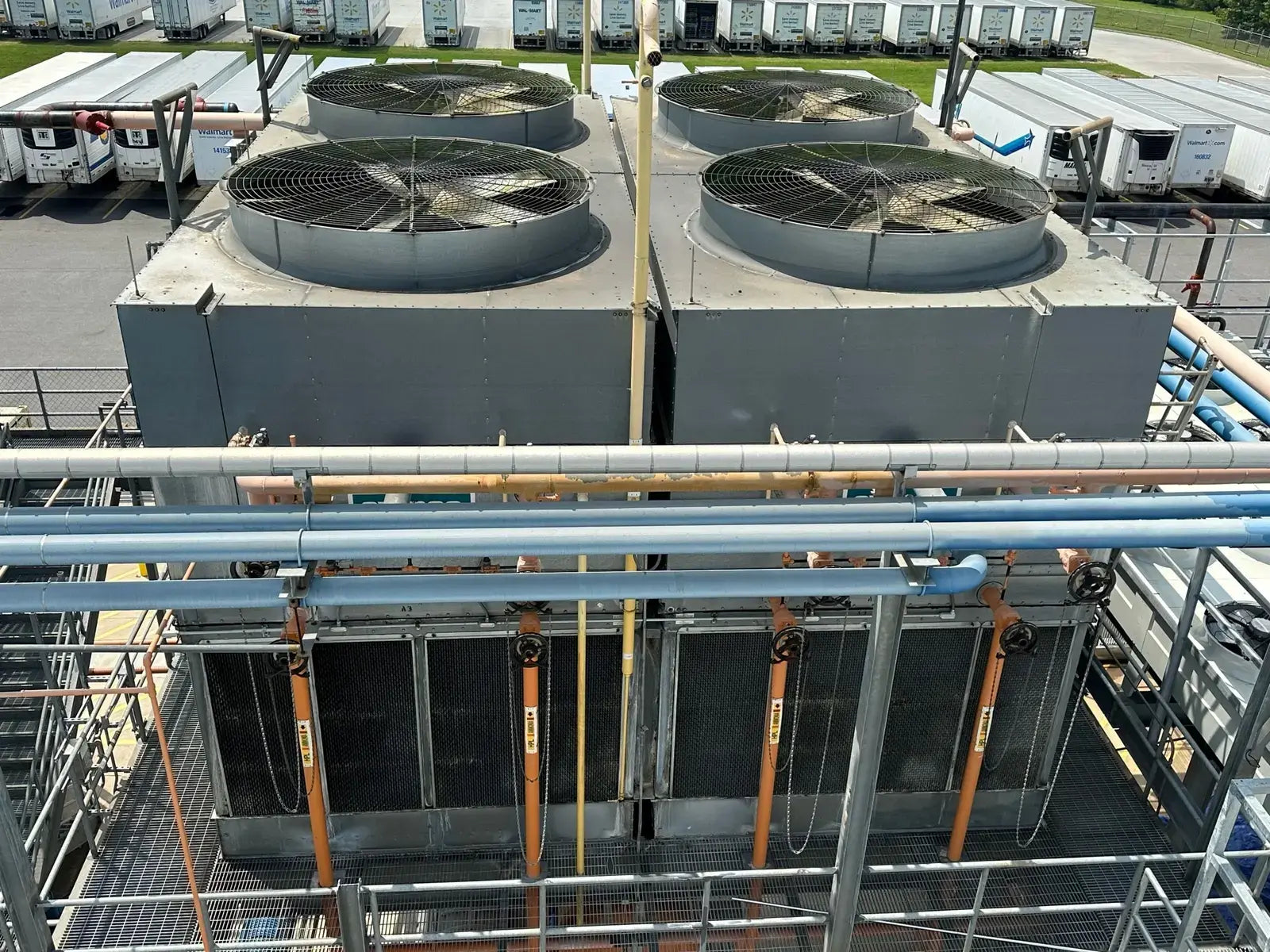

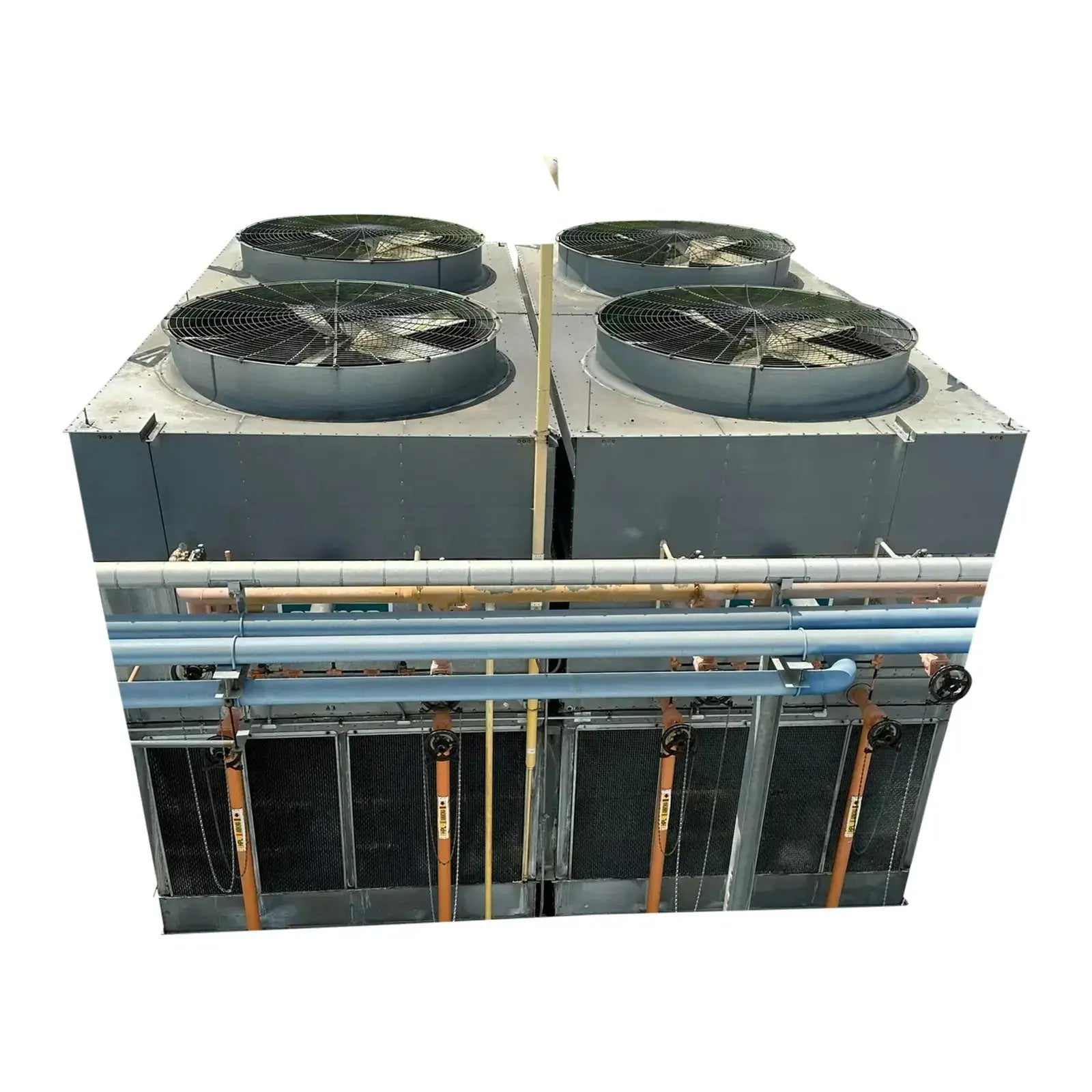

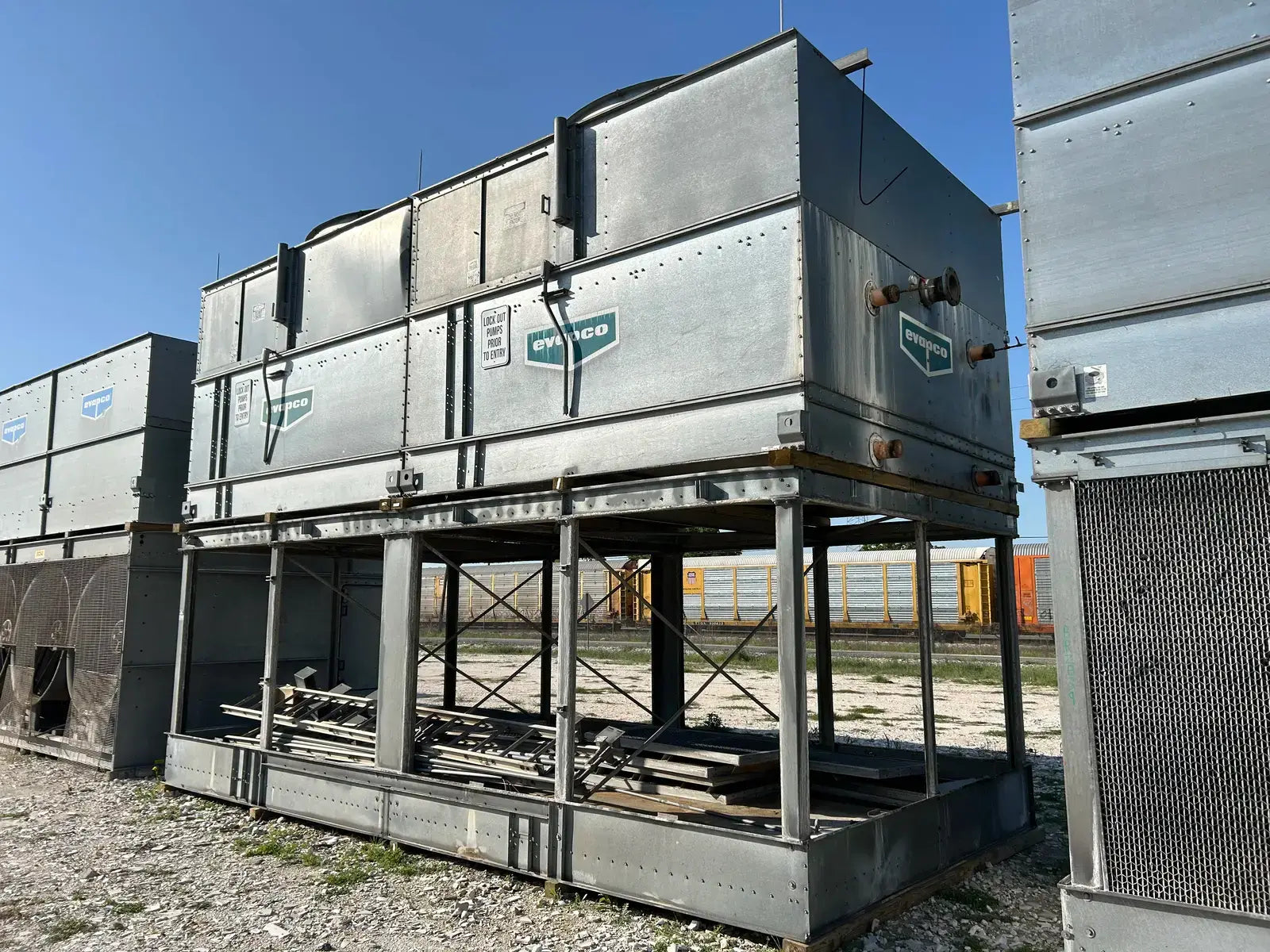

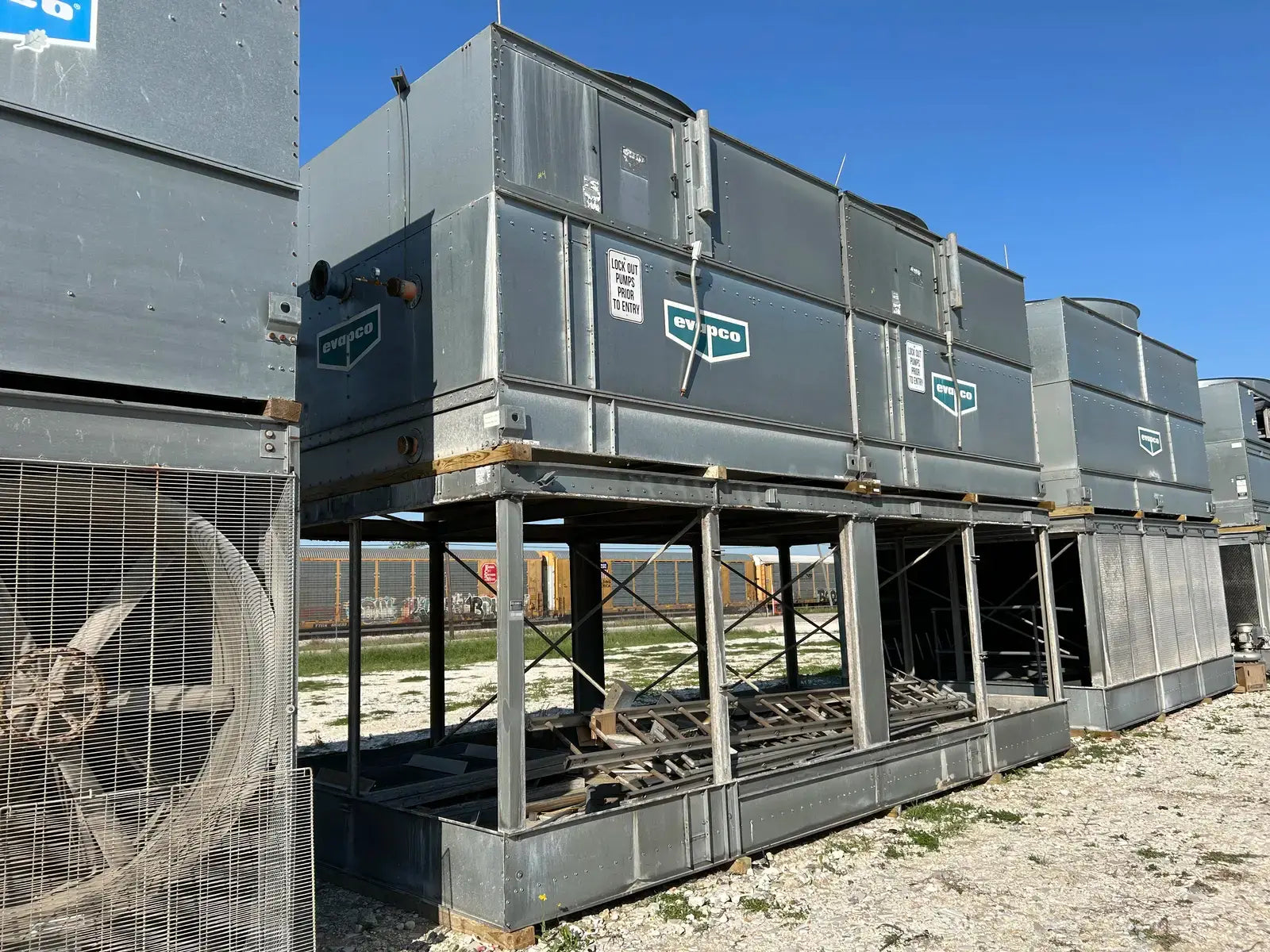

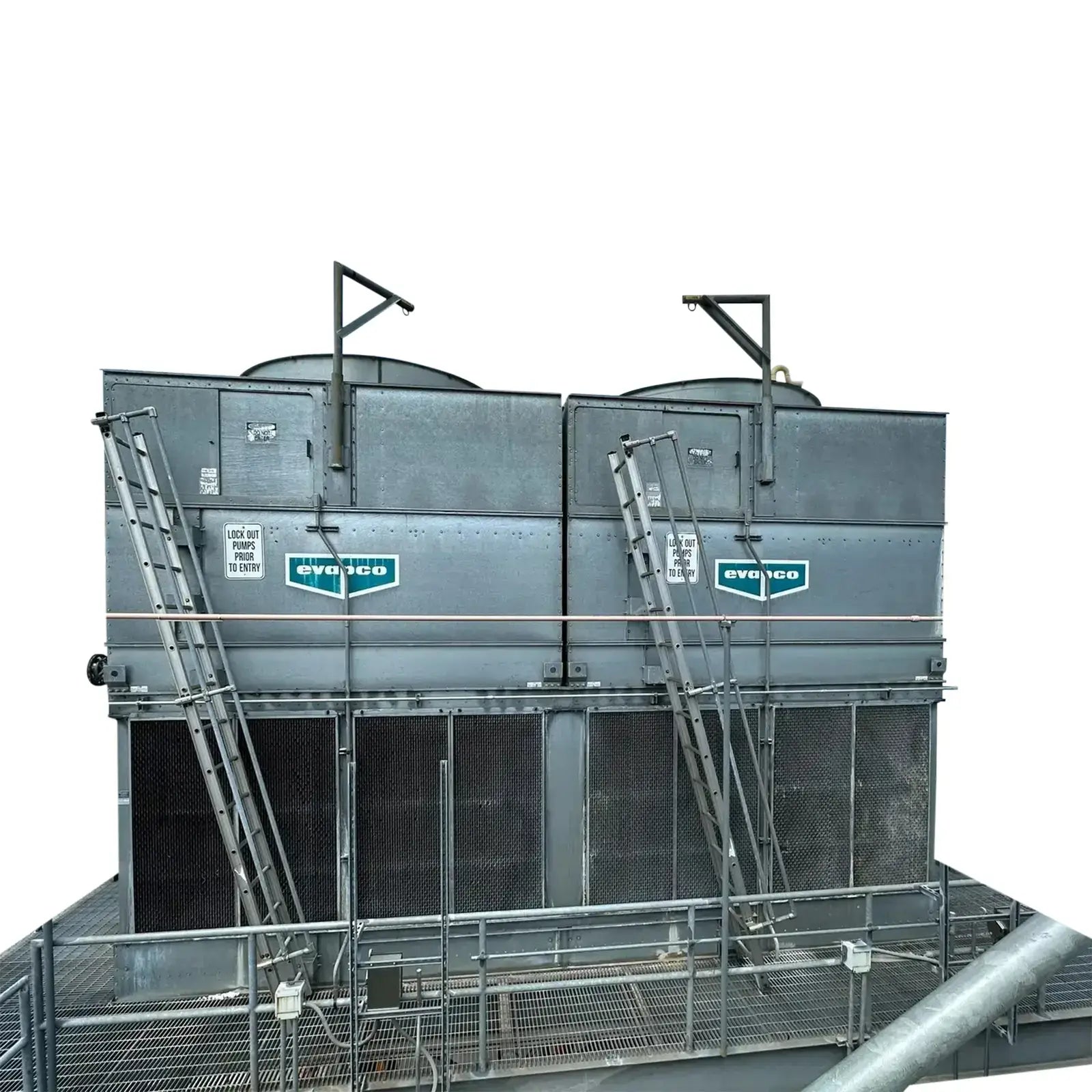

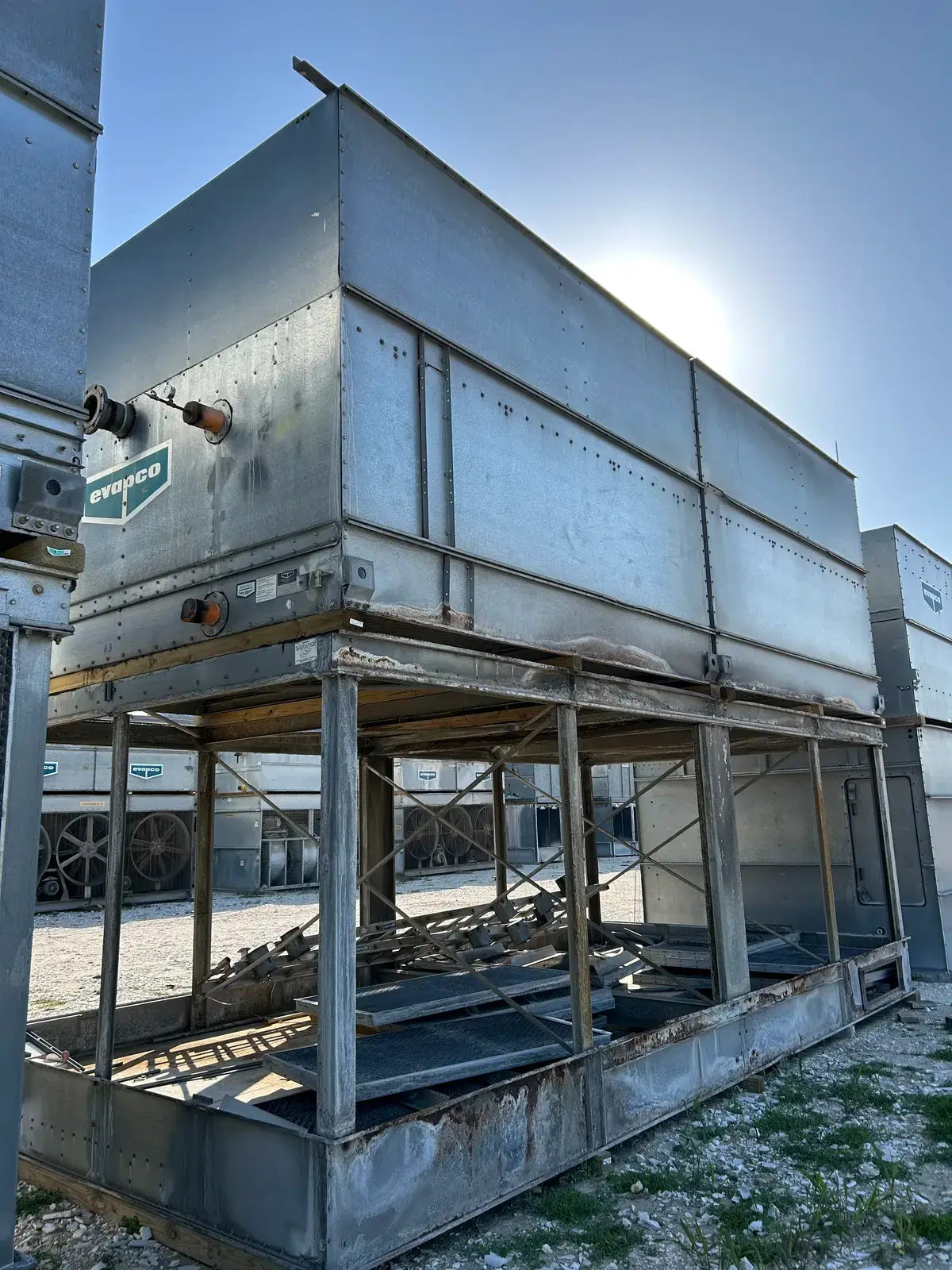

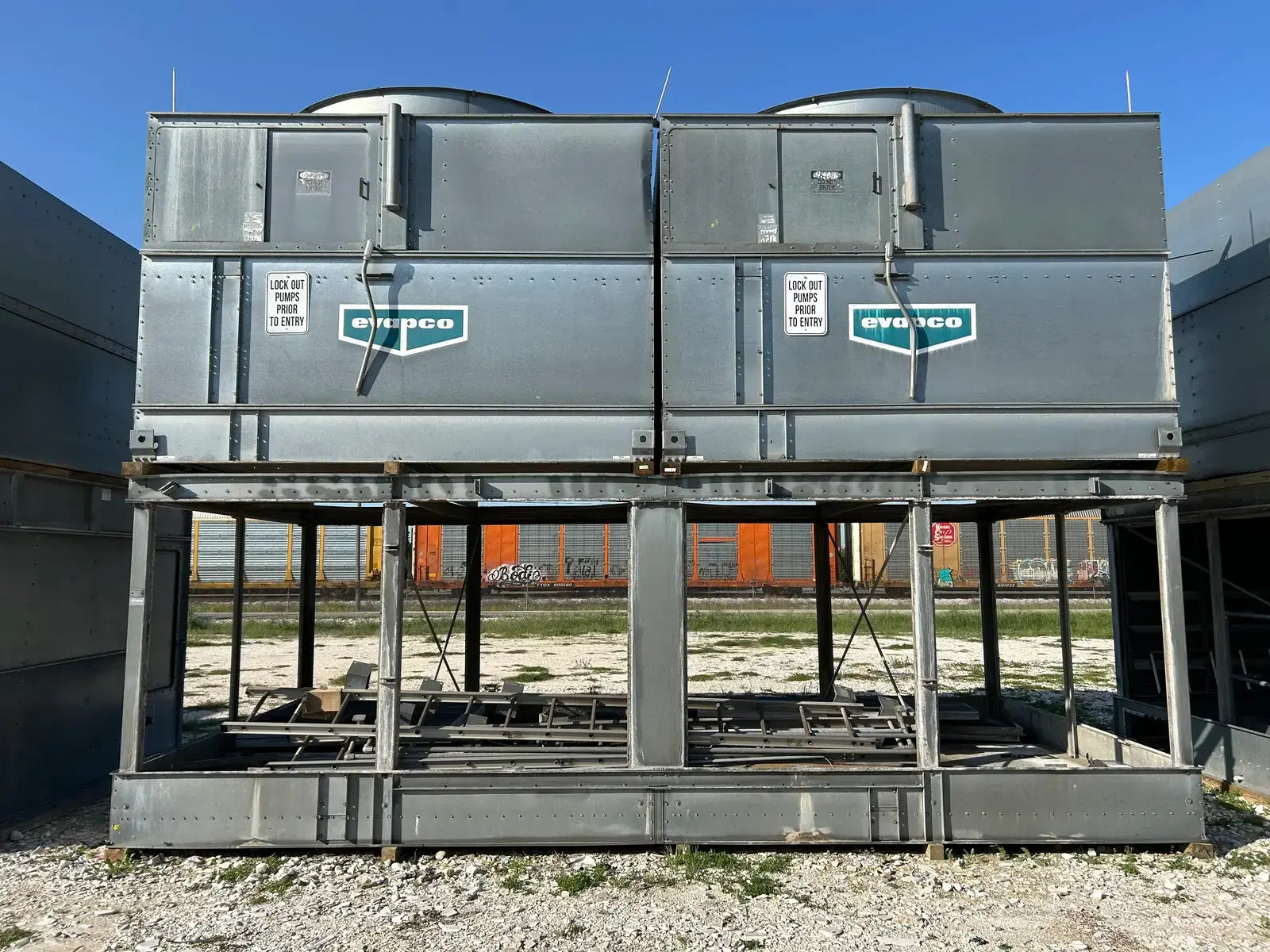

Evapco ATC-1915 Evaporative Condenser (1,915 Nominal Tons)
Evapco Package Evaporative Condenser. Model: ATC-1915. Serial No: 997161M. Belt No: 6B-148. Coil Test Pressure: 400 PSIG. Nominal Tons: 1915. Ammonia Tons(R-717): 1360. CFM: 309,100.Refrigerant Operating Charge(LBS): 1,966. Coil Volume: 268.
Product Details
- Stock No: BRZB48
- Manufacturer: Evapco
- Model: ATC-1915
- Serial Number: 997161M
Condenser Details
- Multiple Units Included in Package? Yes
- # Units included in Package: 2
- Package Nominal Tons (TR): 1,915
- Package Ammonia Tons (TR): 1,360
- Package Coil Volume (ft3): 1,966
- Package CFM (CFM): 309,100
- Unit Nominal Tons (TR): 1,915
- Unit Coil Volume (ft3): 268
- Unit CFM (CFM): 309,100
- Design Pressure (PSI): 400

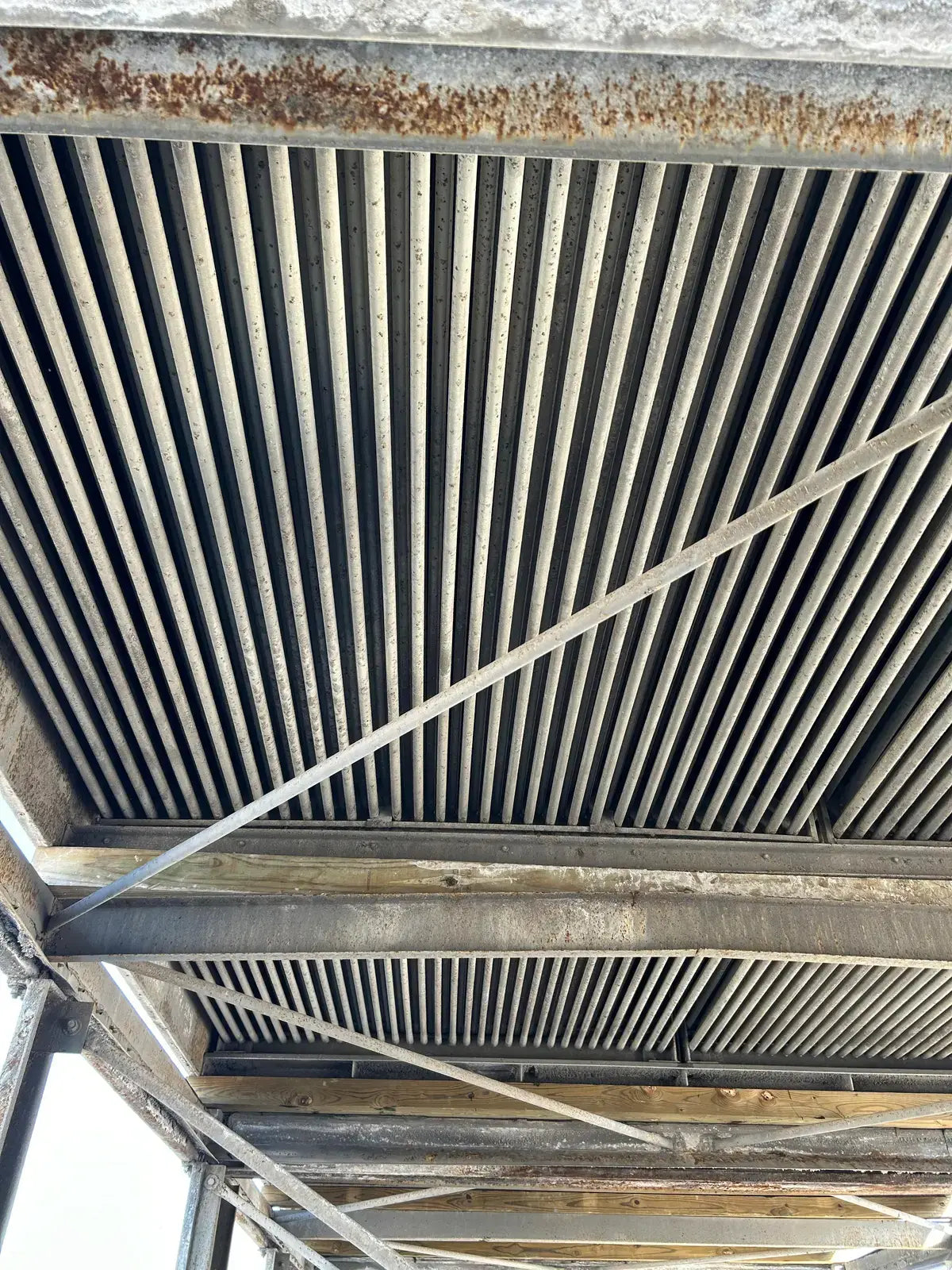

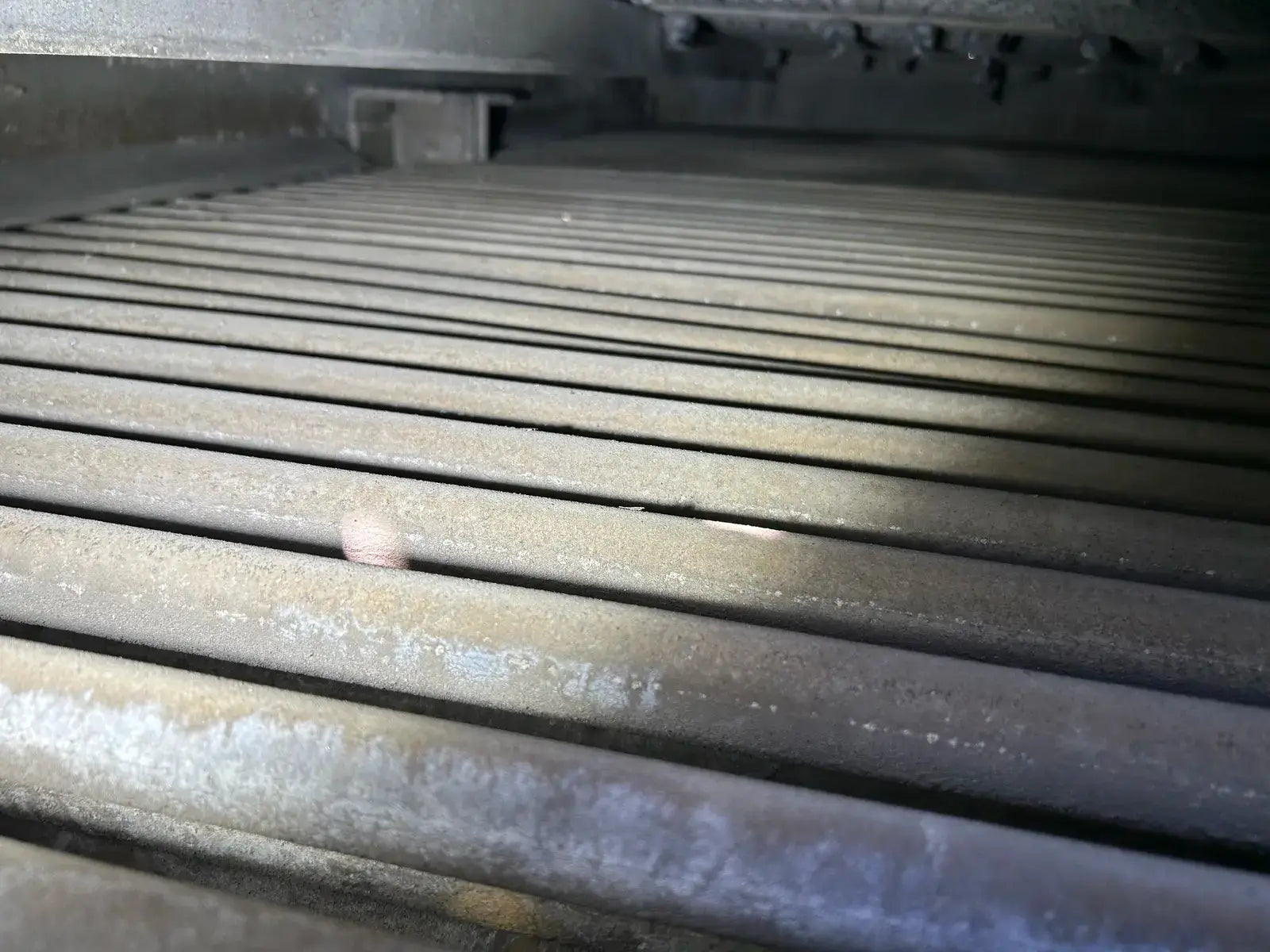

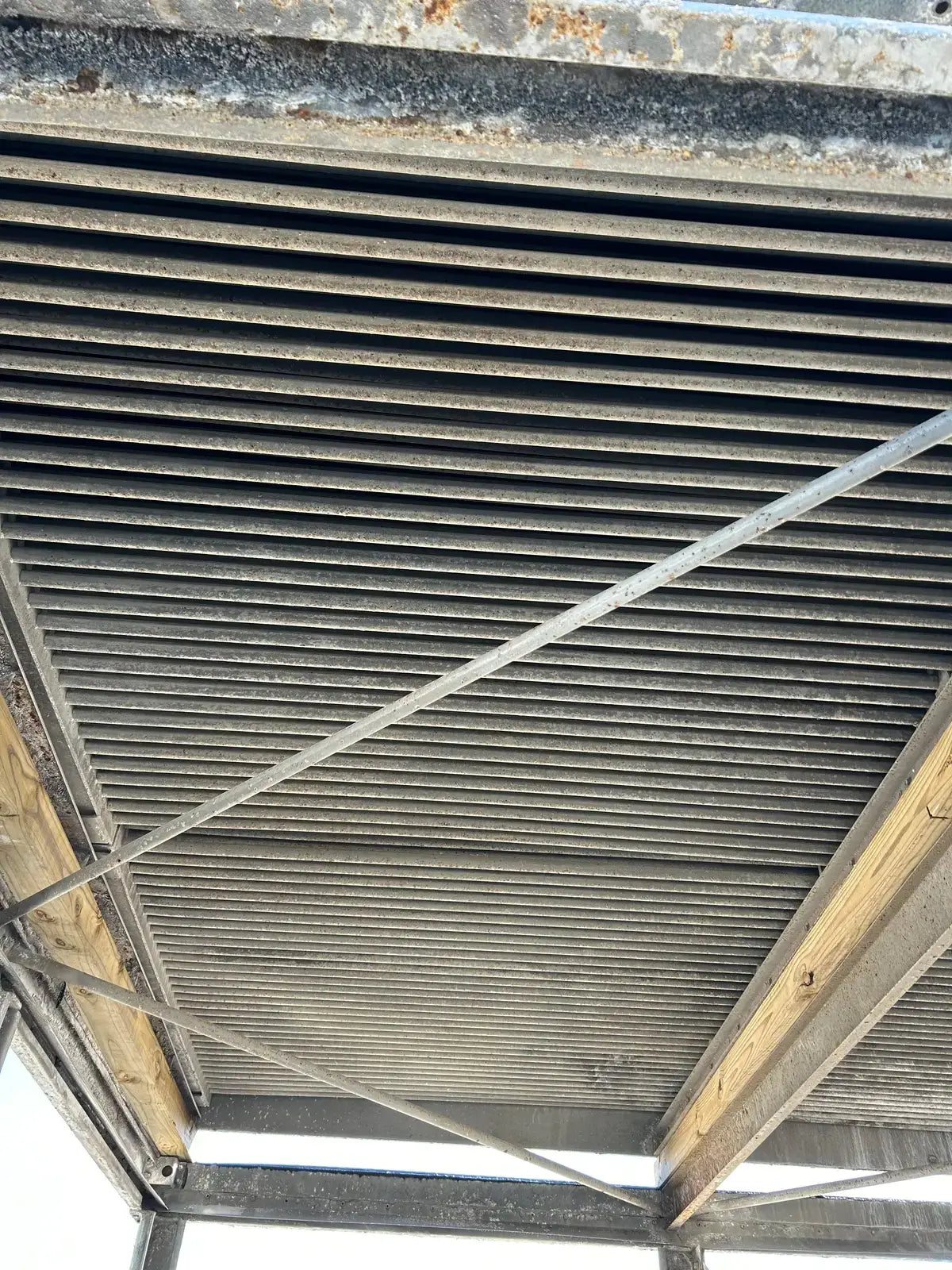

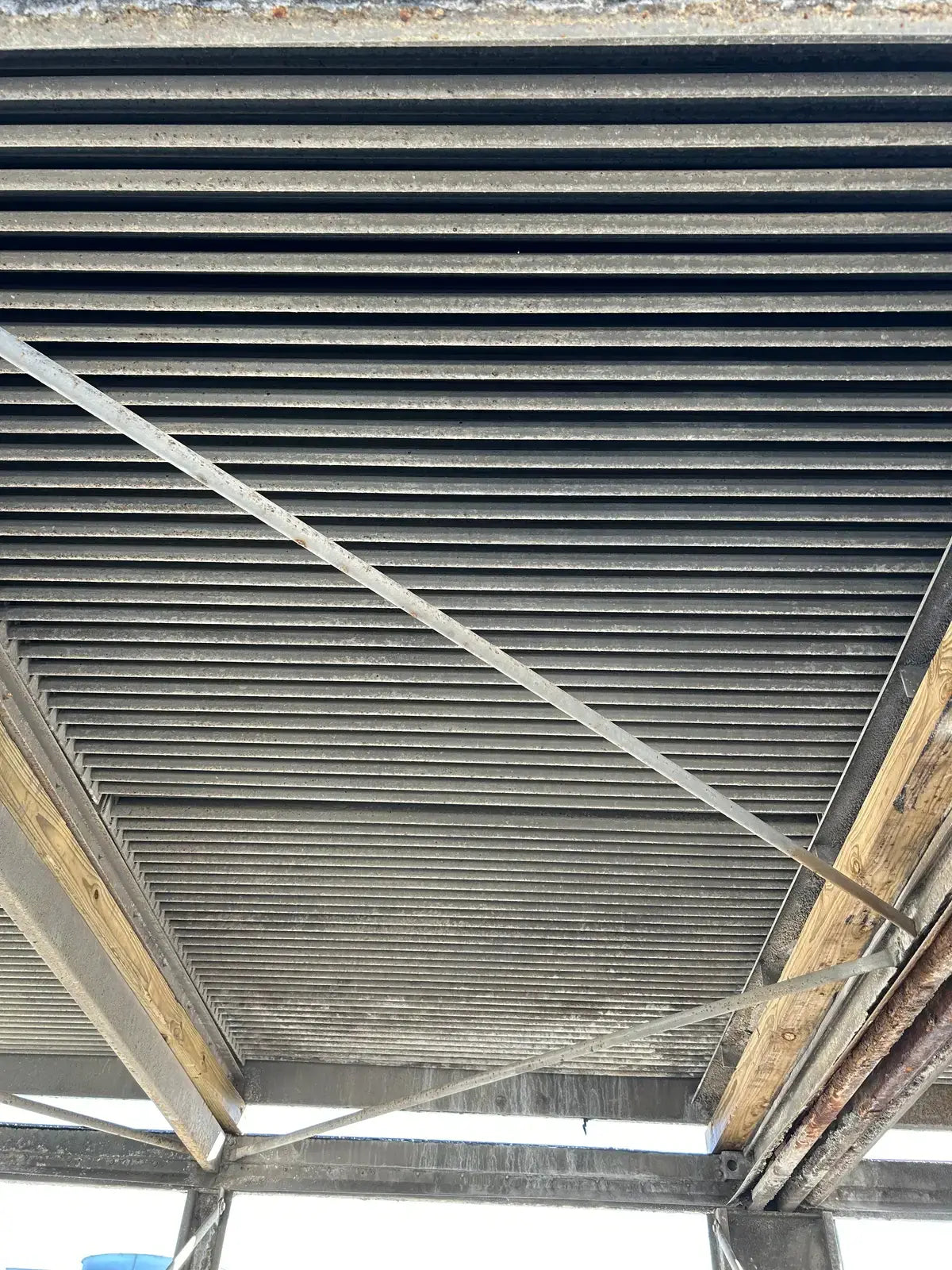

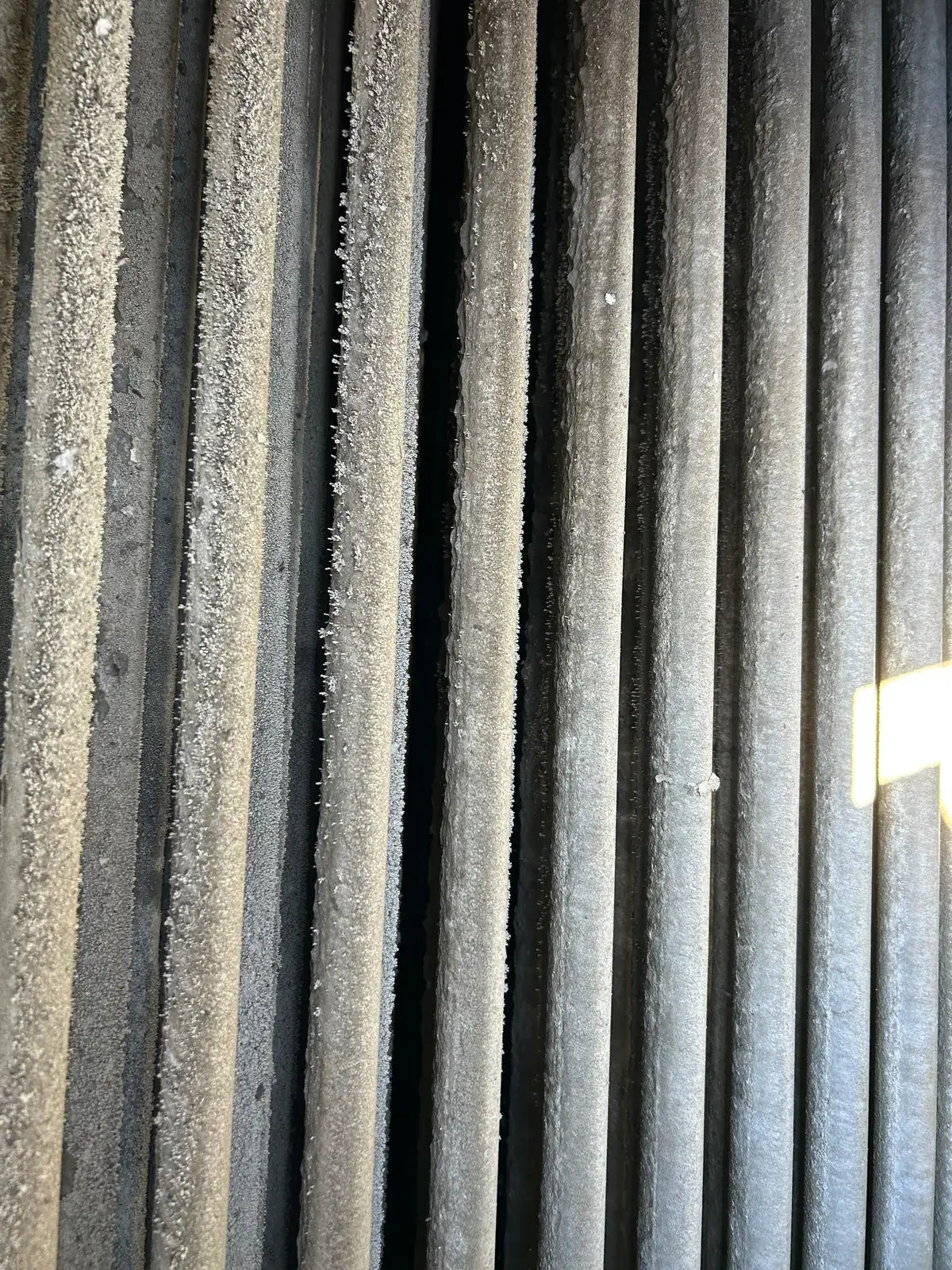

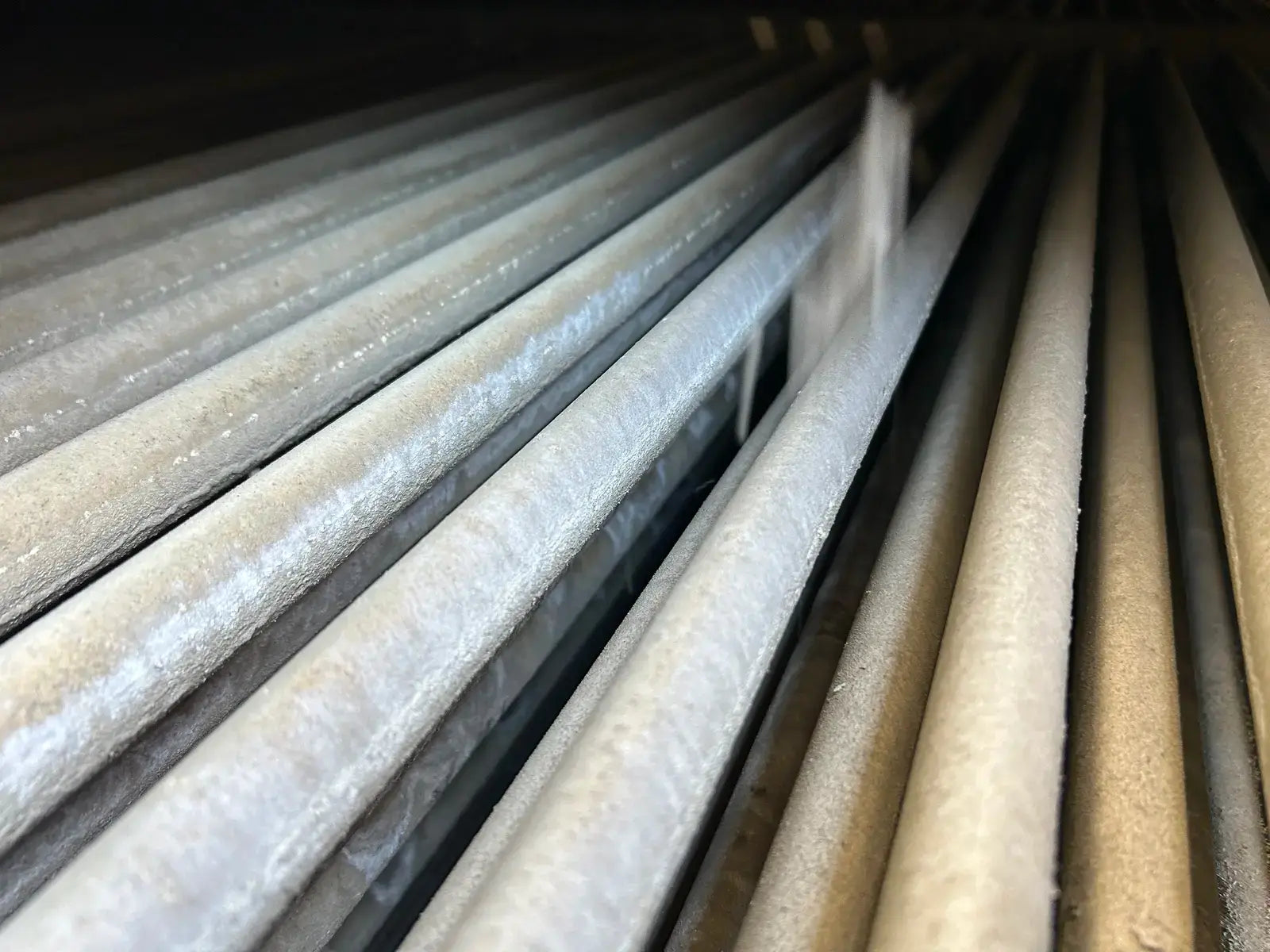

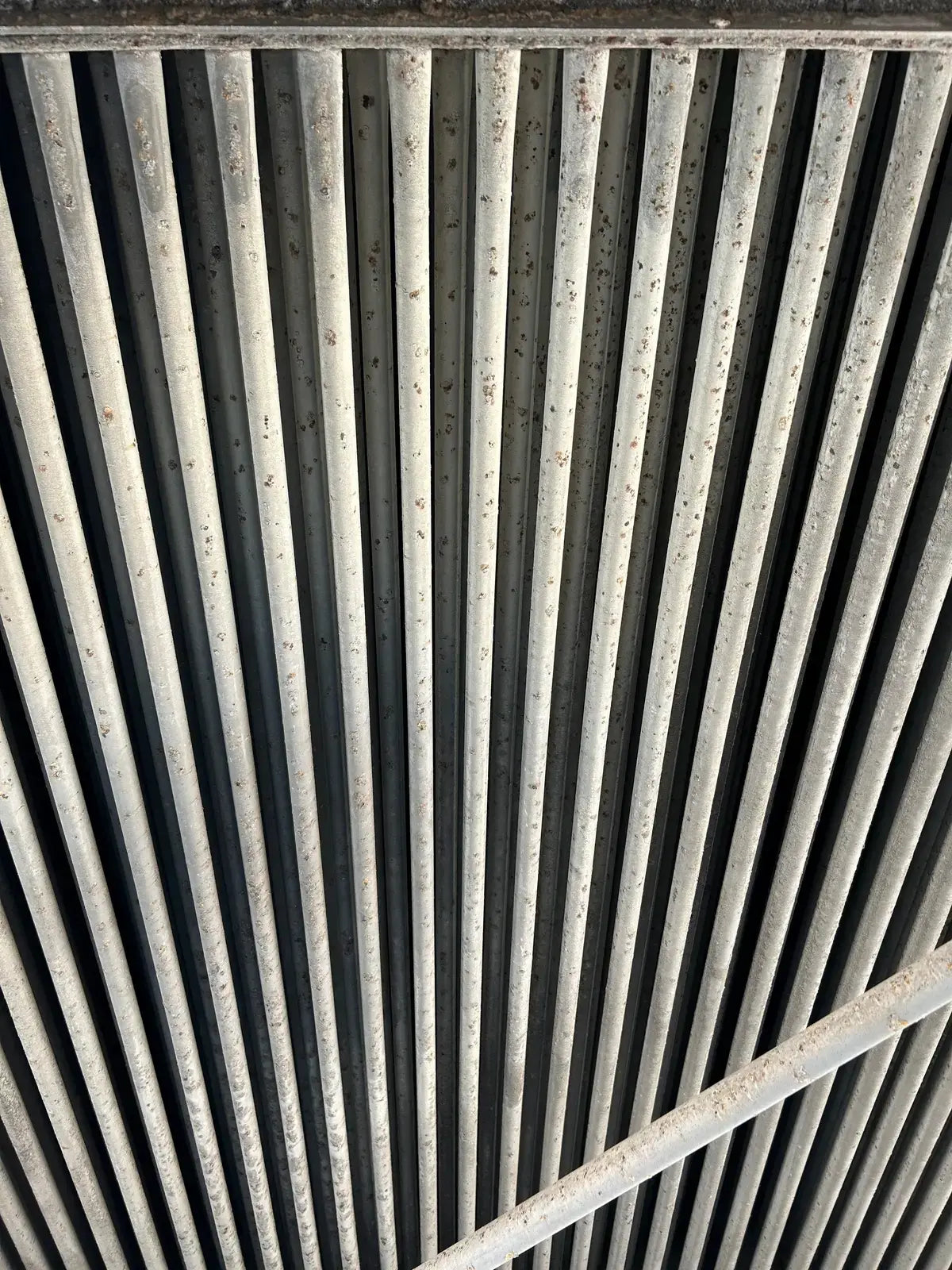

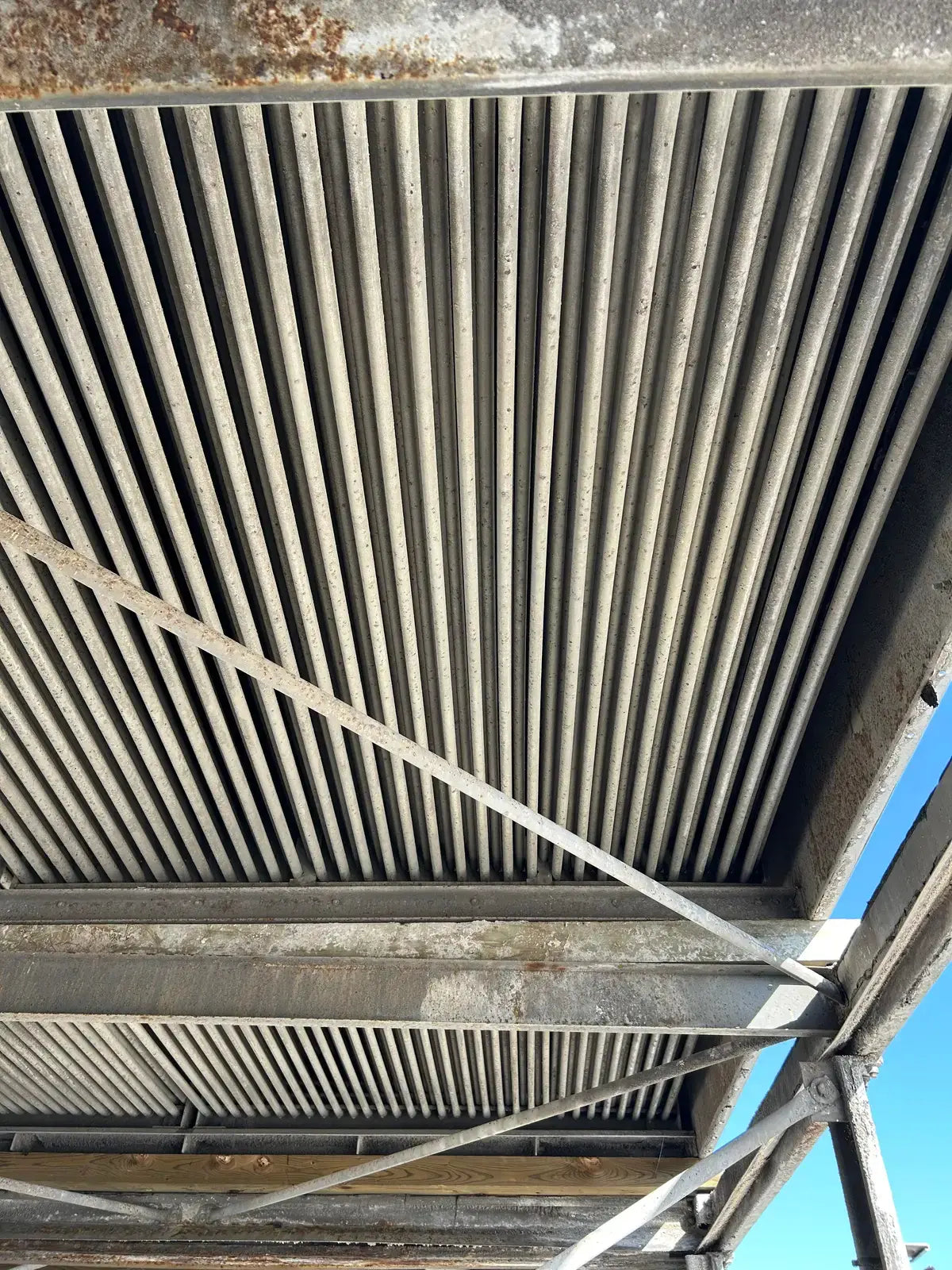

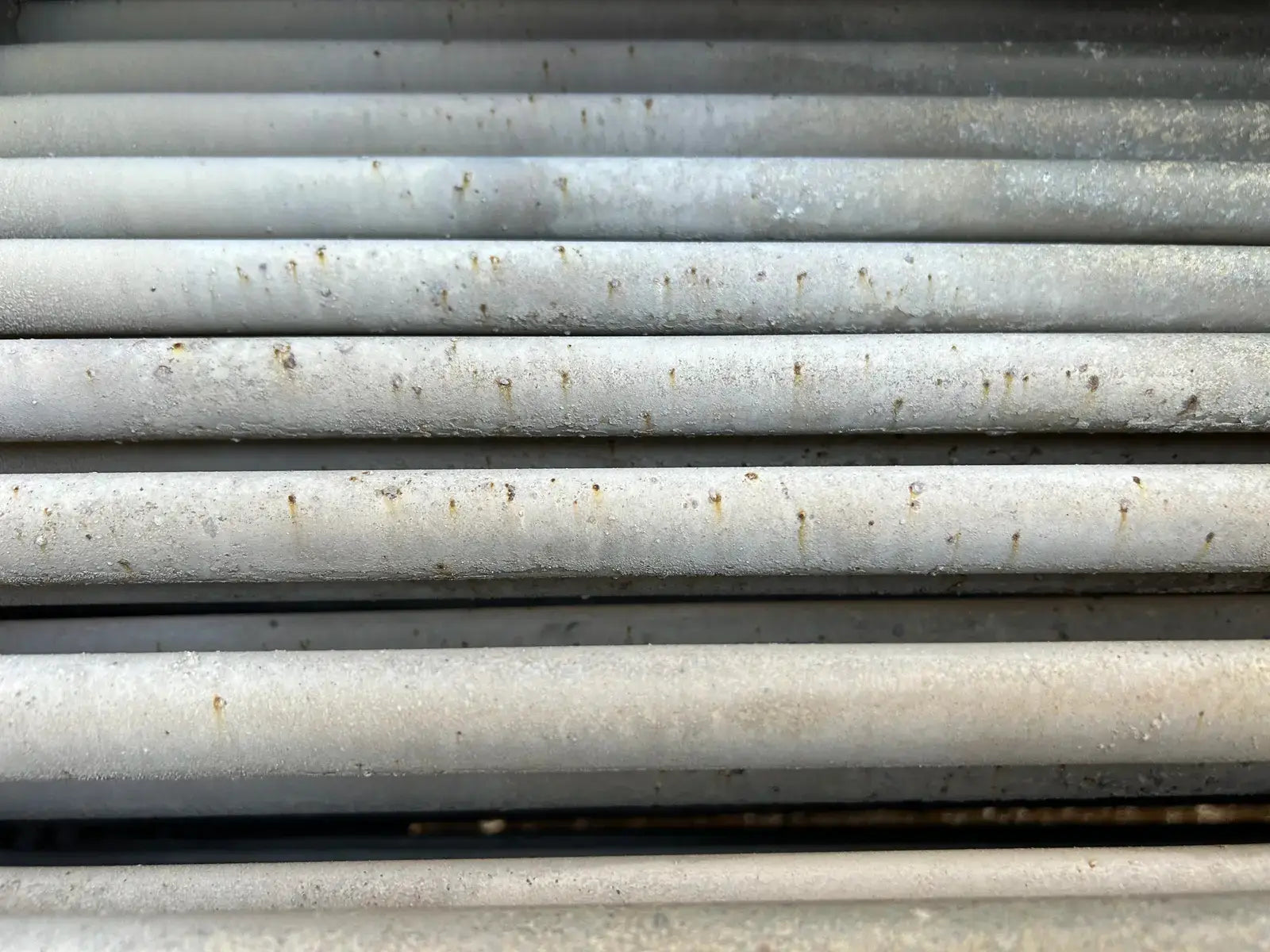

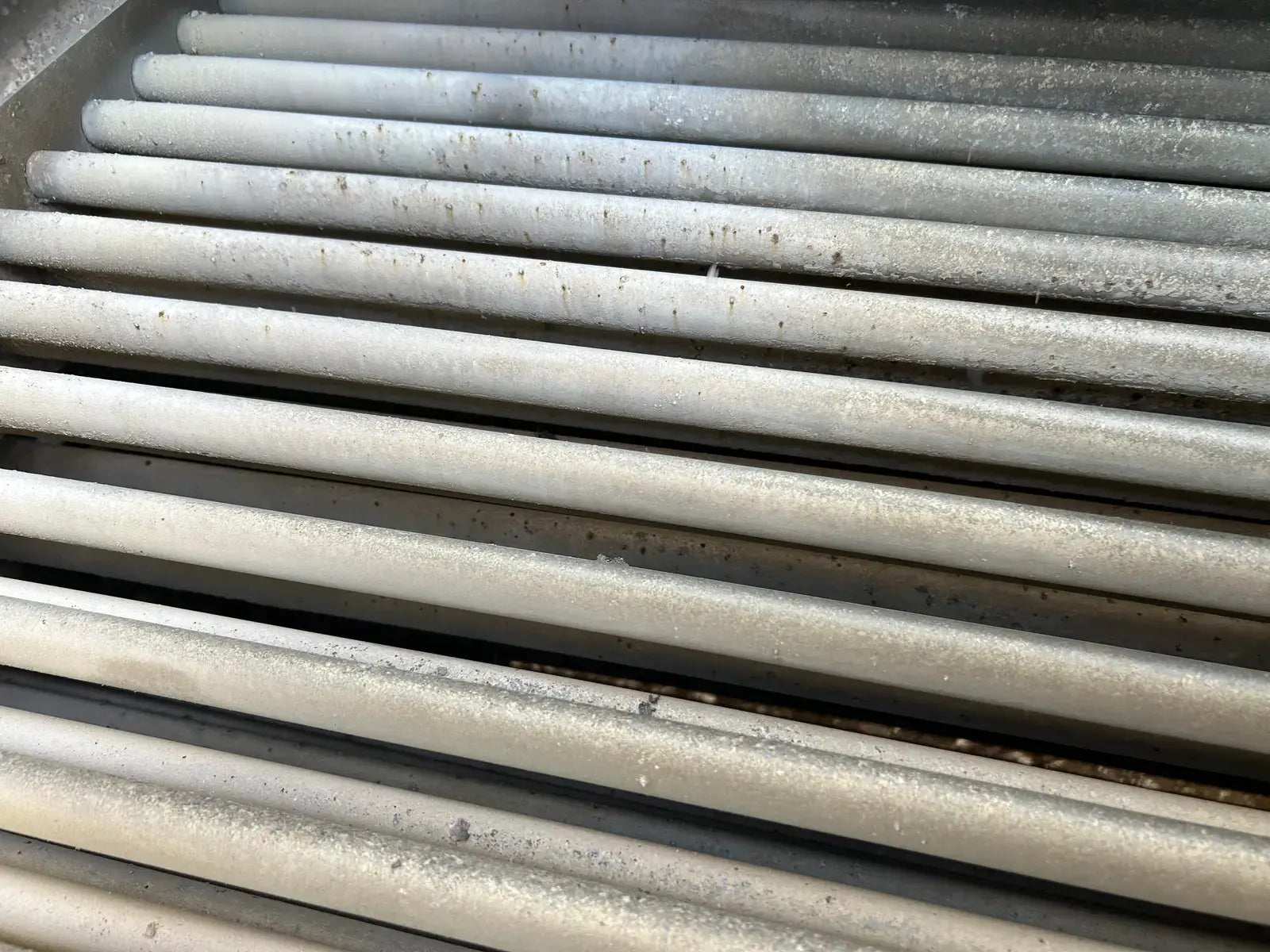

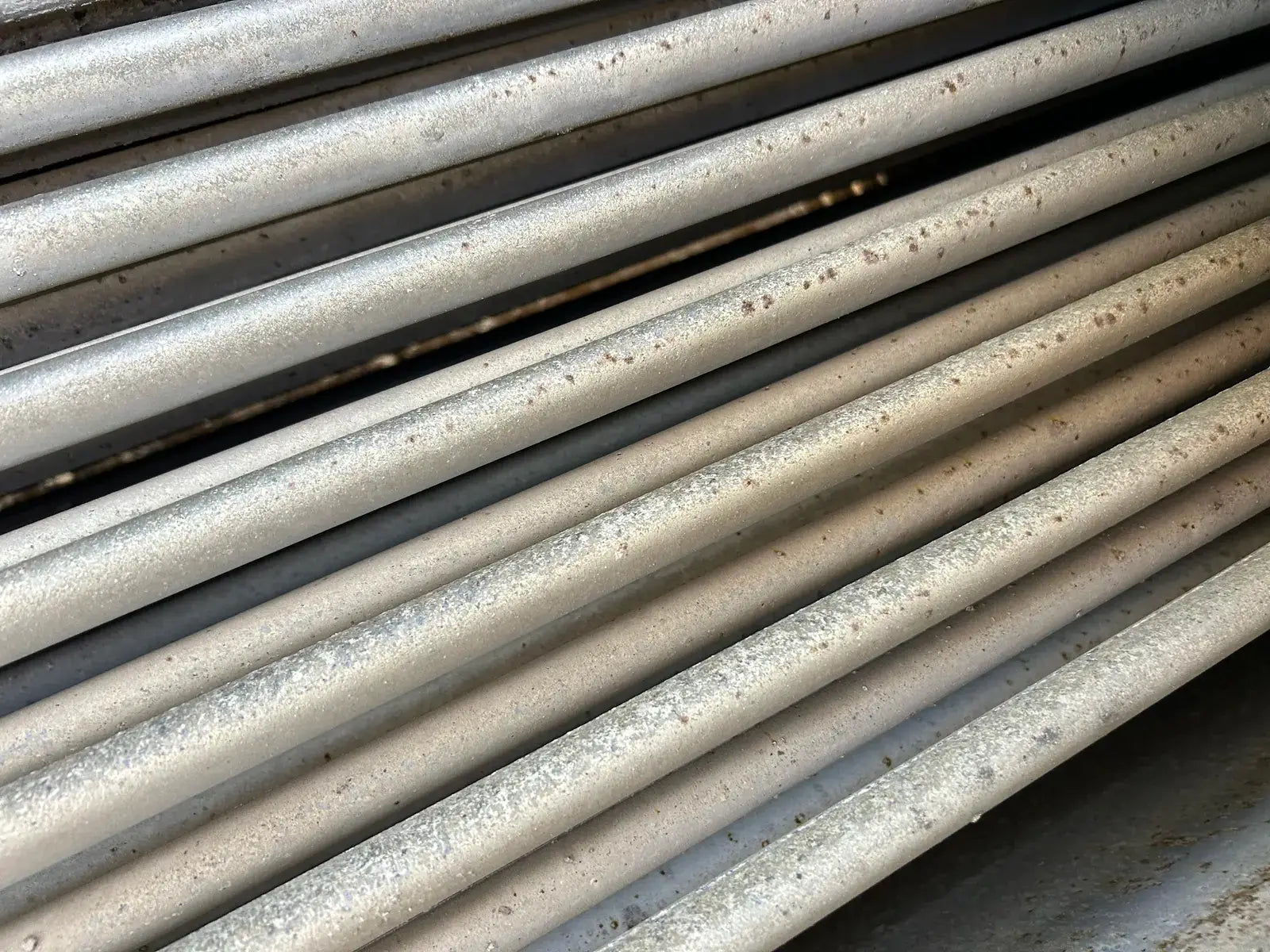

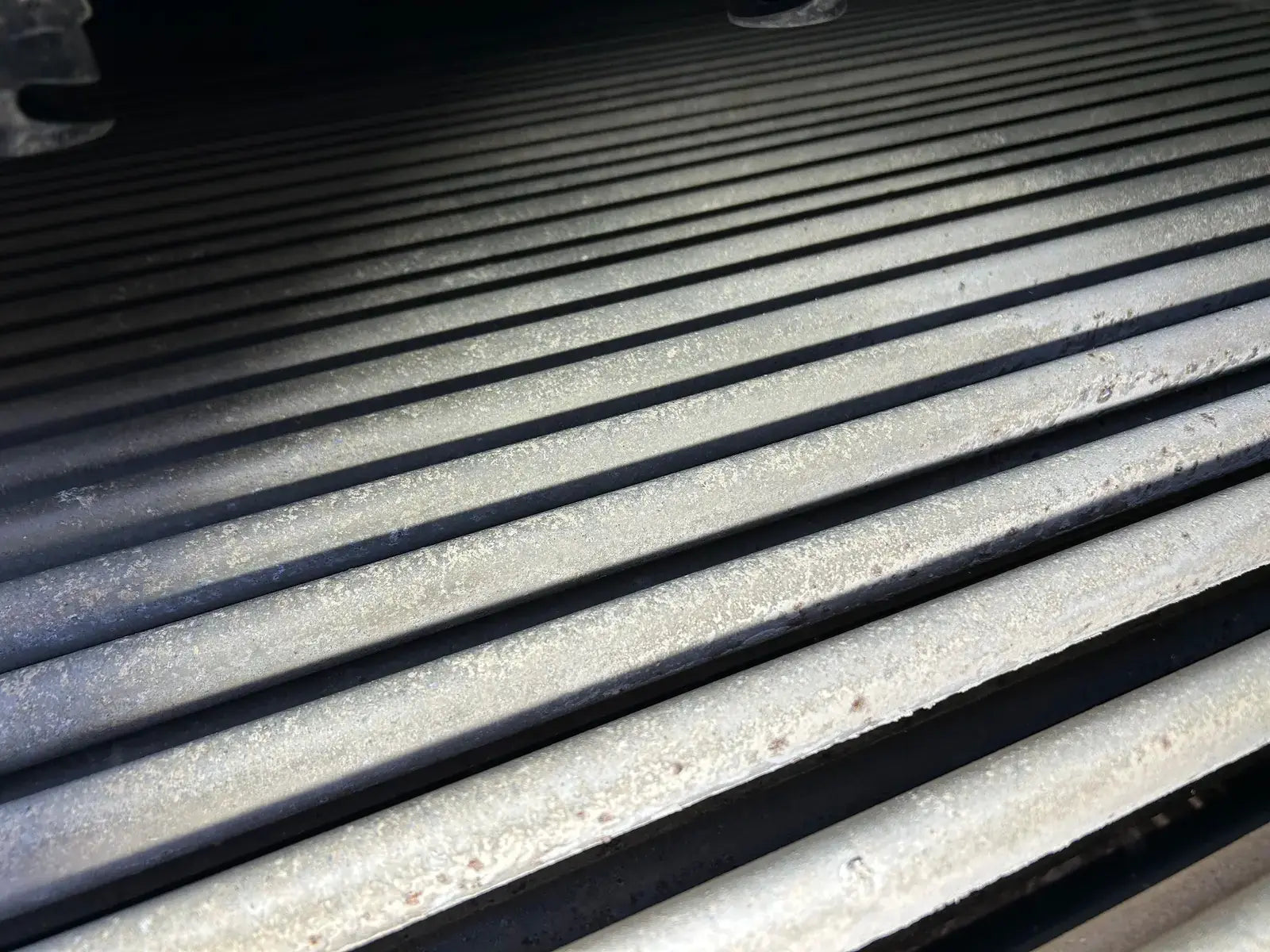

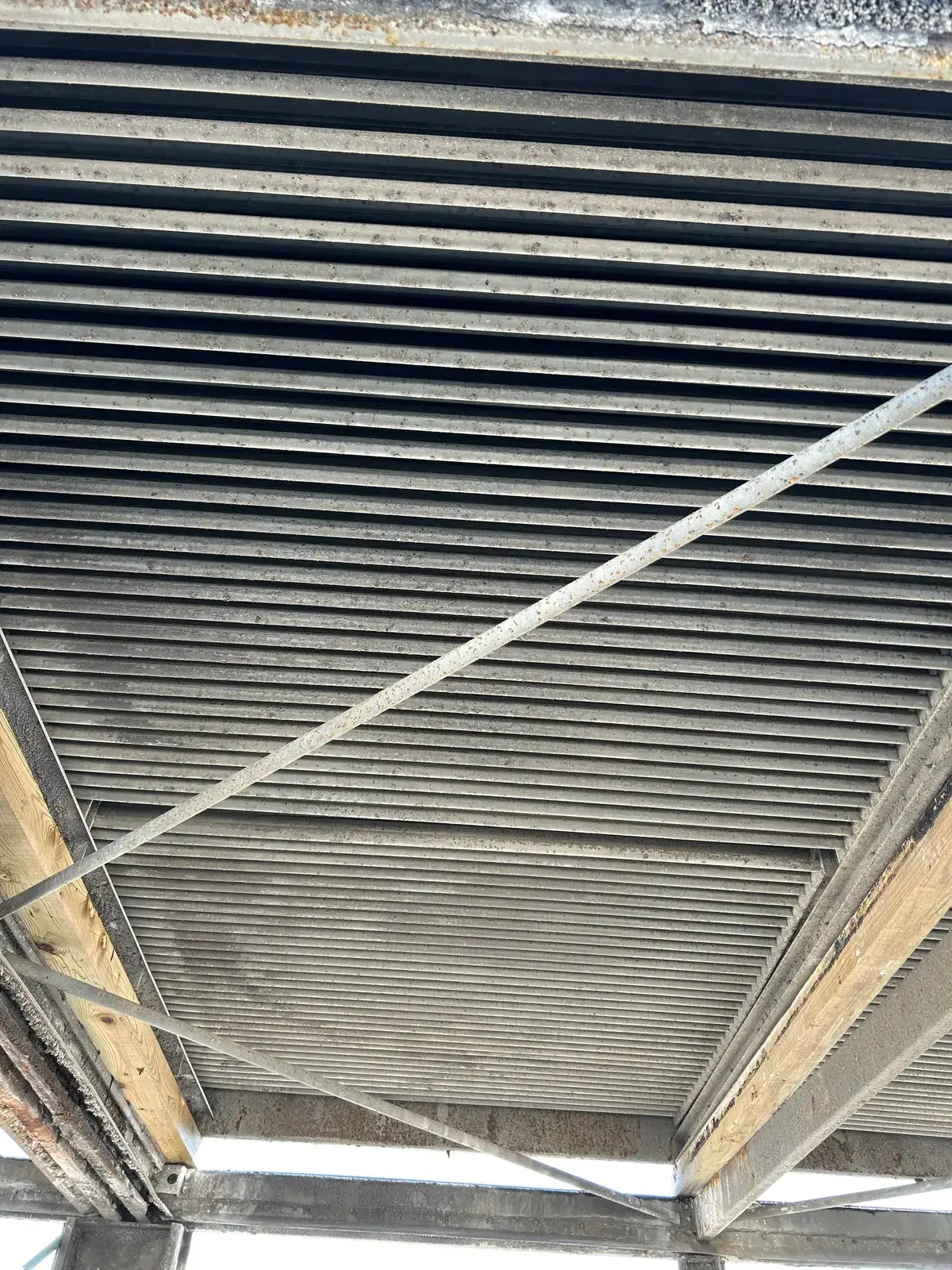

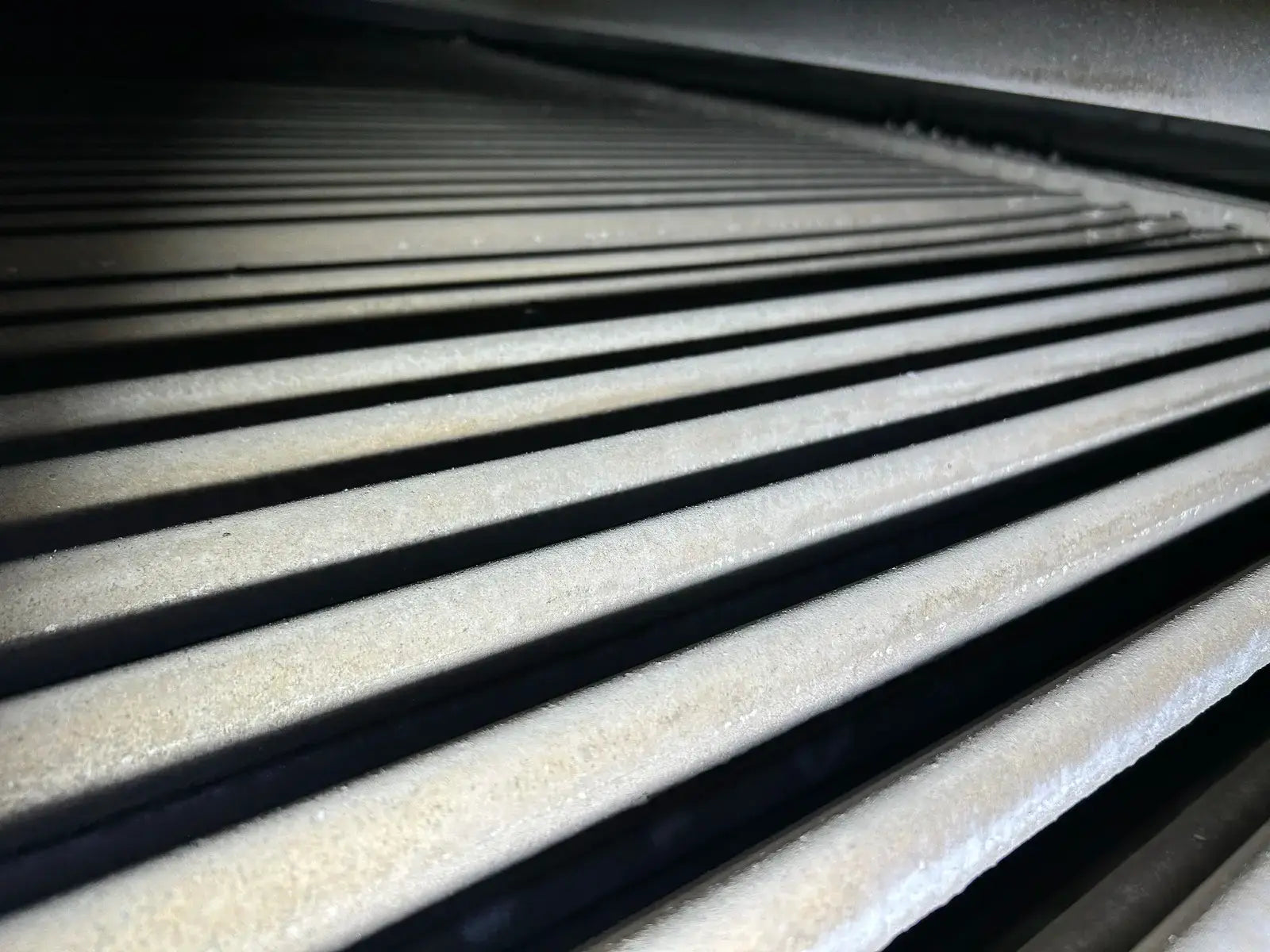

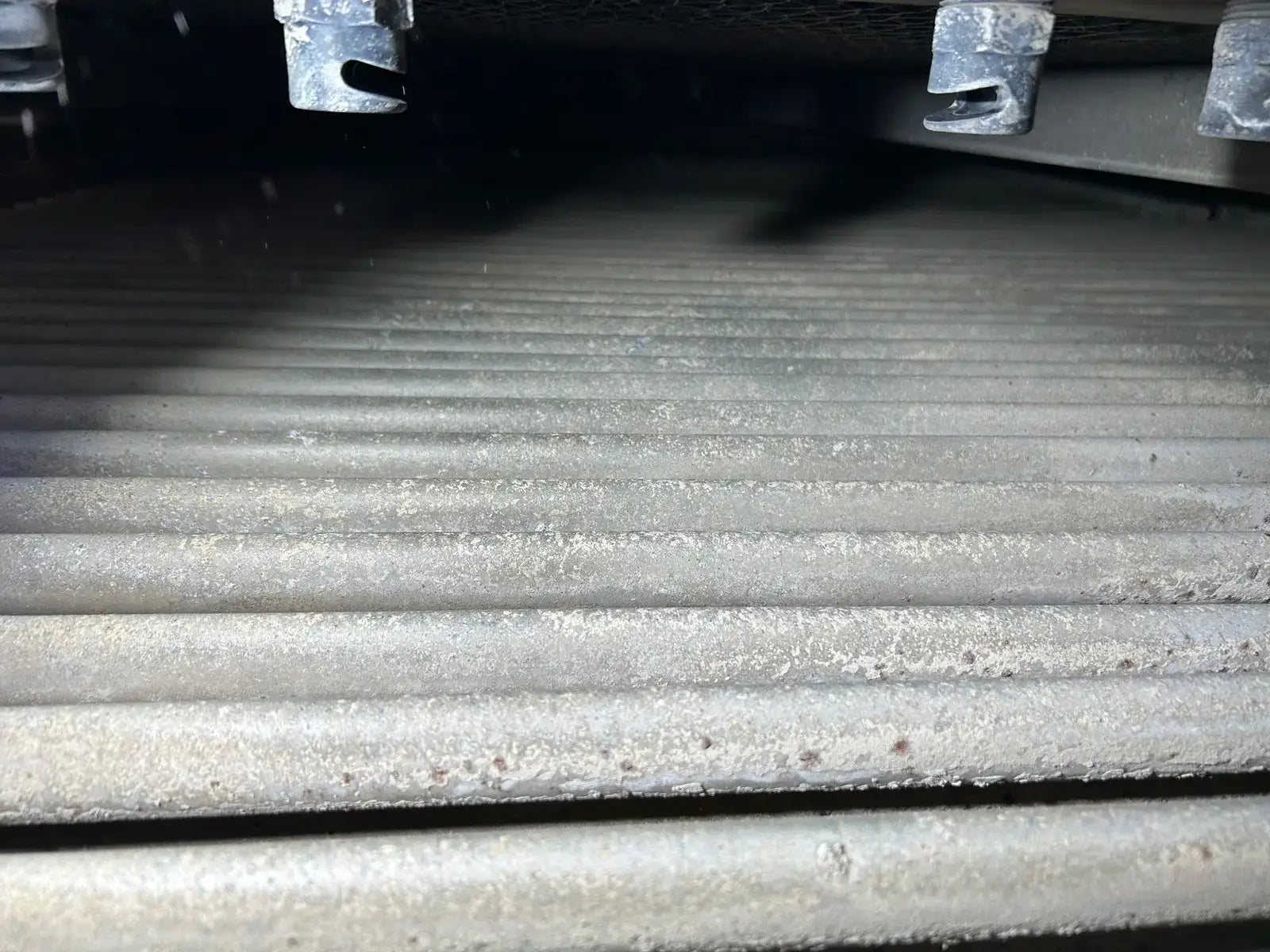

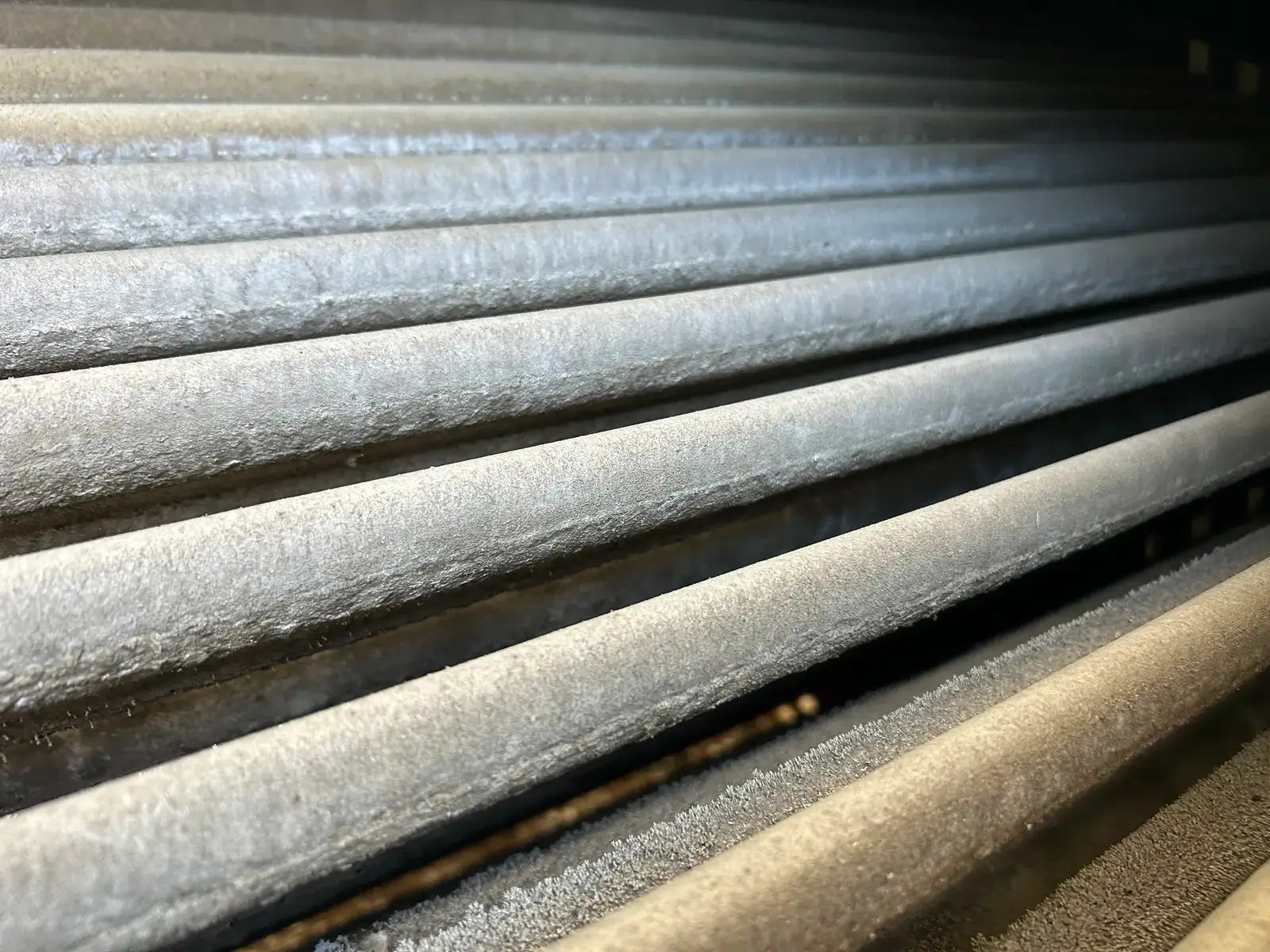

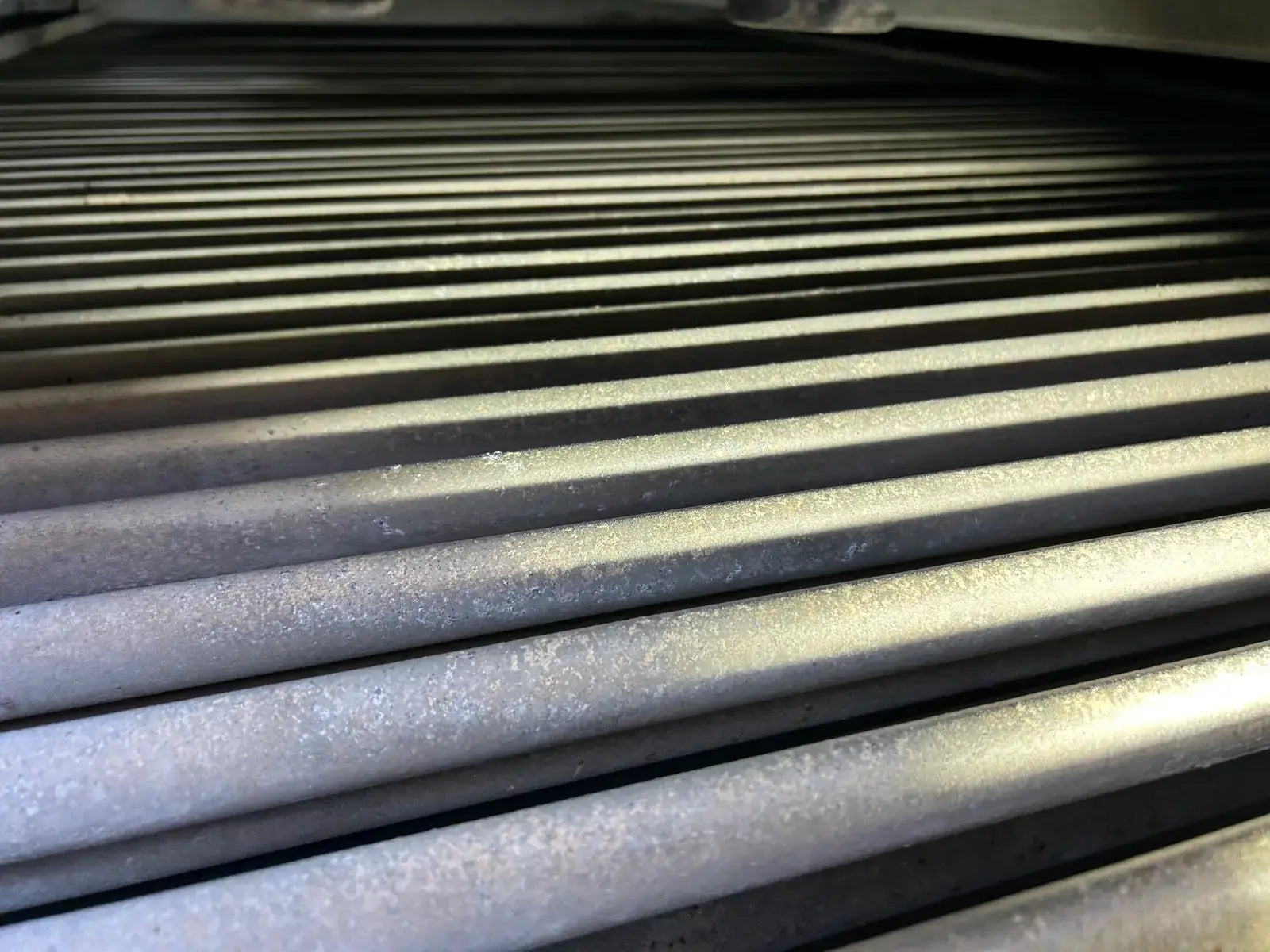

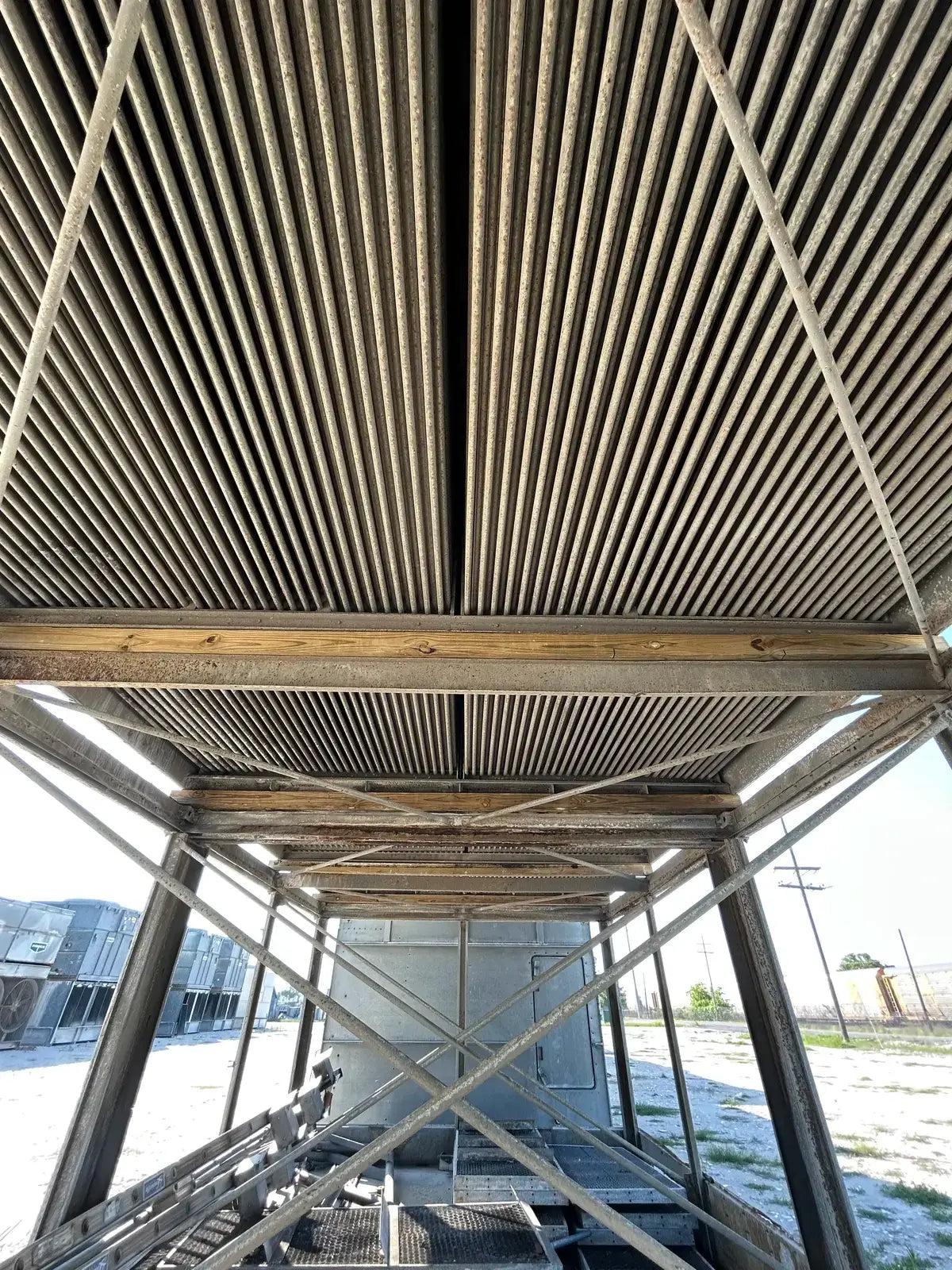

- Top Coil Condition Rating: Platinum - Almost Zero Scale- Zero Rust

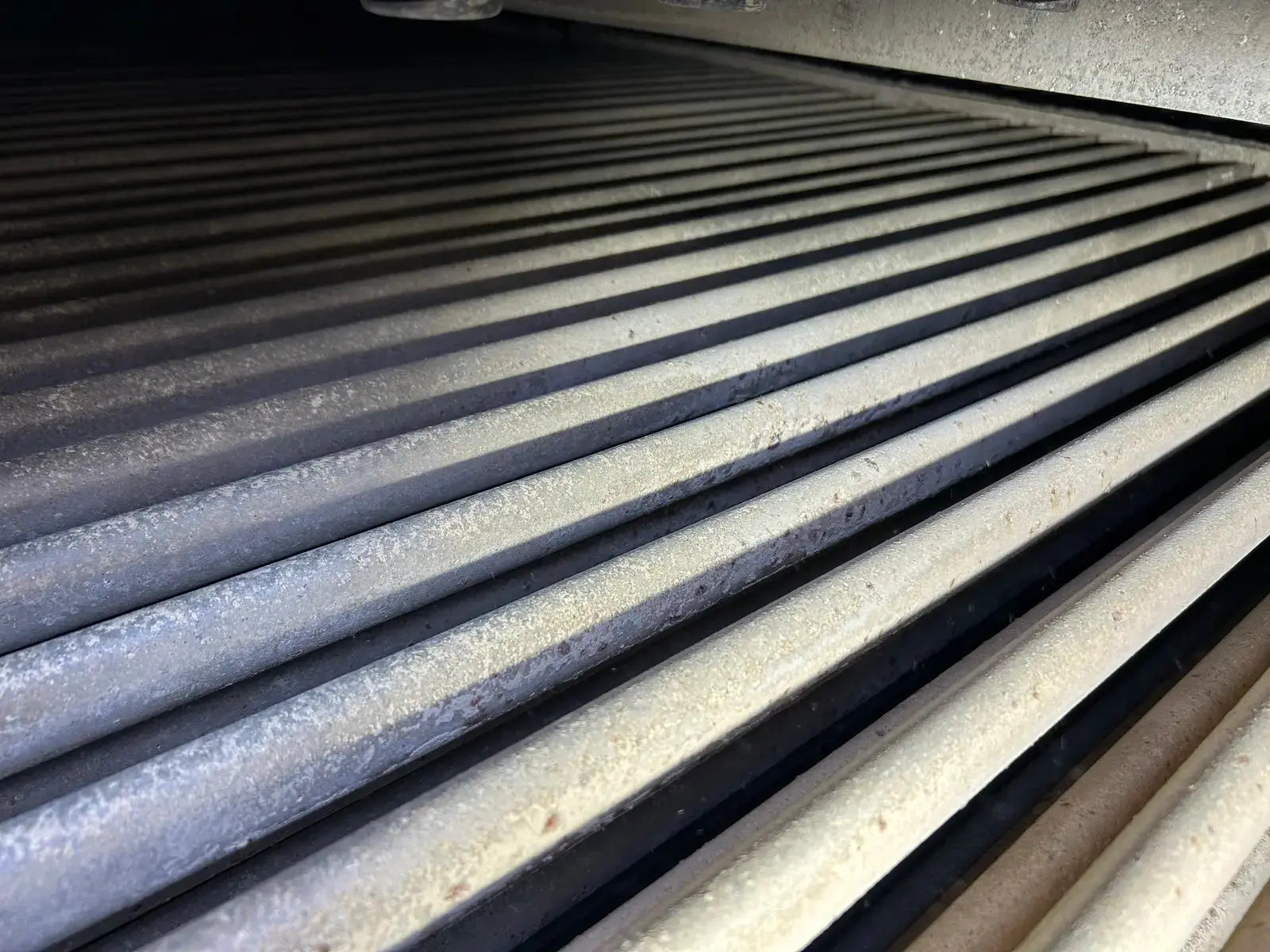

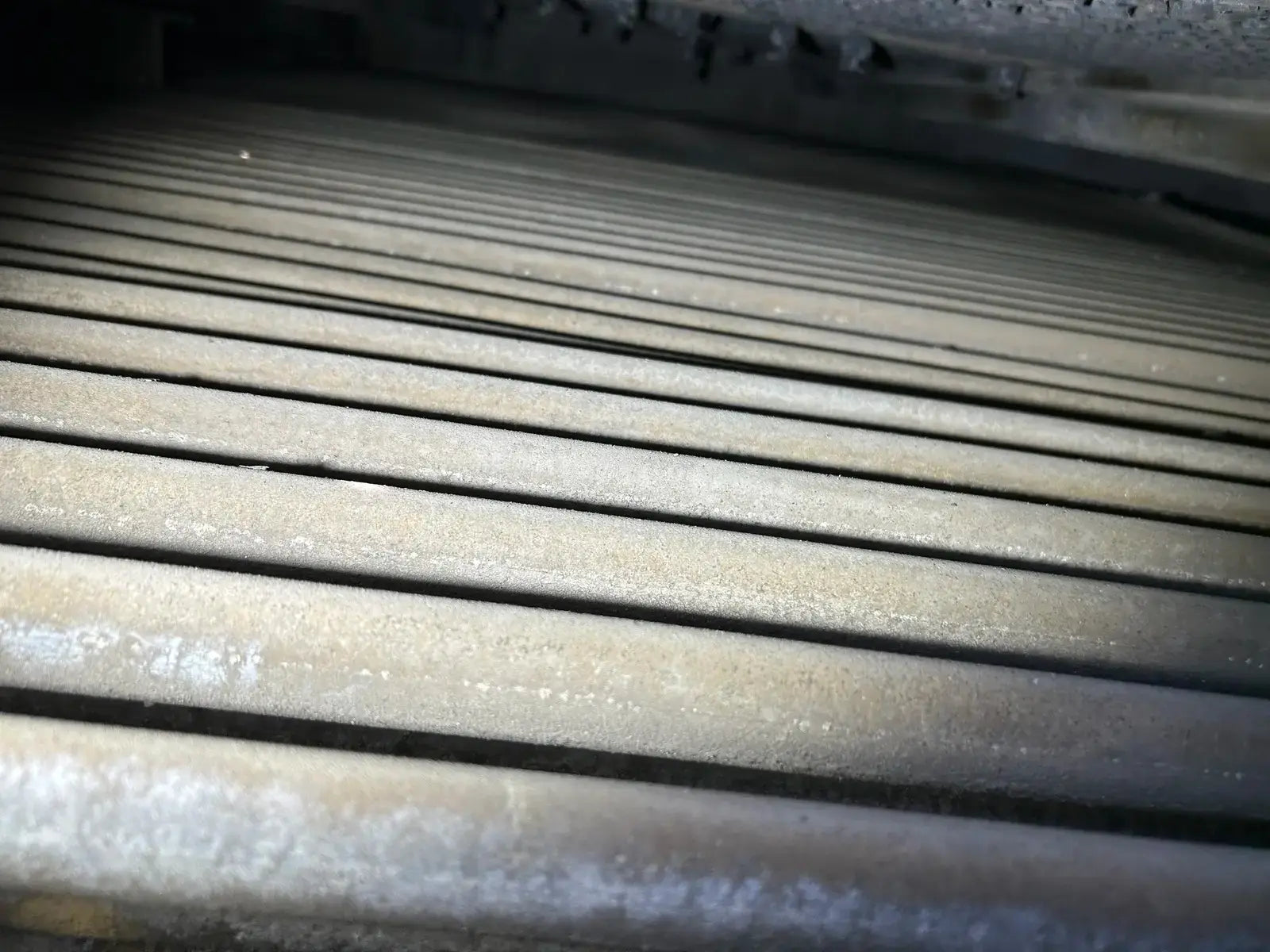

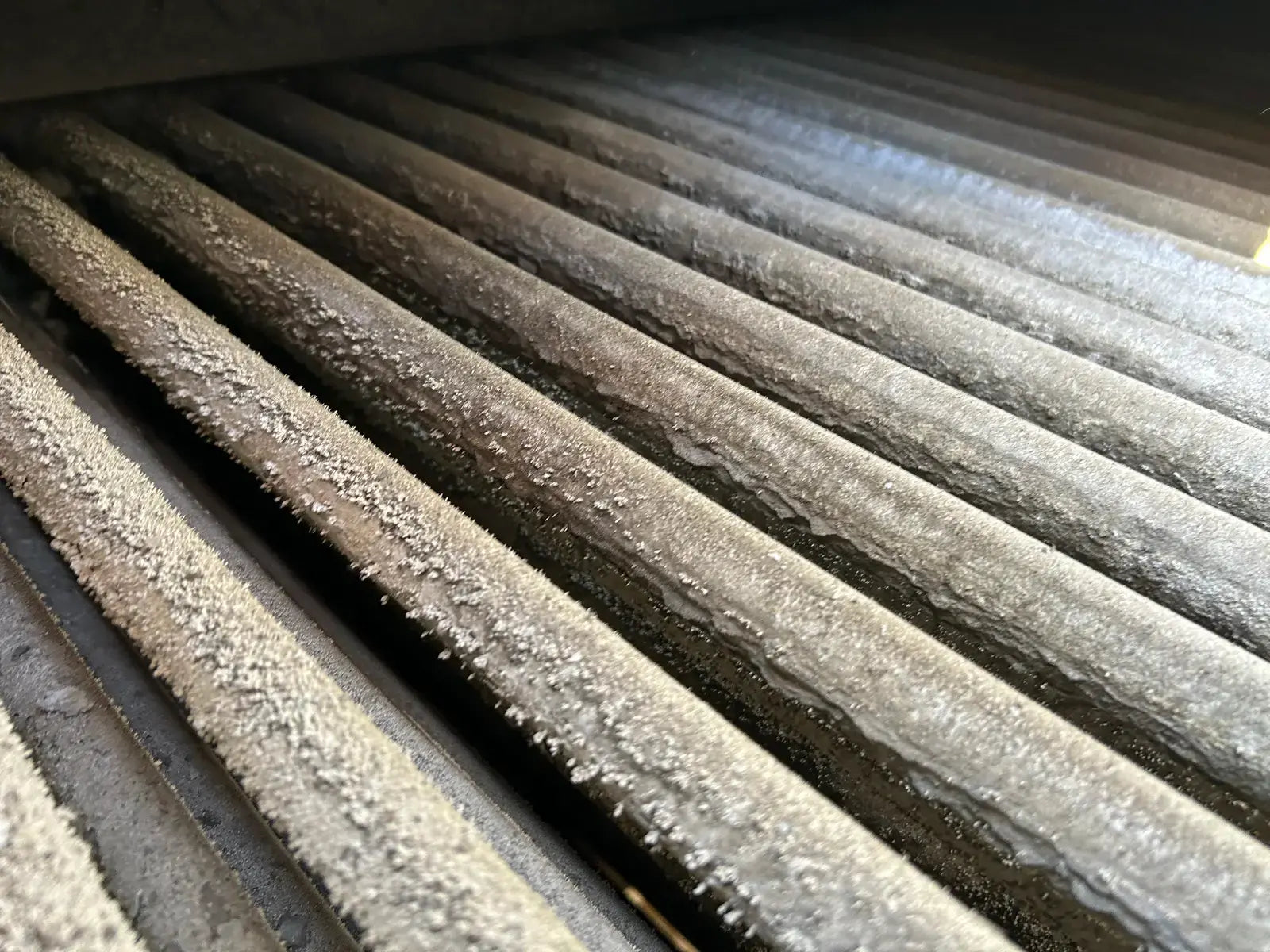

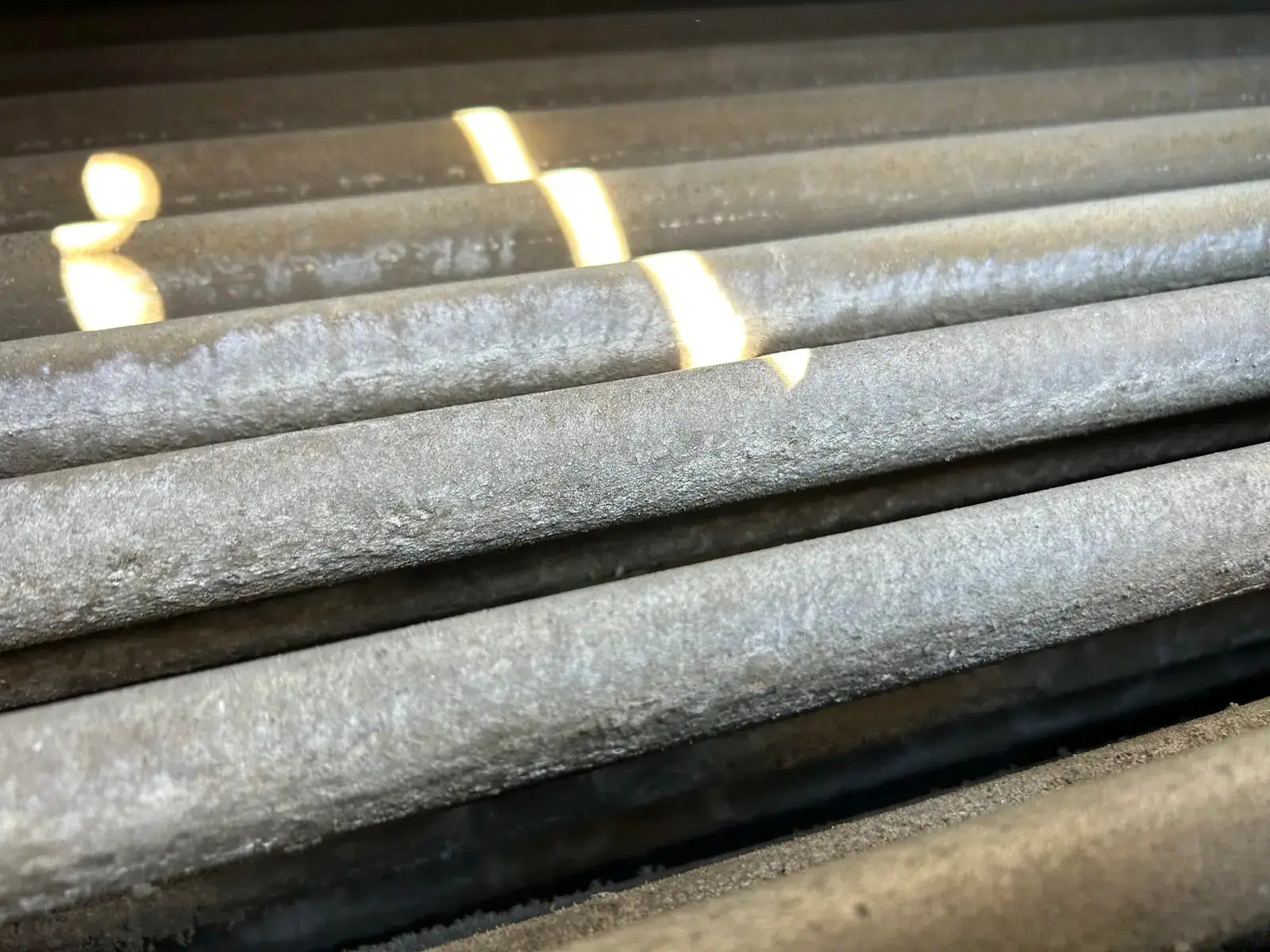

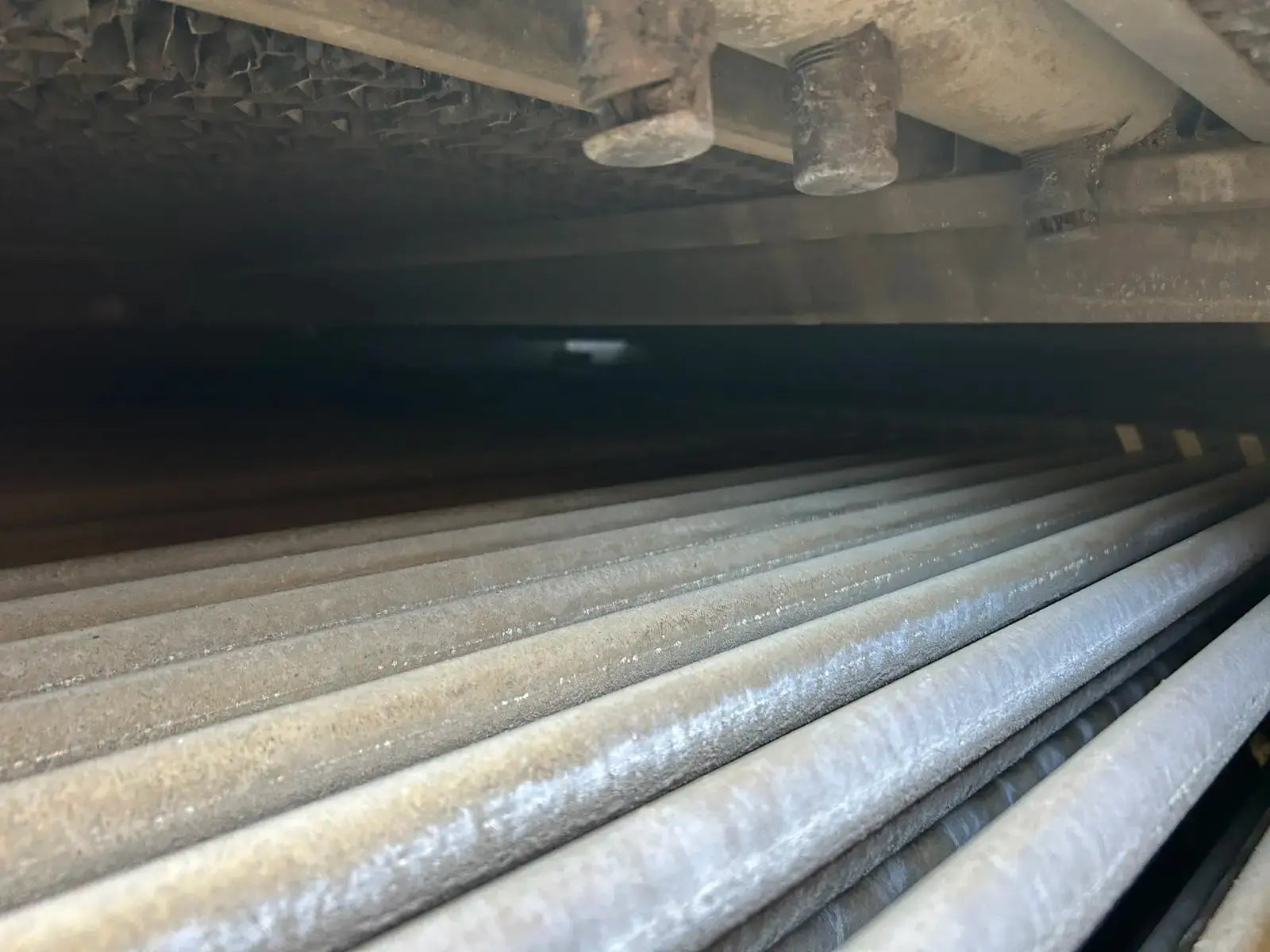

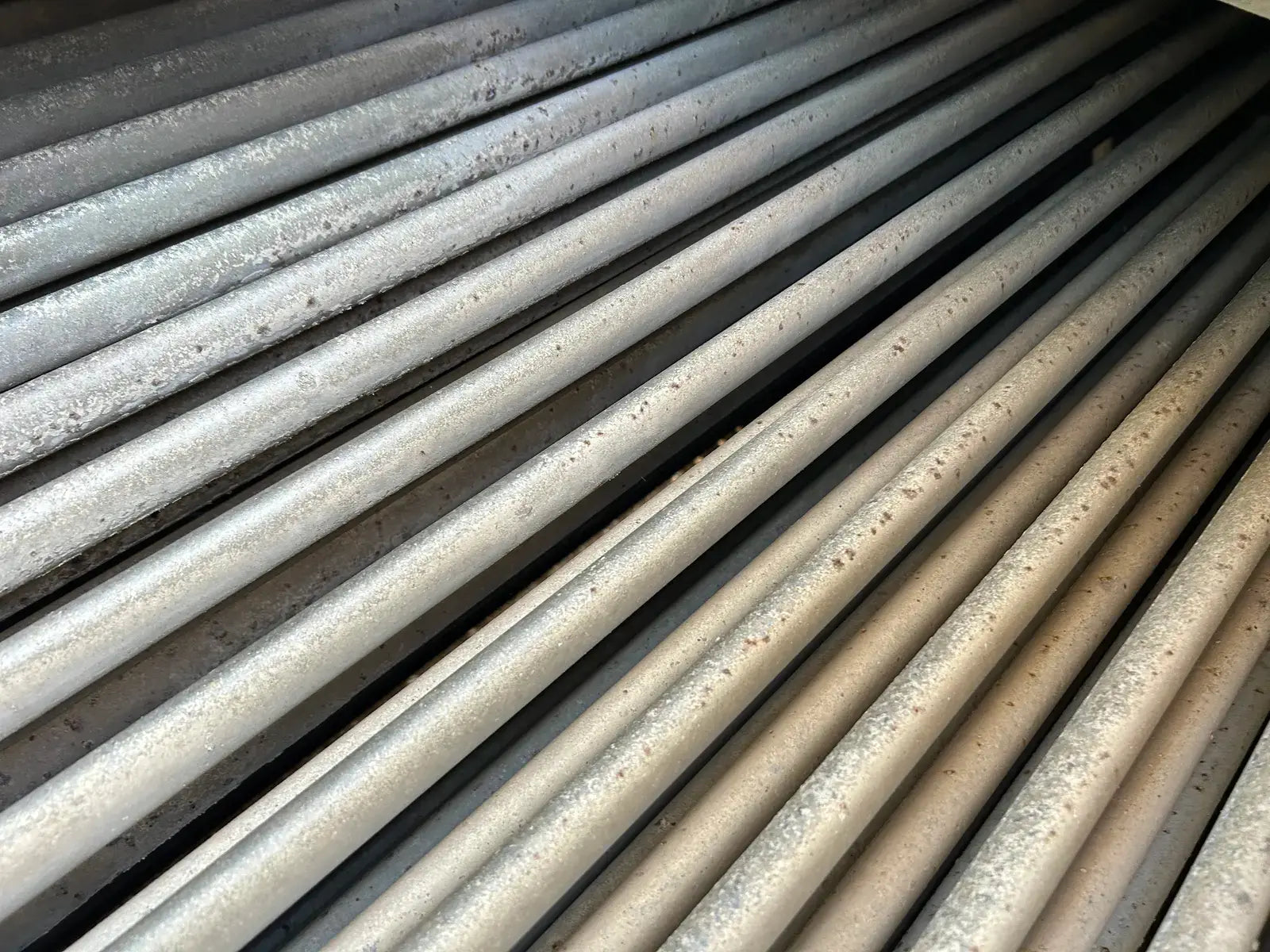

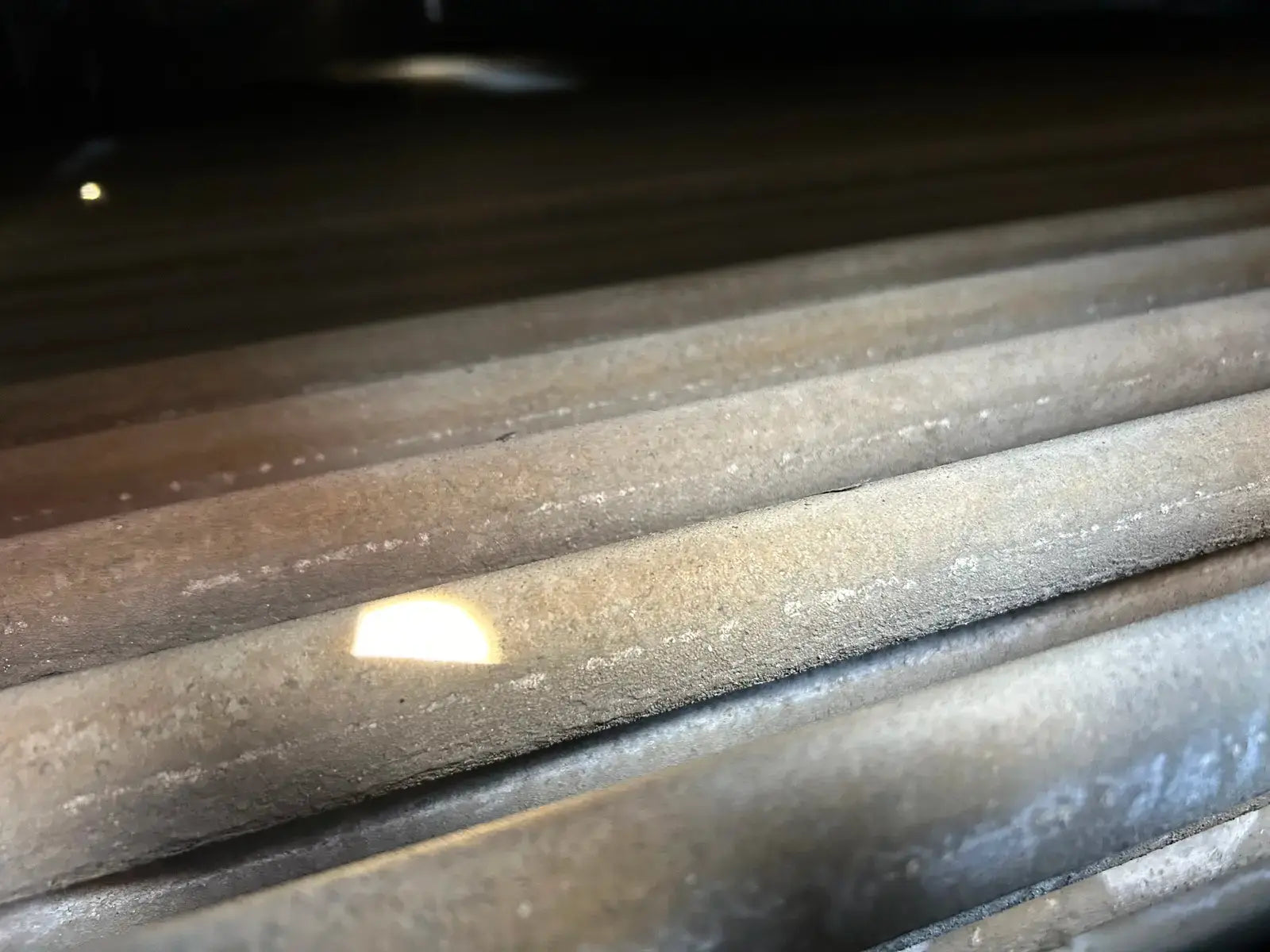

- Bottom Coil Condition Rating: Gold - Limited Scale- Almost Zero Rust
- Circuit 1 Pressure Rating: 100 PSI Air
- Circuit 1 Pressure Check Date: 03/21/2025
- Circuit 2 Pressure Rating: 100 PSI Air
- Circuit 2 Pressure Check Date: 03/21/2025

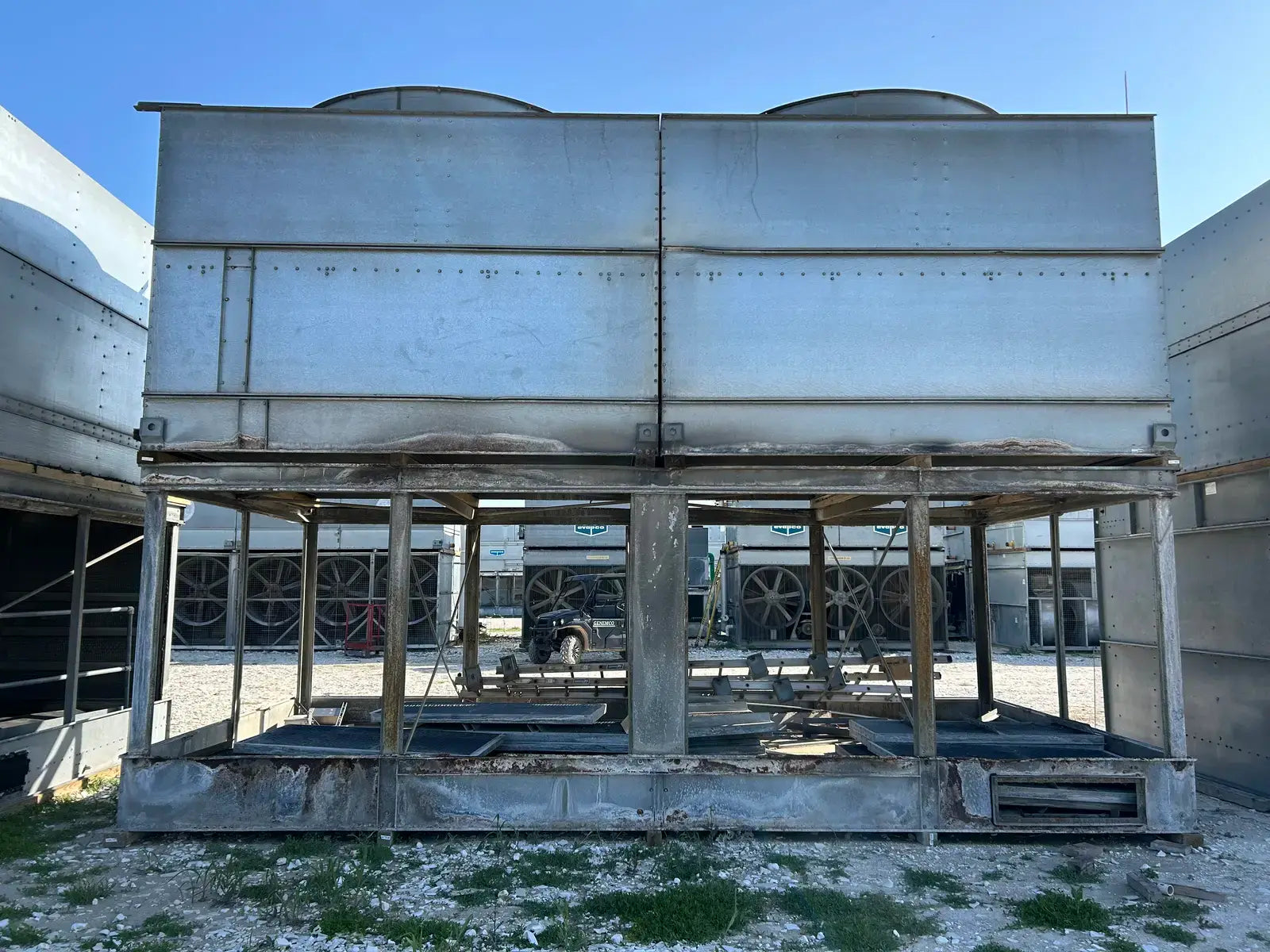

Condenser Dimensions
- Top Length (Inches): 132
- Top Width (Inches): 144
- Top Height (Inches): 128
- Top Weight (LBS): 22,000
- Bottom Length (Inches): 158
- Bottom Width (Inches): 144
- Bottom Height (Inches): 102
- Bottom Weight (LBS): 7,500
Pump Details
- Pump Included? Yes
- Pump Recommended HP: 10
- Pump Recommended Gallons per Minute (GPM): 2,800
Previous Refrigerant
Motor Details
- Motor Included? Yes
- # Motors: 4

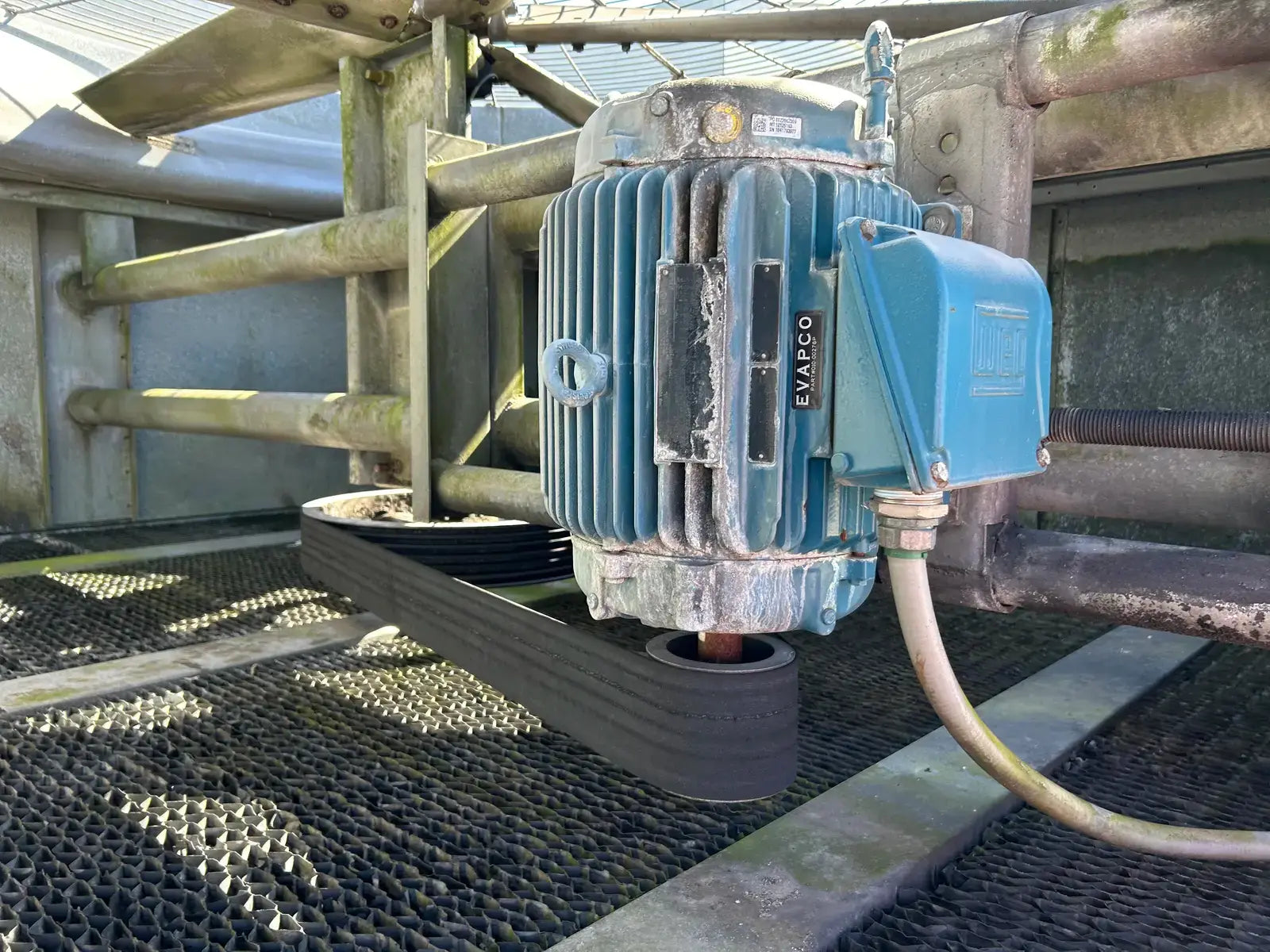

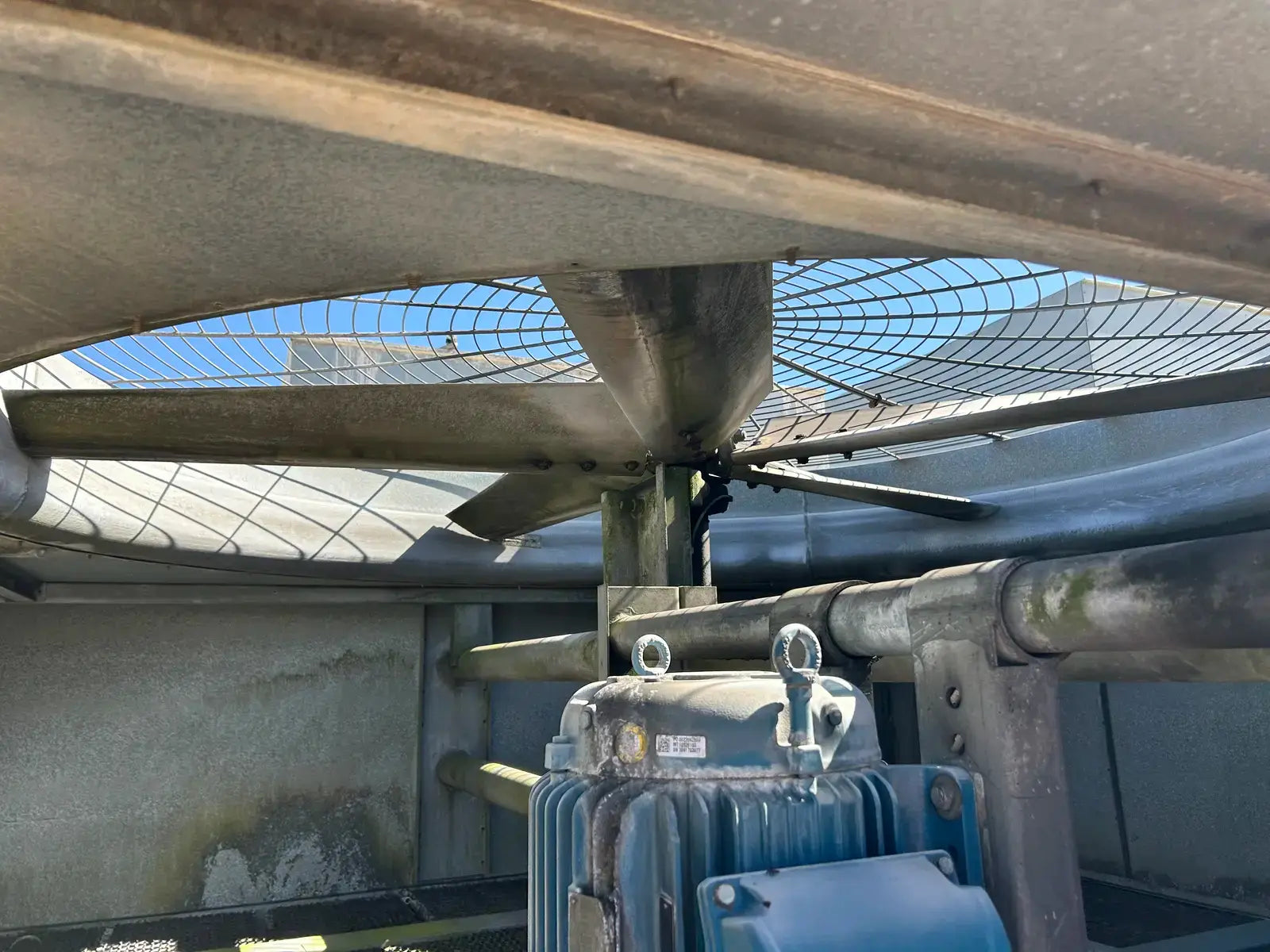

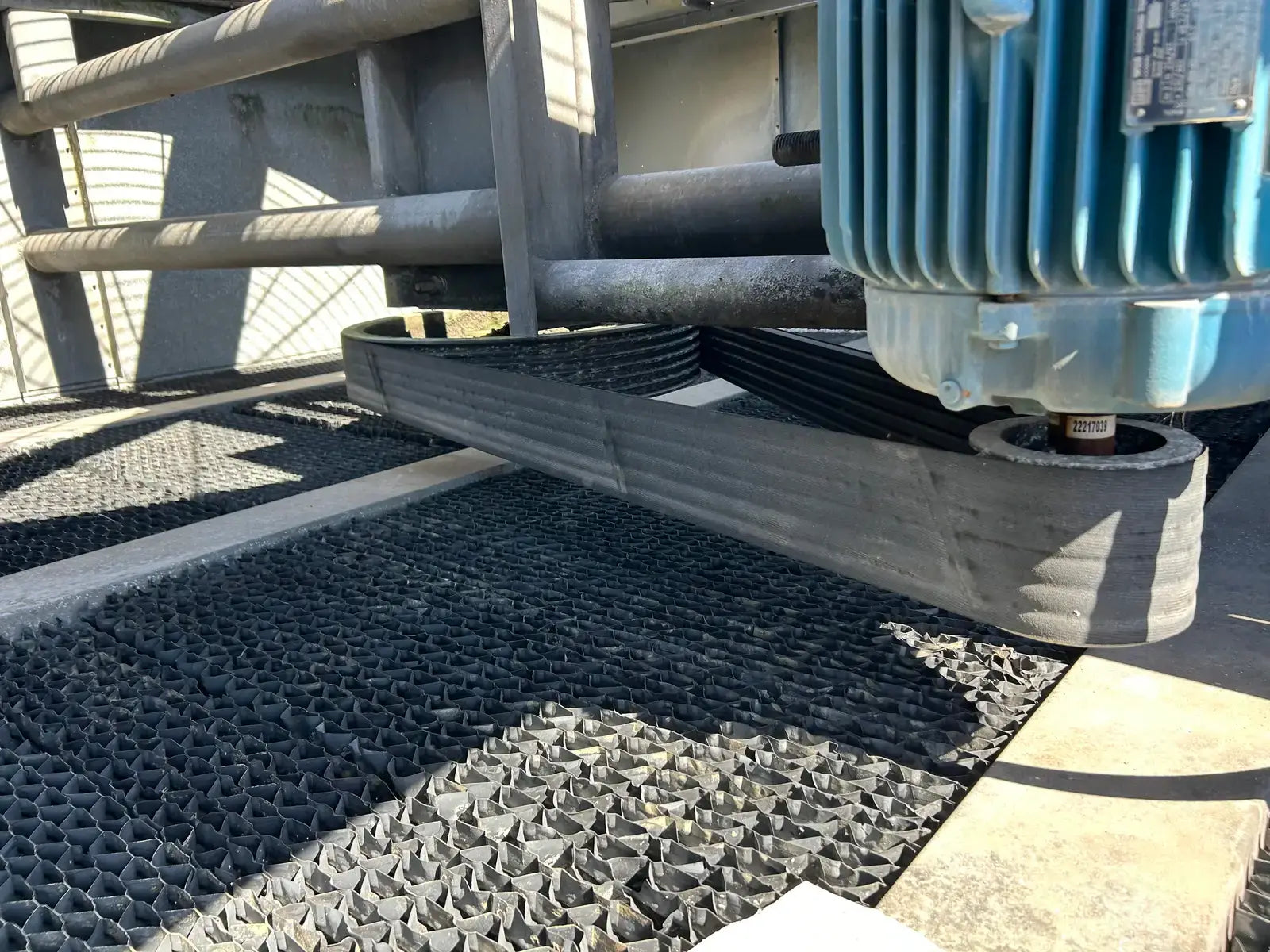

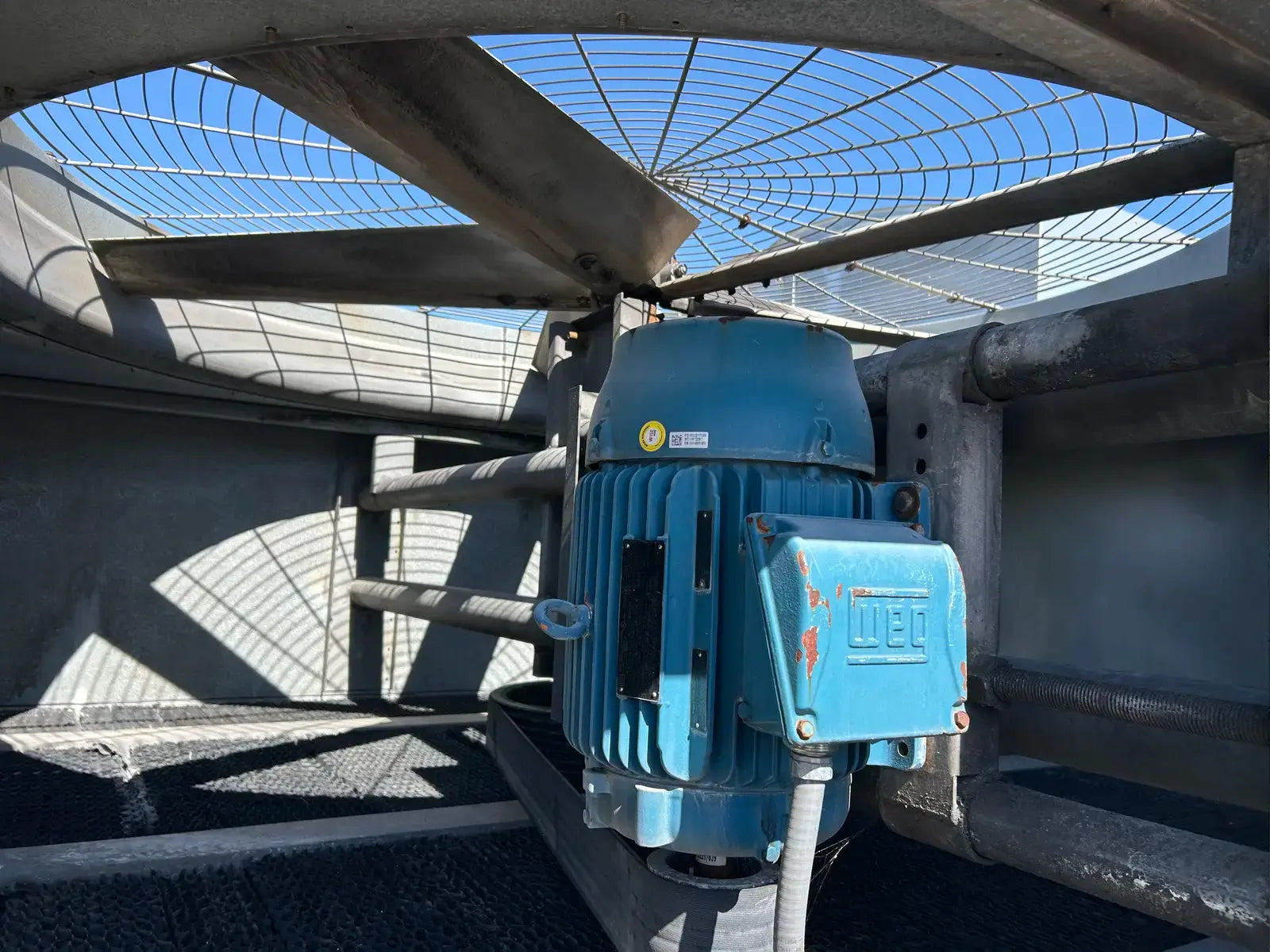

- If Multiple Motors, Motor Descriptions vs specs: (2) Fan Motors - 60 Hp, 460 Volts, 3 Ph, 60 Hz. (2) Spray Pumps - 10 Hp, 230/460 Volts, 3 Ph, 60 Hz.
Dimensions:
- Length (Inches): 291
- Width (Inches): 148
- Height (Inches): 223
- Weight (LBS): 68,330
- # of Pieces for Shipping: 3
Additional Product Details

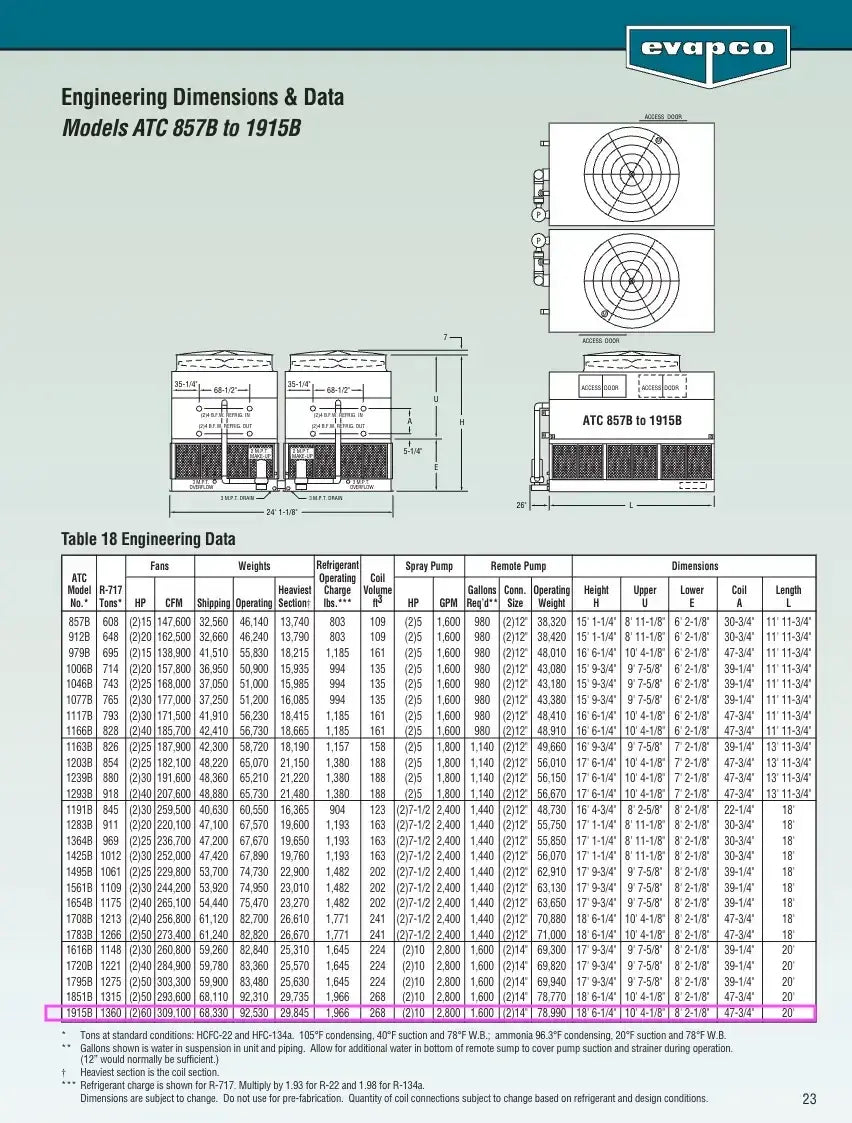

- Spec Sheet Available: Yes
