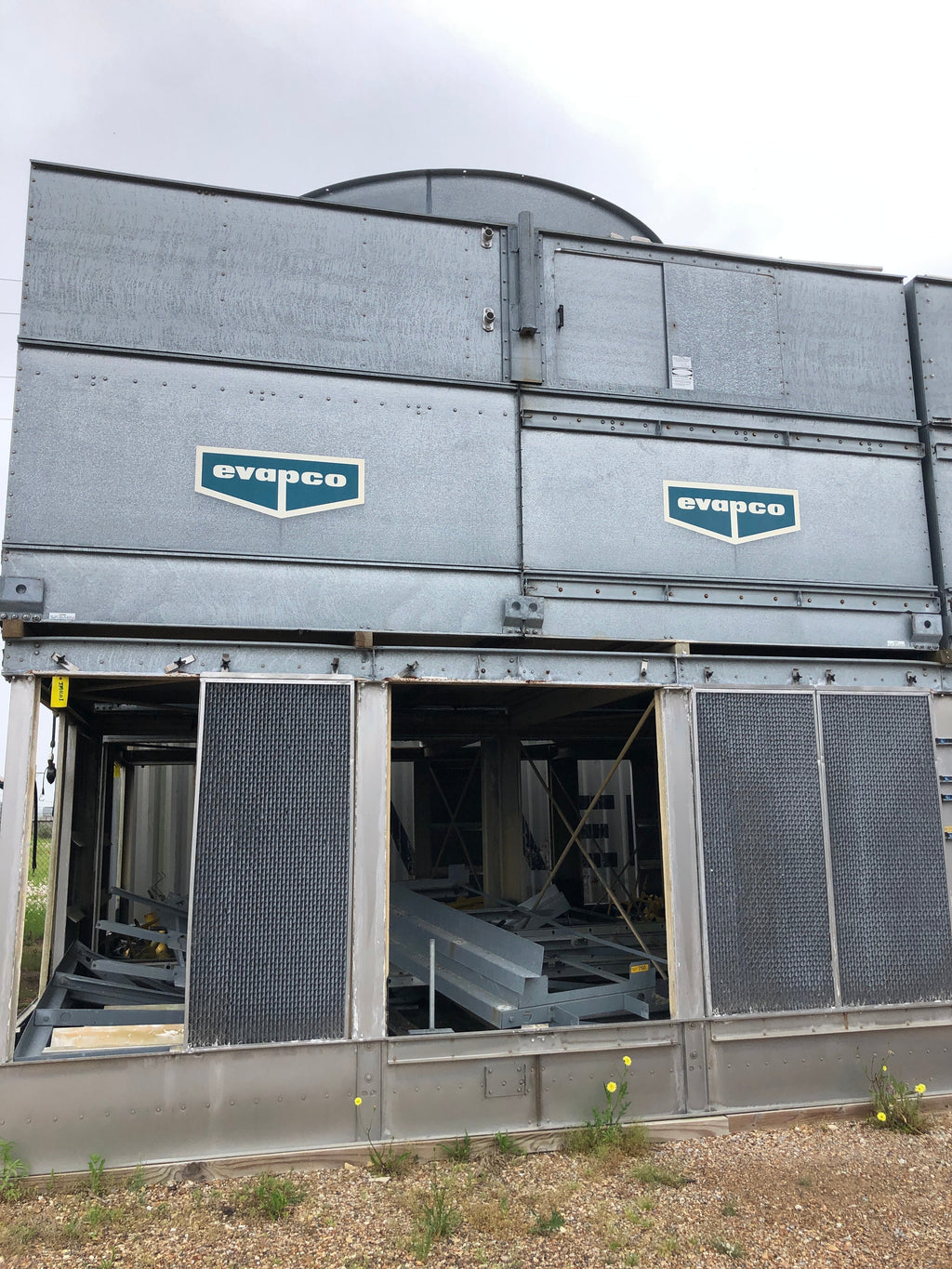

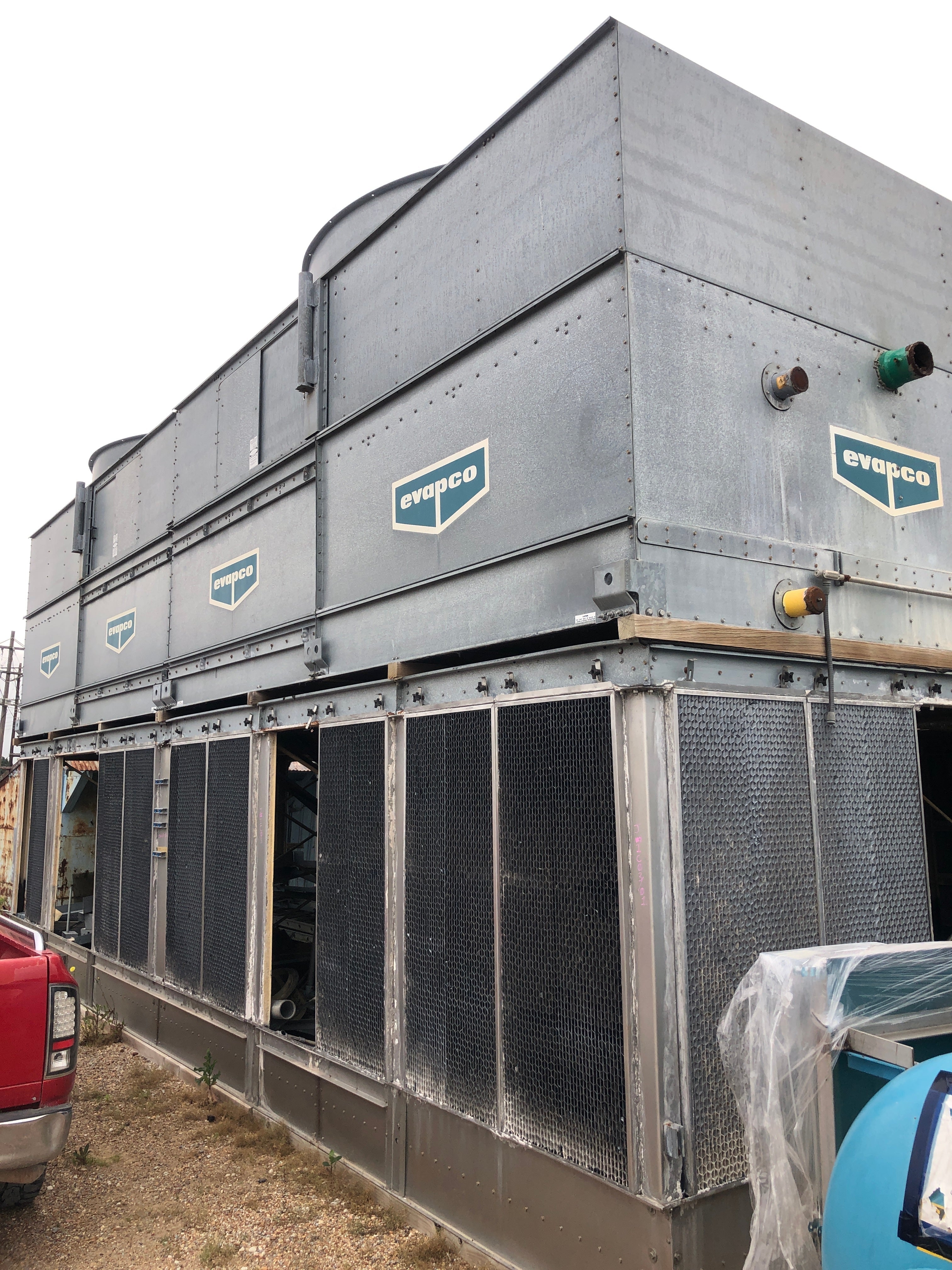

Evapco ATC-2900B Evaporative Condenser (1450 Package Nominal Tons,1-25 HP Motor, 2 Tower Units)
Year of Manufacture: 2001 Number Units in Package: 2 Nominal Tons (per unit): 725 TR* Ammonia Tons (per unit): 514.75 TR* Coil Volume (per unit): 101 ft3 CFM (per unit): 113150 CFM R-717 (ammonia) or R22 (freon). Last run with Ammonia. Design pressure: PSIG Pump Requirements (per unit): 7.5HP 1,200 GPM Pump Included? No, can purchase separately Fan Details (per unit): 25HP Top Dimensions (per unit): 18.2 L x 12'1 W x 9'8 H Top Weight (per unit): 22,900 LBS Bottom Dimensions (per unit): 18.2 L x 12'1 W x 8'3 H Bottom Weight (per unit): 4,020 LBS *Tons at standard conditions: 96.3°F condensing, 20°F suction and 78°F Wet Bulb Can sell one tower unit from a group upon request for a fee. Please request as needed.
Product Details
- Stock No: JMIC03-01
- Manufacturer: Evapco
- Model: ATC-2900B
- Serial Number: M015331
Condenser Details
- Multiple Units Included in Package? Yes
- # Units included in Package: 2
- Package Nominal Tons (TR): 1,450
- Package Ammonia Tons (TR): 1,028
- Package Coil Volume (ft3): 202
- Package CFM (CFM): 226,300
- Unit Ammonia Tons (TR): 257

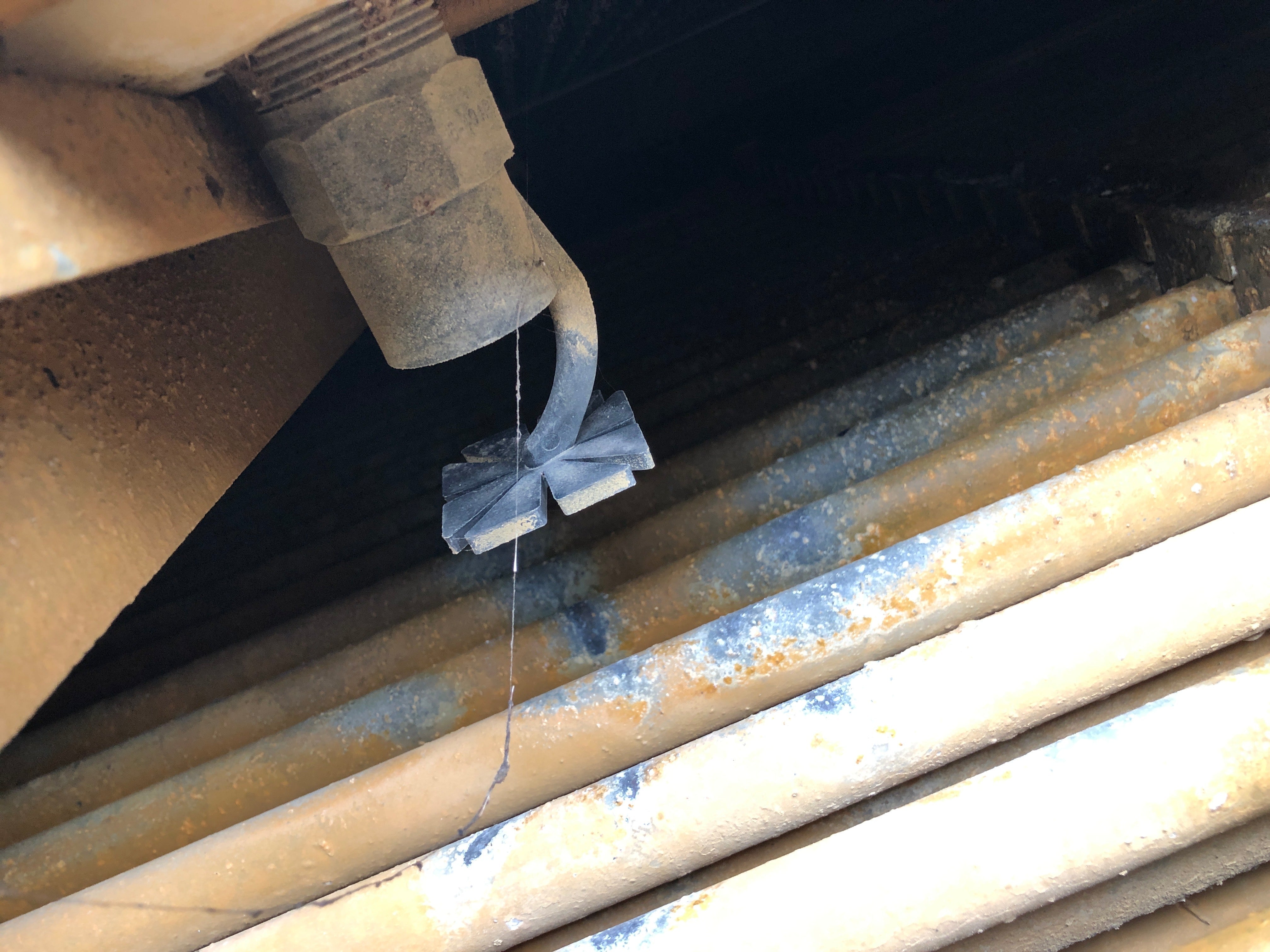

- Top Coil Condition Rating: Silver - Scale Build Up- Limited Rust
- Bottom Coil Condition Rating: Silver - Scale Build Up- Limited Rust
Condenser Dimensions
- Top Length (Inches): 218.4
- Top Width (Inches): 145
- Top Height (Inches): 116
- Top Weight (LBS): 22900
- Bottom Length (Inches): 218.4
- Bottom Width (Inches): 145
- Bottom Height (Inches): 99
- Bottom Weight (LBS): 4020
Pump Details
- Pump Included? No
- Pump Recommended HP: 7.5
- Pump Recommended Gallons per Minute (GPM): 1200
Previous Refrigerant
- Previous Refrigerant: Ammonia (R-717)
- Ammonia (R-717) Compatiable: Yes
- Halocarbon (Freon) Compatible: Yes
Motor Details
- Motor Horsepower(HP): 25
Dimensions:
- Length (Inches): 218.4
- Width (Inches): 145
- Height (Inches): 215
- Weight (LBS): 26,920
Additional Product Details
- Year of Manufacture: 2001
- Spec Sheet Available: Yes
