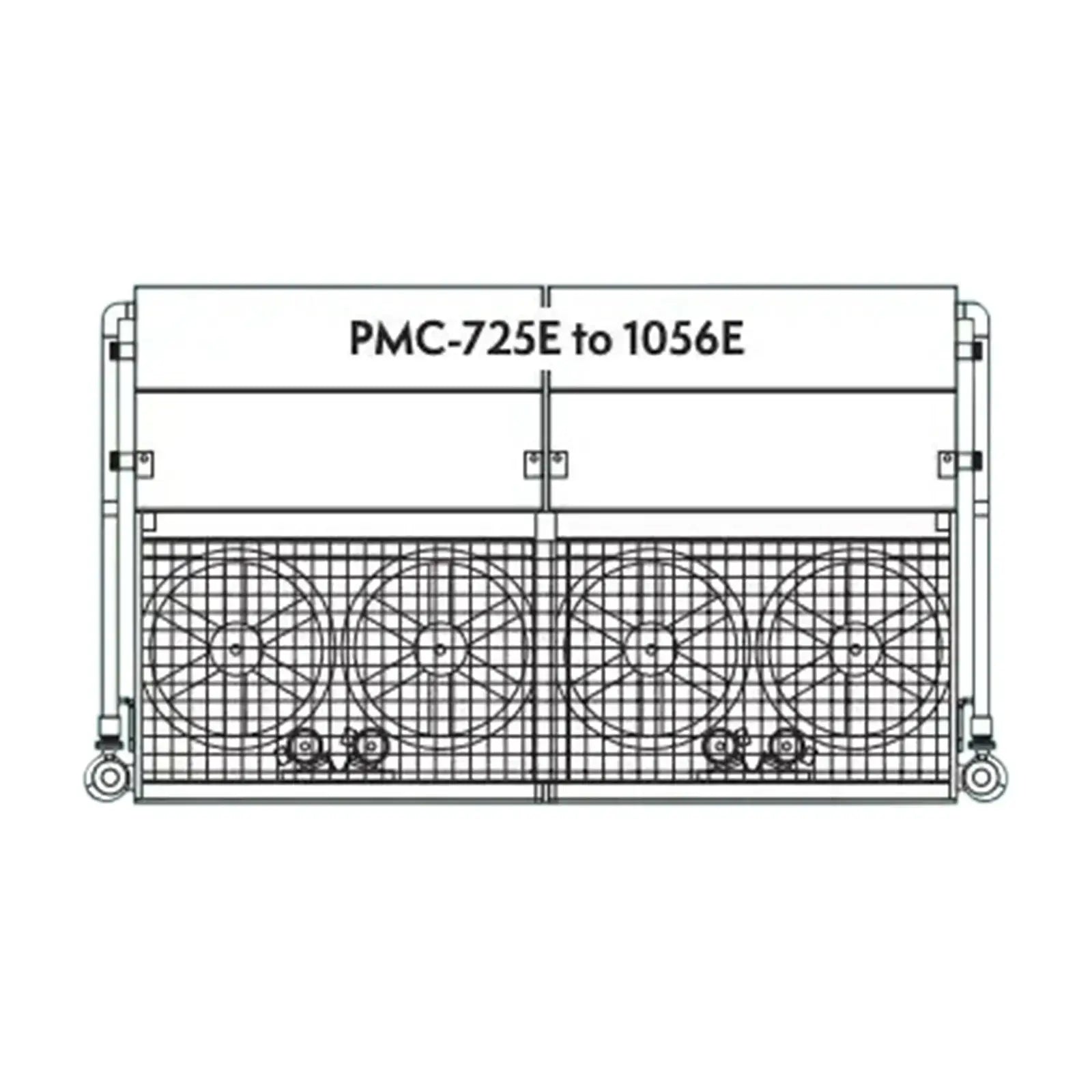

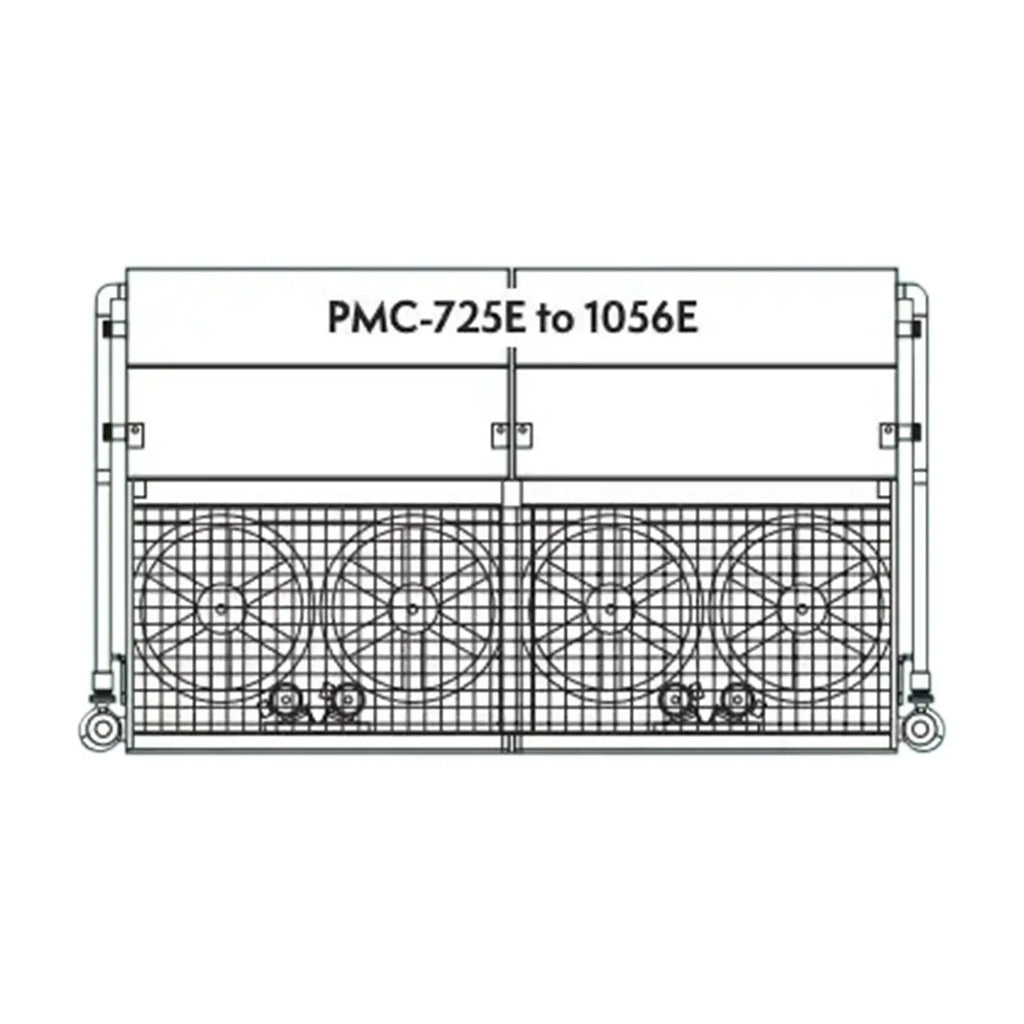

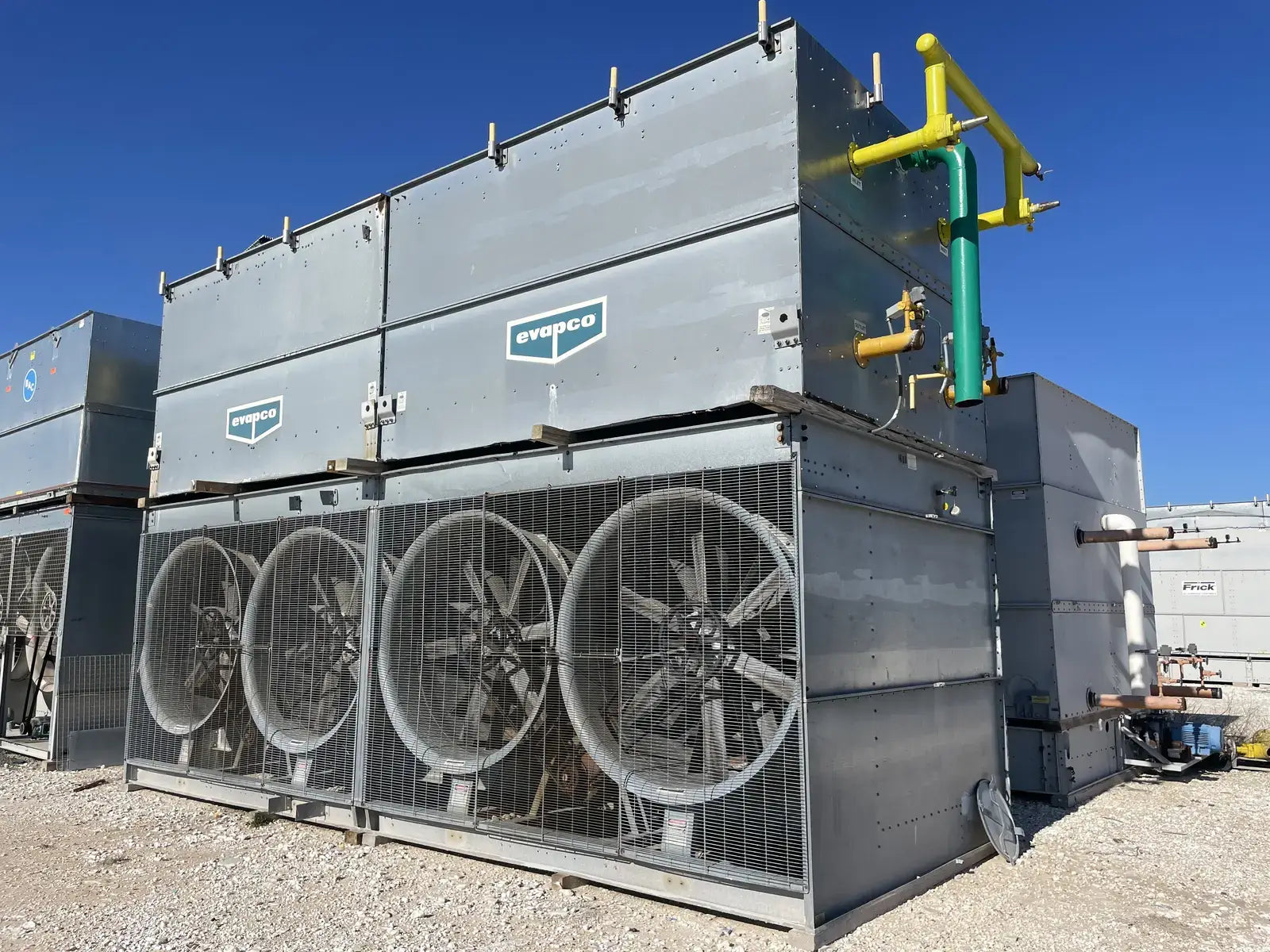

Evapco PMC-1038E Evaporative Condenser (1038 Nominal Tons)

Product Details

• Stock No: MAR02

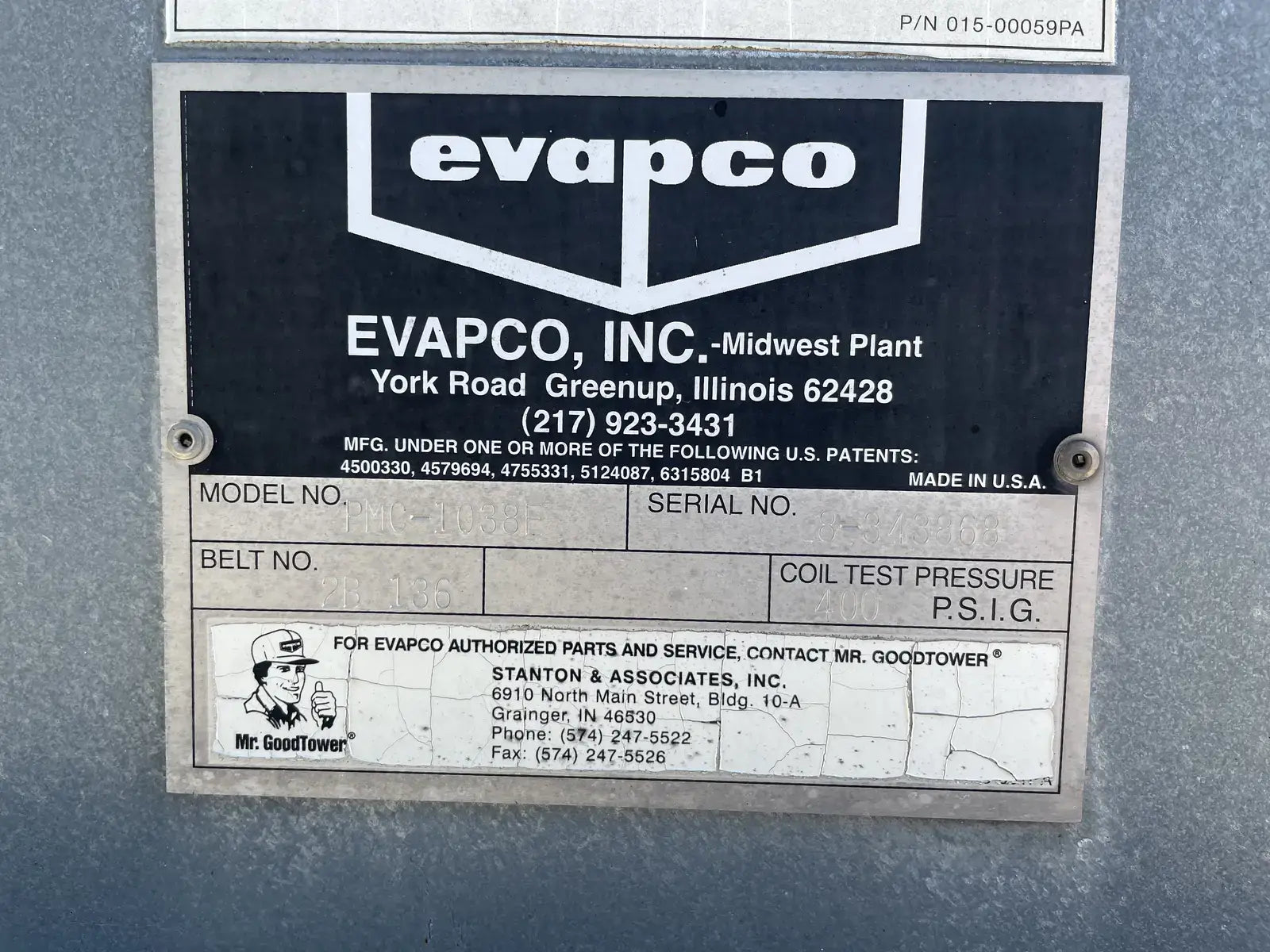

• Manufacturer: Evapco
• Model: PMC-1038E
• Serial Number: 8-343868

Condenser Details

• Multiple Units Included in Package? Yes
• # Units included in Package: 2
• Package Nominal Tons (TR): 1,038
• Package Ammonia Tons (TR): 736
• Package Coil Volume (ft3): 131
• Package CFM (CFM): 169,600
• Unit Nominal Tons (TR): 736
• Unit Ammonia Tons (TR): 736
• Unit Coil Volume (ft3): 131
• Unit CFM (CFM): 169,600
• Design Pressure (PSI): 400

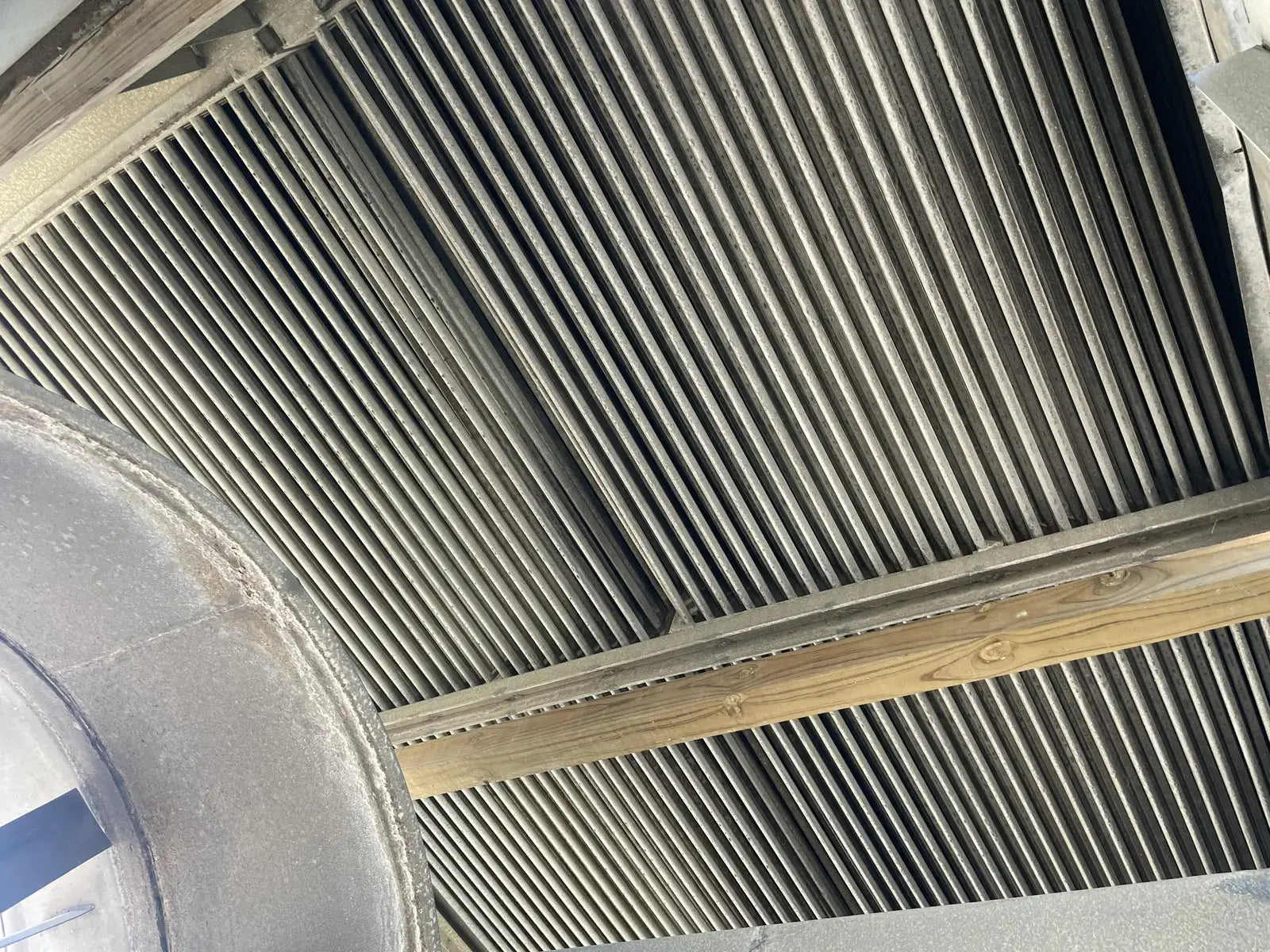

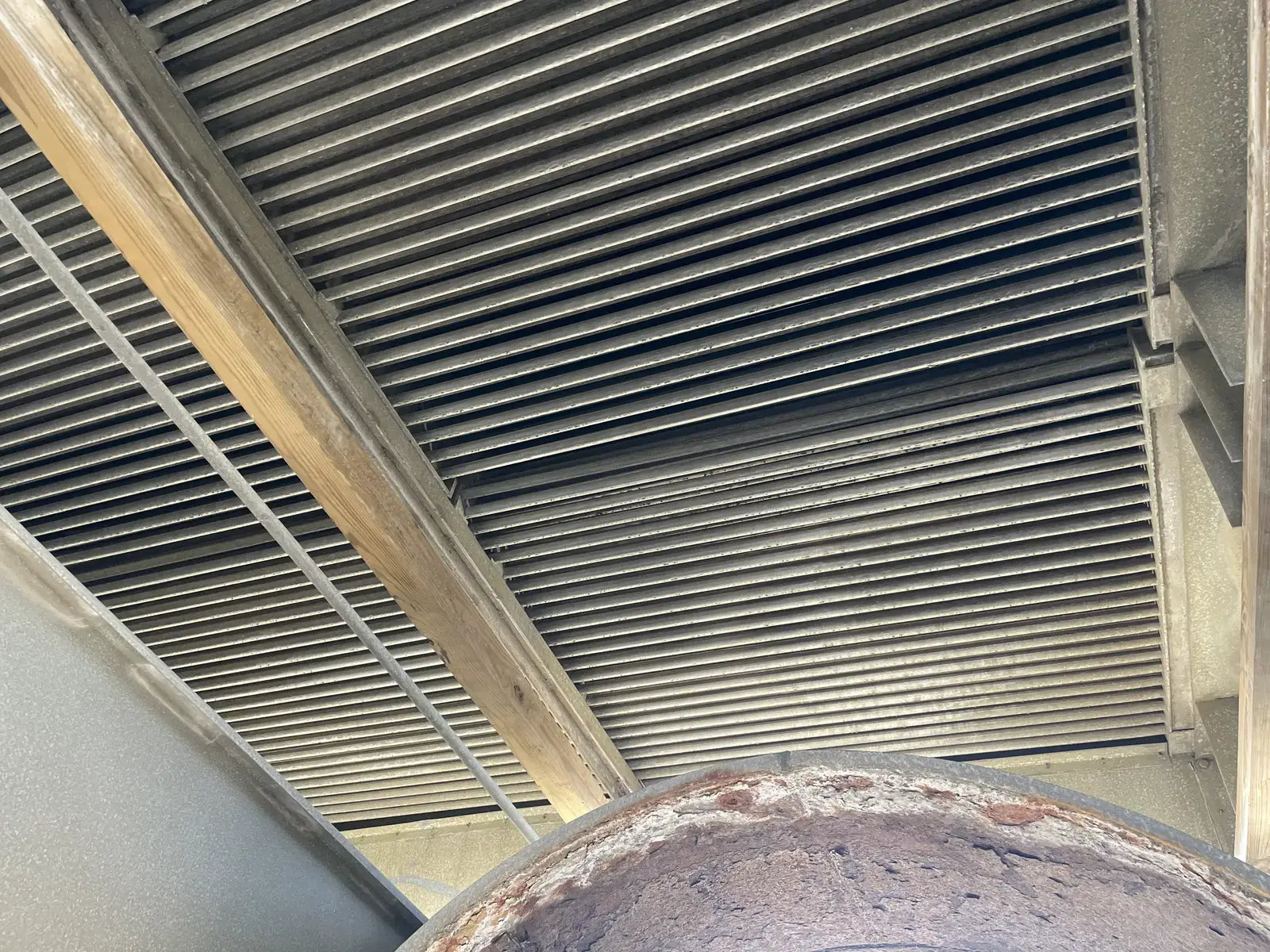

• Top Coil Condition Rating: Gold - Limited Scale- Almost Zero Rust
• Bottom Coil Condition Rating: Gold - Limited Scale- Almost Zero Rust
• Circuit 1 Pressure Rating: Pending Test
• Circuit 2 Pressure Rating: Pending Test

Condenser Dimensions

• Top Length (Inches): 288
• Top Width (Inches): 118
• Top Height (Inches): 86
• Top Weight (LBS): 28,740
• Bottom Length (Inches): 306
• Bottom Width (Inches): 118
• Bottom Height (Inches): 103
• Bottom Weight (LBS): 10,010

Pump Details

• Pump Included? No
• Pump Recommended HP: 5
• Pump Recommended Gallons per Minute (GPM): 1,370

Previous Refrigerant

• Previous Refrigerant: Ammonia (R-717)
• Ammonia (R-717) Compatiable: Yes

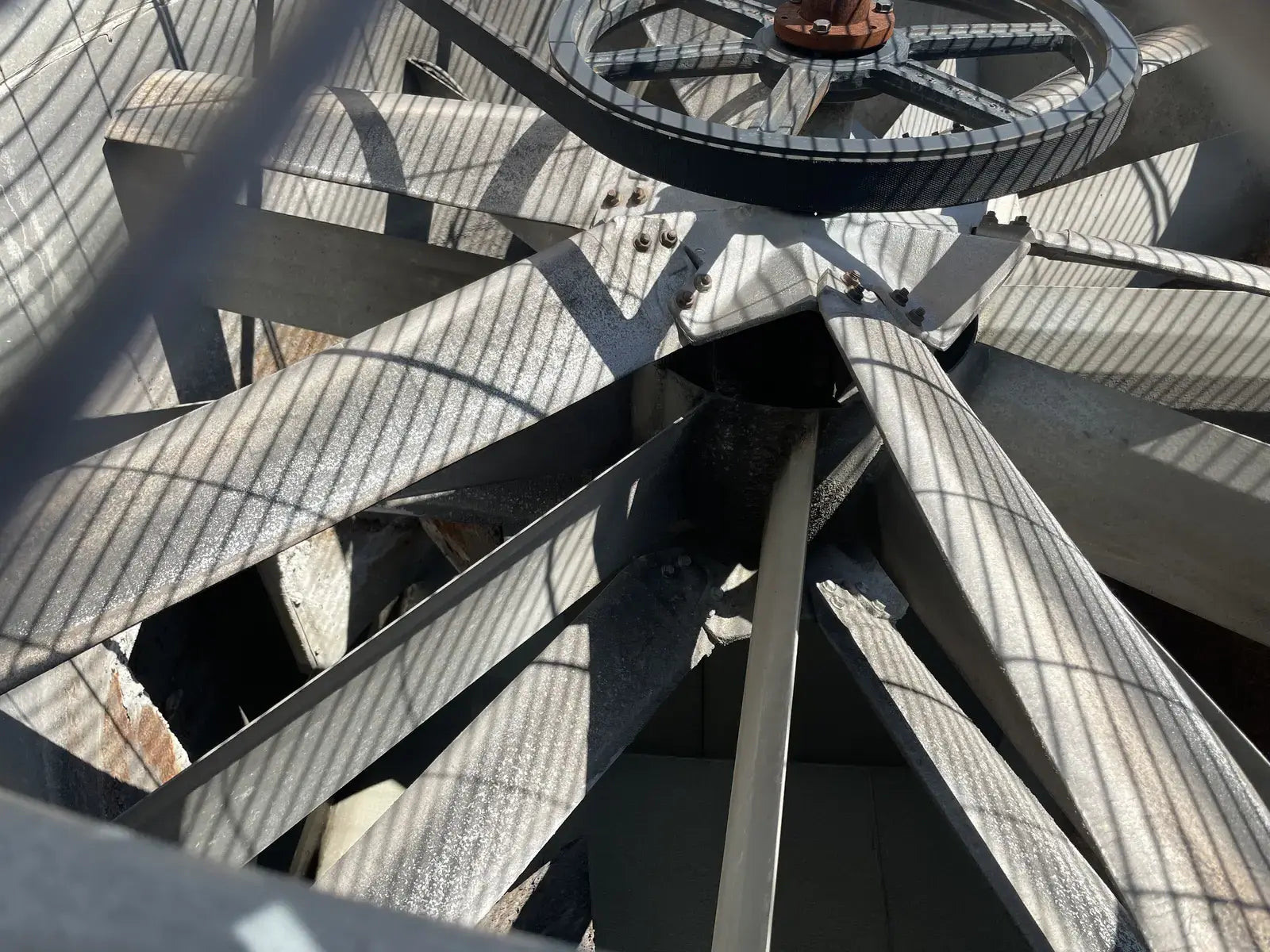

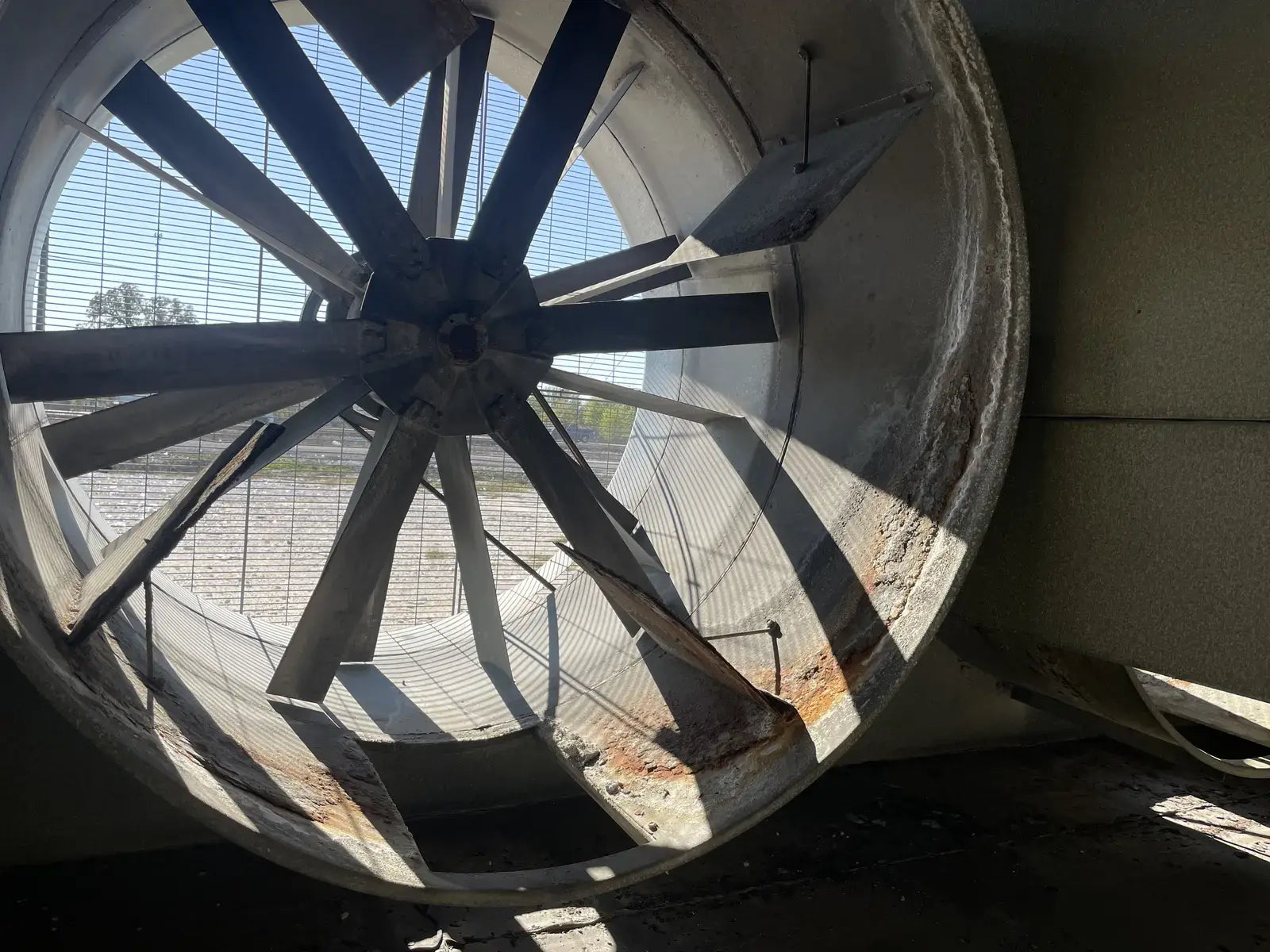

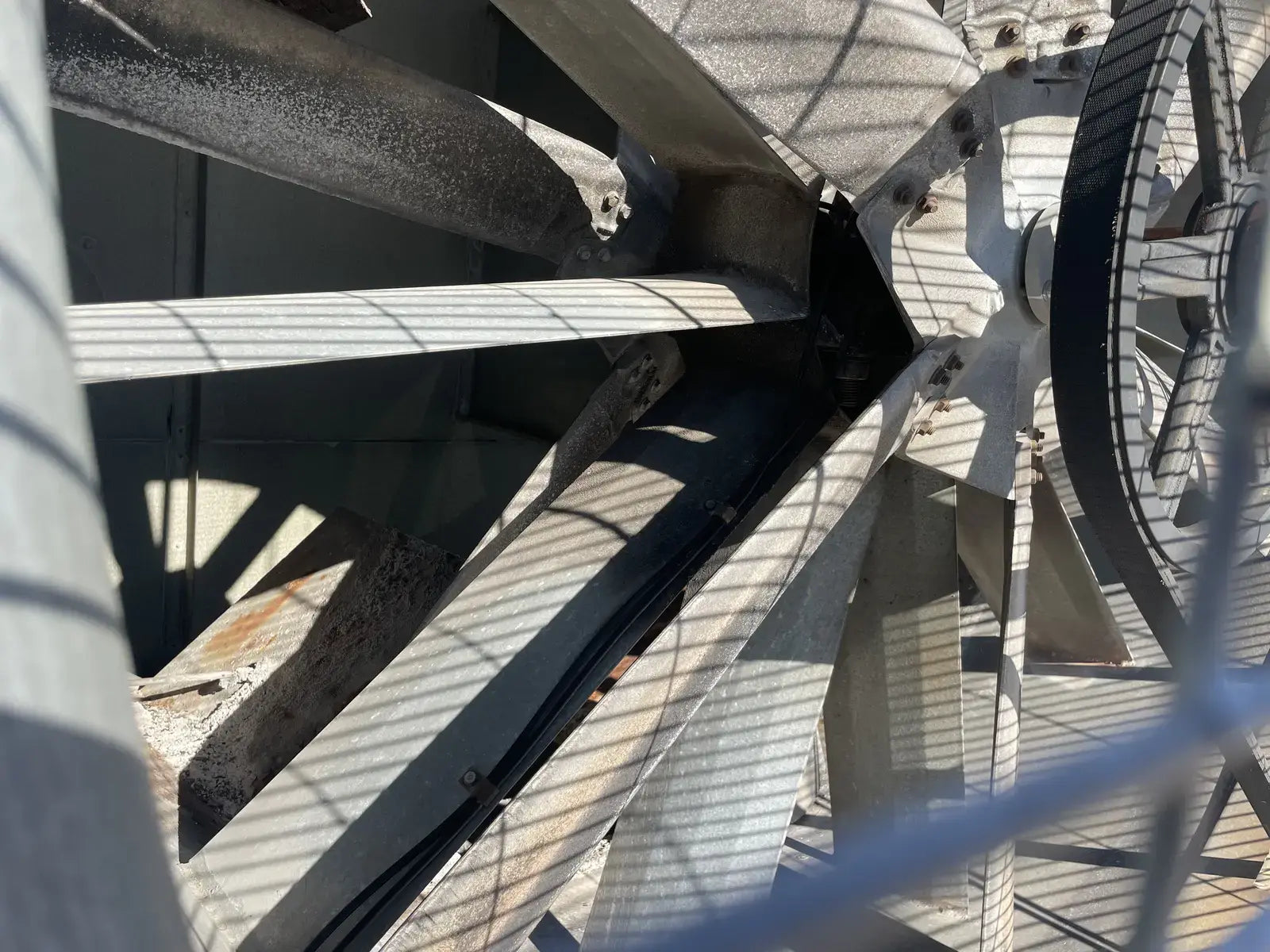

Motor Details

• Motor Included? Yes
• # Motors: 6

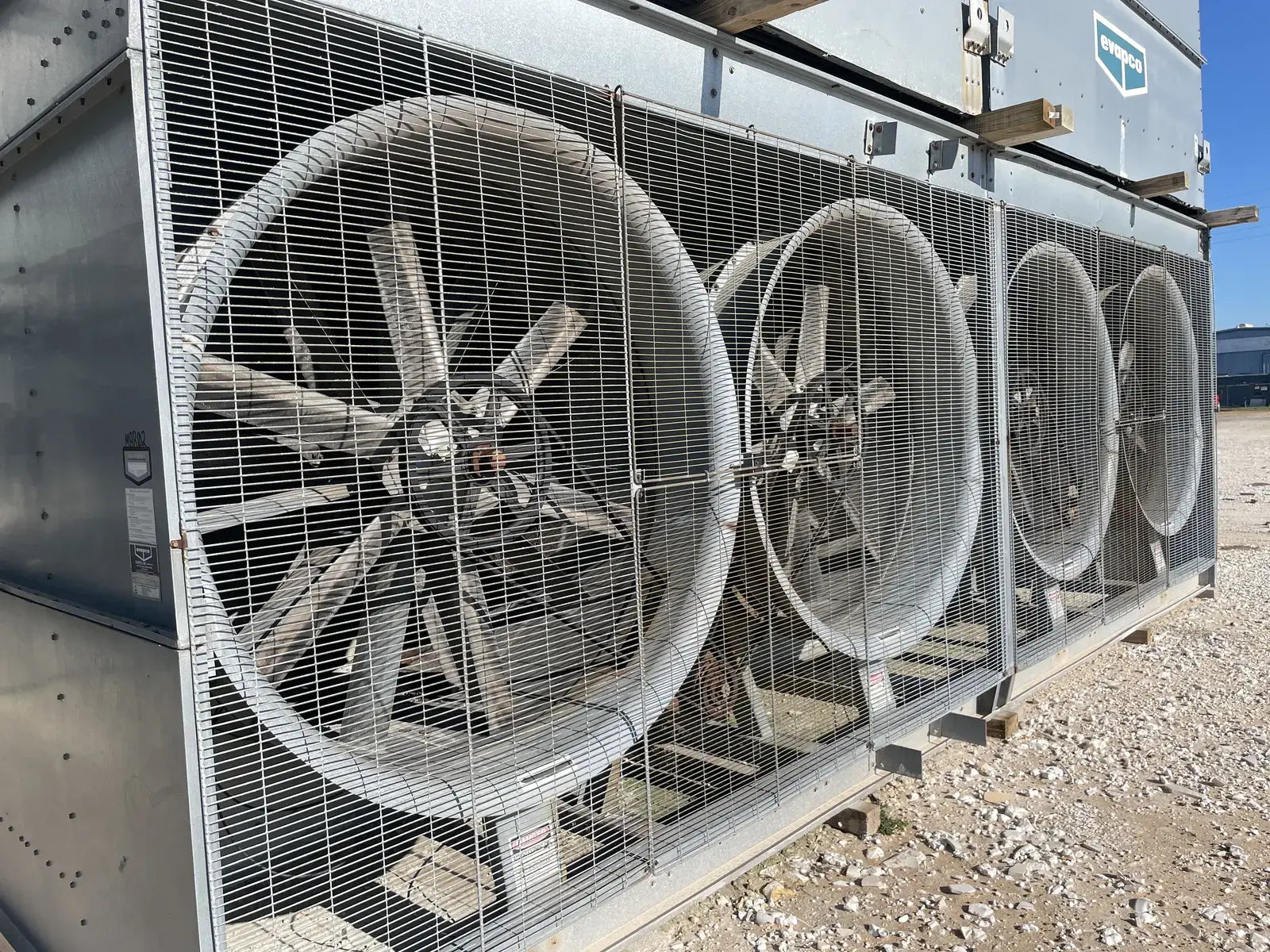

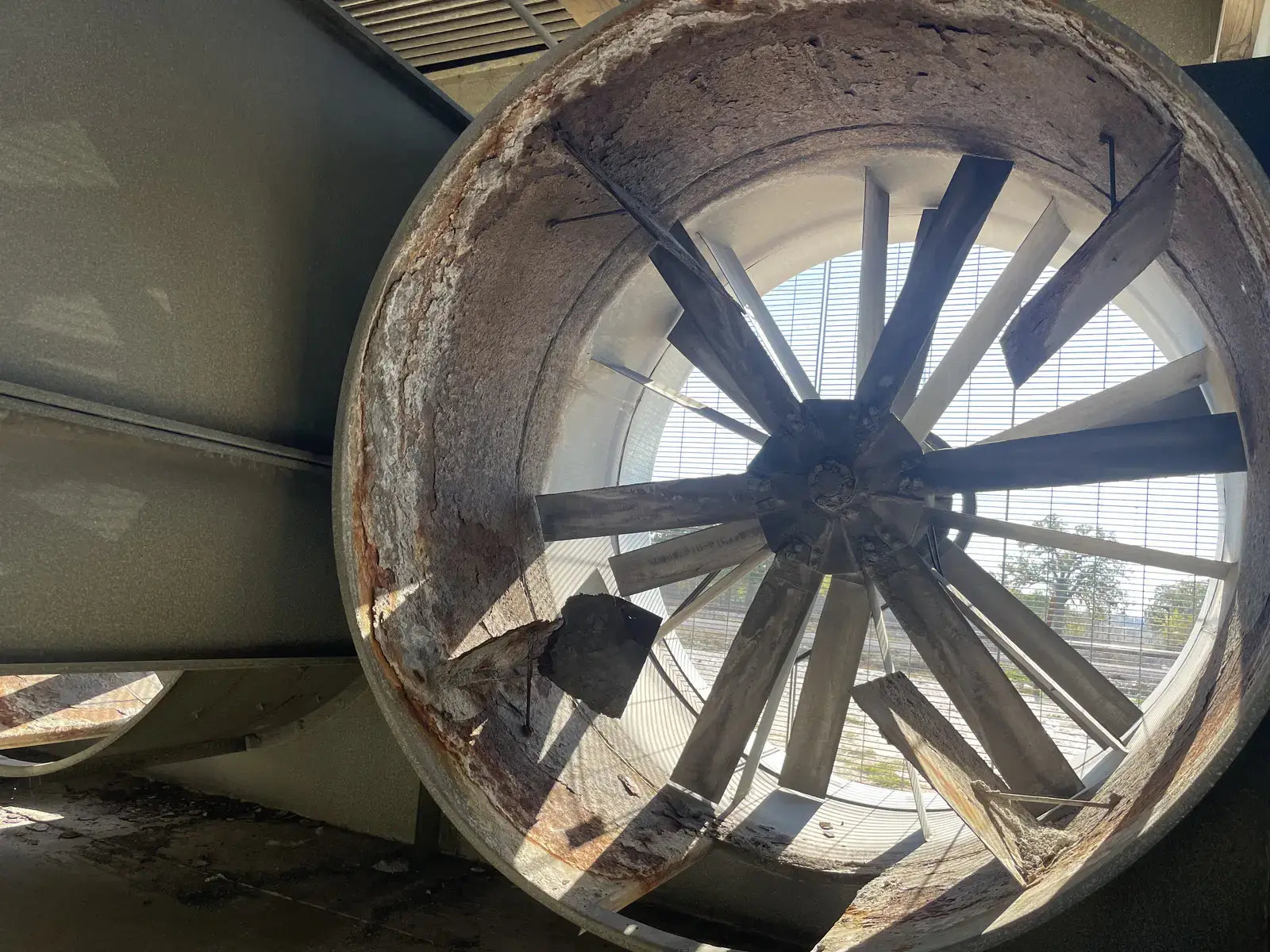

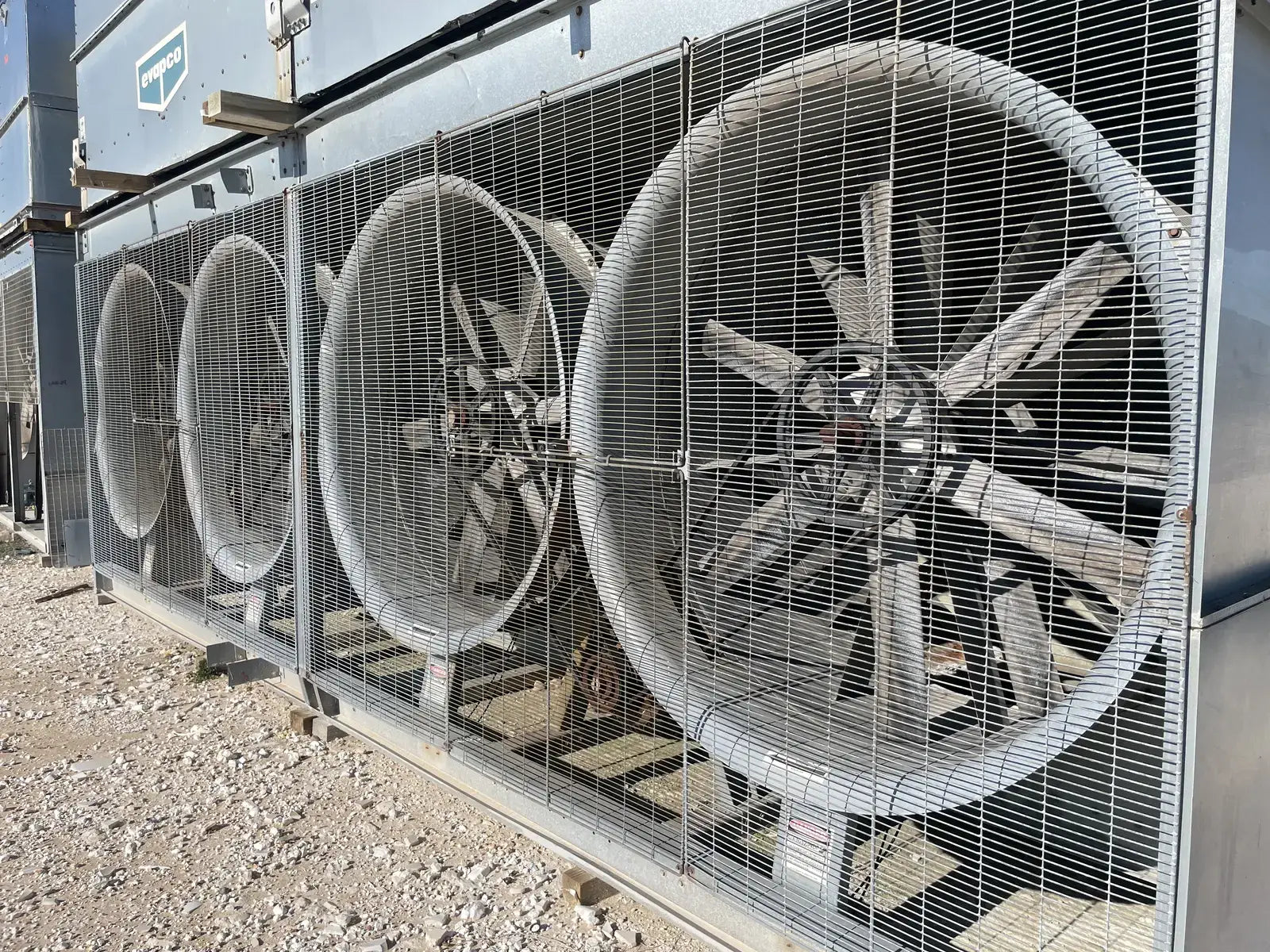

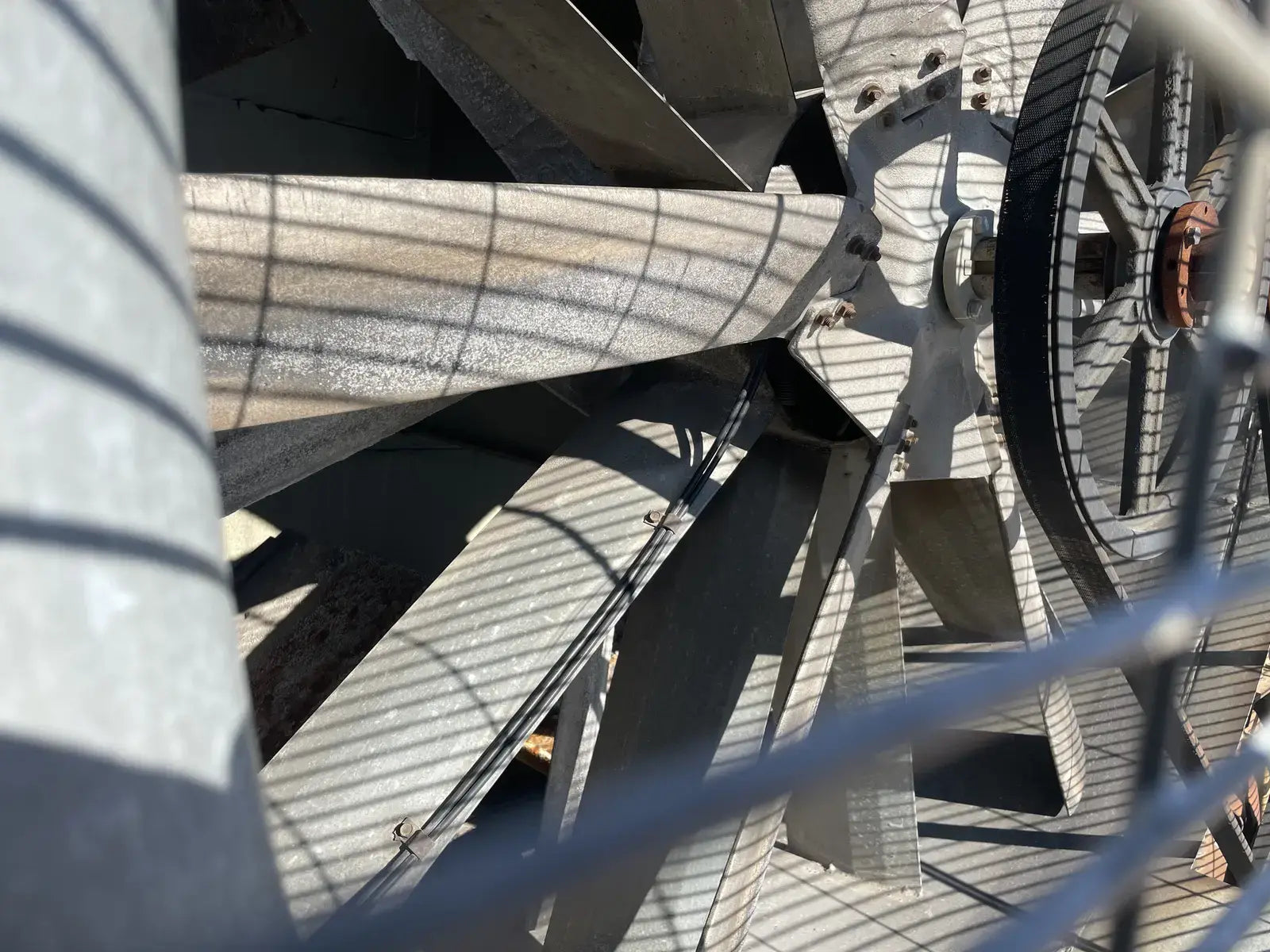

• If Multiple Motors, Motor Descriptions vs specs: (4) Fan Motors - 15 HP, 230/460 Volt, 3 Ph, 60 Hz. (2) Spray Pump - 5 Hp, 230/460 Volt, 3 Ph, 60 Hz.

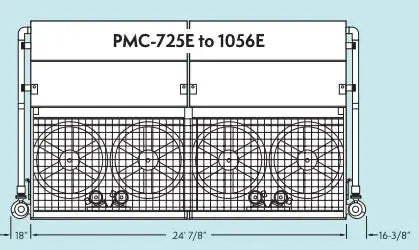

Dimensions:

• Length (Inches): 306
• Width (Inches): 118
• Height (Inches): 189
• Weight (LBS): 38,750
• # of Pieces for Shipping: 3

Additional Product Details

• Year of Manufacture: 2008
• Year Removed from Production: 2025
• Spec Sheet Available: Yes
