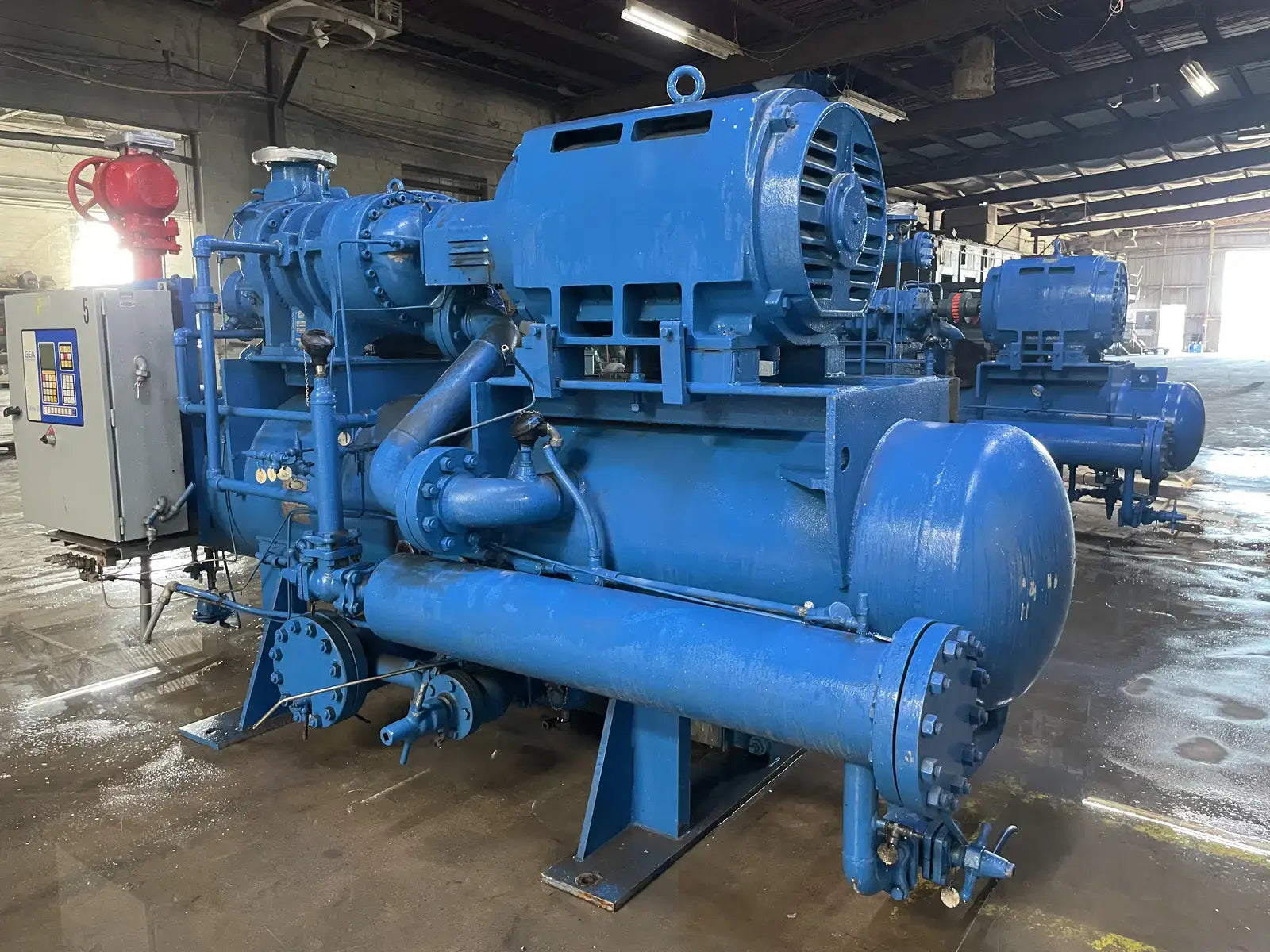

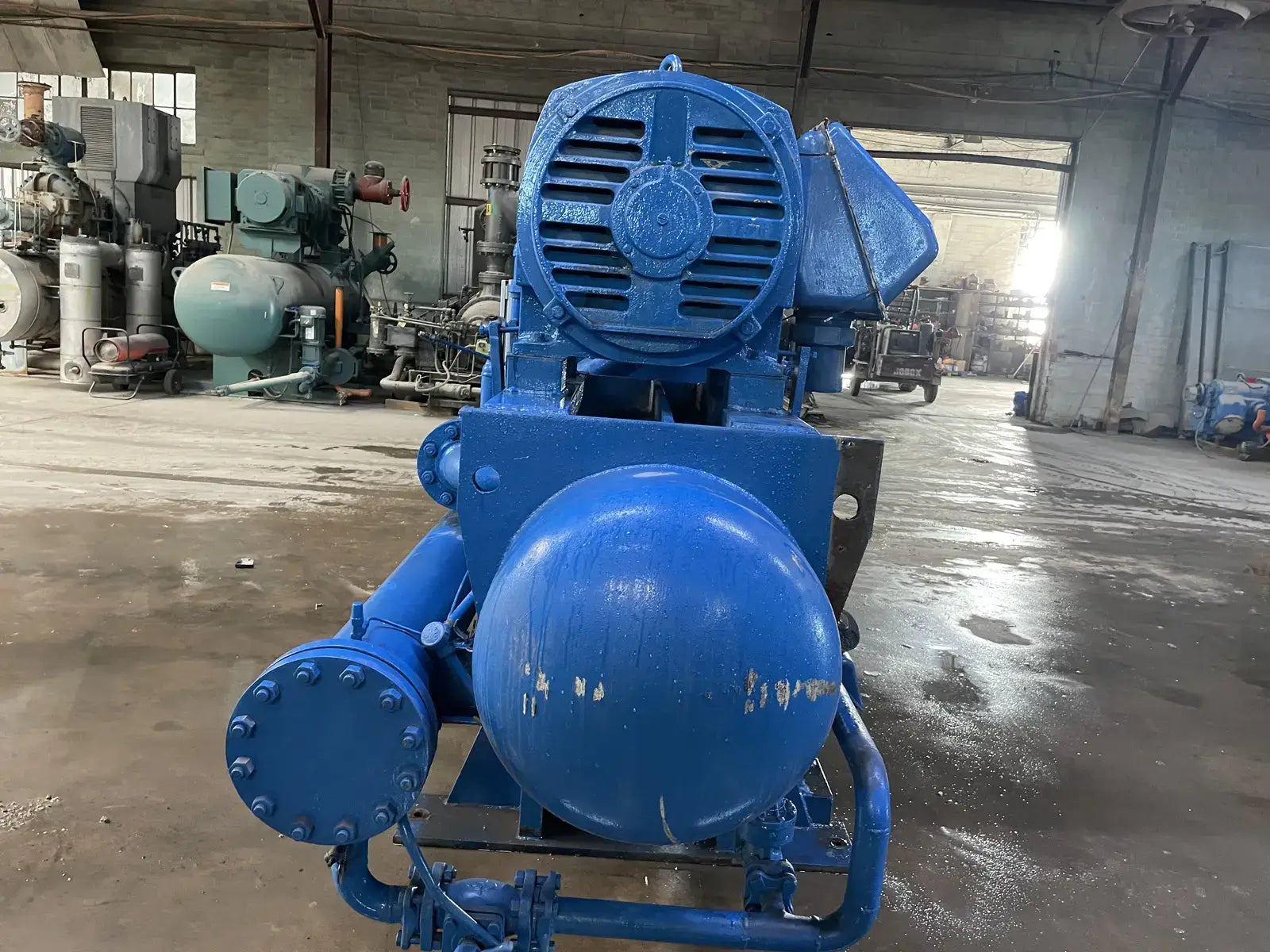

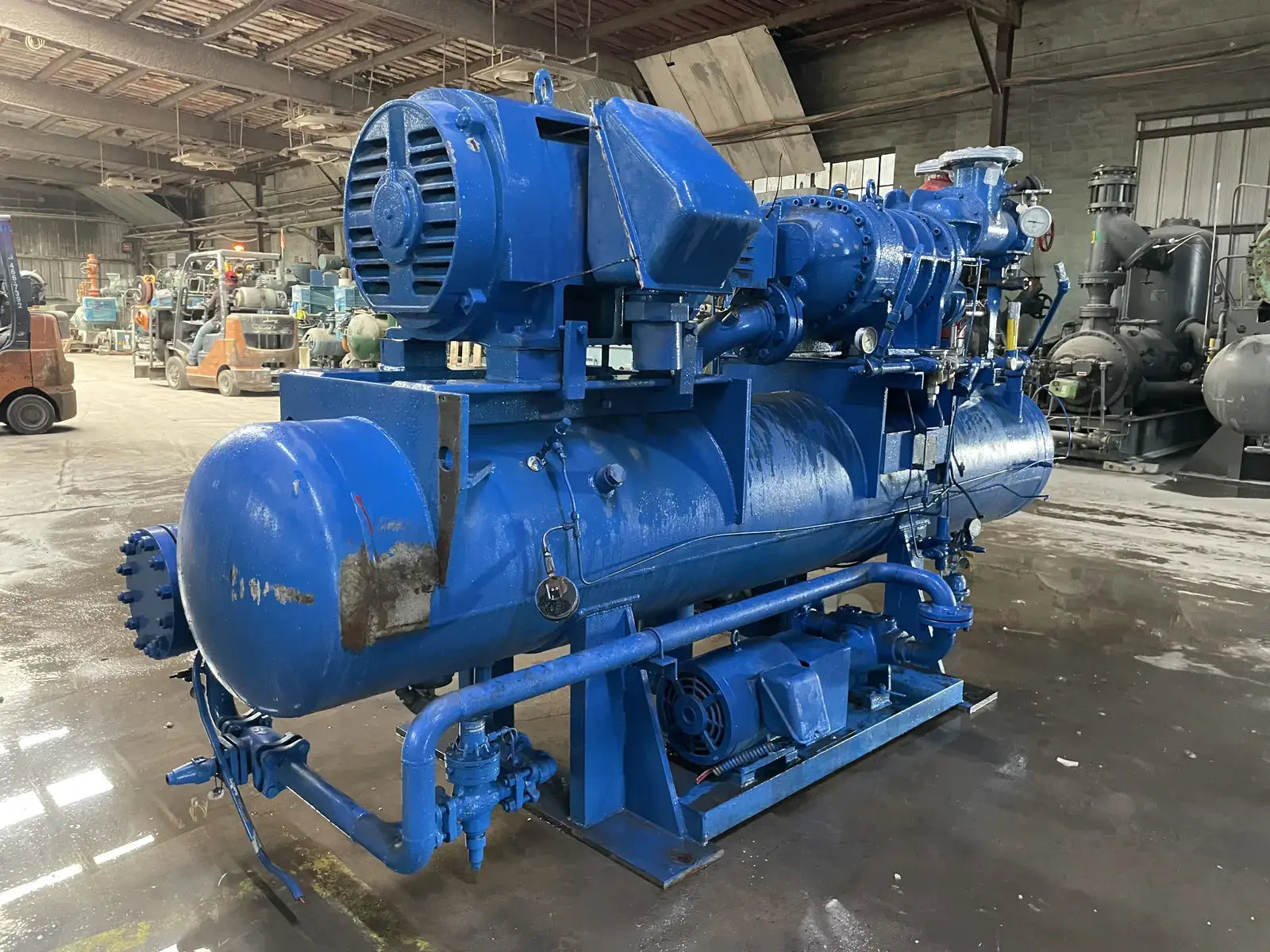

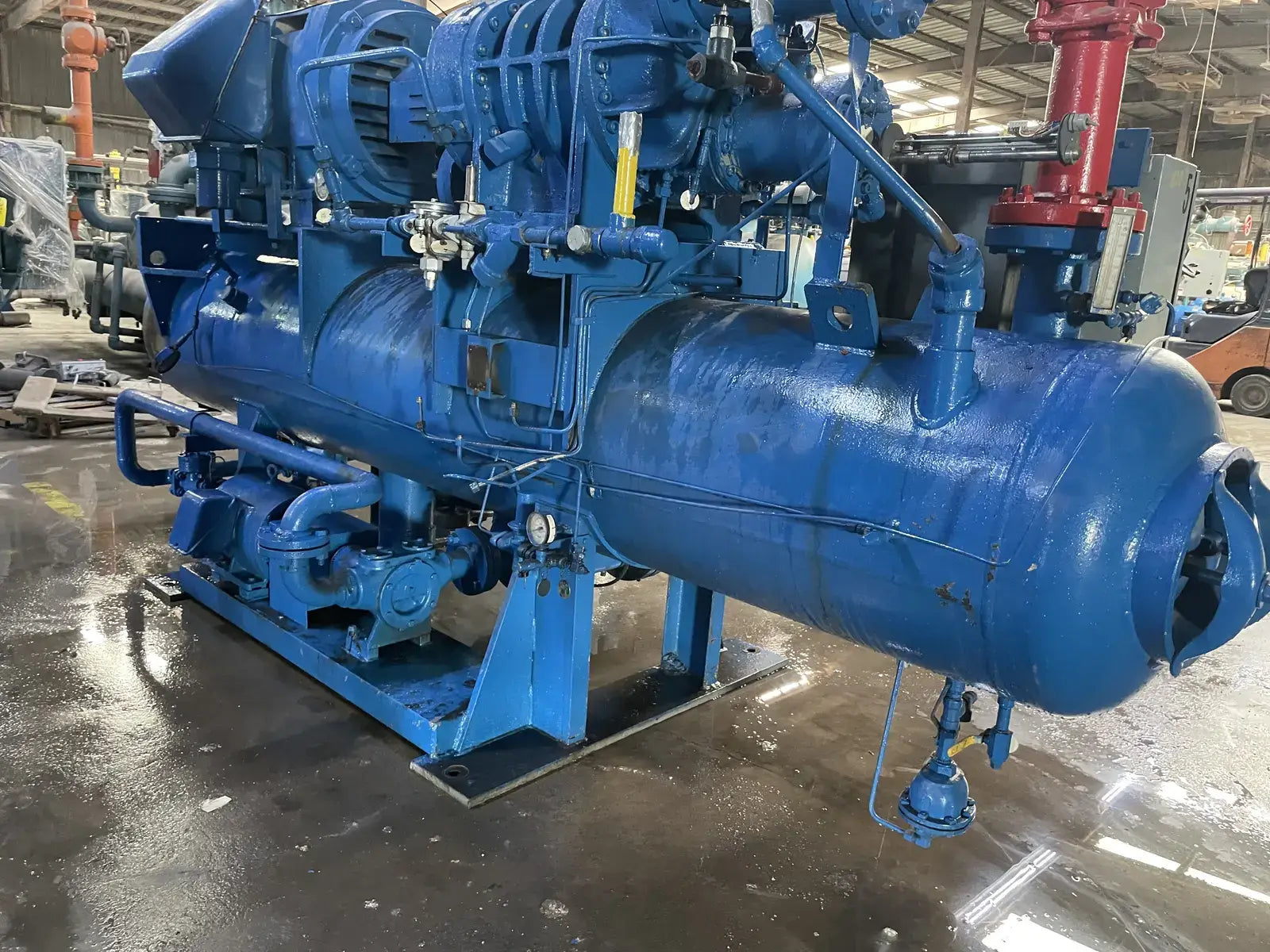

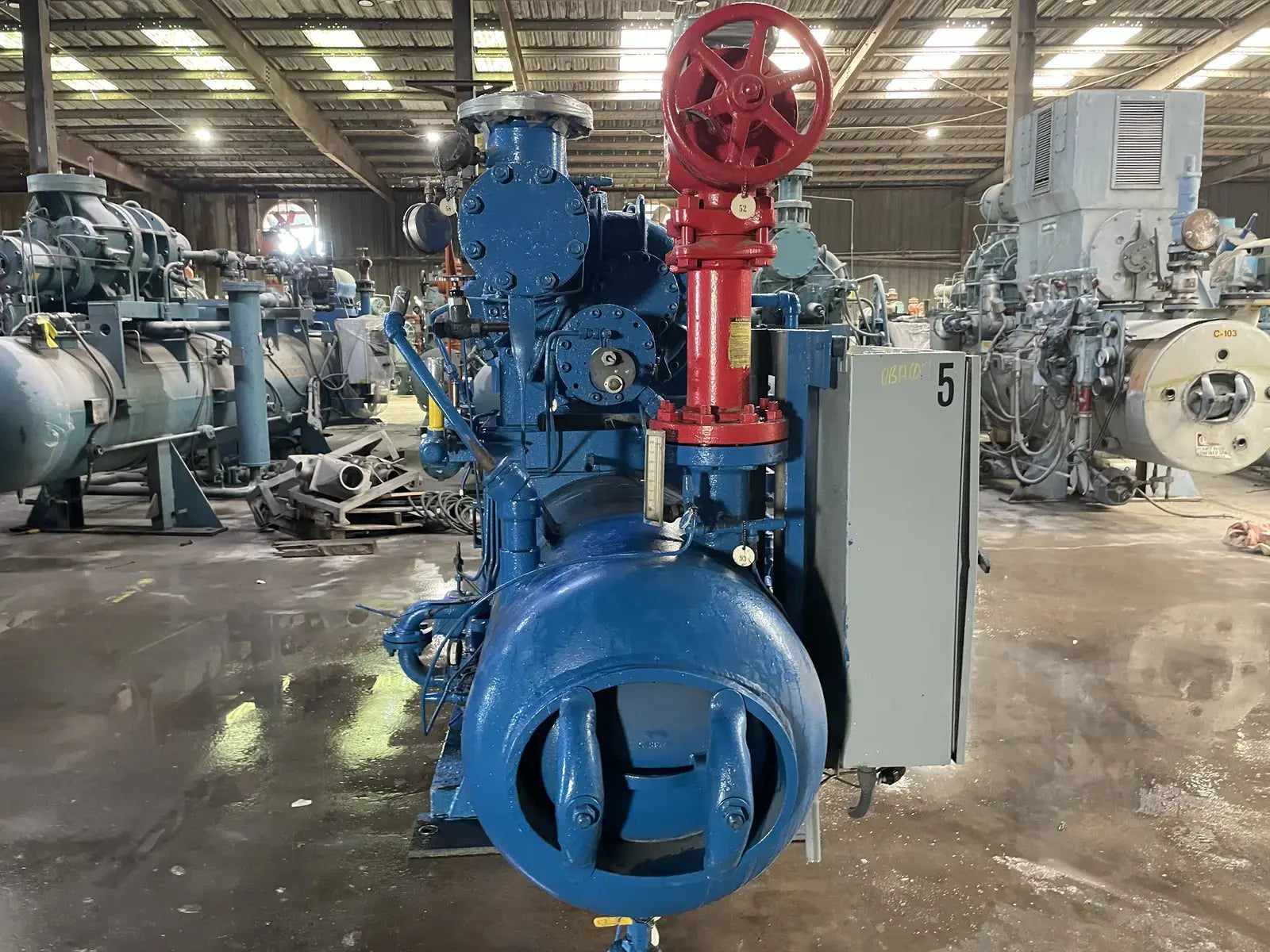

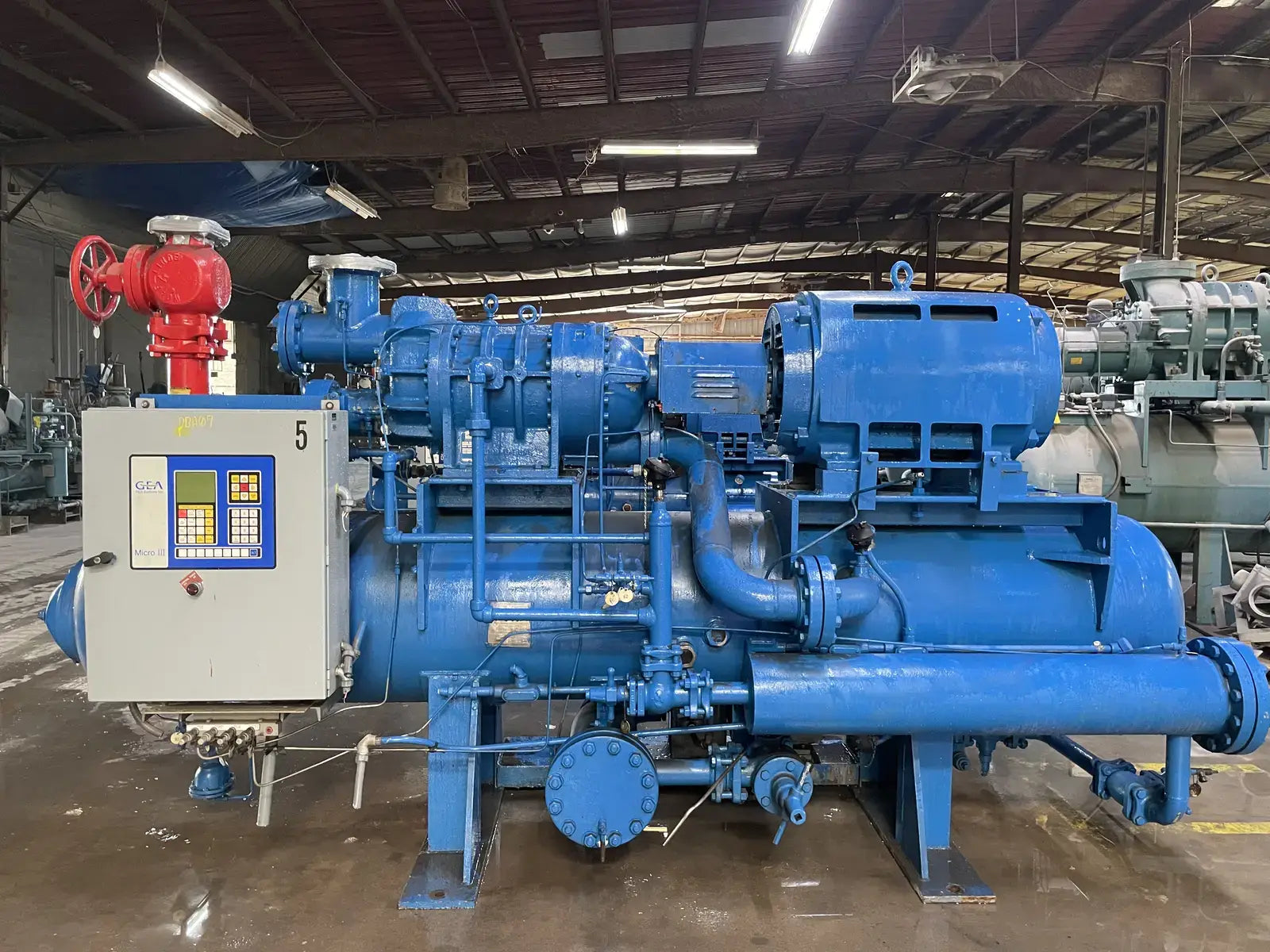

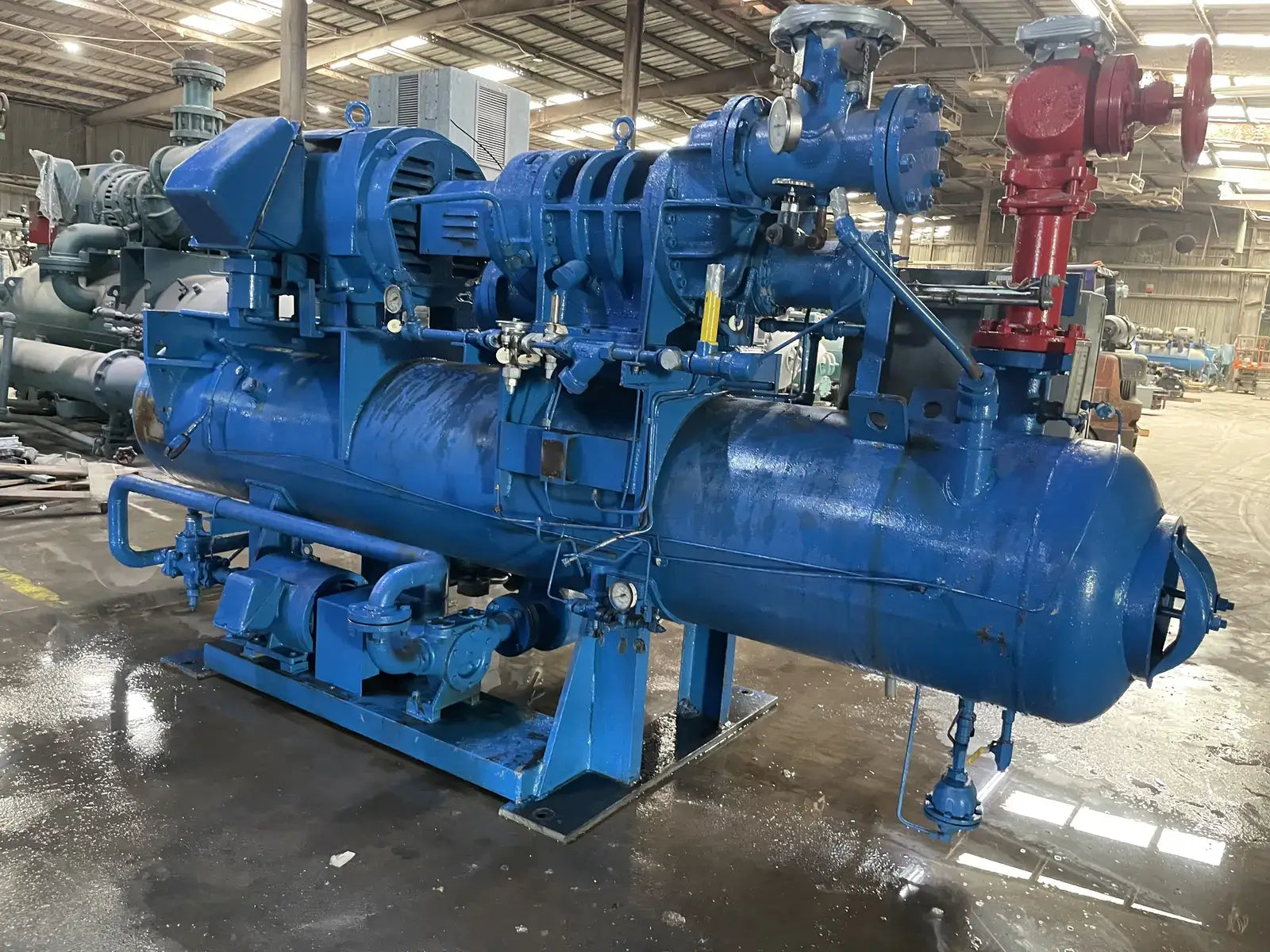

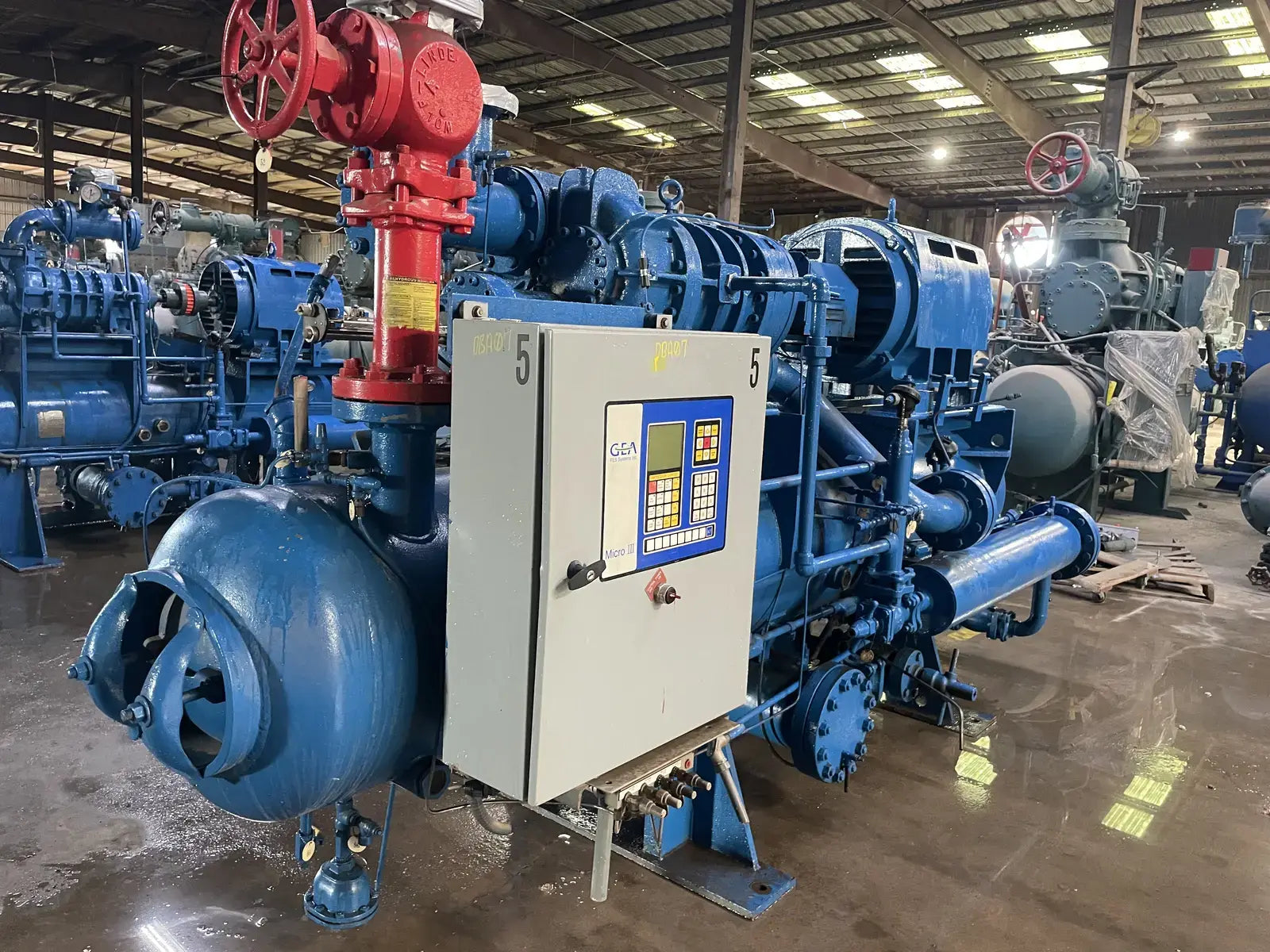

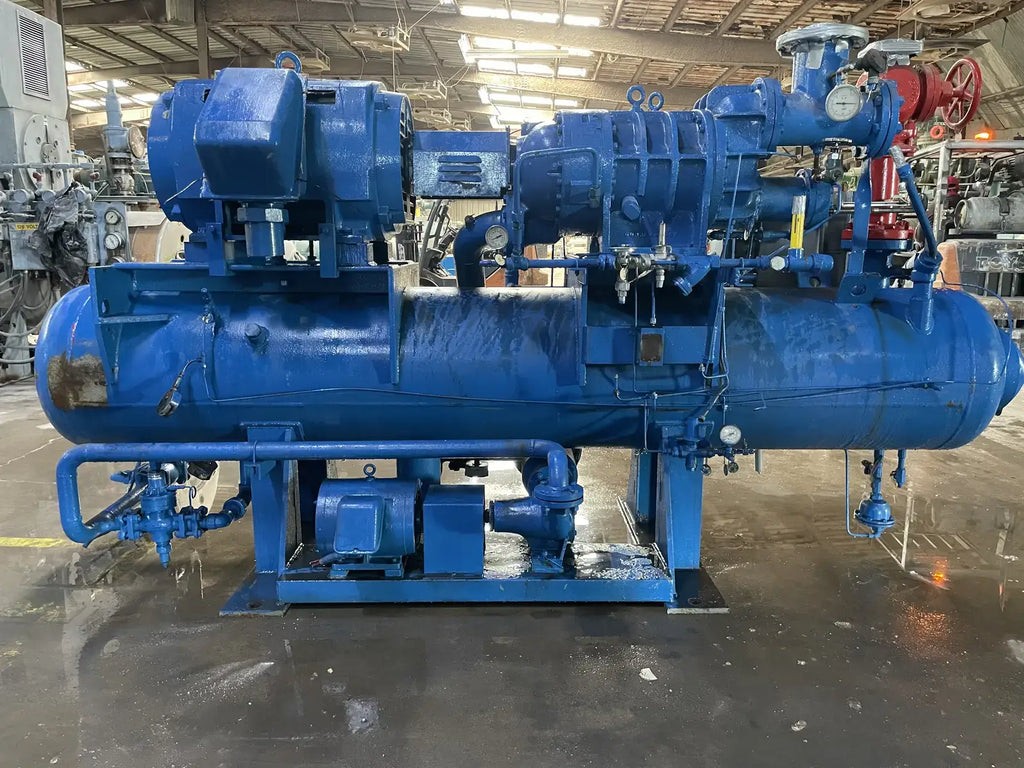

FES 2018 Rotary Screw Compressor Package (Dunham-Bush 2018, 400 HP 460 V)

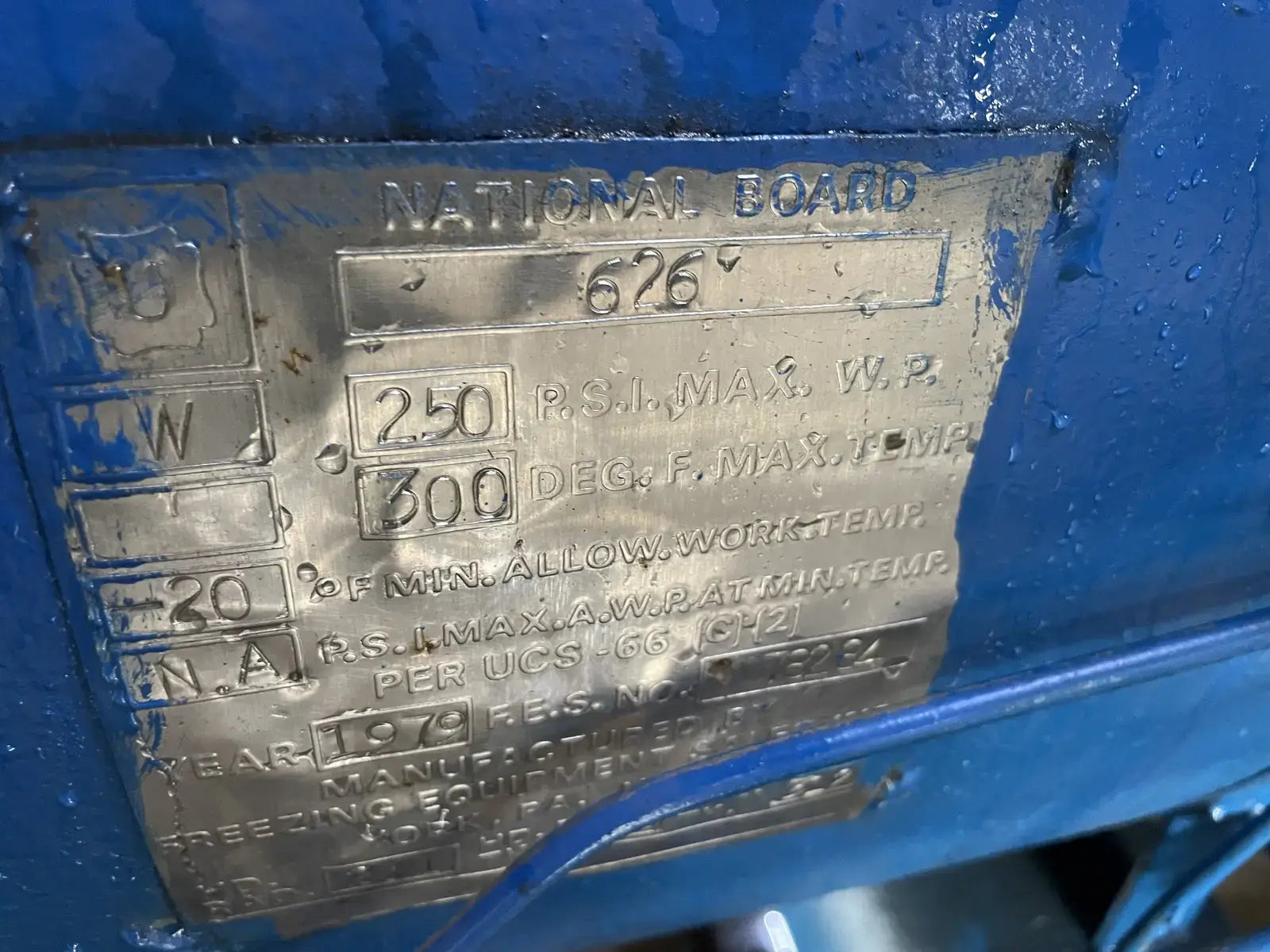

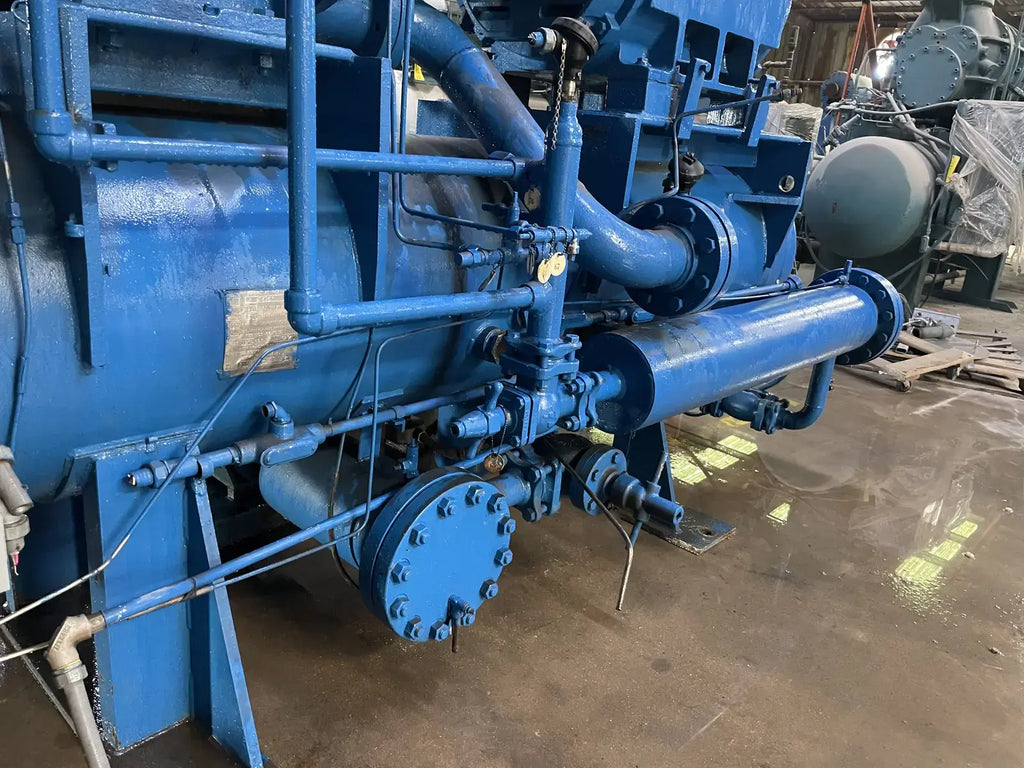

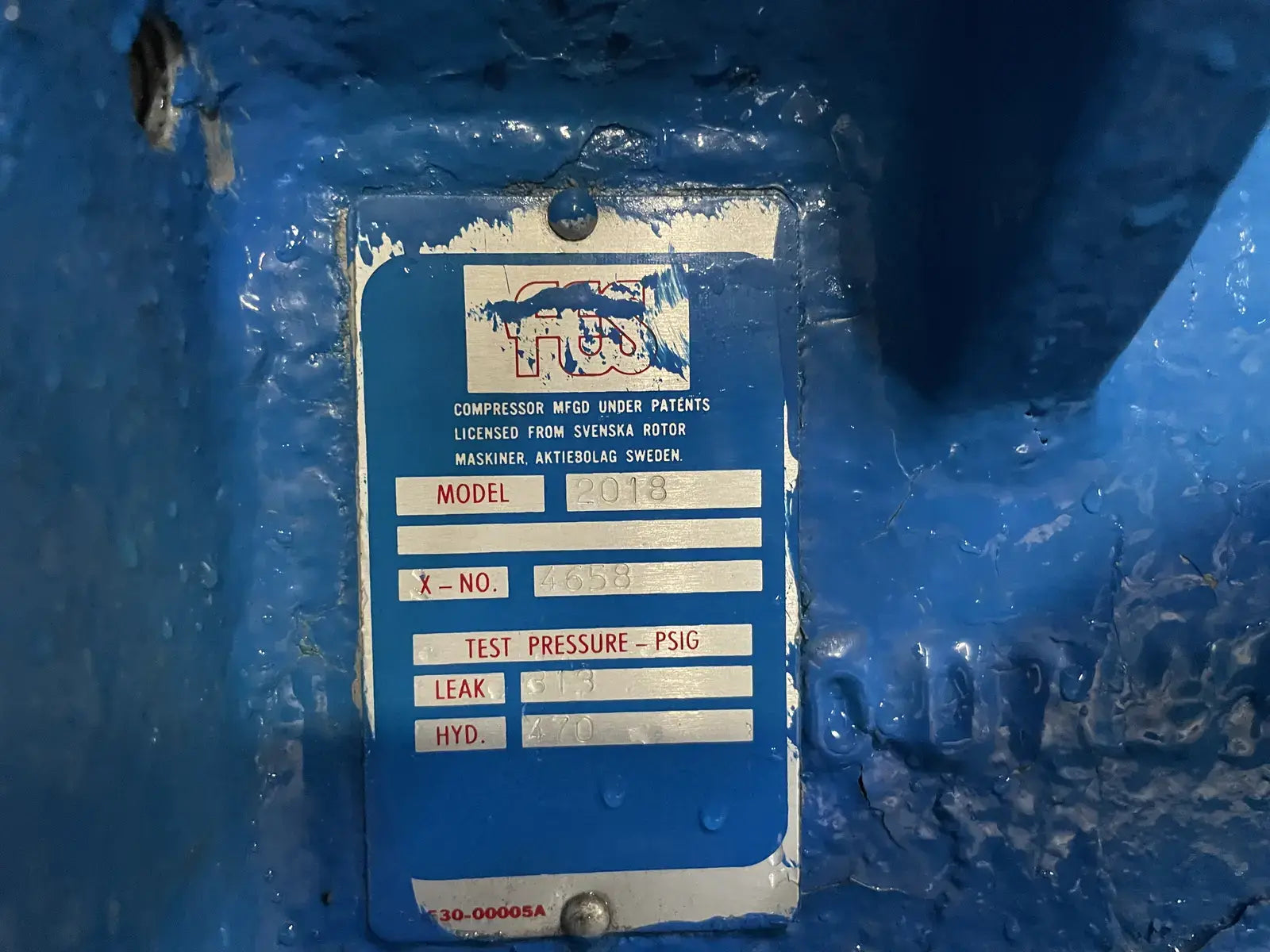

FES Rotary Screw Compressor Package. Bare Screw Compressor: Model: 2018, Serial No: 4658. Test Pressure(PSIG): LEAK: 313, HYD: 470. Certified by Freezing Equipment Oil Separator: National Board: 626, MAWP: 250 PSI @ 300 F. MDMT: -20 F @ 250 PSI.
Product Details
- Stock No: DBA07
- Manufacturer: FES
- Model: 2018
- Serial Number: 4658
- Compressor Type: Screw
- Package Included? Yes
- Stage Type: High Stage
Package Details
- Package Manufacturer: FES
- Package Model: 2018
- Package SN: 4658

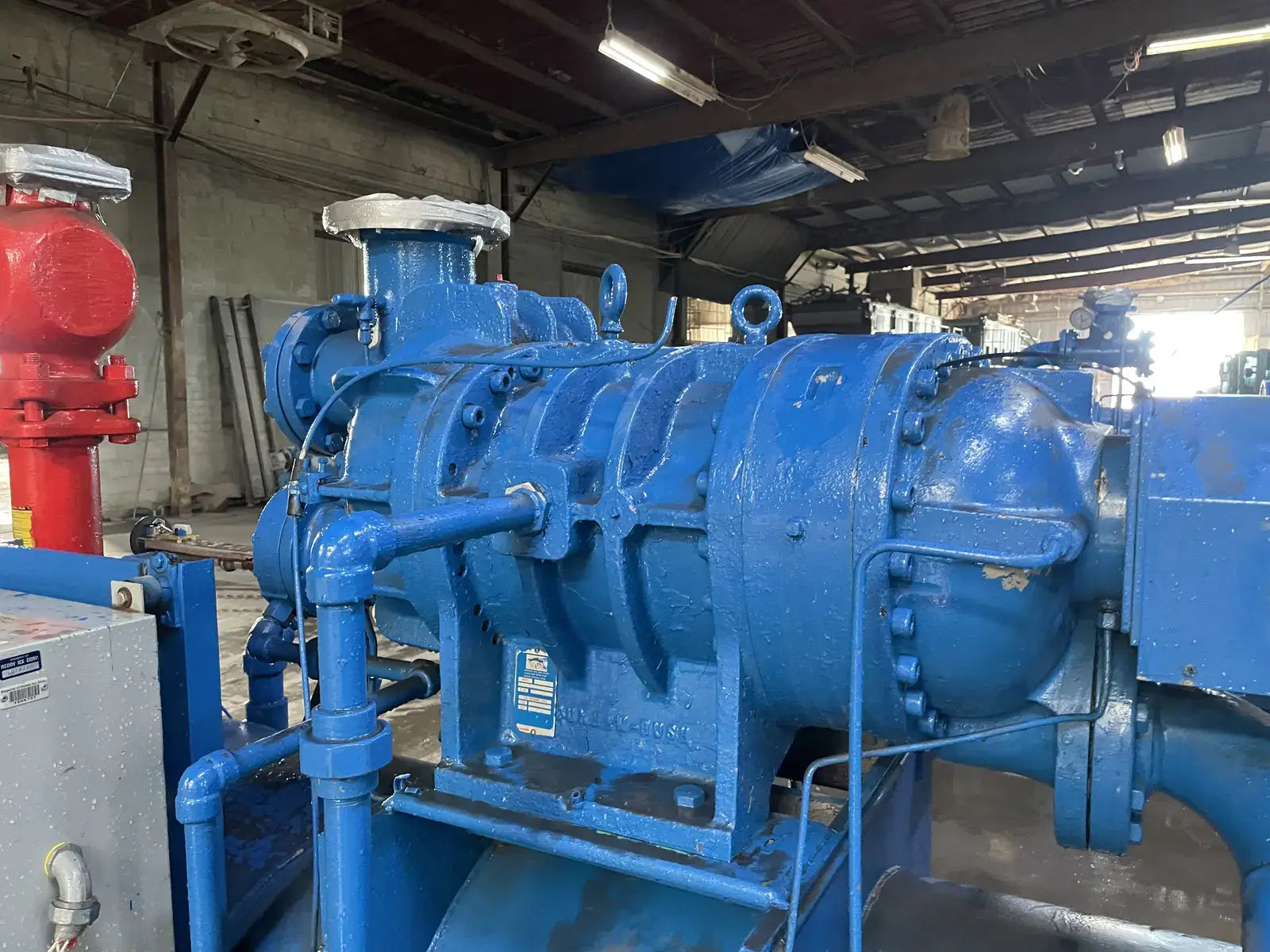

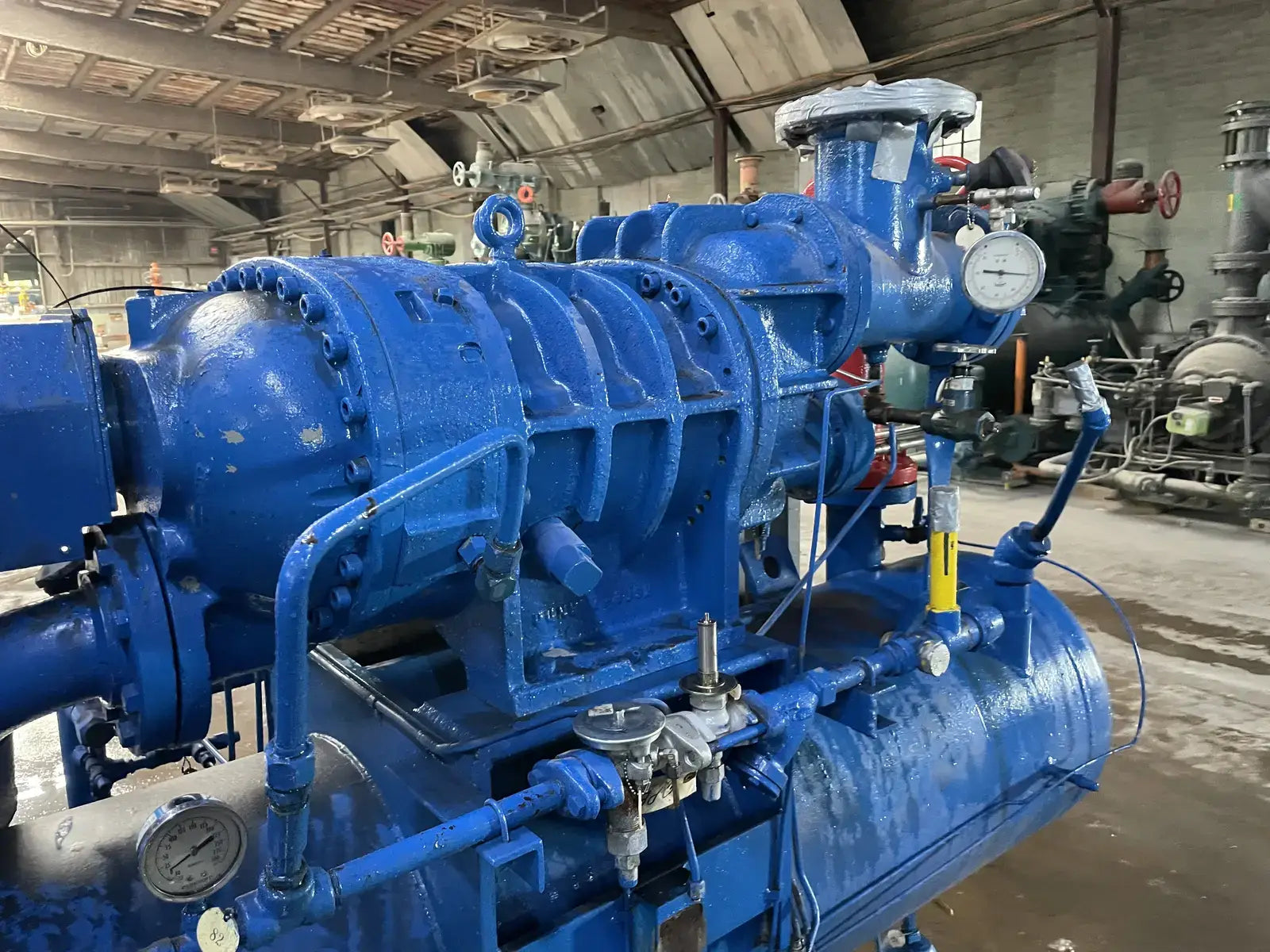

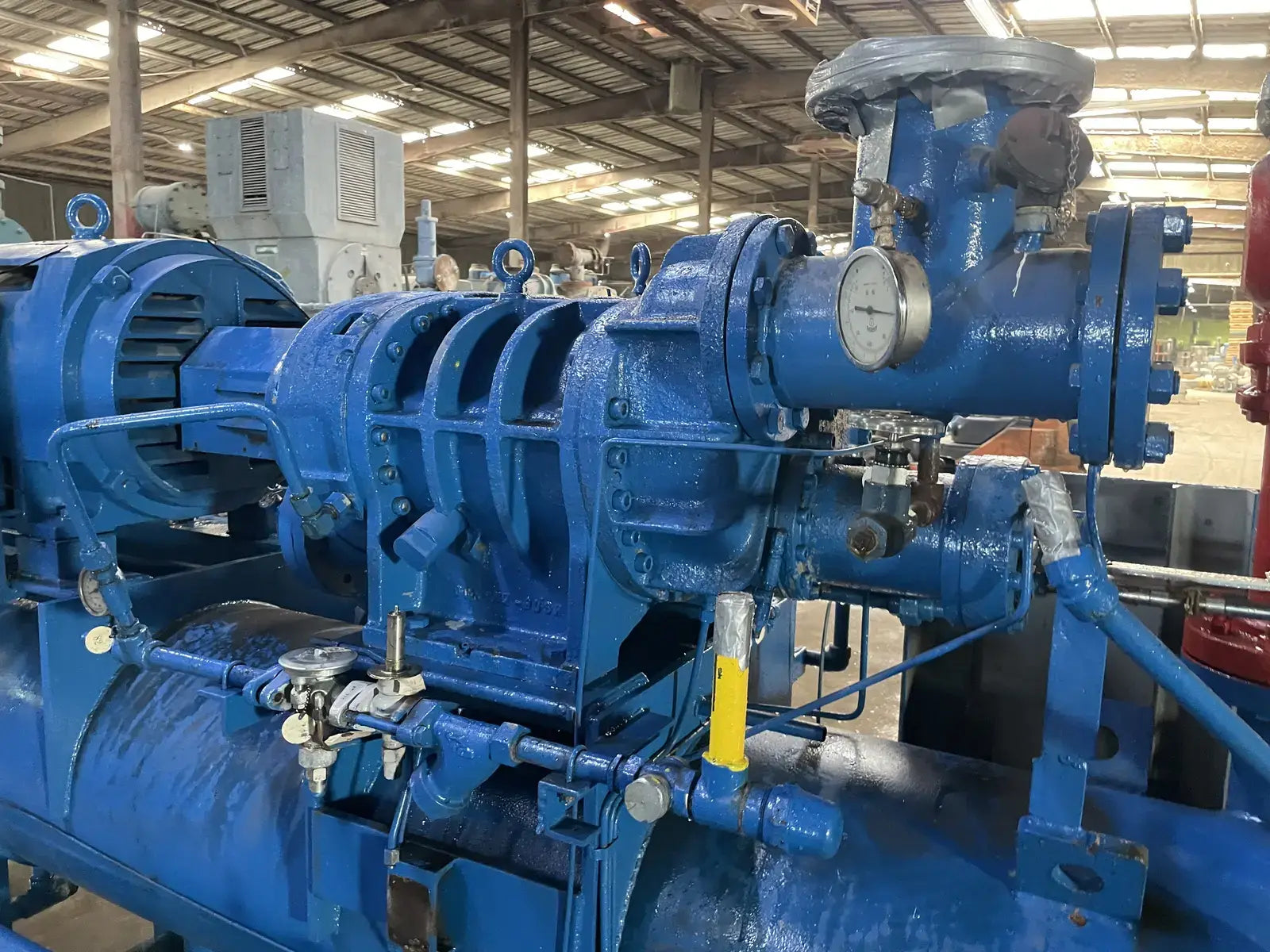

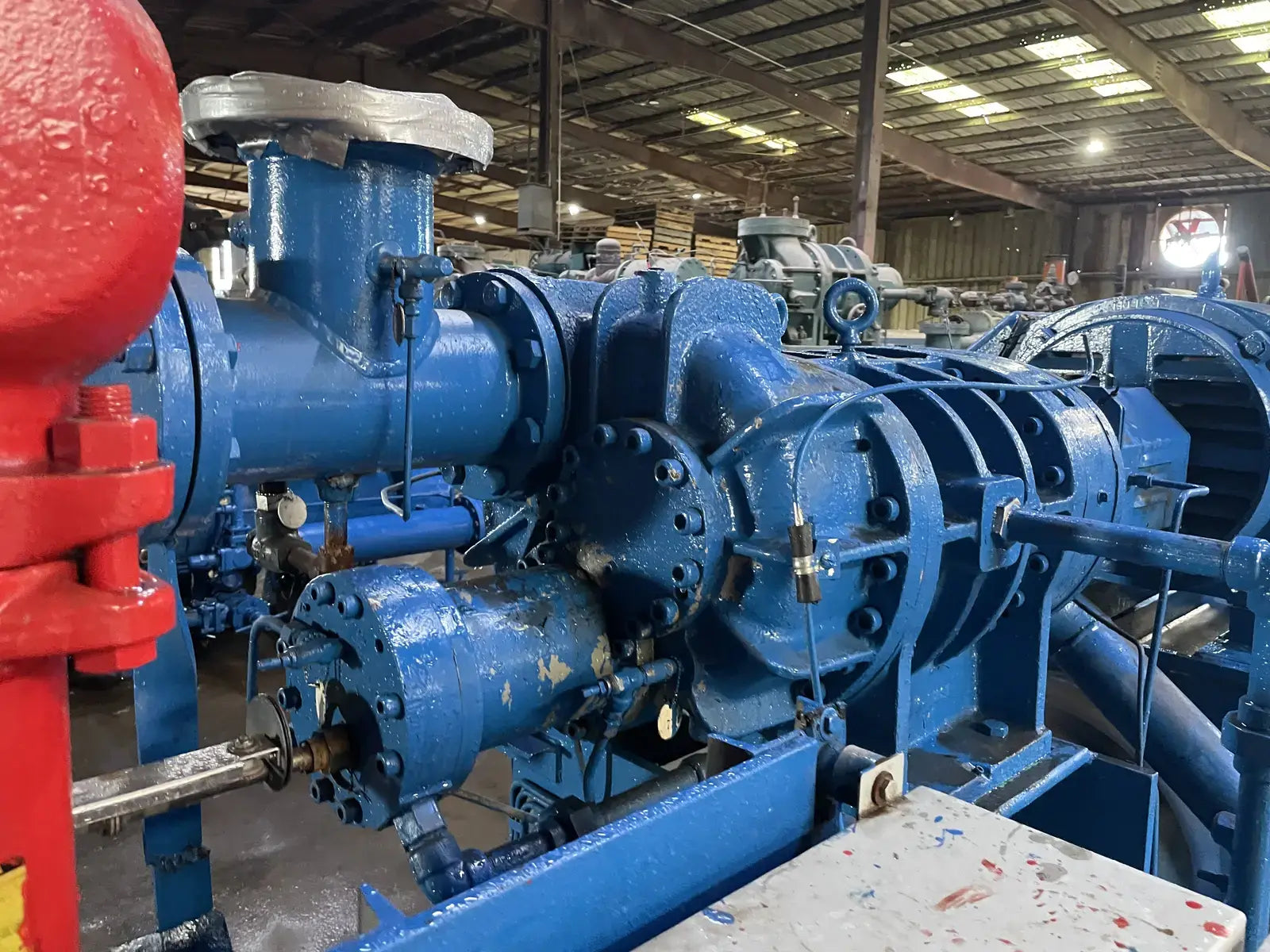

Screw Compressor Details
- Compressor Included? Yes
- Compressor Manufacturer: Dunham-Bush
- # Compressors in Package: 1
- Compressor Model: 2018
- Compressor SN: 4658
- Compressor Max Speed (RPM): 3,550
- Compressor Design Pressure (PSIG): 210
- Fixed/Variable VI: Variable
- Compressor Volume Ratio: 2.4/4.15

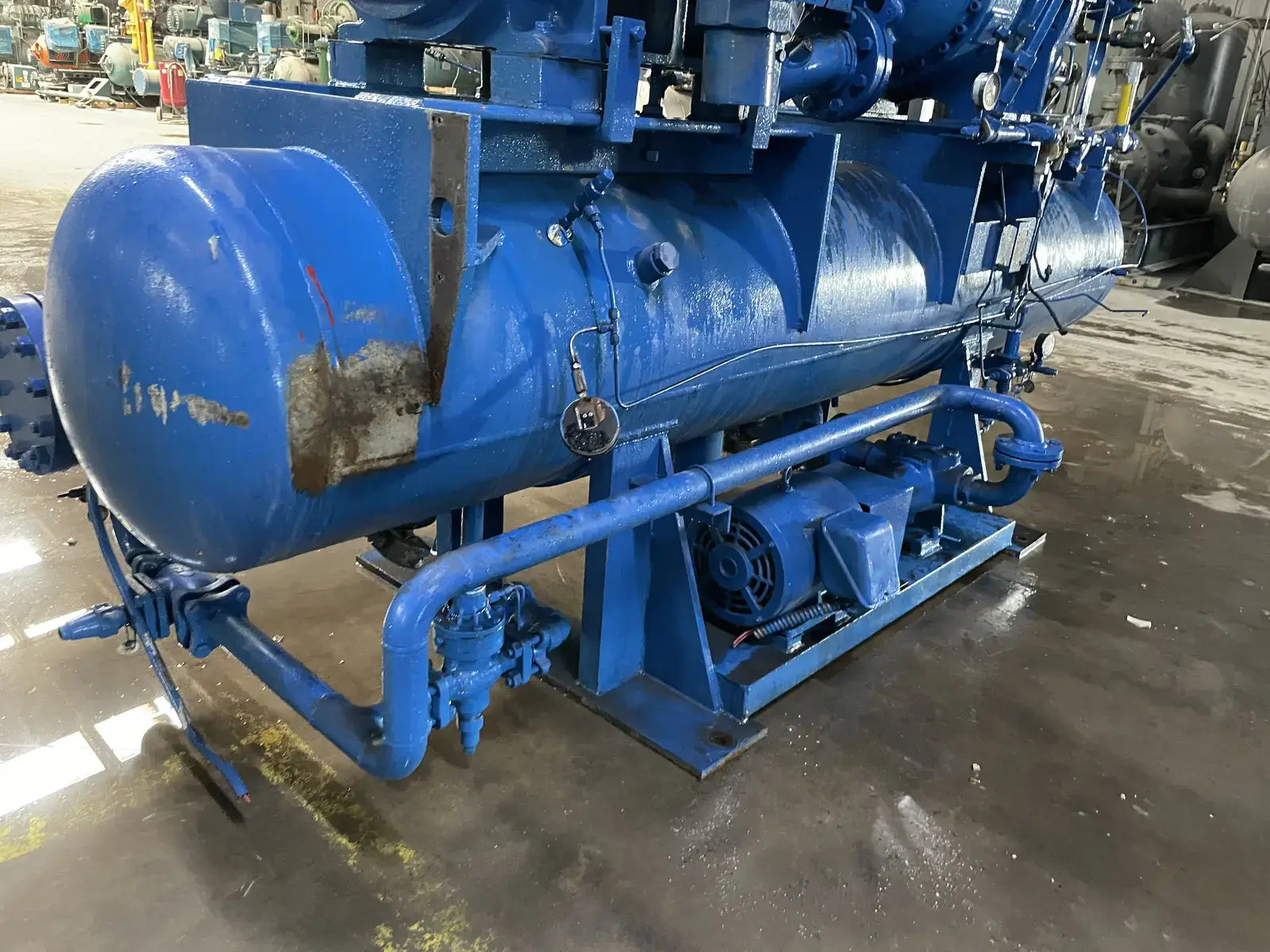

- Oil Separator Included? Yes
- Oil Separator National Board #: 626
- Oil Cooling Type: Liquid Injection

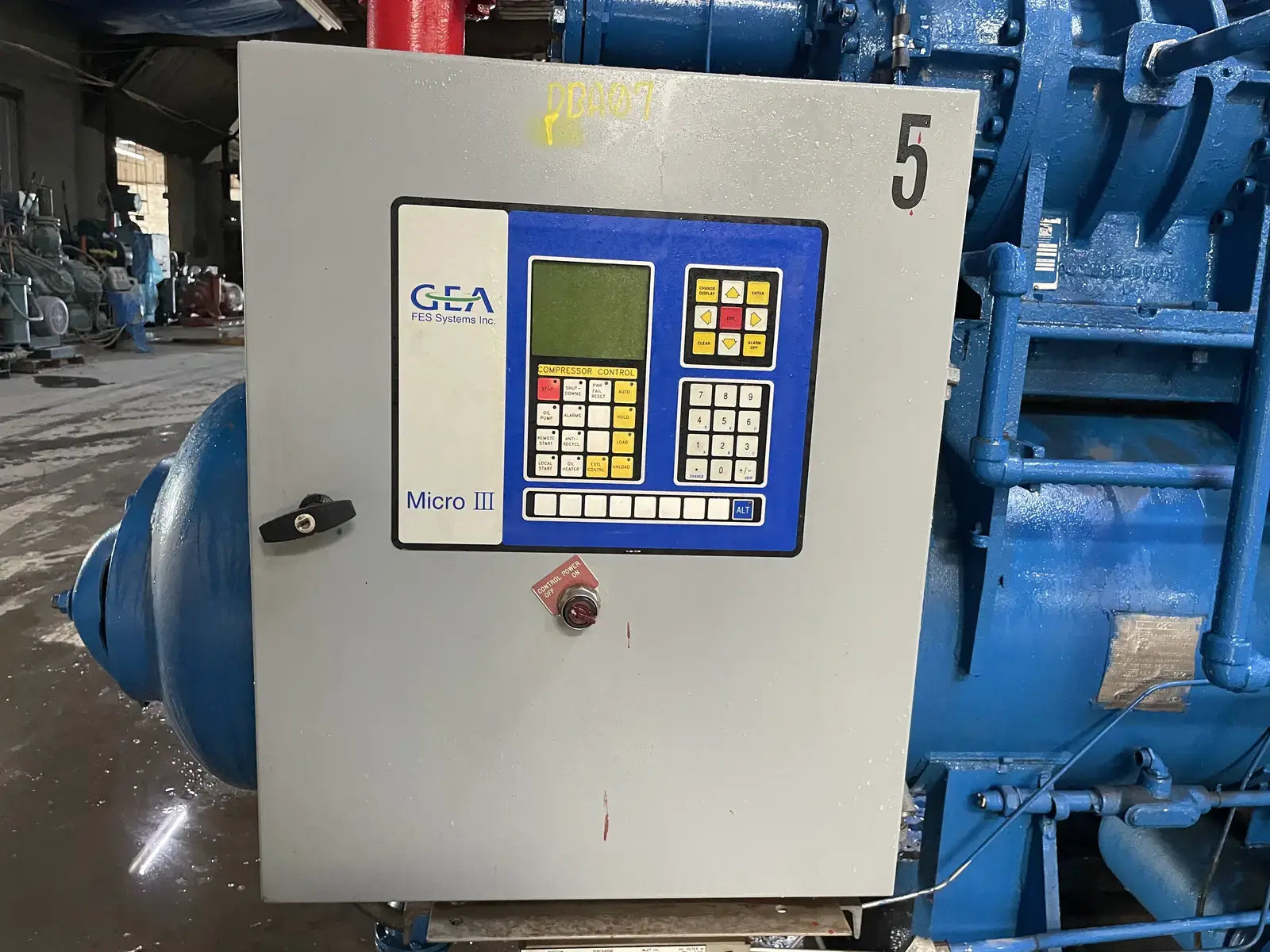

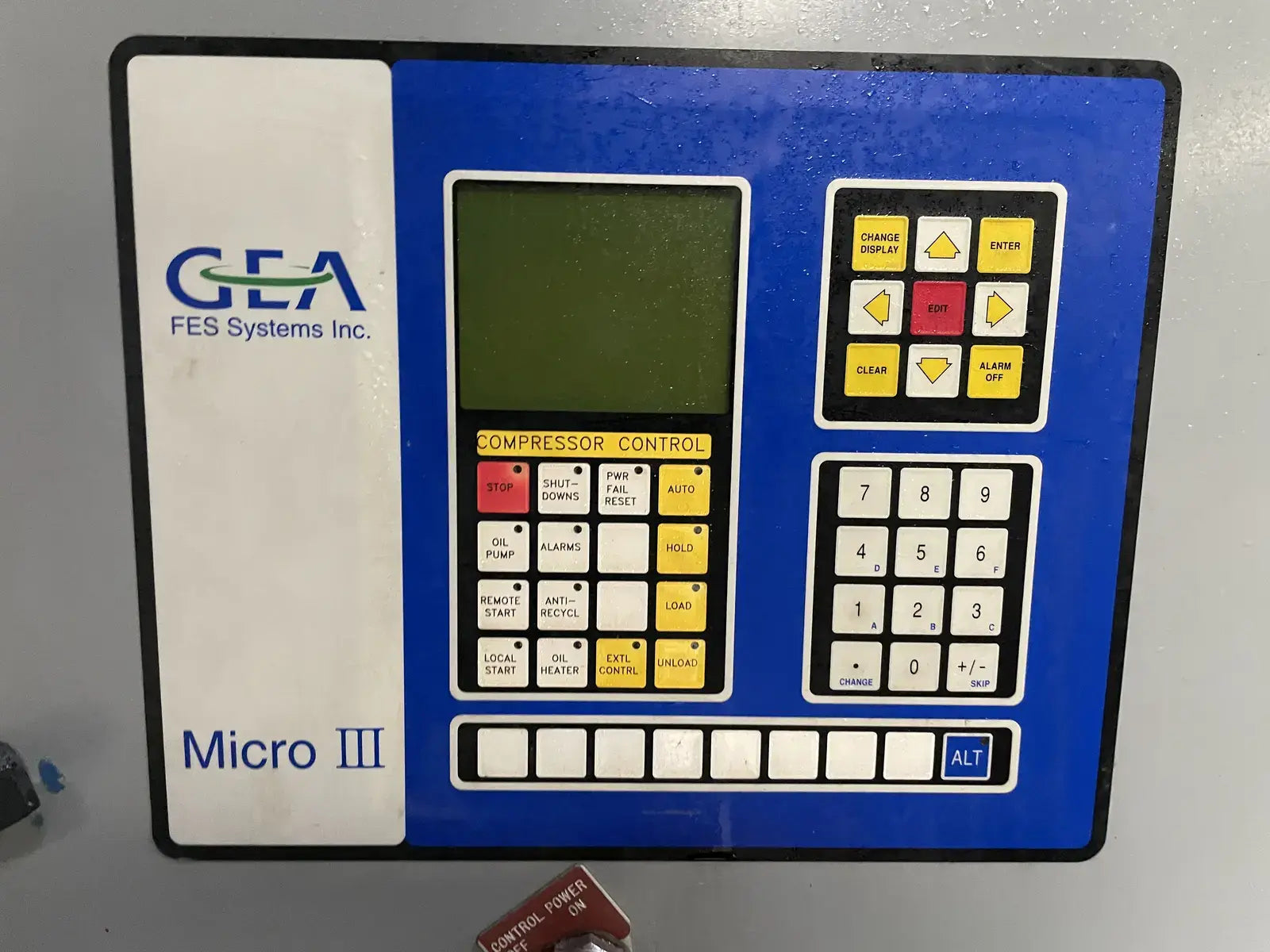

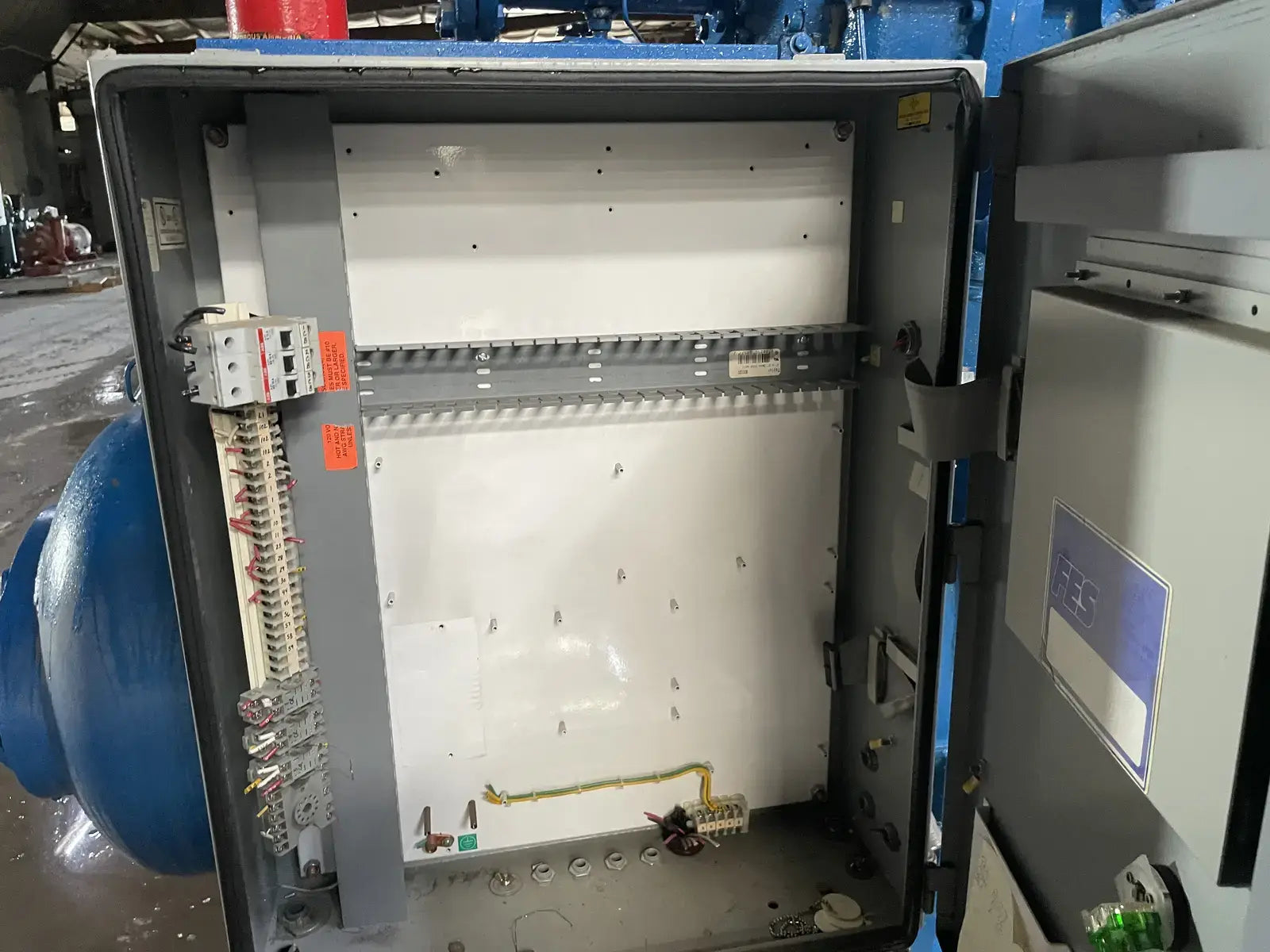

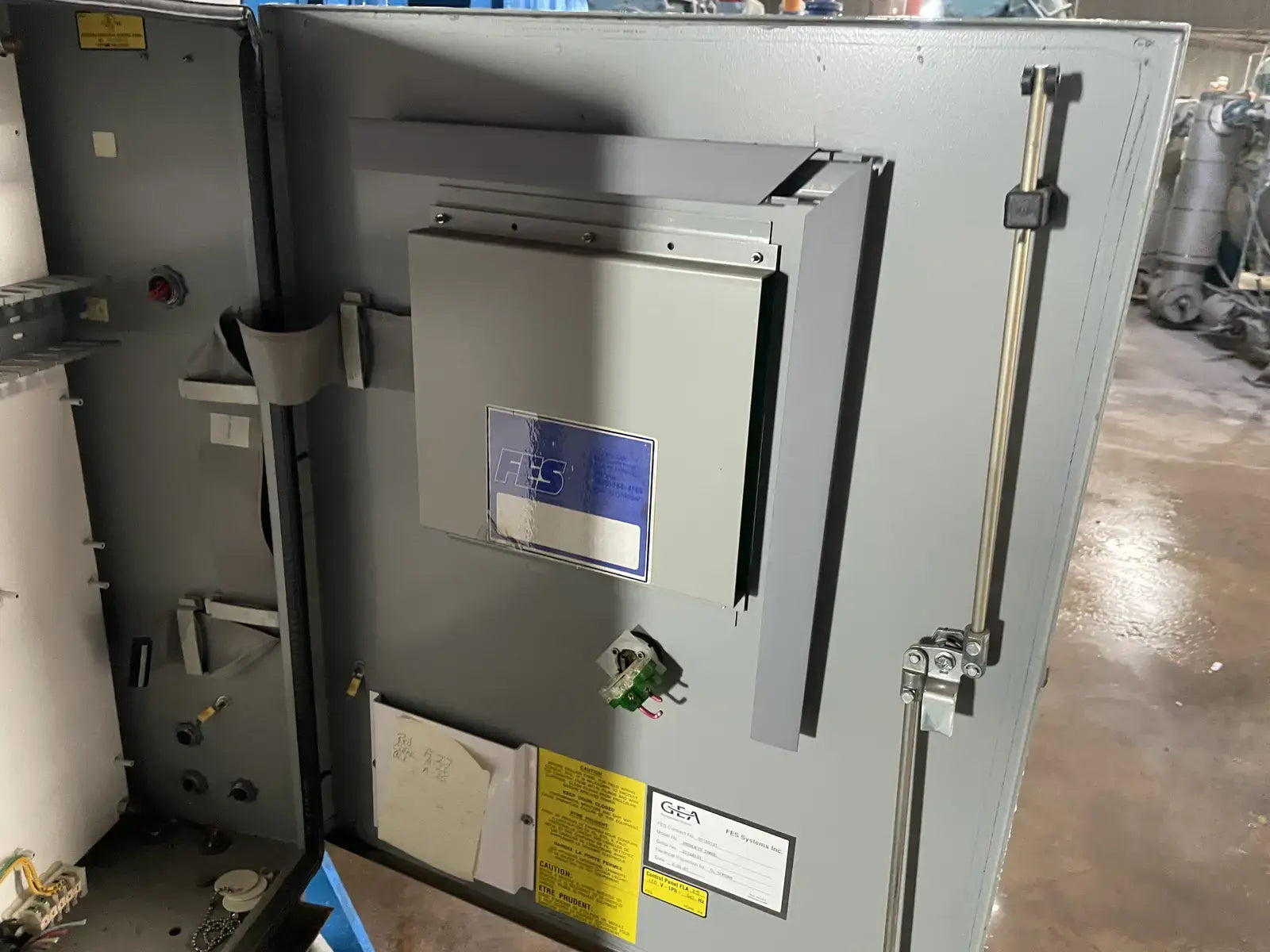

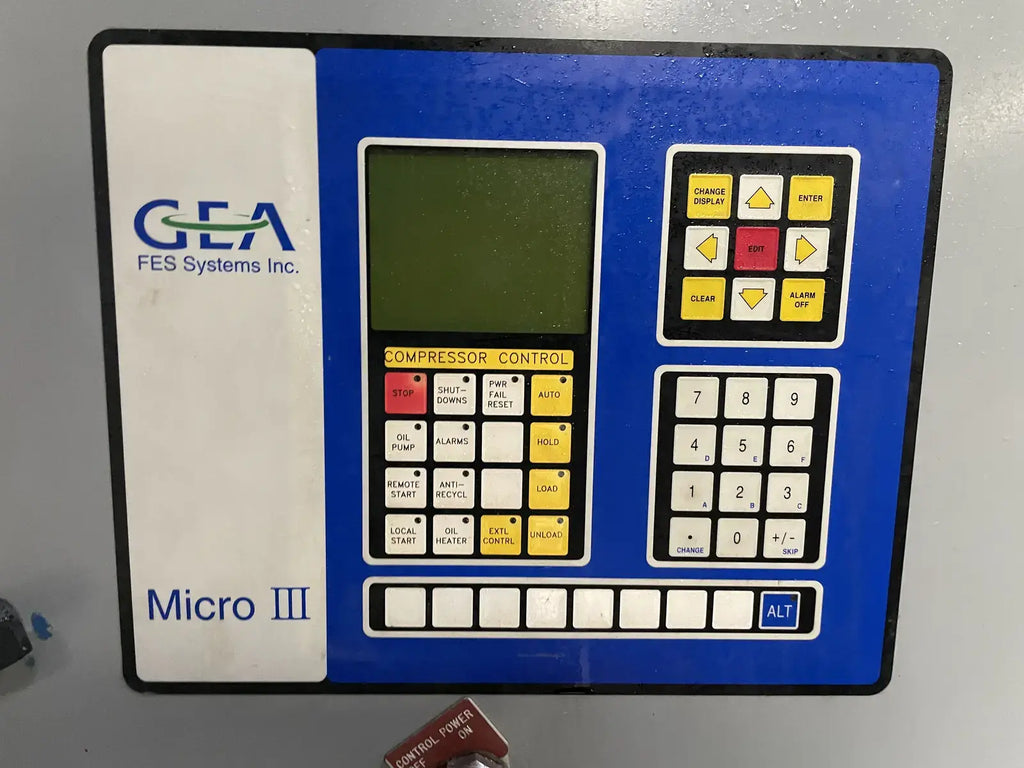

Micro Panel Details
- Micro Control Panel Included? Yes
- Micro Control Panel Manufacturer: GEA

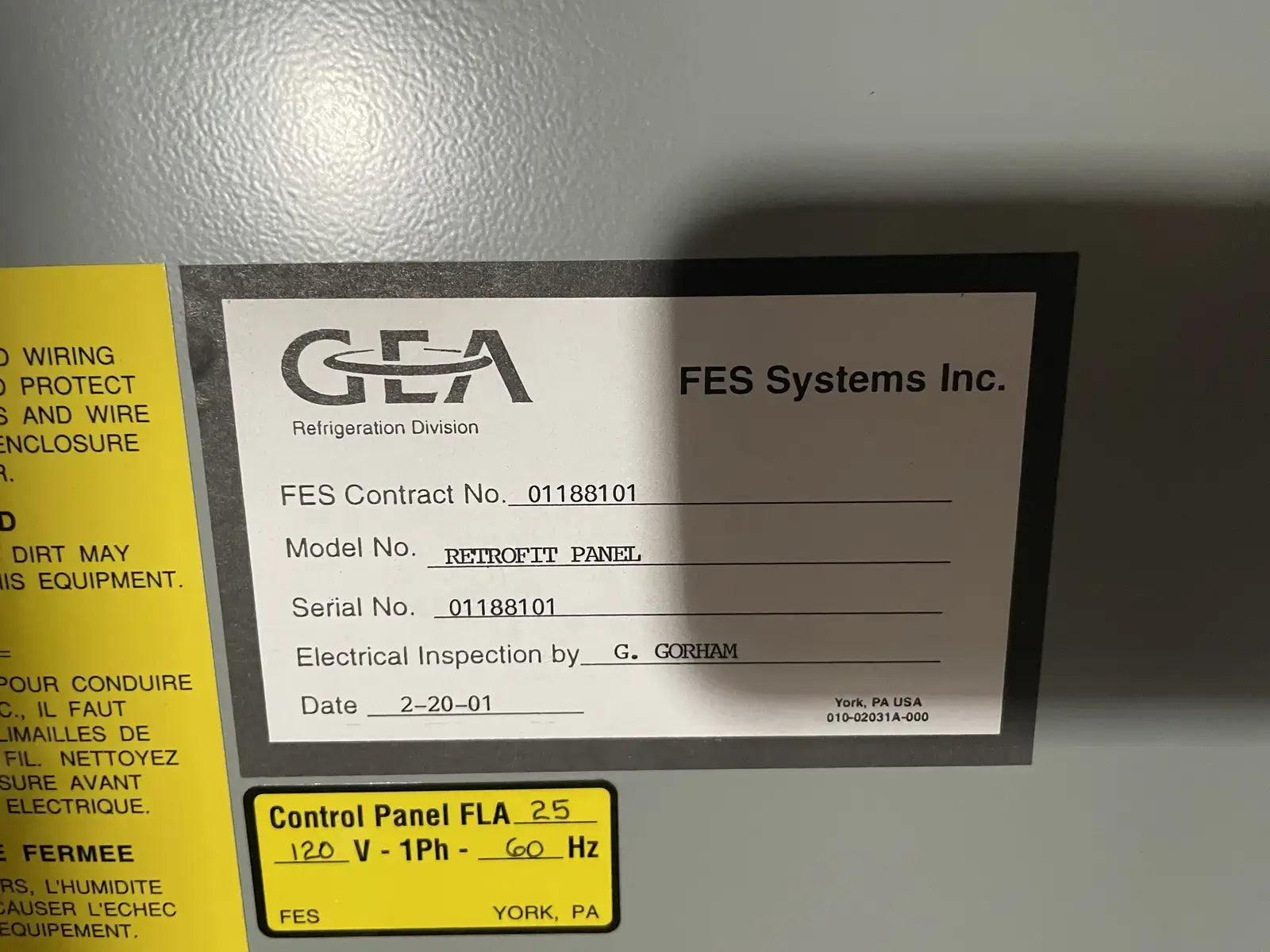

- Micro Control Panel Description: GEA/FES Retrofit Control Panel. Power Supply: 120V/25 FLA/60Hz.
Motor Starter Details
- Motor Starter Included? No
Previous Refrigerant
- Previous Refrigerant: Ammonia (R-717)
- Ammonia (R-717) Compatiable: Yes

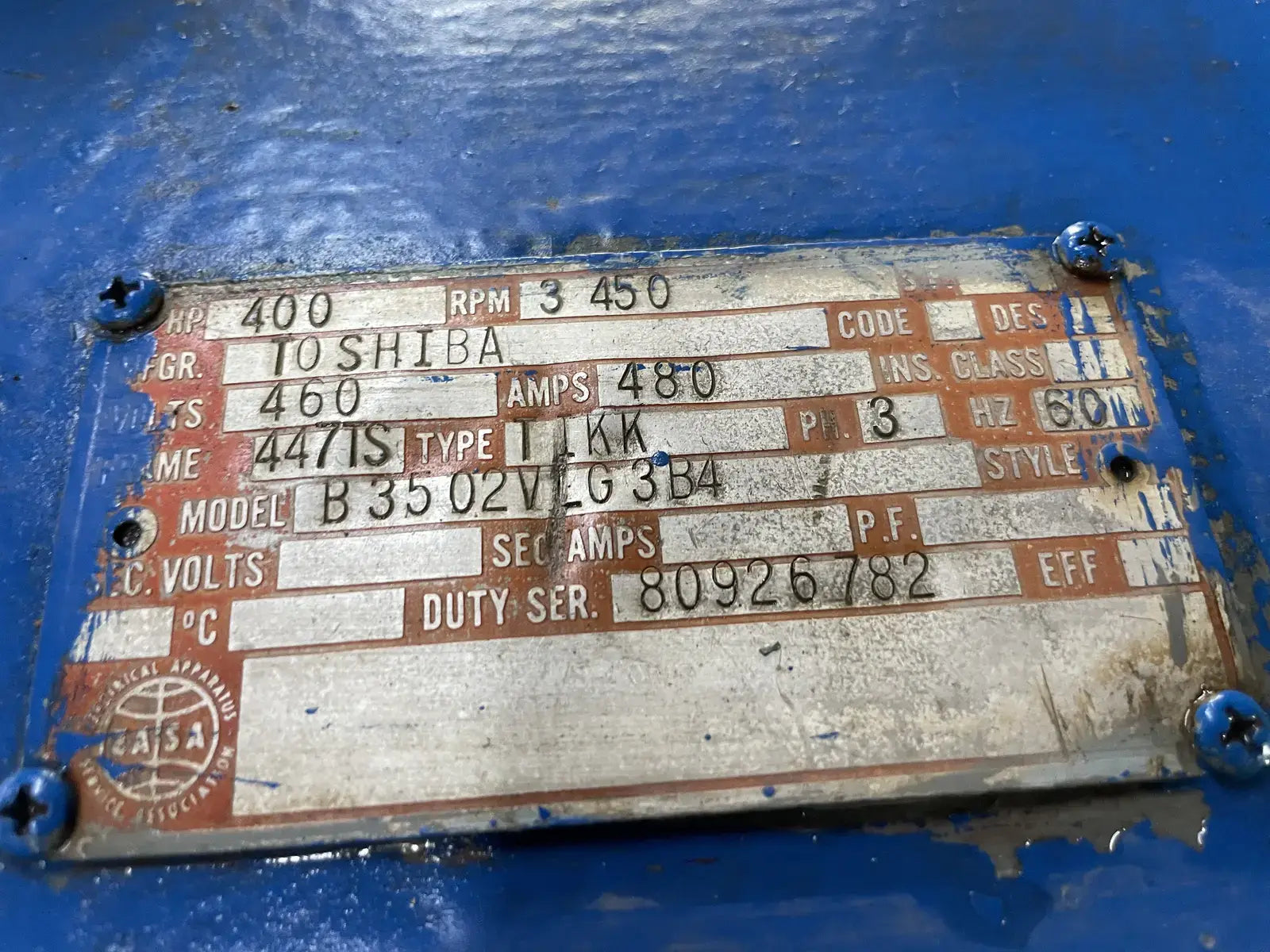

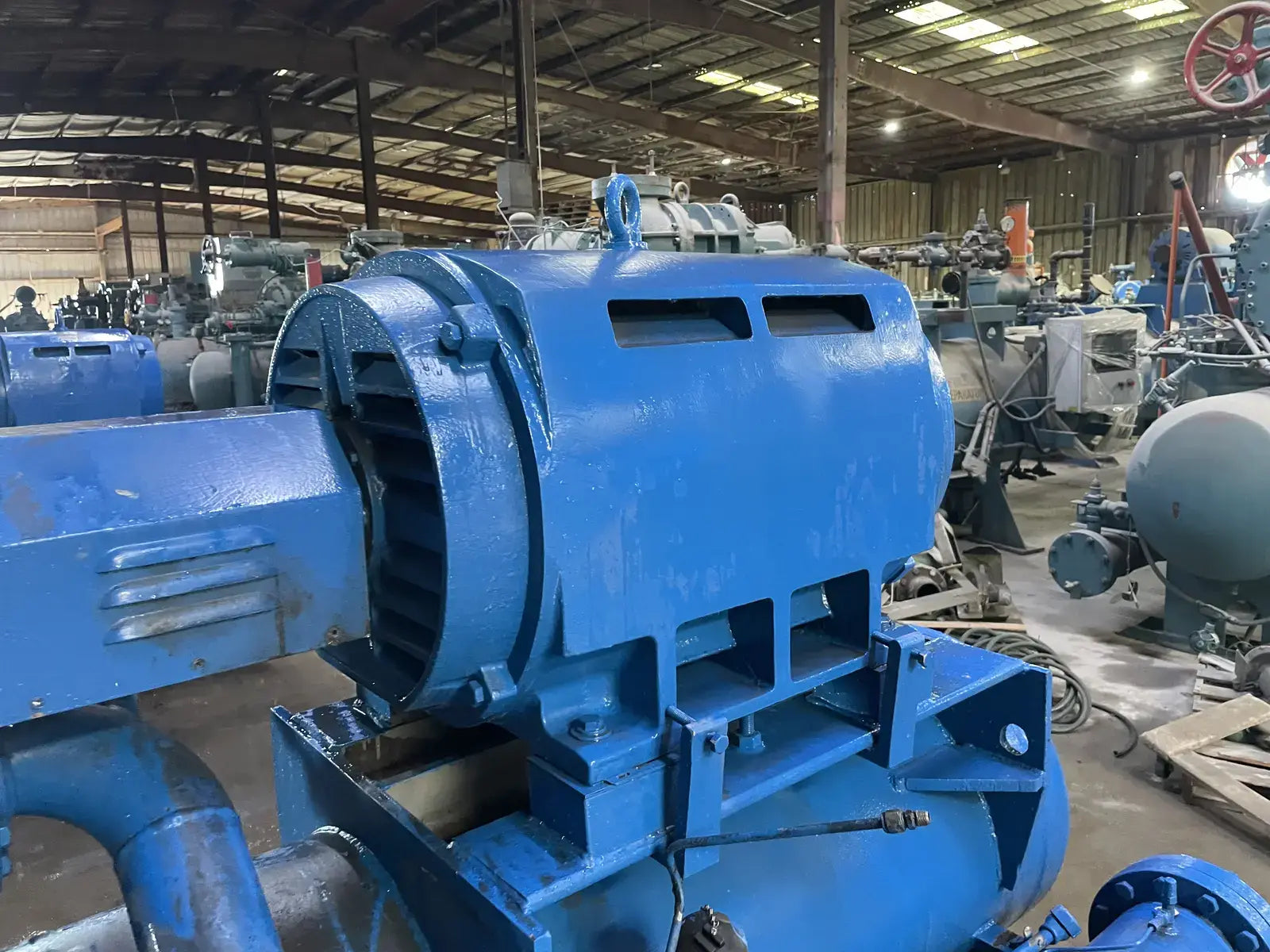

Motor Details
- Motor Included? Yes
- # Motors: 1
- Motor Manufacturer: Toshiba
- Motor Horsepower(HP): 400
- Motor RPM: 3,450
- Motor Voltage: 460
- Motor Amps: 480
- Motor Hertz (Hz): 60
- Motor Phases: 3
- Motor Frame Size: 447TS
Dimensions:
- Length (Inches): 100
- Width (Inches): 45
- Height (Inches): 65
- Weight (LBS): 8,500
- # of Pieces for Shipping: 1
Additional Product Details
- Year Removed from Production: 2025
- Spec Sheet Available: No
