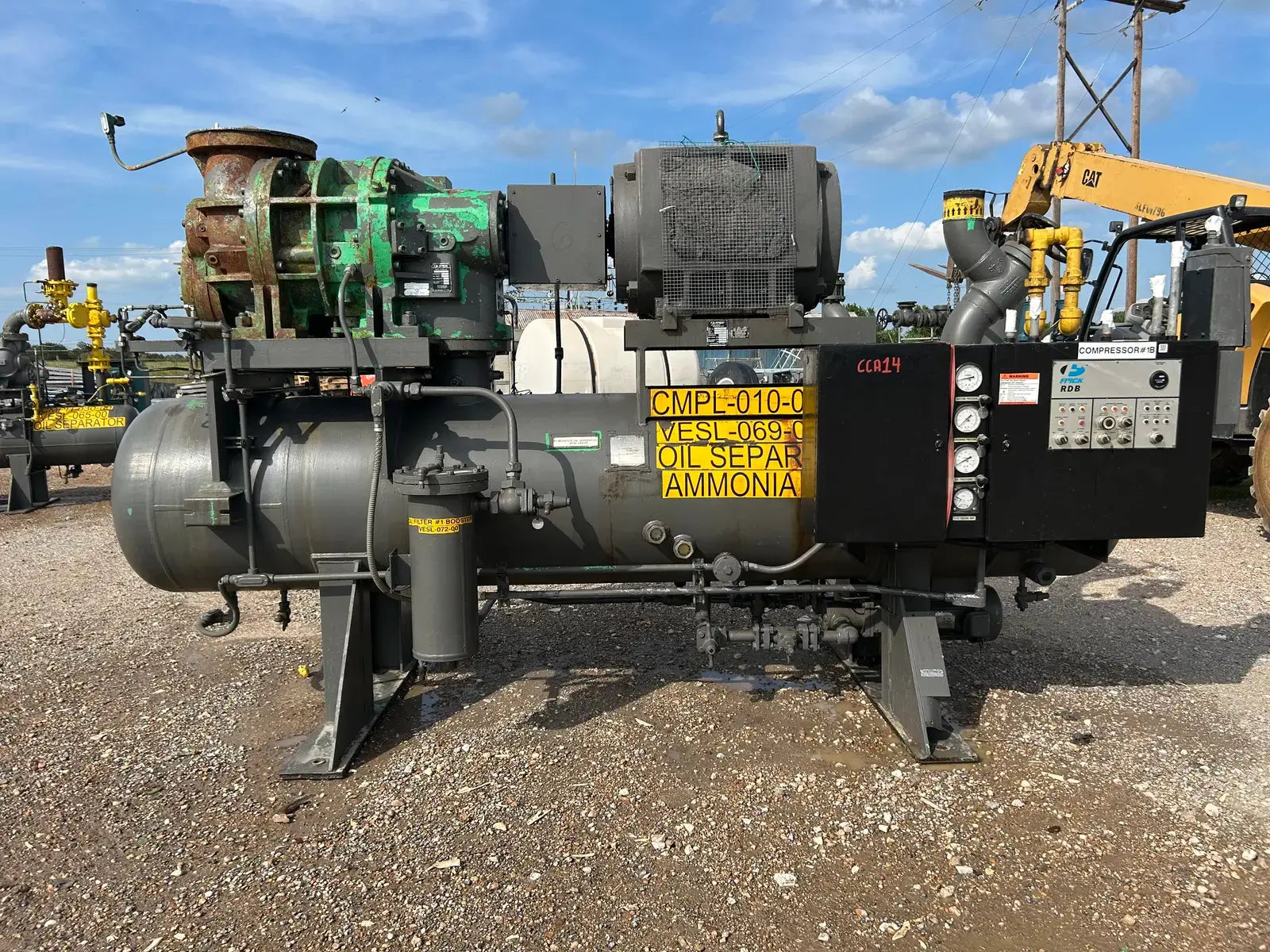

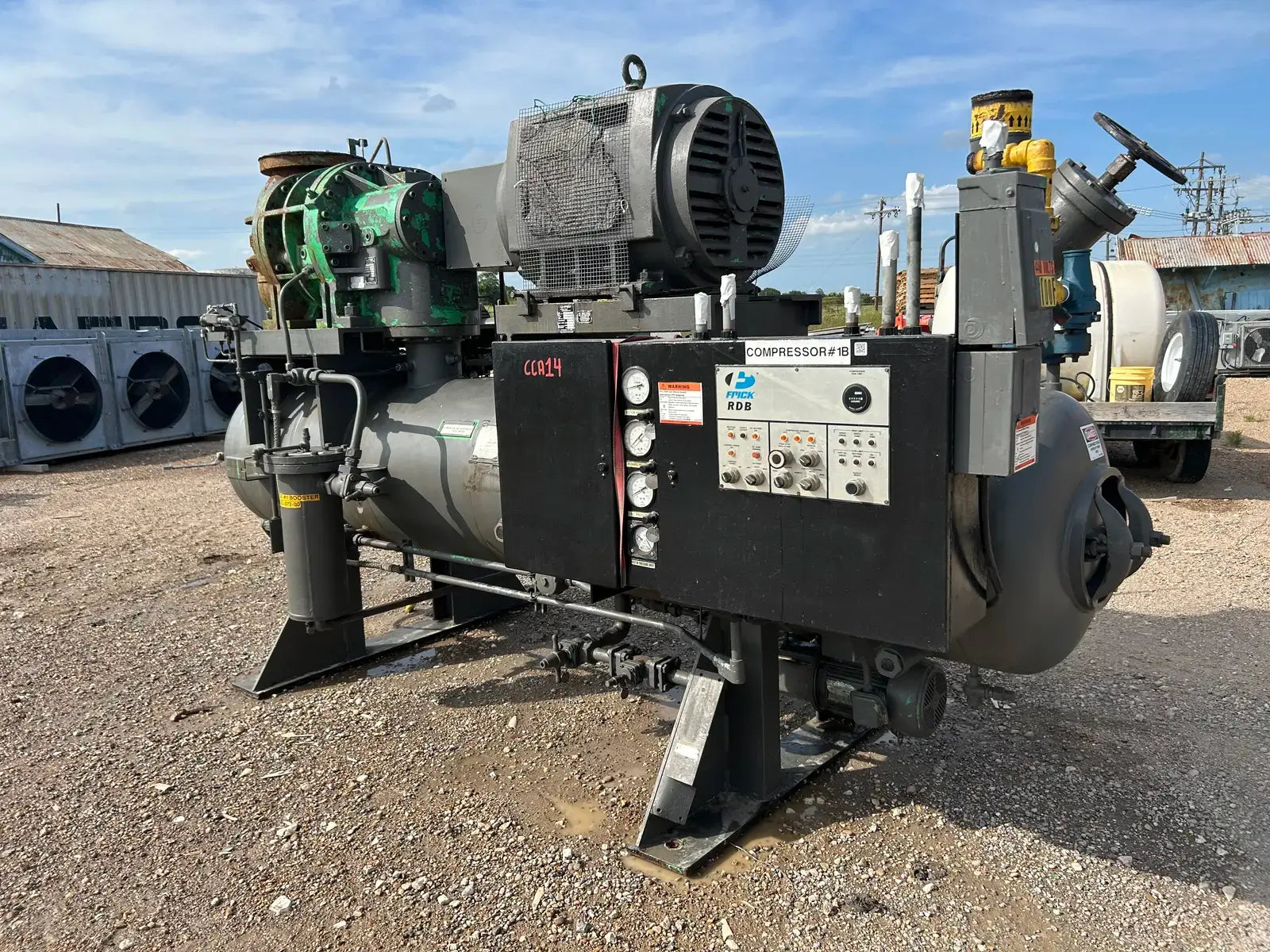

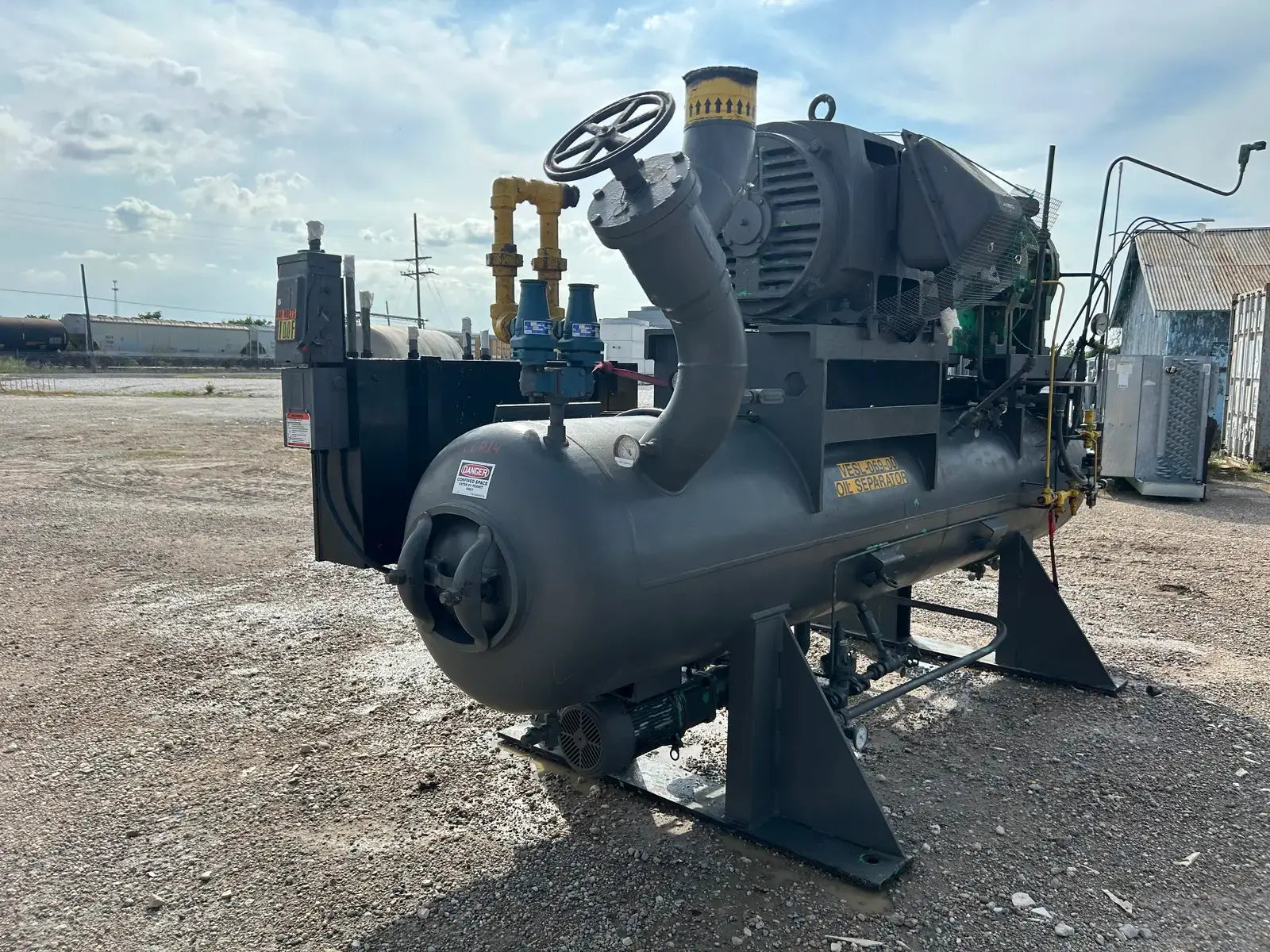

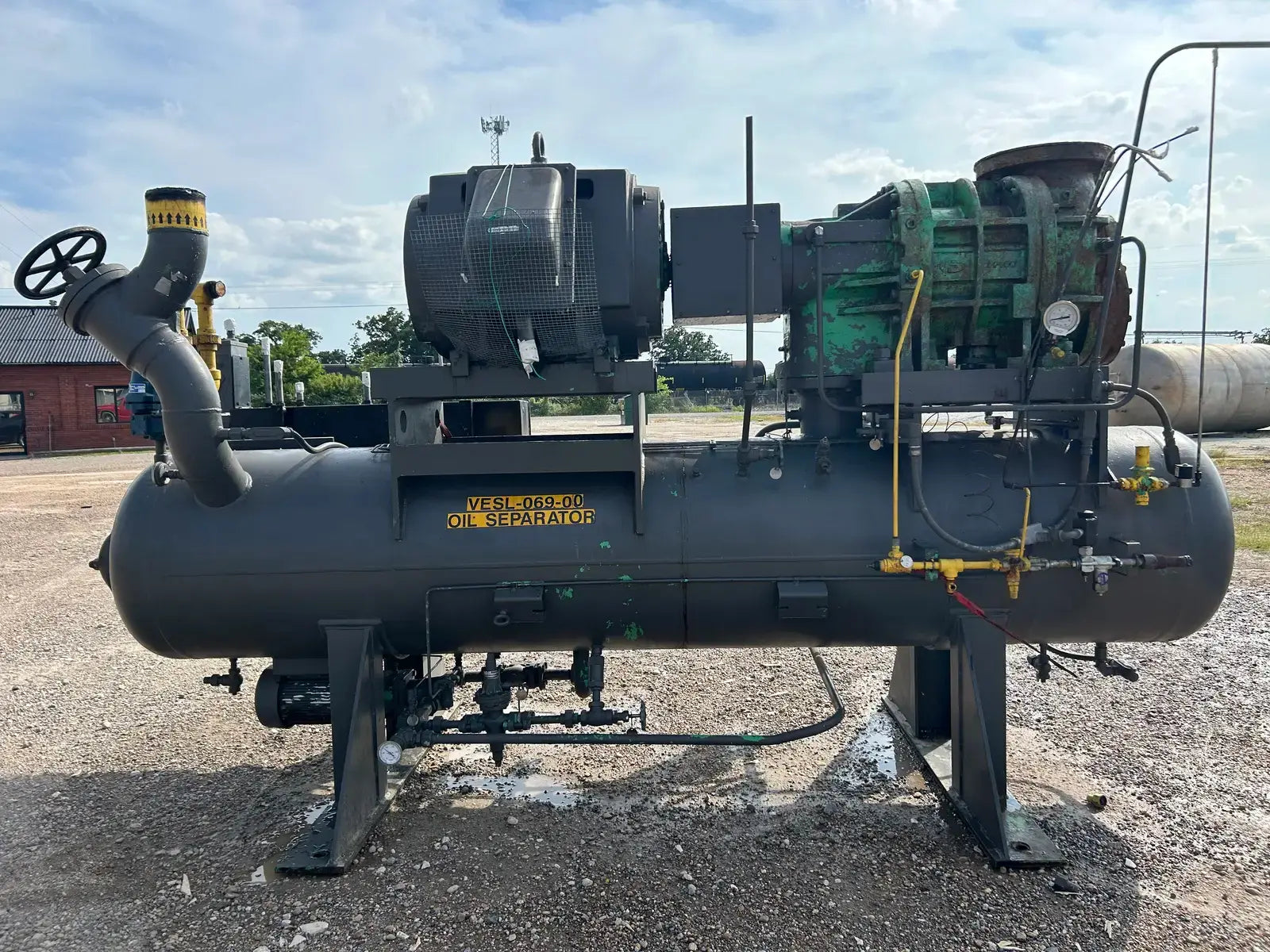

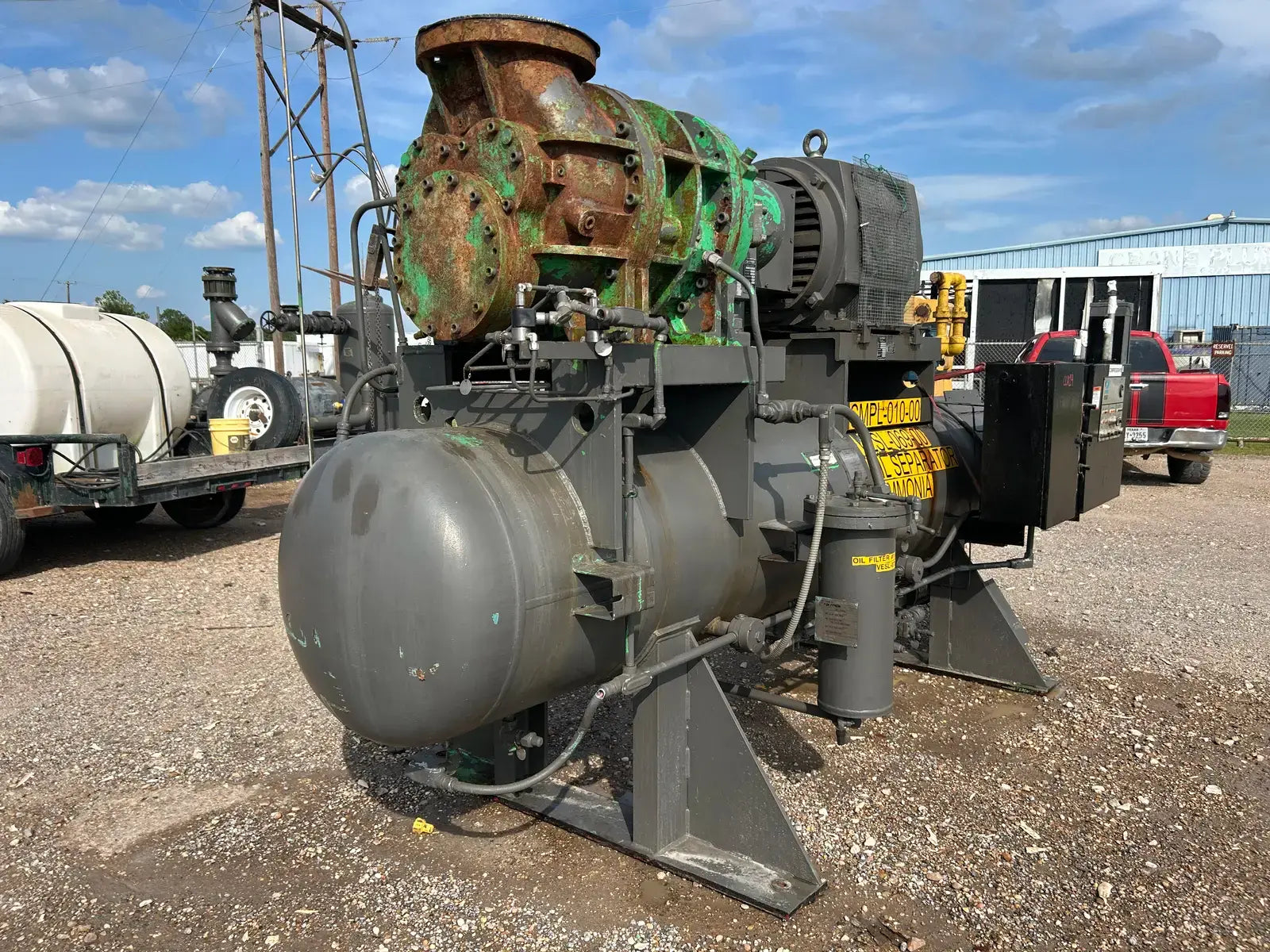

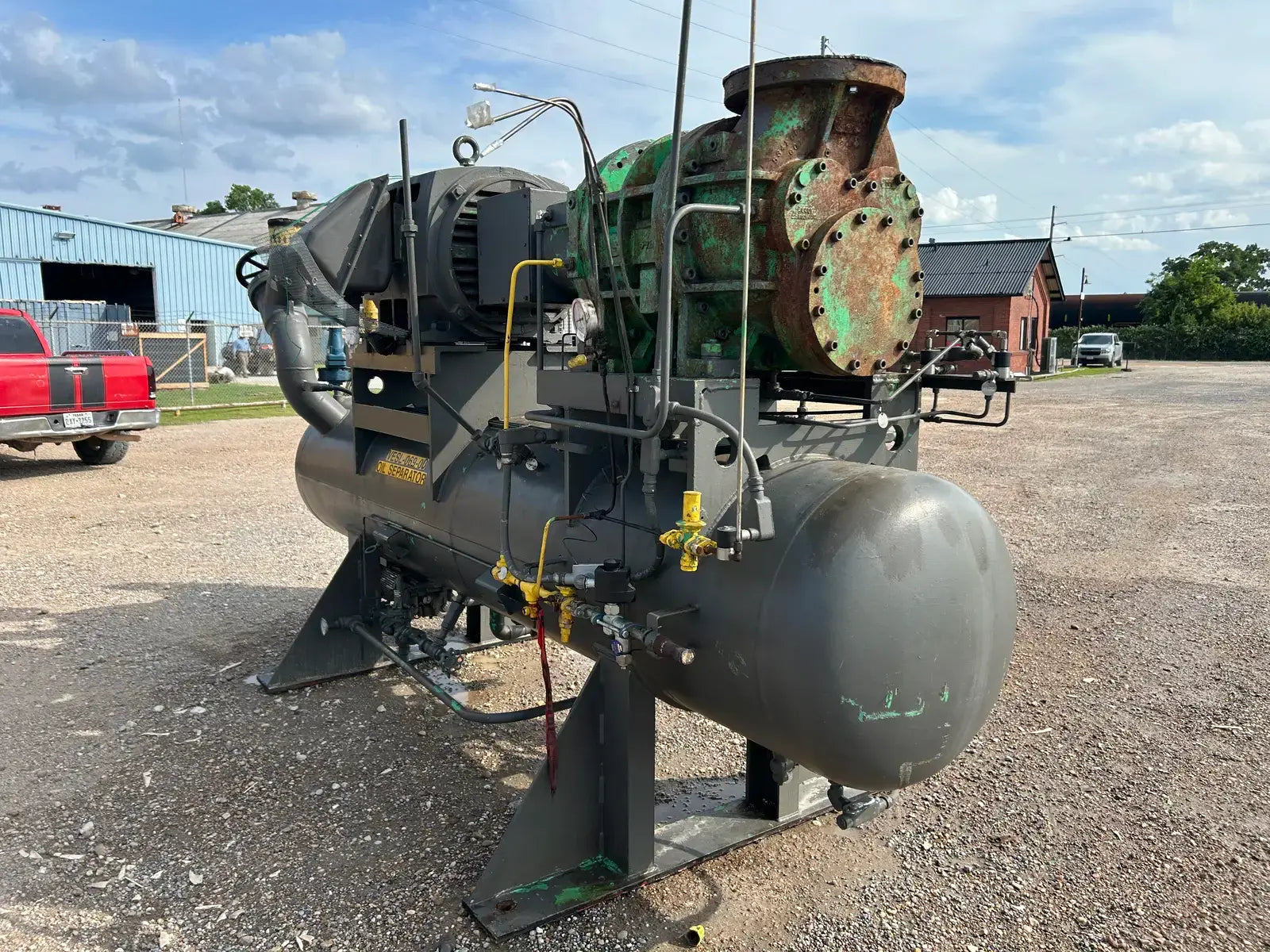

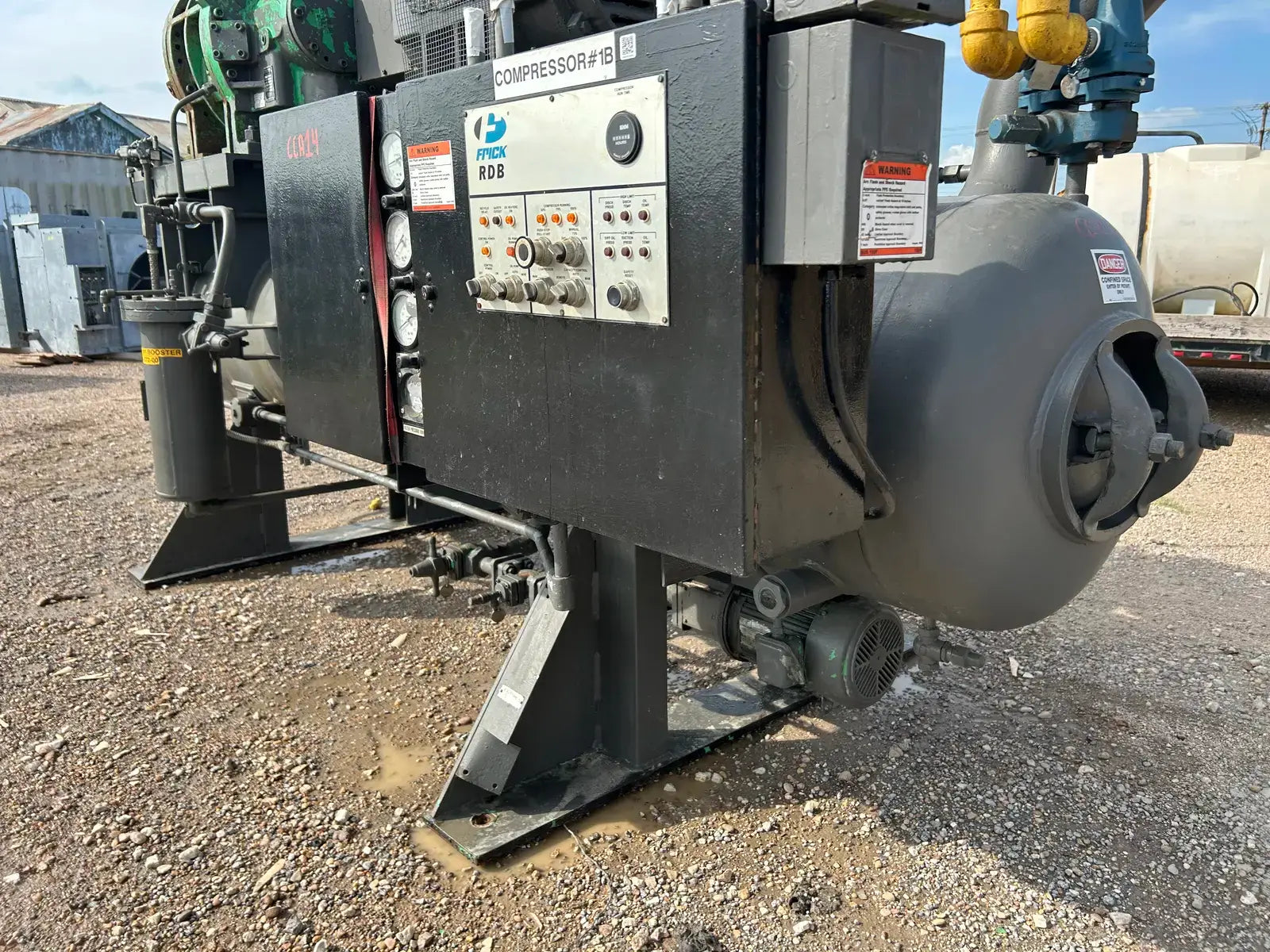

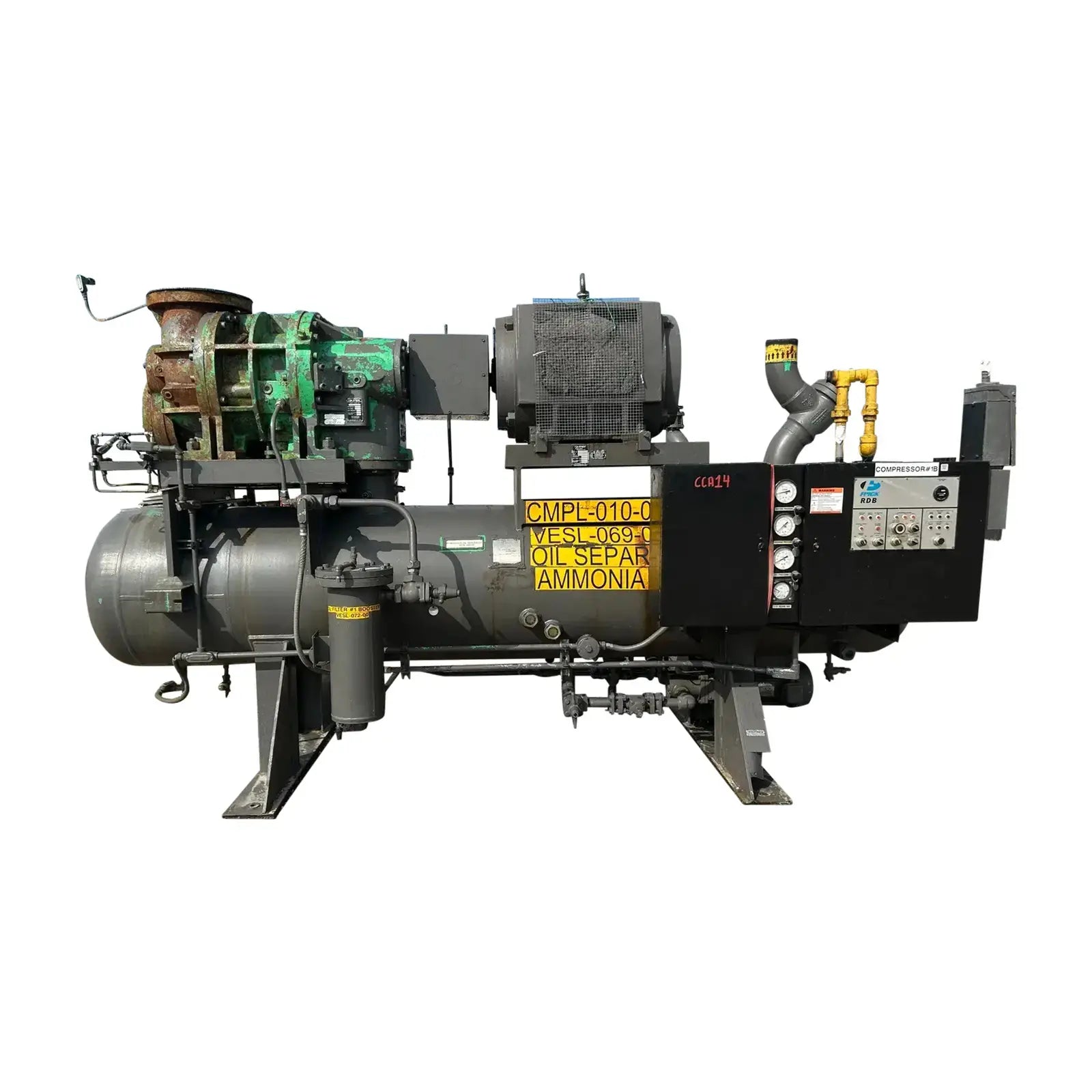

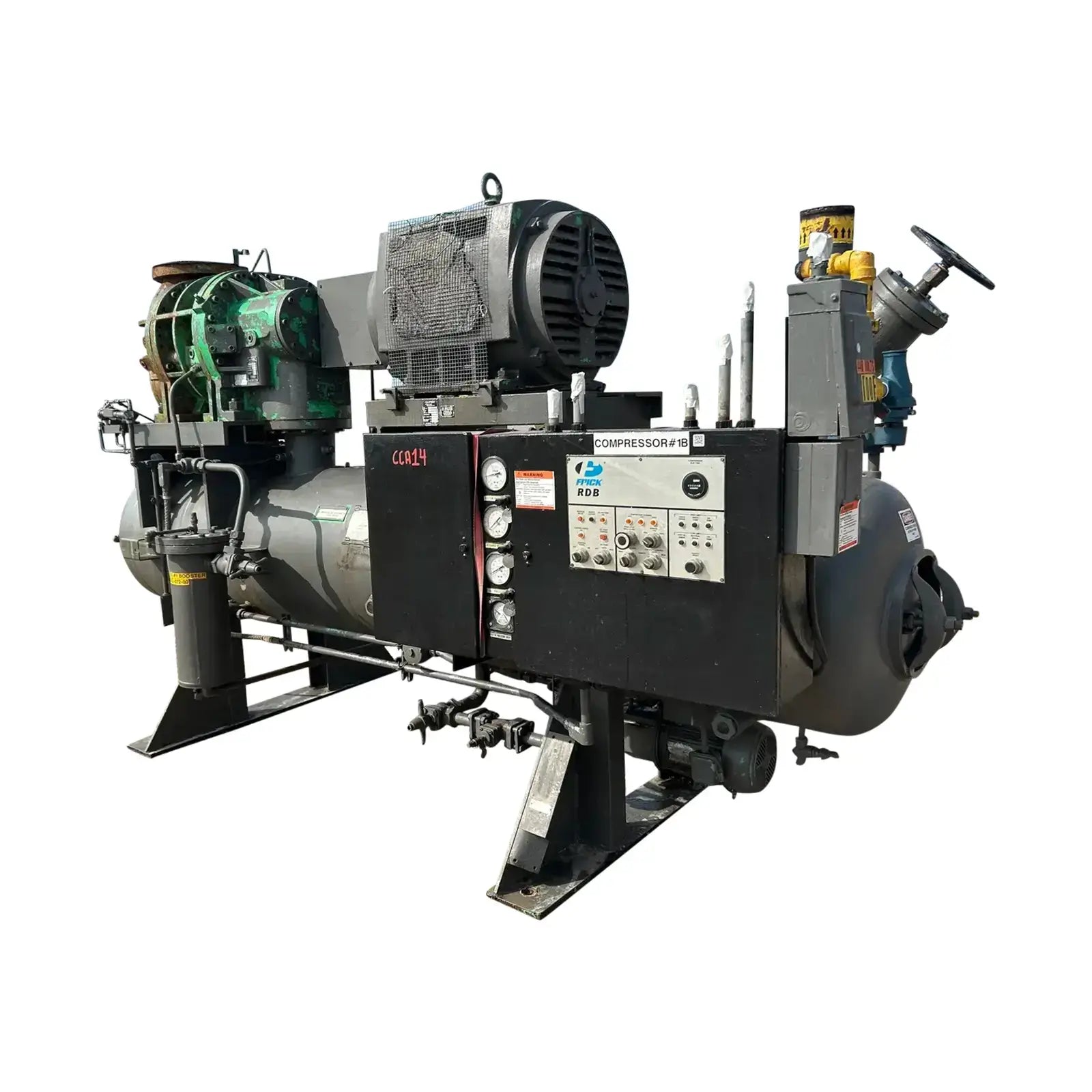

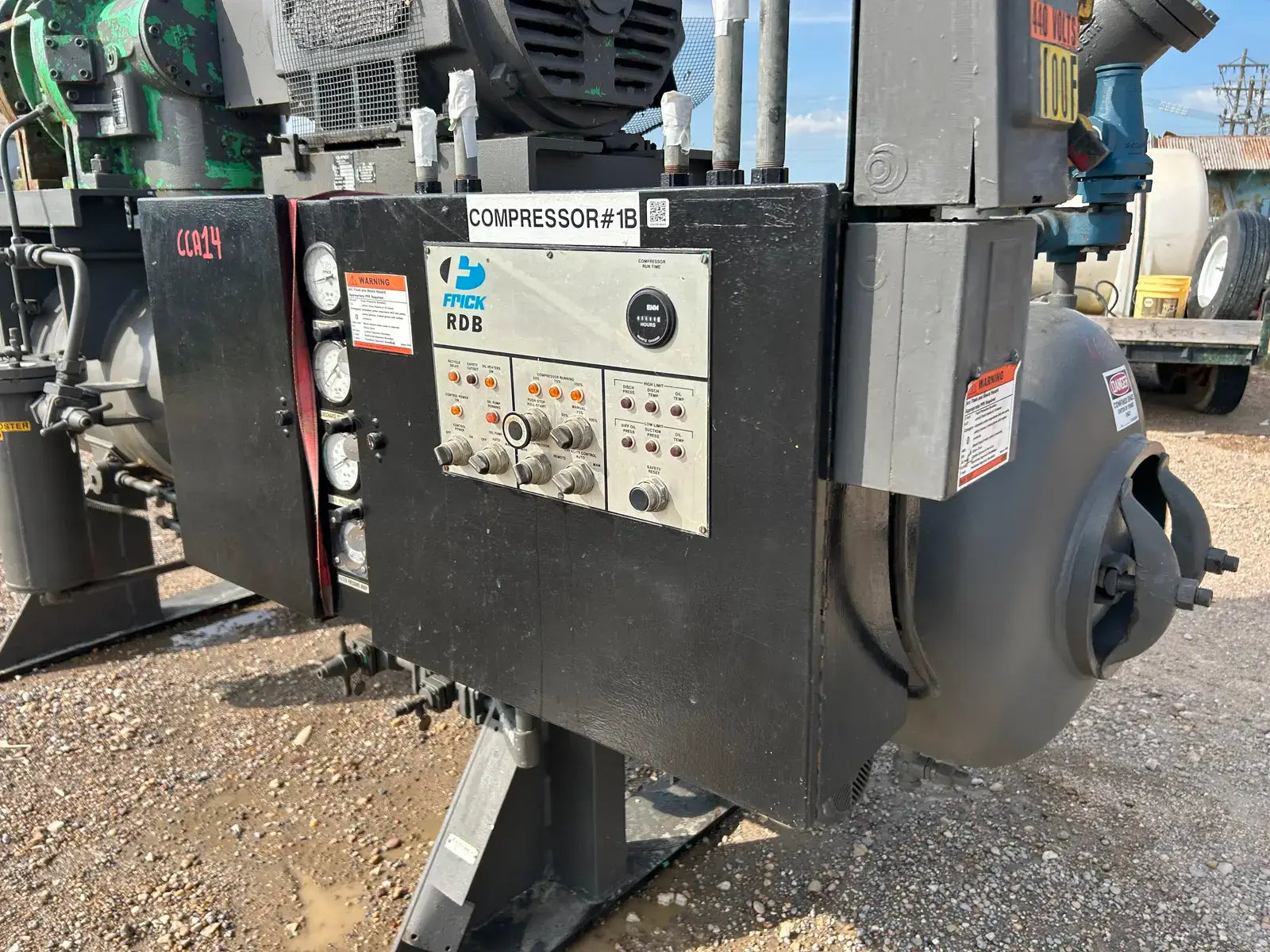

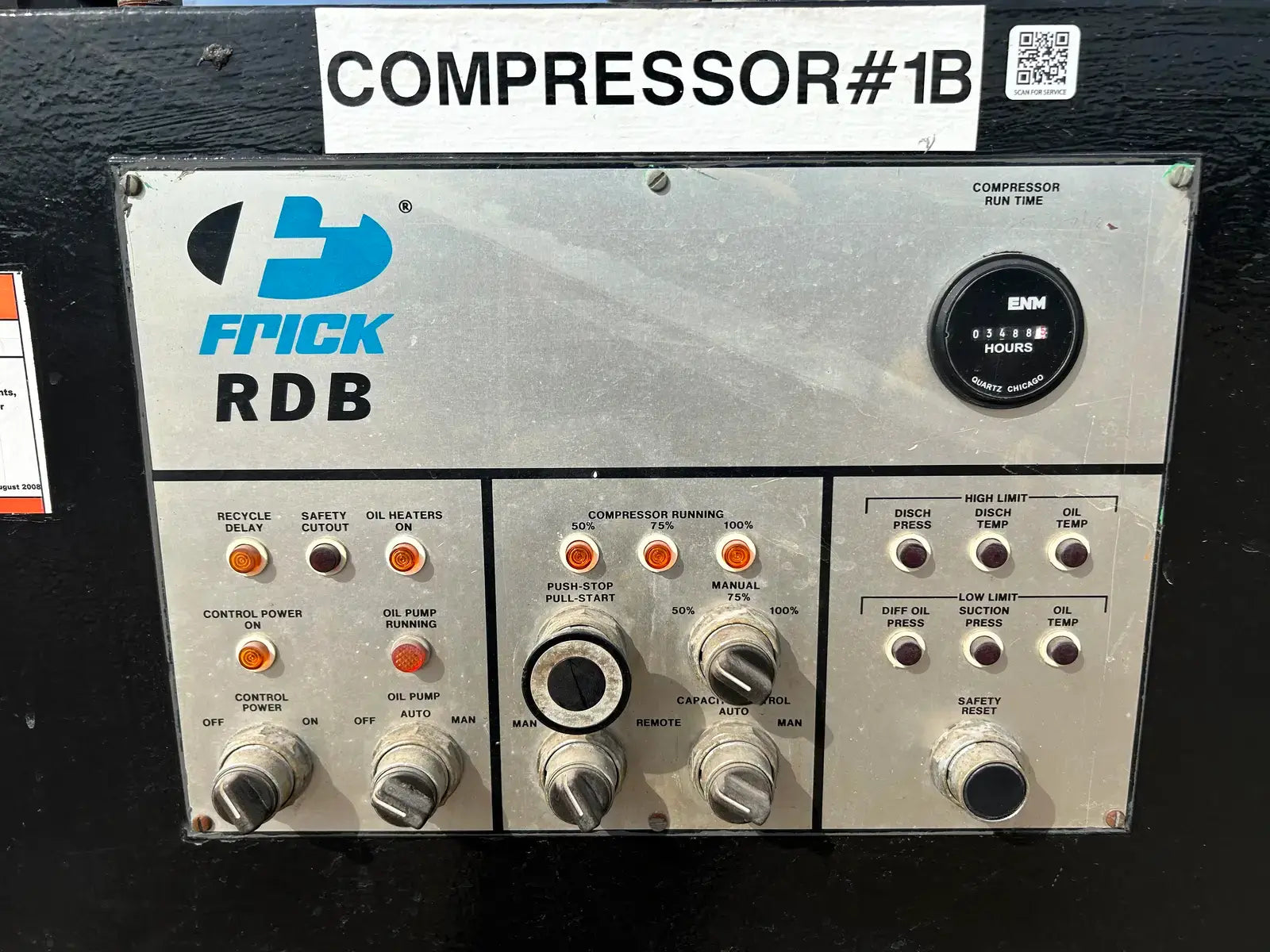

Frick RDB-316 Rotary Screw Compressor Package (Frick TDSL283S, 250 HP 2300/4160 V)

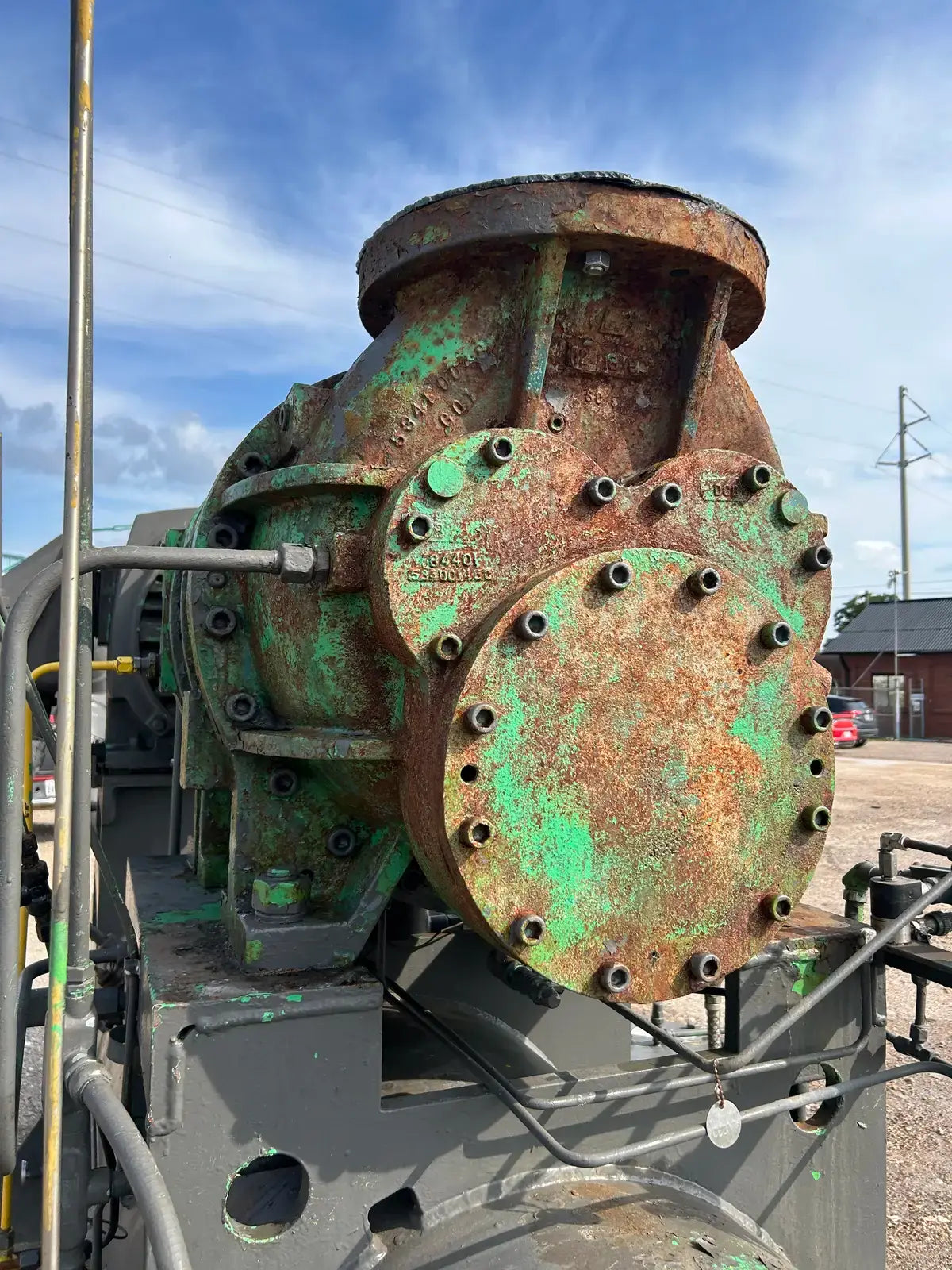

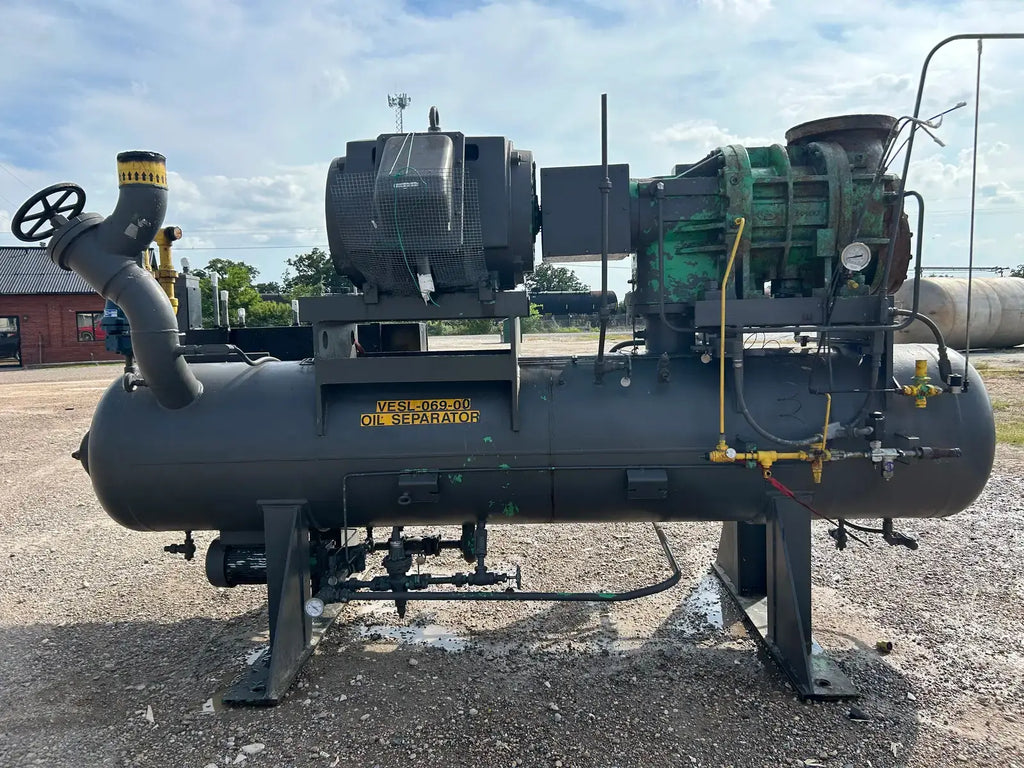

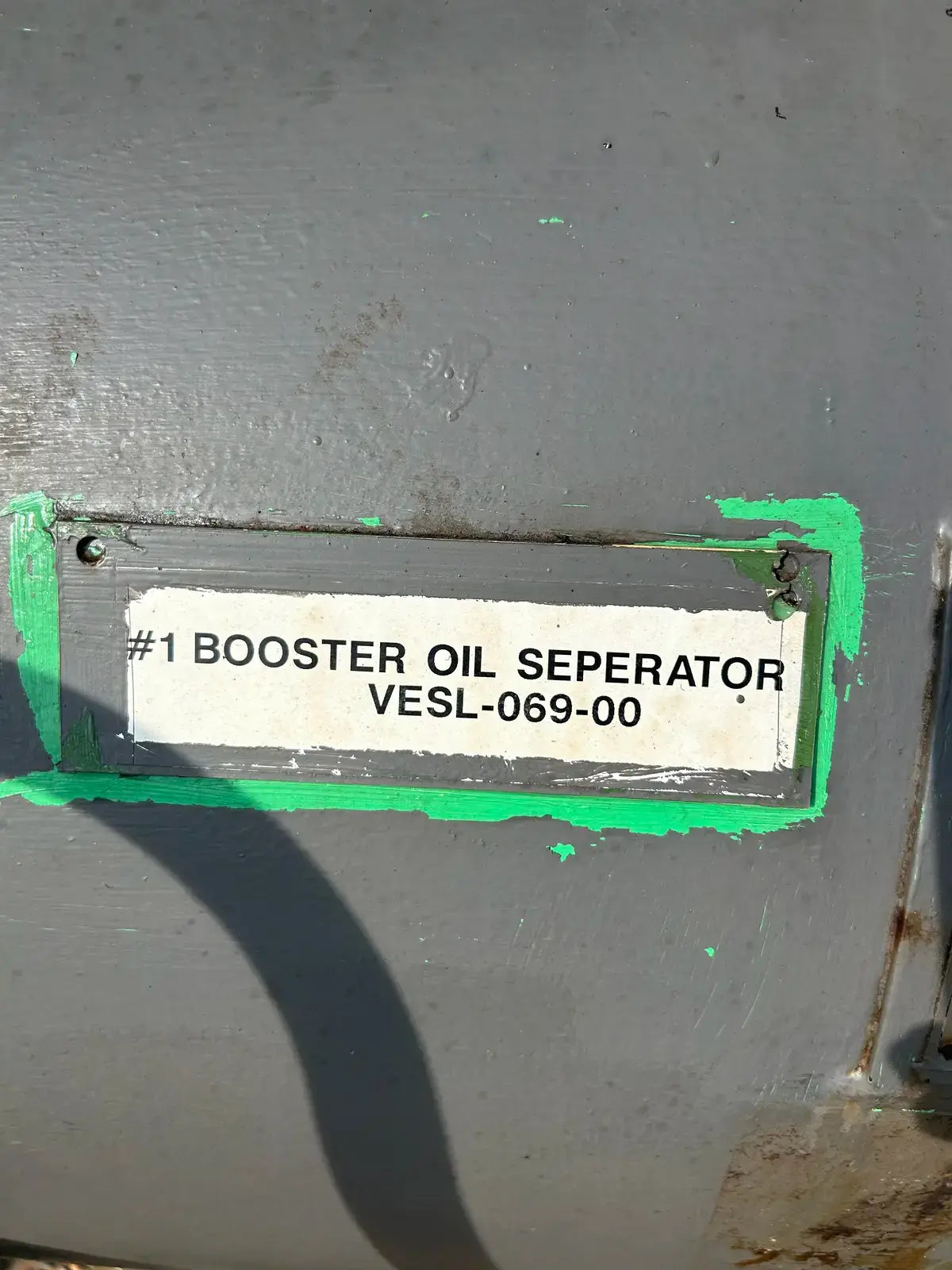

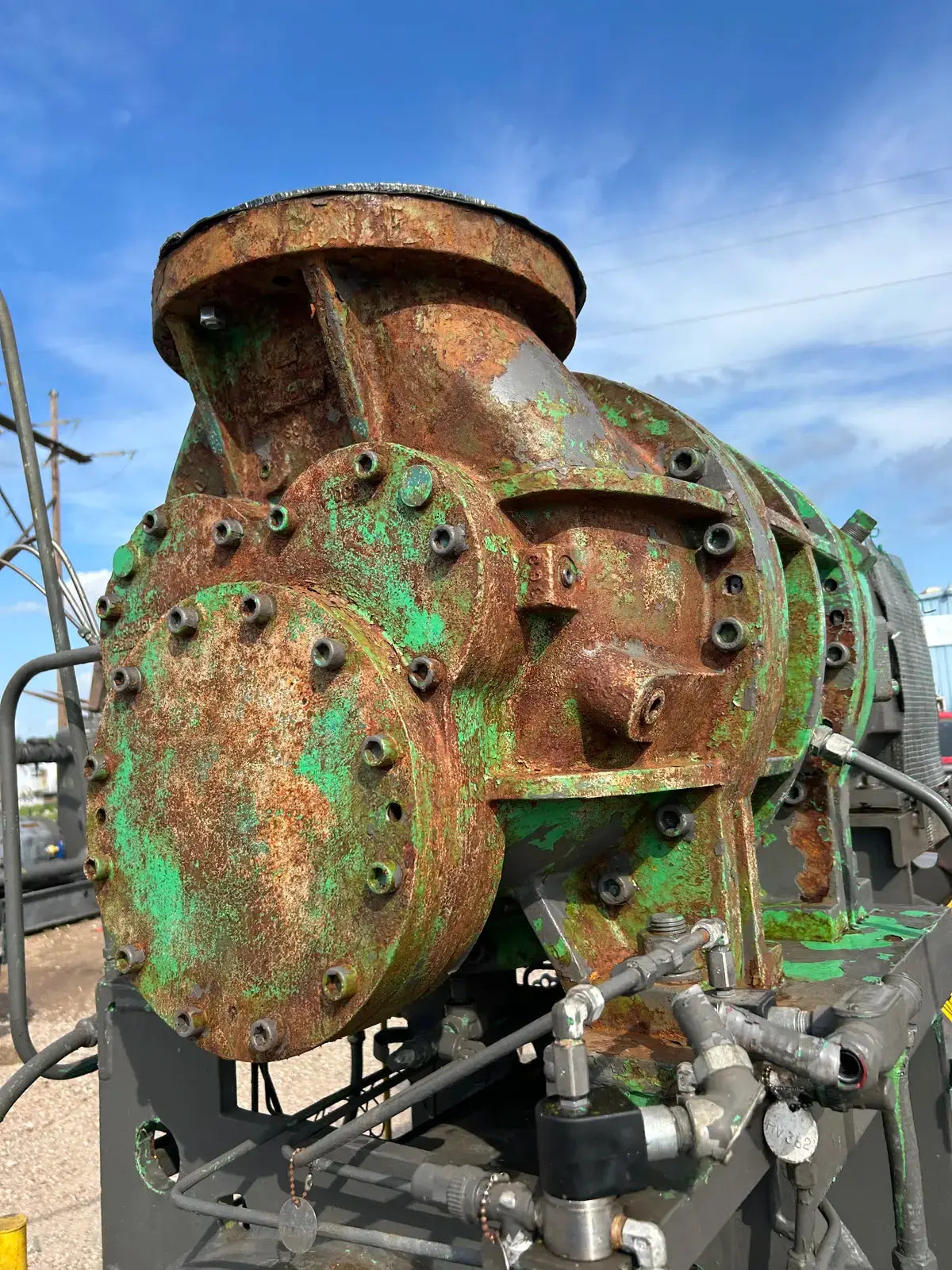

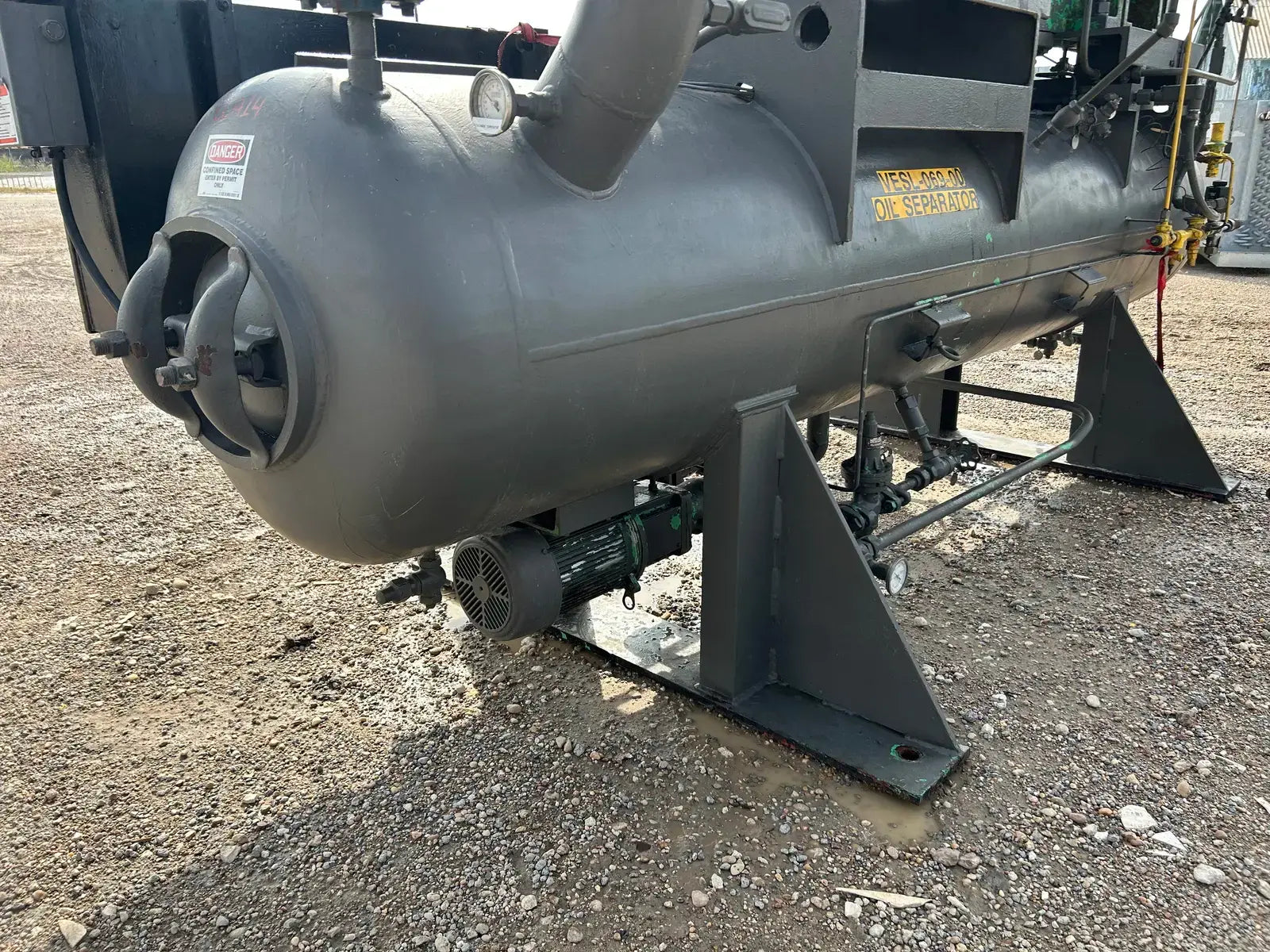

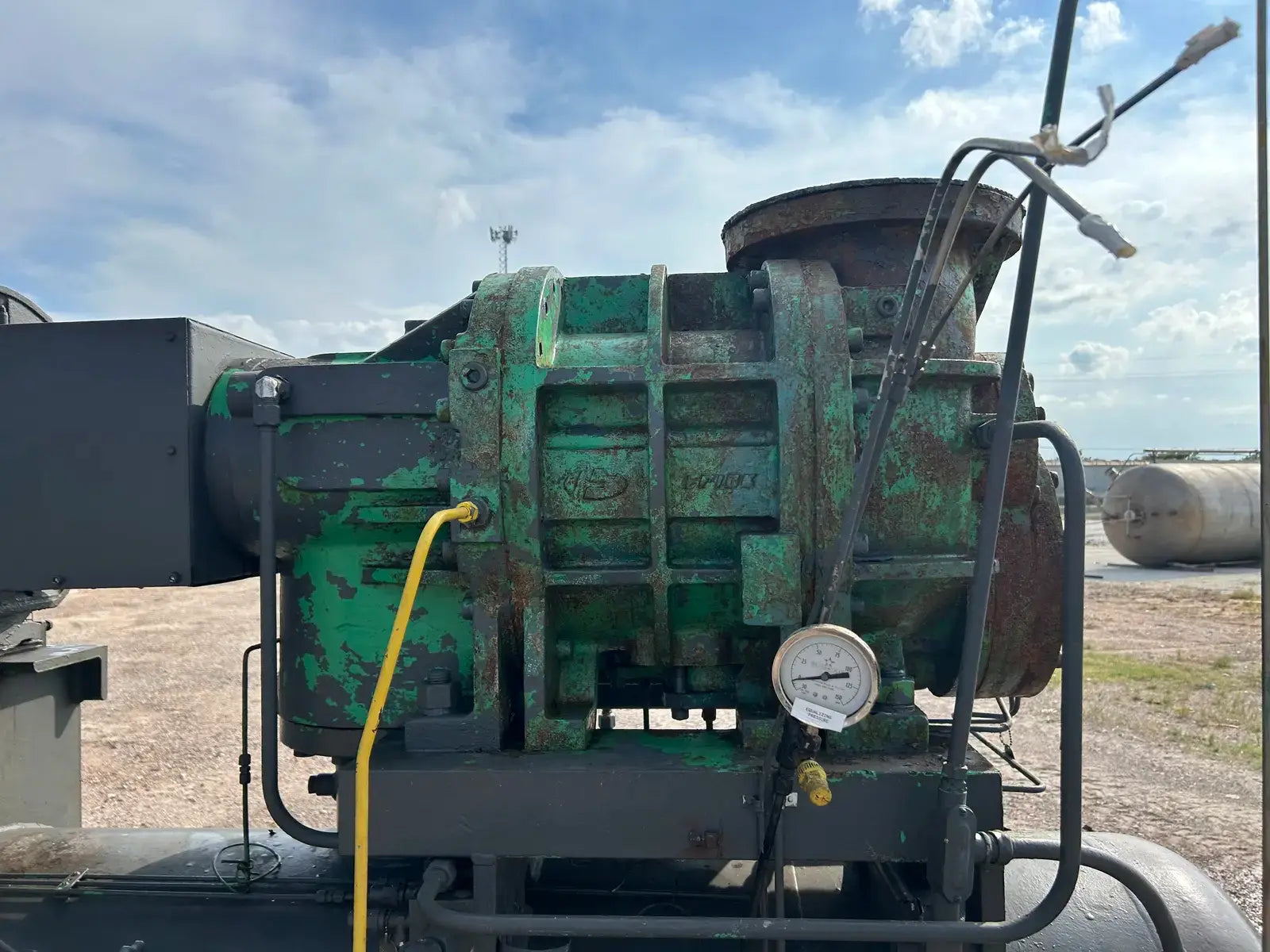

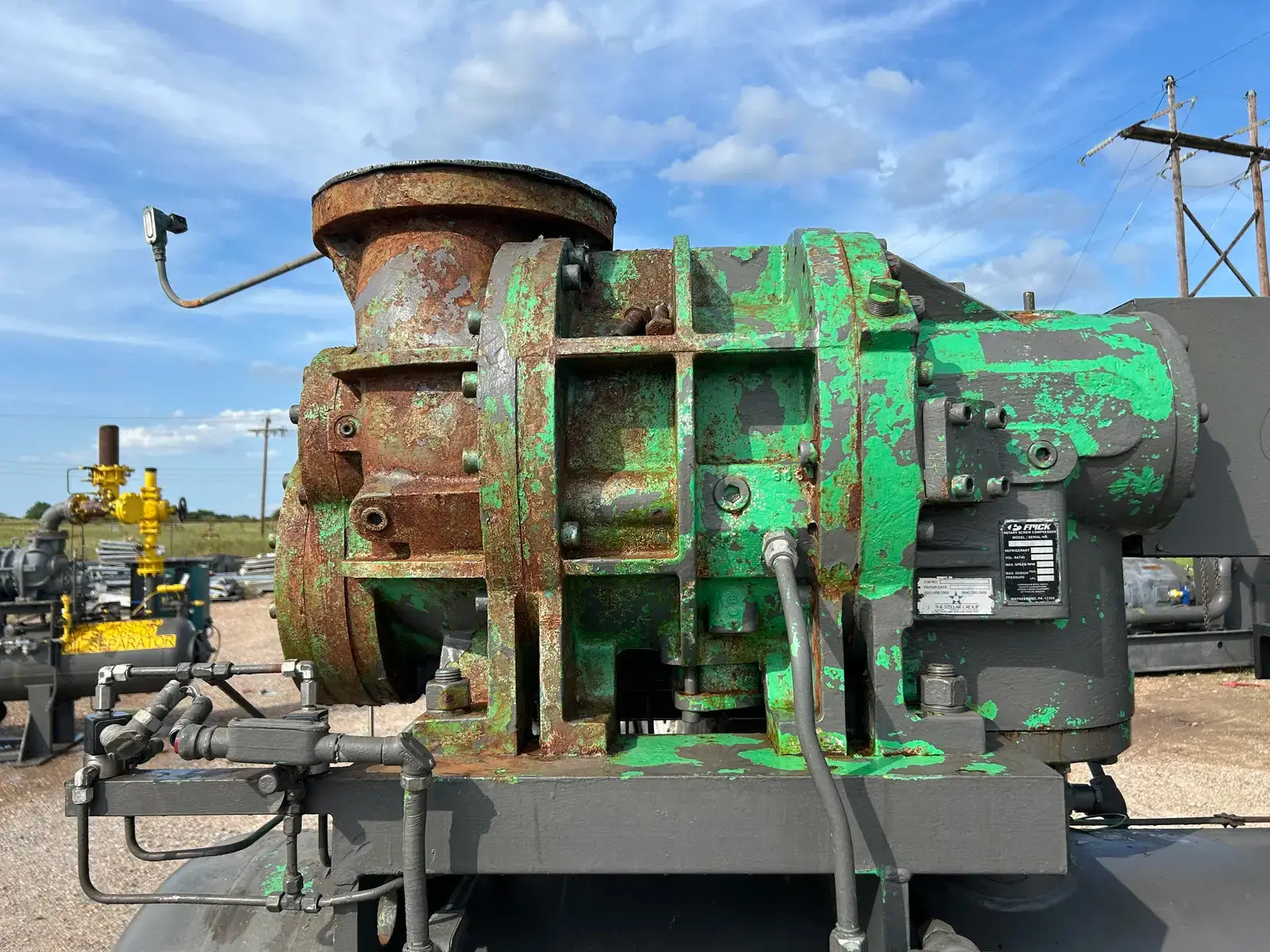

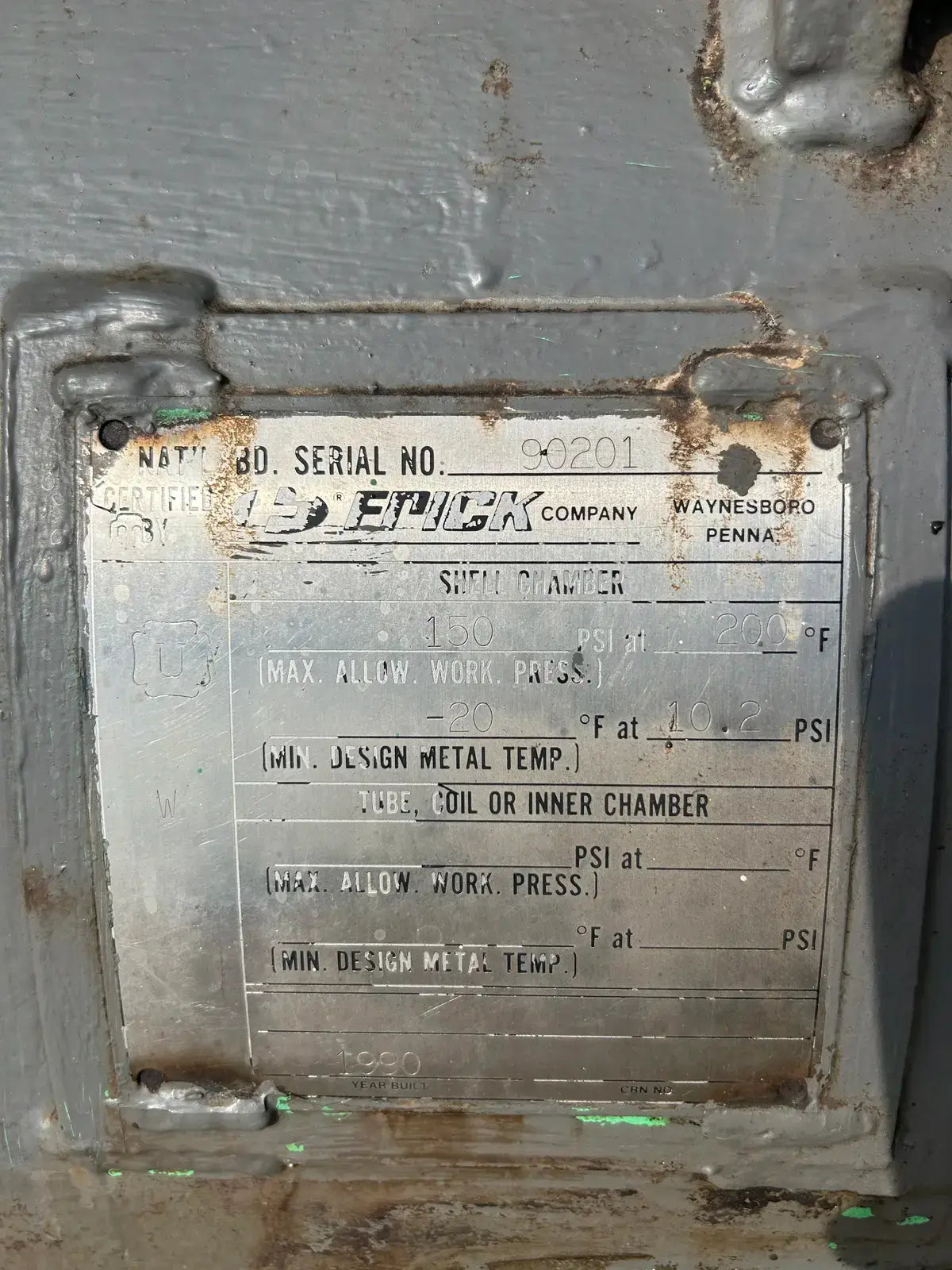

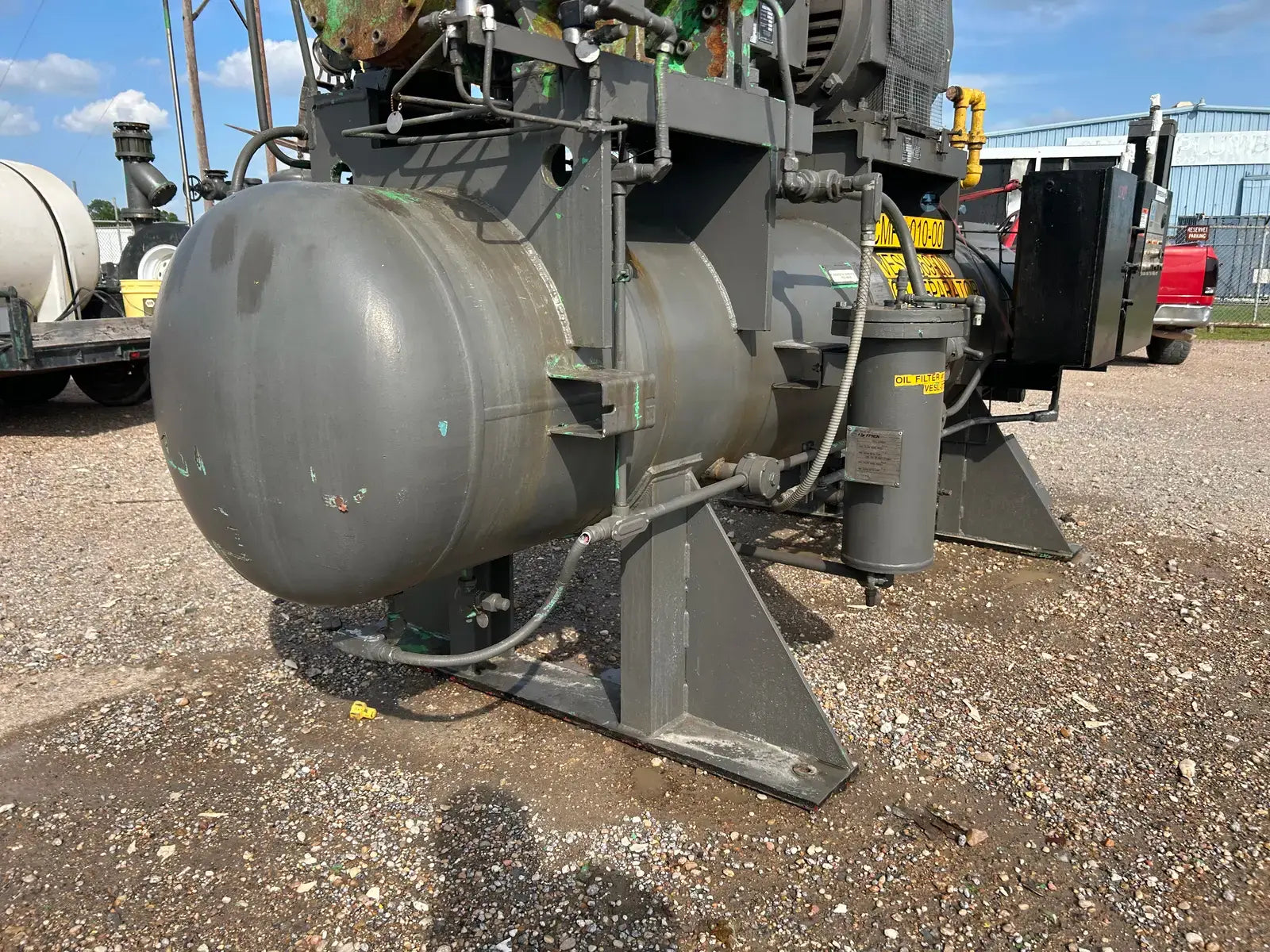

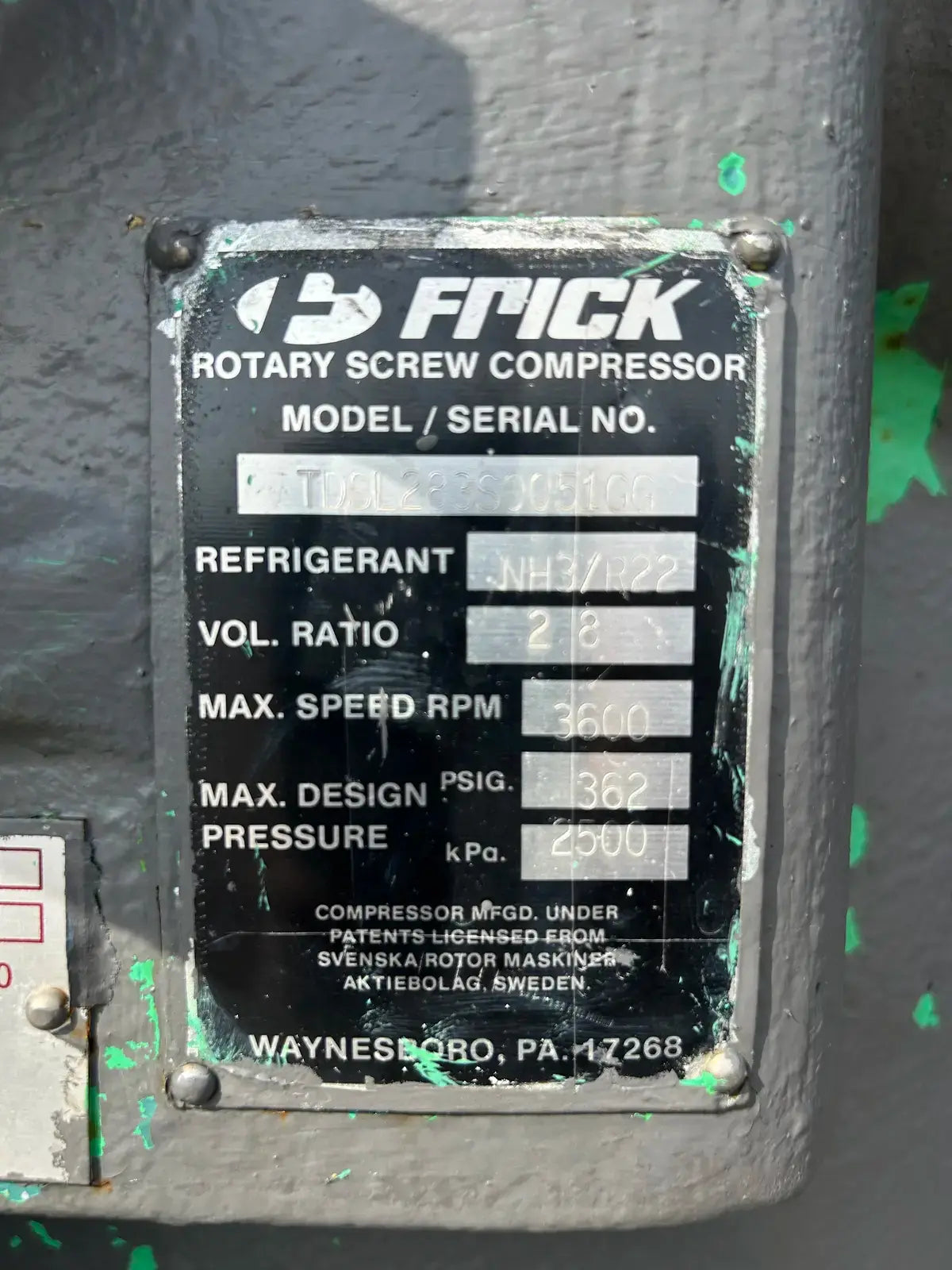

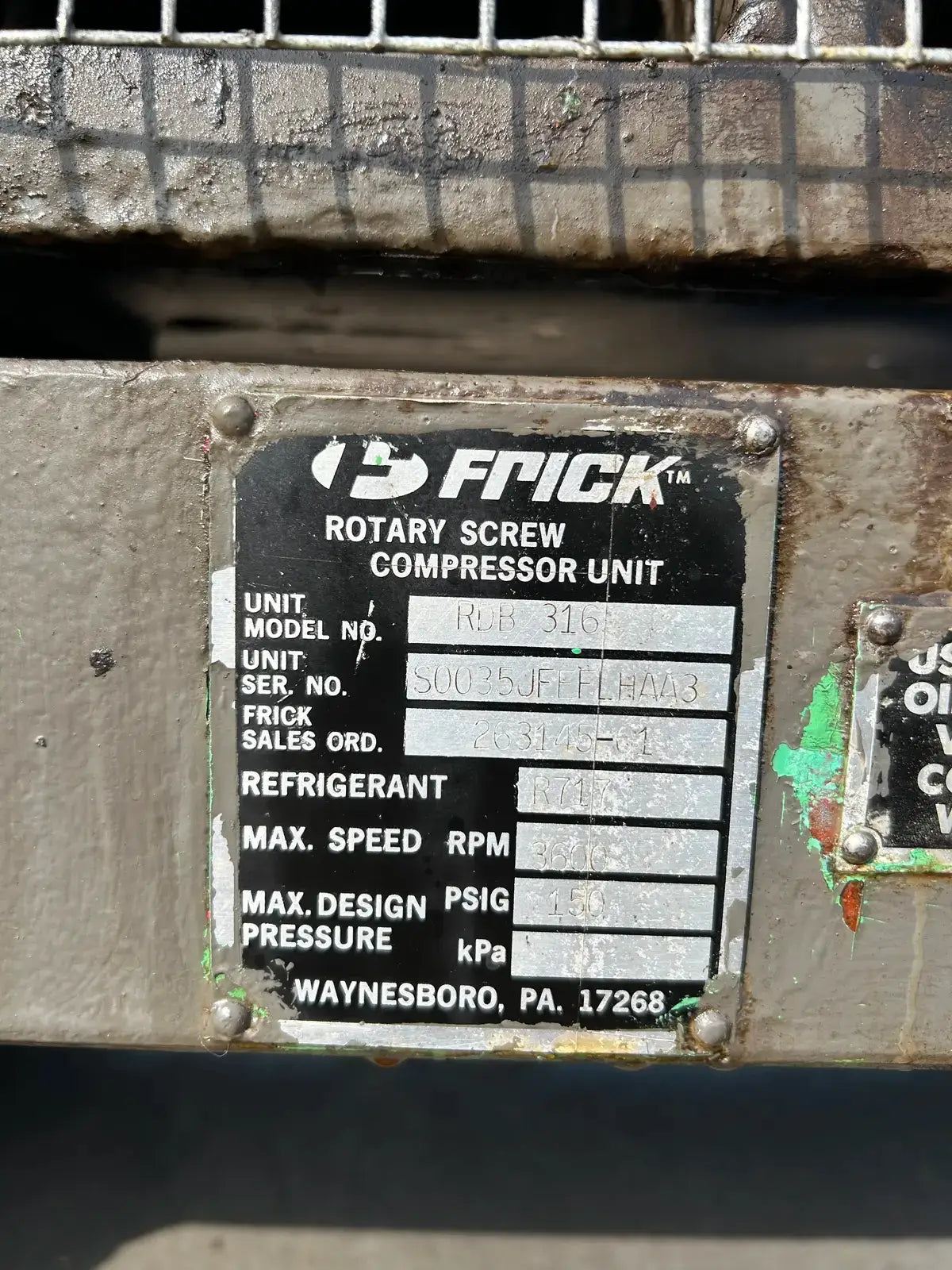

Frick RDB Series Screw Compressor Package. Model No: RDB-316. Serial No: S0035JFEFLHAA3. Frick Sales Order: 263145-01. Refrigerant: R-717. Max Speed(RPM): 3600. Max Design Pressure: 150 PSIG. Frick Bare Screw Compressor - Model: TDSL283S, Serial No: 0051GG, Refrigerant: NH3/R22, Volume Ratio: 2.8, Max Speed(RPM): 3600, Max Design Pressure(PSIG): 2500. Certified By Frick Oil Separator - National Board: 90201, MAWP: 150 PSI @ 200 F, MDMT: -20 F @ 10.2 PSI, Year Built: 1990.
Product Details
- Stock No: CCA14
- Manufacturer: Frick
- Model: RDB-316
- Serial Number: S0035JFEFLHAA3
Previous Refrigerant
- Previous Refrigerant: Ammonia (R-717)
- Ammonia (R-717) Compatiable: Yes

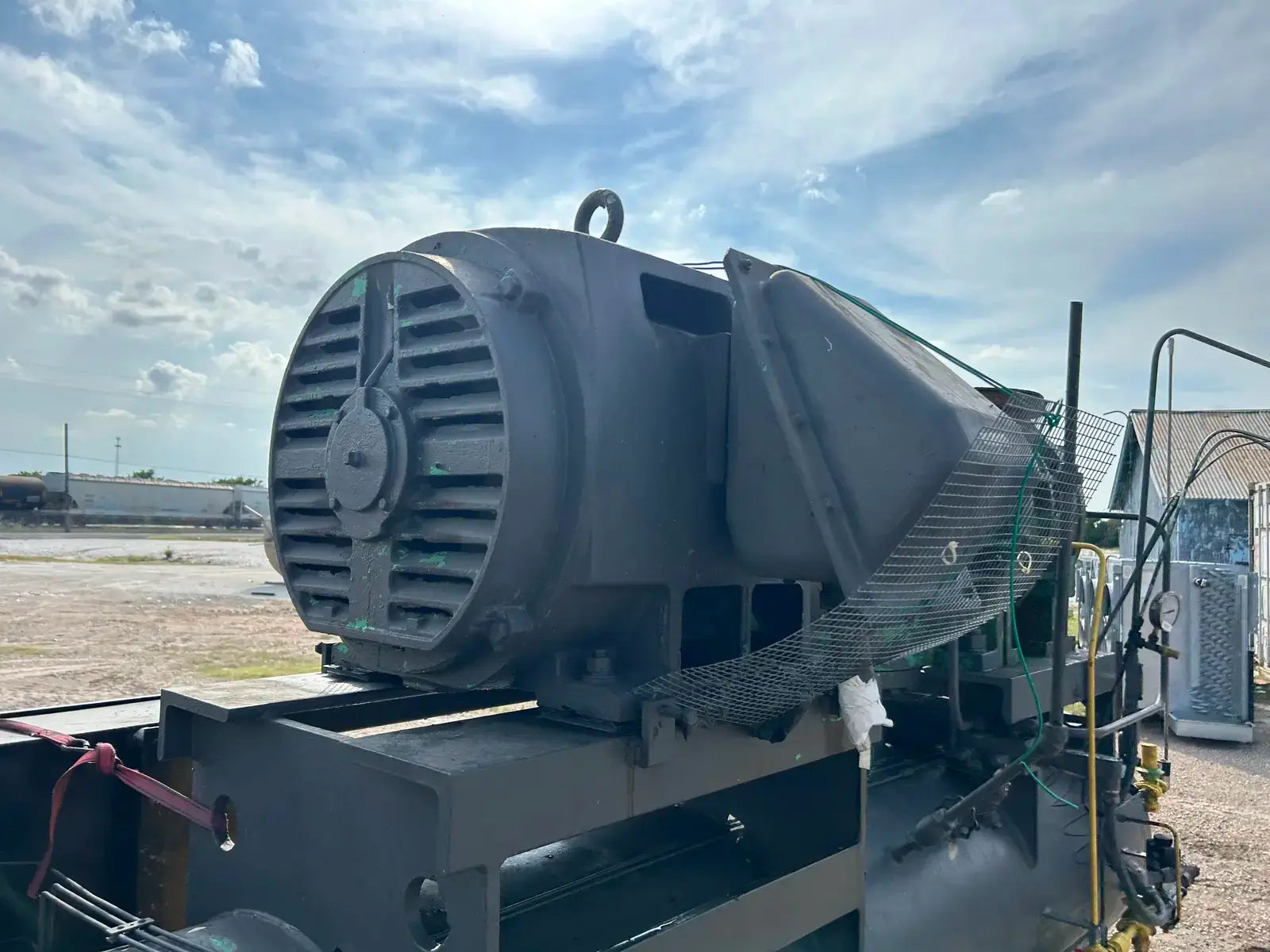

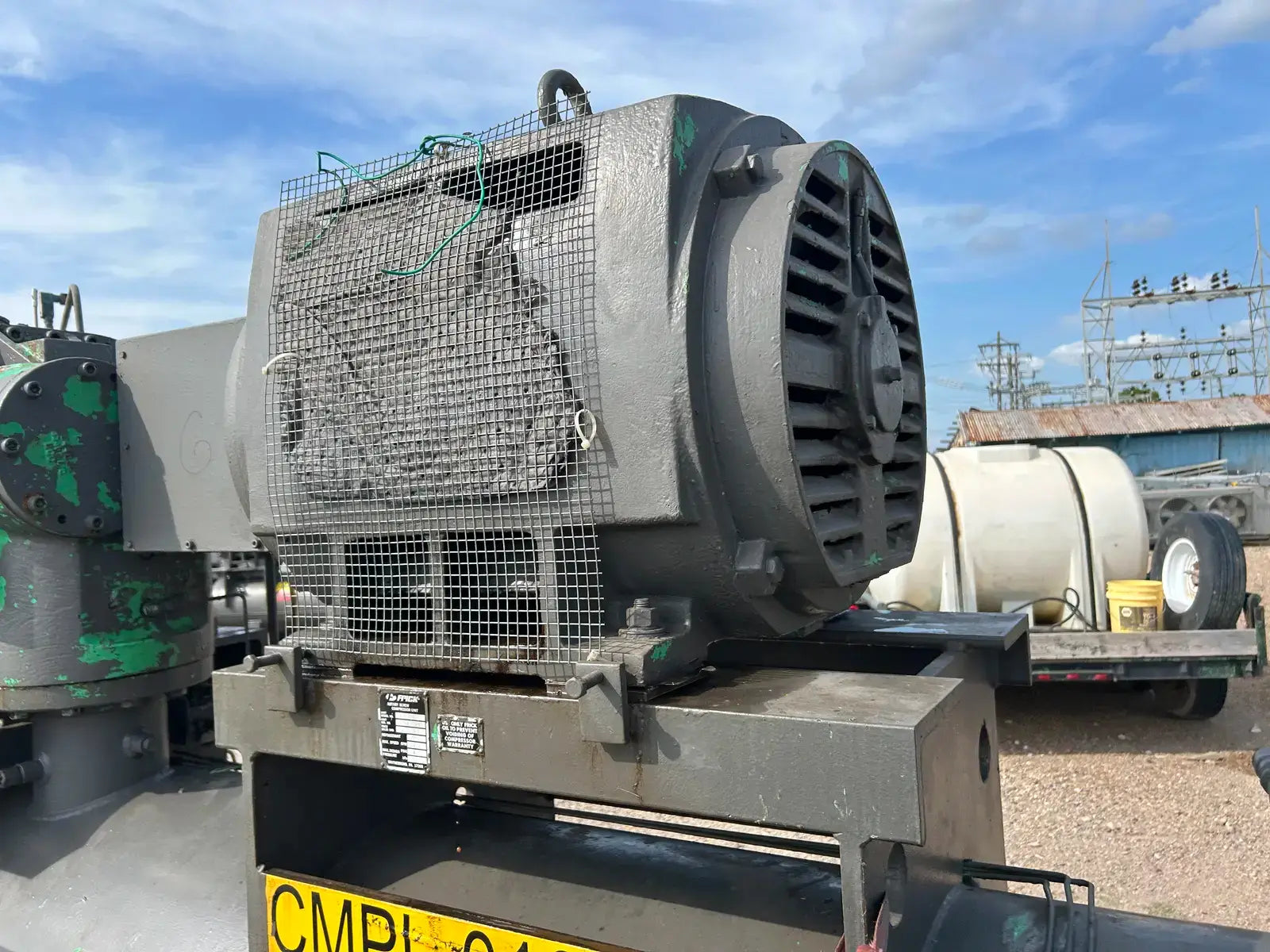

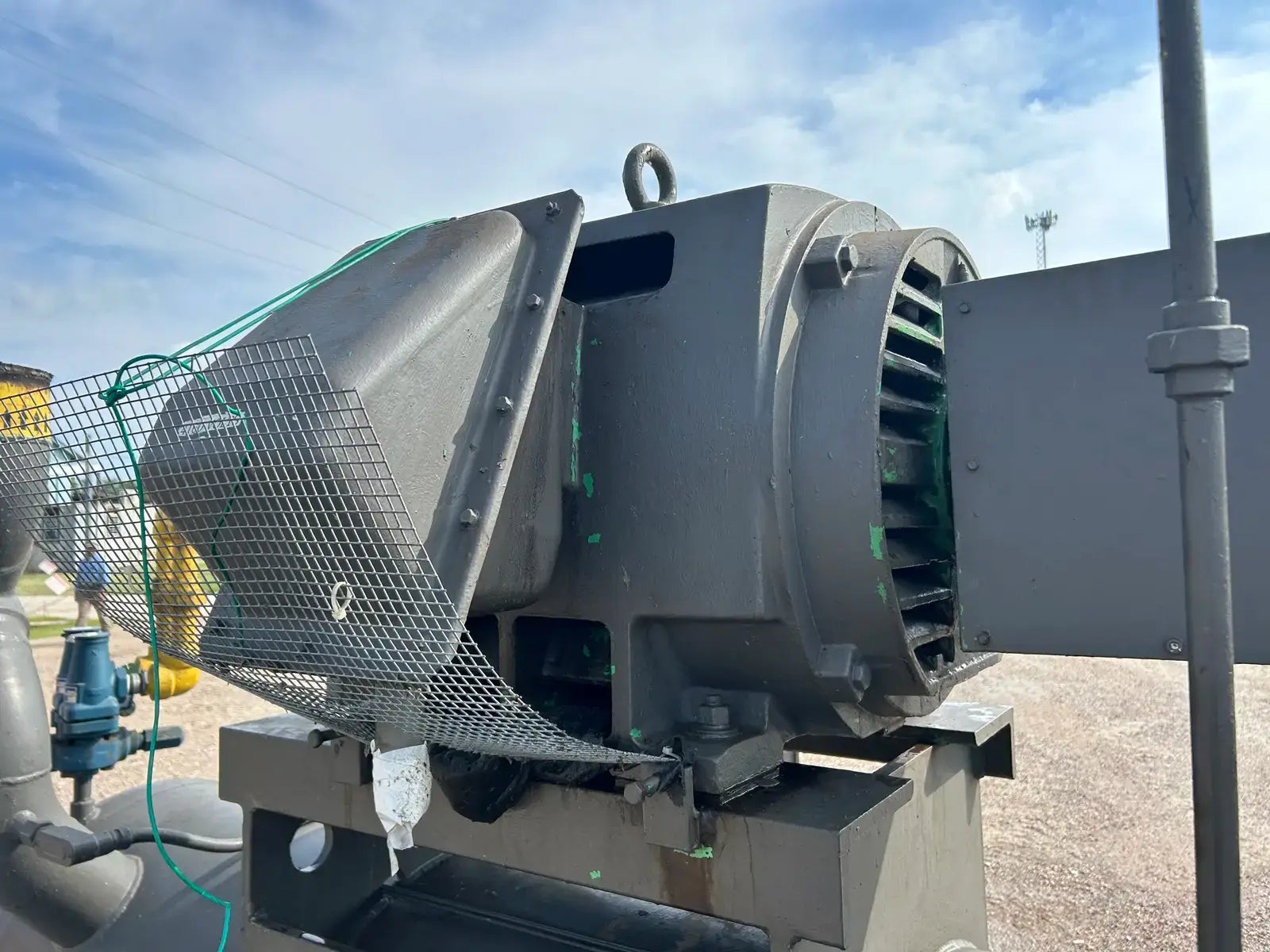

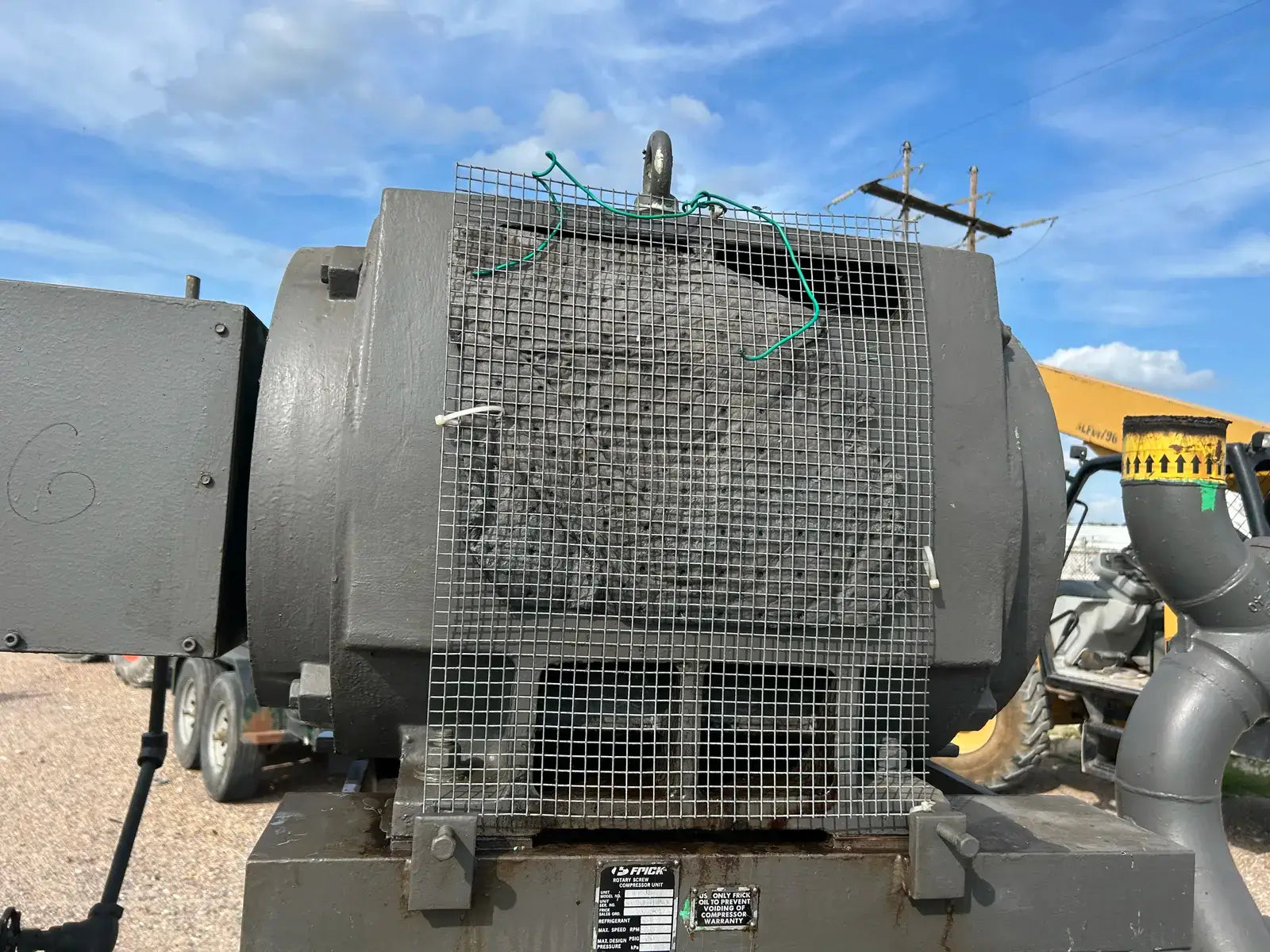

Motor Details
- Motor Included? Yes
- # Motors: 1
- Motor Manufacturer: Toshiba
- Motor Horsepower(HP): 250
- Motor RPM: 3,540
- Motor Voltage: 2300/4160
- Motor Hertz (Hz): 60
- Motor Phases: 3
Dimensions:
- Length (Inches): 165
- Width (Inches): 65
- Height (Inches): 86
- Weight (LBS): 12,000
- # of Pieces for Shipping: 1
Additional Product Details
- Year of Manufacture: 2001
- Year Removed from Production: 2025
- Spec Sheet Available: Yes
