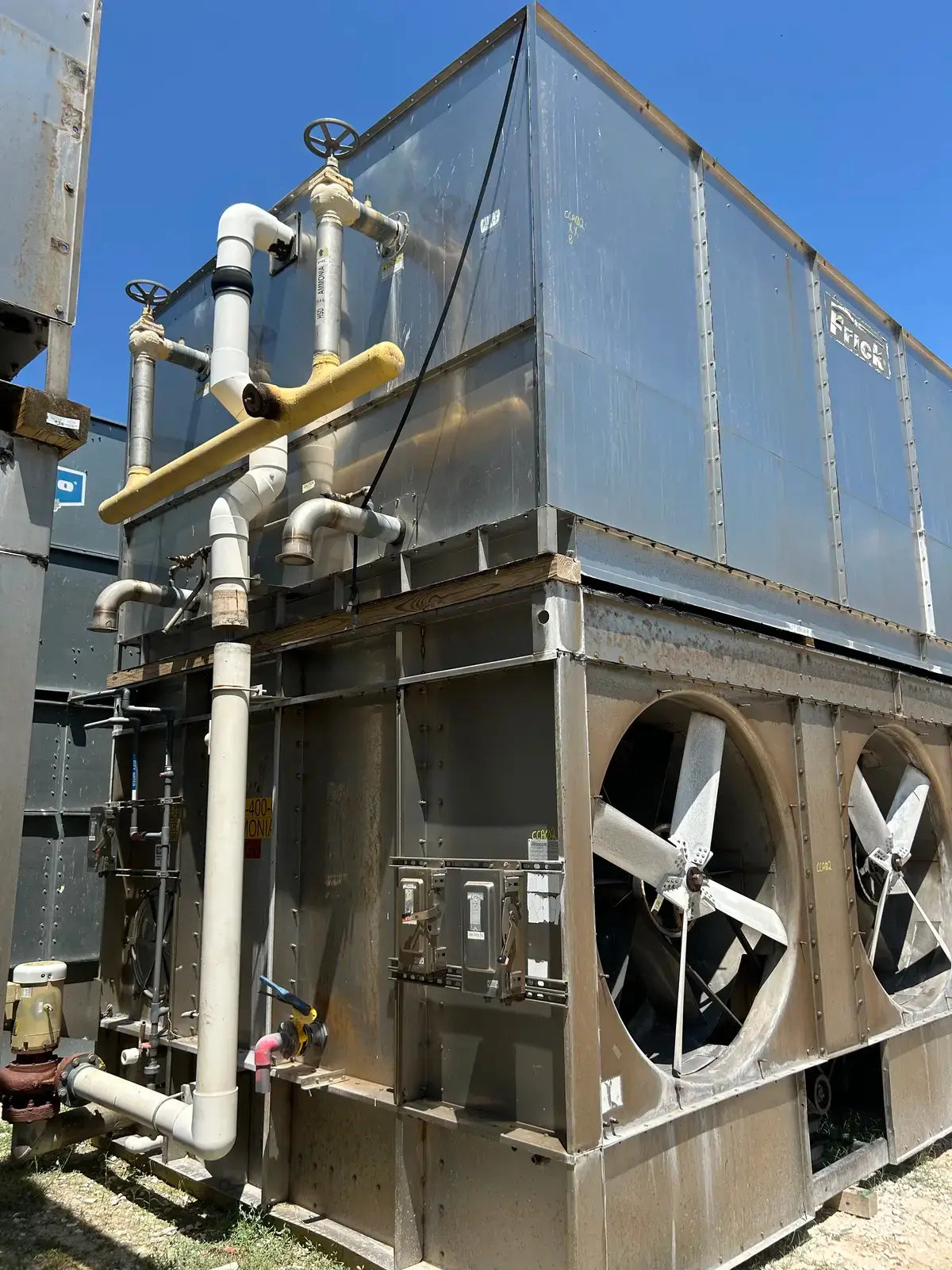

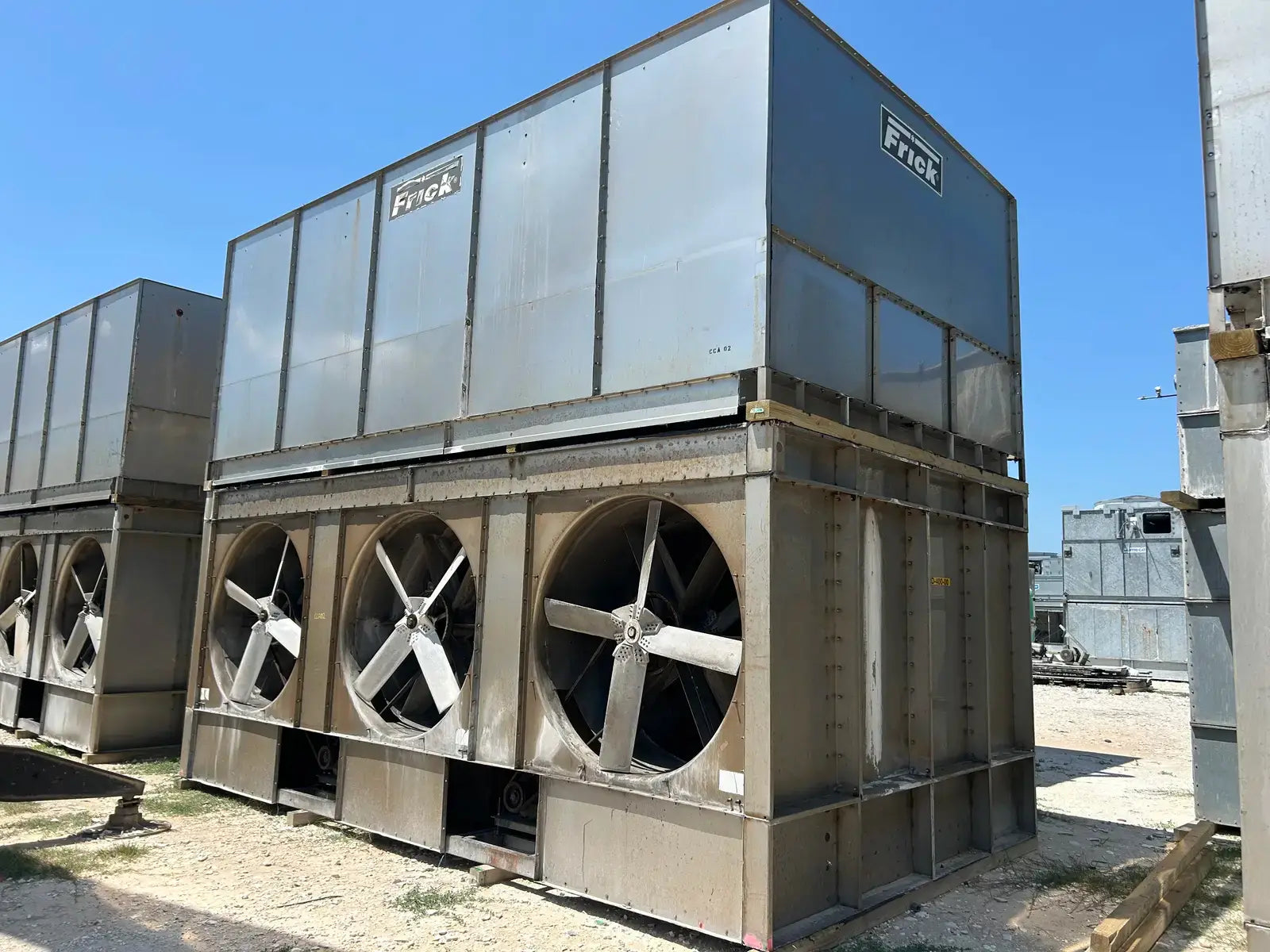

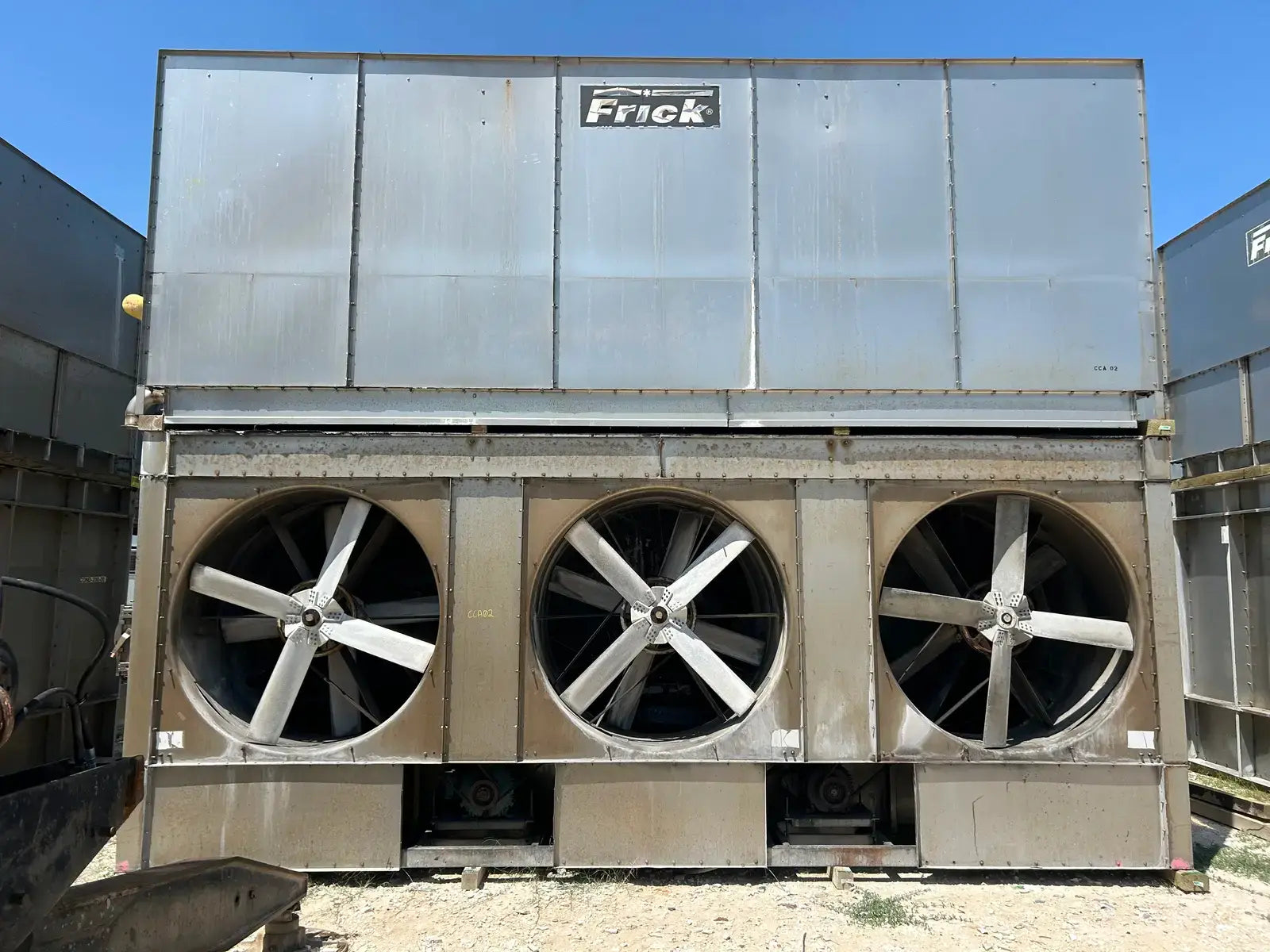

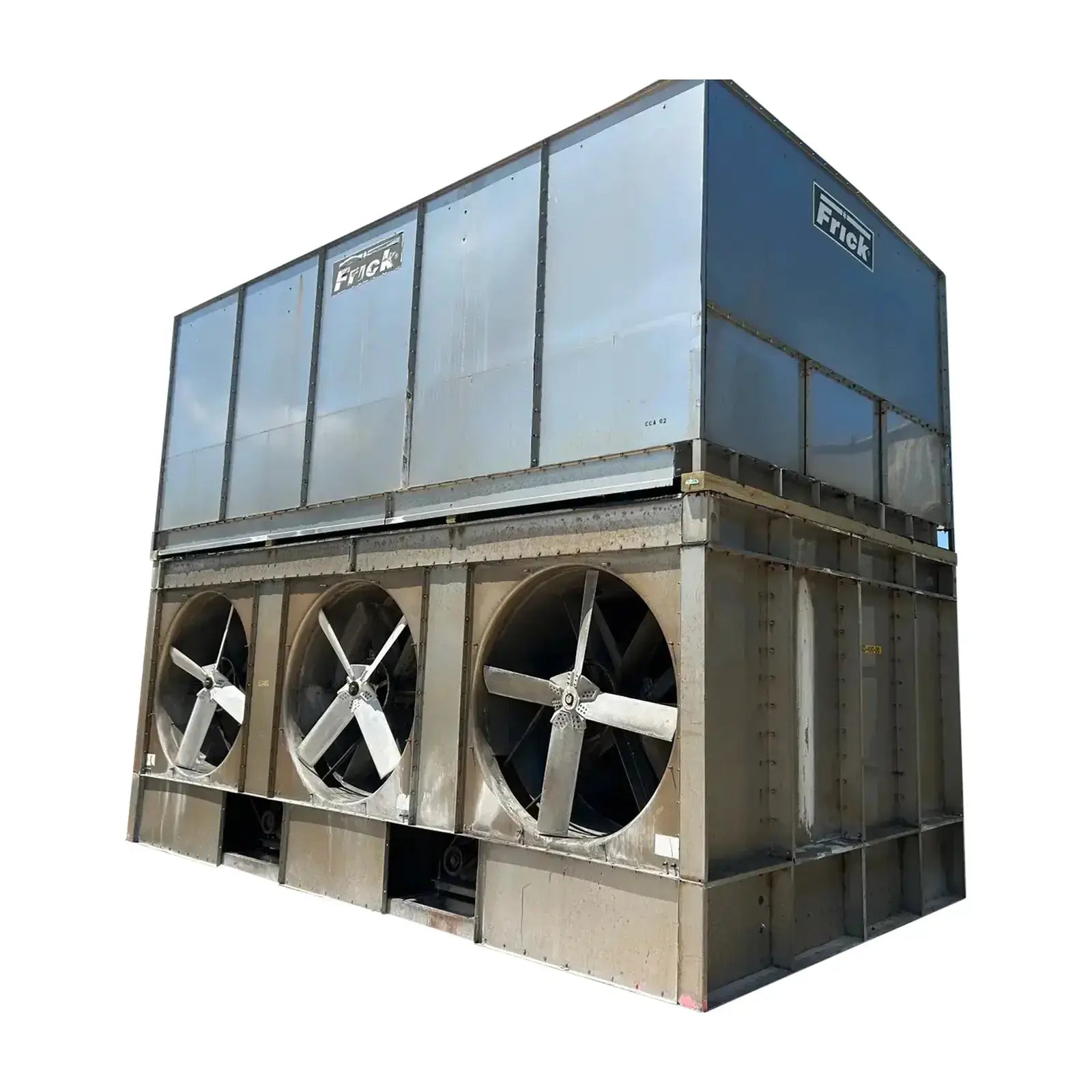

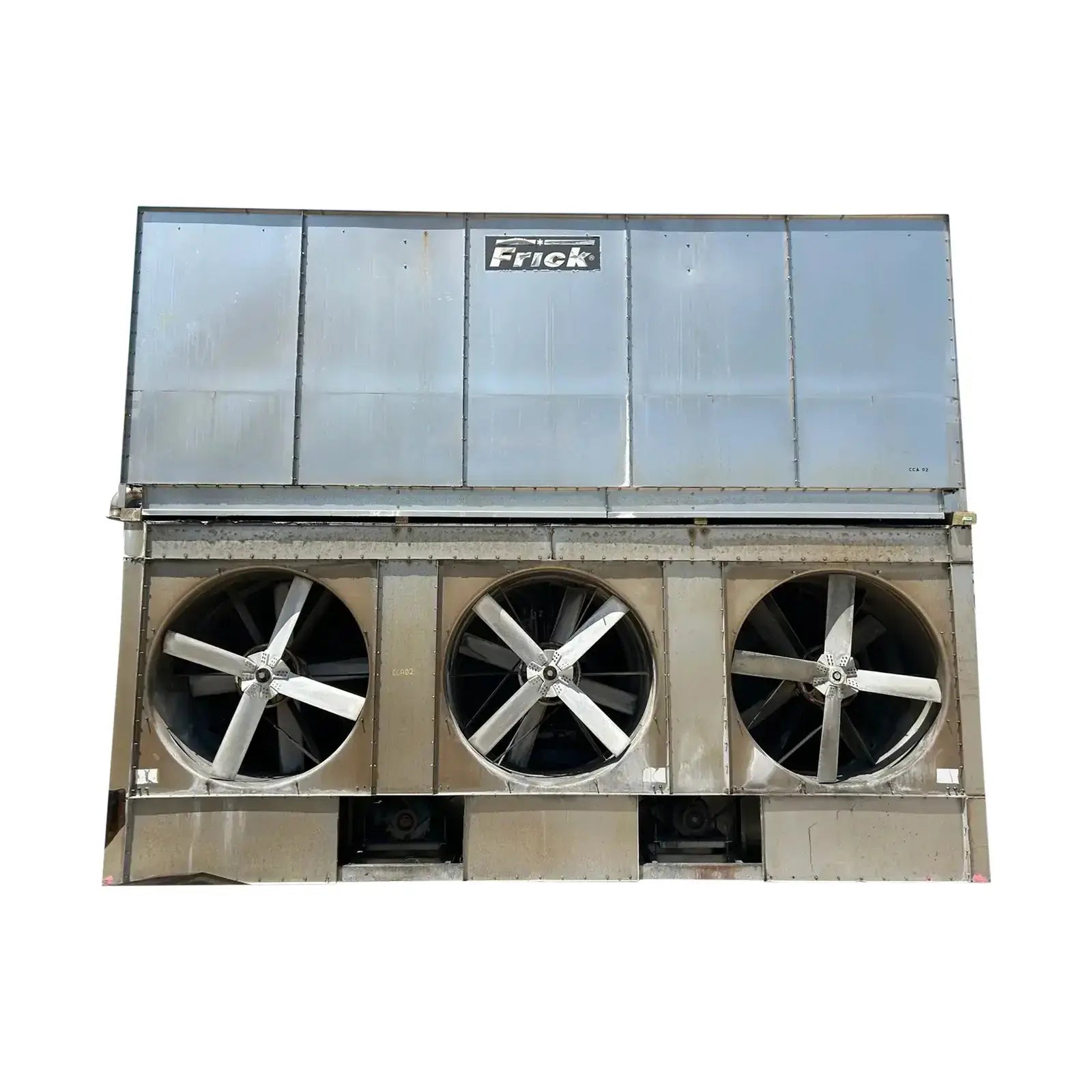

Frick XLP-XL-940 Evaporative Condenser (940 Nominal Tons)

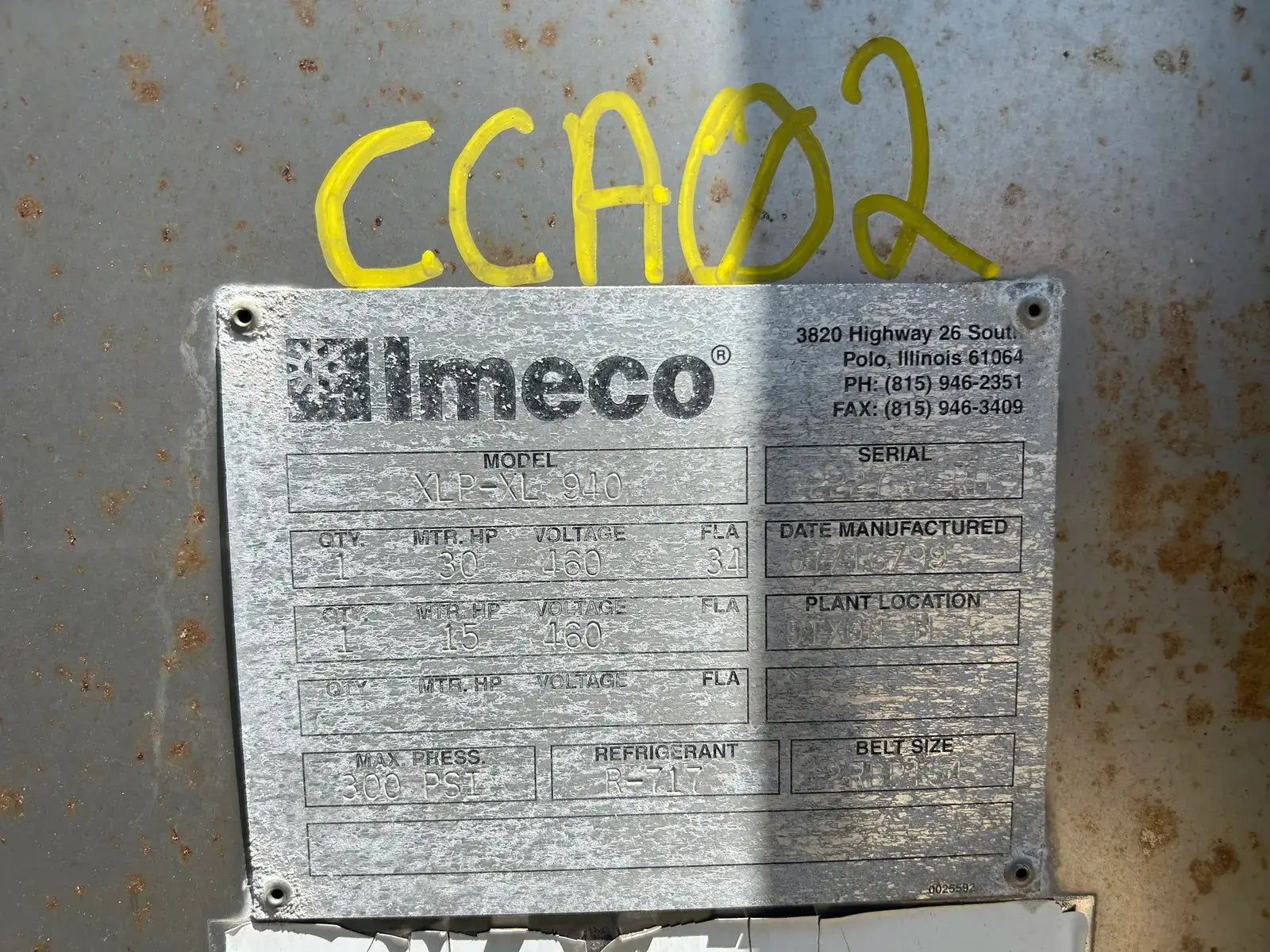

Frick XLP Series Ammonia Evaporative Condenser. Model: XLP-XL-940. Serial No: 22227-2RH. Nominal Tons: 994, Ammonia Tons(R-717): 664.3. CFM: 151,800. Design Pressure: 250 PSI. Refrigerant Charge: 1064 LBS.
Product Details
- Stock No: CCA02
- Manufacturer: Frick
- Model: XLP-XL-940
- Serial Number: 22227-2-RH
Condenser Details
- Multiple Units Included in Package? No
- Unit Nominal Tons (TR): 940
- Unit Ammonia Tons (TR): 664.3
- Unit CFM (CFM): 151,800
- Design Pressure (PSI): 250

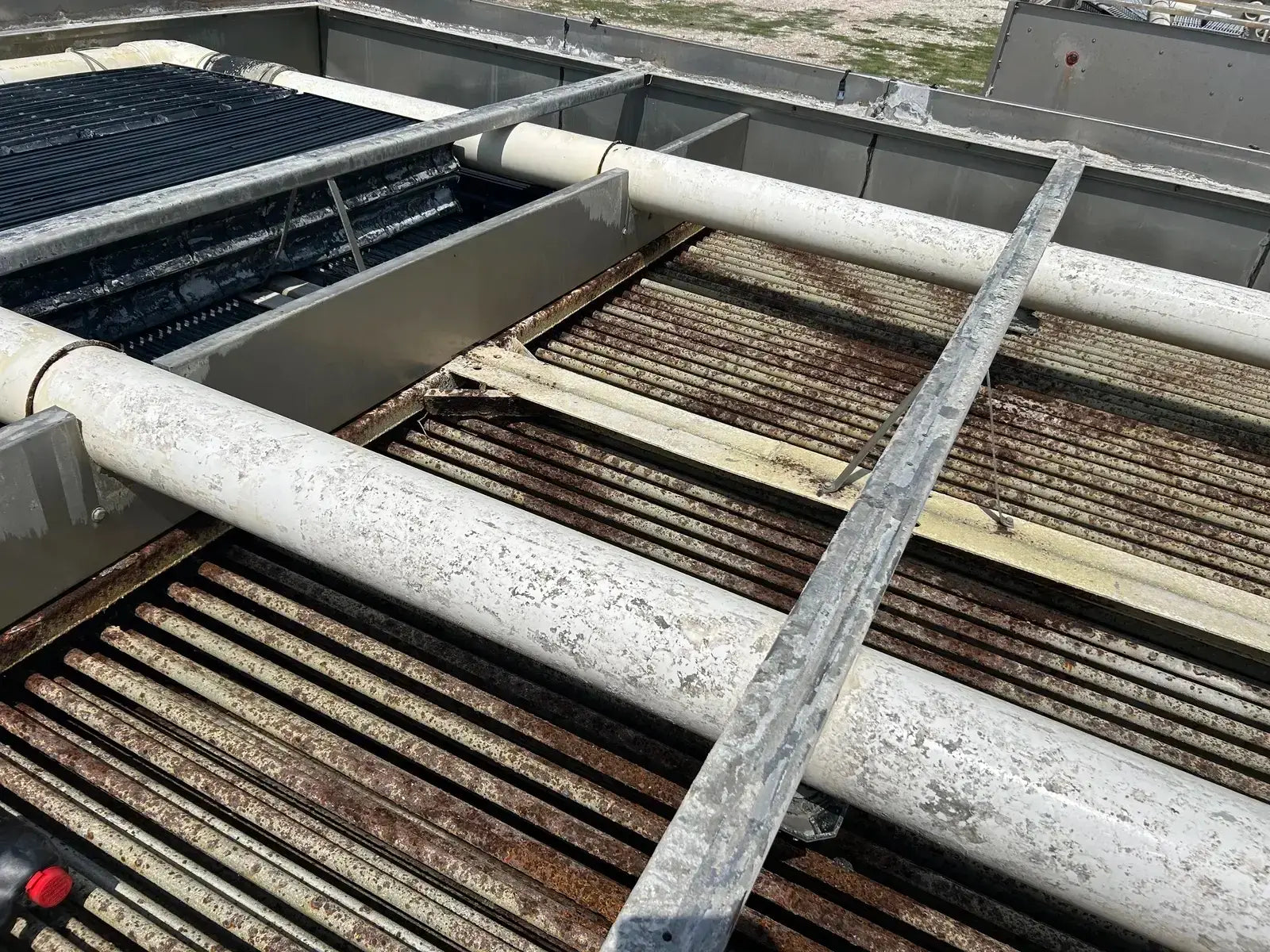

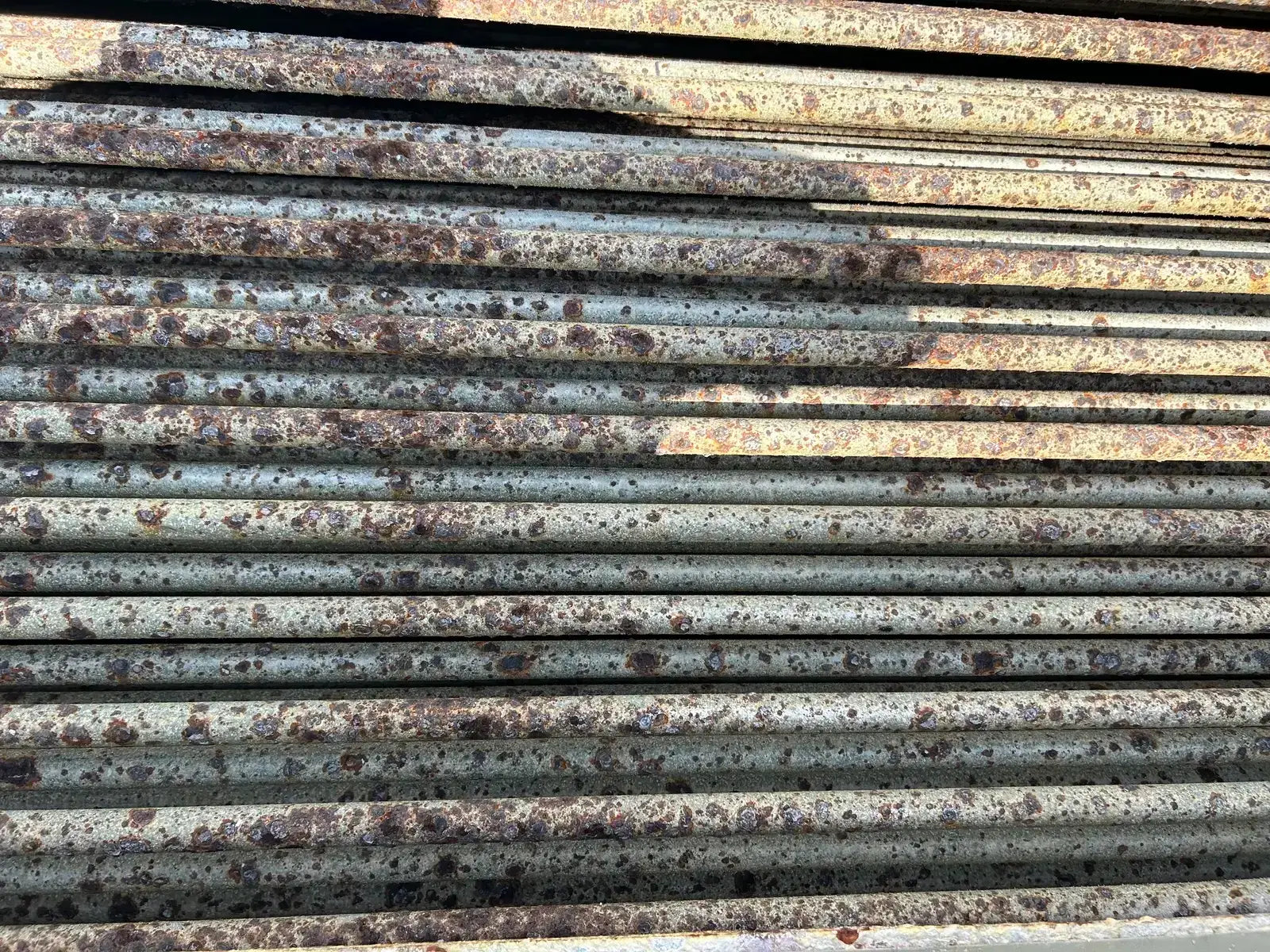

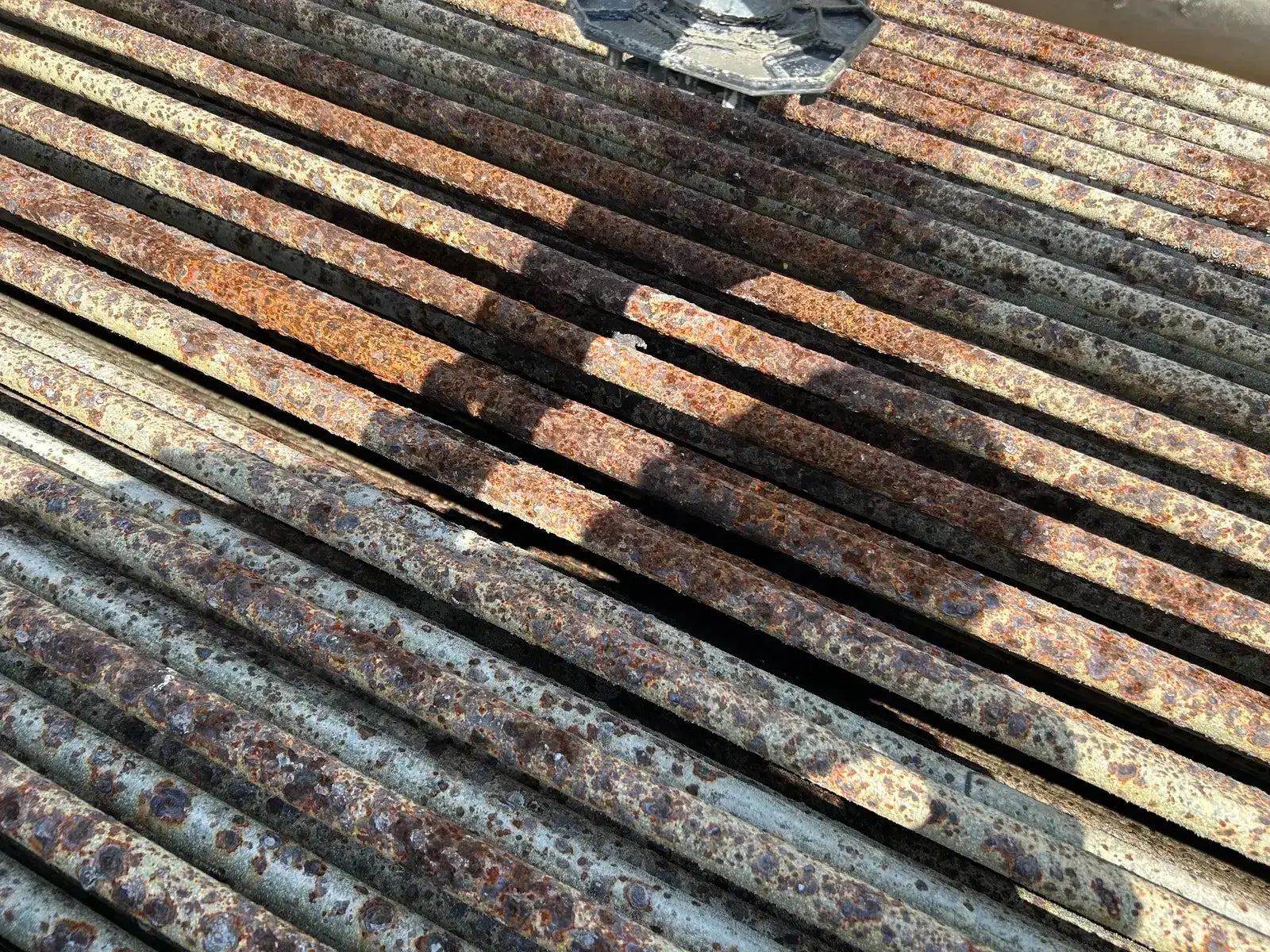

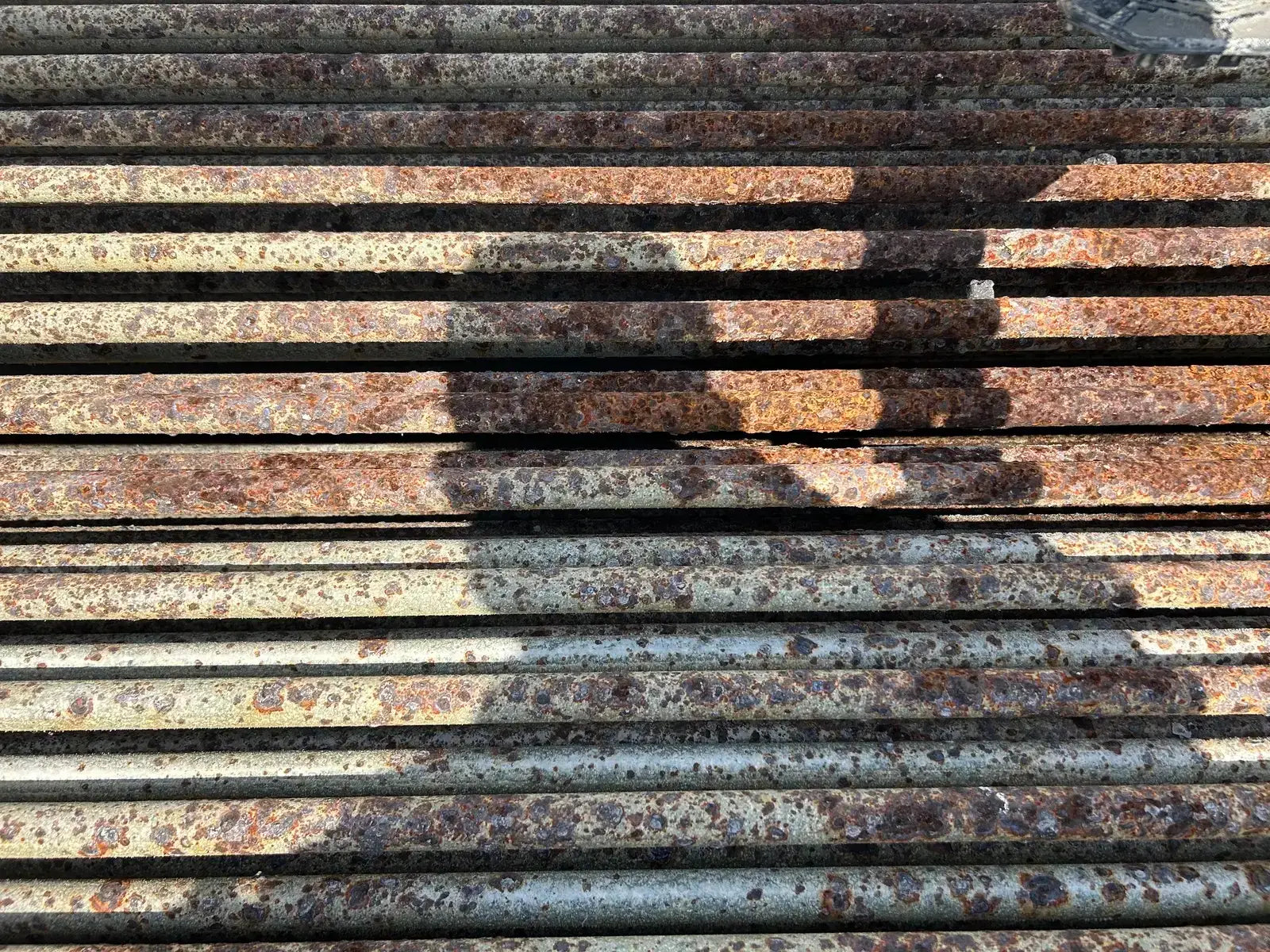

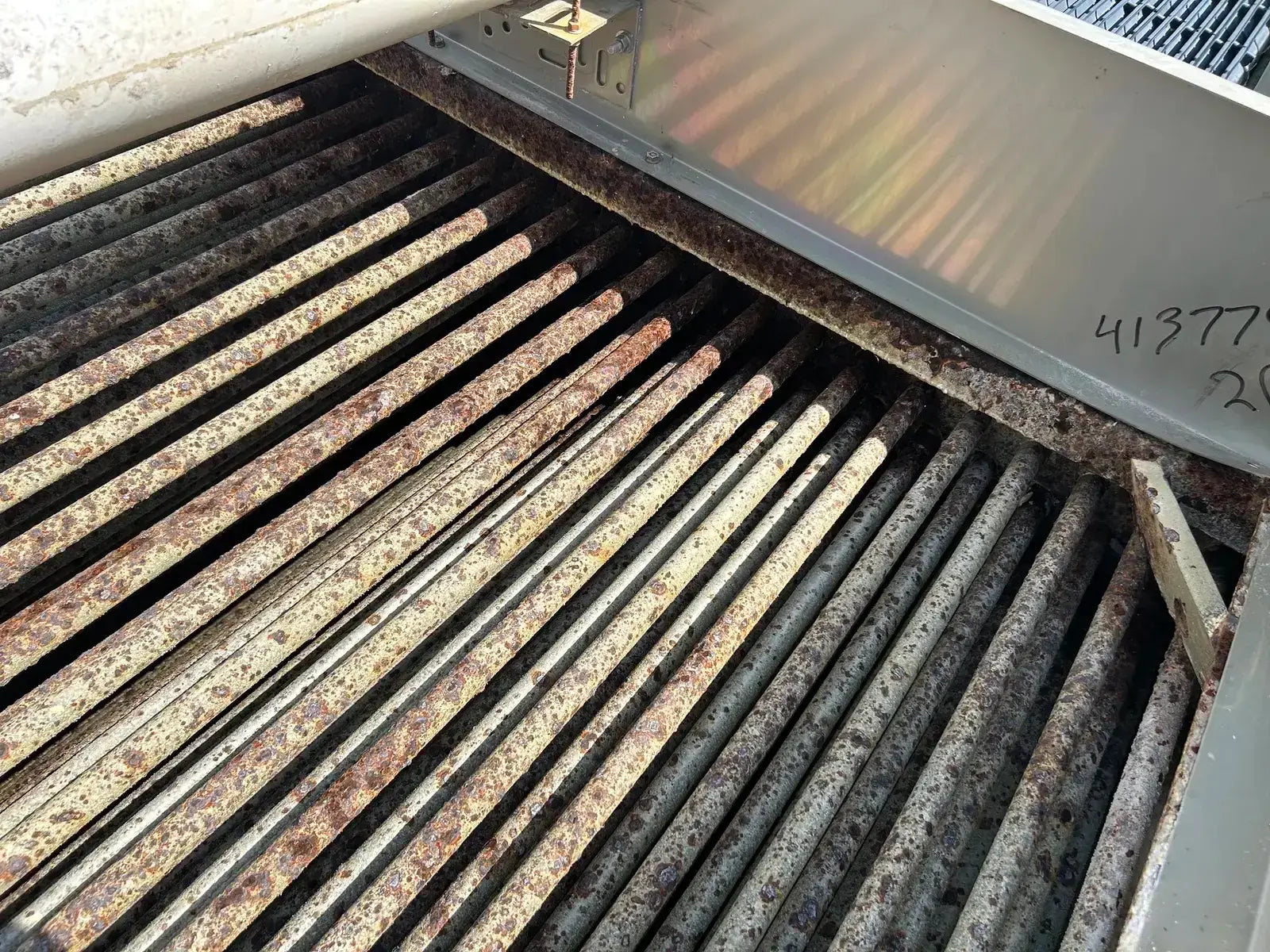

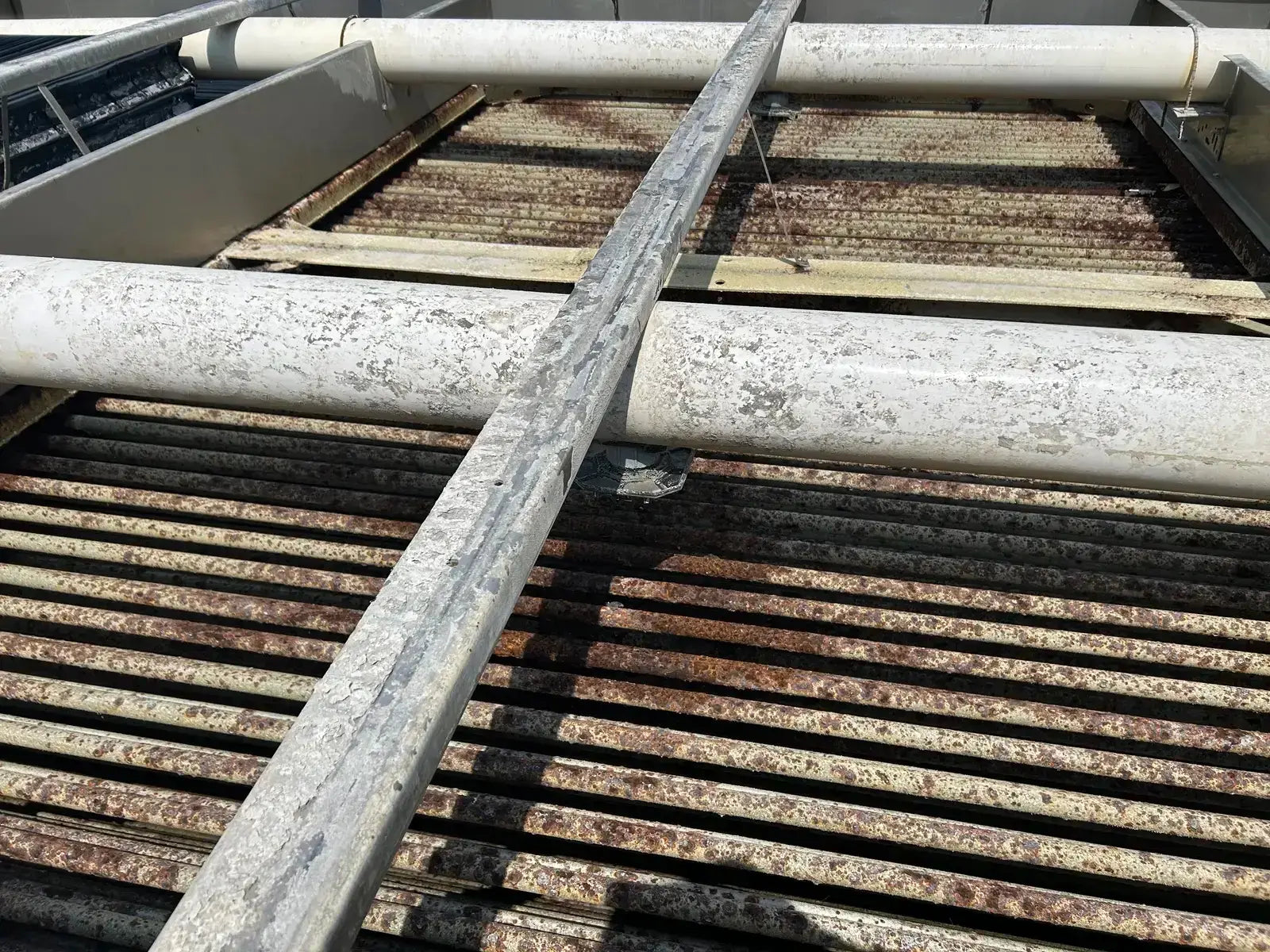

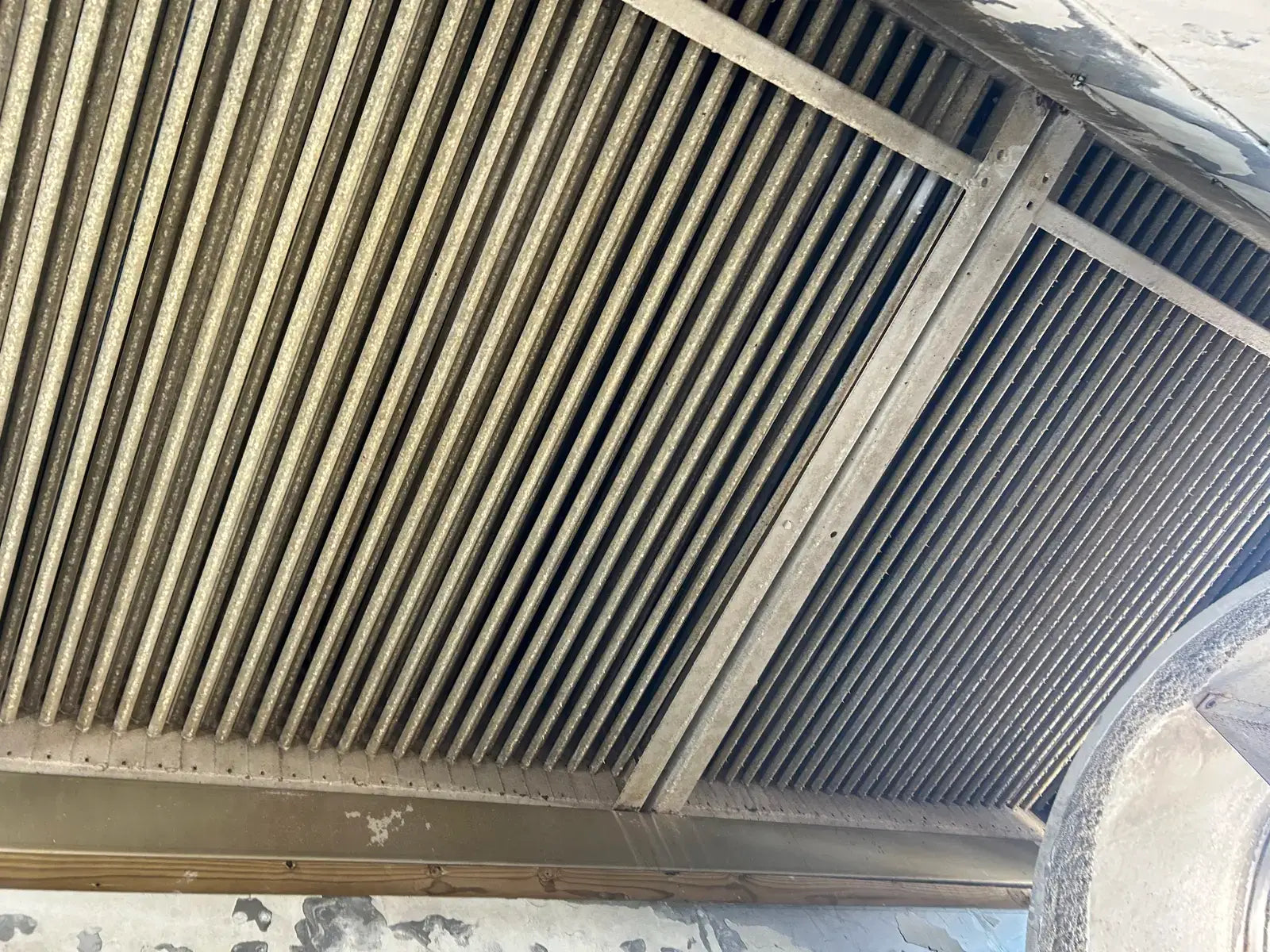

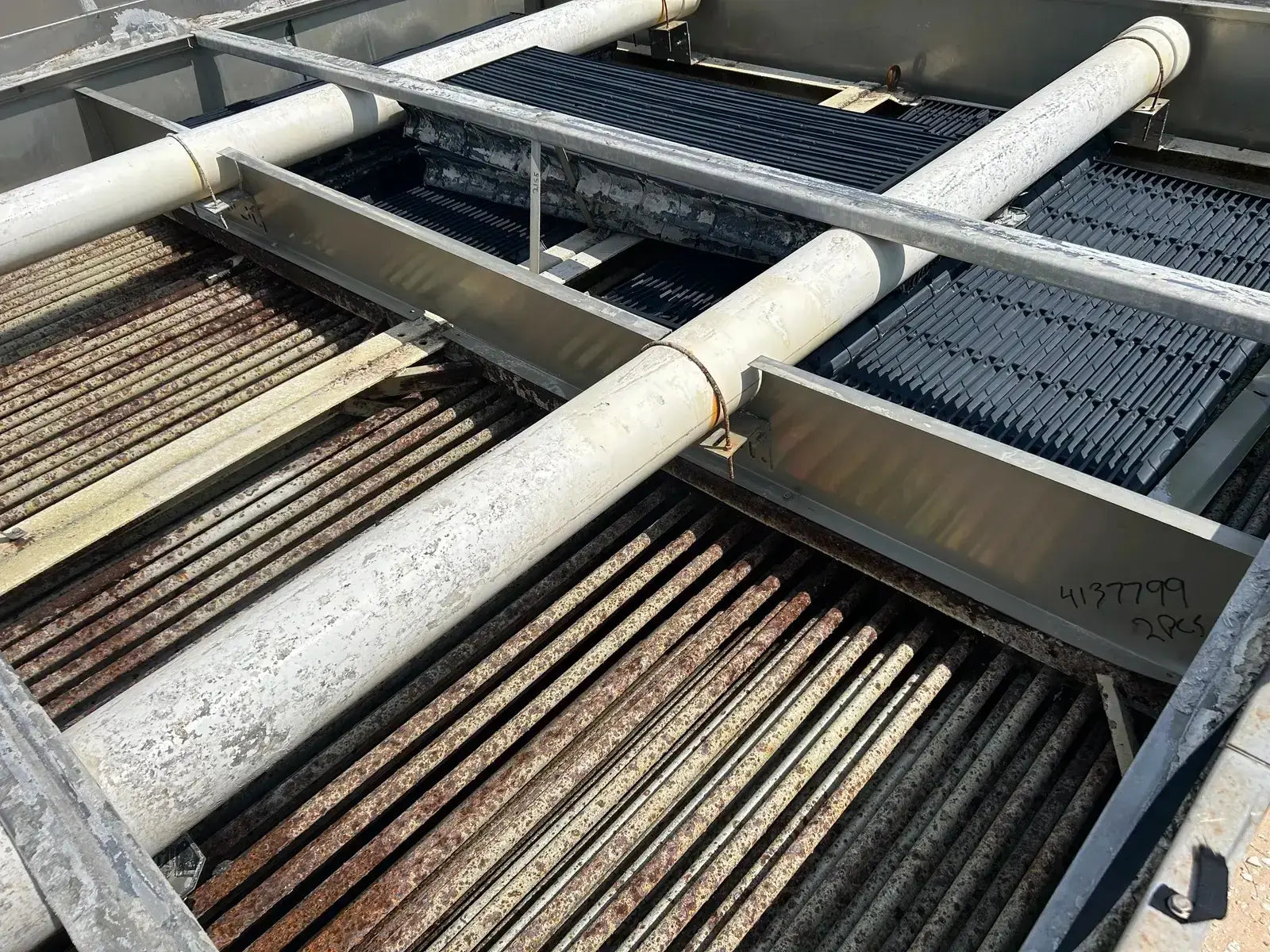

- Top Coil Condition Rating: Repair Required - Pressure Leaking
- Bottom Coil Condition Rating: Repair Required - Pressure Leaking
- Circuit 1 Pressure Rating: 100 PSI Air
- Circuit 2 Pressure Rating: Pending Test
Condenser Dimensions
- Top Length (Inches): 245
- Top Width (Inches): 142
- Top Height (Inches): 92
- Top Weight (LBS): 25,010
- Bottom Length (Inches): 265
- Bottom Width (Inches): 142
- Bottom Height (Inches): 102
- Bottom Weight (LBS): 8,130
Pump Details

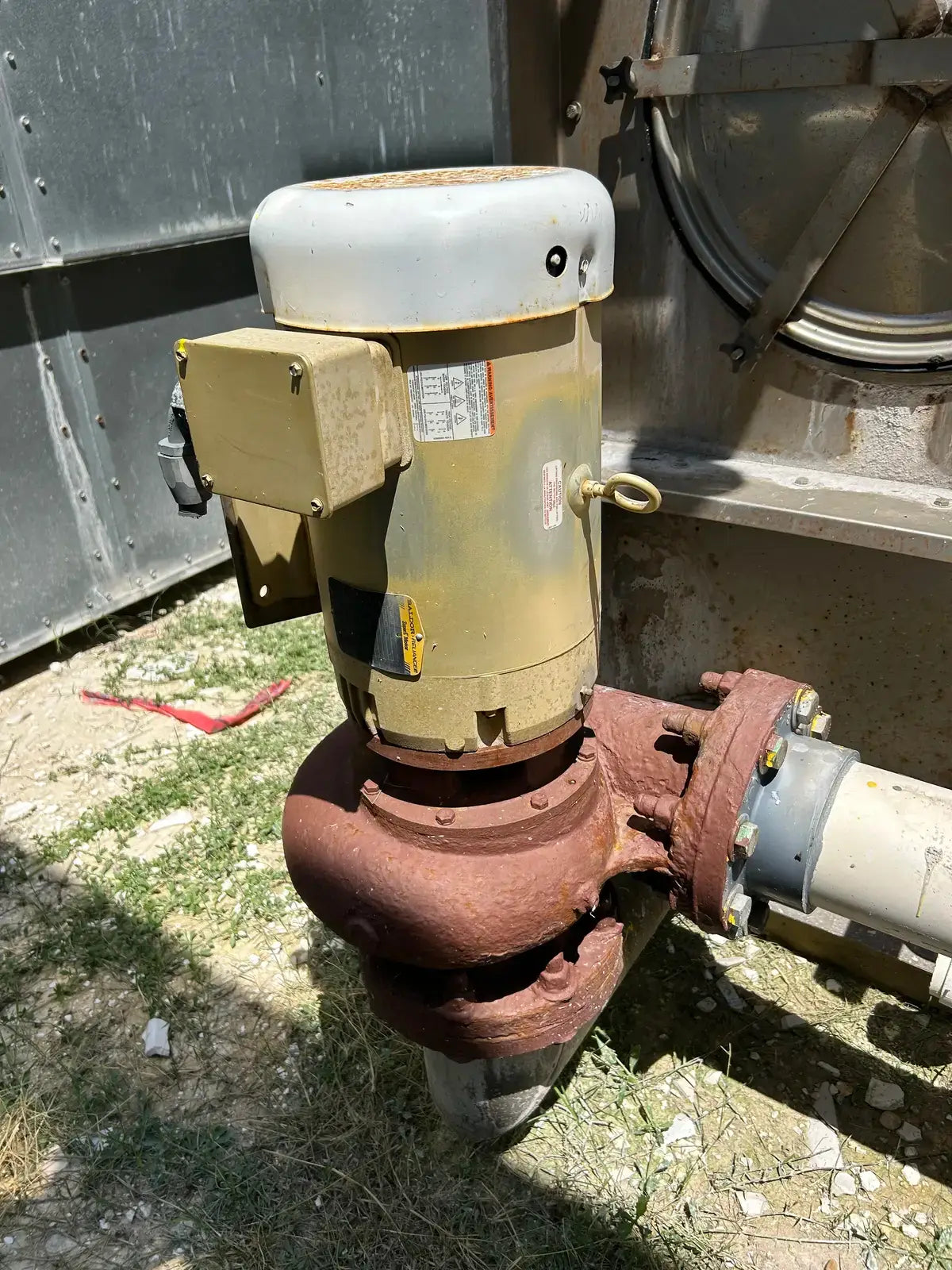

- Pump Included? Yes
- Pump Recommended HP: 7.5
- Pump Recommended Gallons per Minute (GPM): 1,050
Previous Refrigerant
- Previous Refrigerant: Ammonia (R-717)
- Ammonia (R-717) Compatiable: Yes

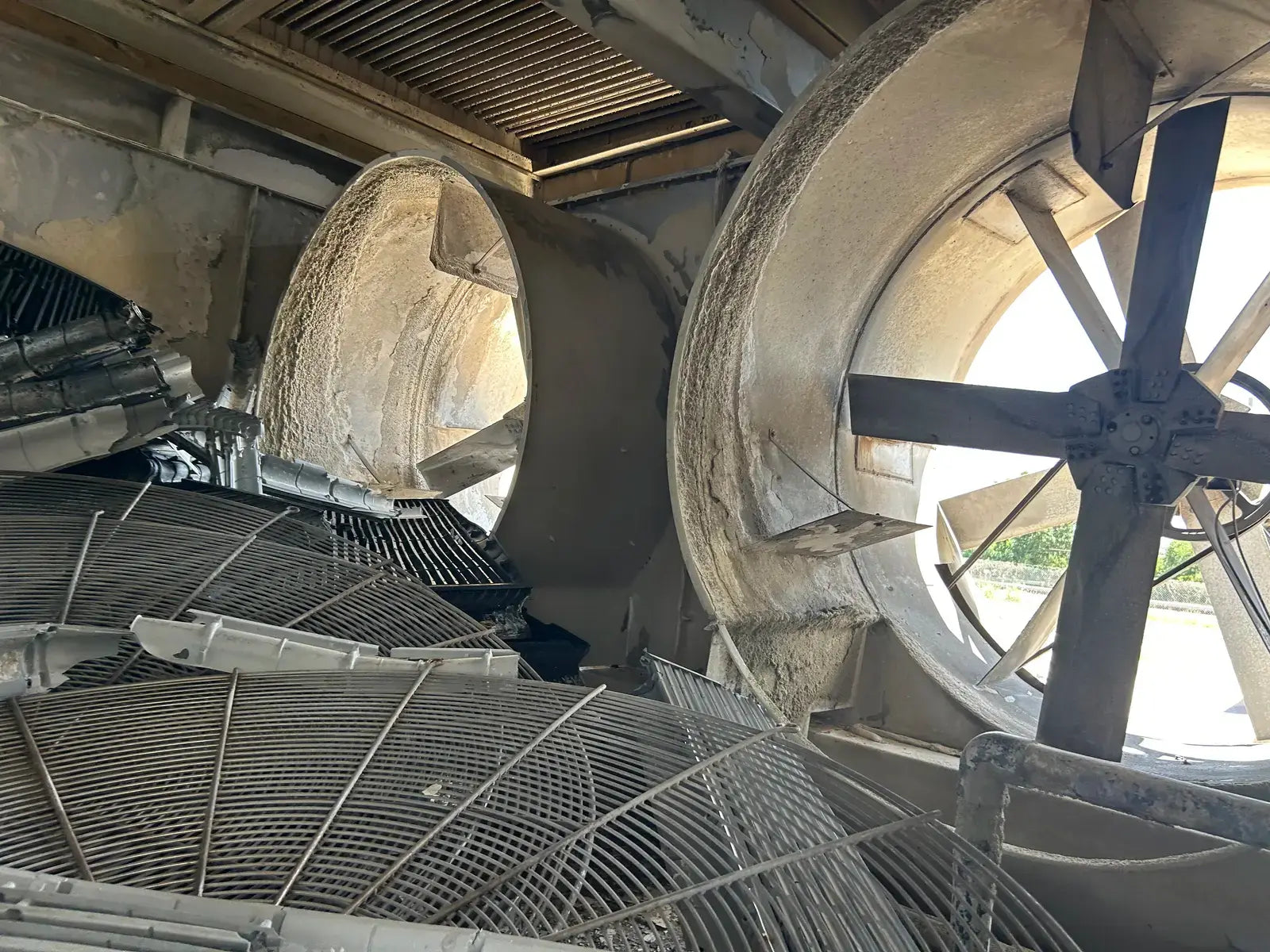

Motor Details
- Motor Included? Yes
- # Motors: 3

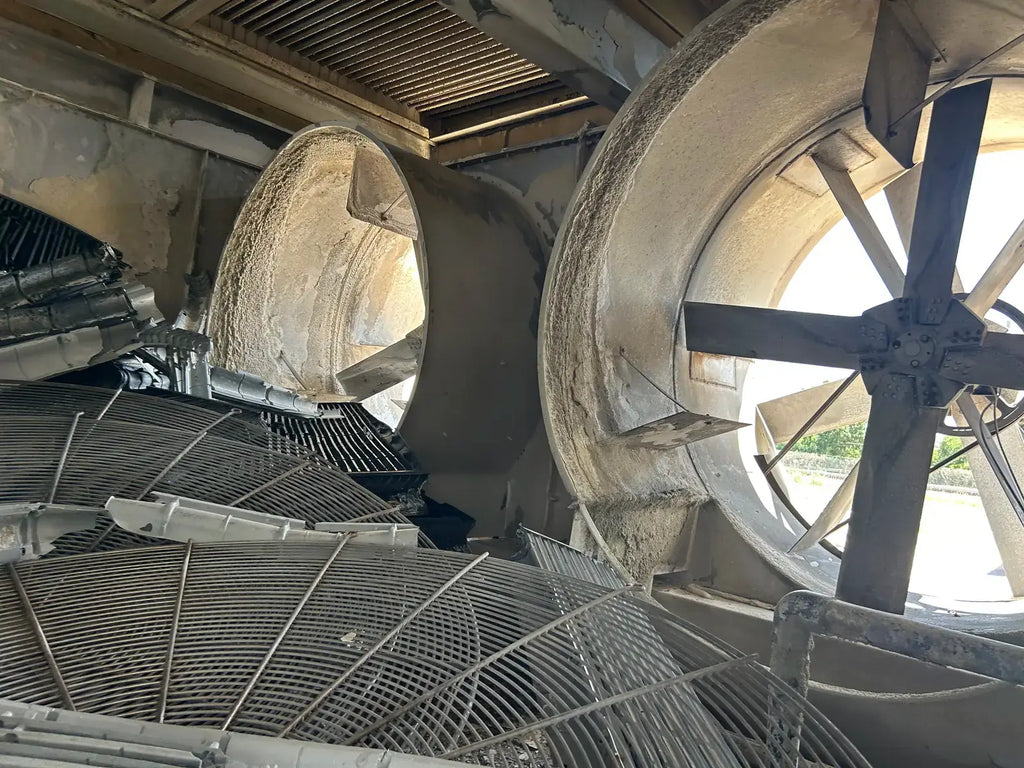

- If Multiple Motors, Motor Descriptions vs specs: (2) Fan Motors - 30 Hp & 15 Hp, 230/460 Volt, 3 Ph, 60 Hz. (1) Spray Pump - 7.5 Hp, 230/460 Volt, 3 Ph, 60 Hz.
Dimensions:
- Length (Inches): 245
- Width (Inches): 142
- Height (Inches): 192
- Weight (LBS): 3,140
- # of Pieces for Shipping: 2
Additional Product Details
- Year of Manufacture: 1997
- Year Removed from Production: 2025
- Spec Sheet Available: Yes
