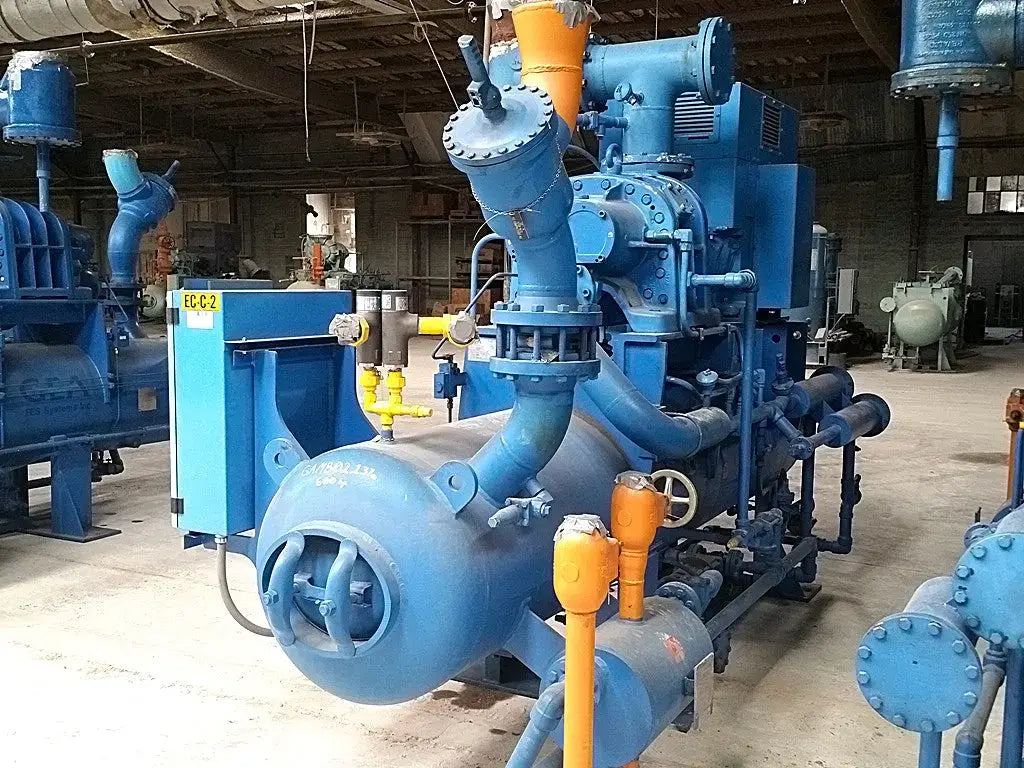

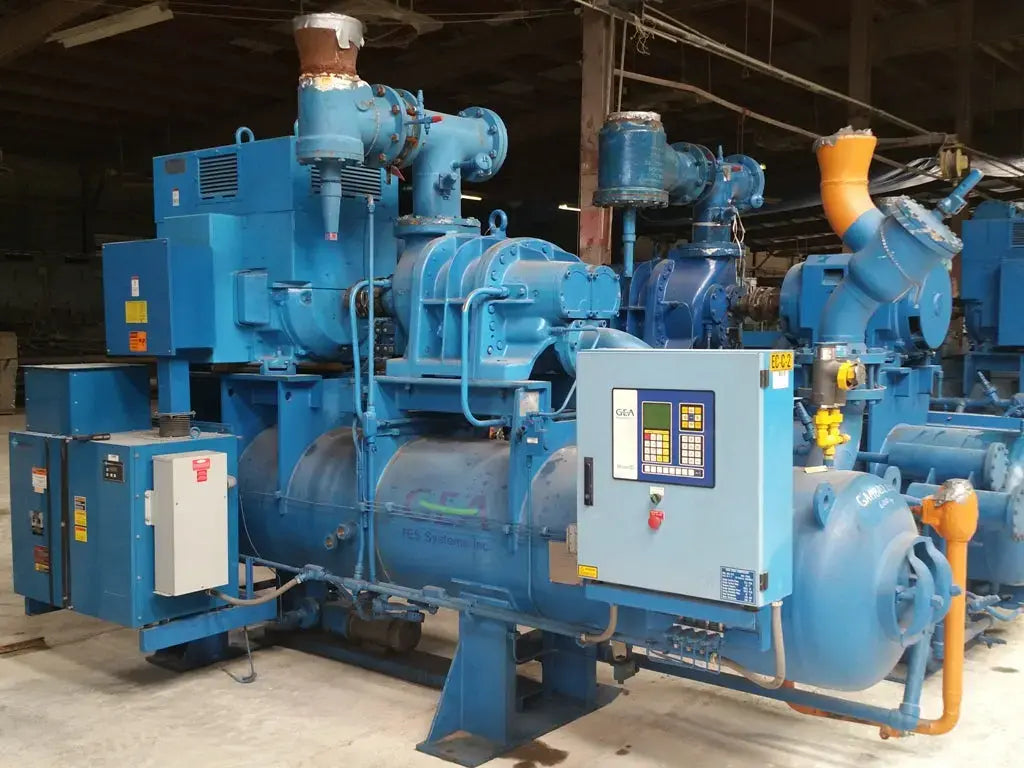

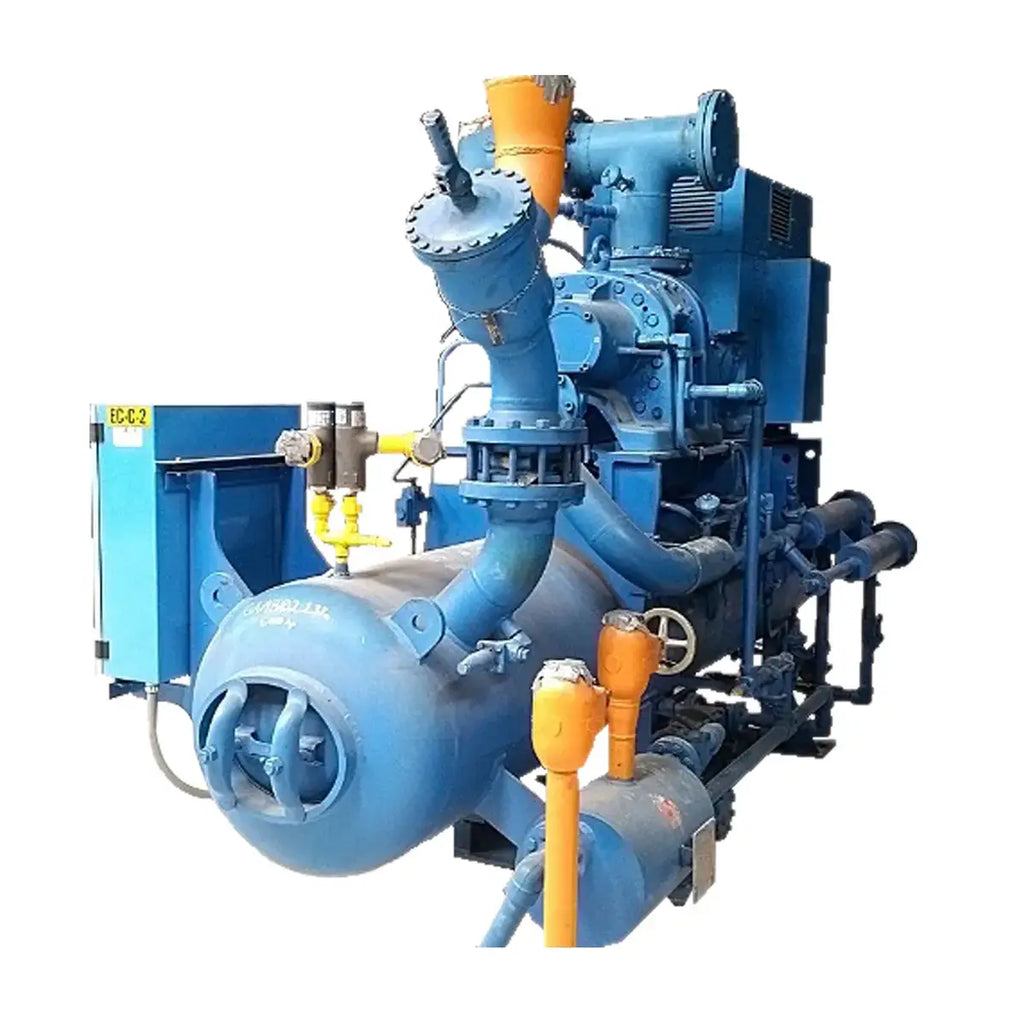

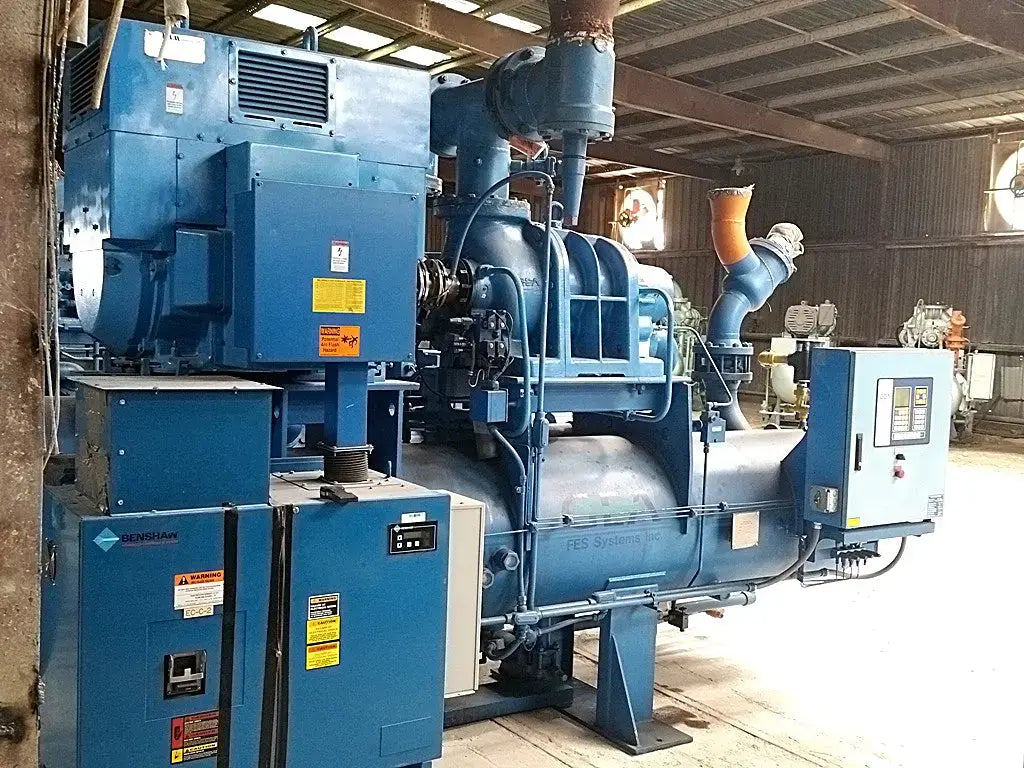

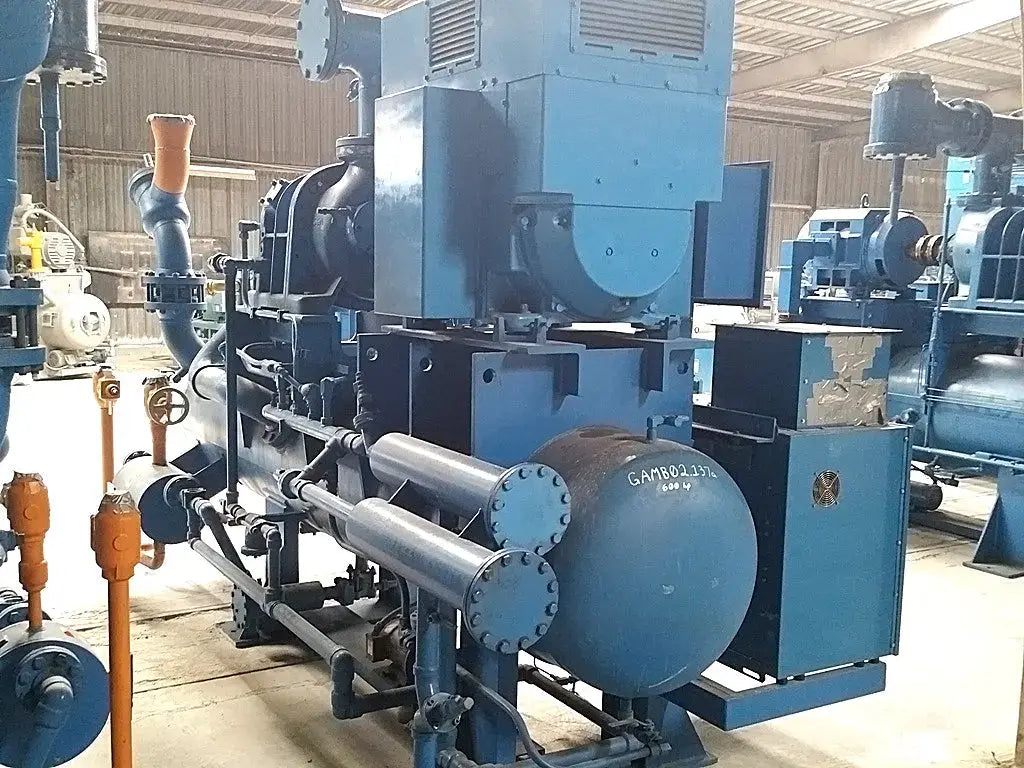

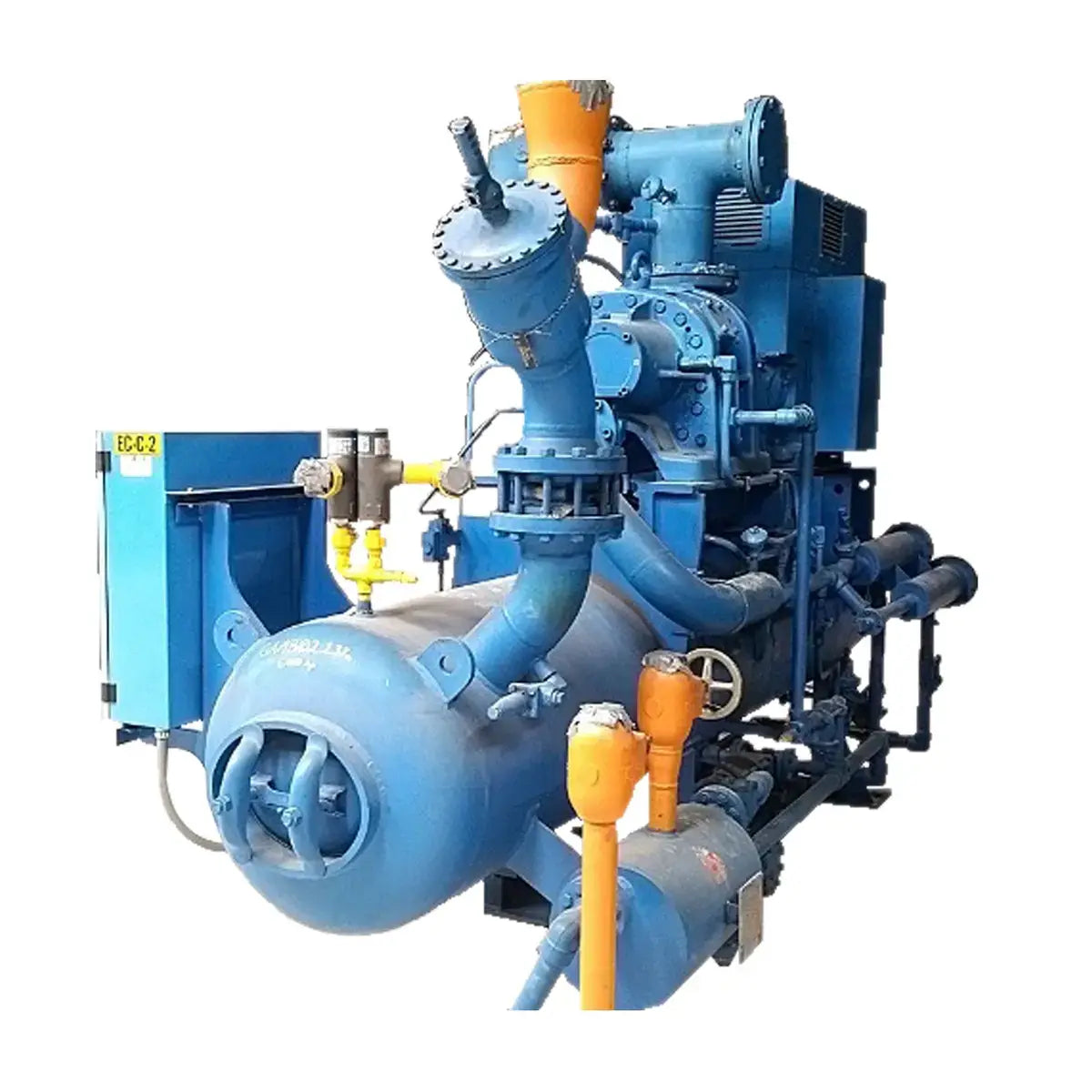

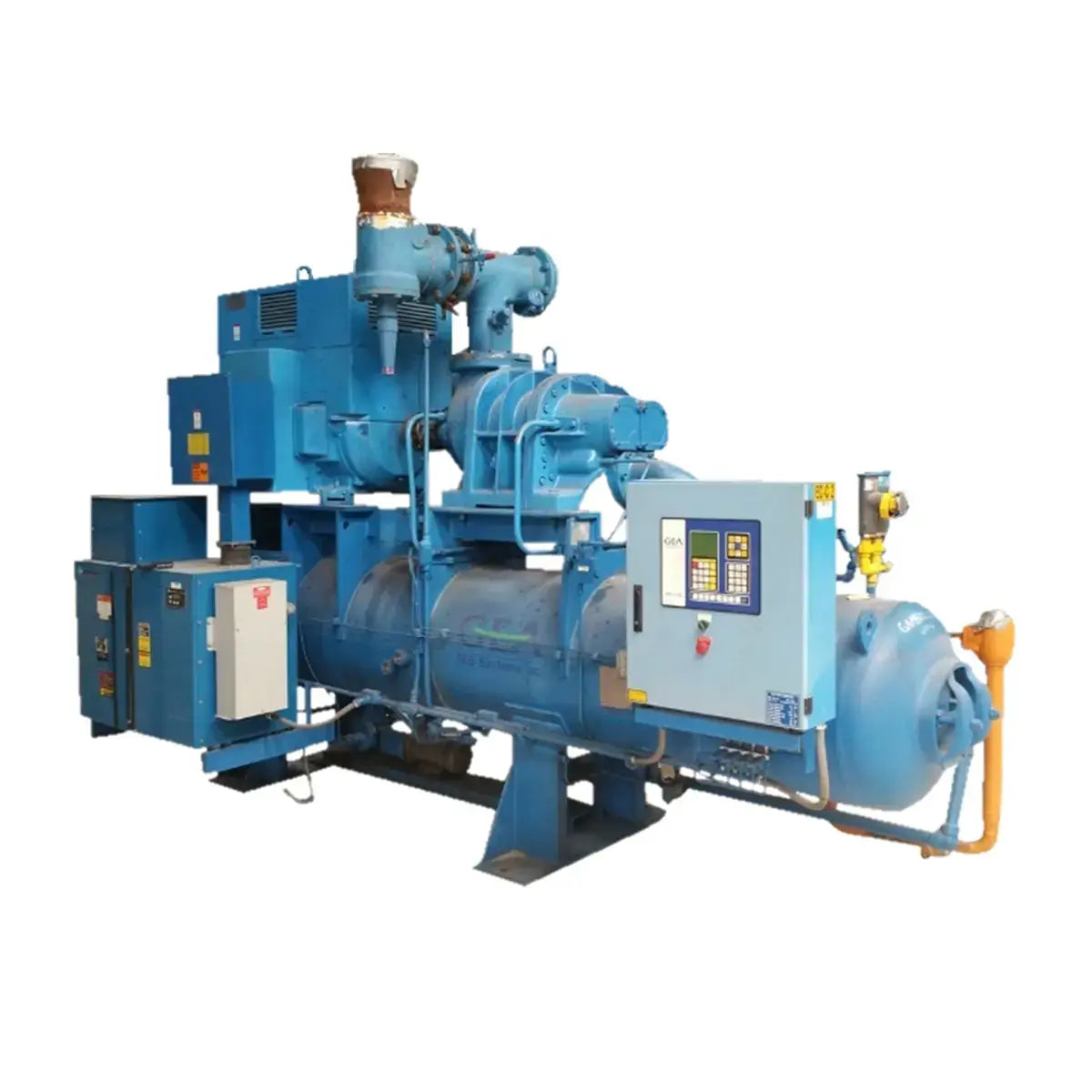

GEA 475GL Rotary Screw Compressor Package (GEA W-52, 600 HP, 460 Volt)

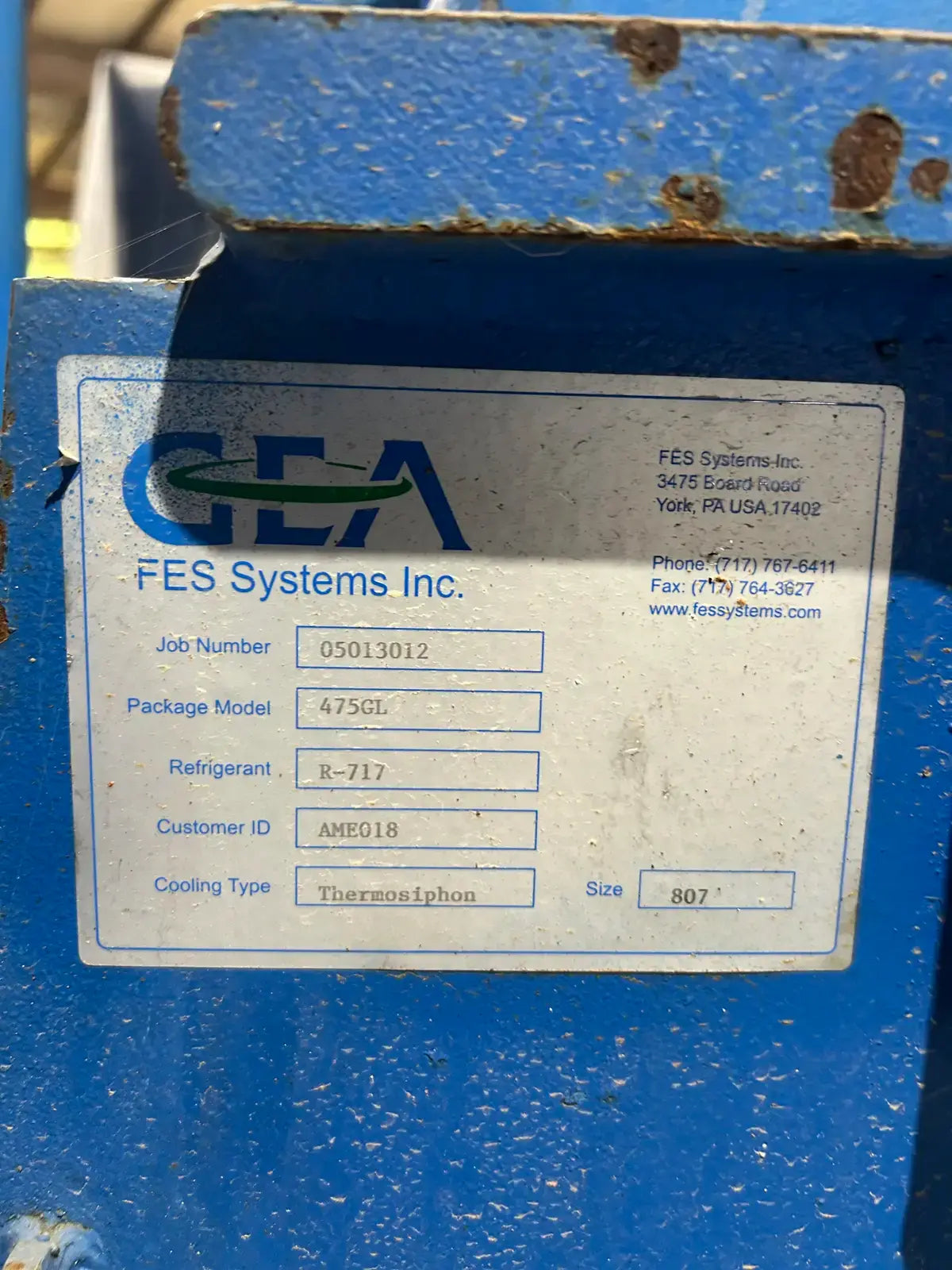

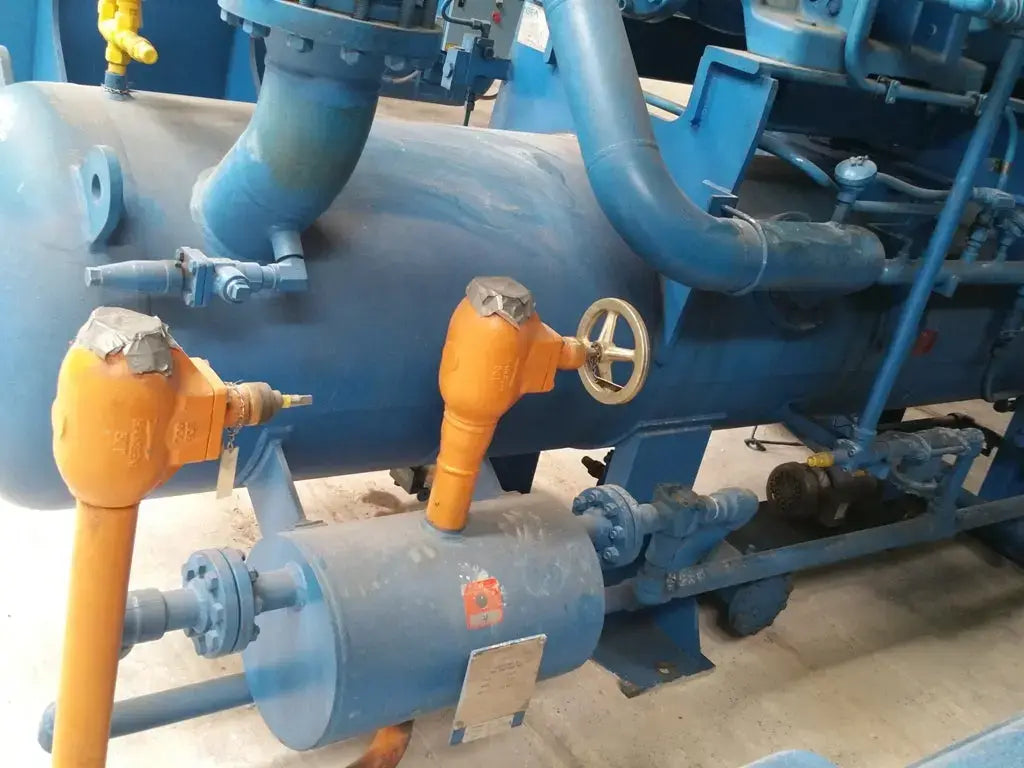

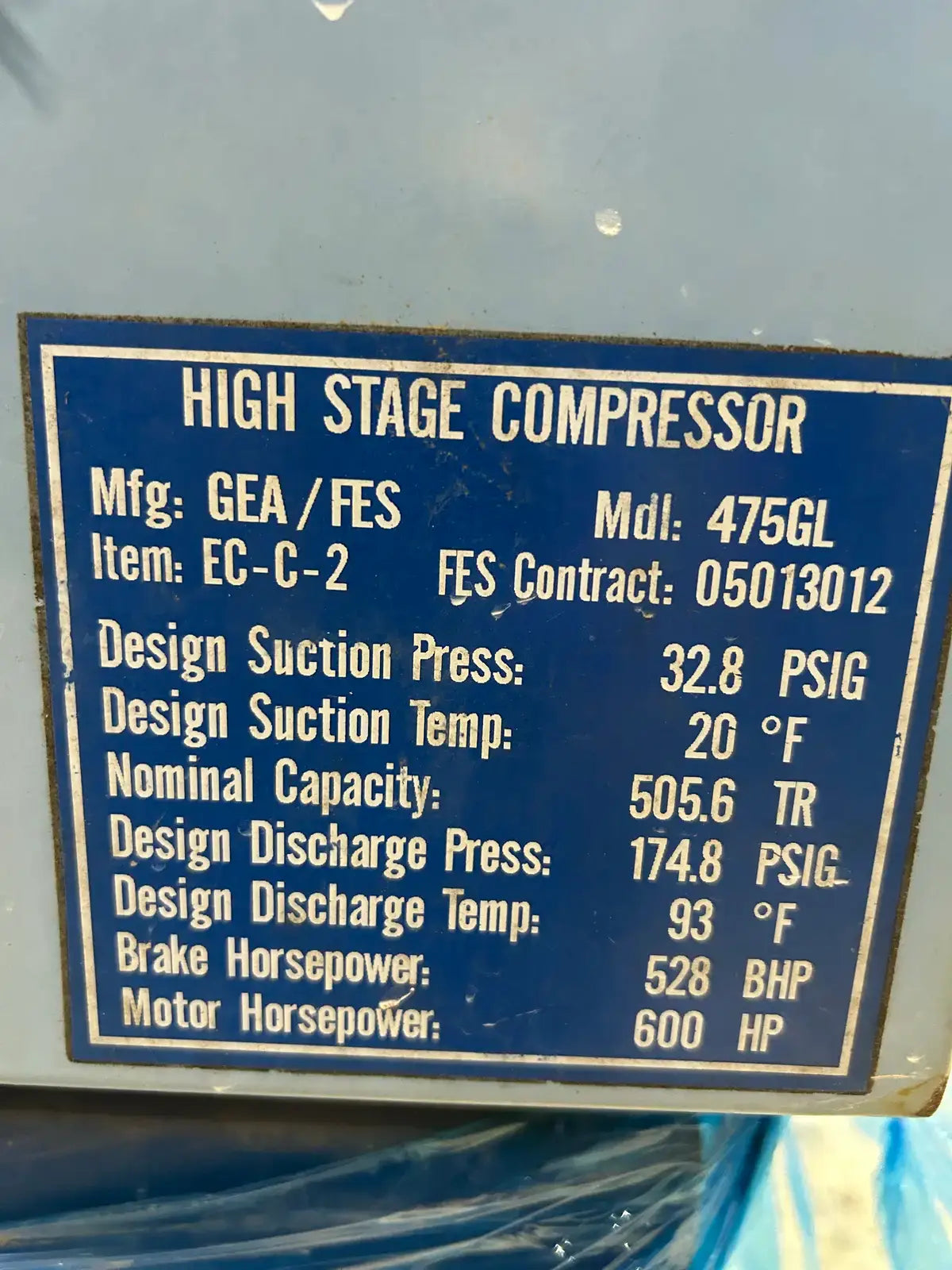

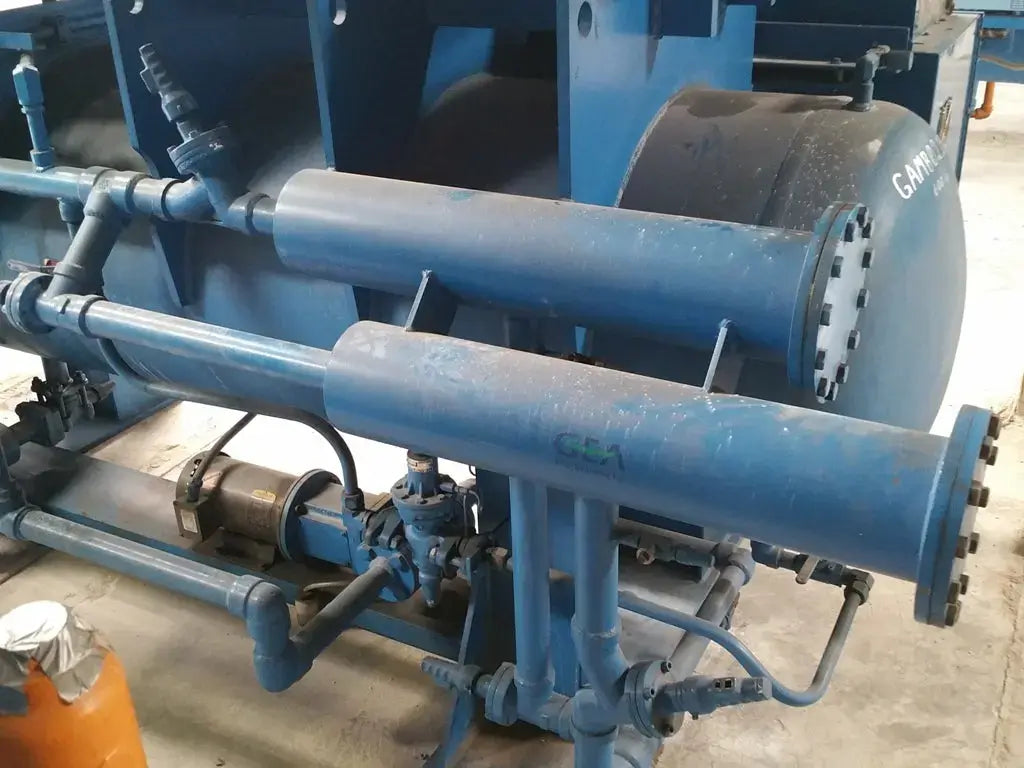

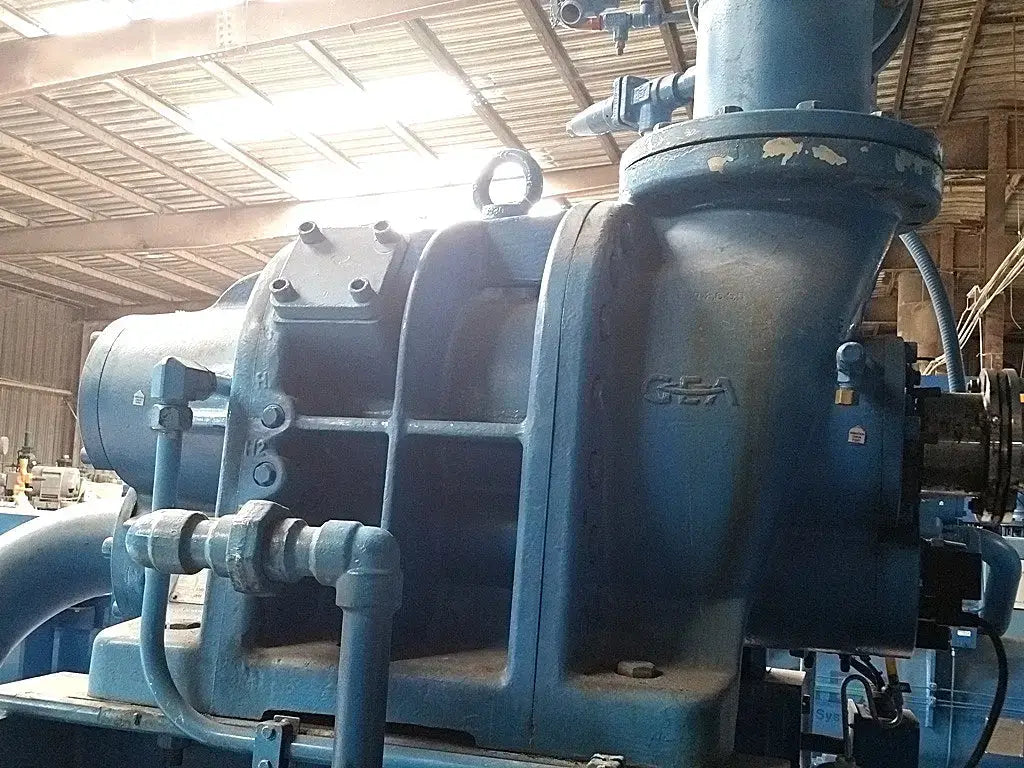

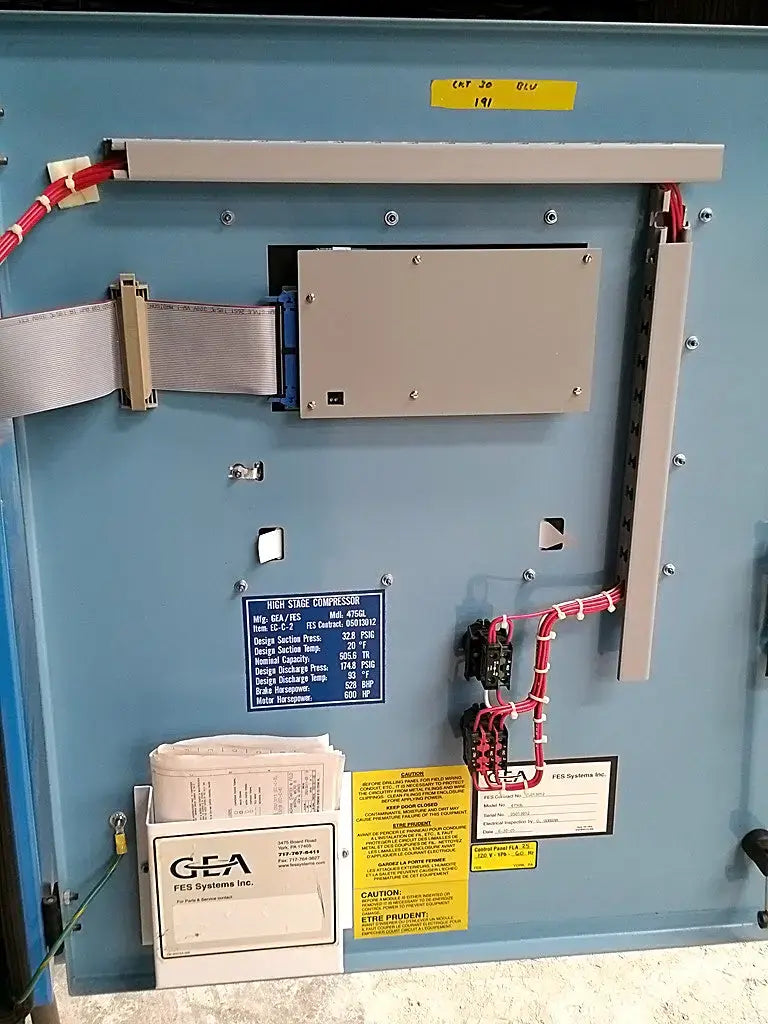

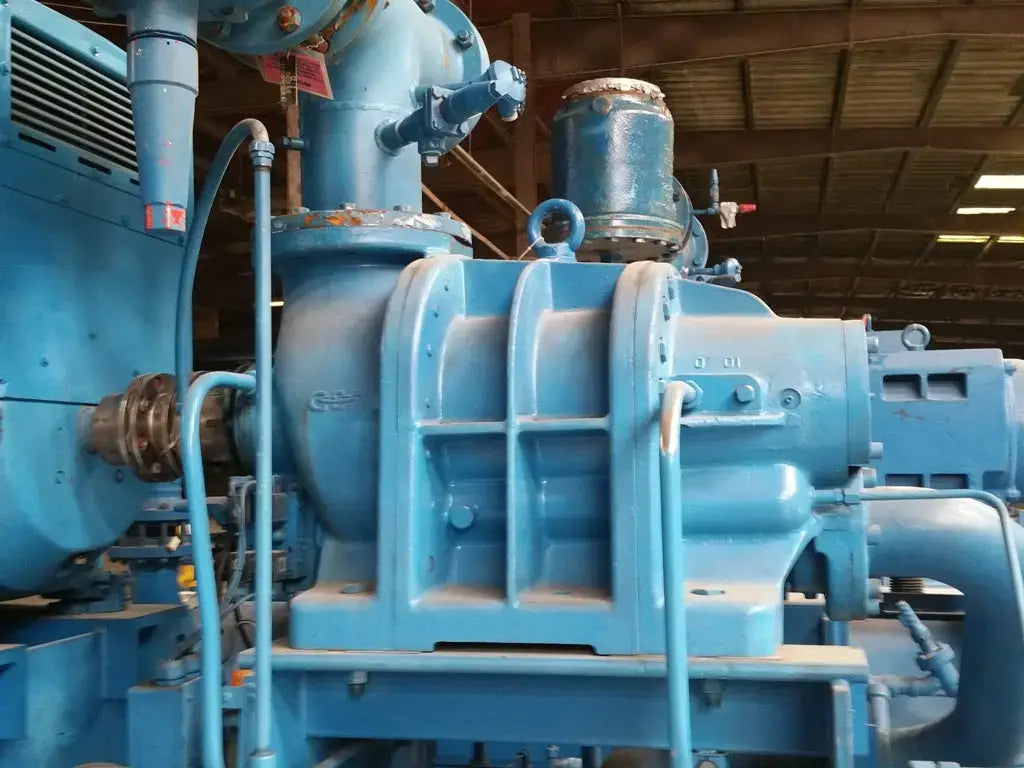

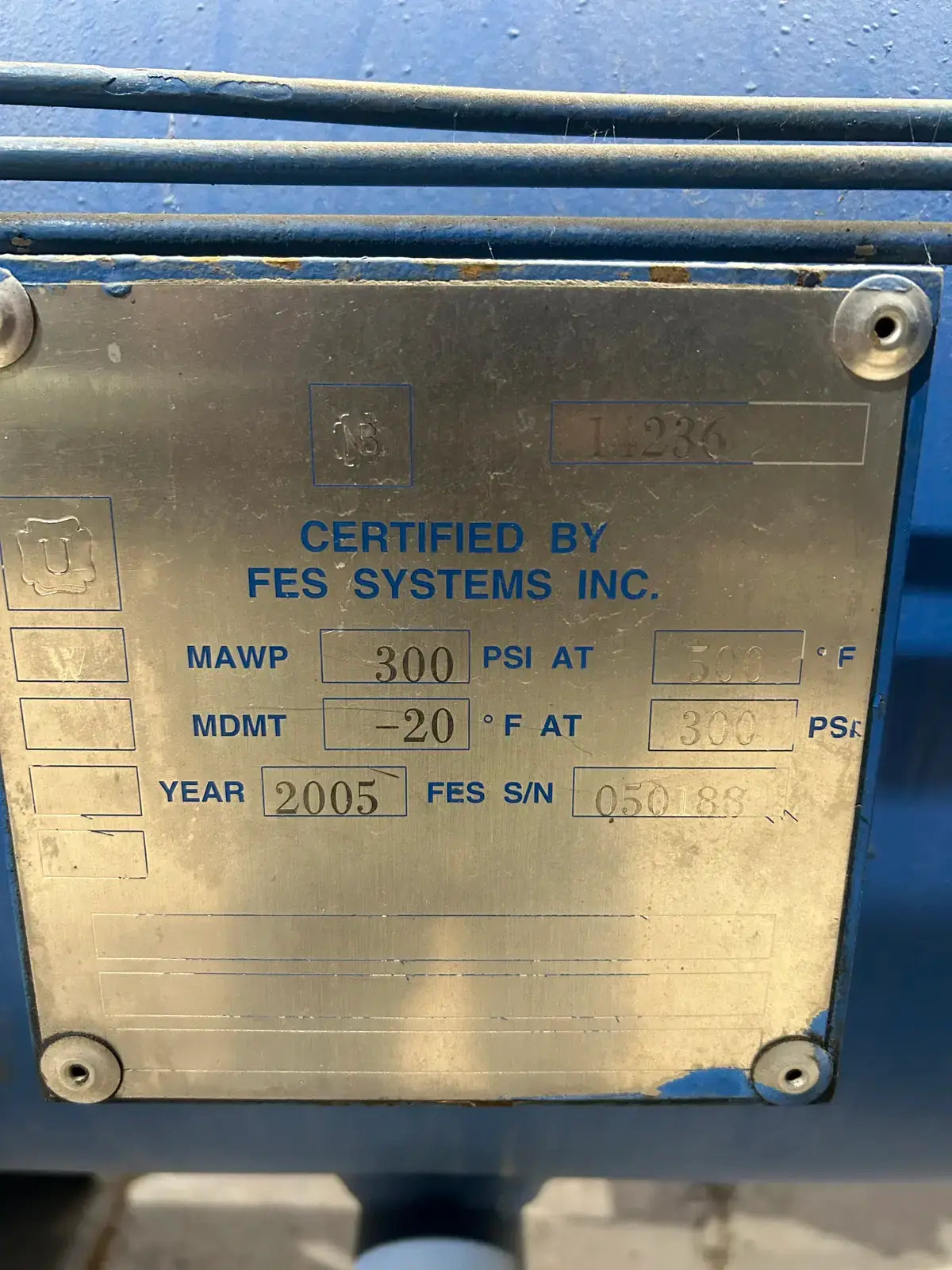

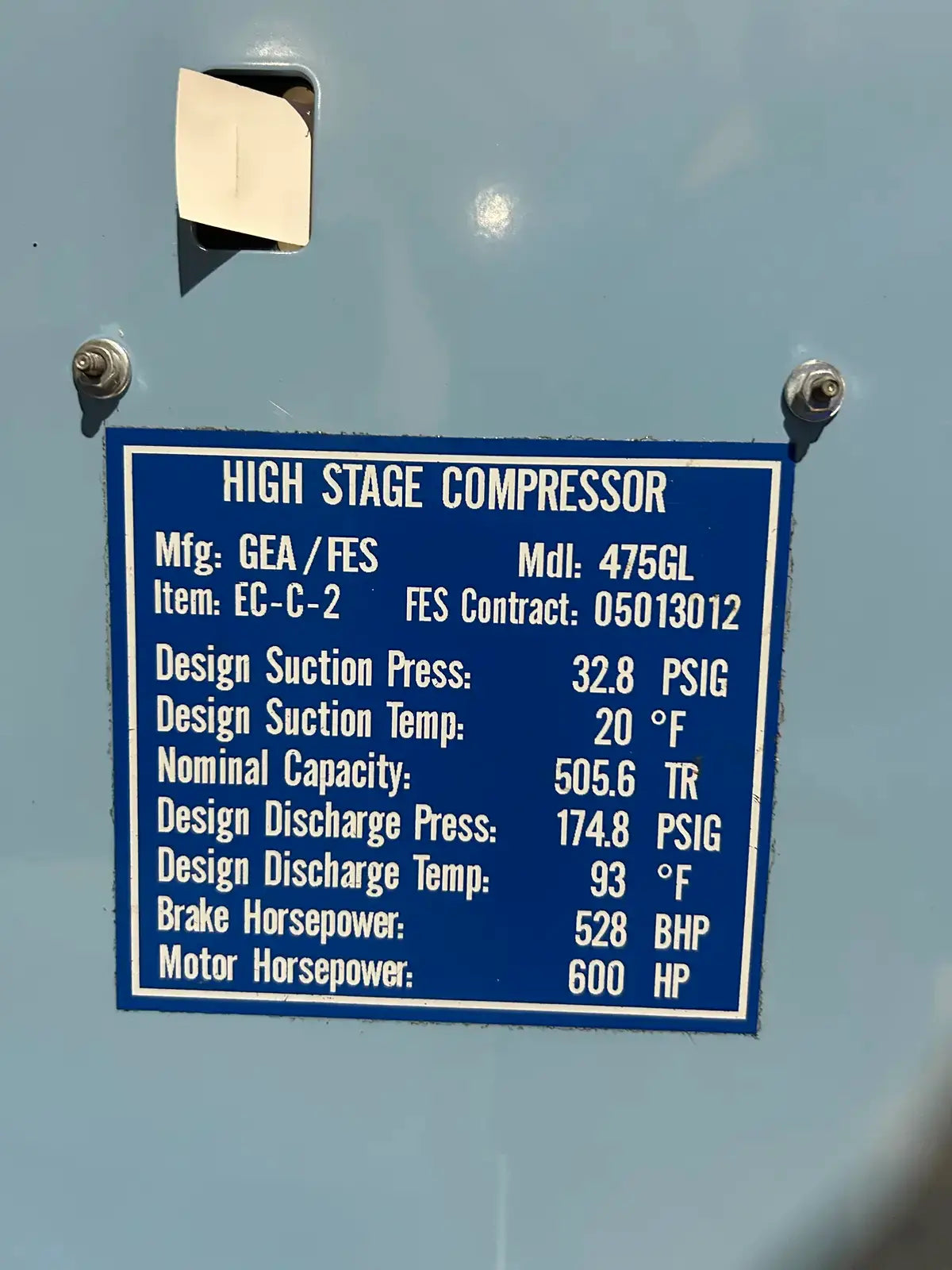

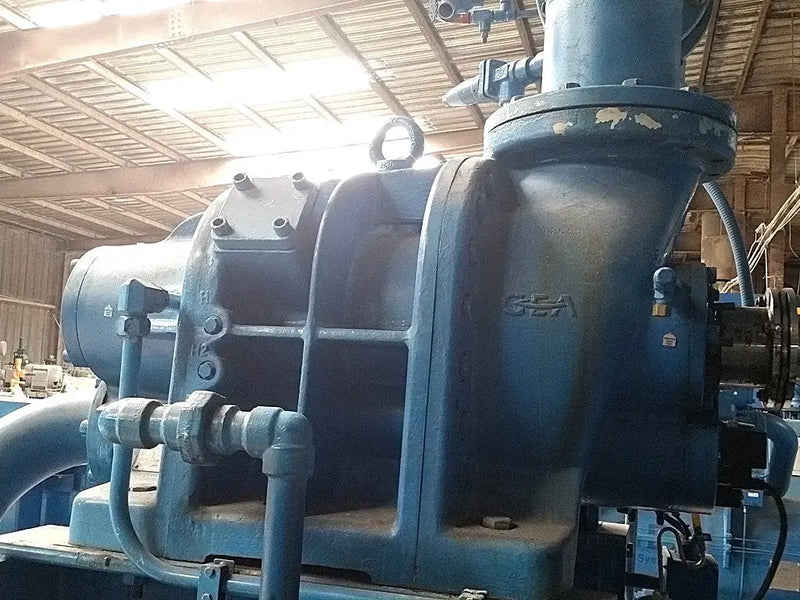

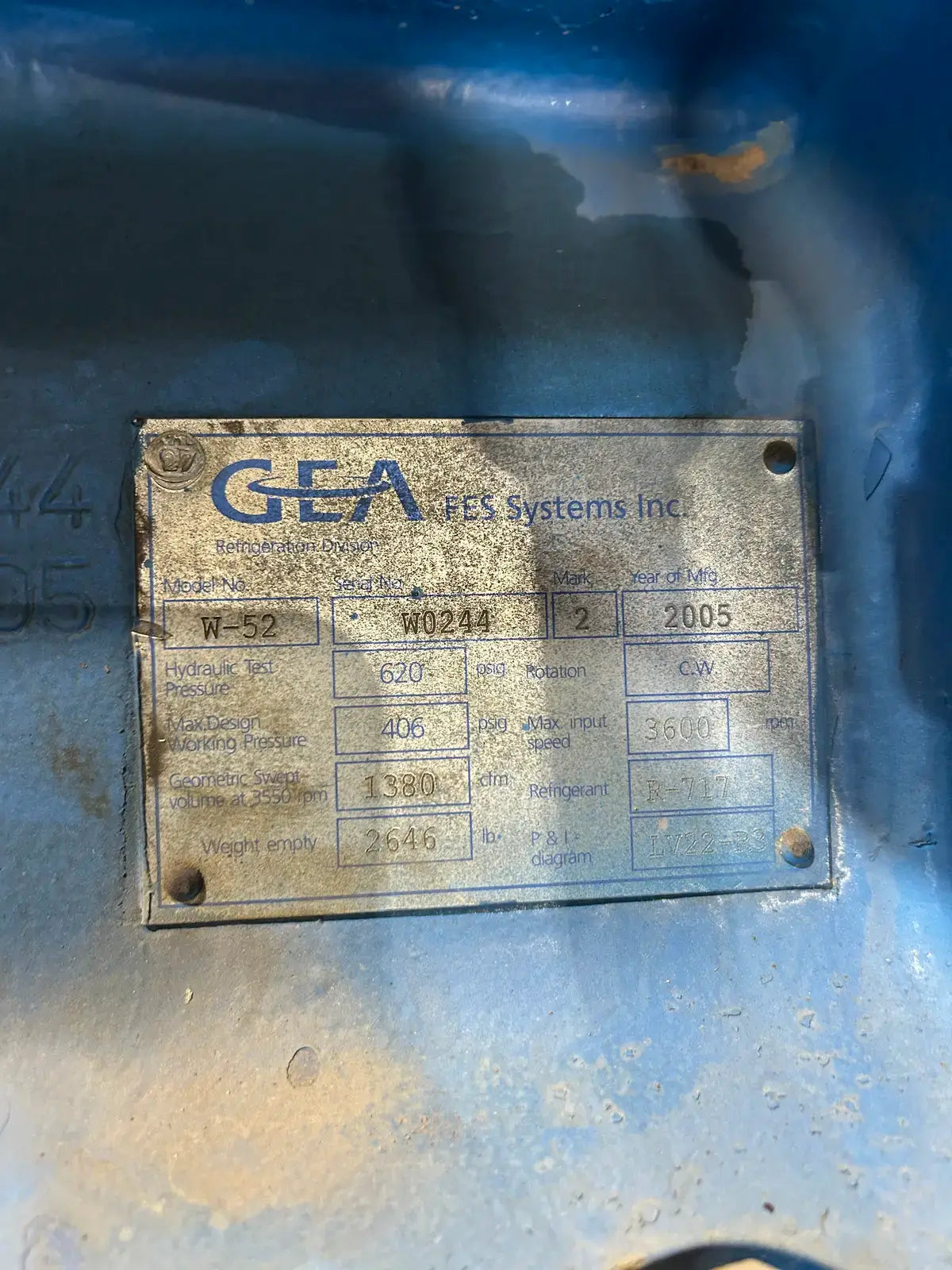

GEA/FES High Stage Rotary Screw Compressor Package. Package Model: 475GL, Serial No: 05013012. Design Suction Pressure: 32.8 PSIG. Nominal Capacity: 505.6 TR. Design Discharge Temperature: 93 F. Design Suction Temperature: 20 F. GEA Bare Screw Compressor: Model: W-52, Serial No: W0244, Max RPM: 3600, Max Design Working Pressure: 406 PSIG. Certified By FES Systems Oil Separator: MAWP: 300 PSI @ 500 F, MDMT: -20 F @ 300 PSI, National Board: 14236.
Product Details

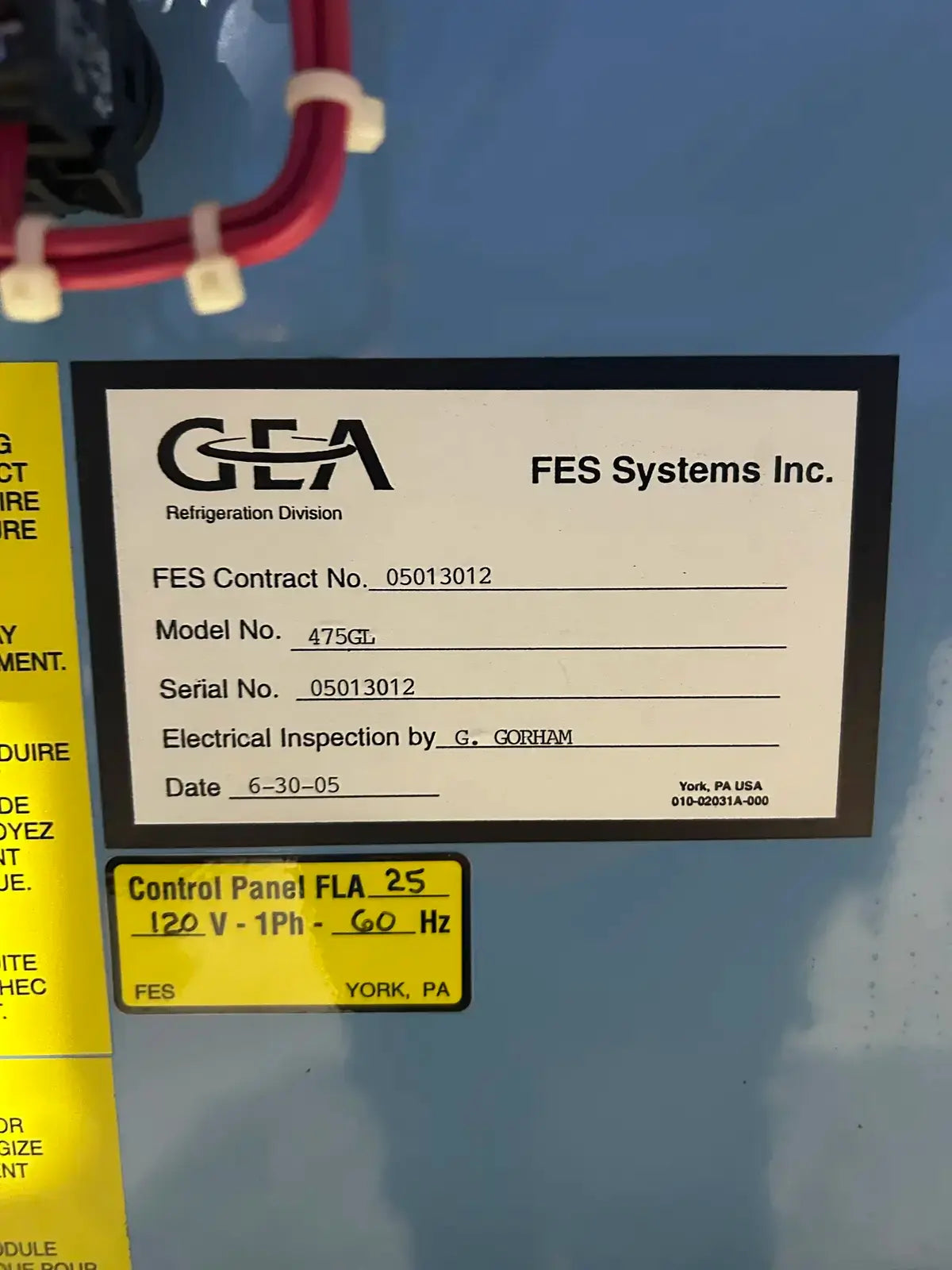

- Stock No: GAMB02.137a
- Manufacturer: GEA
- Model: 475GL
- Serial Number: 05013012
Previous Refrigerant
- Ammonia (R-717) Compatiable: Yes
- Halocarbon (Freon) Compatible: Yes

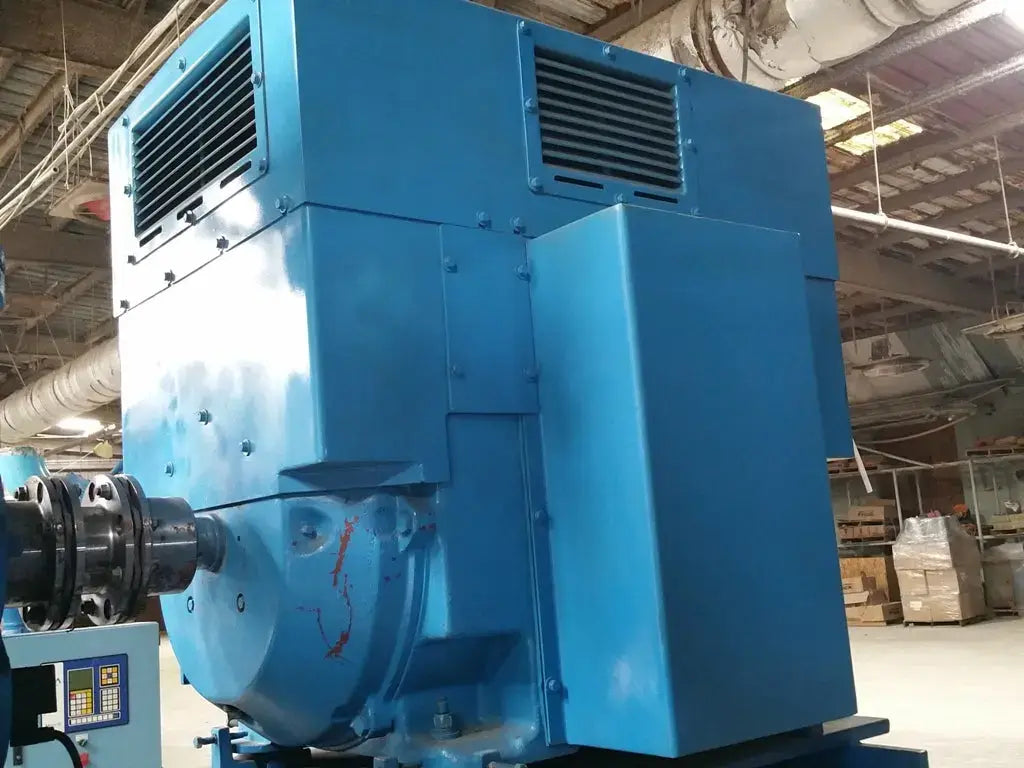

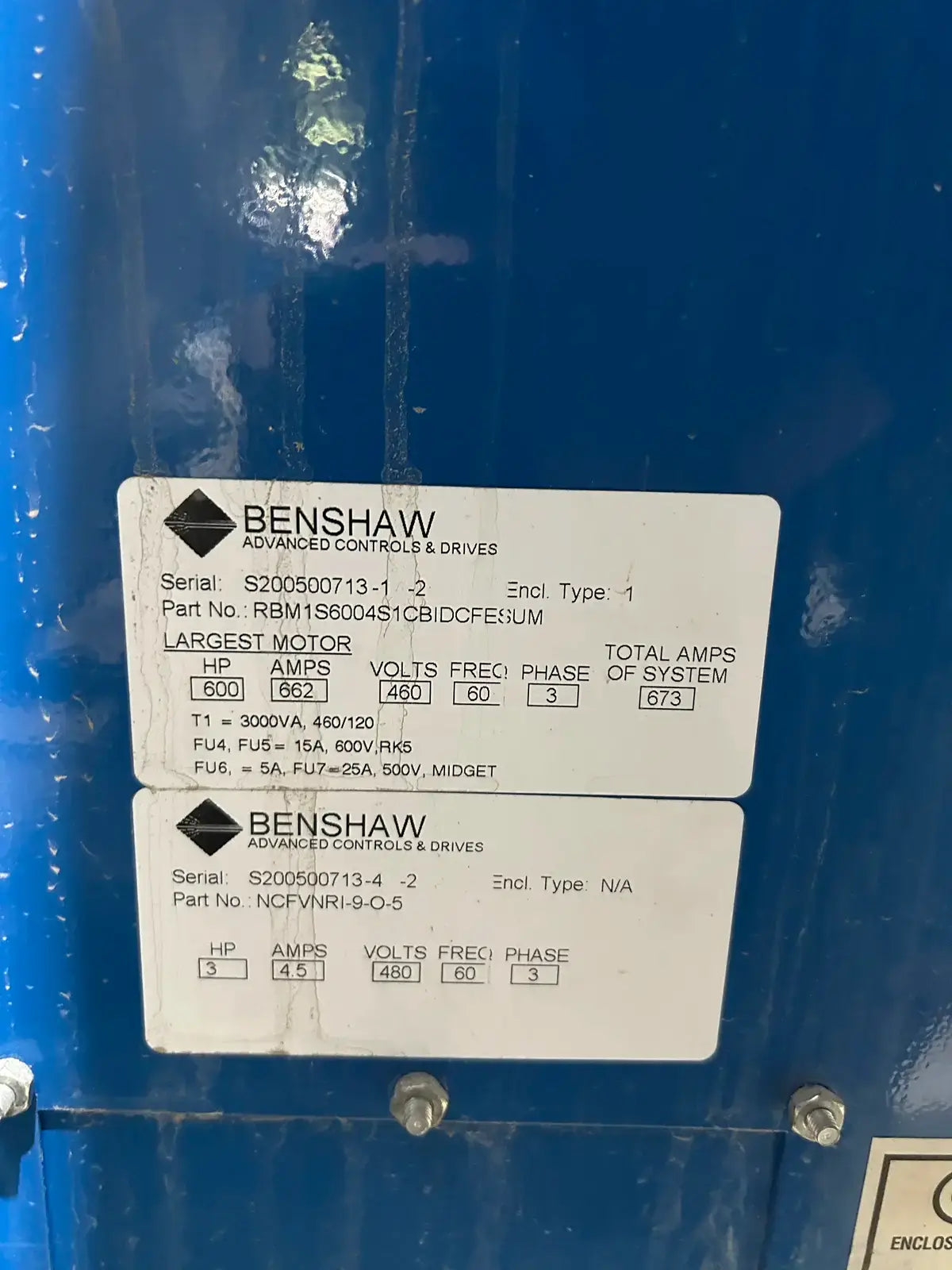

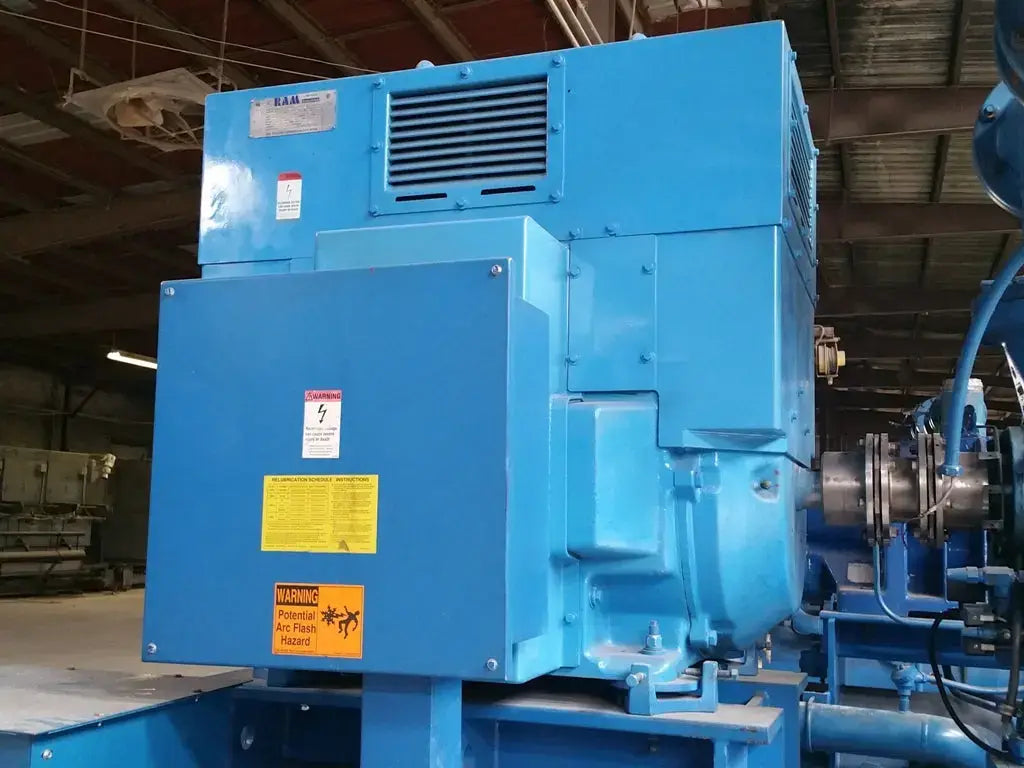

Motor Details
- Motor Included? Yes
- # Motors: 1
- Motor Manufacturer: RAM Industries
- Motor Horsepower(HP): 600
- Motor Voltage: 460
- Motor Hertz (Hz): 60
- Motor Phases: 3
Dimensions:
- Length (Inches): 180
- Width (Inches): 85
- Height (Inches): 108
- Weight (LBS): 14,000
- # of Pieces for Shipping: 1
Additional Product Details
- Year of Manufacture: 2005
- Spec Sheet Available: Yes
