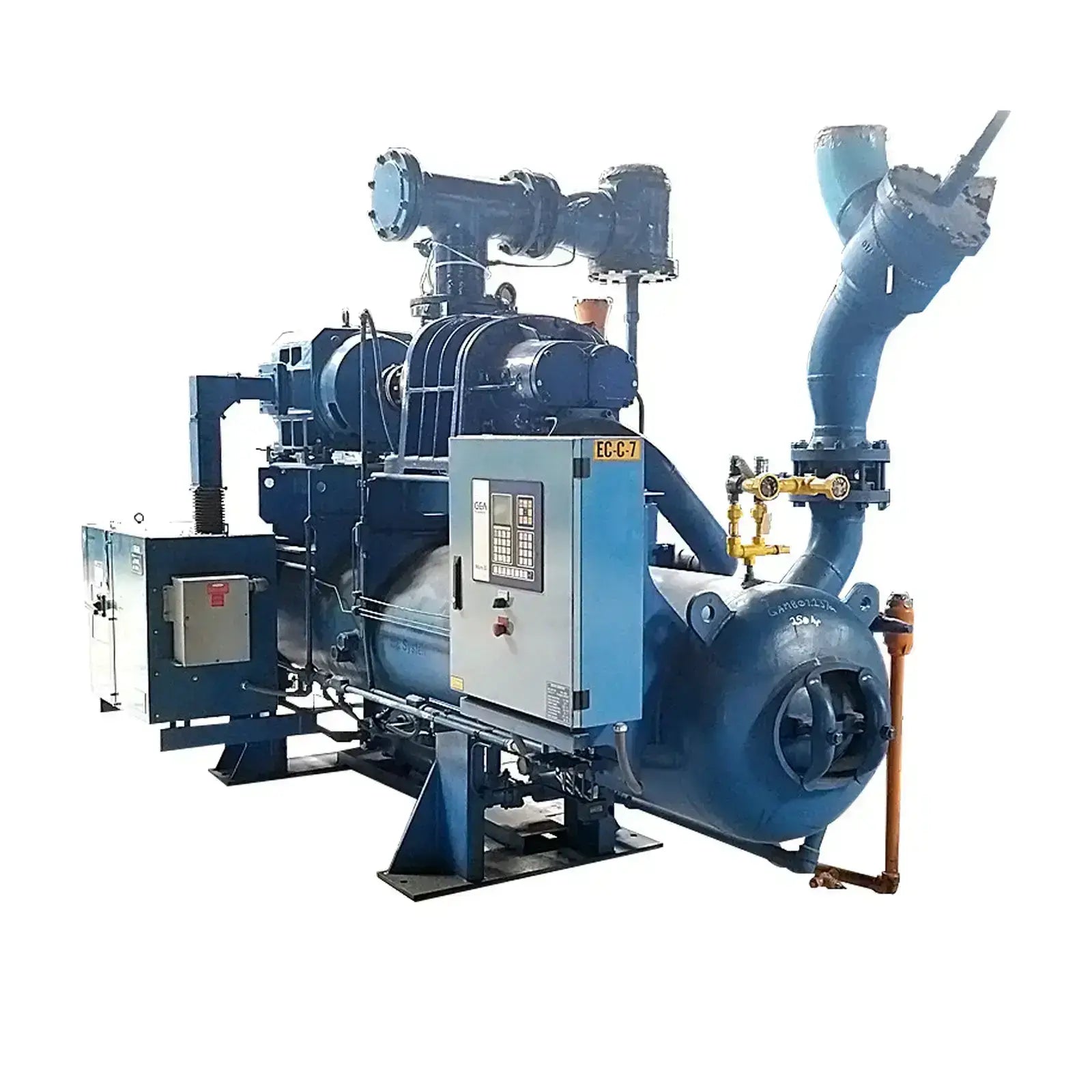

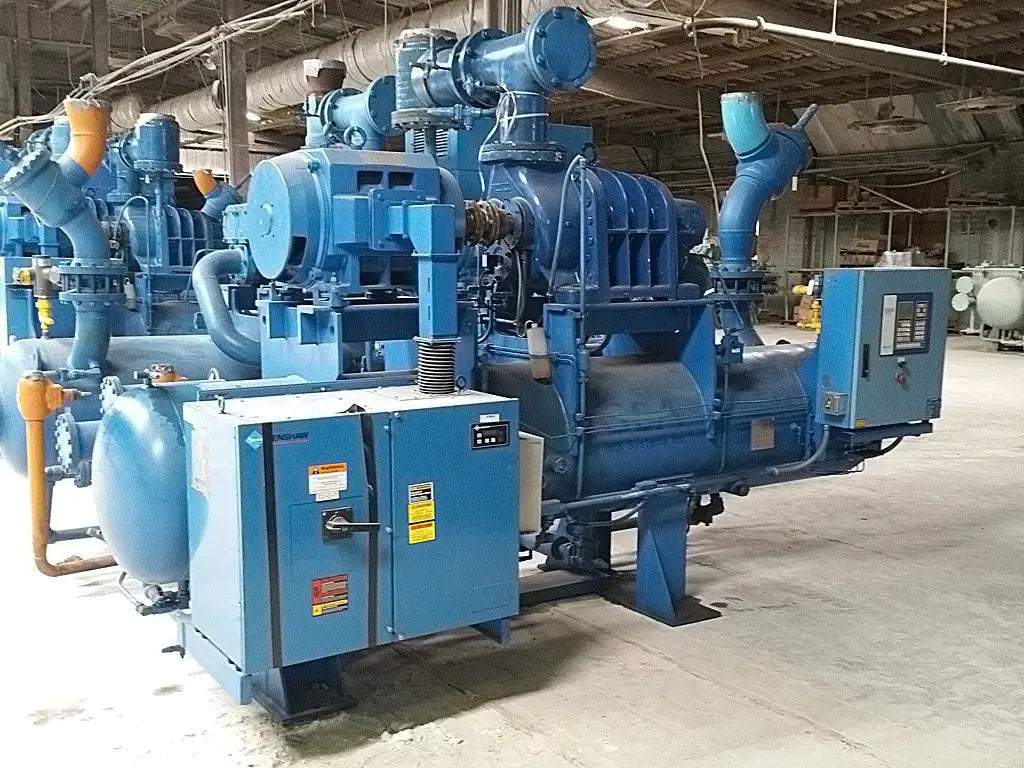

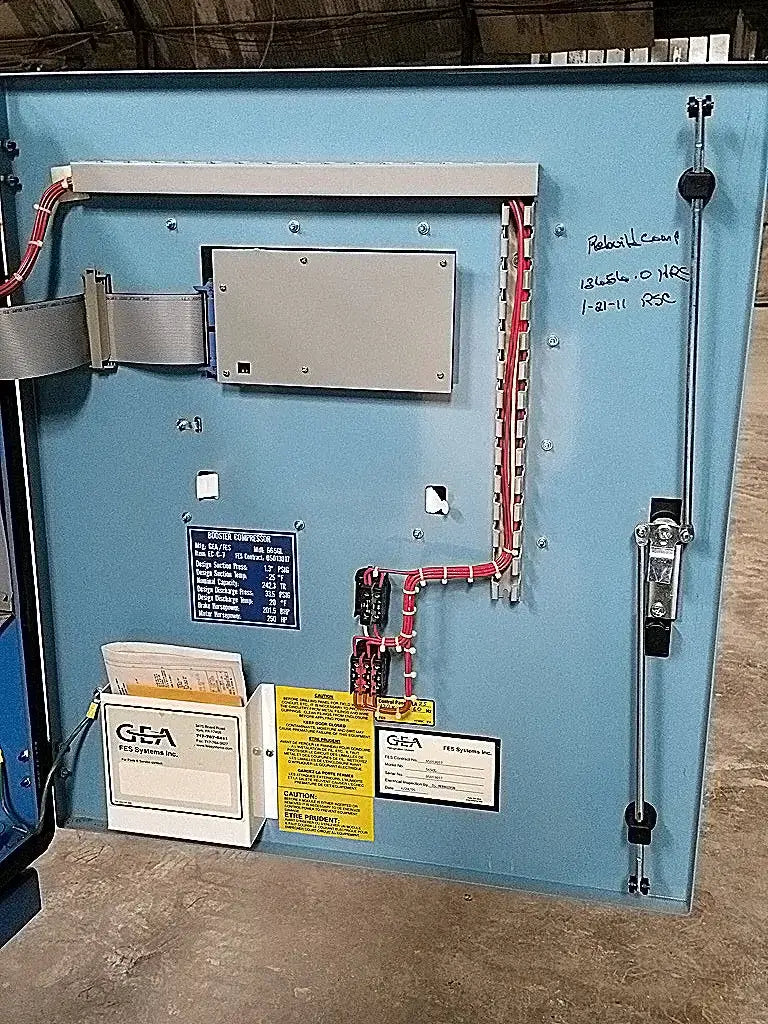

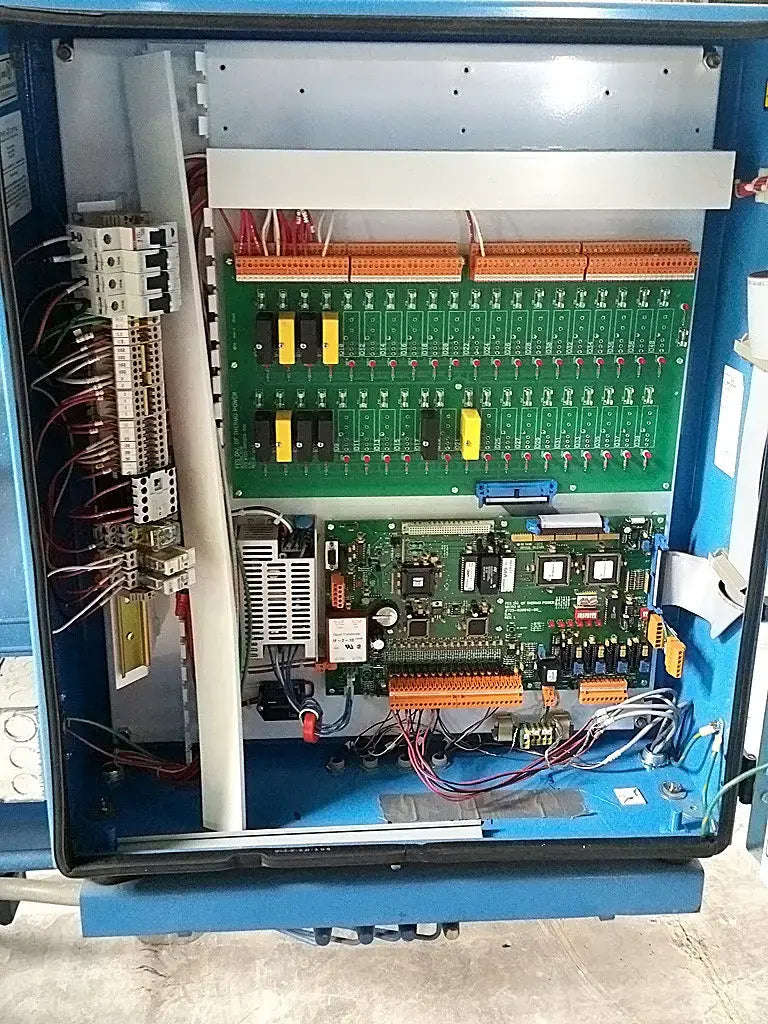

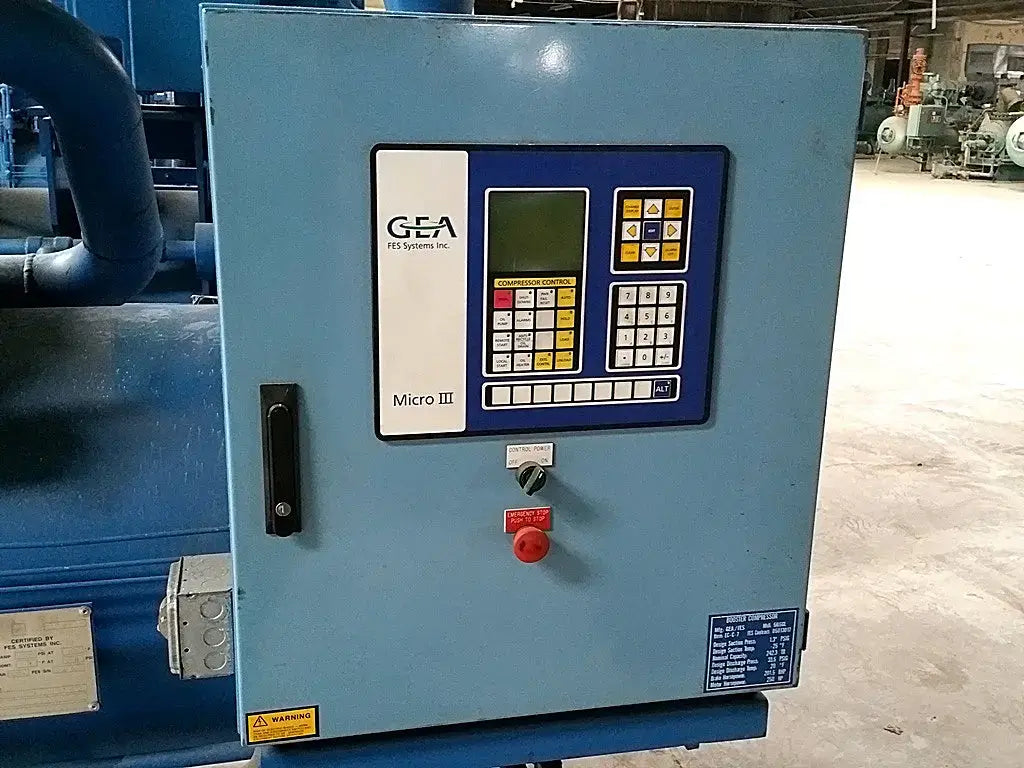

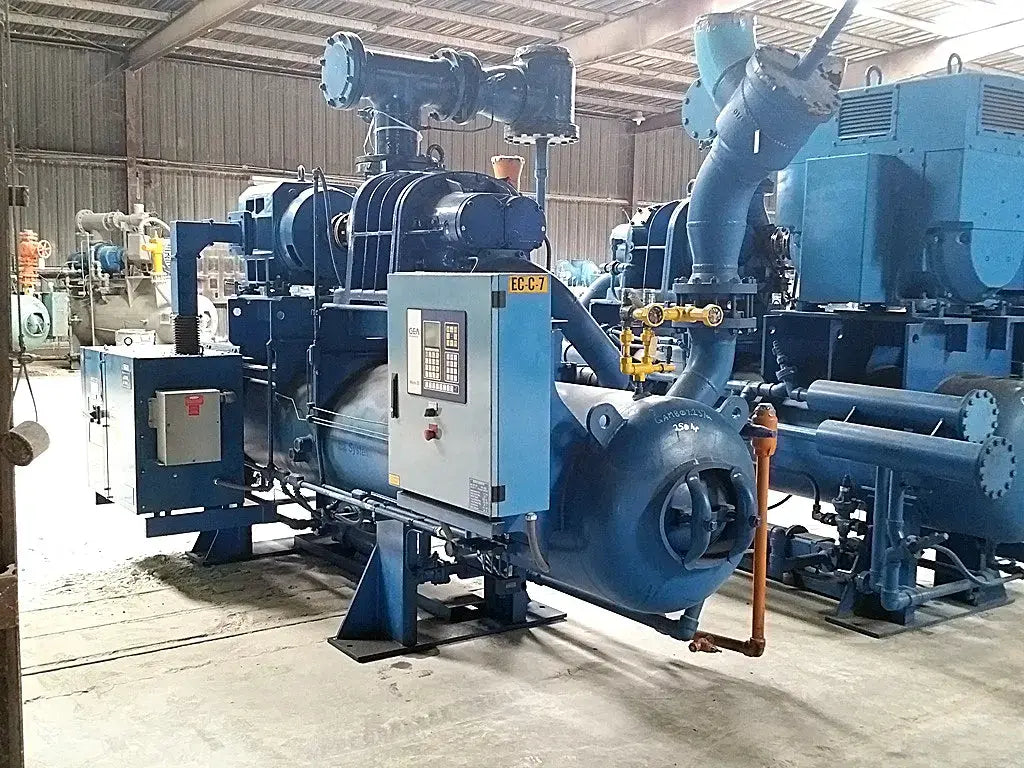

GEA 565-GLB Rotary Screw Compressor Package (GEA Y-1, 250 HP 460 V, GEA III Micro Control Panel)

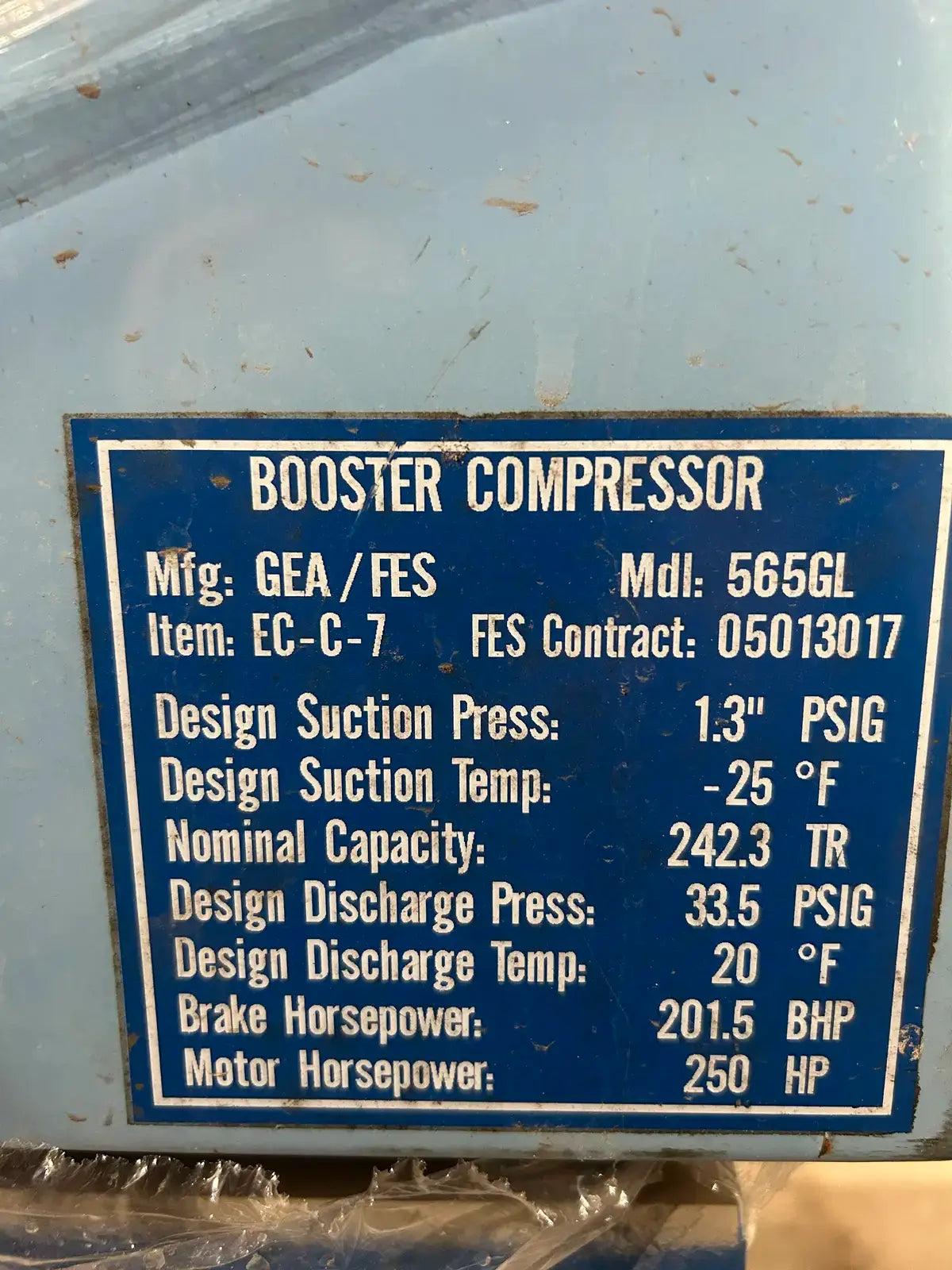

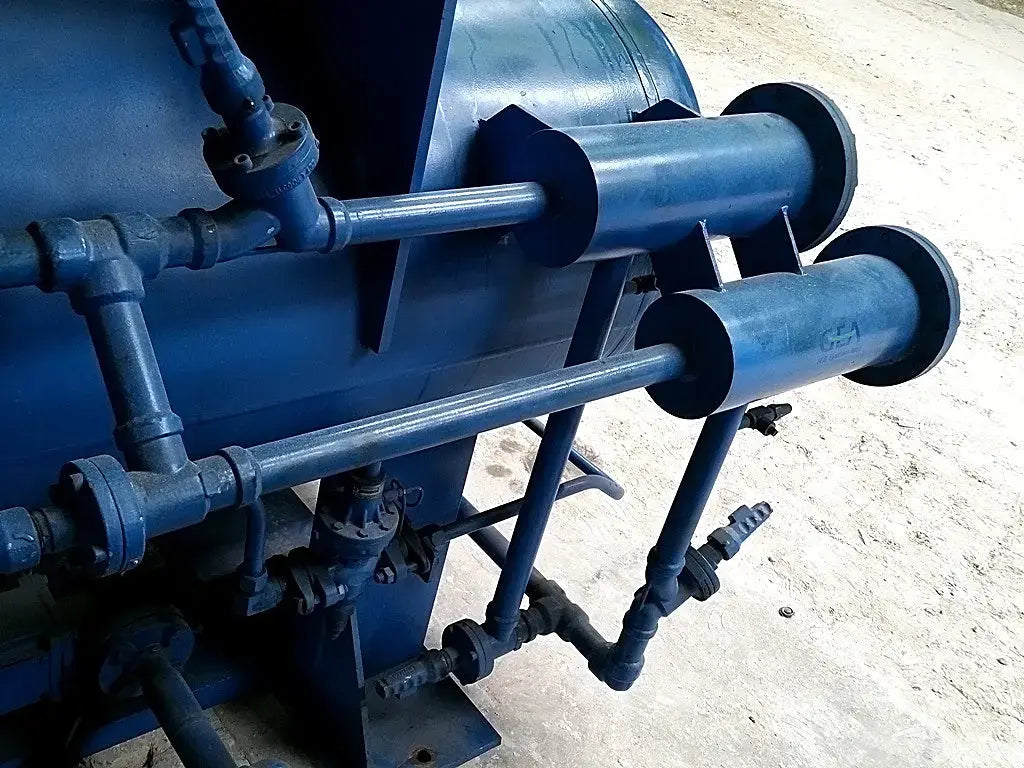

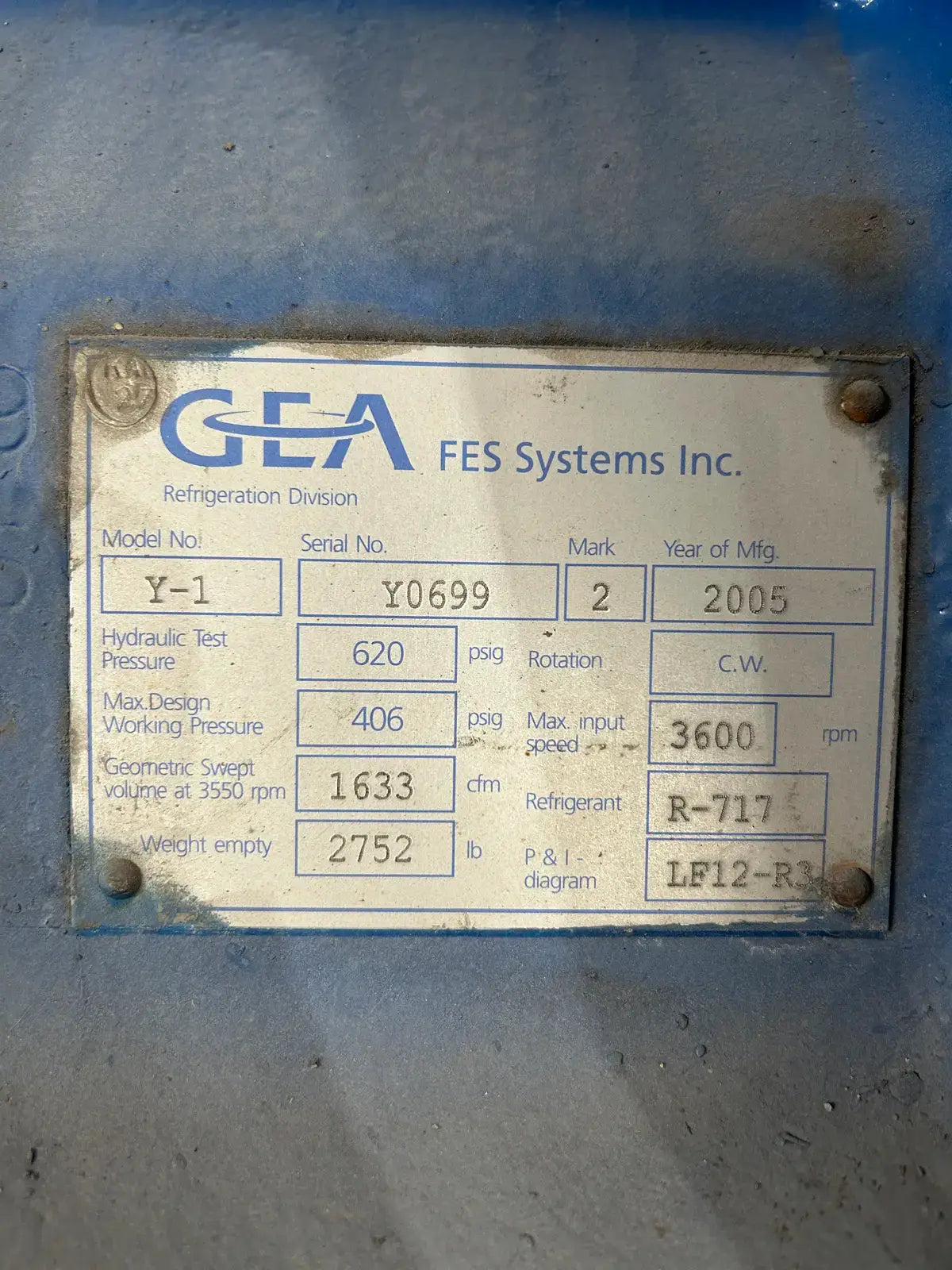

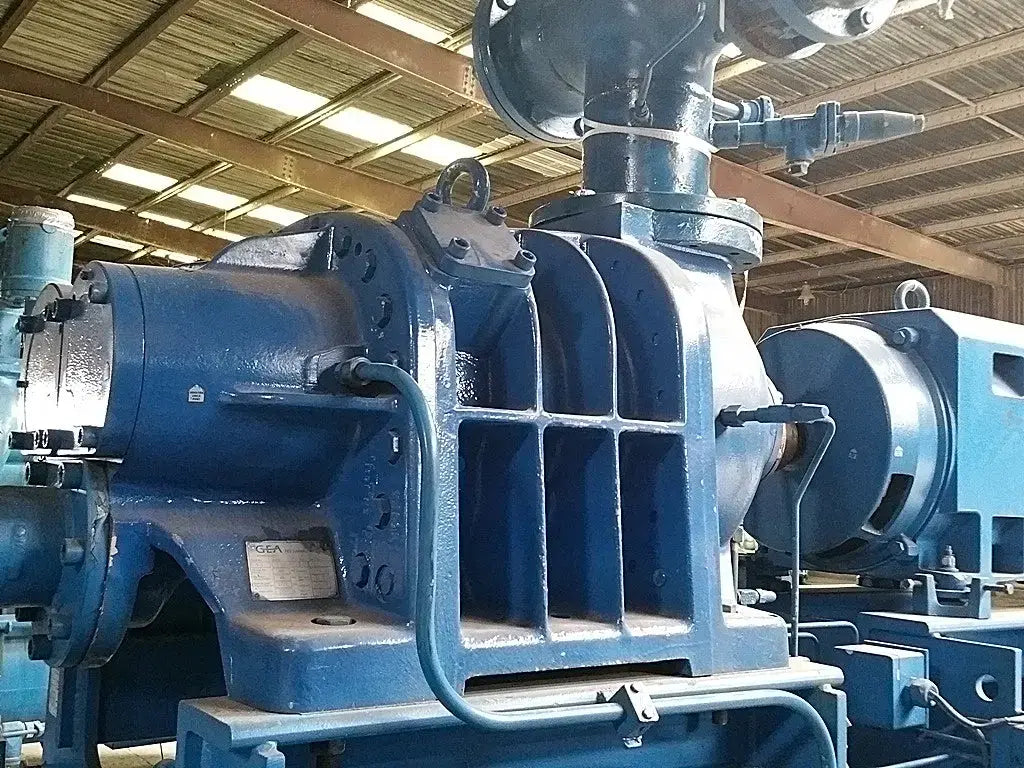

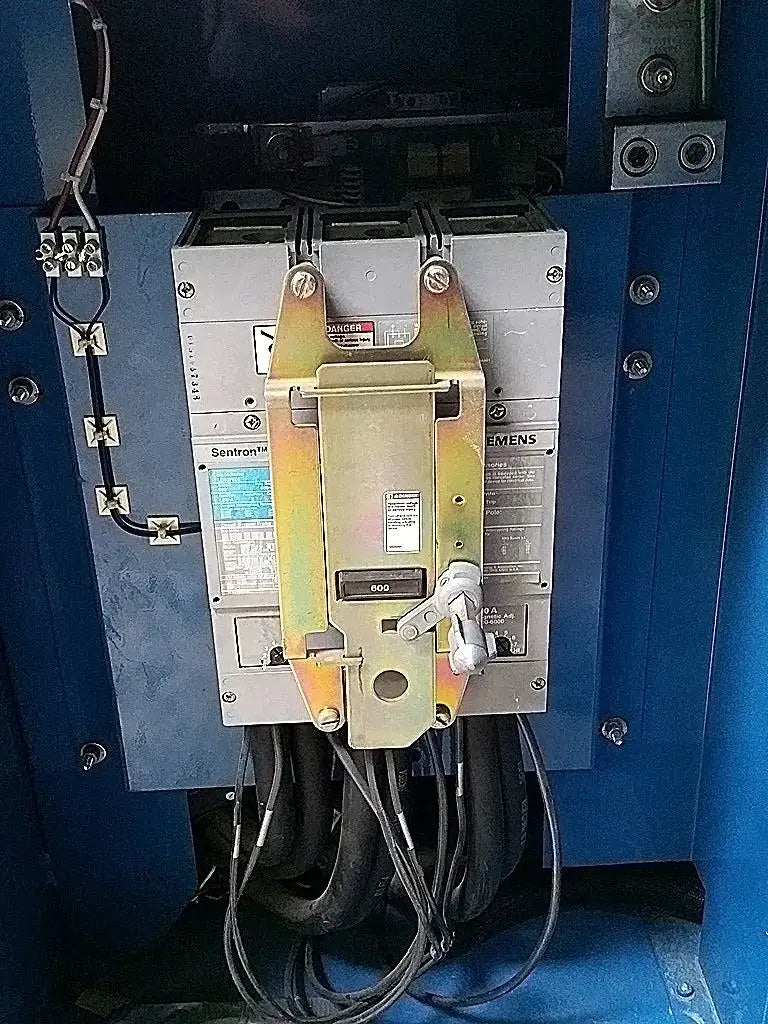

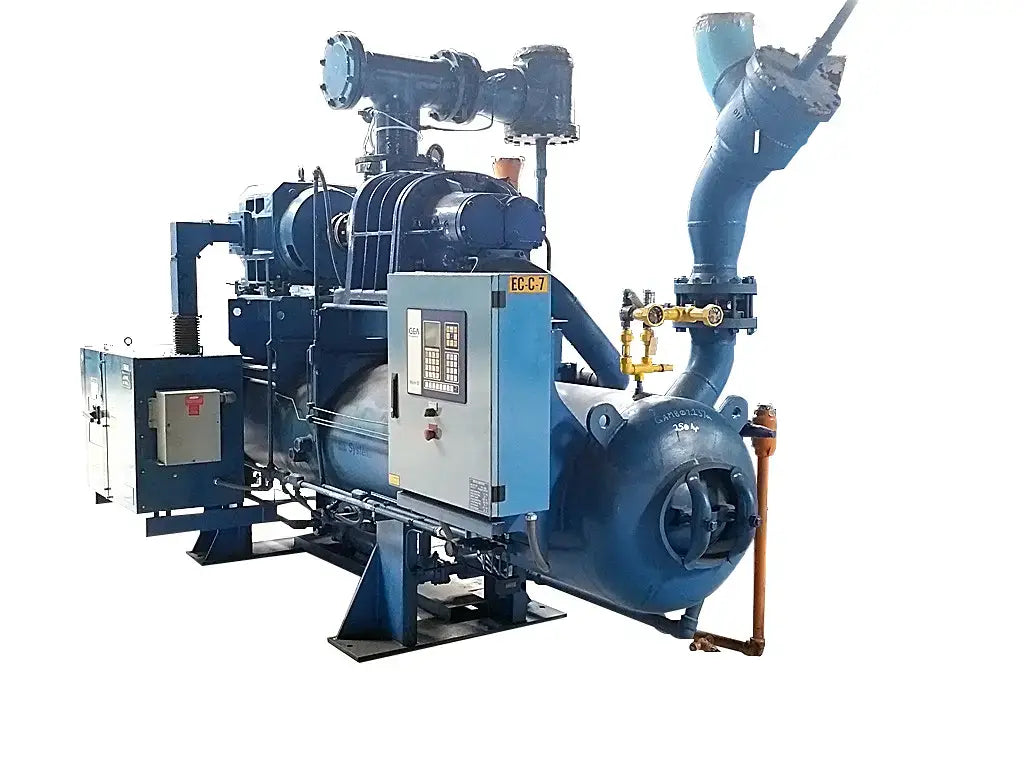

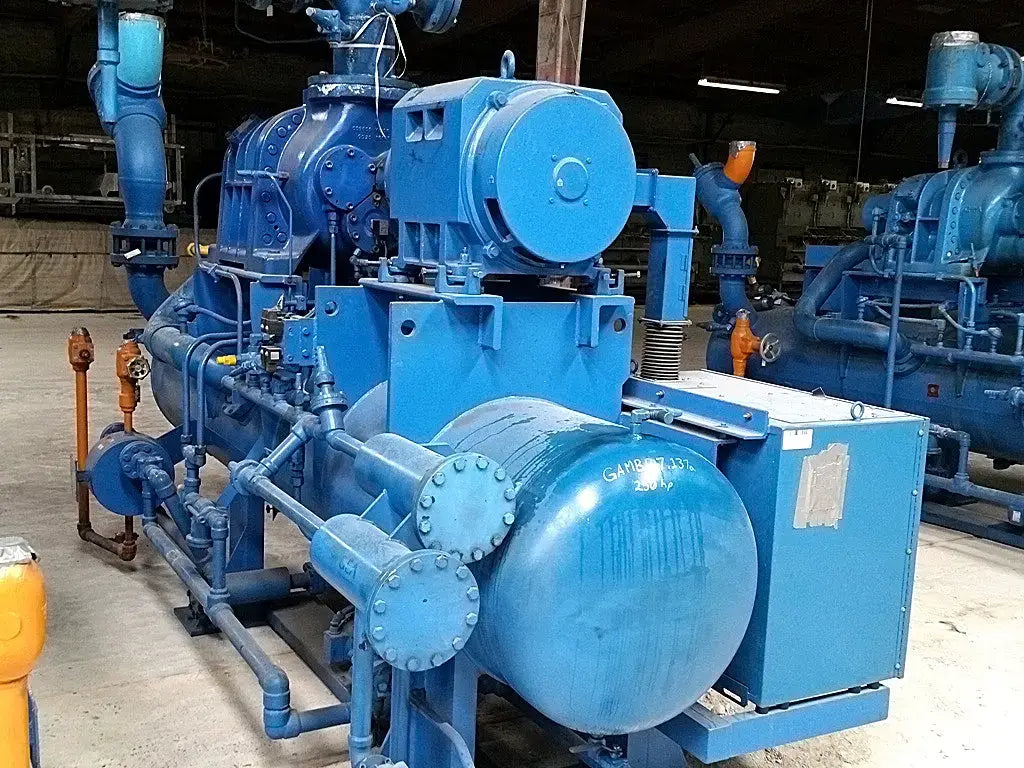

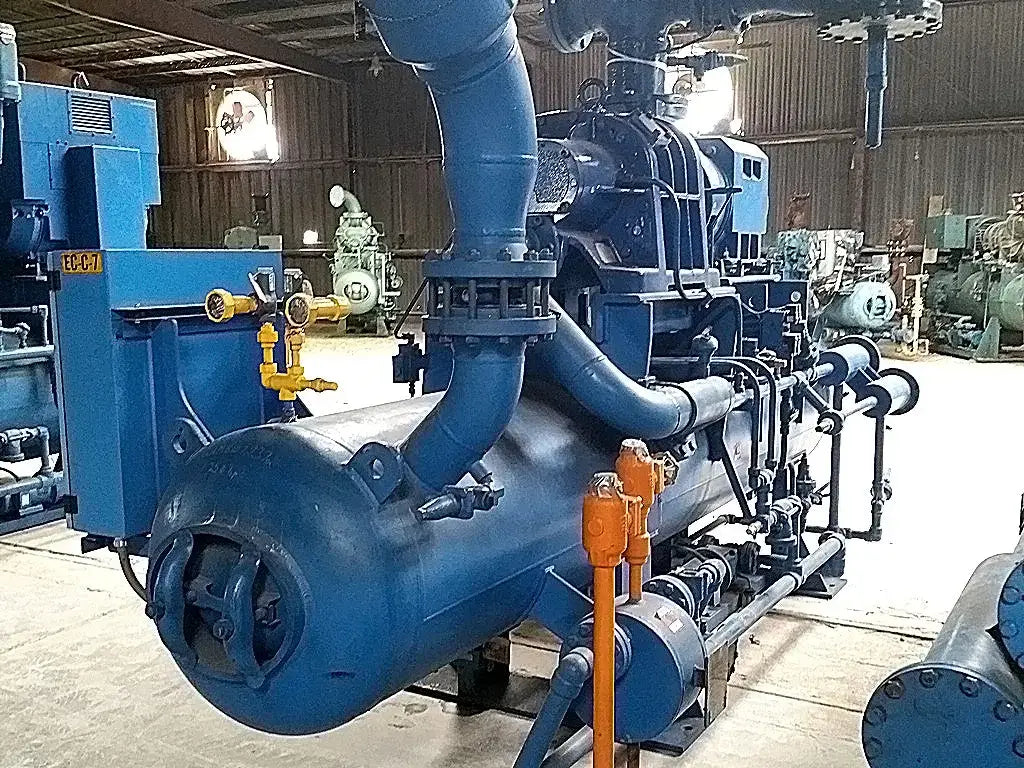

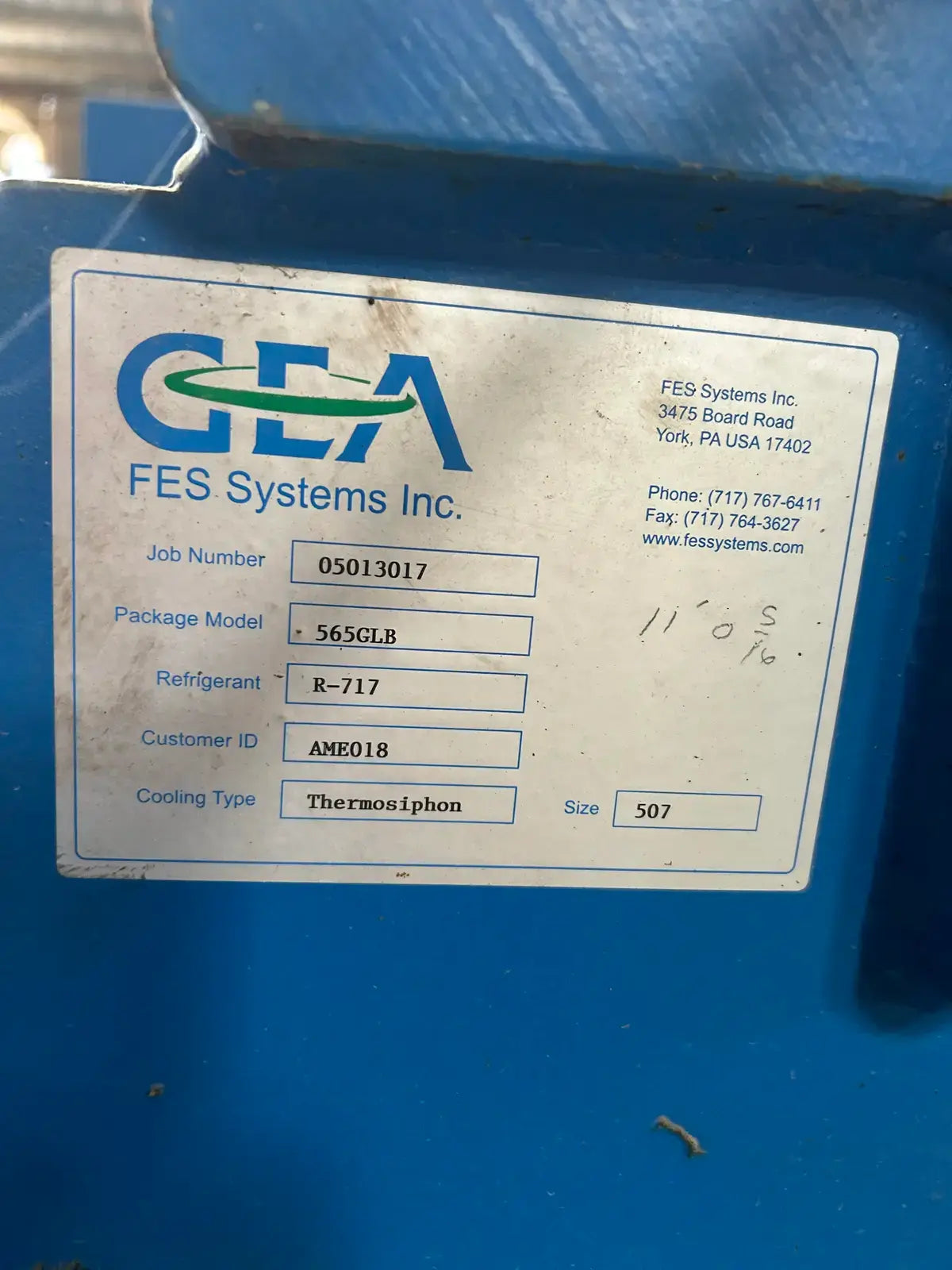

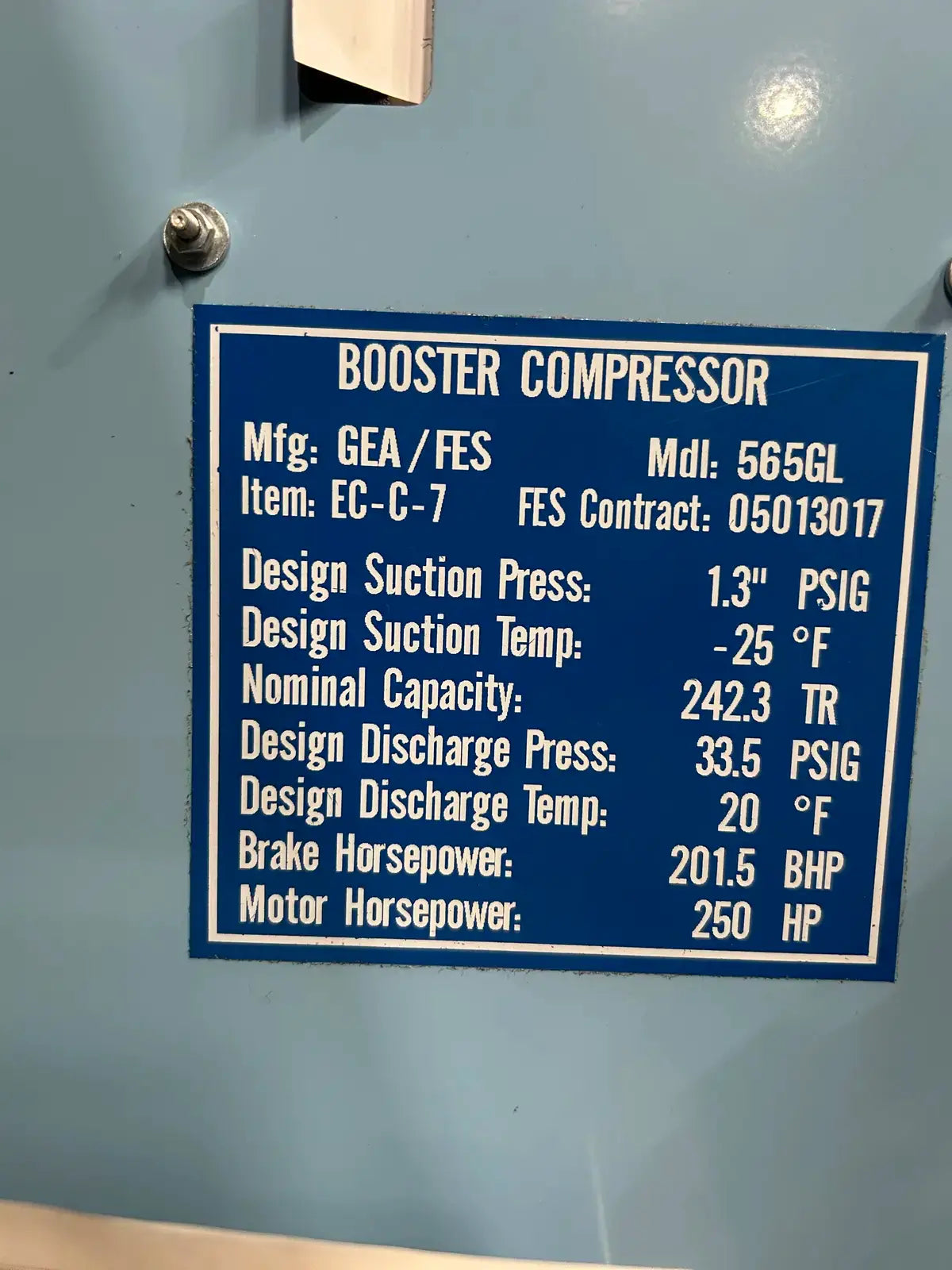

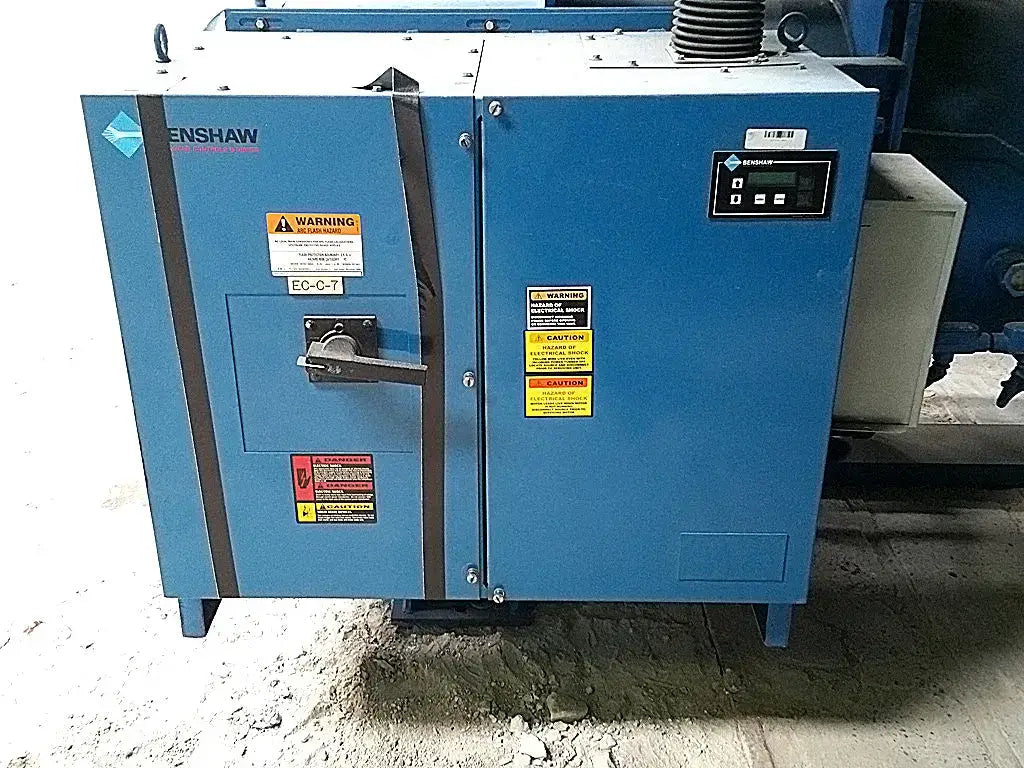

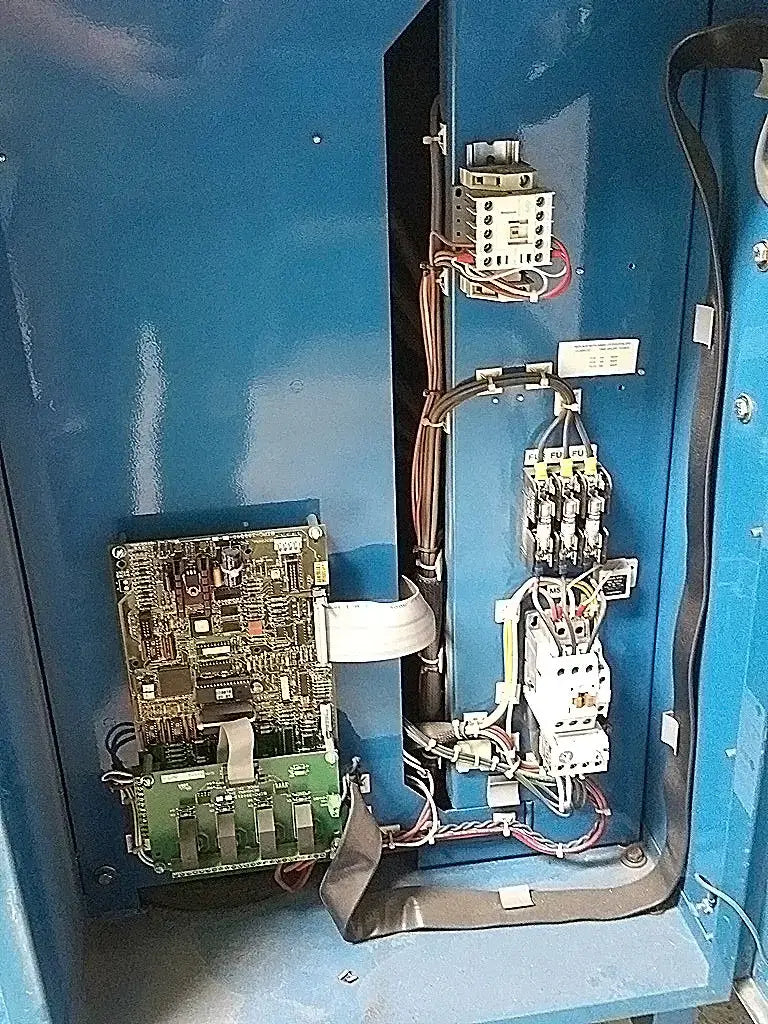

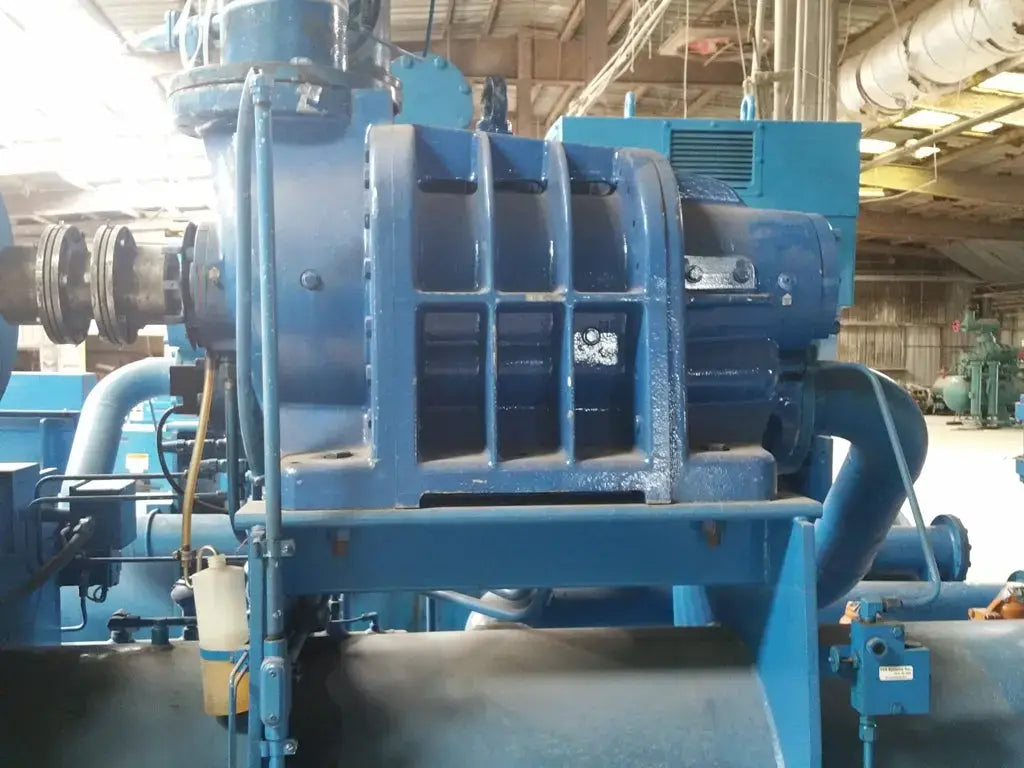

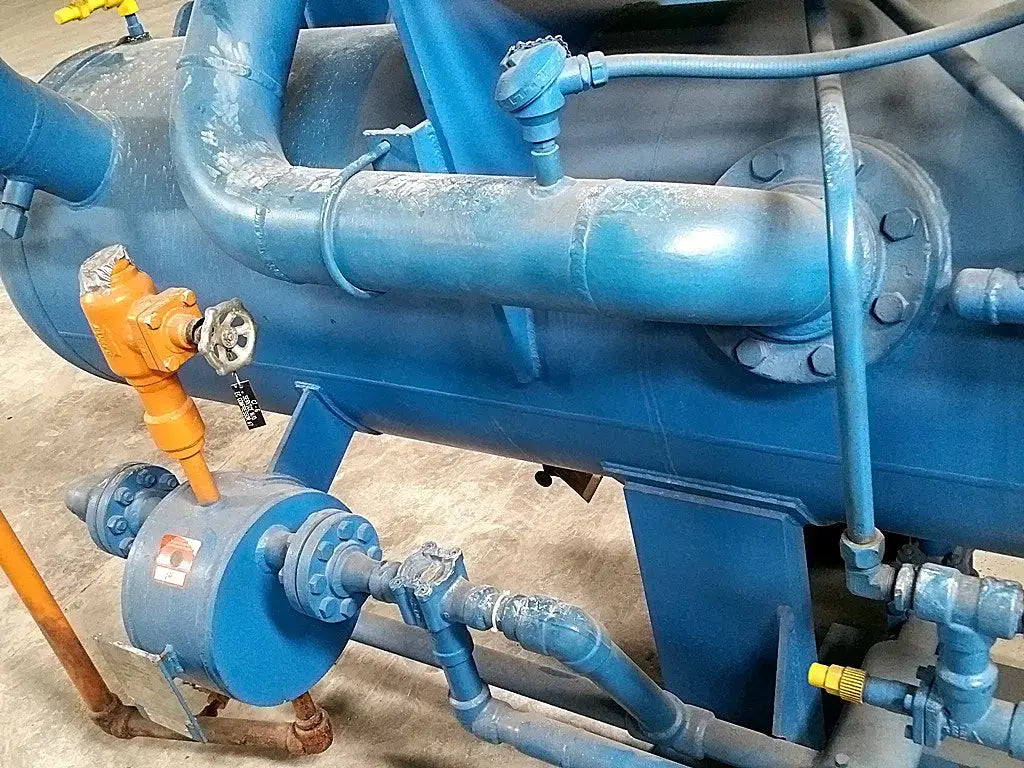

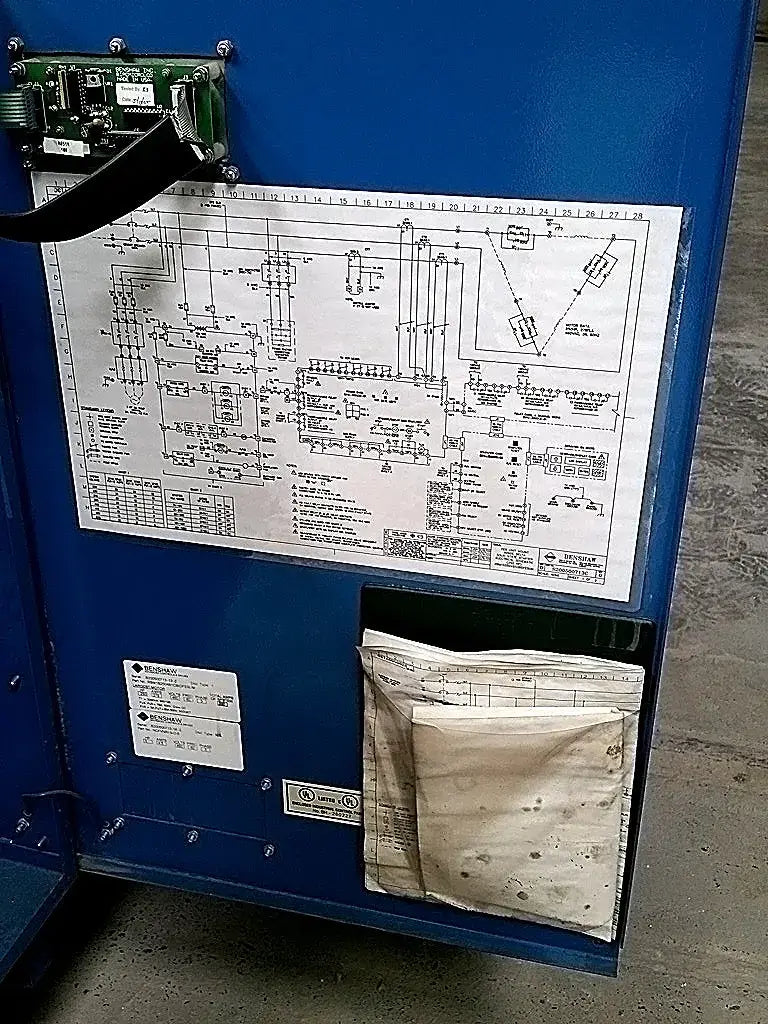

GEA / FES Rotary Screw Compressor Package. Model 565GLB. Year: 2005. Item EC-C-7. FES Contract 05013017. Nominal capacity: 242.3 TR. Brake HP: 201.5. Includes GEA micro. Refrigerant: ammonia. Removed from operation in January/February 2014. Unit has been stored indoors. Package is equipped with: Grasso brand compressor, Thermosyphon Oil Coolers, Shell and Plate style, Oversized Oil Separators, Dual Oil Filters, Motor Temperature and Vibration Sensors, Benshaw motor starter, and Ram Industries motor. Compressor specs: model Y-1, serial Y0699, mark 2, year 2005, 406 PSIG MDWP, 1633 CFM, R-717. Motor specs: 250 HP, 460V, 279 FLA, 3565 RPM, 3-phase, 60 Hz, 445TS Frame. Hours runtime: 18,694. Weight: 15,150 lbs. Overall dimensions: 75 in. W x 168 in. L x 115 in. H.
Product Details
- Stock No: GAMB07.137a
- Manufacturer: GEA
- Model: 565-GLB

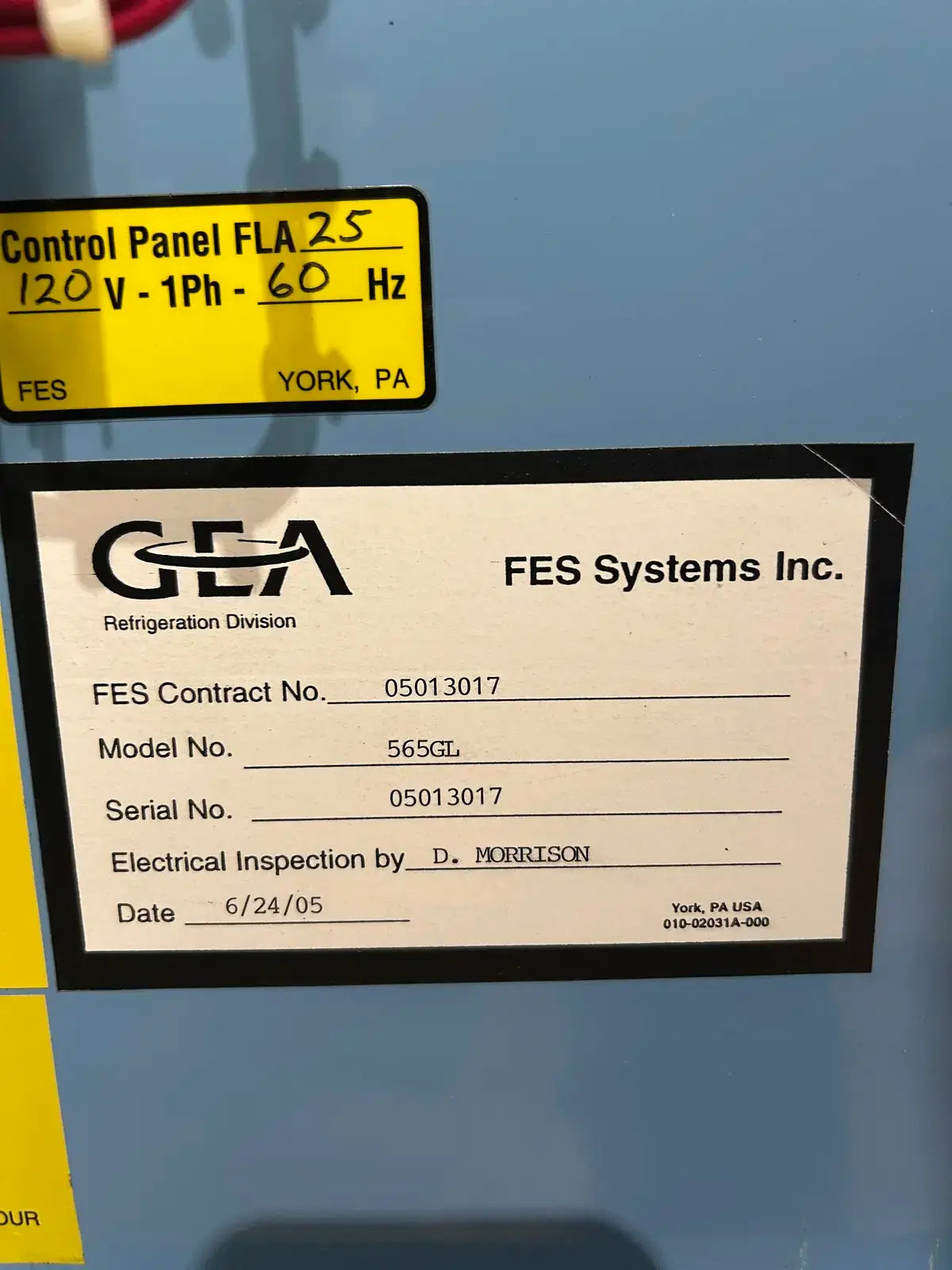

- Serial Number: 5013017
Previous Refrigerant
- Previous Refrigerant: Ammonia (R-717)
- Ammonia (R-717) Compatiable: Yes
- Halocarbon (Freon) Compatible: Yes

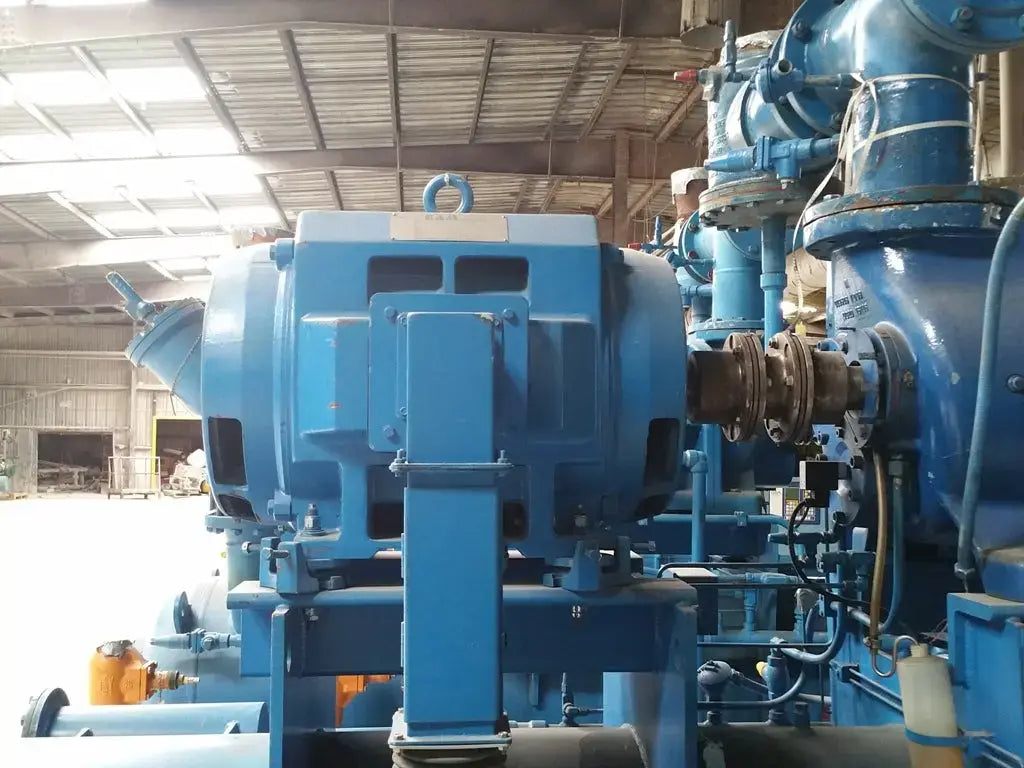

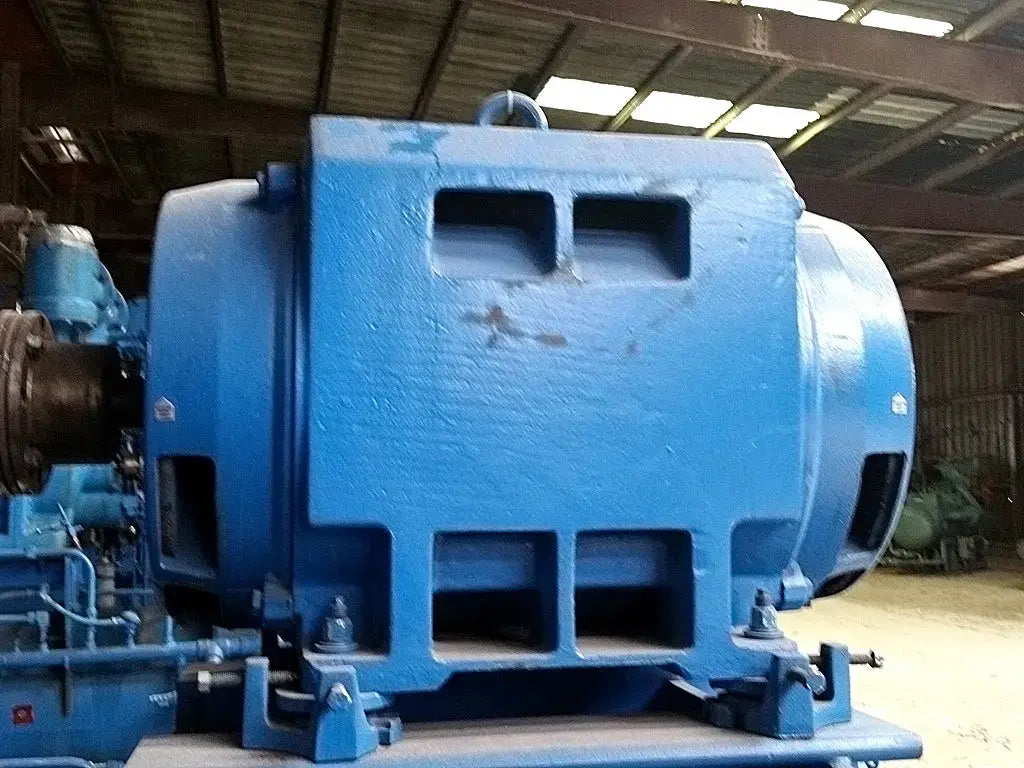

Motor Details
- Motor Included? Yes
- # Motors: 1
- Motor Manufacturer: RAM Industries
- Motor Horsepower(HP): 250
- Motor RPM: 3565
- Motor Voltage: 460
- Motor Amps: 279
- Motor Hertz (Hz): 60
- Motor Phases: 3
- Motor Frame Size: 445TS
Dimensions:
- Length (Inches): 168
- Width (Inches): 75
- Height (Inches): 115
- Weight (LBS): 16,000
- # of Pieces for Shipping: 1
Additional Product Details
- Year of Manufacture: 2005
- Year Removed from Production: 2014
- Spec Sheet Available: Yes
