- Product Details

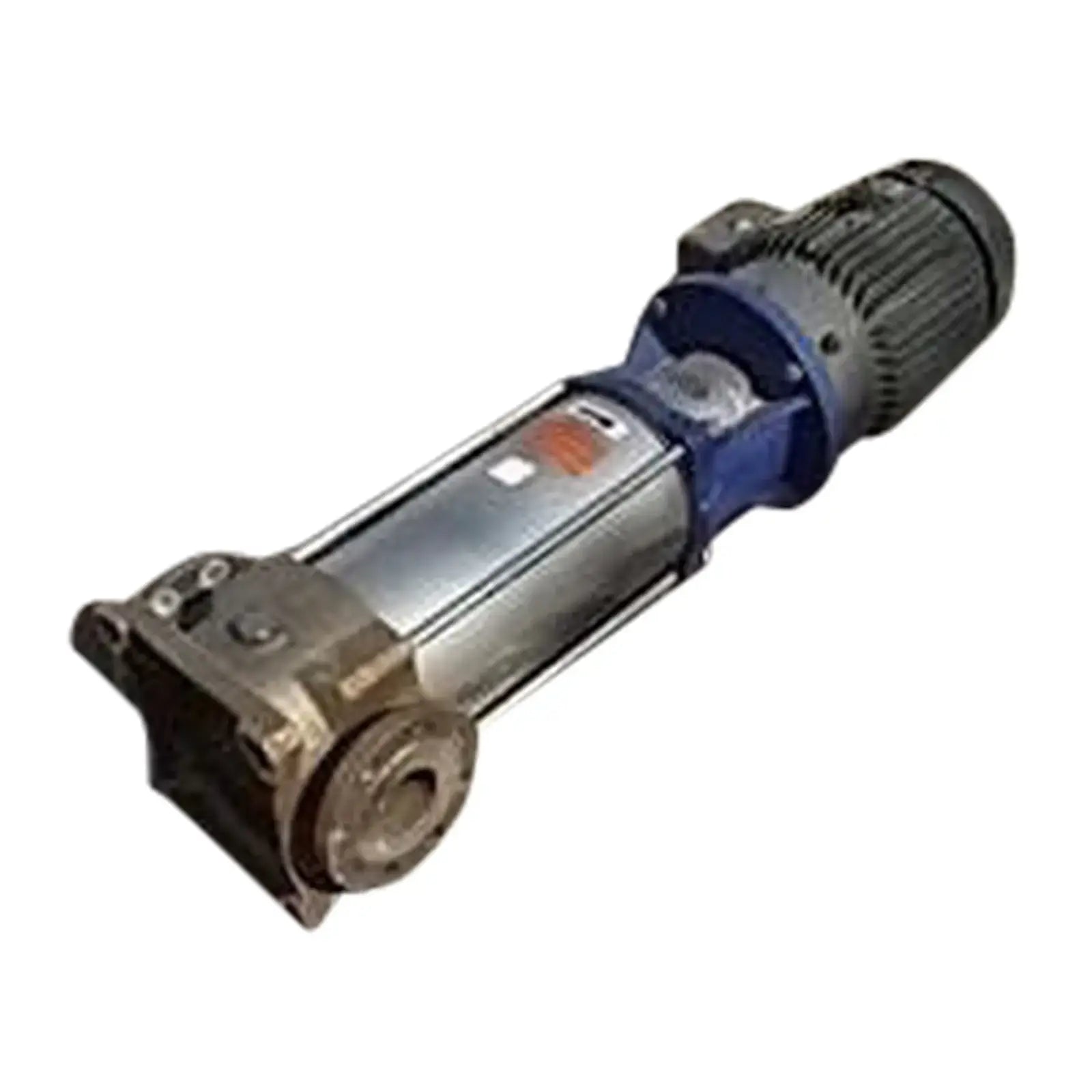

ITT Goulds SSV Centrifugal Pump (15 HP, 175 GPM Max)
G&L Pumps SSV Multi-Stage Vertical Booster Pump. Goulds Pumps / ITT Industries, Inc. Catalog no.: 5SVDK4T. J0006393. 360 PSI max. The 5-stage model with a 20 HP 3450 RPM motor is capable of flowrates up to 175 GPM, pressures up to 200 PSI, head up to 475 feet. Baldor motor: 15 HP, 208-230/460V, 38-34/17 amps, 3450 RPM, 254TC Frame, 3-phase, 60 Hz. Common application: circulation of liquids (with no suspended solids), pressure boosting and water supply, irrigation systems, washing systems, boiler feed/return, water treatment, R/O and other filtration systems, circulation of glycol coolant, pure water applications, hot/cold HVAC water circulation.
Product Details
- Stock No: NMCN008.3a
- Manufacturer: ITT Goulds
- Model: SSV
- Serial Number: 5SVDK4T
Pump Details
- Pump Type: Centrifugal
- Max Gallons Per Minute GPM: 175
- Max Speed RPM: 3450
- Maximum Temperature (F): 250
- Maximum Pressure MAWP (PSI): 360
- # Inlets: 1
- # Outlets: 1
- Inlet/Outlet 1: Inlet
- Inlet/Outlet Size (Inches) 1: 4
- Inlet/Outlet Type 1: Flange
- Inlet/Outlet 2: Outlet
- Inlet/Outlet Size (Inches) 2: 4
- Inlet/Outlet Type 2: Flange
Previous Refrigerant
Motor Details
- Motor Included? Yes
- Motor Manufacturer: Baldor
- Motor Horsepower(HP): 15
- Motor RPM: 3450
- Motor Voltage: 208-230/460
- Motor Amps: 38-34/17
- Motor Hertz (Hz): 60
- Motor Phases: 3
- Motor Frame Size: 254TC
Dimensions:
Additional Product Details
