Moyno SJ710N3 Positive Displacement Pump (2 HP, 34 GPM Max)

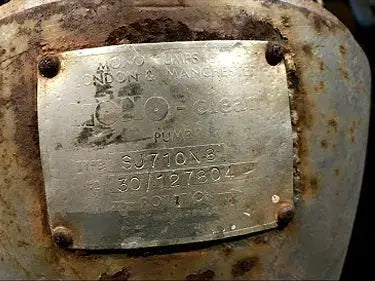

Moyno Progressive Cavity Positive Displacement Pump. Type SJ710N3. Serial: 30/127804. Ports: 3 in. Baldor electric motor: 2 HP, 230/460V, 1725 RPM. US Series 3000 Gear Reduction Drive: ratio 5:1 (345 final RPM). This pump was test run with water and the flow rate was approximately 34 GPM.
Product Details
- Stock No: TASP186
- Manufacturer: Moyno
- Model: SJ710N3
- Serial Number: 30/127804
Pump Details
- Pump Type: Positive Displacement
- Max Gallons Per Minute GPM: 34
- Drive Ratio: 0.5
- Max Speed RPM: 345
- # Inlets: 1
- # Outlets: 1
- Inlet/Outlet 1: Inlet
- Inlet/Outlet Size (Inches) 1: 3
Previous Refrigerant
Motor Details
- Motor Included? Yes
- Motor Manufacturer: Baldor
- Motor Horsepower(HP): 2
- Motor RPM: 1725
- Motor Voltage: 230/460
- Motor Amps: 5.6/2.8
- Motor Hertz (Hz): 60
- Motor Phases: 3
- Motor Frame Size: 145TC
Dimensions:
