- Product Details

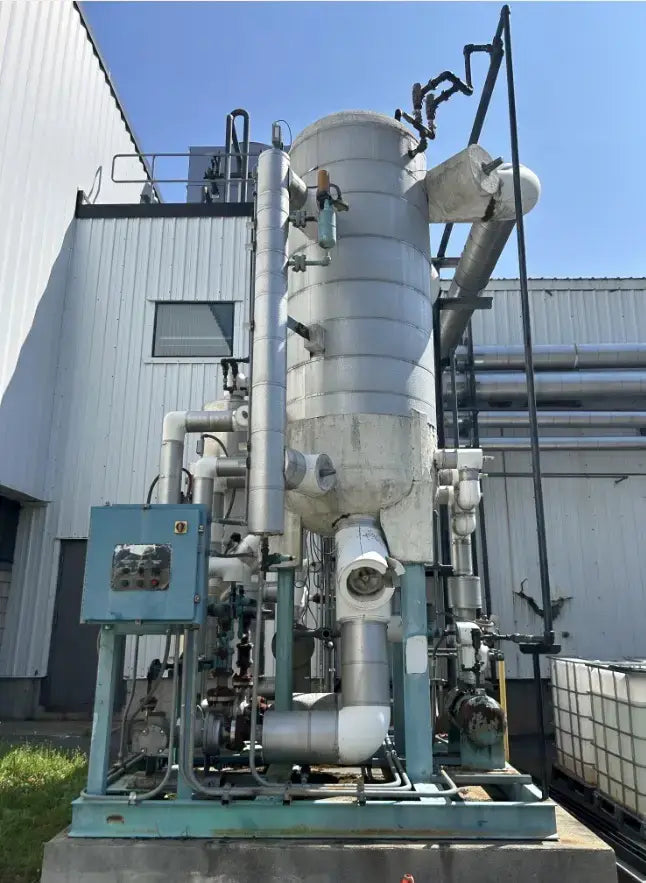

RVS MRP-36V Vertical Recirculator (36in X 118in. 625 Gallons)

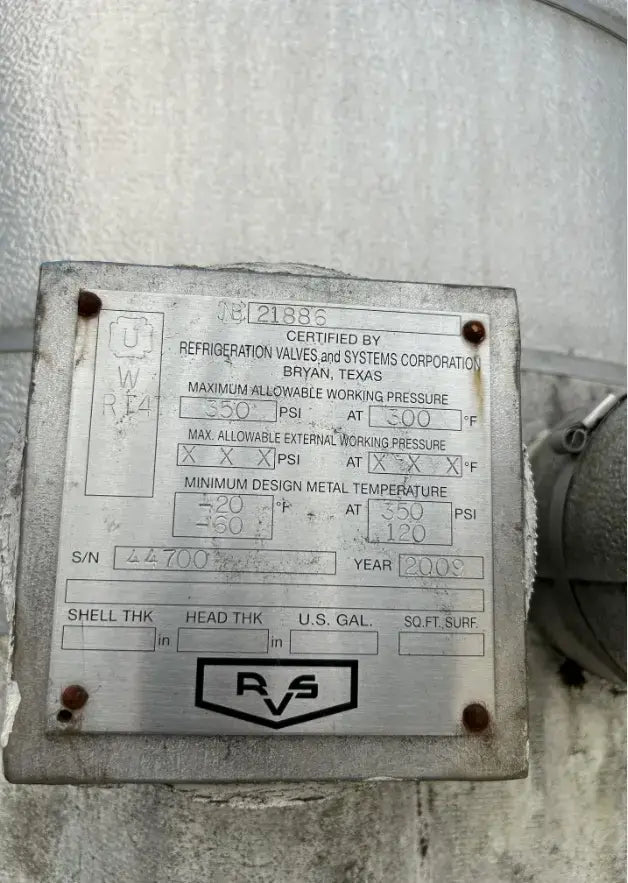

RVS Vertical Ammonia Recirculator. Model: MRP-36V. Serial No: 44700. National Board: 21886. Drawing No: 44700A. Design Pressure; MAWP: 350 PSI @ 300F, MDMT: -20 F @ 350 PSI. Specifications; Max Vessel Capacity 60 TR @ -50F. Max Surge Volume Available: 31.85 CF. Pump Capacity; 39 GPM @ 45 PSI.
Product Details
- Stock No: ARC06
- Manufacturer: RVS
- Model: MRP-36V
- Serial Number: 44700
Tank Details
- Refrigeration Tank Type: Recirculator
- Tank Orientation: Vertical
- Tank Diameter (Inches): 36
- Tank Length (Inches): 118
- Tank Estimated Capacity (Gallons): 625
- Tank National Board Number: 21886
- Tank MAWP (PSI at temp): 350 PSI @ 300 F
- Tank MAWT (temp at PSI): -20 F @ 350 PSI
Pump Details
Micro Panel Details
- Micro Control Panel Included? Yes
- Micro Control Panel Manufacturer: RVS
- Micro Control Panel Description: Control Voltage - 120V/1 Ph/60 Hz
Previous Refrigerant
- Previous Refrigerant: Halocarbon (Freon)
- Ammonia (R-717) Compatiable: Yes
- Halocarbon (Freon) Compatible: Yes
Motor Details
- Motor Included? Yes
- # Motors: 2

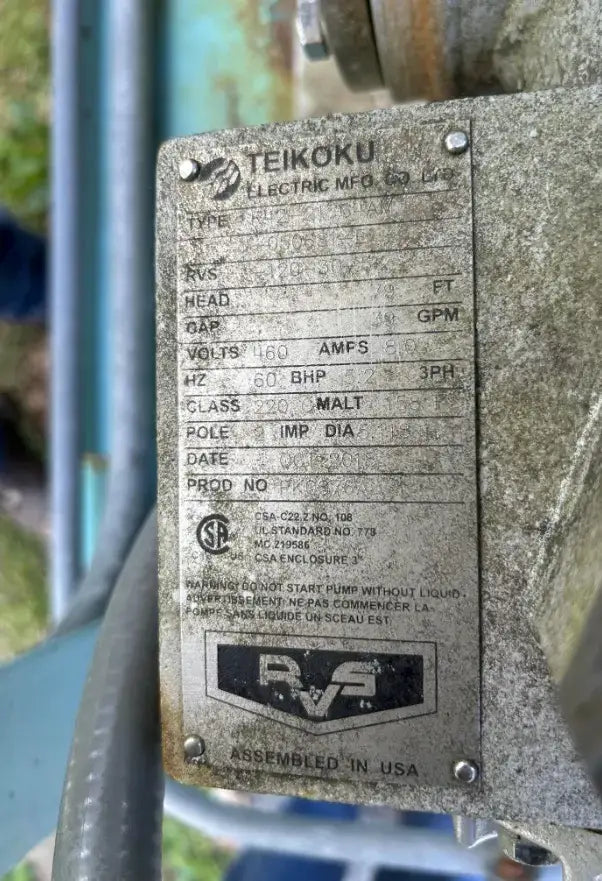

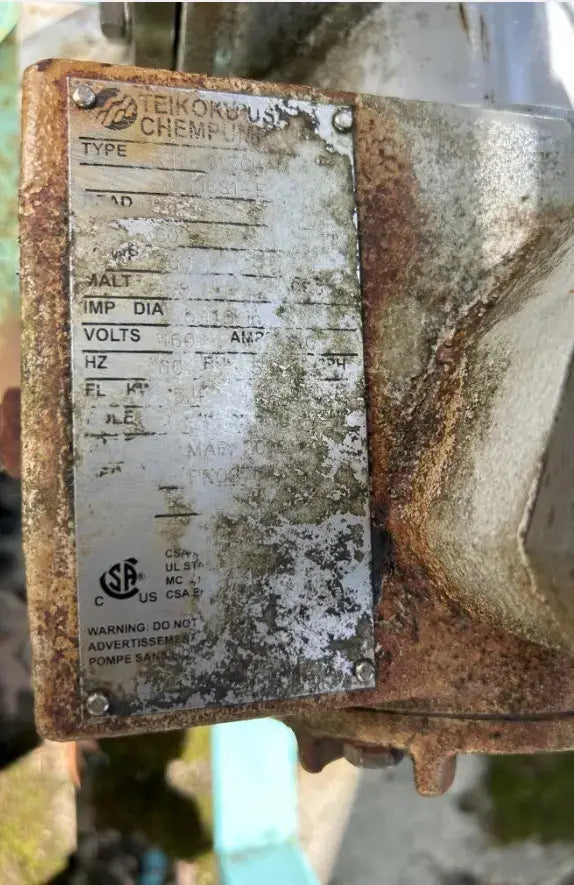

- If Multiple Motors, Motor Descriptions vs specs: (2) Teikoku Pumps - 460 Volt, 3 Ph, 60 Hz.
Dimensions:
- Length (Inches): 40
- Width (Inches): 40
- Height (Inches): 142
- Weight (LBS): 4,150
- # of Pieces for Shipping: 1
Additional Product Details
- Year of Manufacture: 2009
- Year Removed from Production: 2025
- Spec Sheet Available: Yes
