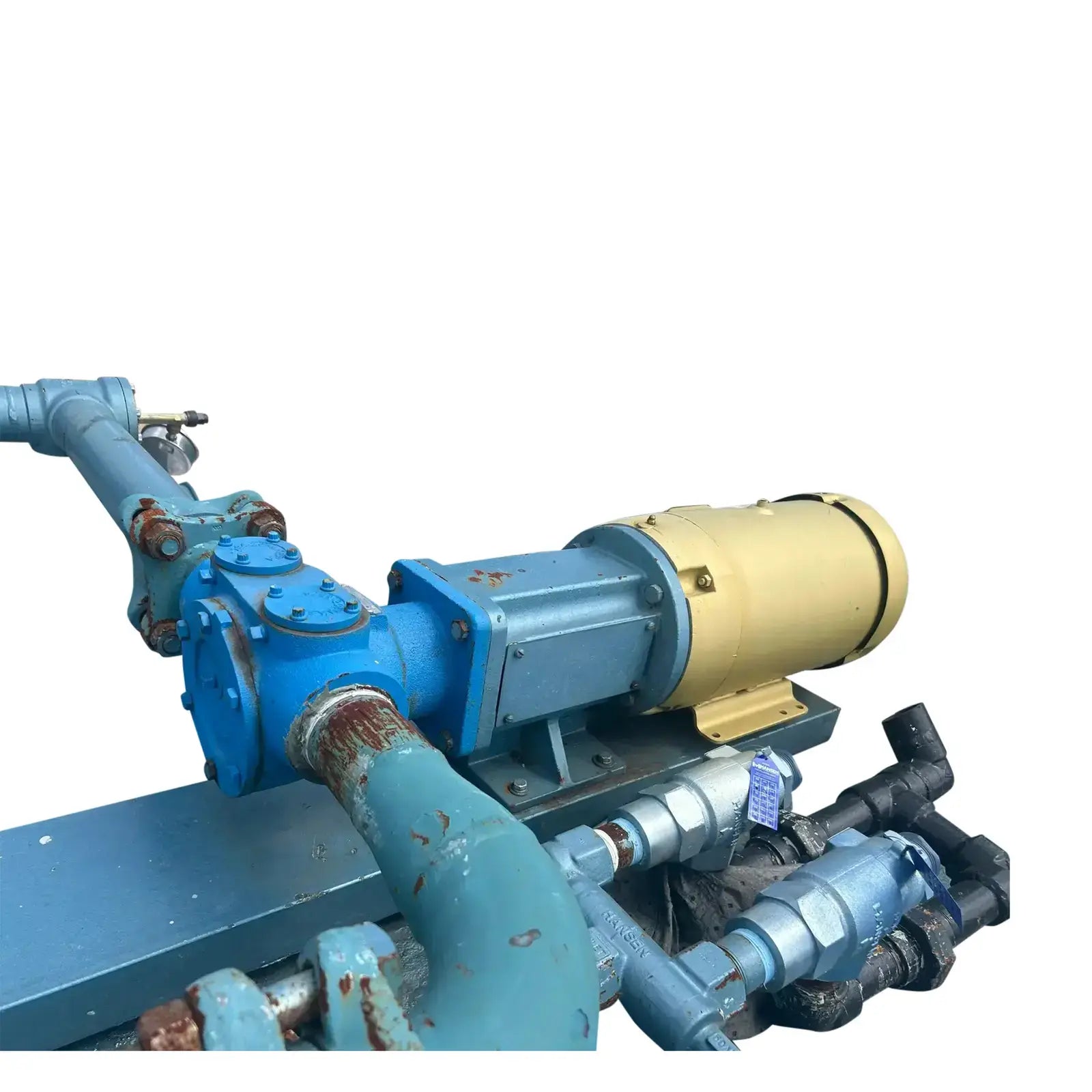

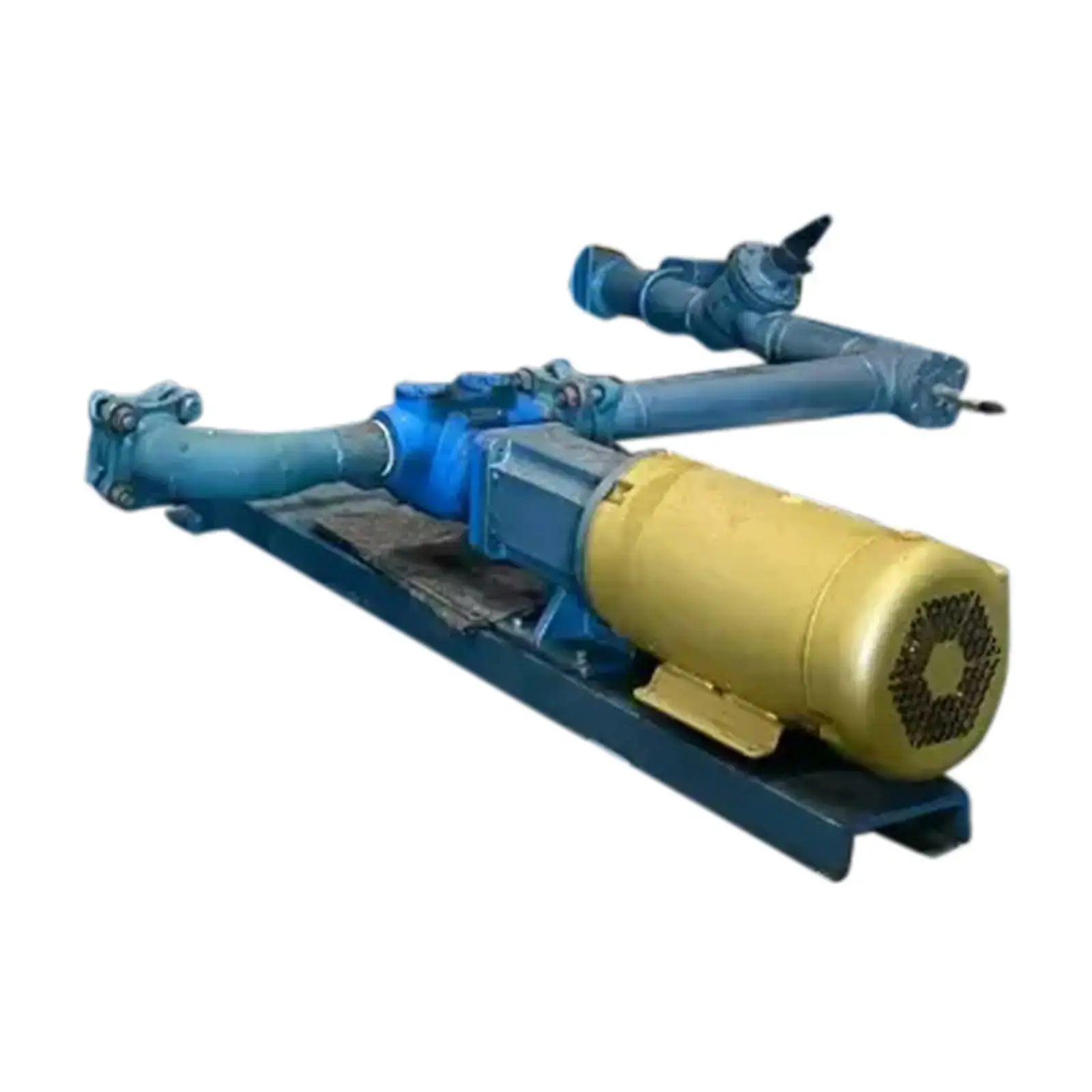

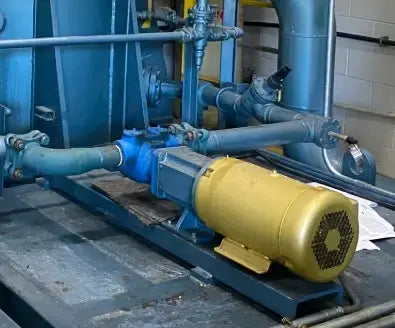

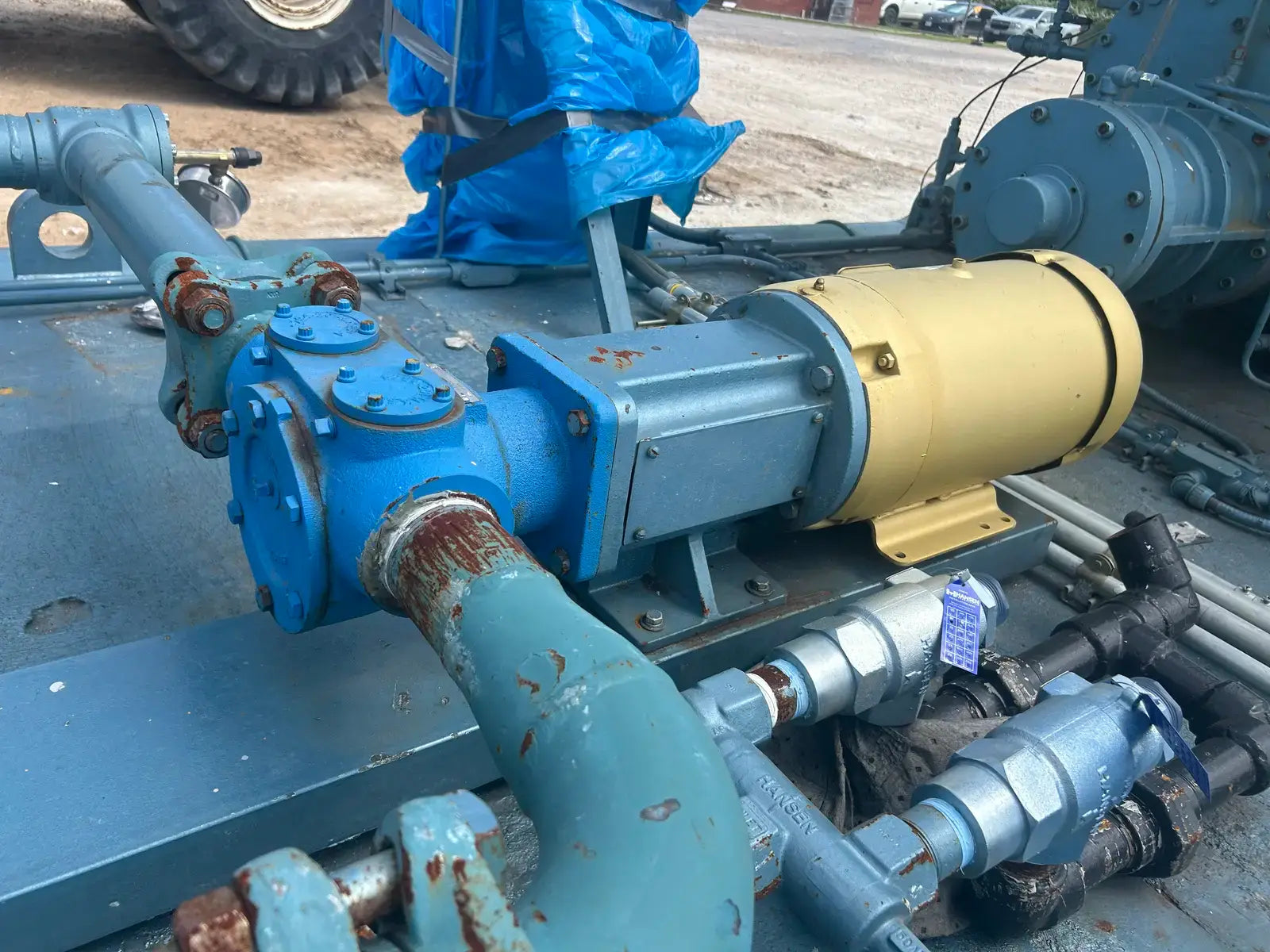

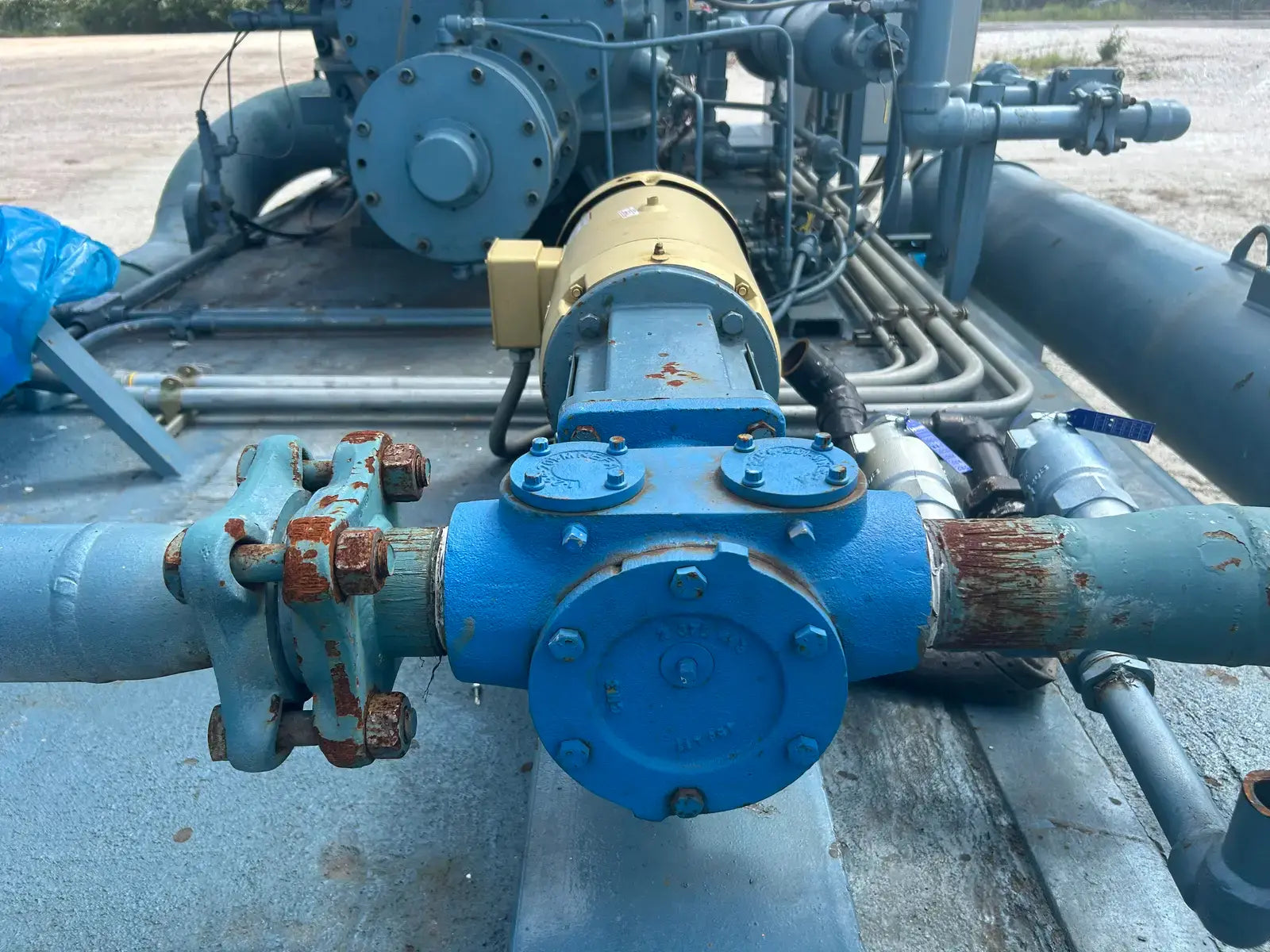

Viking AK495 Rotary Gear Pump (5 HP, 115 GPM Max)
Viking 495 Series Rotary Gear Pump. Model: AK495. Serial No: 8188920212. Nominal Flow: 8-115 GPM. Max Pressure: 250 PSI. Temperature Range: -40 F to 300 F.
Product Details
- Stock No: RPRB02D
- Manufacturer: Viking
- Model: AK495

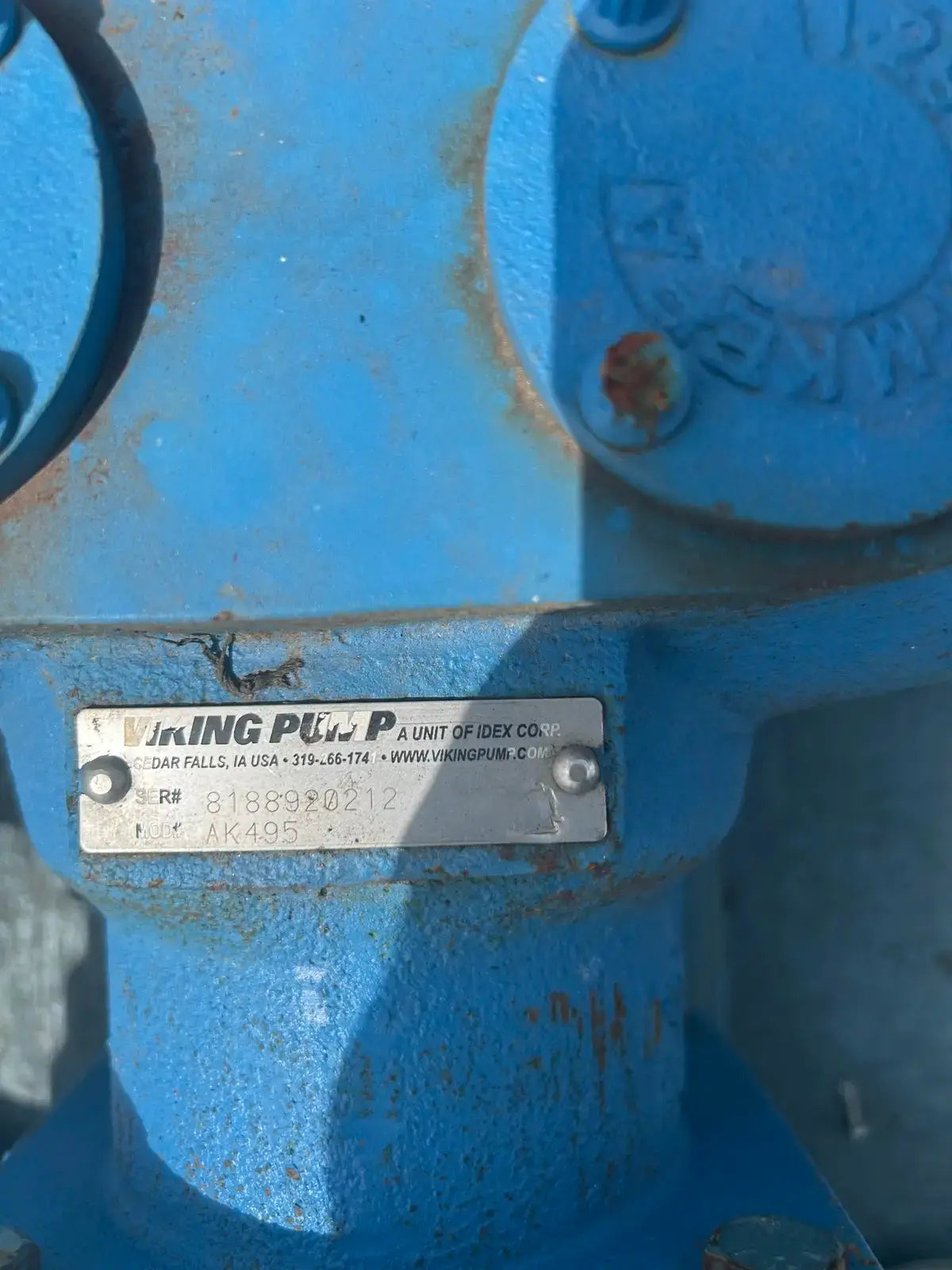

- Serial Number: 8188920212
Pump Details
- Pump Type: Positive Displacement
- Max Gallons Per Minute GPM: 115
- Max Speed RPM: 1,165
- Minimum Temperature (F): -40
- Maximum Temperature (F): 150
- Maximum Pressure MAWP (PSI): 250
- # Inlets: 1
- # Outlets: 1
- # Inlets/Outlets: 2
- Inlet/Outlet 1: Inlet
- Inlet/Outlet Size (Inches) 1: 2
- Inlet/Outlet Type 1: FNPT
- Inlet/Outlet 2: Outlet
- Inlet/Outlet Size (Inches) 2: 2
- Inlet/Outlet Type 2: FNPT
Previous Refrigerant

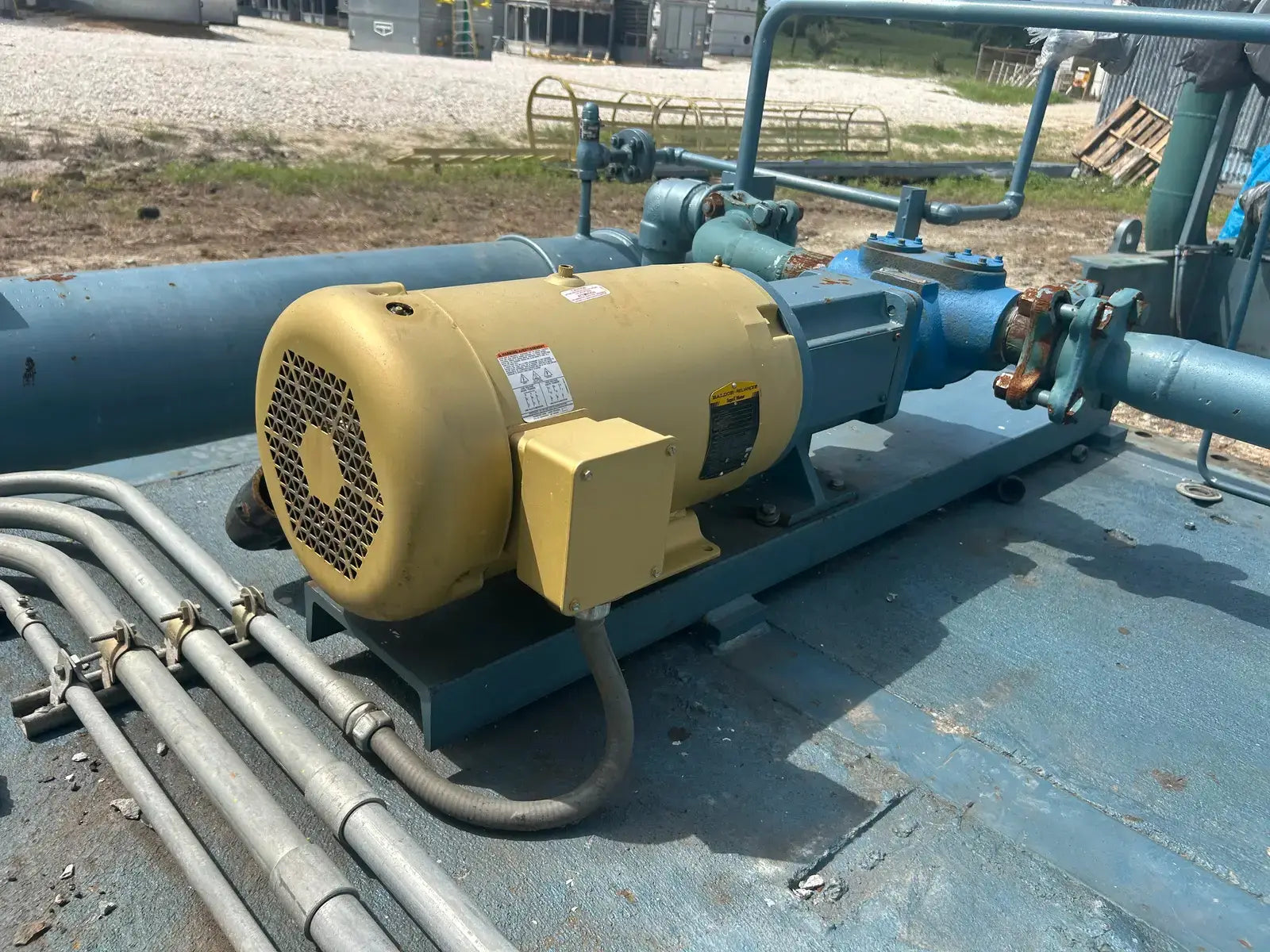

Motor Details
- Motor Included? Yes
- # Motors: 1

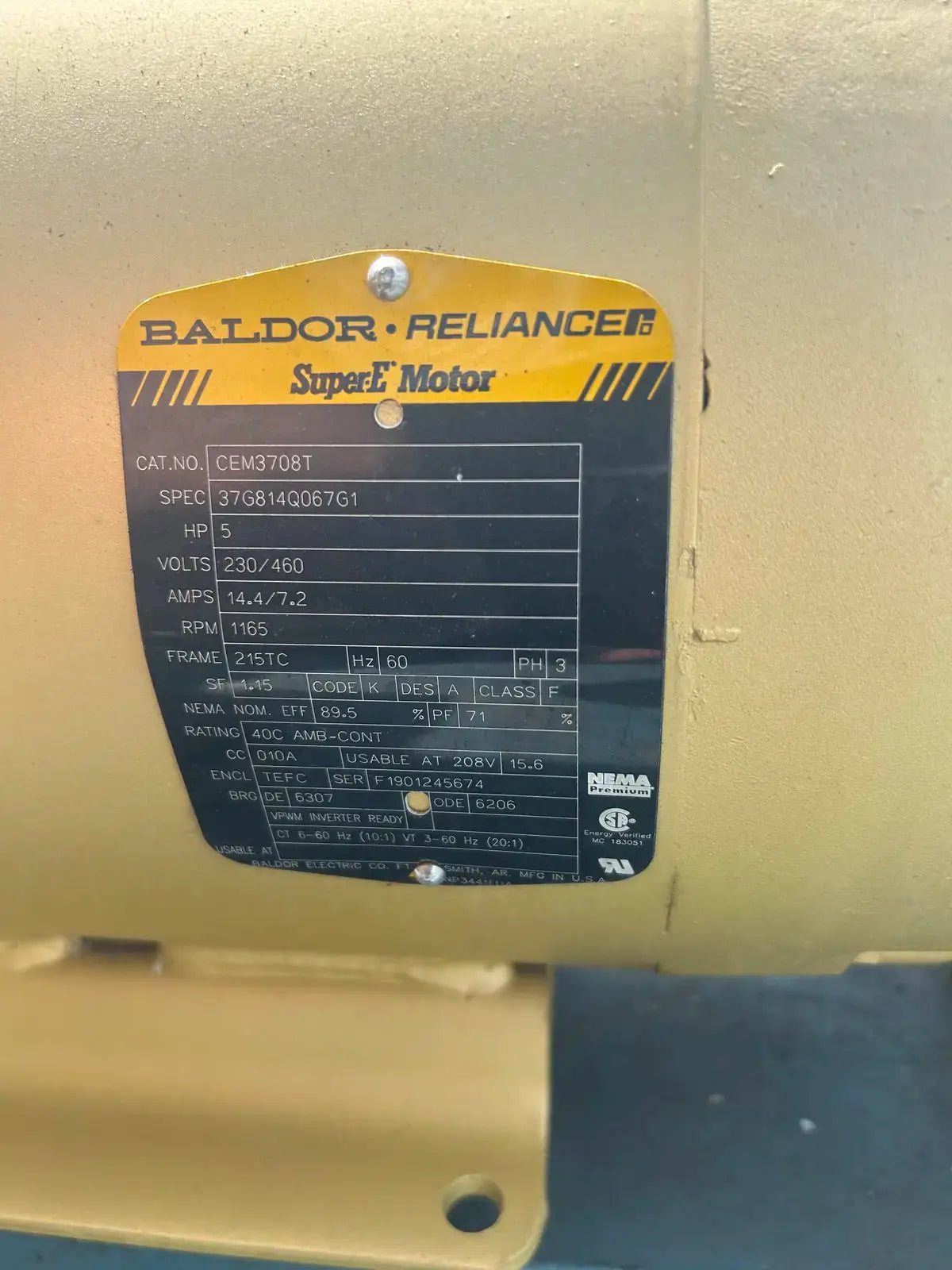

- Motor Manufacturer: Baldor Reliance
- Motor Horsepower(HP): 5
- Motor RPM: 1,165
- Motor Voltage: 230/460
- Motor Amps: 14.4/7.2
- Motor Hertz (Hz): 60
- Motor Phases: 3
- Motor Frame Size: 215TC
Dimensions:
- Length (Inches): 40
- Width (Inches): 40
- Height (Inches): 25
- Weight (LBS): 600
- # of Pieces for Shipping: 1
Additional Product Details
- Year Removed from Production: 2025
- Spec Sheet Available: Yes
