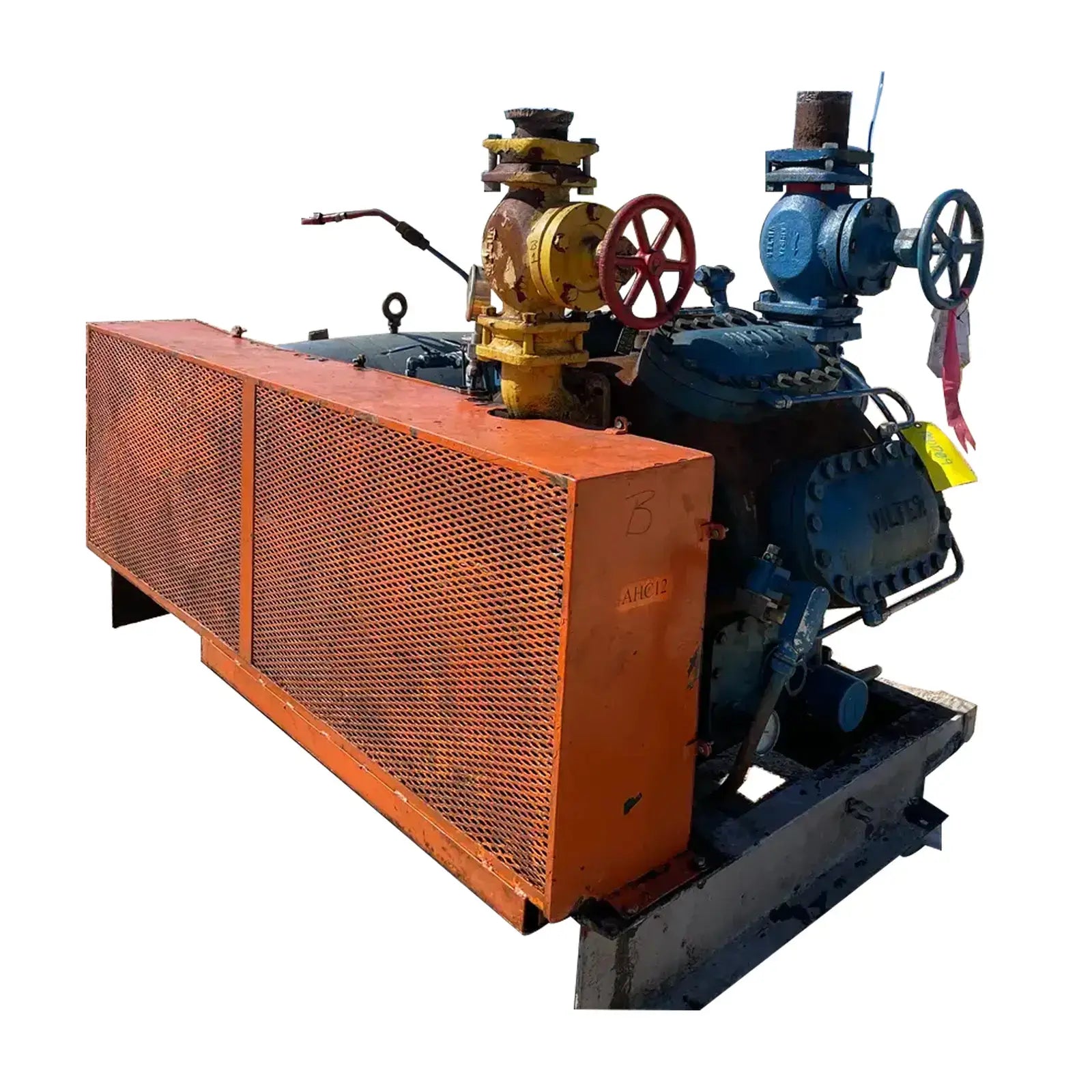

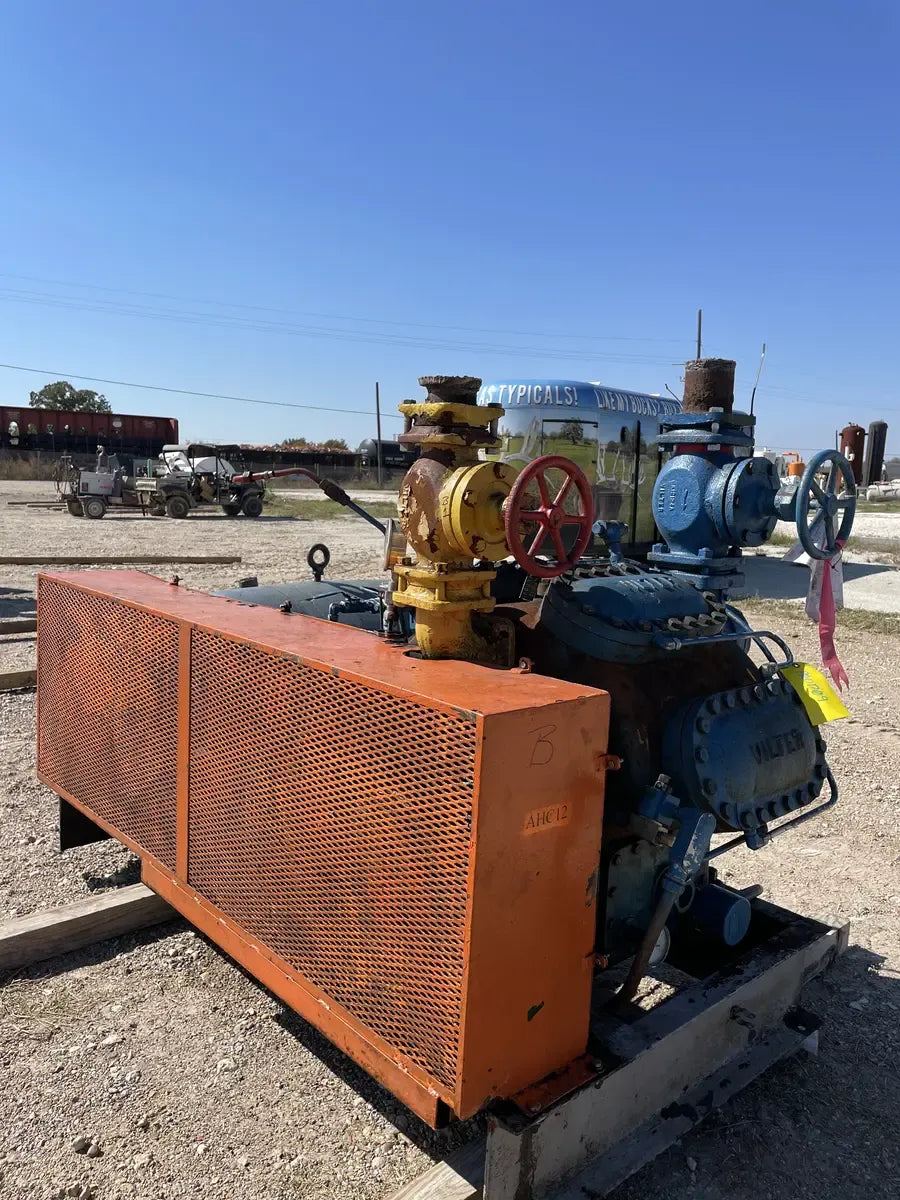

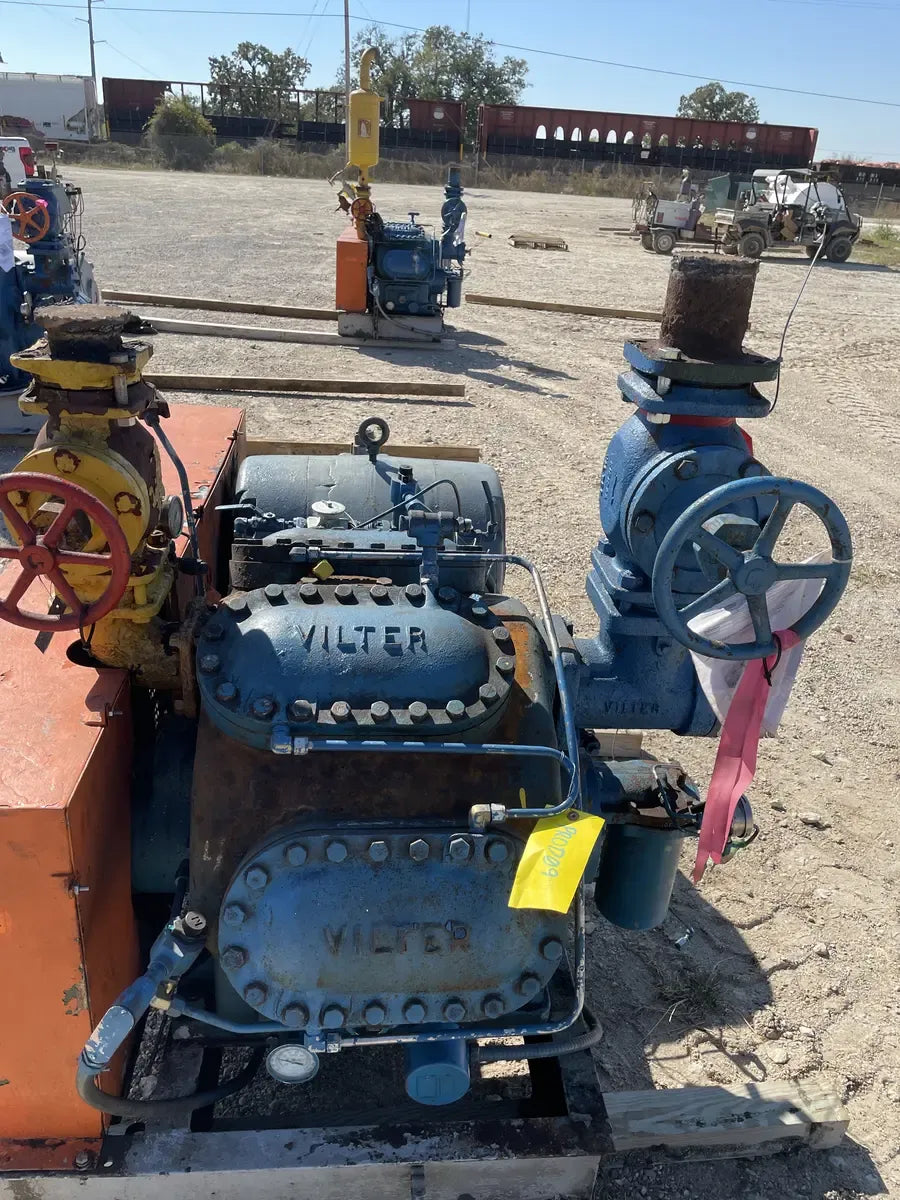

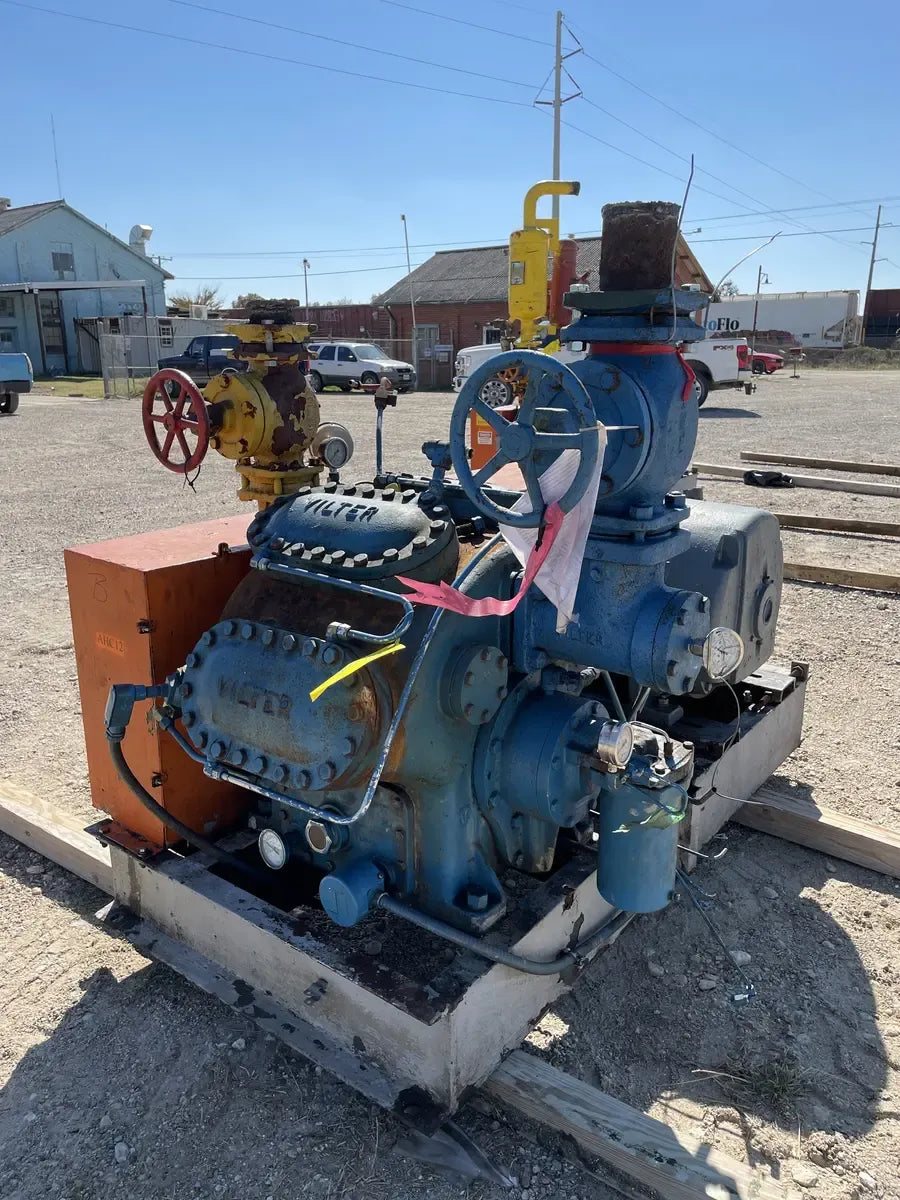

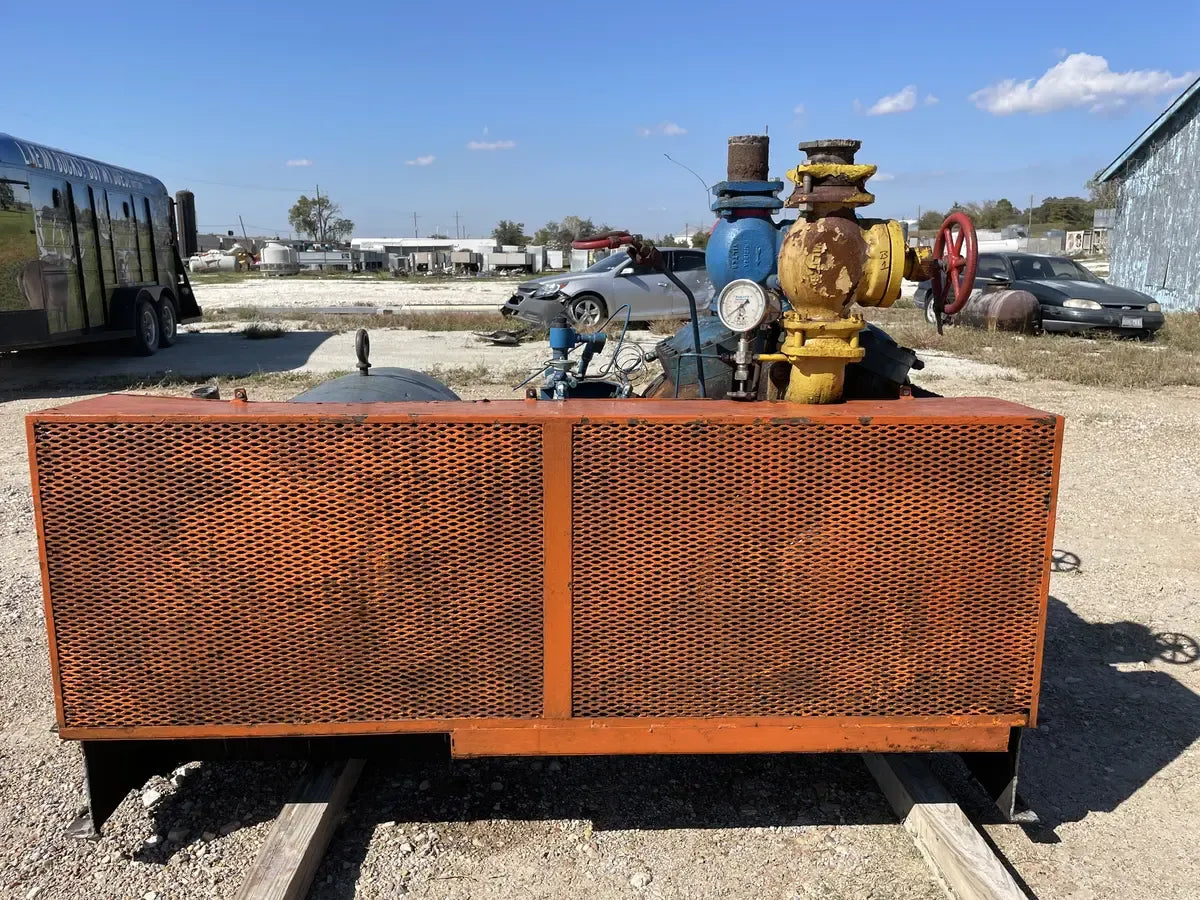

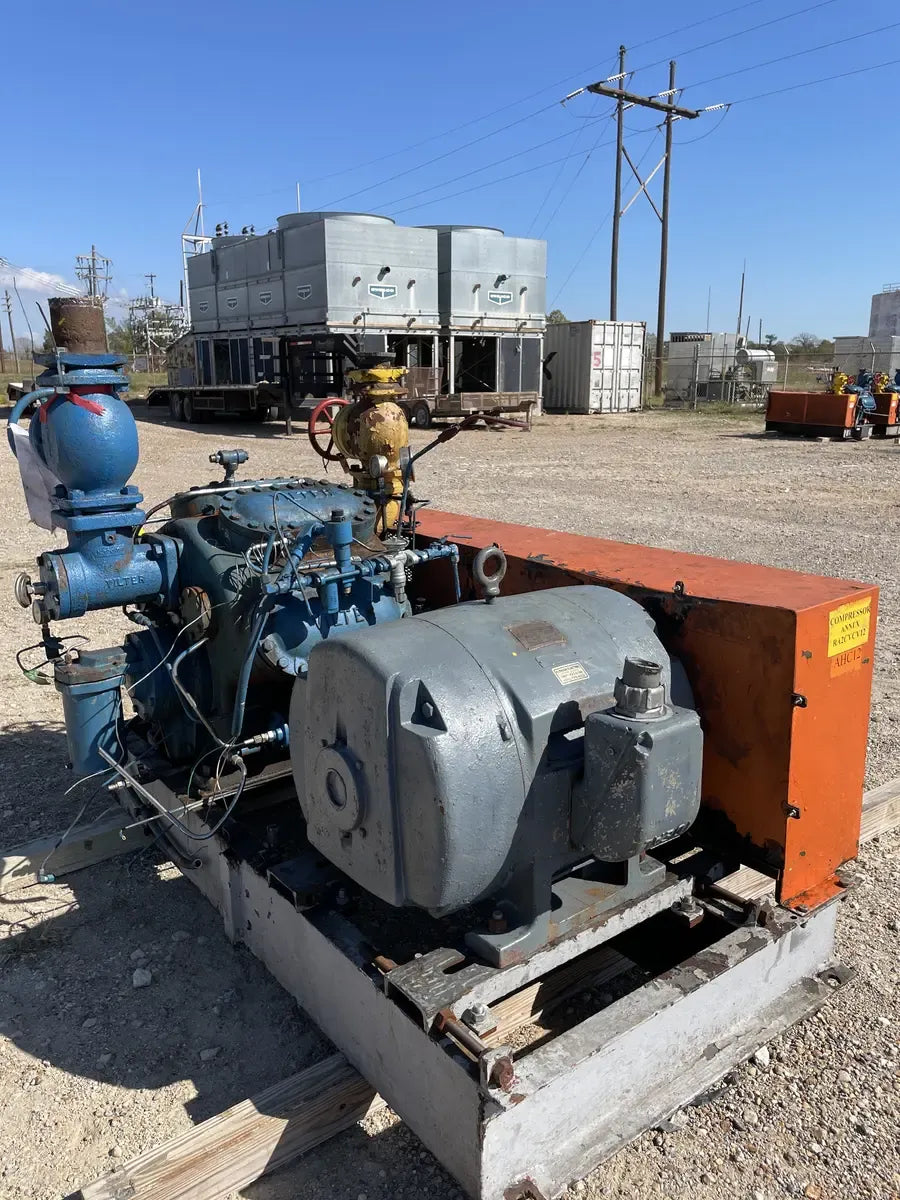

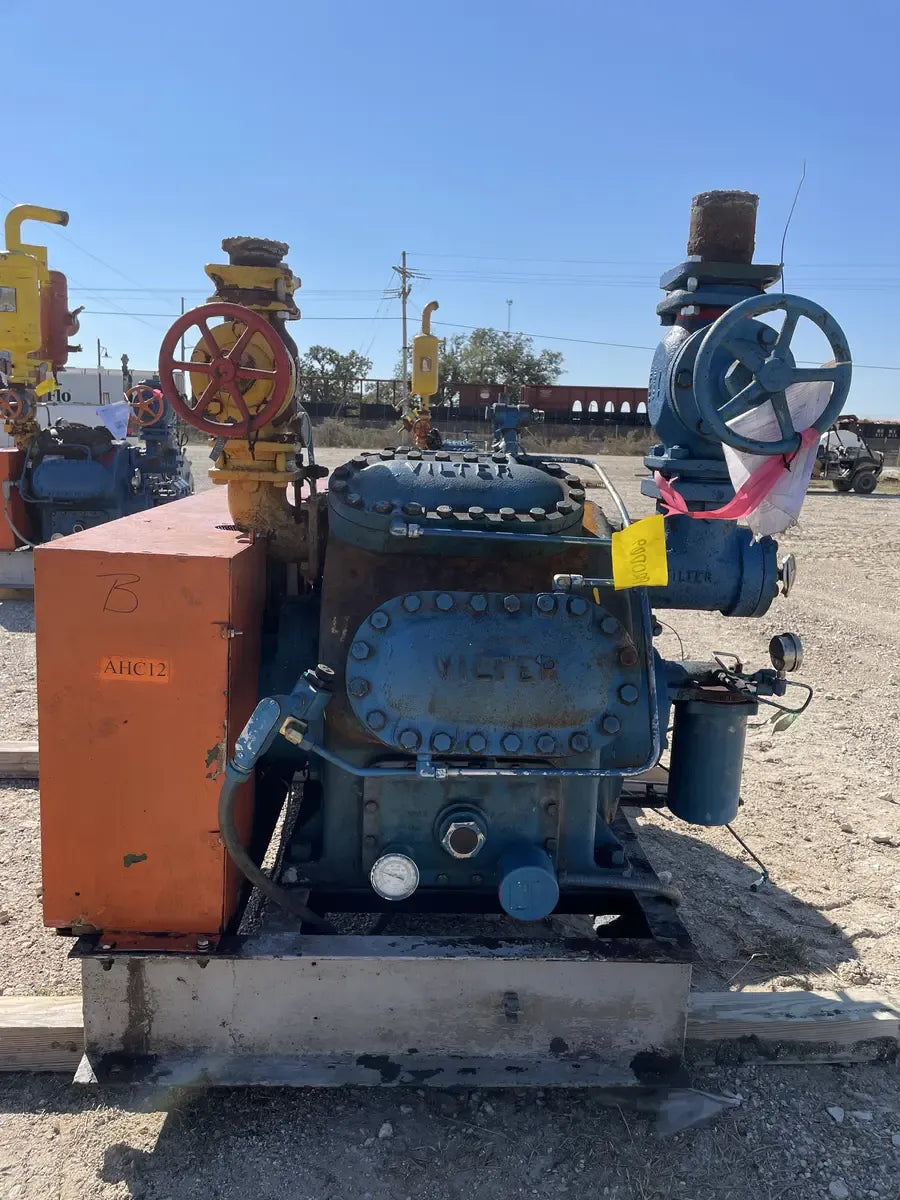

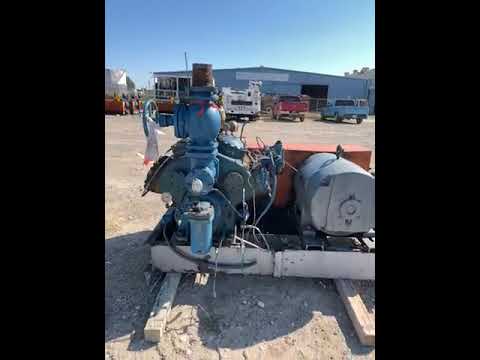

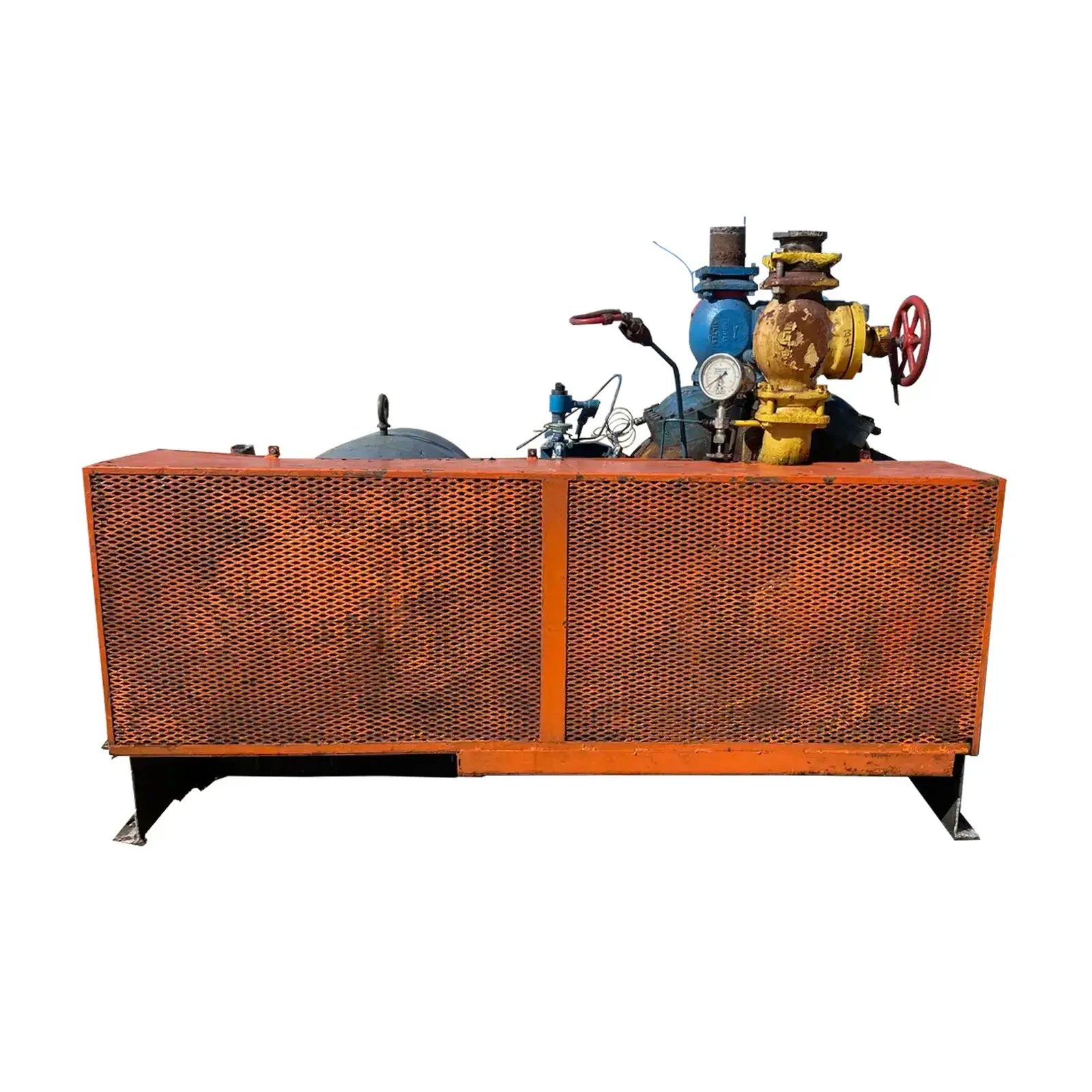

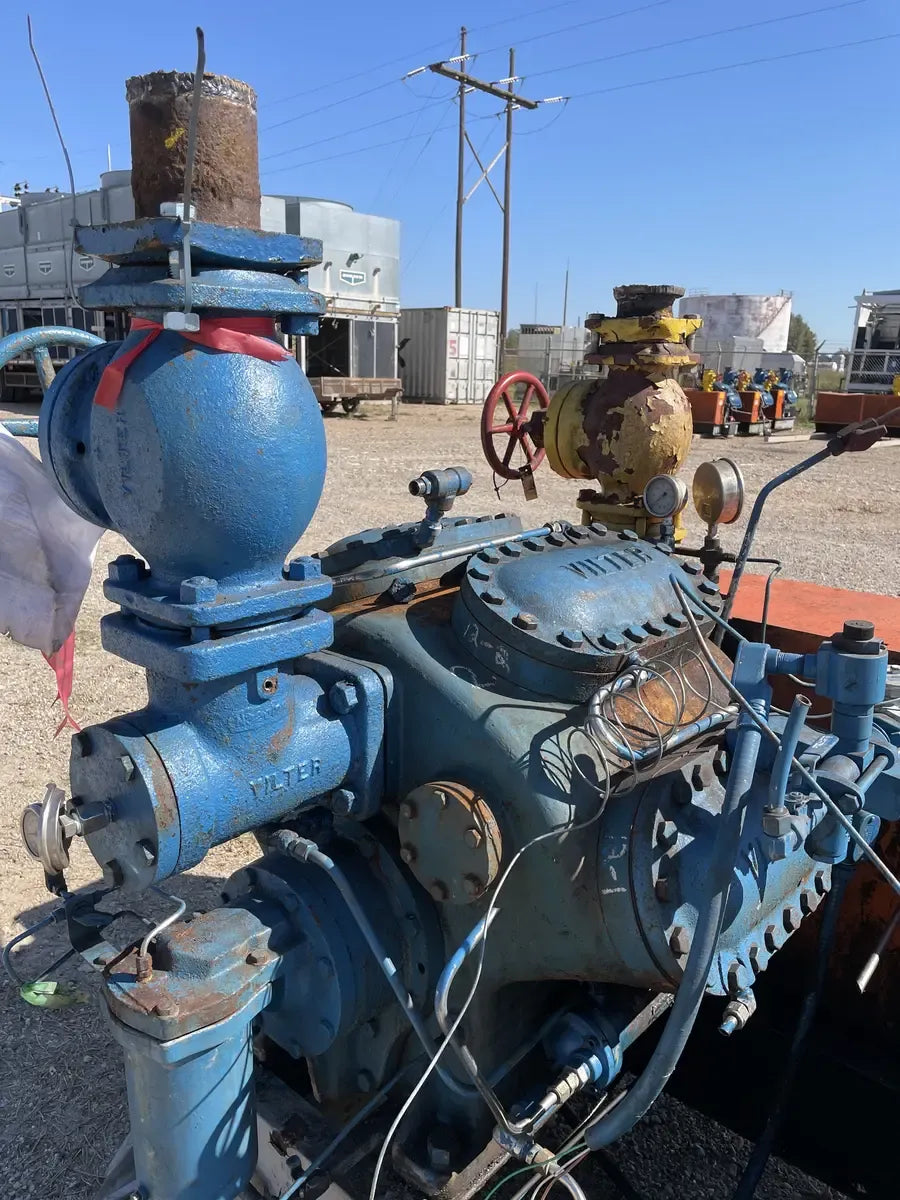

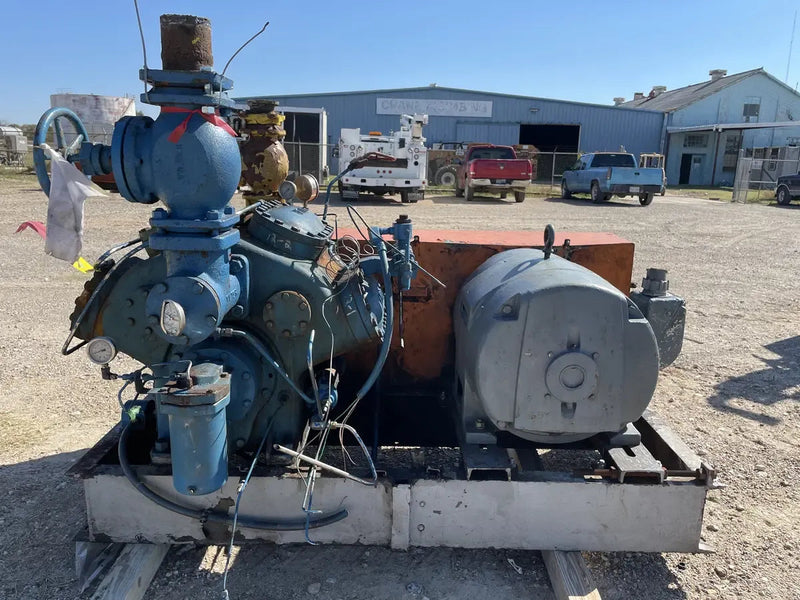

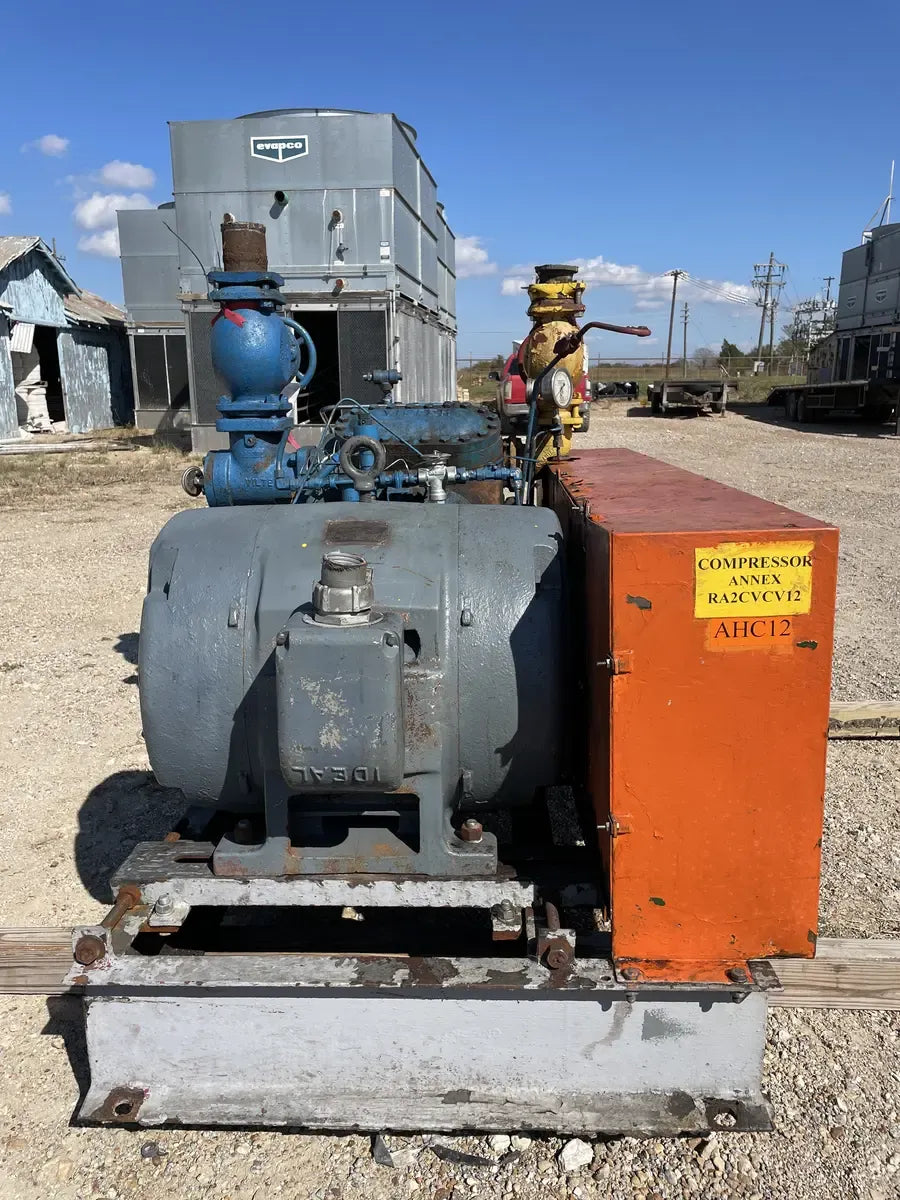

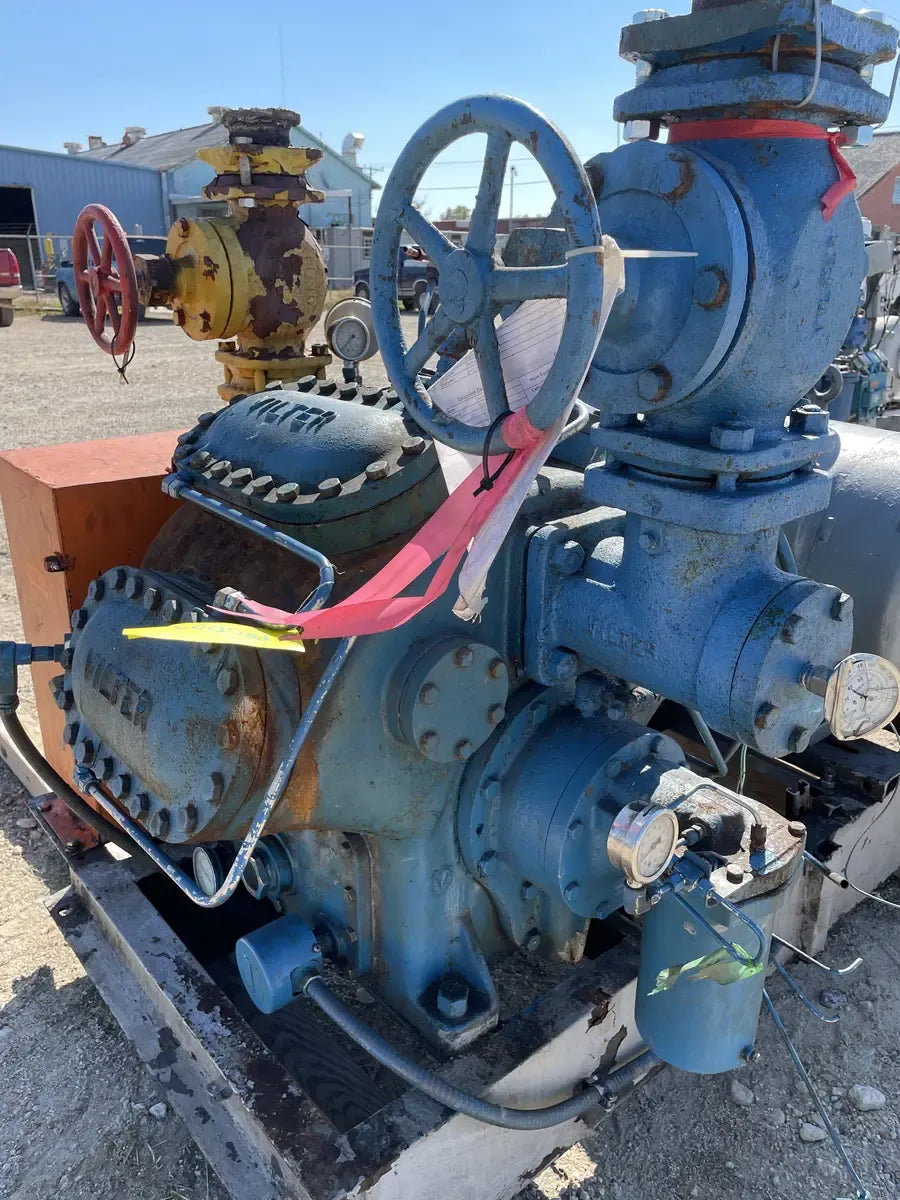

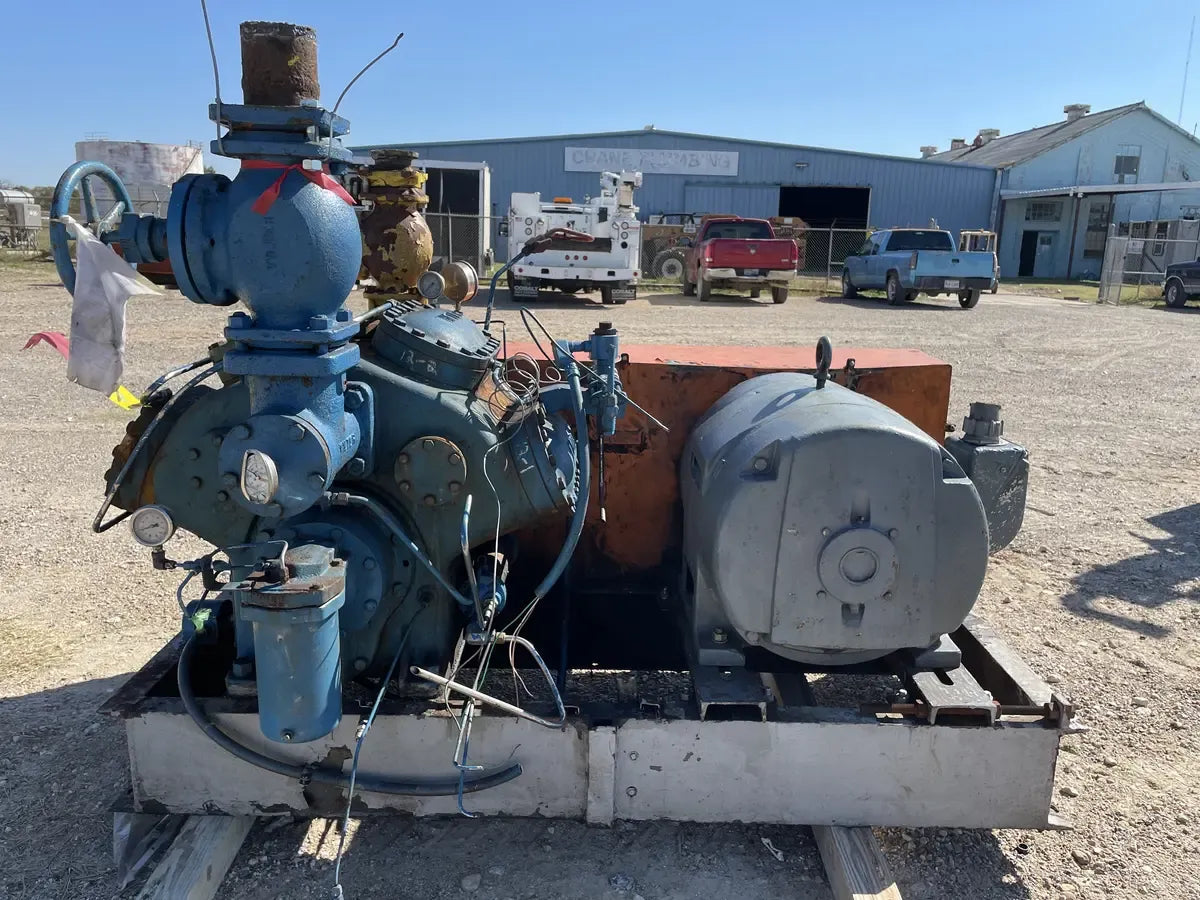

Vilter 448 8-Cylinder Reciprocating Compressor Package (100 HP 208-220/440 V, Belt Driven)

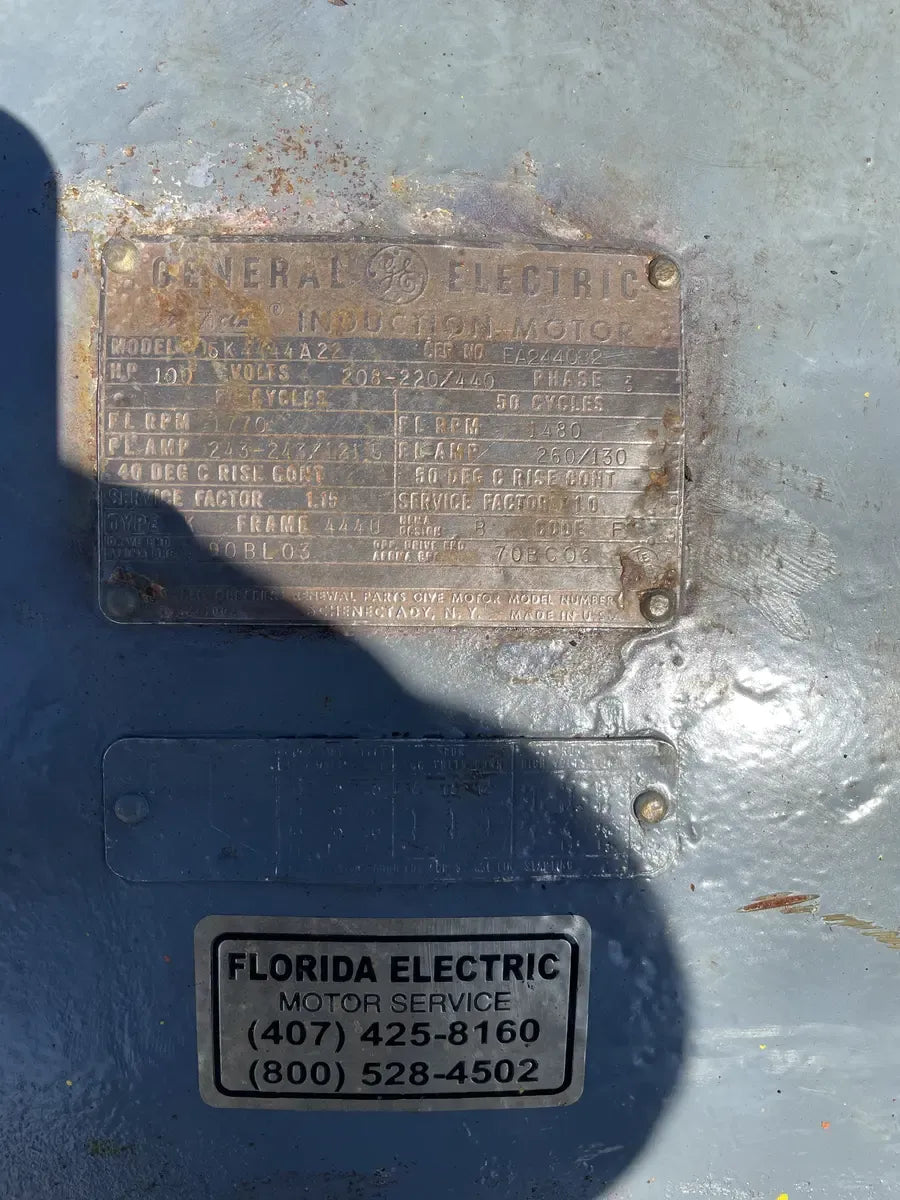

Vilter 448 8-Cylinder Reciprocating Compressor - Model: 448, Mfg Year: 2005. Number of Cylinders: 8, Maximum RPM: 1200, Bore & Stroke -In (mm): 114x89, Displacement (CFM): 309, Suction Connection: 4, Discharge Connection: 3, Oil Charge Gallon (Liter): 7(27), Standard step of unloading: 25/50, Maximum Discharge: 300, Crankcase of Temp Range: 43-54. Missing Data Plate. General Electric Motor - Model No: 5K4444A22, HP: 100, Volts: 208-220/440, PH: 3, RPM: 1480, AMPS: 260/130, Frame: 444U.
Product Details
- Stock No: PROD09
- Manufacturer: Vilter
- Model: 448
Previous Refrigerant
- Previous Refrigerant: Ammonia (R-717)
- Ammonia (R-717) Compatiable: Yes
- Halocarbon (Freon) Compatible: Yes

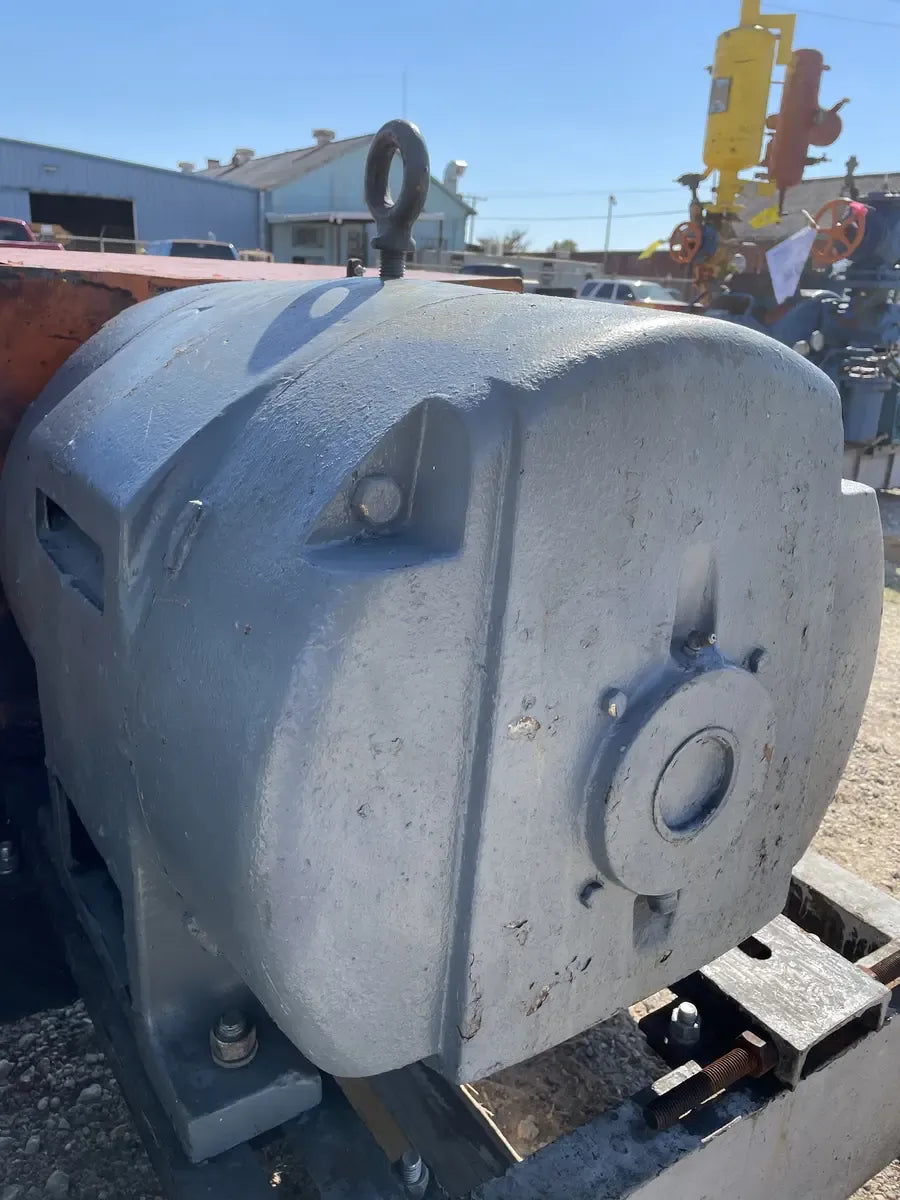

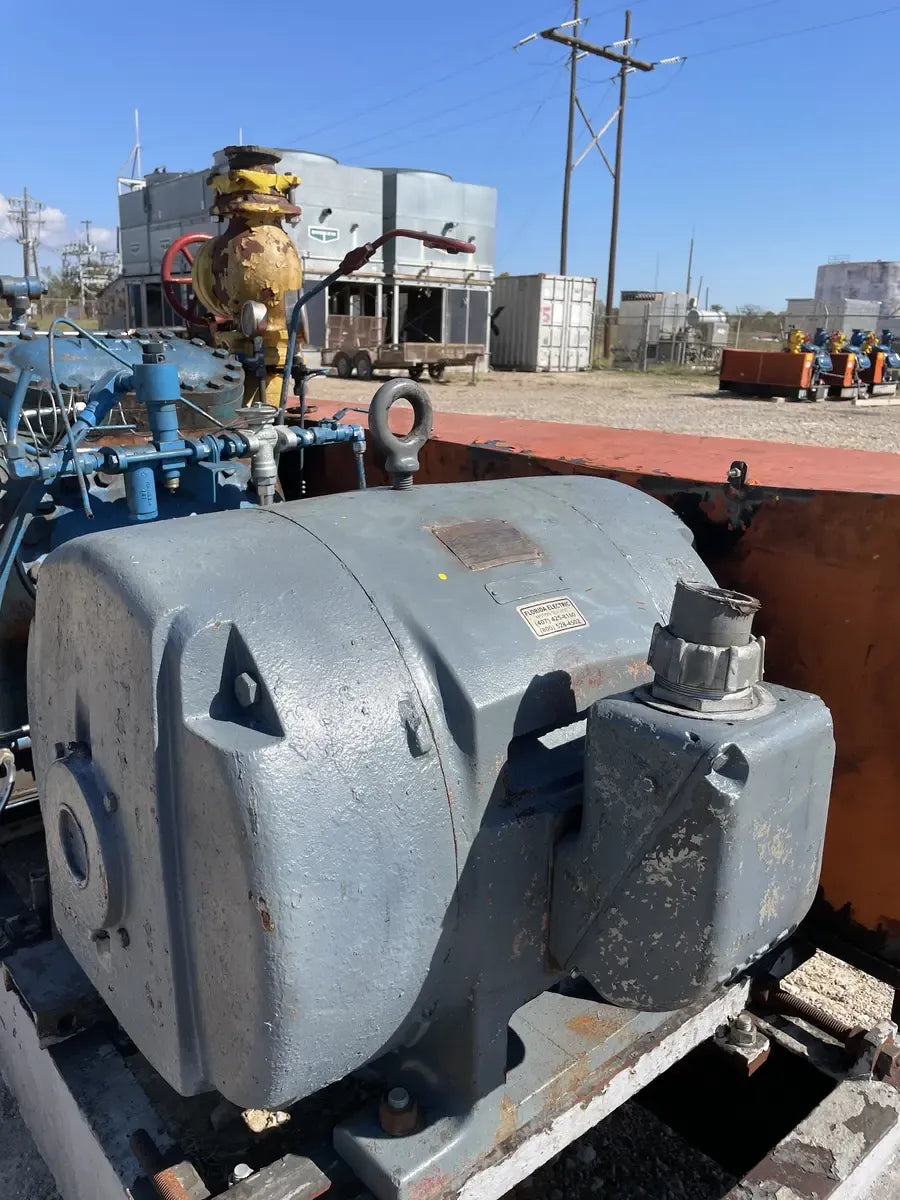

Motor Details
- Motor Included? Yes
- # Motors: 1
- Motor Manufacturer: GE
- Motor Horsepower(HP): 100
- Motor RPM: 1,480
- Motor Voltage: 208-220/440
- Motor Amps: 260/130
- Motor Hertz (Hz): 60
- Motor Phases: 3
- Motor Frame Size: 444-U
Dimensions:
- Length (Inches): 79
- Width (Inches): 51
- Height (Inches): 58
- Weight (LBS): 3,400
- # of Pieces for Shipping: 1
Additional Product Details
- Year of Manufacture: 2005
- Spec Sheet Available: Yes
- Known Issues or Problems: Missing Data Plate
