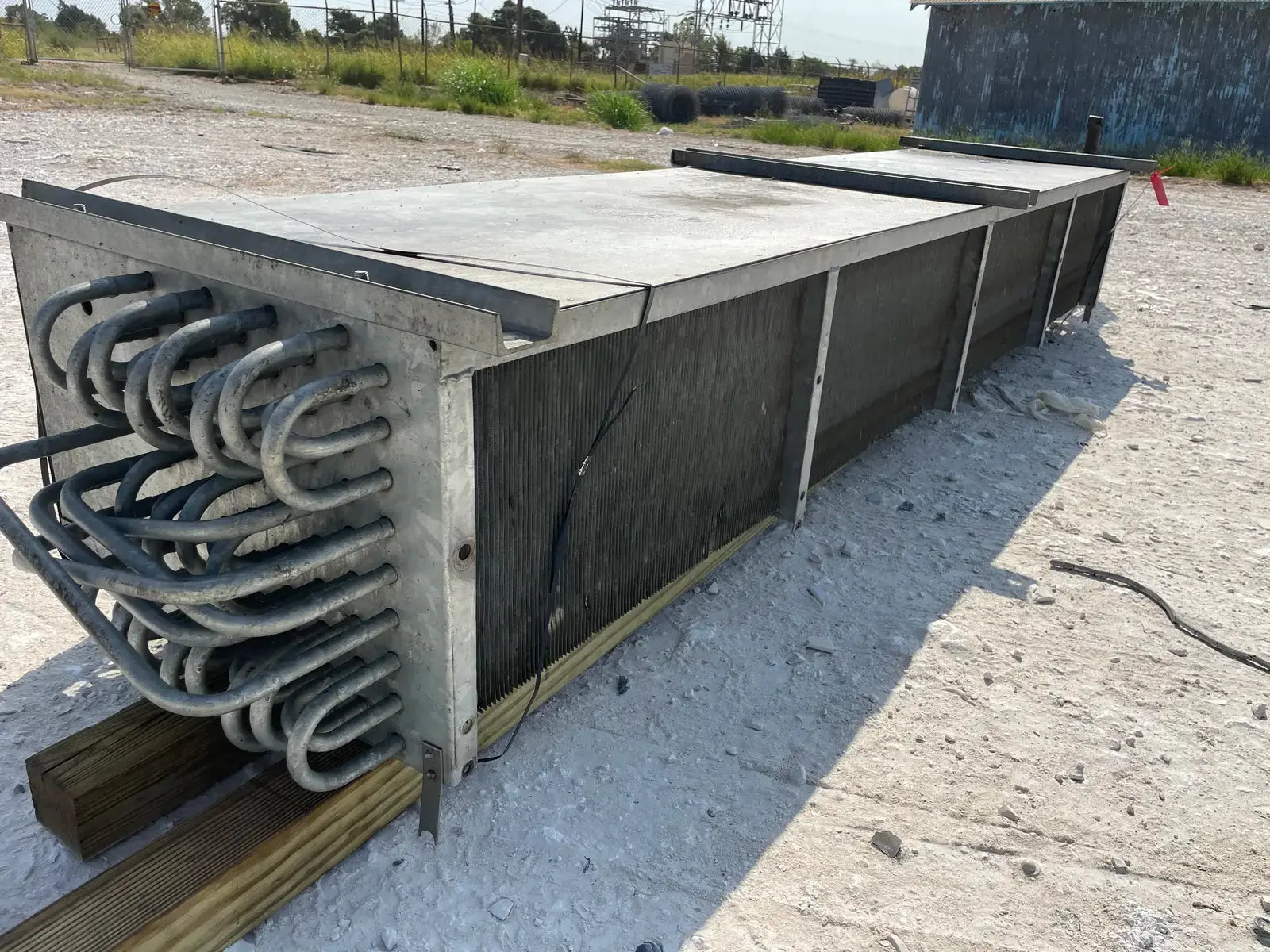

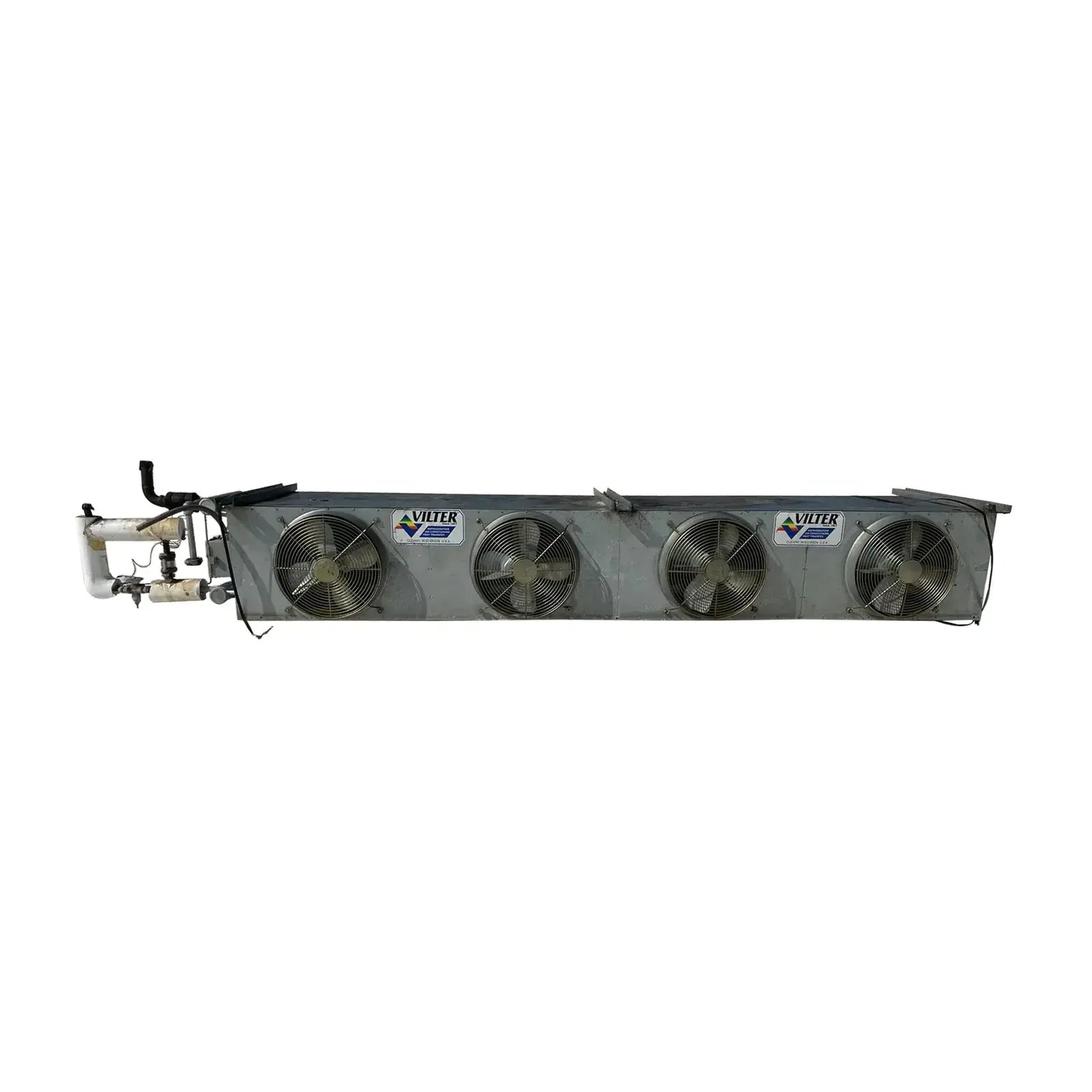

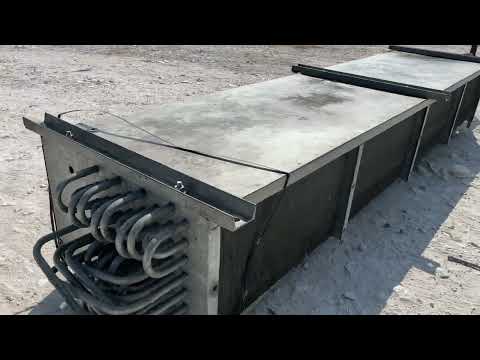

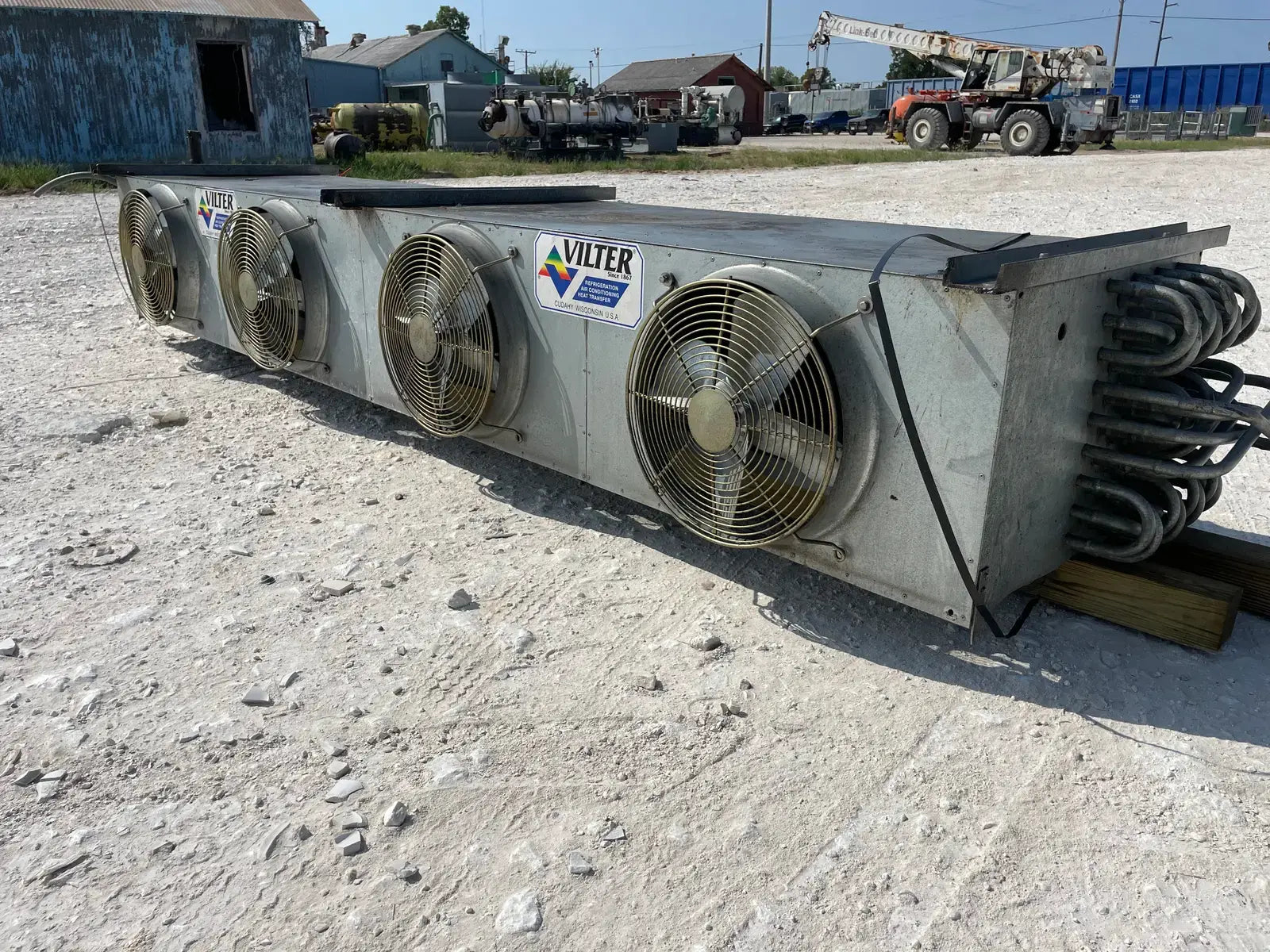

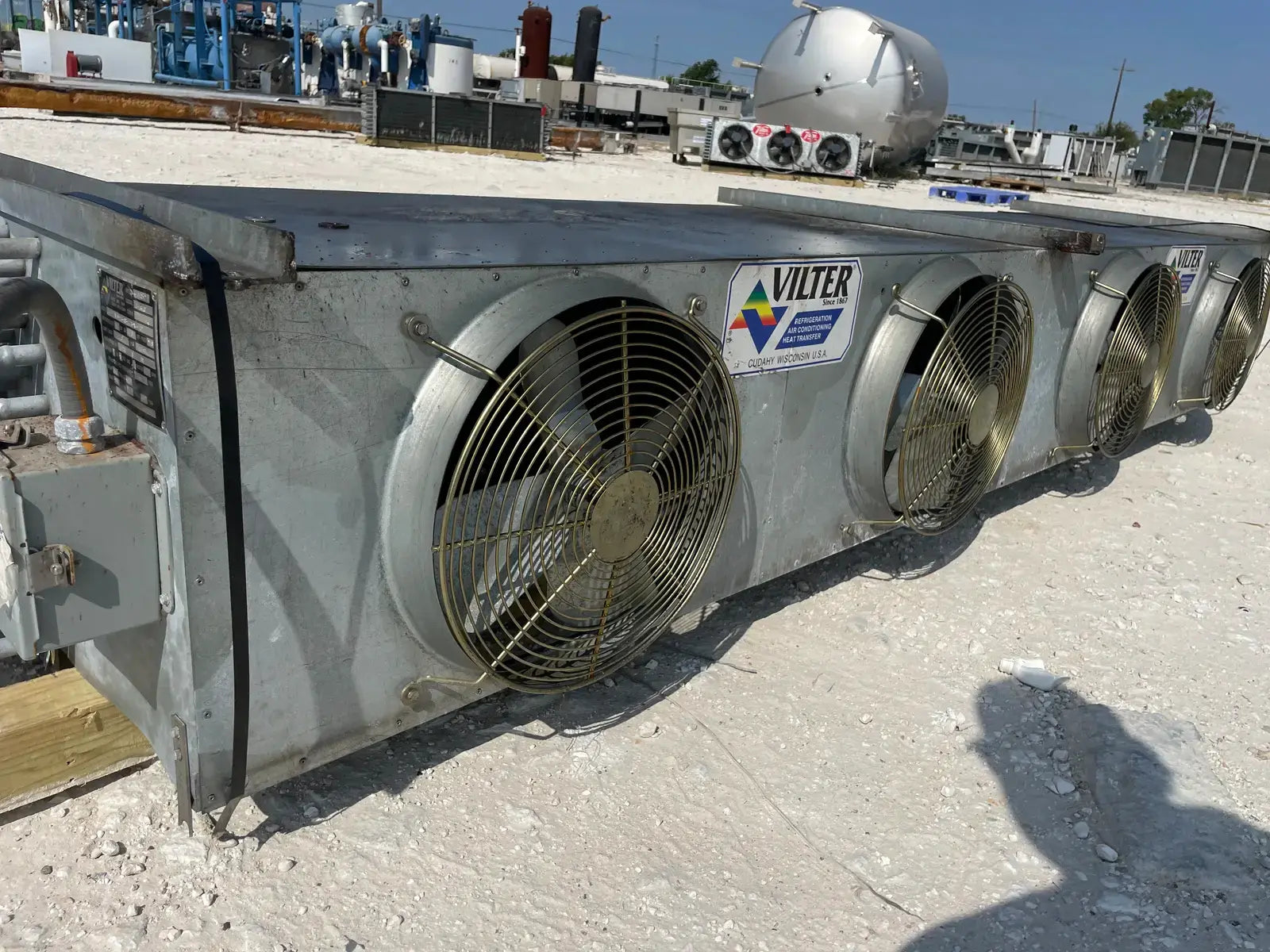

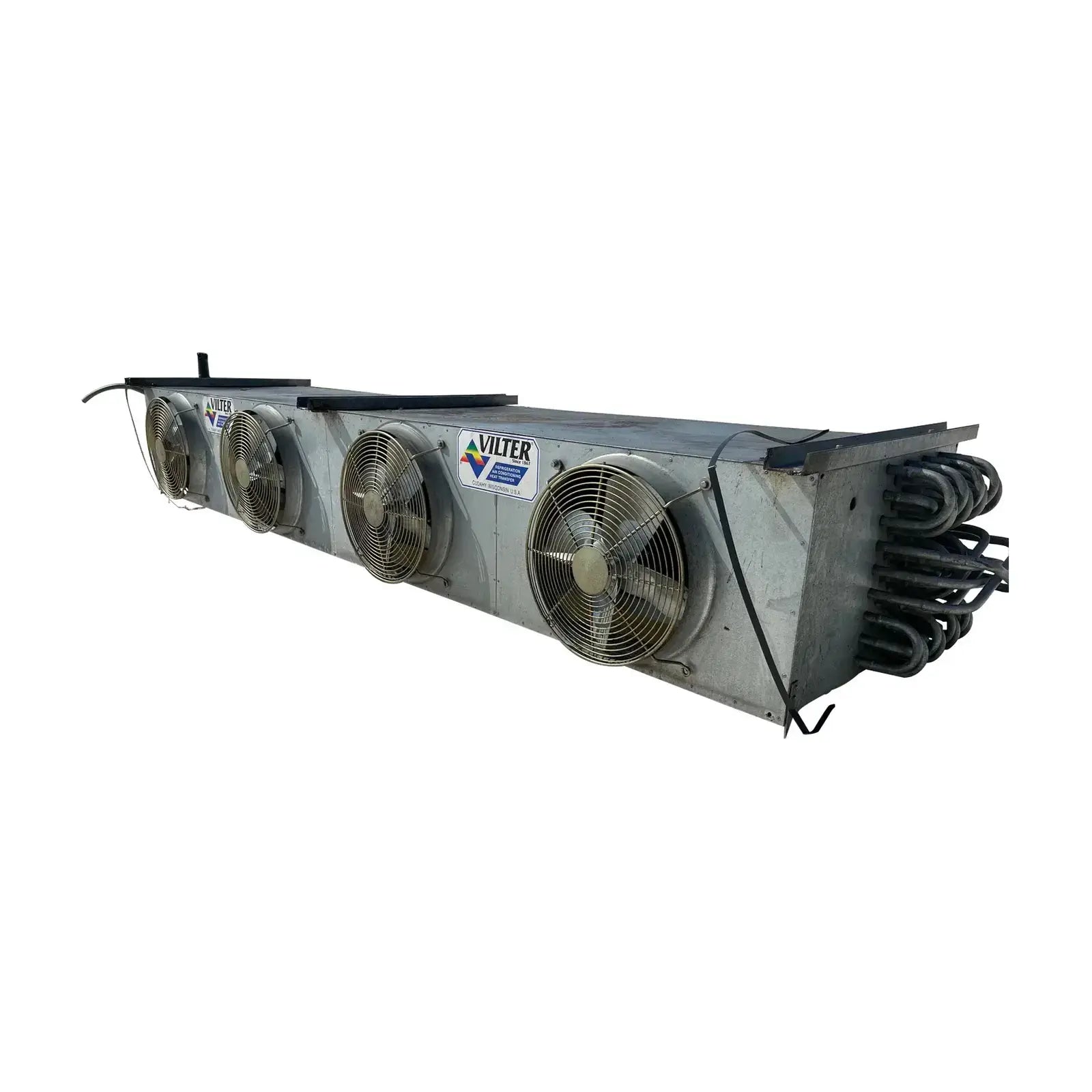

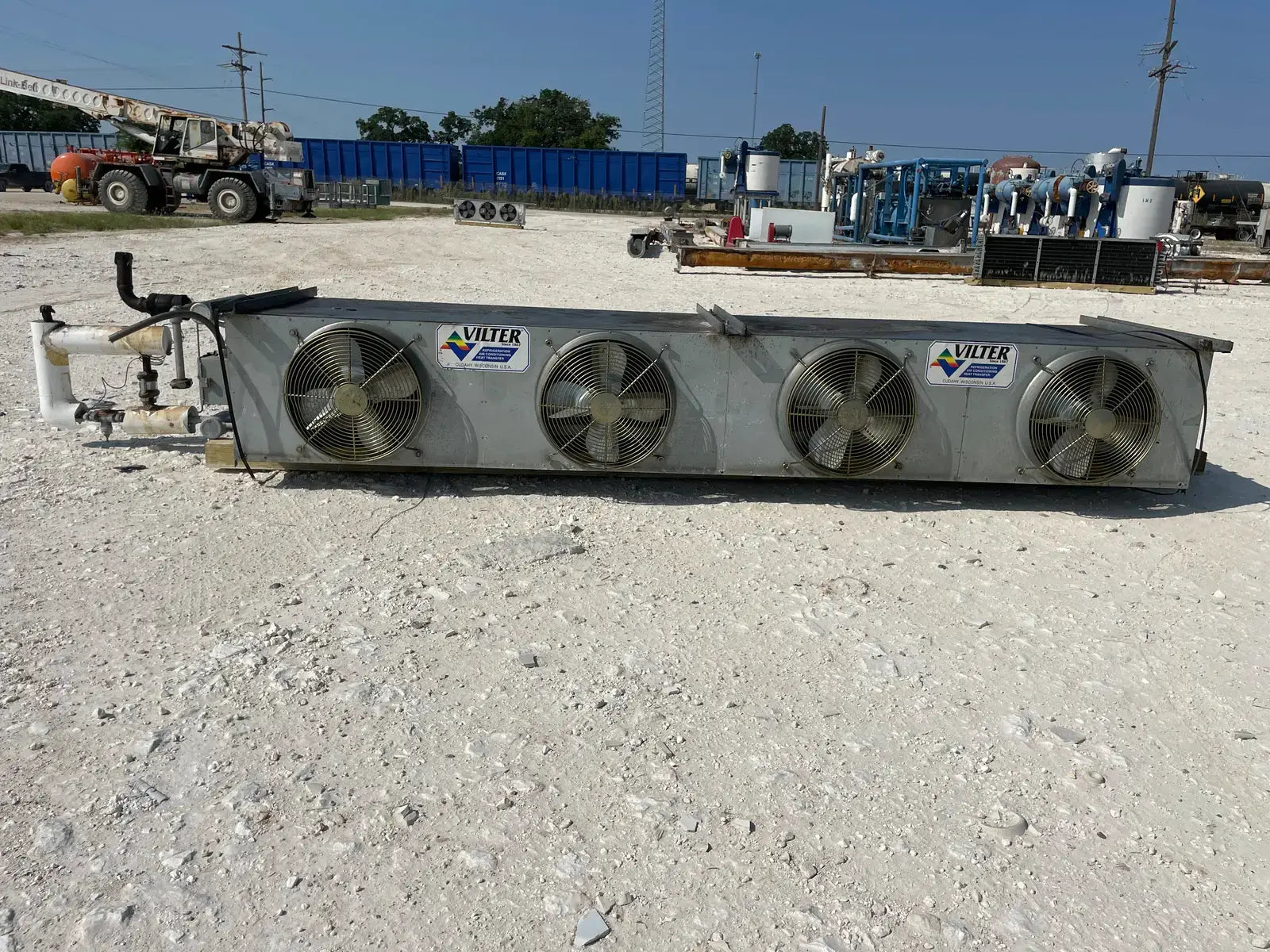

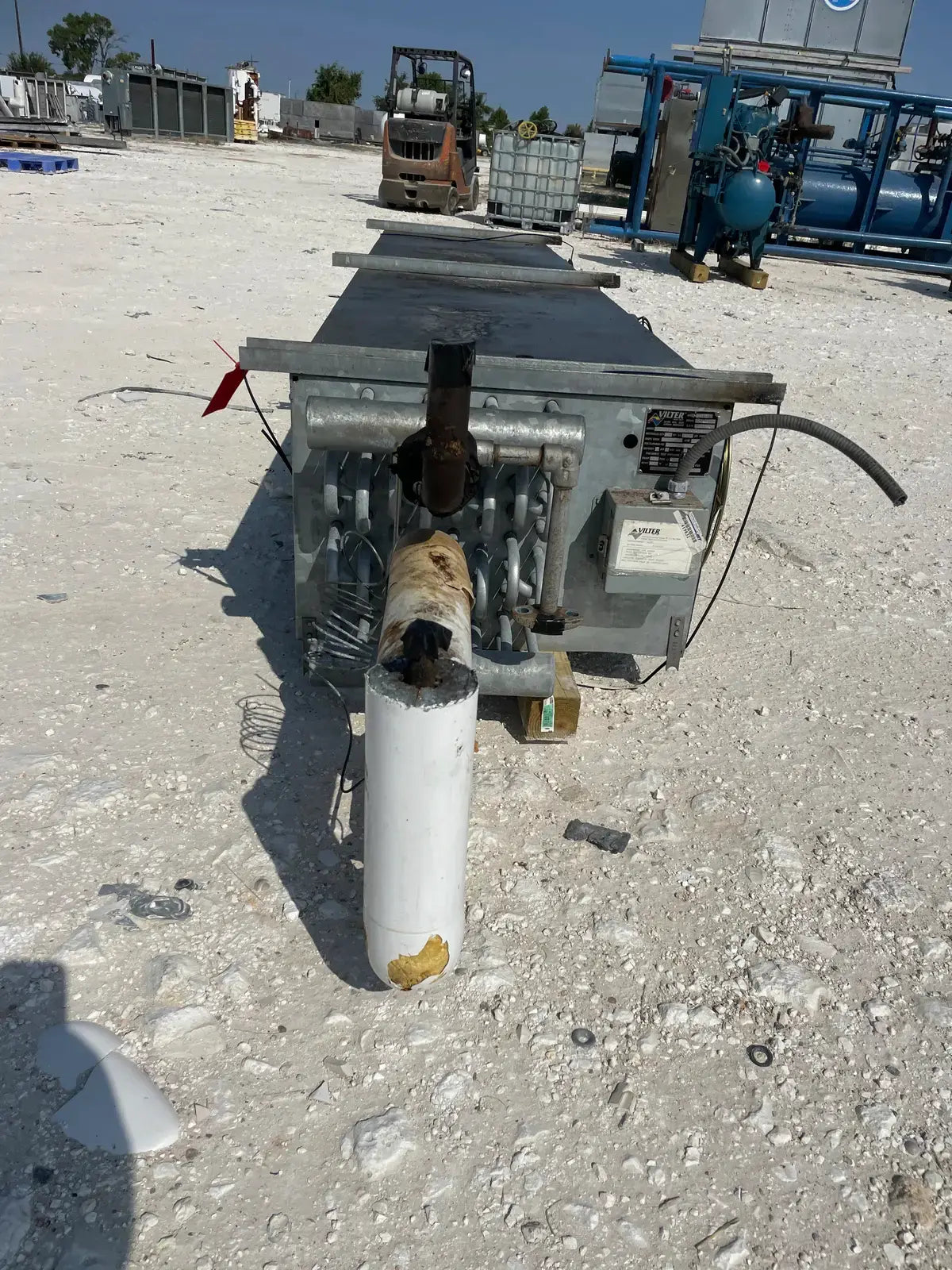

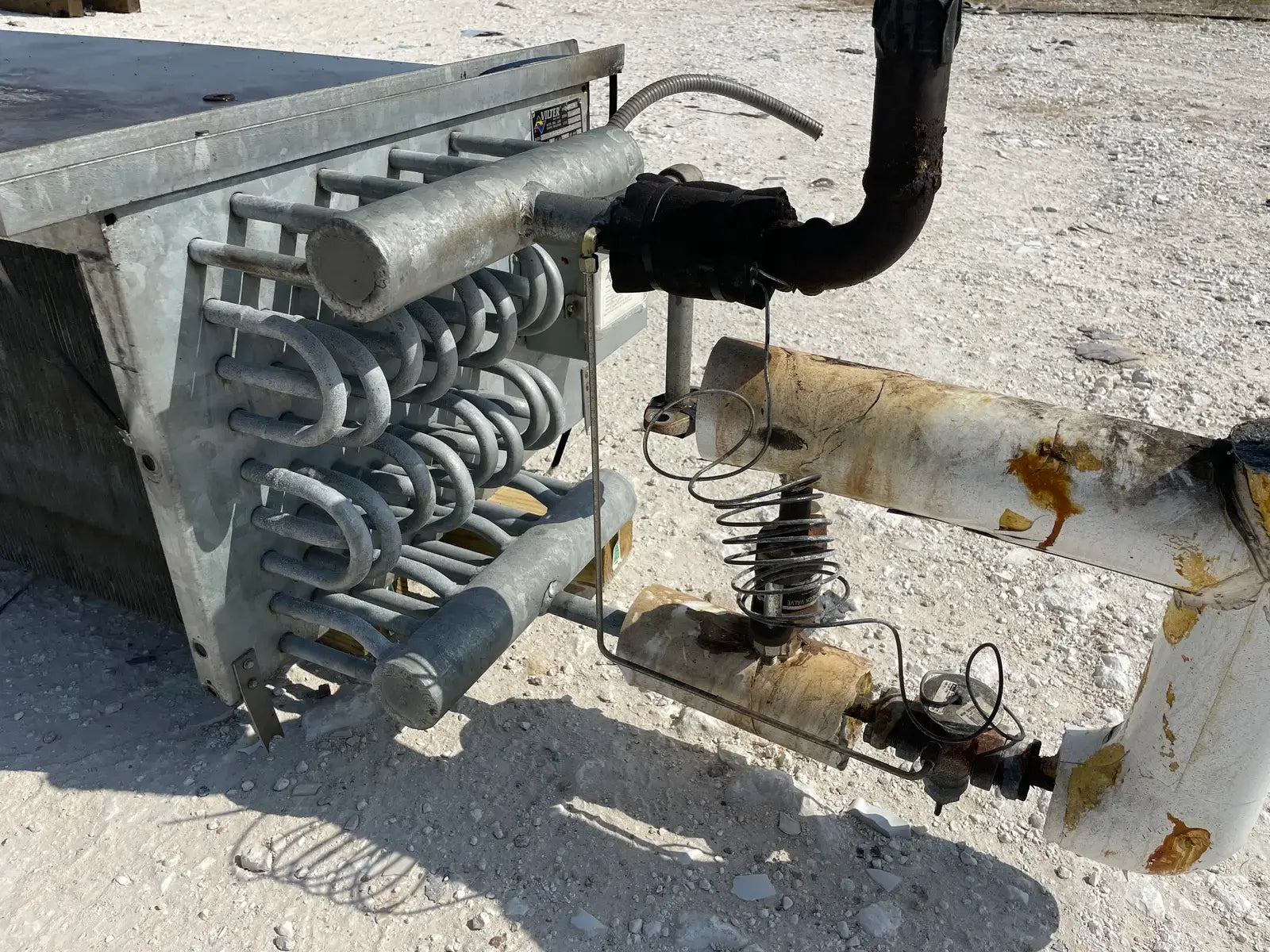

Vilter VLP-16-83-1/3-XA-HGP Ammonia Evaporator Coil- 4.79 TR, 4 Fans (Low Temperature)

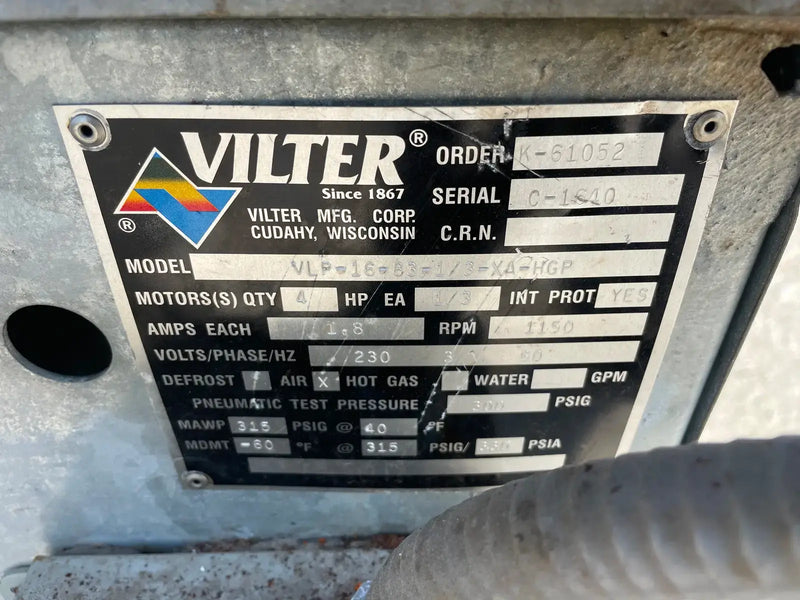

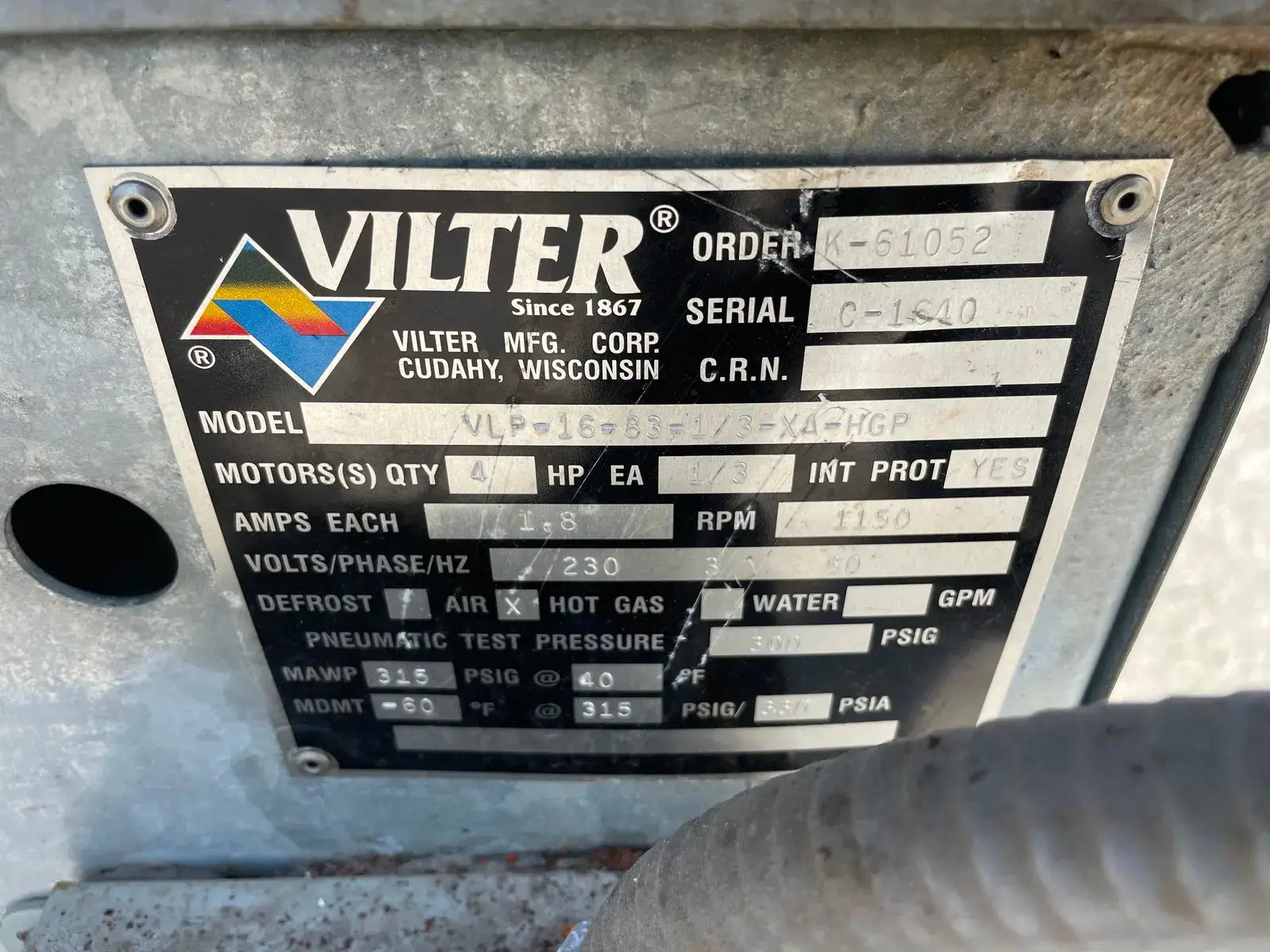

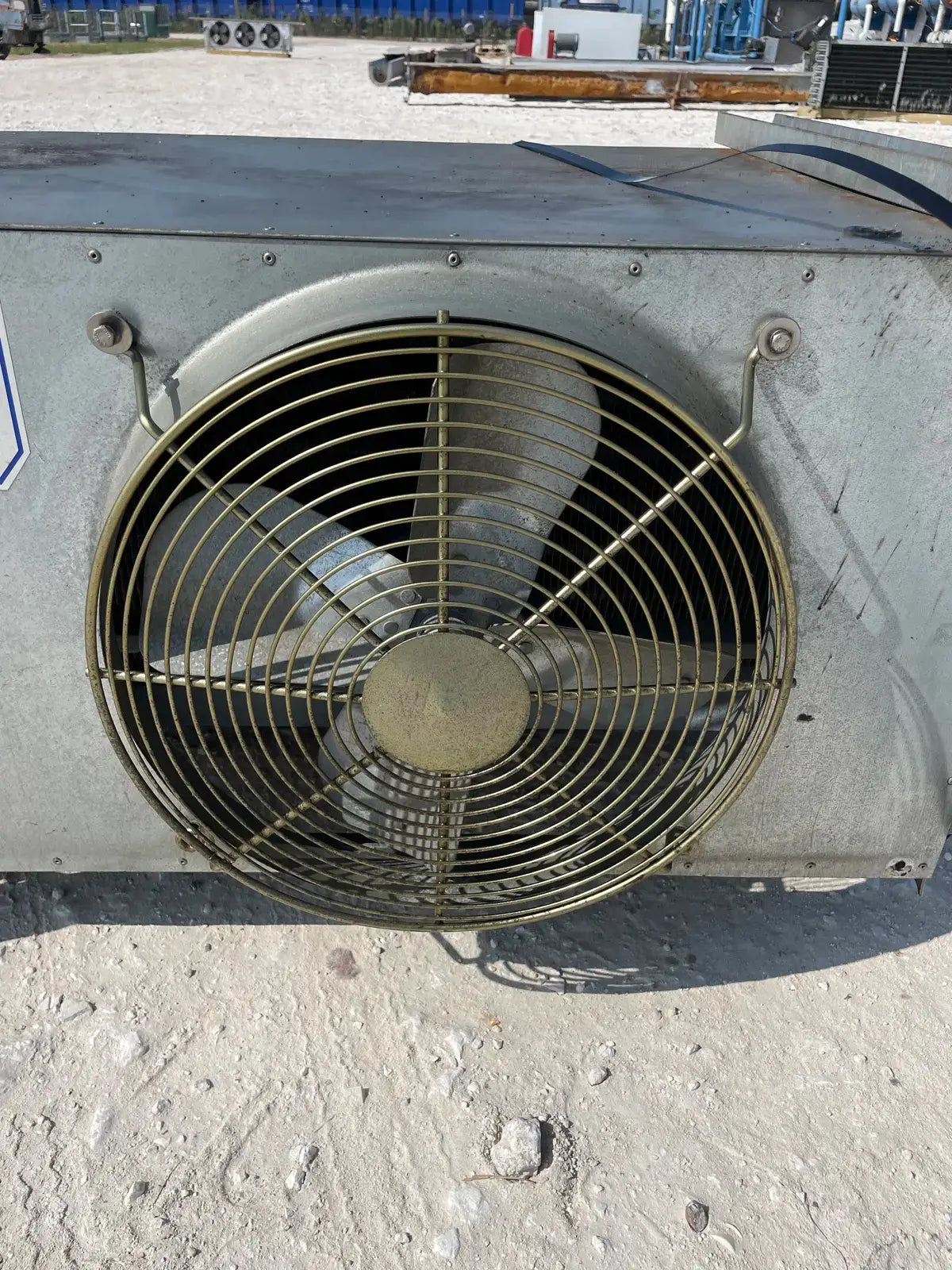

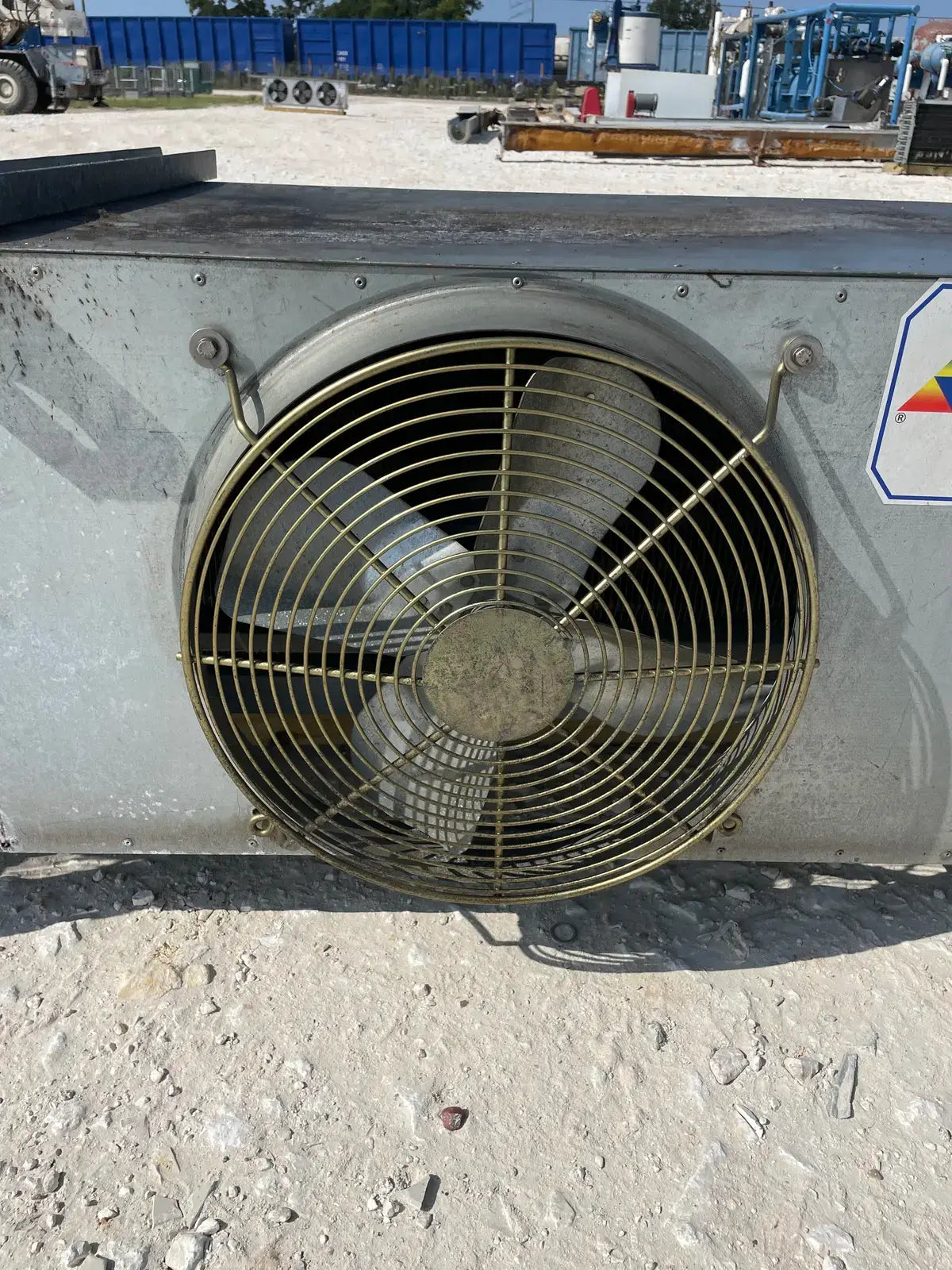

Vilter Evaporator Coil. Model: VLP-16-83-1/3-XA-HGP. Serial No: C-1640. Order No: K-61052. Fan Motors(4): HP: 1/3, Amps: 1.8, RPM: 1150. Volts: 230, Ph: 3, Hz: 60. Defrost: Hot Gas. Pneumatic Test Pressure: 300 PSIG. MAWP: 315 PSIG @ 40 F. MDMT: -60 F @ 315. Design Capacity: 5761 BTUH/TD. Air Flow: 10600 CFM. Coil Temperature: -22. Room Temperature: -10 F. Refrigerant: R-717. Refrigerant Feed: DX. Fins Per Inch: 3. Internal Volume: 1.6 Ft3. Surface Area: 1638 Ft2. Fan Diameter: 16 Inch.
Product Details
- Stock No: GWIC06
- Manufacturer: Vilter
- Model: VLP-16-83-1/3-XA-HGP
- Serial Number: C-1640
Previous Refrigerant
- Previous Refrigerant: Ammonia (R-717)
- Ammonia (R-717) Compatiable: Yes
Motor Details
- Motor Included? Yes
- # Motors: 4

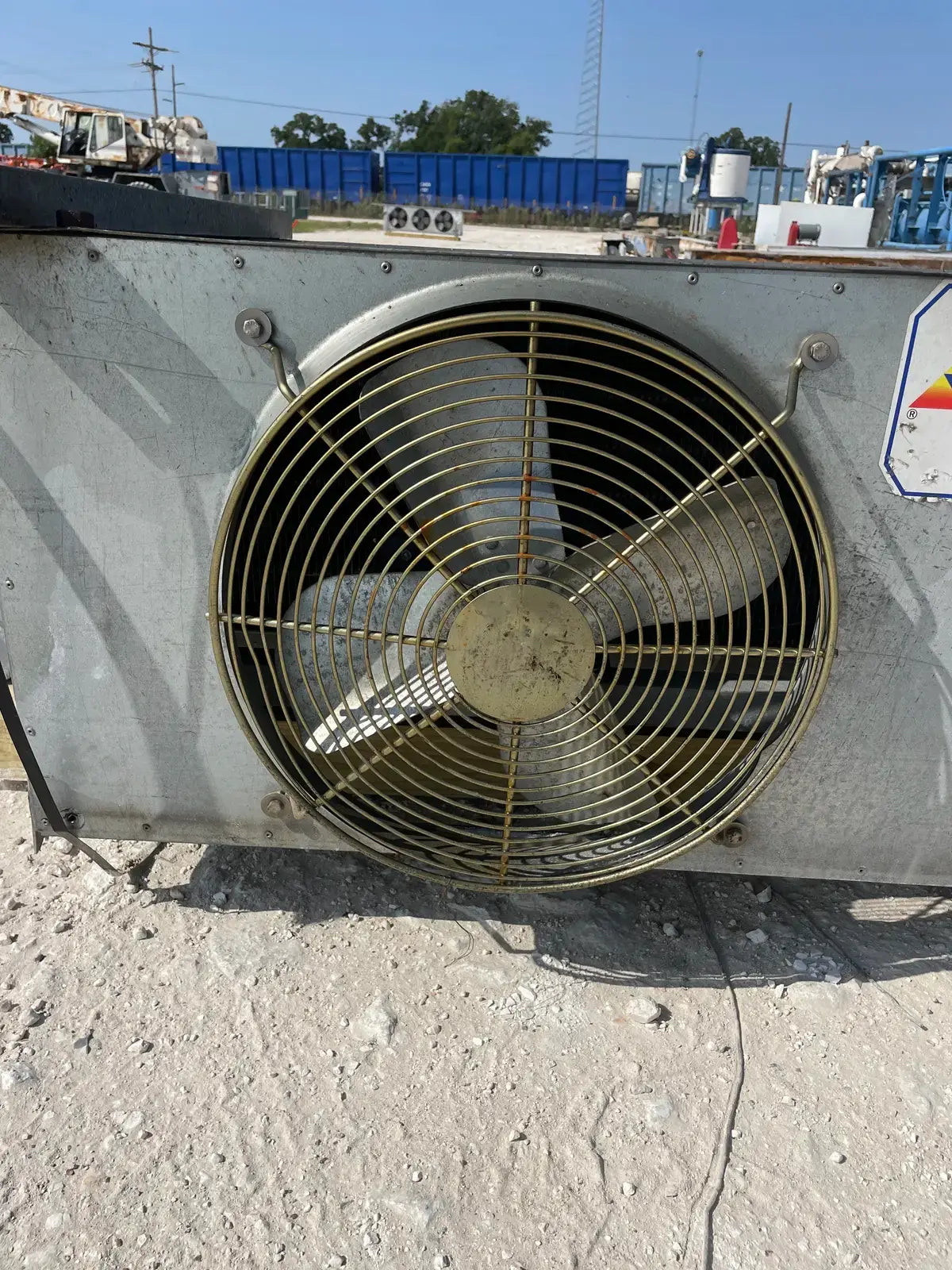

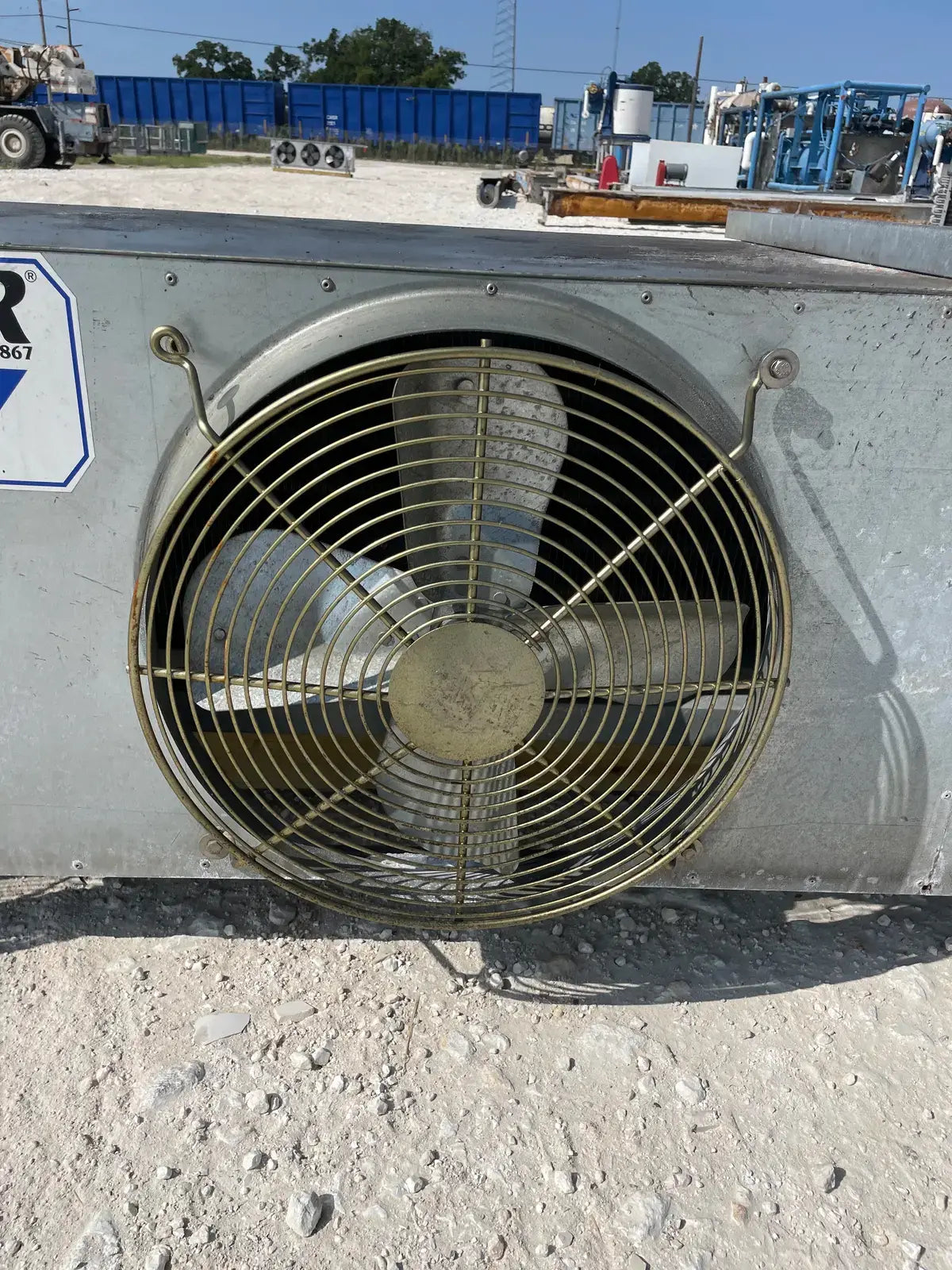

- If Multiple Motors, Motor Descriptions vs specs: Fan Motors (4): Hp Each: 1/3. Amps Each: 1.8. RPM: 1150. Volts: 230. Ph: 3. Hz: 60.
Dimensions:
- Length (Inches): 151
- Width (Inches): 30
- Height (Inches): 25
- Weight (LBS): 850
- # of Pieces for Shipping: 1
Additional Product Details
- Year of Manufacture: 2004
- Year Removed from Production: 2023
- Spec Sheet Available: Yes
