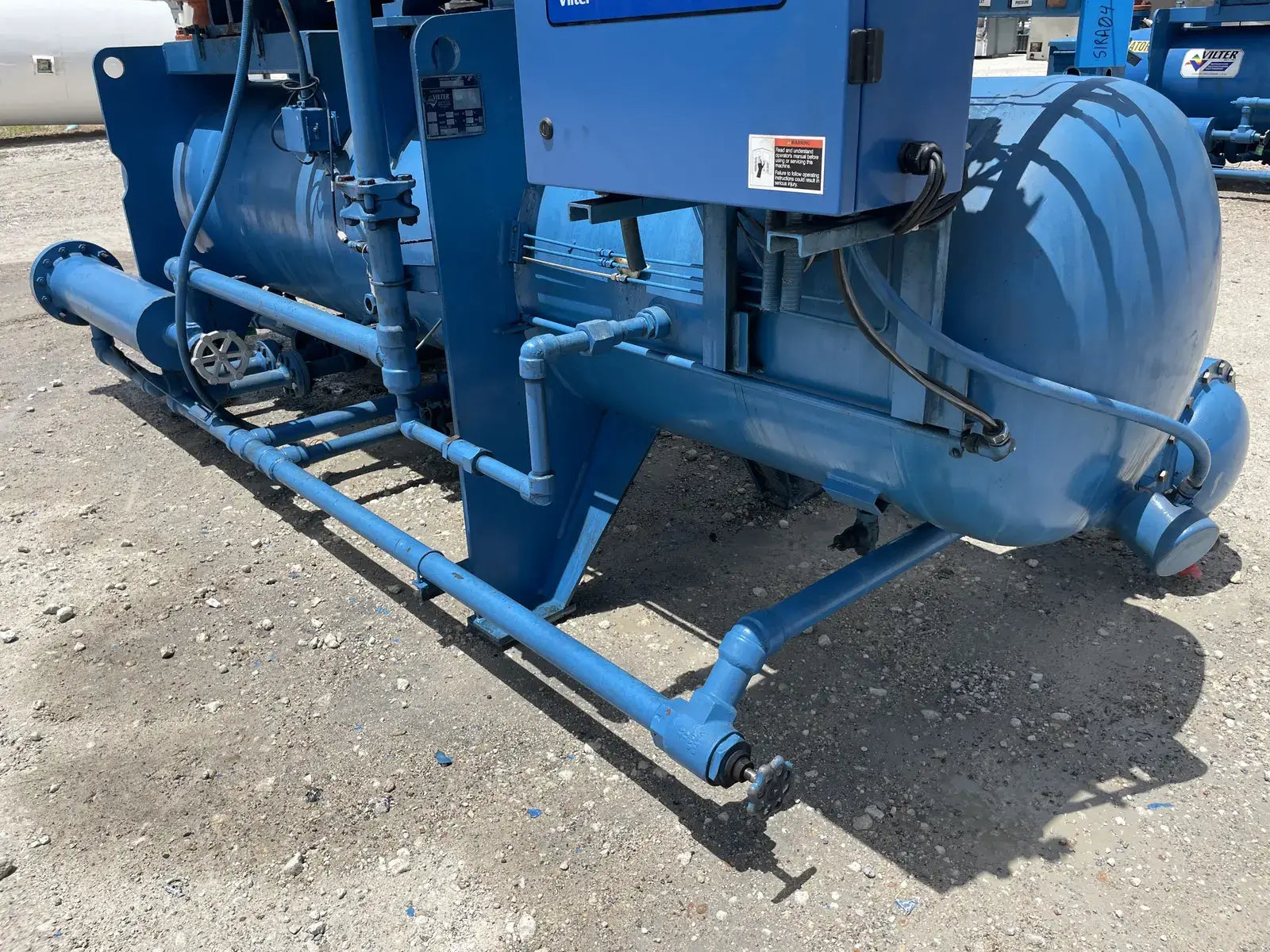

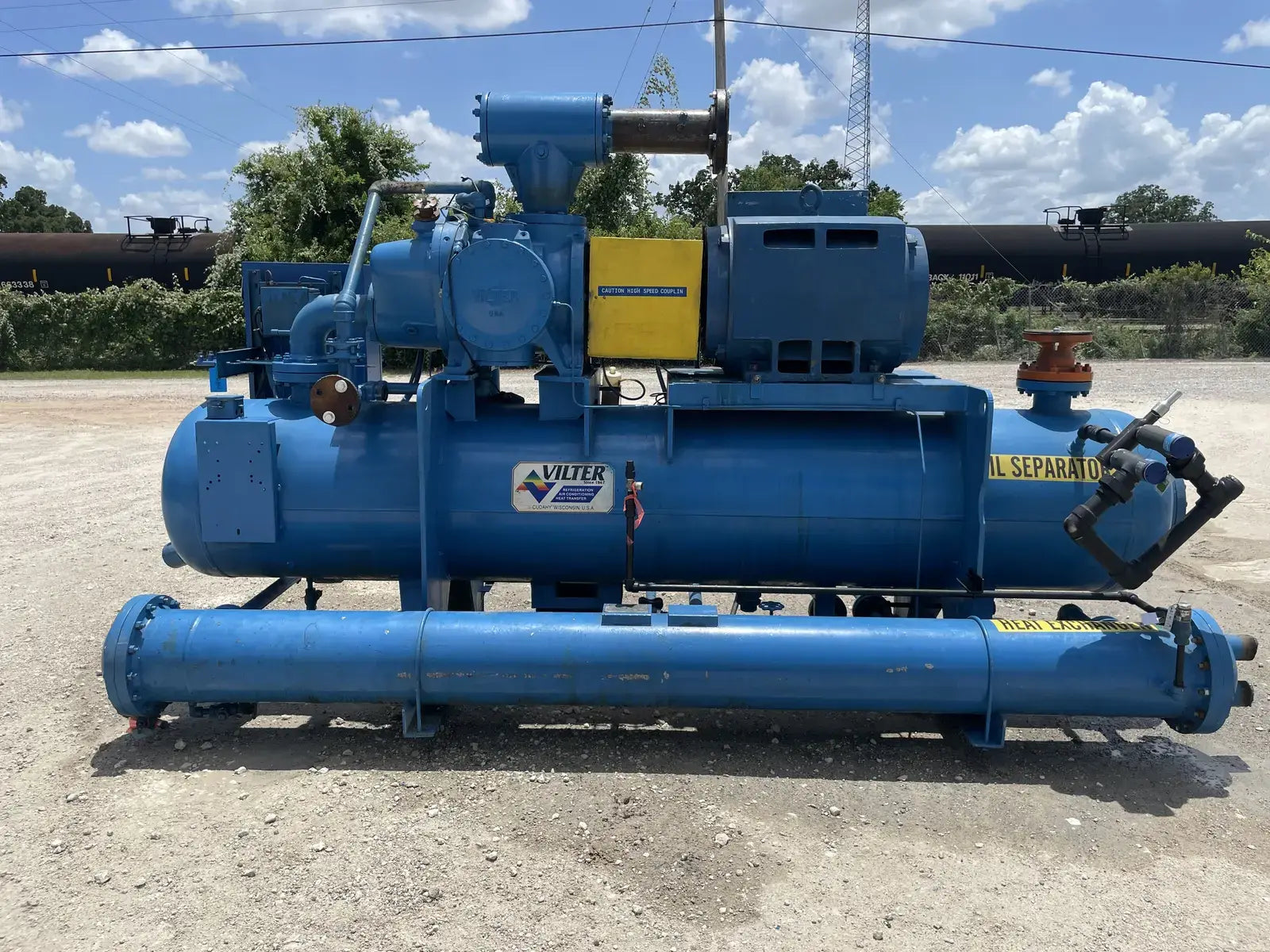

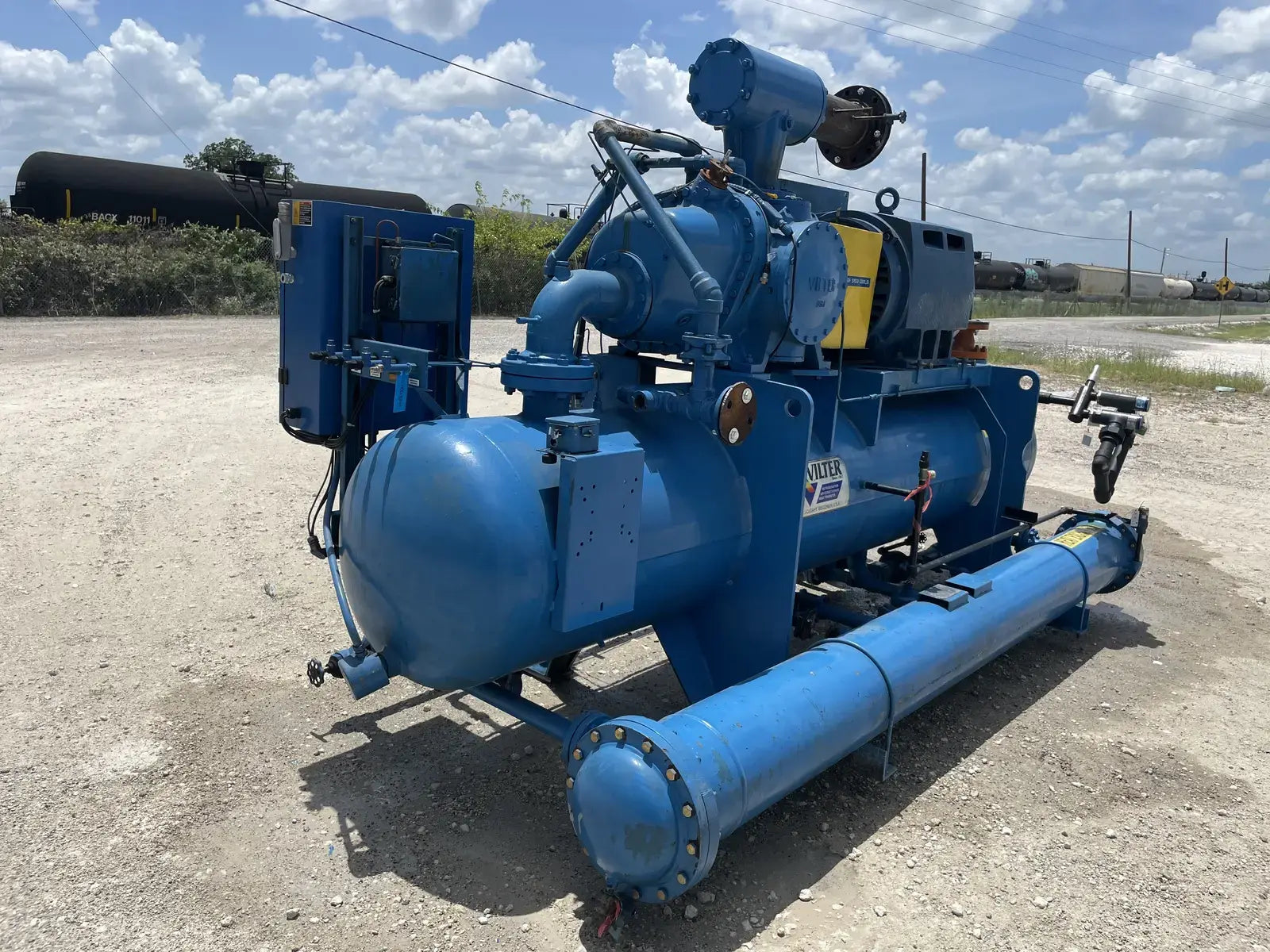

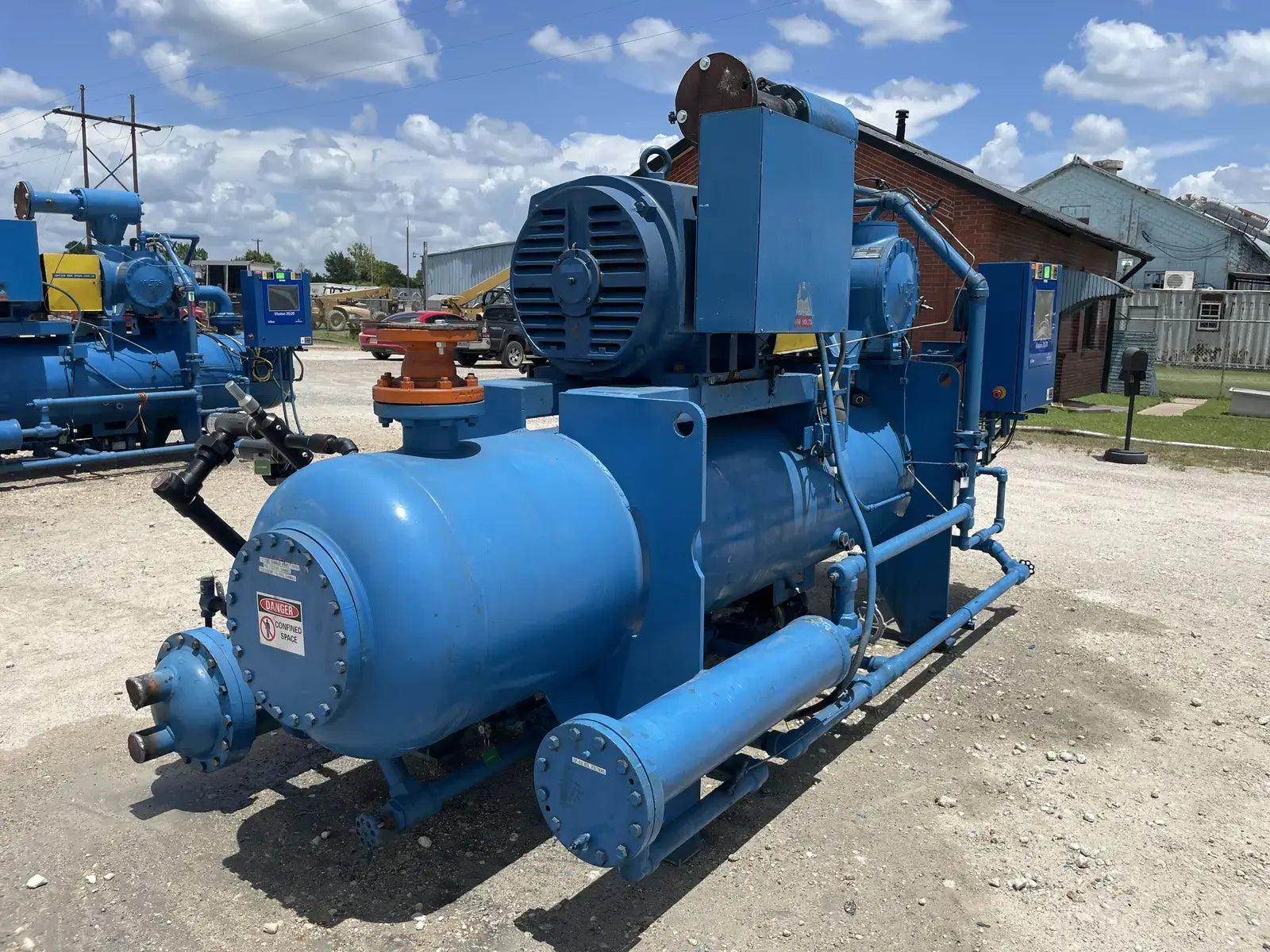

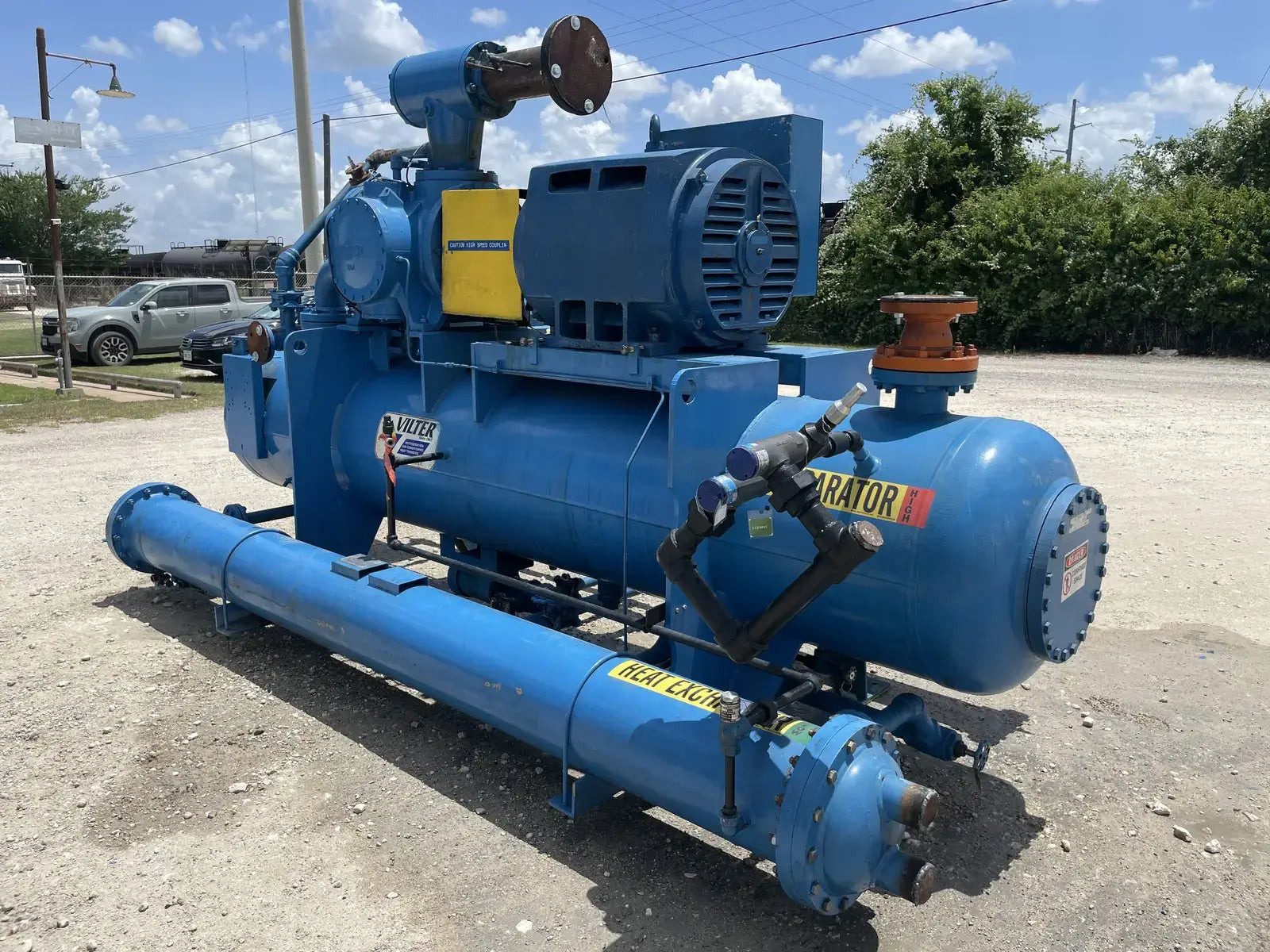

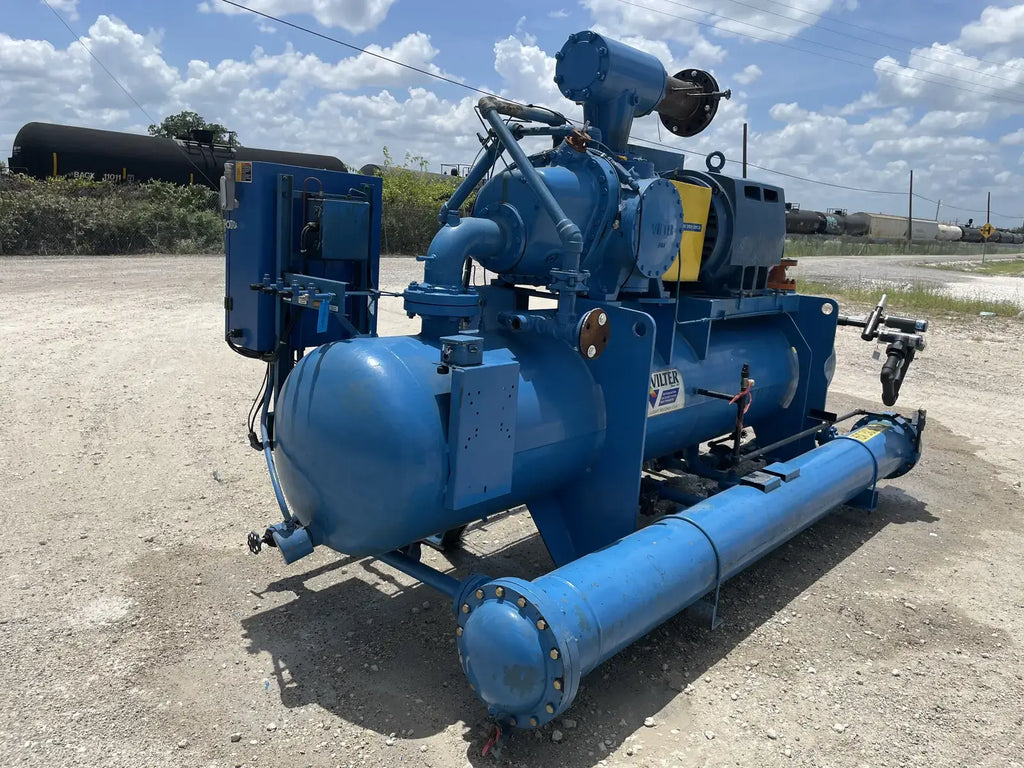

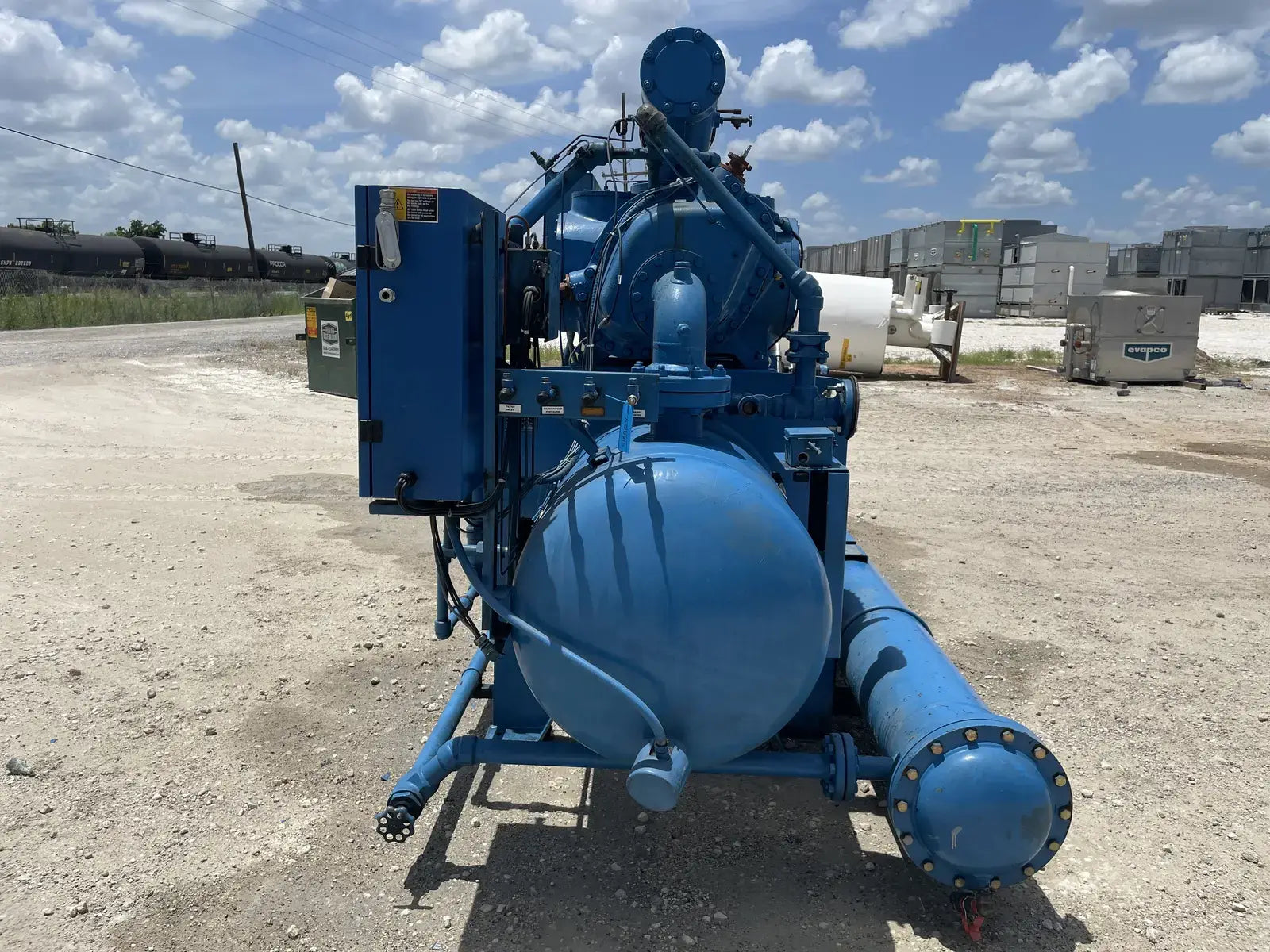

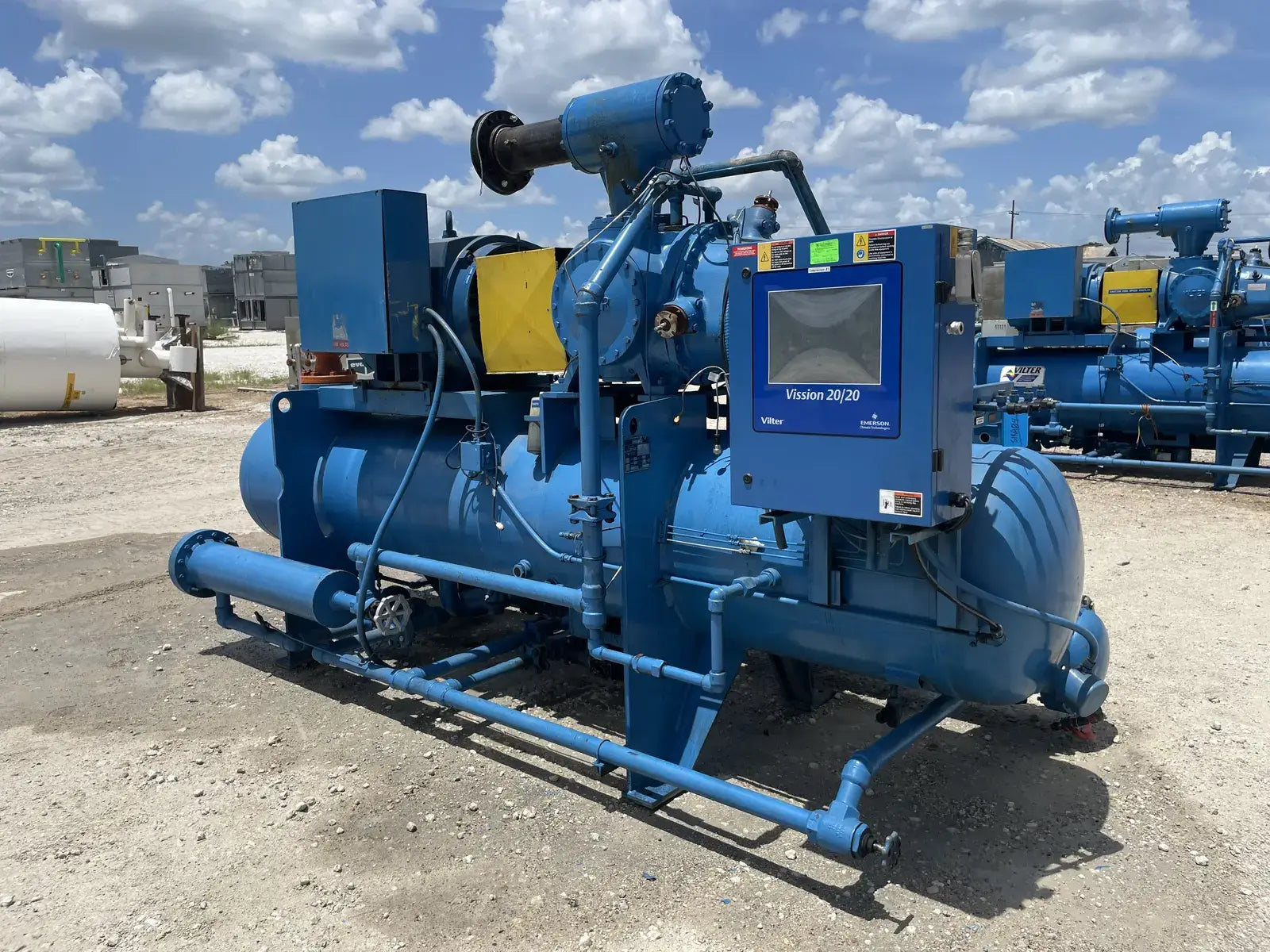

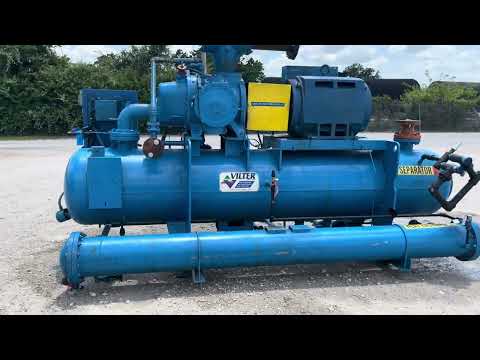

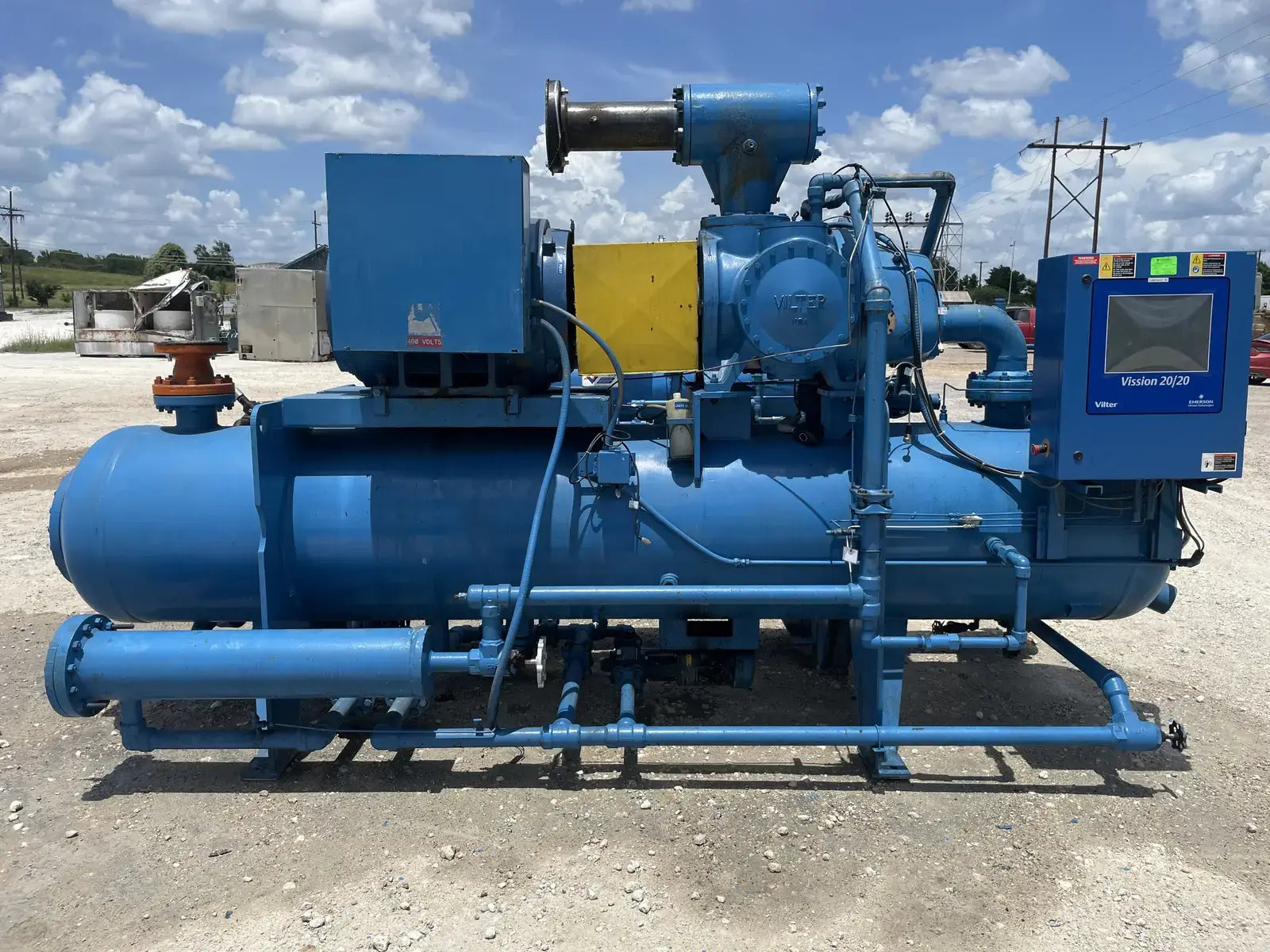

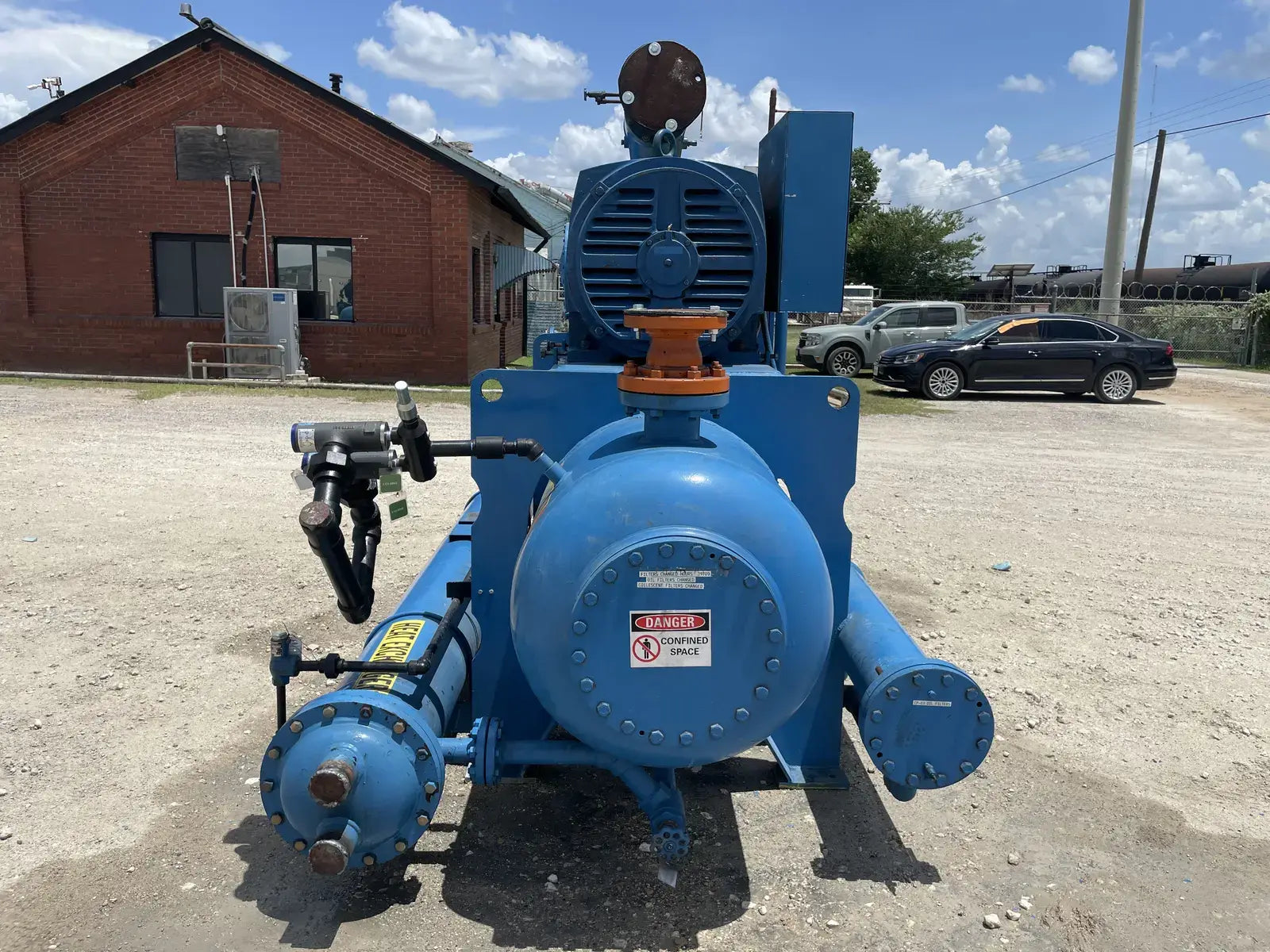

Vilter VSS1201 Rotary Screw Compressor Package (Vilter VSS1201, 500 Hp, 460 V)

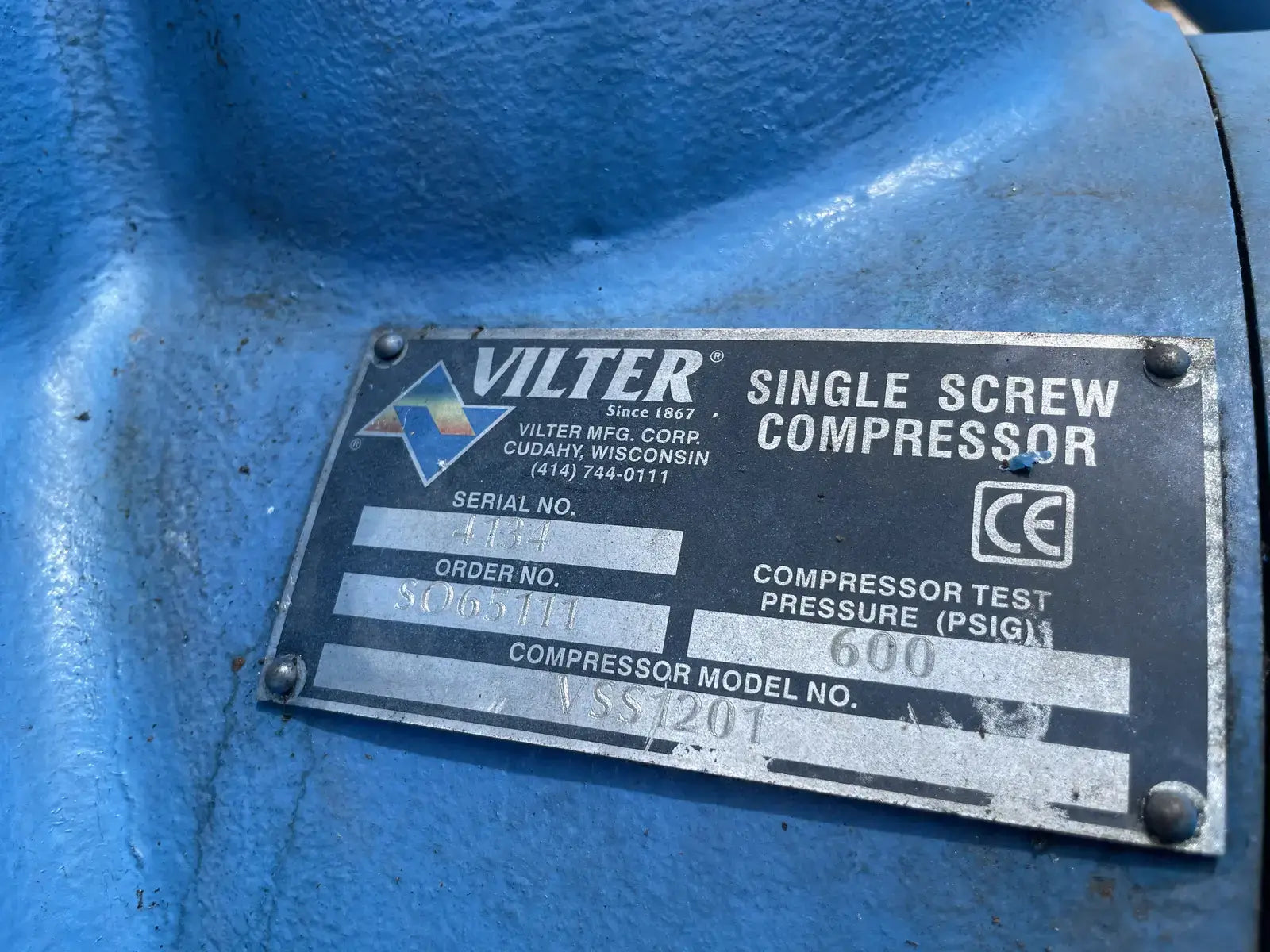

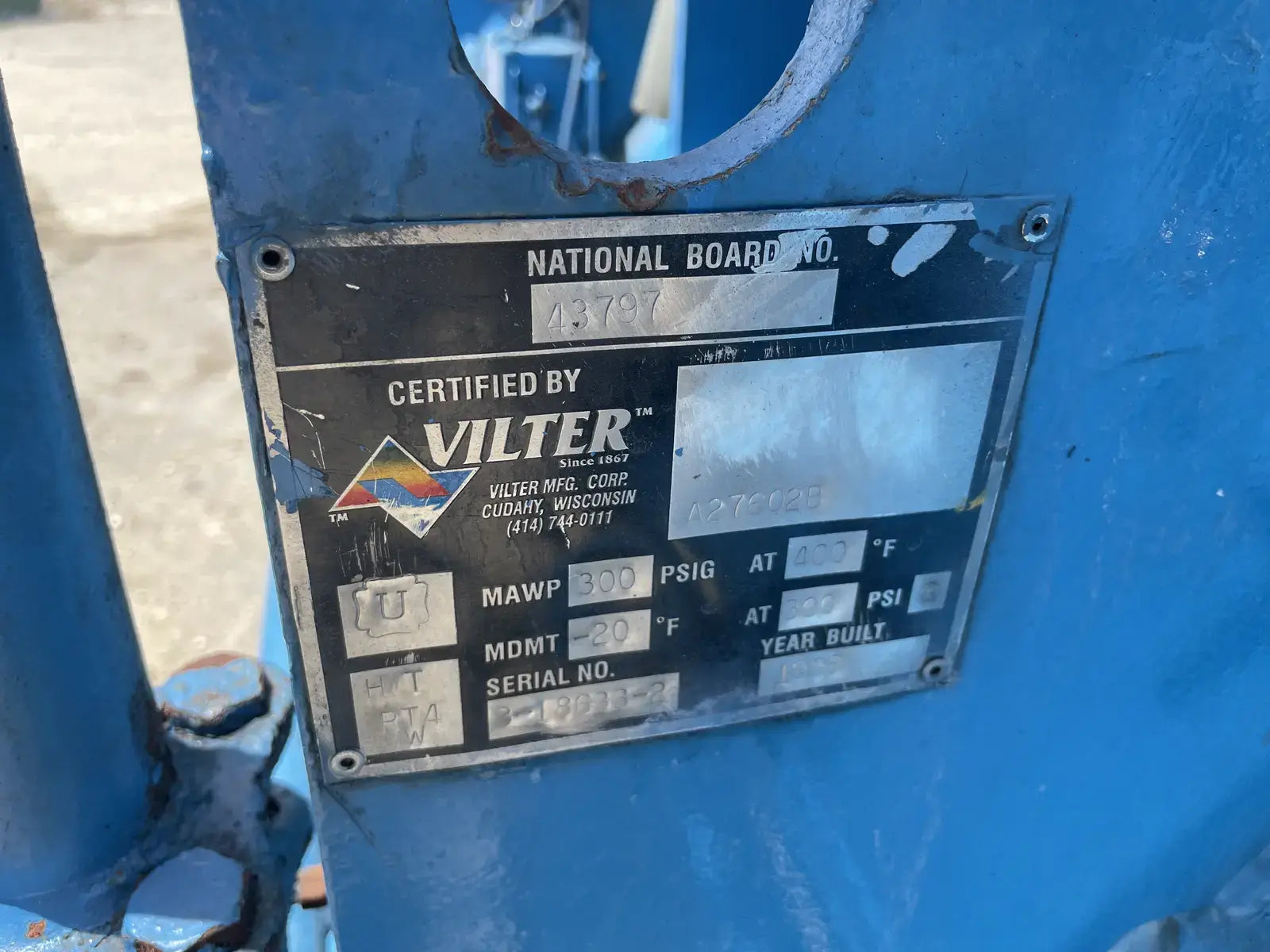

Vilter VSS Rotary Screw Compressor Package. Model: VSS1201. Serial No: 4134. Order No: SO65111. Compressor Test Pressure(PSIG): 600. Certified by Vilter Oil Separator: National Board: 43797, Serial No: 3-18633-2. Year Built: 1993. MAWP: 300 PSI @ 400 F. MDMT: -20 F @ 300 PSI.
Product Details
- Stock No: SIRA04
- Manufacturer: Vilter
- Model: VSS1201
- Serial Number: 4134
- Compressor Type: Screw
- Package Included? Yes
- Stage Type: High Stage
Package Details
- Package Manufacturer: Vilter
- Package Model: VSS1201
- Package SN: 4134
- Package Order: SO65111
- Package Max Speed (RPM): 3,600
- Package Max Design Pressure (PSIG): 600

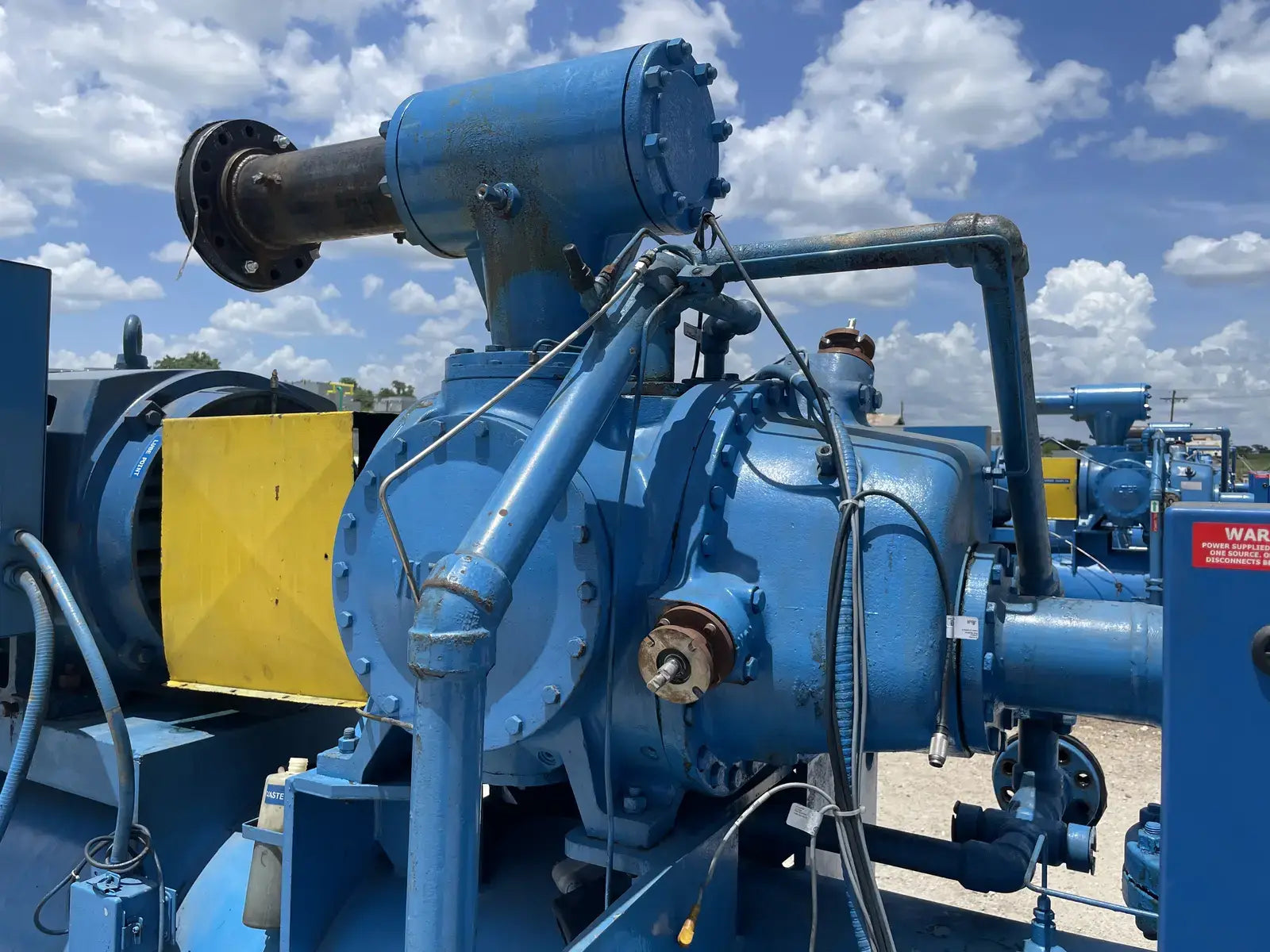

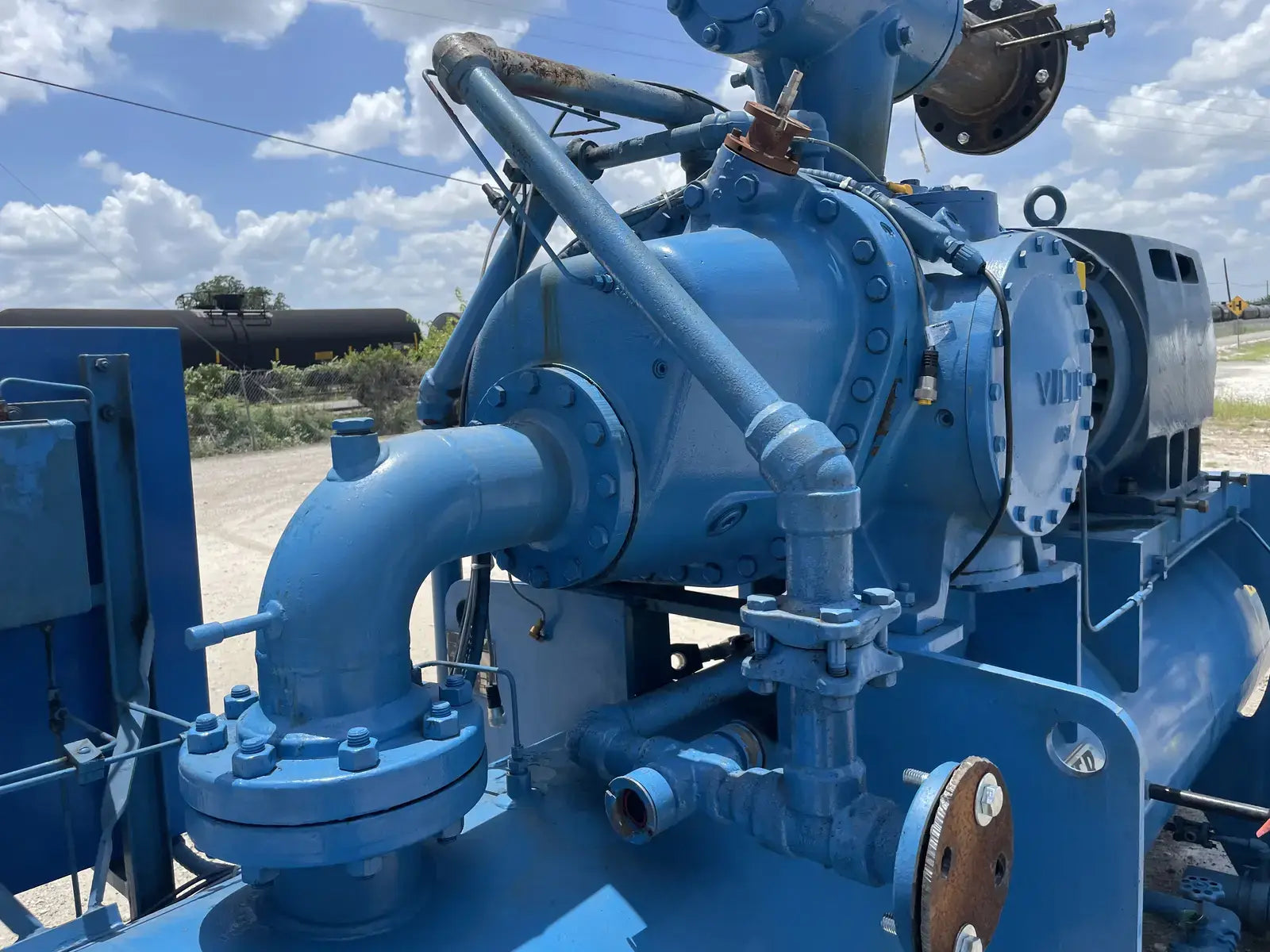

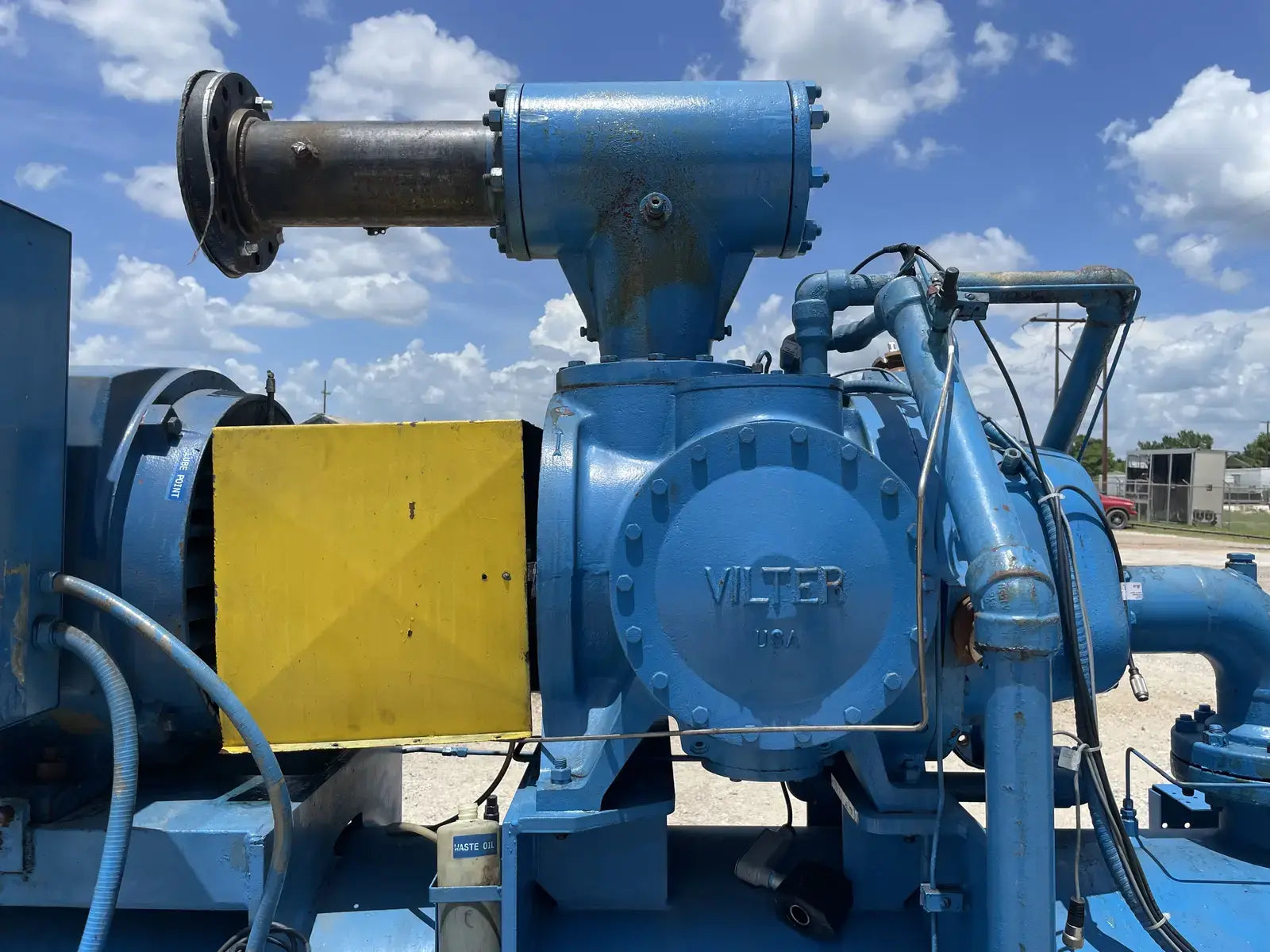

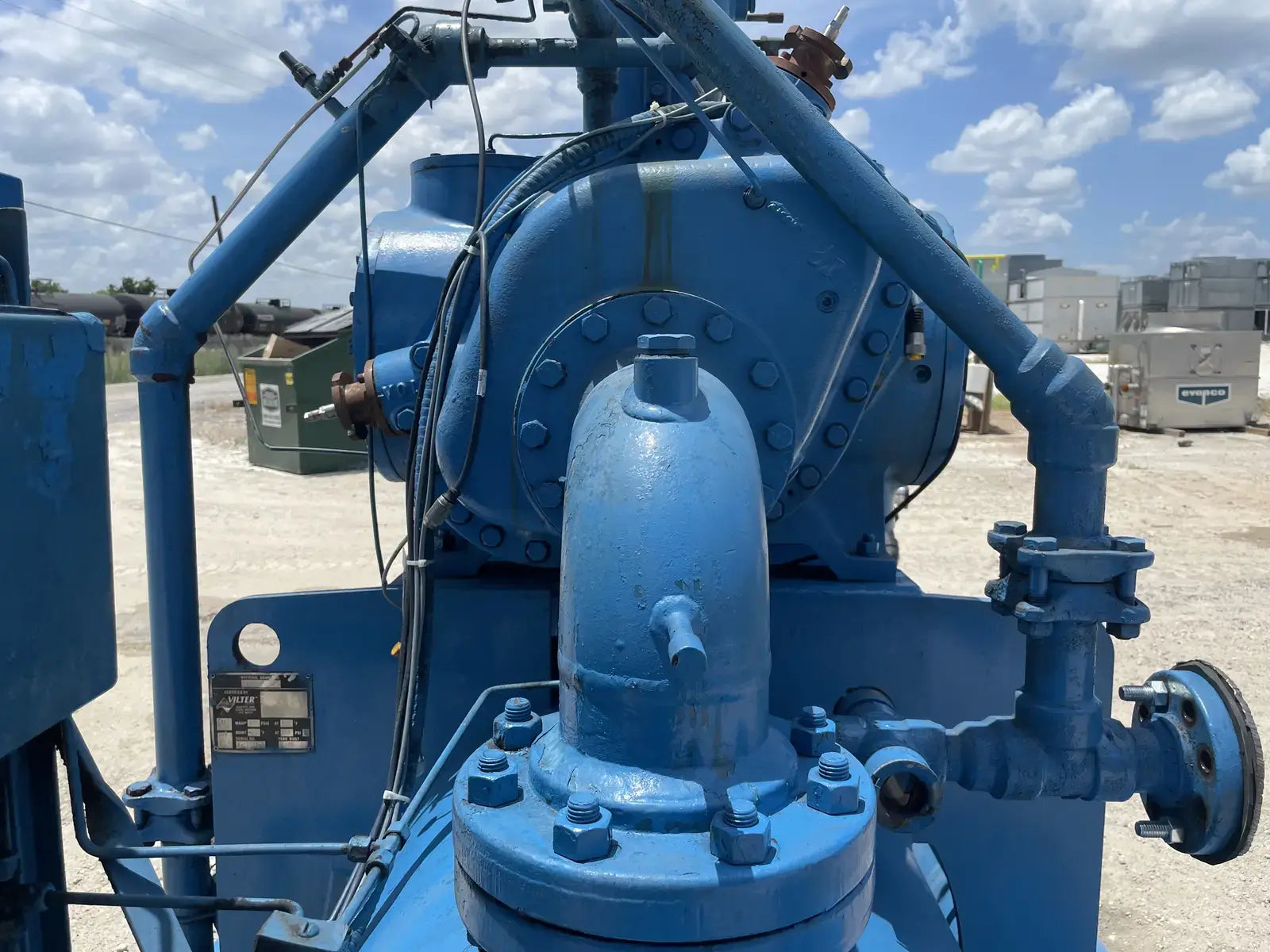

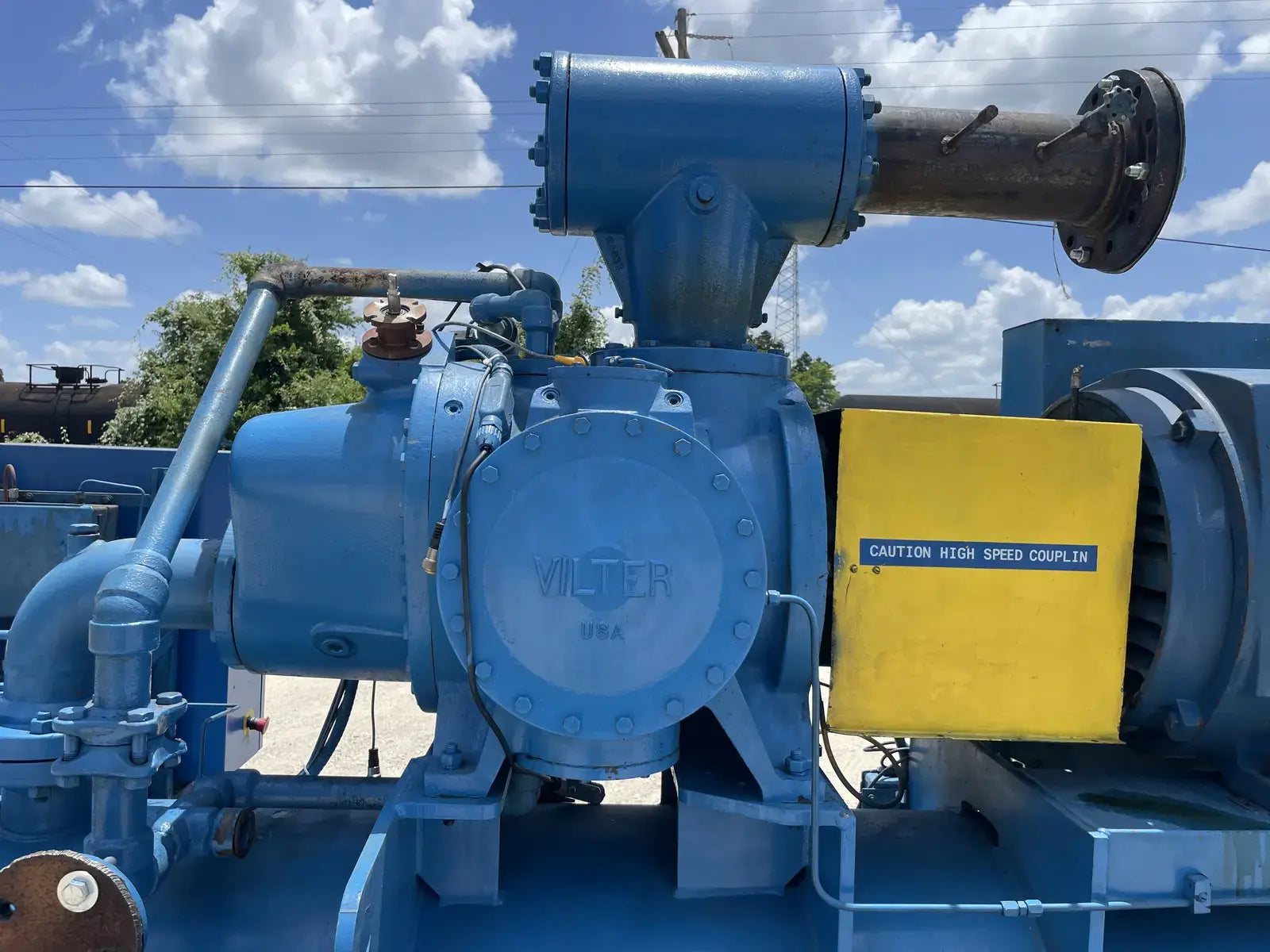

Screw Compressor Details
- Compressor Included? Yes
- Compressor Manufacturer: Vilter
- # Compressors in Package: 1
- Compressor Model: VSS1201
- Compressor SN: 4134
- Compressor Max Speed (RPM): 3,600
- Compressor Design Pressure (PSIG): 600
- Fixed/Variable VI: Variable
- Compressor Volume Ratio: 2.0-5.0

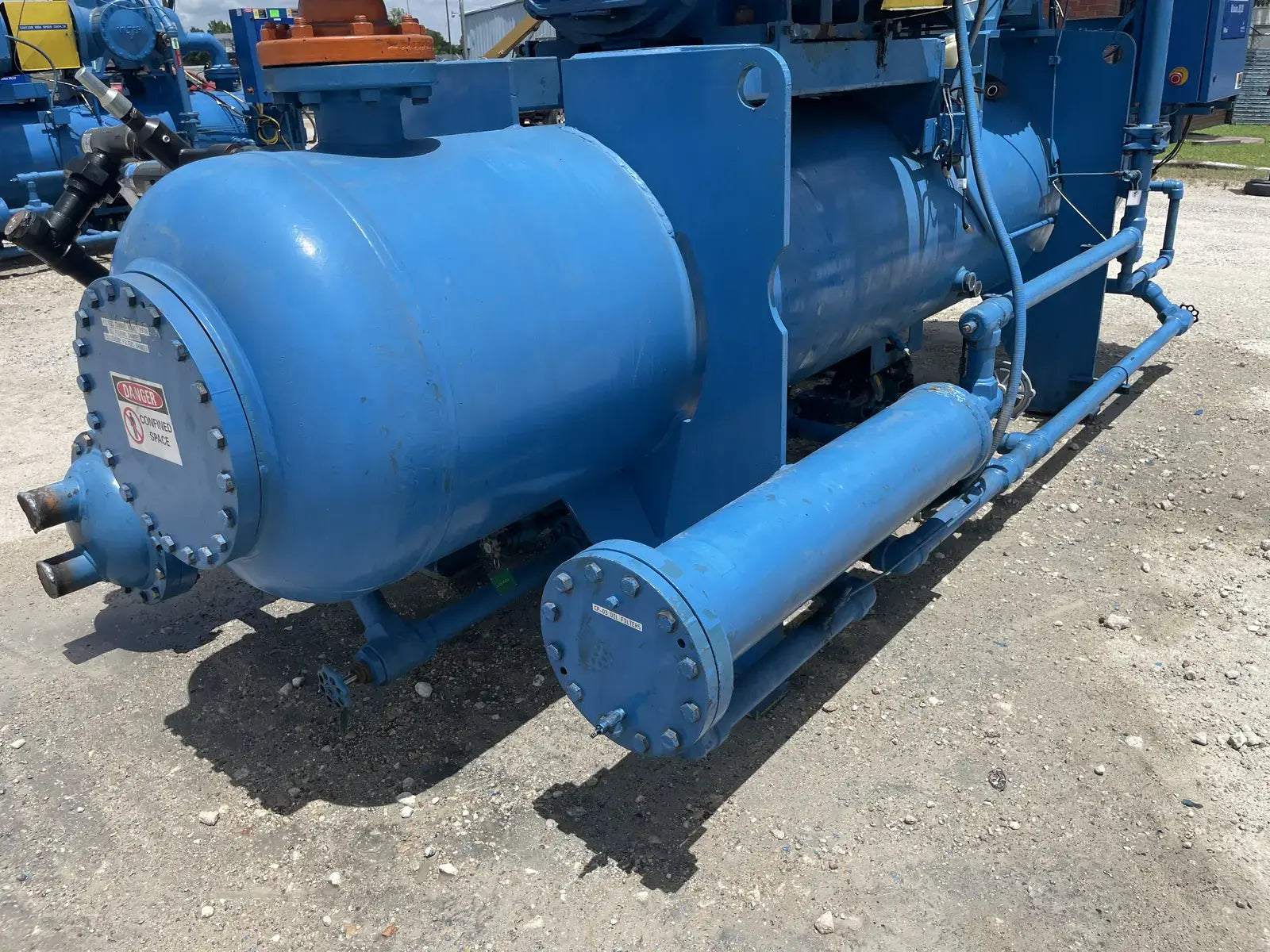

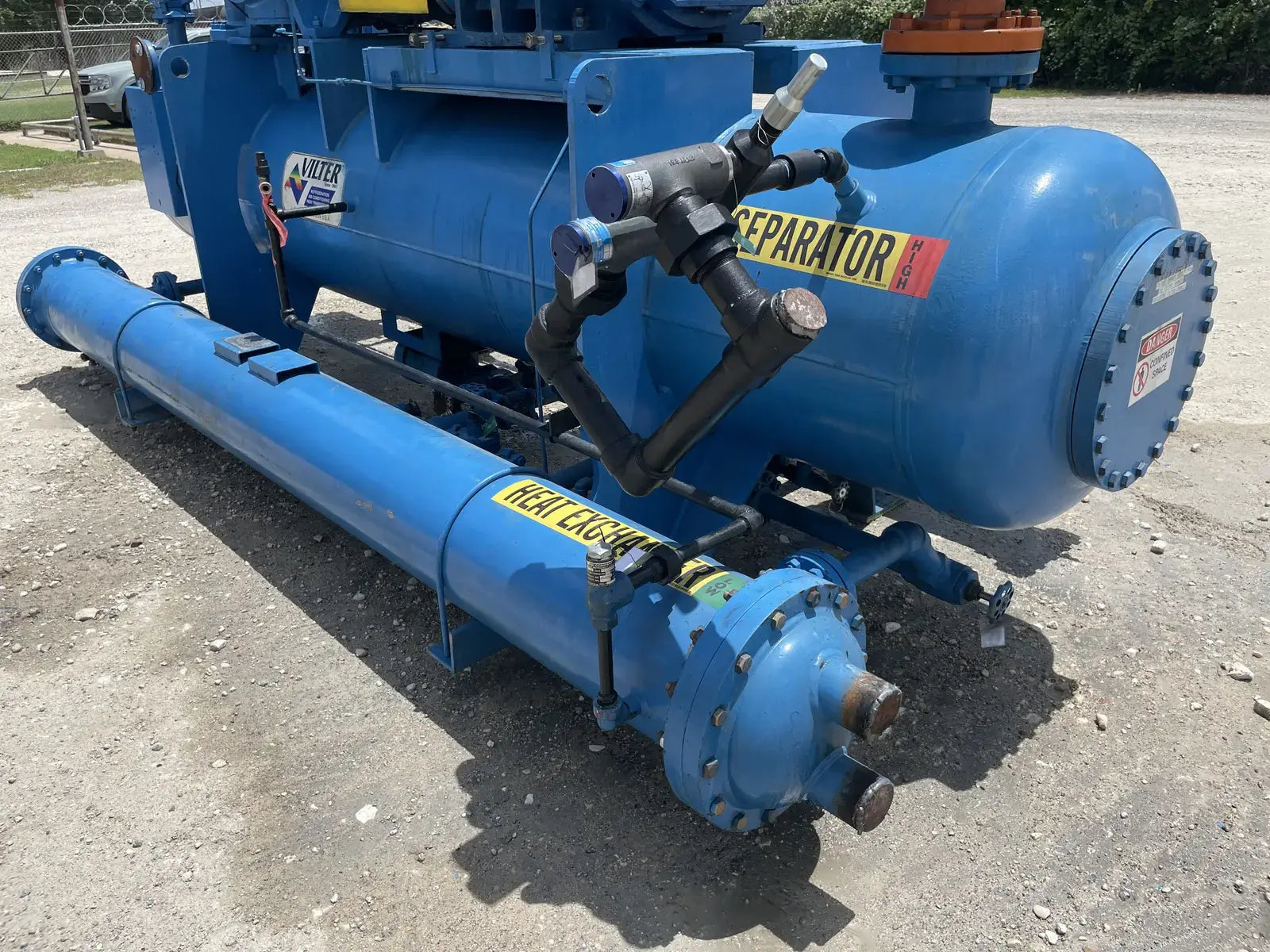

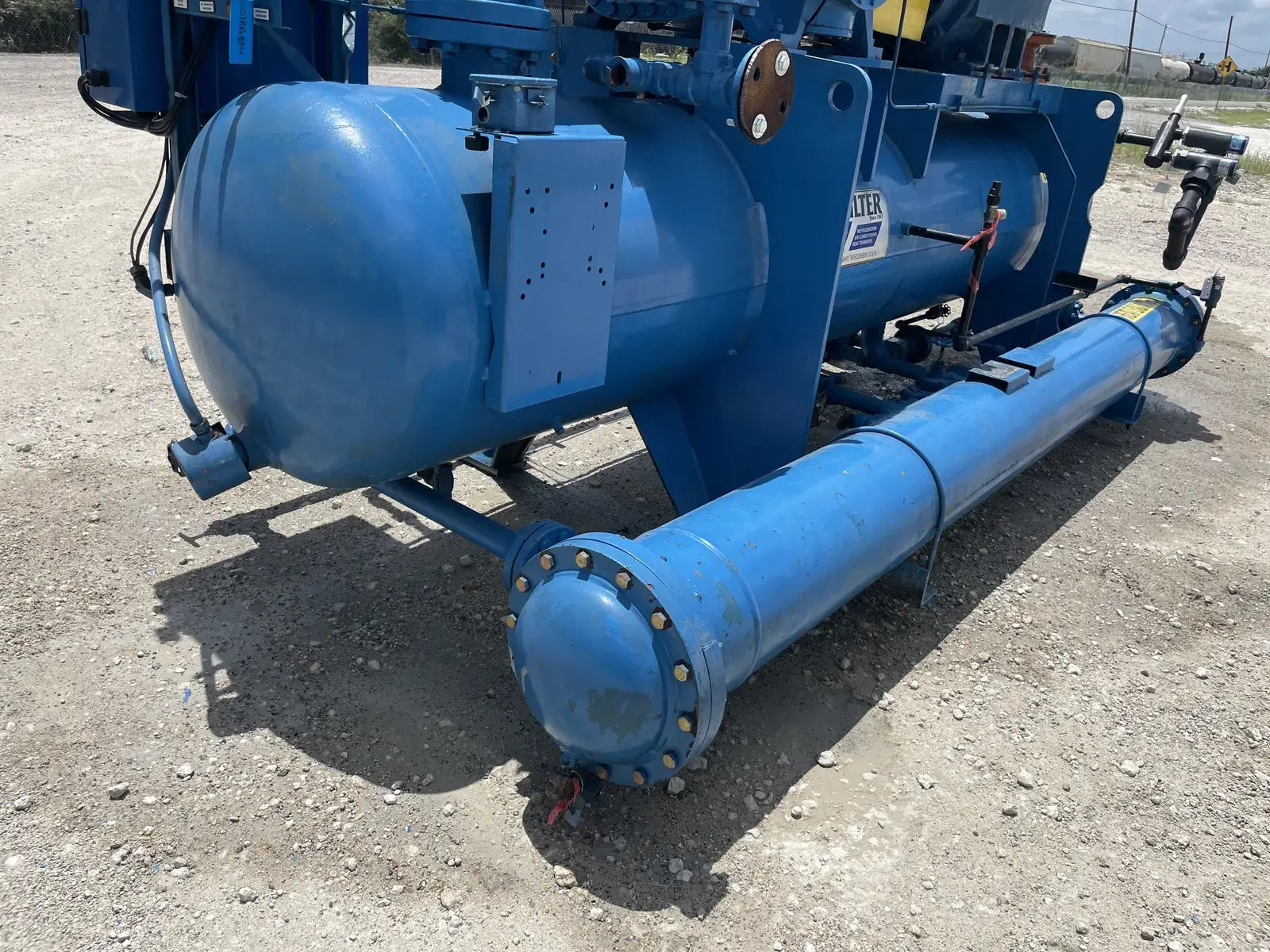

- Oil Separator Included? Yes
- Oil Separator National Board #: 43797
- Oil Cooling Type: Water
- Oil Cooler National Board #: 378632

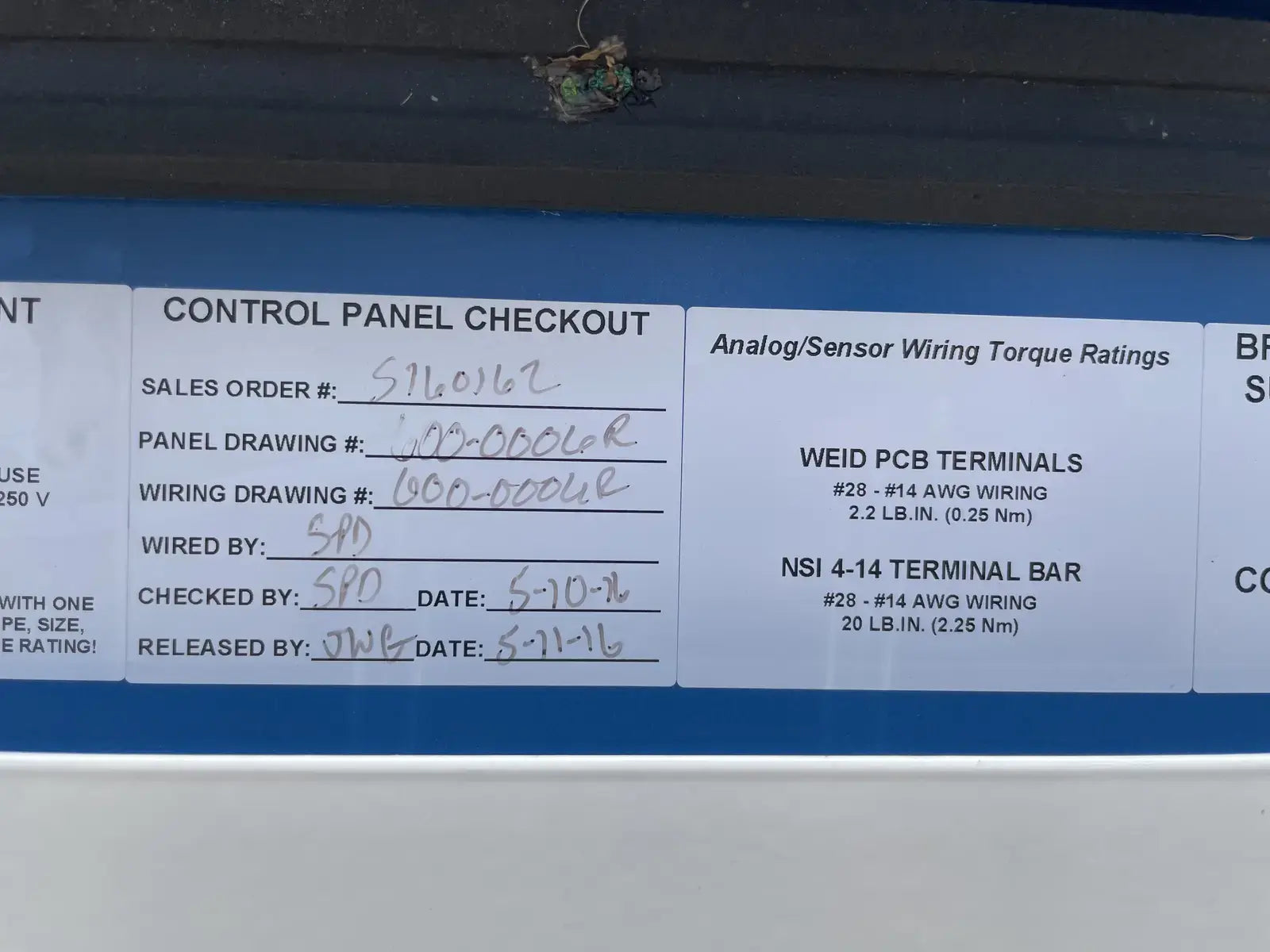

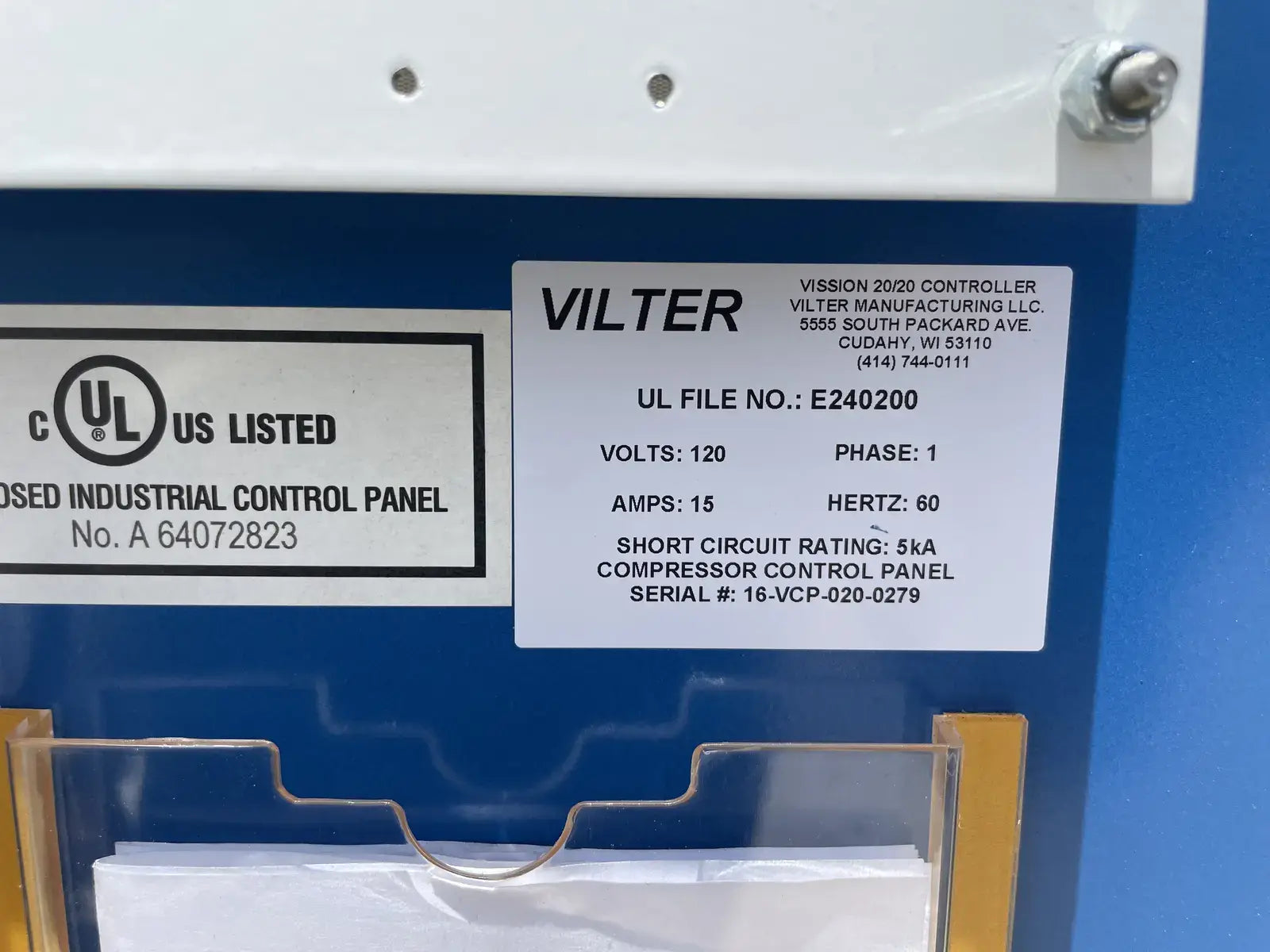

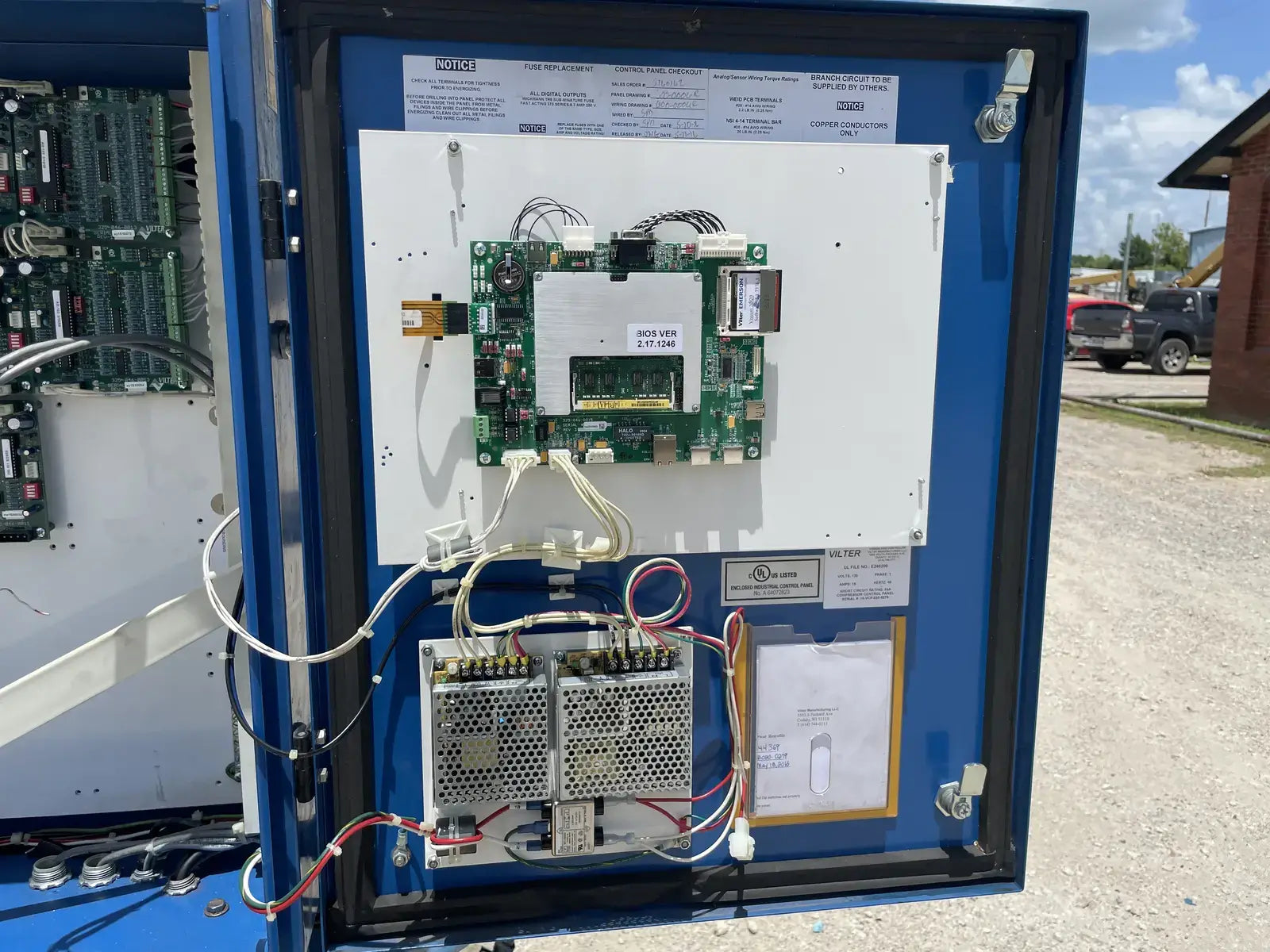

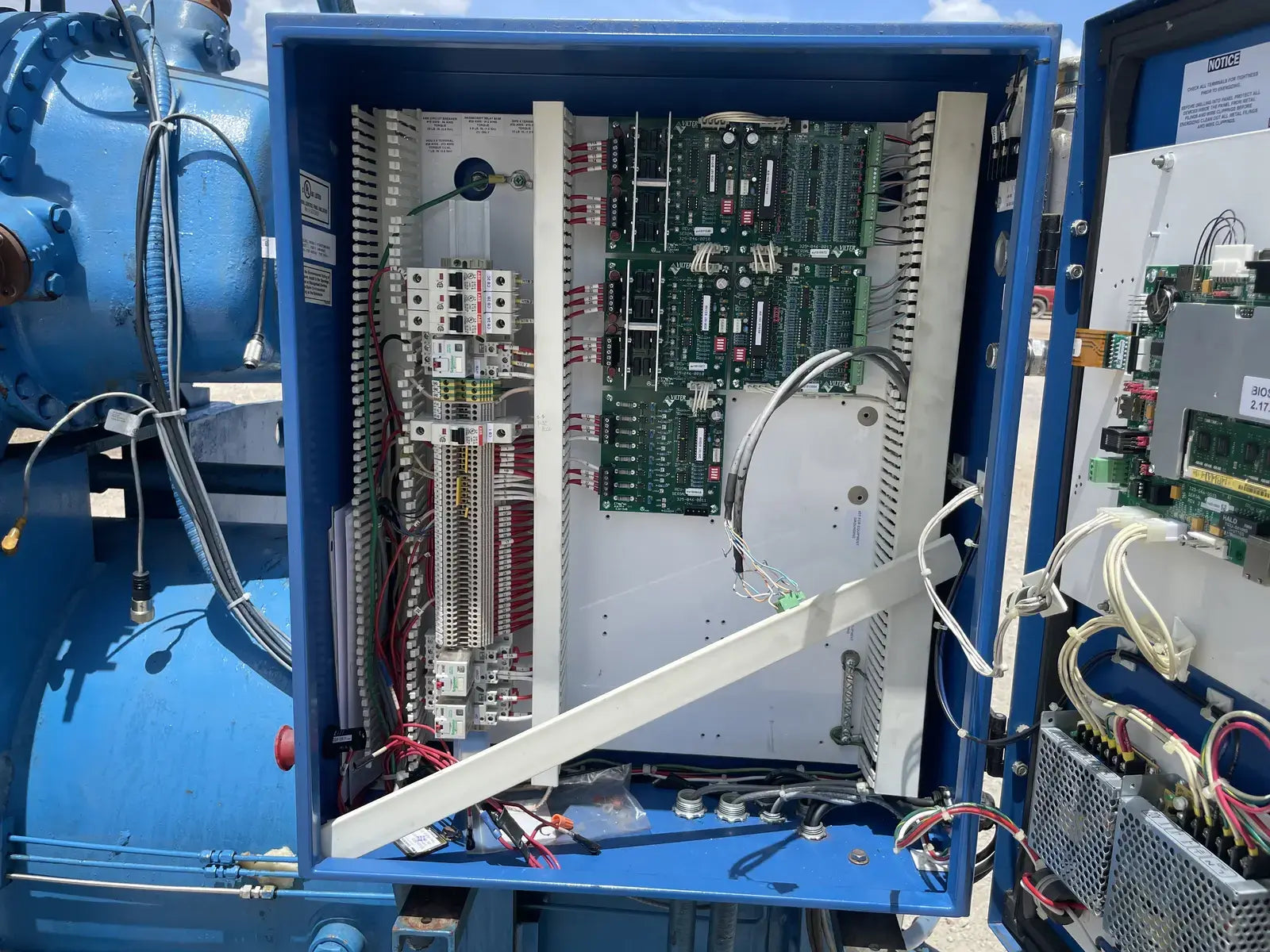

Micro Panel Details
- Micro Control Panel Included? Yes
- Micro Control Panel Manufacturer: Vilter

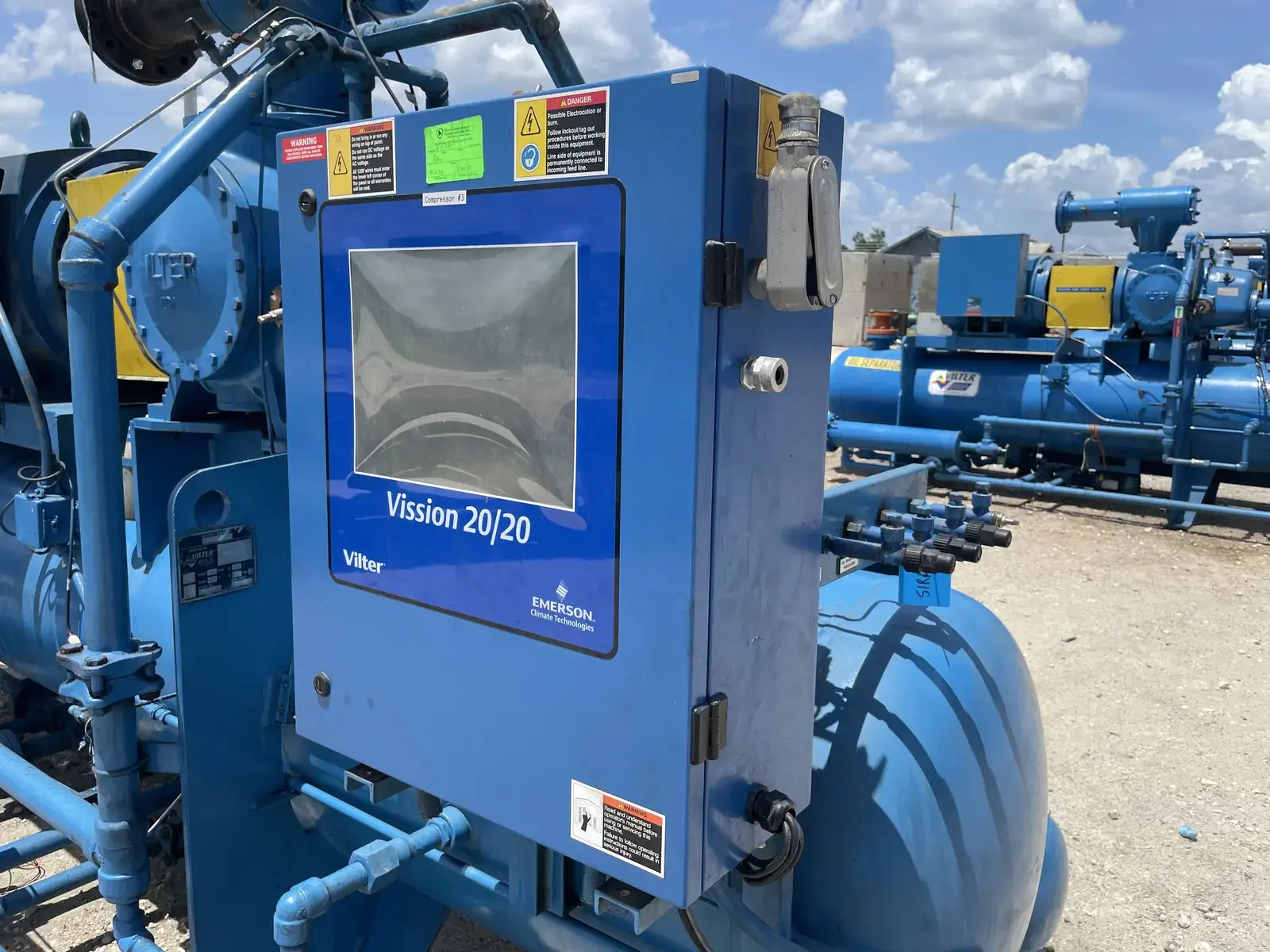

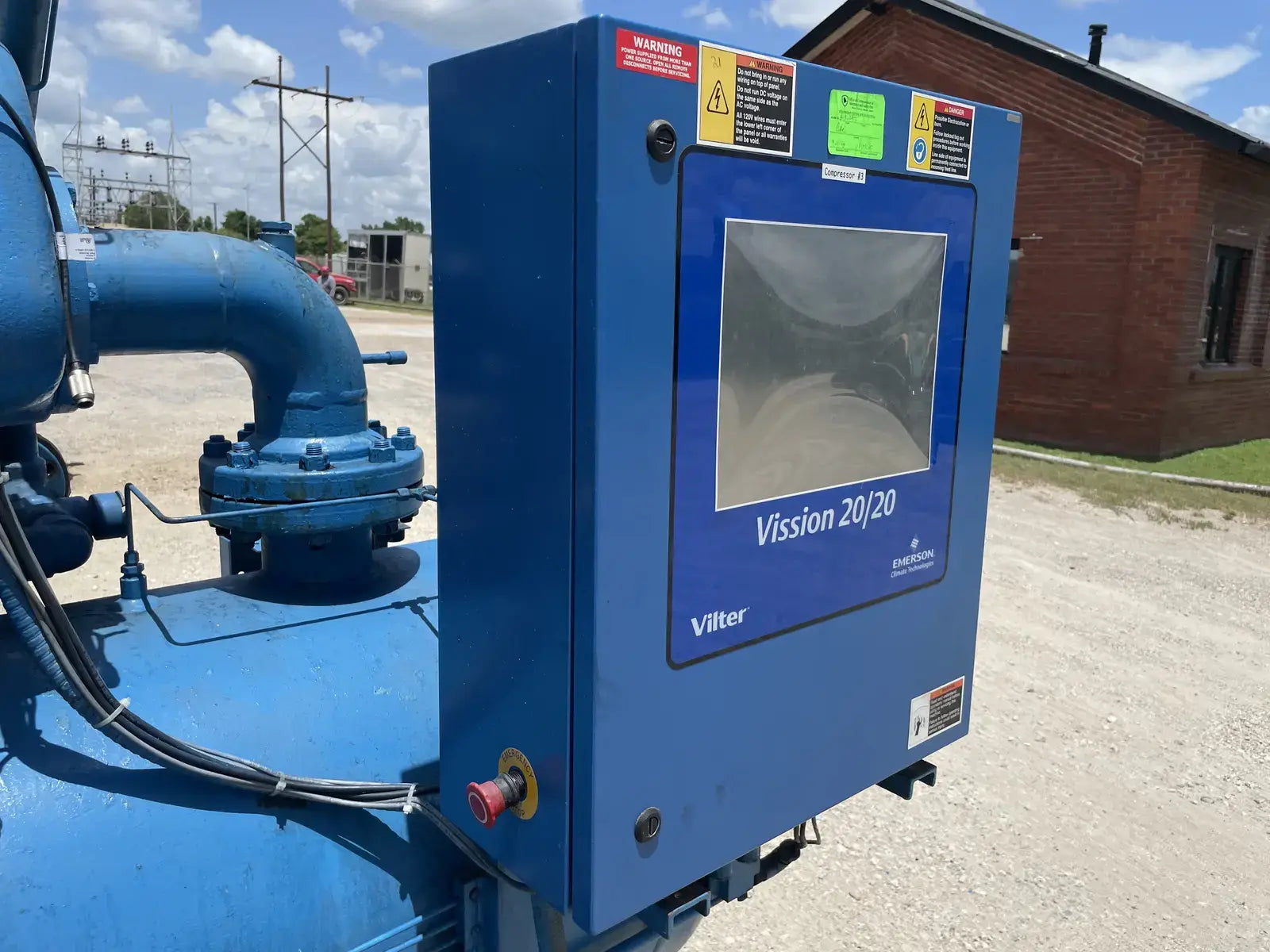

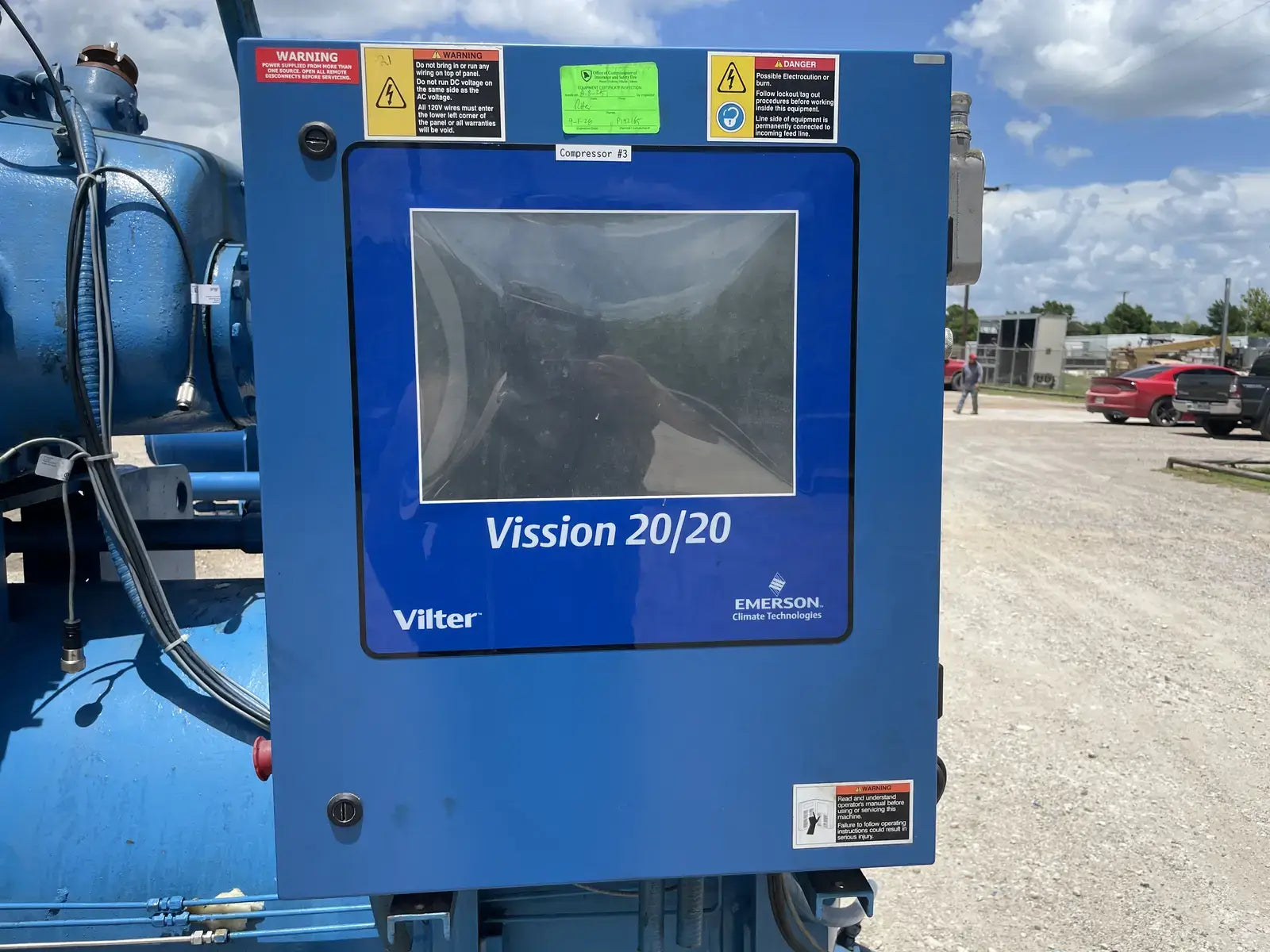

- Micro Control Panel Description: Vission 20/20
Motor Starter Details
- Motor Starter Included? Yes
- Motor Starter Manufacturer: RAM
Previous Refrigerant
- Previous Refrigerant: Ammonia (R-717)
- Ammonia (R-717) Compatiable: Yes

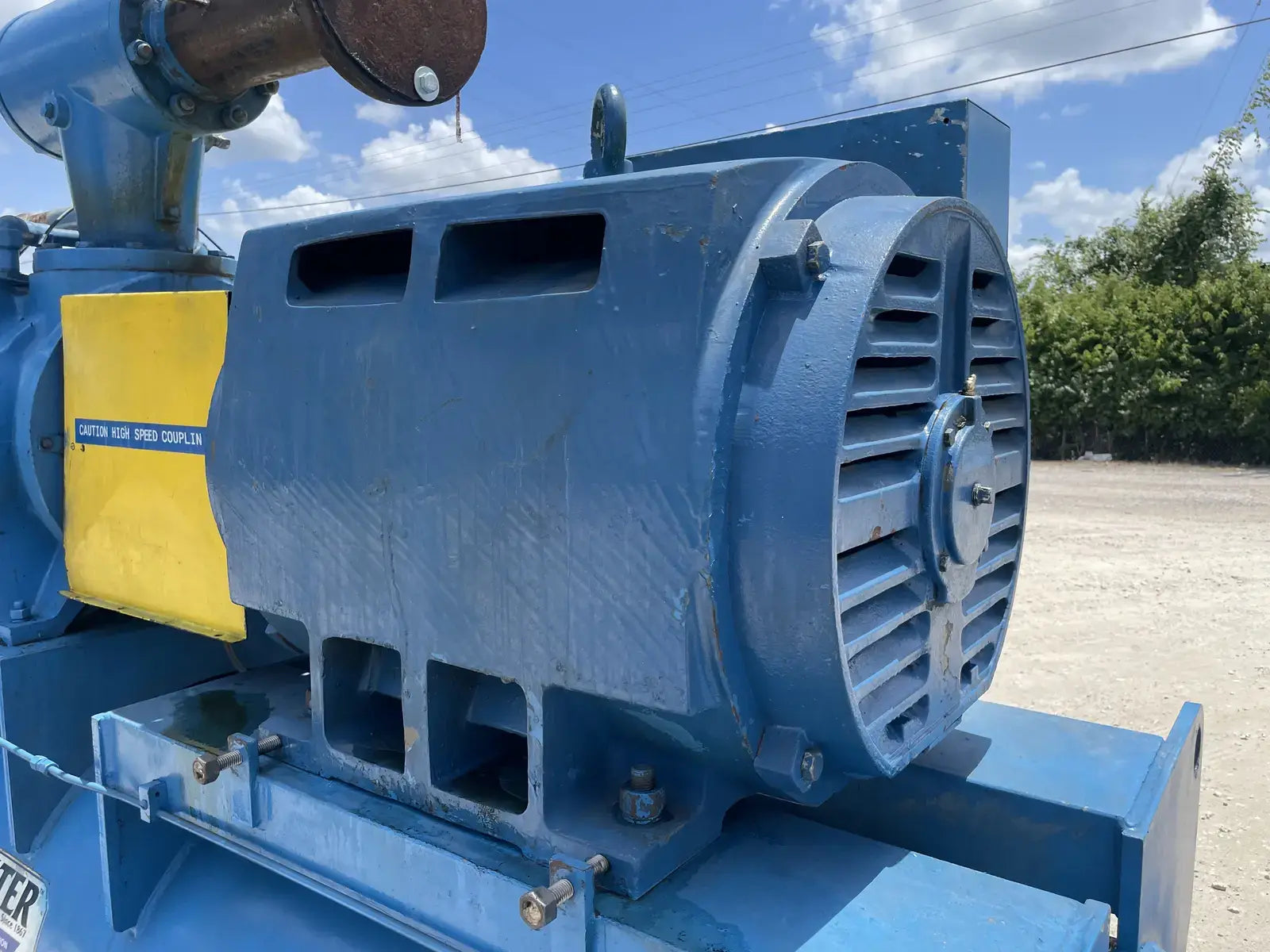

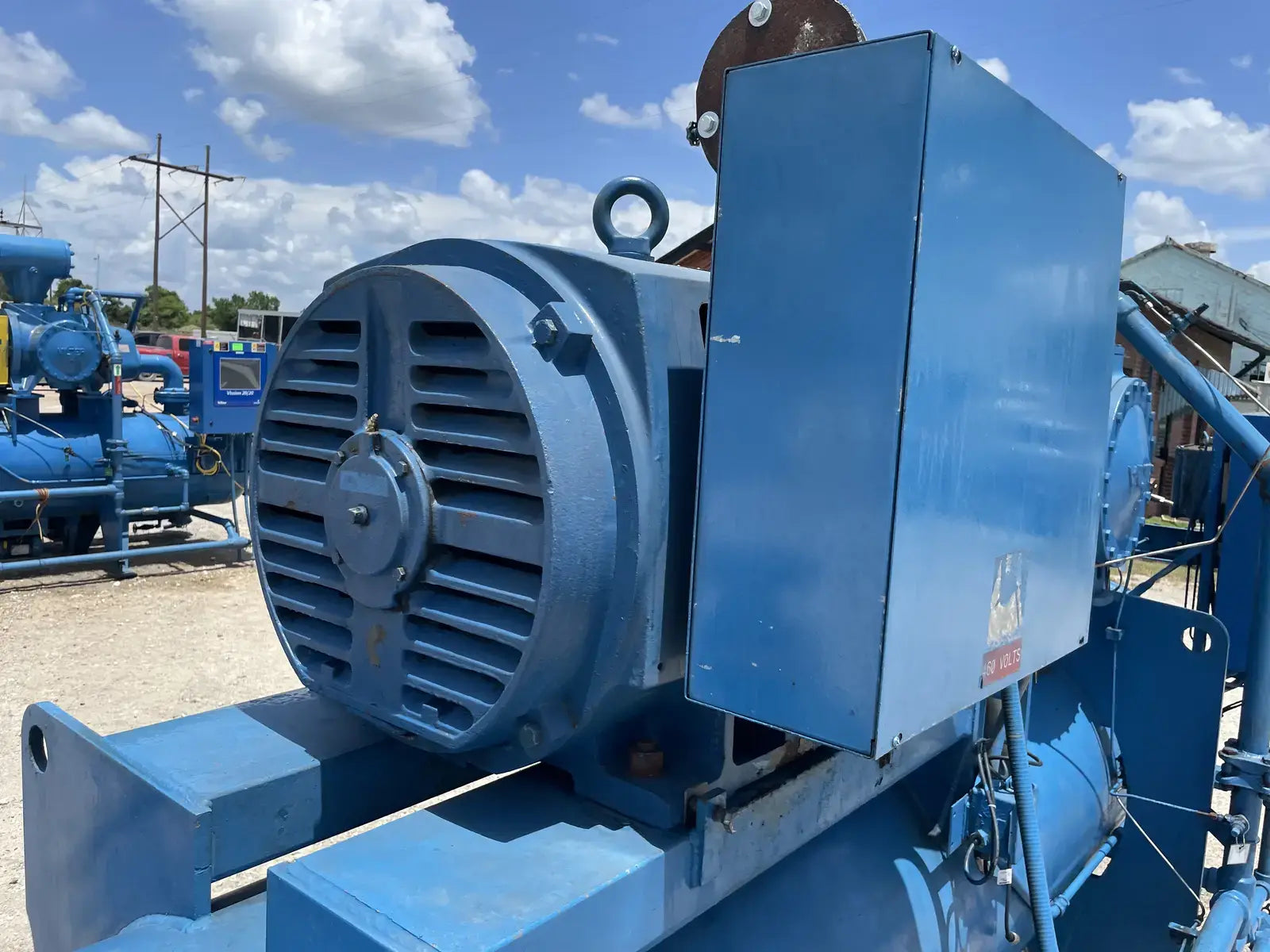

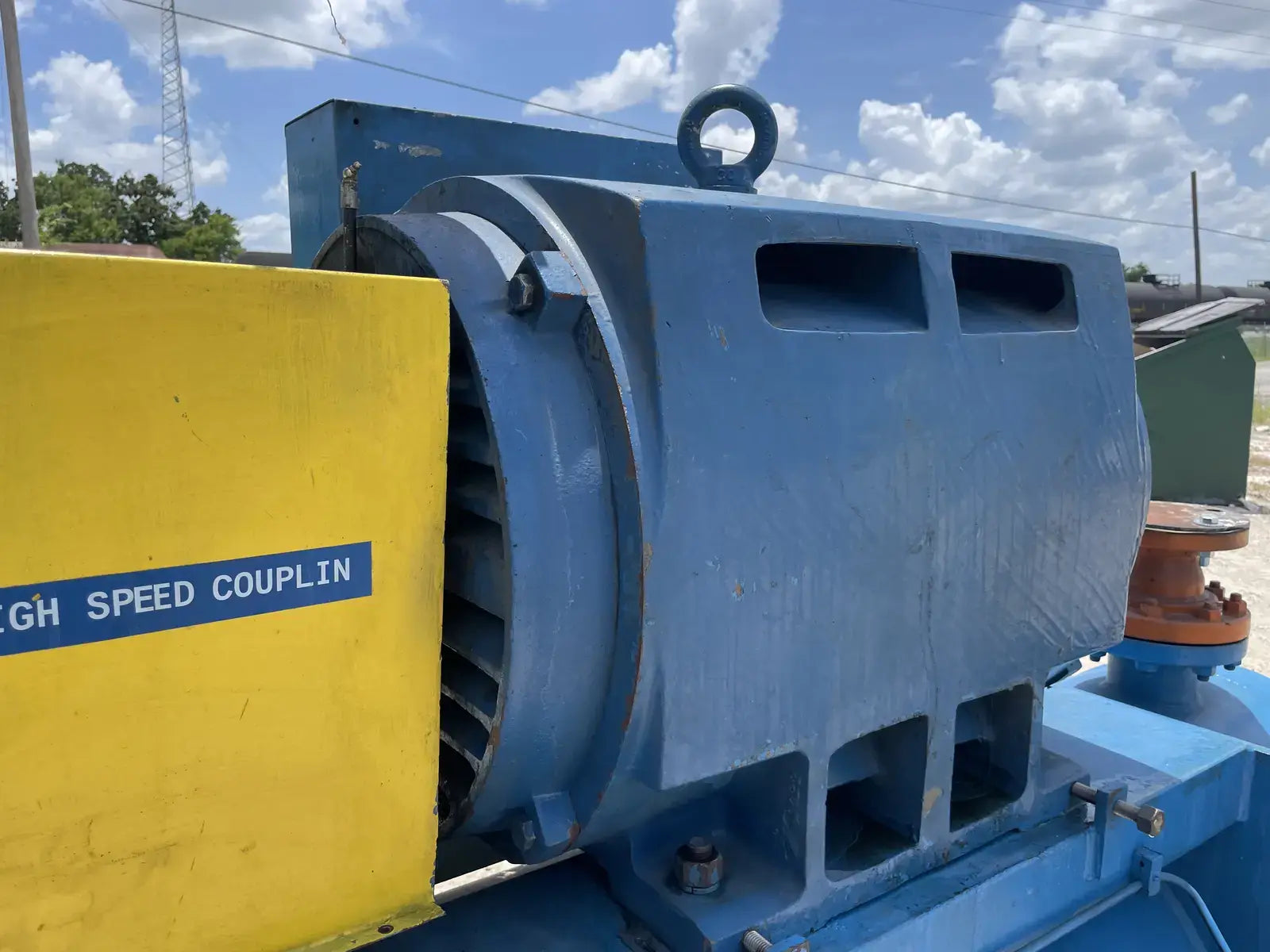

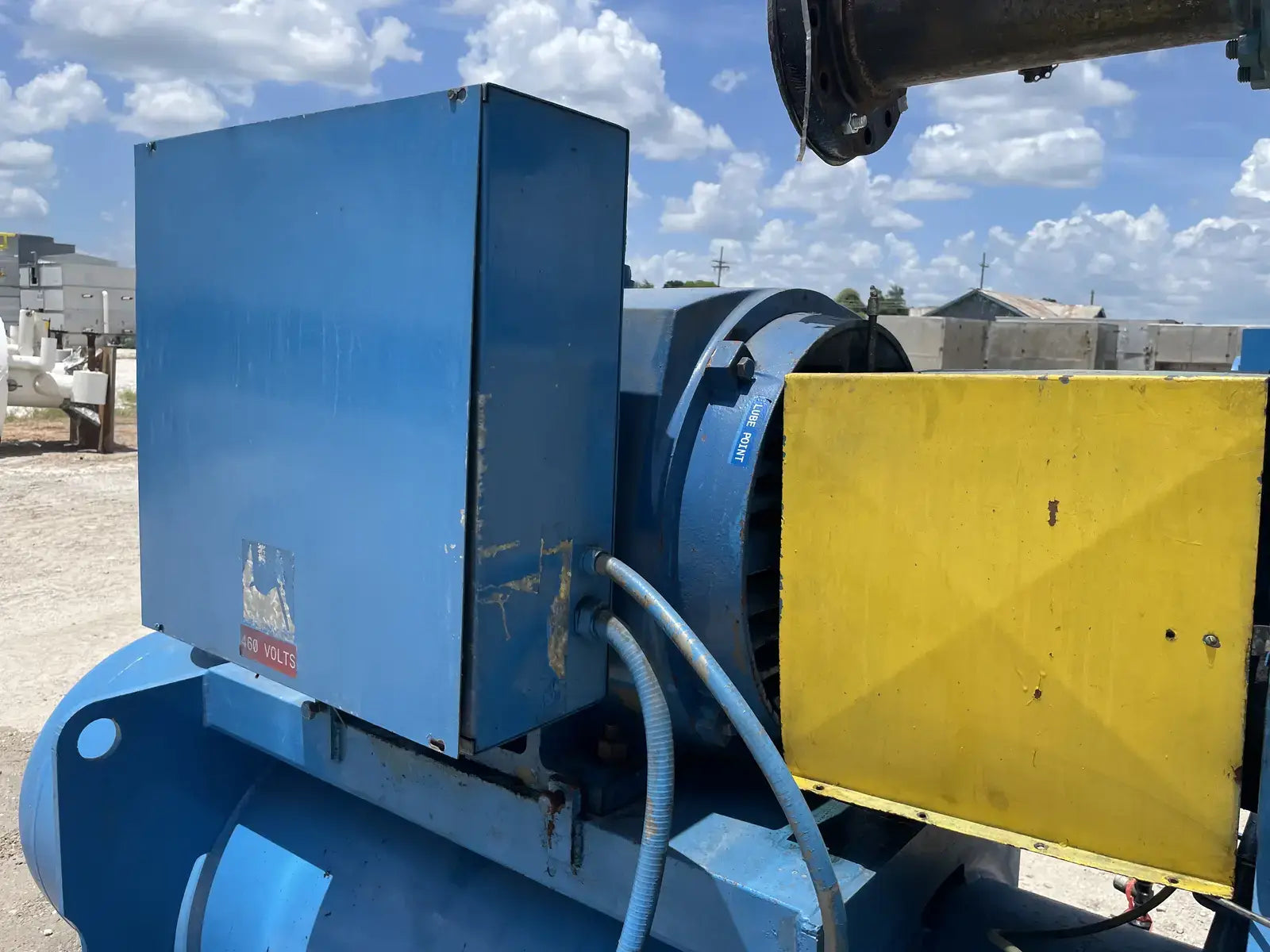

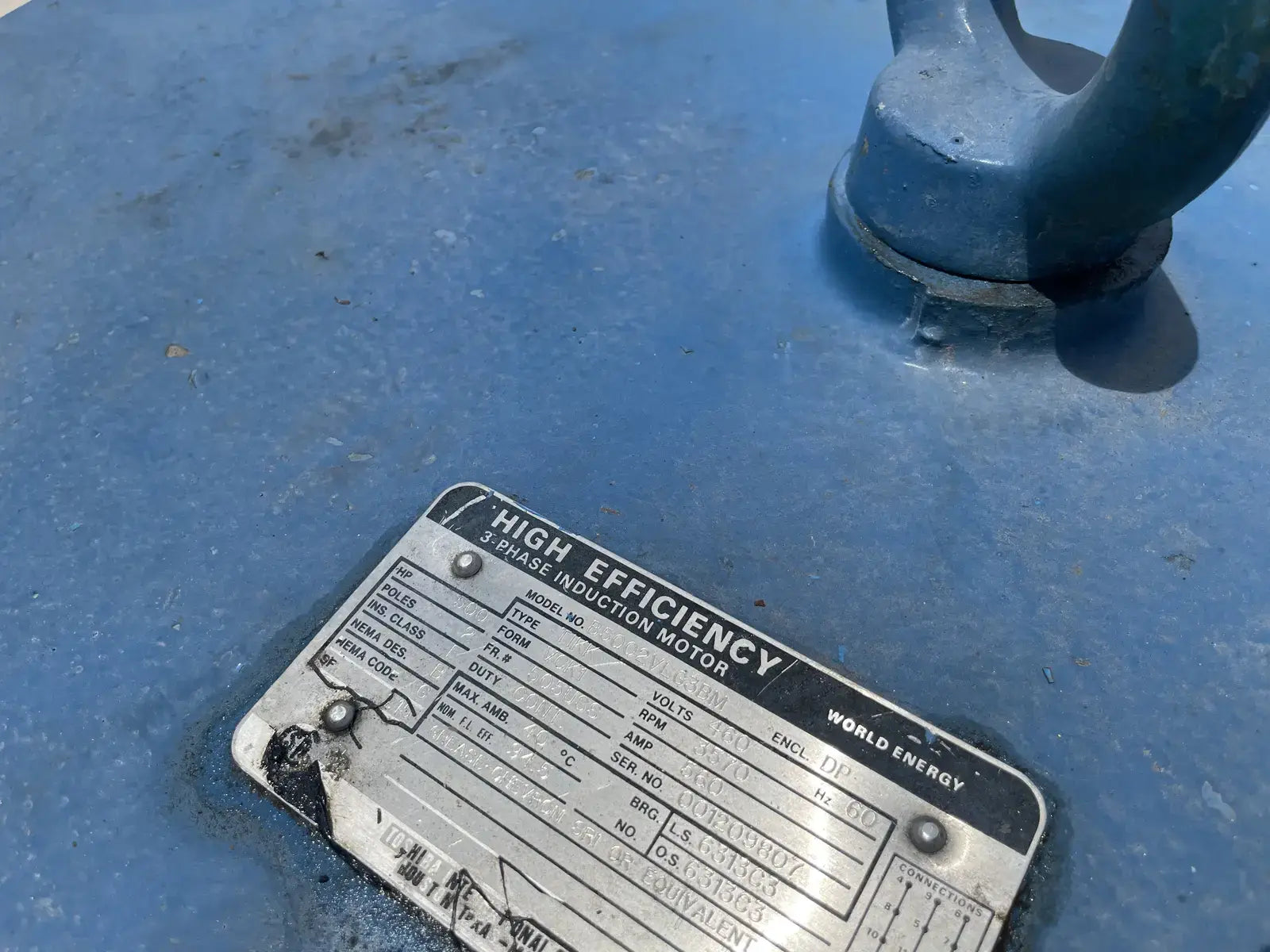

Motor Details
- Motor Included? Yes
- # Motors: 1
- Motor Manufacturer: Toshiba
- Motor Horsepower(HP): 500
- Motor RPM: 3,570
- Motor Voltage: 460
- Motor Amps: 560
- Motor Hertz (Hz): 60
- Motor Phases: 3
- Motor Frame Size: 505USS
Dimensions:
- Length (Inches): 180
- Width (Inches): 60
- Height (Inches): 80
- Weight (LBS): 9,500
- # of Pieces for Shipping: 1
Additional Product Details
- Year Removed from Production: 2026
- Spec Sheet Available: Yes
